Cooler Master MWE Gold 750 V3
Sursa de alimentare Cooler Master MWE Gold V3 750W ATX 3.1 Non-Modular
Cod produs: CM-PS-MPE-7506-ACAG-BEU
Întrebare despre Cooler Master MWE Gold 750 V3
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 750W |
| Certificat | 80+ Gold |
| Eficienţă | 90 % |
| Tip | Nemodulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 60 luni |
Related products
Putere:
650W
Certificat:
80+ Bronze
Eficienţă:
88 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
1050W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1250W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Level Up Your Power
Cooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power,
ultra-silent performance with exceptional efficiency and reliability.

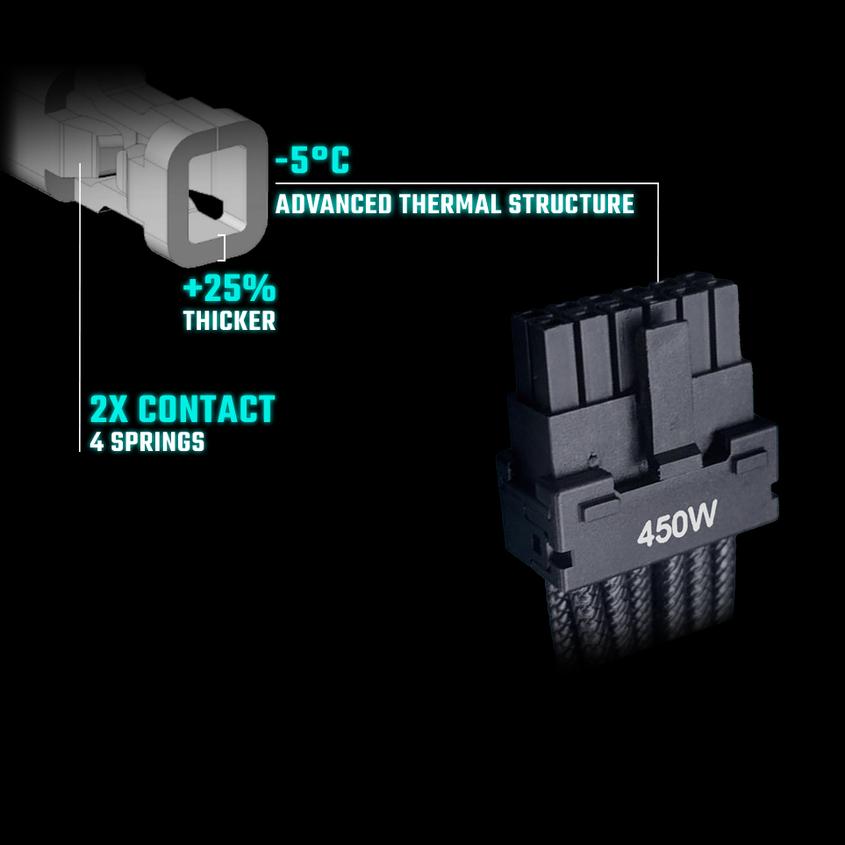

ATX 3.1 Support & a Durable 12V-2x6 Native Cable
( 750 / 850 only )
The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2x6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.

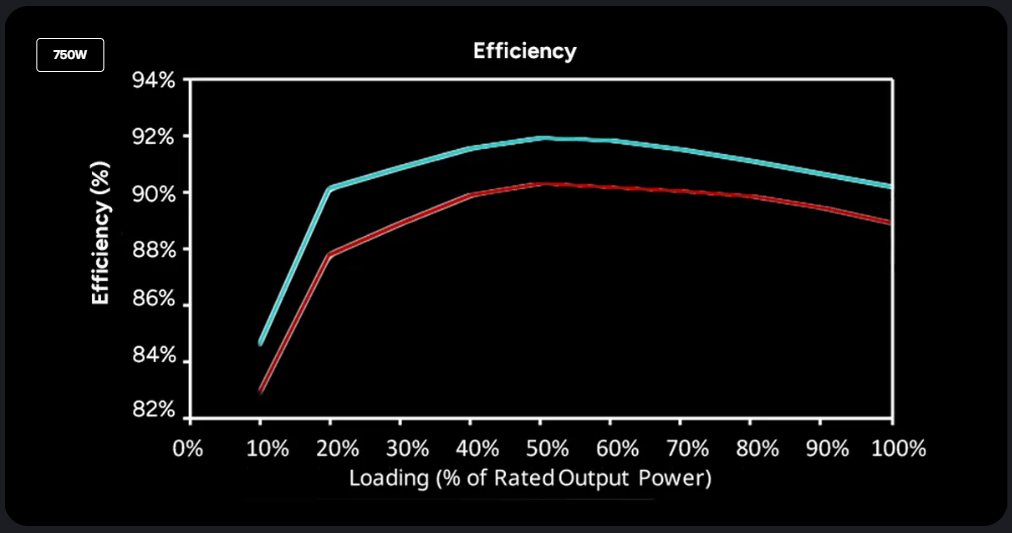

Certified Efficiency
The MWE Gold V3 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Specification
| Model | MPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B** | Hold Up Time | ≥16ms at 80% Load |
| ATX Version | ATX 12V Ver. 3.1 | MTBF | >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W) |
| PFC | Active PFC | Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Input Voltage | 100-240V | Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| Input Current | 10-6A (850/750W), 10-5A (650W), 8-4A (550W) | ATX 24 Pin Connectors | 1 |
| Input Frequency | 50-60Hz | EPS 8 Pin / 4+4 Pin Connectors | 2 |
| Dimensions (L x W x H) | 140 x 150 x 86 mm | PCI-e 6+2 Pin Connectors | 4 (850/750/650W), 2 (550W) |
| Fan Size | 120mm | SATA Connectors | 6 |
| Fan Bearing | HDB | Peripheral 4 Pin Connectors | 3 |
| Fan Speed | 2400 RPM (850/750/650W), 1800 RPM (550W) | 12V-2x6 (12+4 Pin) Connectors | 1 (850/750W) |
| Efficiency | ≥90% @ Typical Load | Series | MWE Gold Series |
| 80 PLUS Rating | 80 PLUS Gold | Modular | Non Modular |
| ErP 2014 Lot 3 | Yes | Form Factor | ATX |
| Operating Temperature | 0-40°C | 80 Plus Efficiency | Gold |
| Power Good Signal | 100 - 150 ms |
