Cooler Master Elite Gold 850
Sursa de alimentare Cooler Master Elite Gold 850W ATX 3.1
Întrebare despre Cooler Master Elite Gold 850
| Putere | 850W |
| Certificat | 80+ Gold |
| Eficienţă | 90 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 60 luni |
Related products
Cooler Master Elite Gold 850 este o sursa de alimentare fiabila si eficienta, proiectata pentru sisteme moderne de gaming si workstation. Cu certificare 80 Plus Gold, componente de calitate si compatibilitate cu standardele actuale, ofera alimentare stabila, silentioasa si durabila pentru configuratii puternice.
- Eficienta 80 Plus Gold – Consum optimizat de energie si pierderi reduse de caldura.
- Putere de 850W – Ideala pentru sisteme cu placi video performante si procesoare high‑end.
- Compatibilitate moderna – Suporta standardele actuale pentru componente de ultima generatie.
- Constructie premium – Componente interne de calitate pentru stabilitate si durata lunga de viata.
- Functionare silentioasa – Ventilator optimizat pentru zgomot redus si racire eficienta.
- Protectii multiple – OVP, OCP, SCP si alte sisteme de siguranta integrate.
- Design compact – Usor de integrat in majoritatea carcaselor ATX.
- Fiabilitate ridicata – Perfecta pentru gaming, editare, streaming si sarcini intensive.
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable
performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency,
dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power.
A compact 140mm form factor makes installation easy across a wide range of cases,

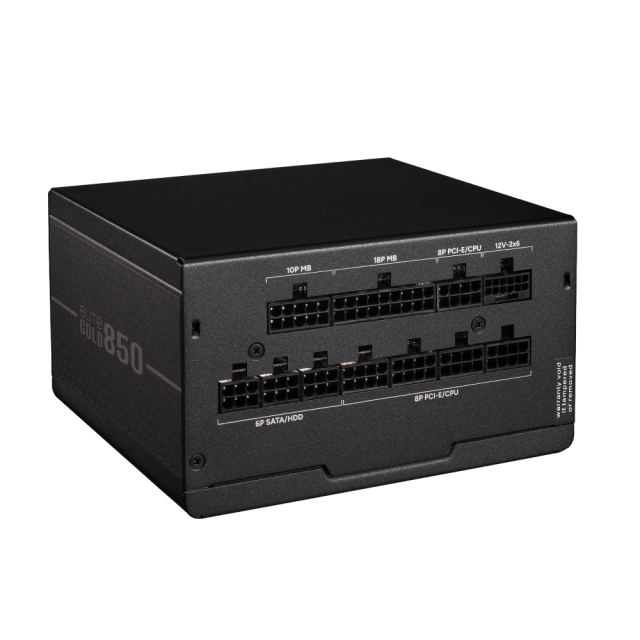

while fully modular embossed cables simplify cable management.
Backed by a 10-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.
Specifications
| Model | MPX-8505-AFAG | ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC | Input Voltage | 100-240V |
| Input Current | 16 ~ 12A | Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm | Fan Size | 120mm |
| Fan Bearing | Rifle bearing | Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold | ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C | Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 11ms @ 100% Load | MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP | Regulatory | cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| ATX 24 Pin Connectors | x1 = 1 (550mm) | EPS 4+4 Pin Connectors | x1 = 1 (600mm) |
| EPS 8 Pin Connector | x1 = 1 (600mm) | PCI-e 6+2 Pin Connectors | x3 = 1 (500+120mm), 1 (500mm) |
| SATA & Peripheral 4 Pin Connectors | X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm] | 12+4 Pin Connectors | x1 = 1 (650mm) |
| Series | Elite Series | Watts | 850W |
| Modular | Fully Modular | 80 Plus Efficiency | Gold |
| Form Factor | ATX | Warranty | 10 Years |
