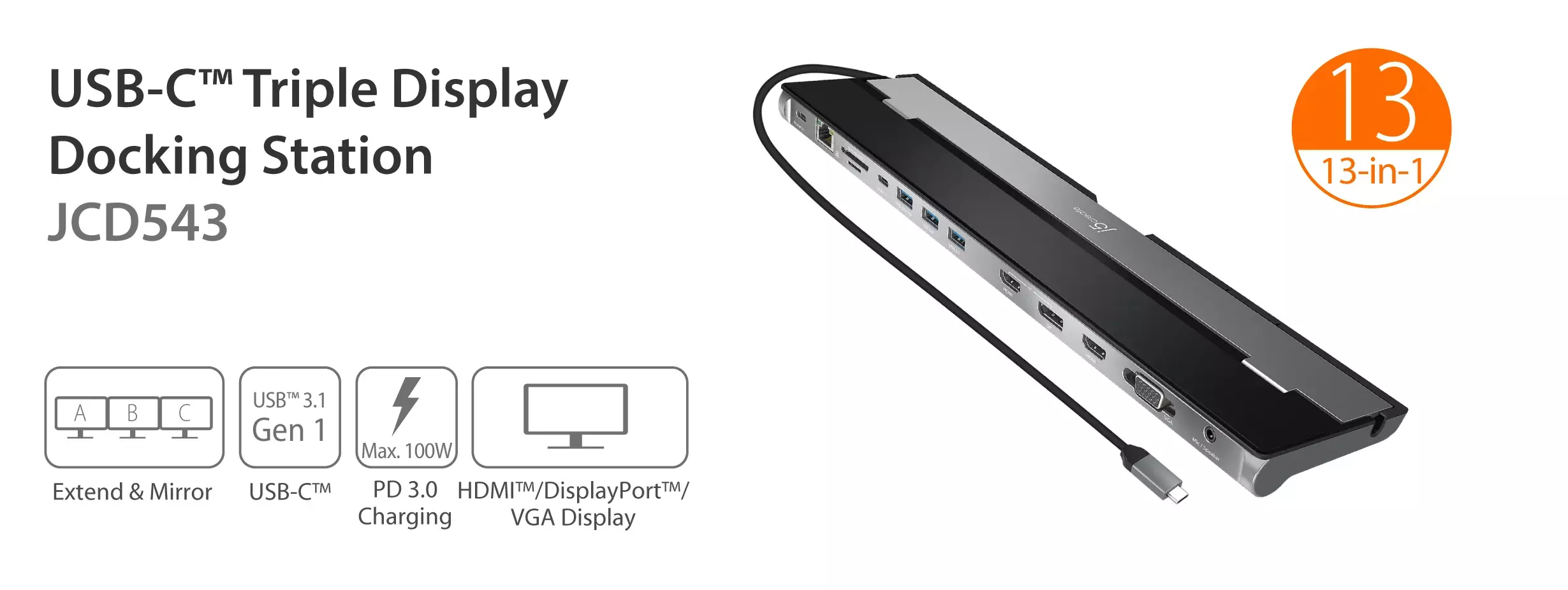

j5create JCD543 USB-C Triple Display Docking Station
Docking station j5create JCD543, pentru 3 monitoare, 100W PD
Cod produs: J5-JCD543
Întrebare despre j5create JCD543 USB-C Triple Display Docking Station
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Interfață | USB-C |
| Standard USB | USB 3.1 Gen 1, USB 3.0 |
| Porturi | USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort |
| Rezoluție suportată | 1080p@60Hz, 4K@30Hz |
Related products
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, USB-C, HDMI, SD Card reader, microSD card reader, 3.5 mm audio jack
Rezoluție suportată:
4K@60Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
8K@60Hz, 4K@144Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort
Rezoluție suportată:
4K@60Hz, 1080p@240Hz, 1440p@144Hz
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, USB-C, HDMI
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack
Rezoluție suportată:
1440p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
4K@60Hz, 1080p@144Hz, 1440p@120Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, DisplayPort
Rezoluție suportată:
4K@60Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 2
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
1080p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1, USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1
Porturi:
USB-A, USB-C, HDMI
Rezoluție suportată:
1080p@60Hz, 4K@30Hz
Aceast docking station triplu transforma laptopul Mac sau Windows intr-o statie de lucru completa cu o iesire DisplayPort,
doua iesiri HDMI si o iesire VGA, cu suport de rezolutie de pana la 4K ( 3840 x 2160 ) pe doua afisaje si 1080p
pe celalalt. Puteti utiliza, de asemenea, ecranul laptopului pentru patru afisaje in total, ceea ce face usor accesul la mai multe
aplicatii simultan. Cu 100W Power Delivery, trei porturi USB 3.0 si un port USB-C, statia de andocare este perfecta
pentru MacBook, Dell XPS sau alt laptop USB-C care necesita porturi suplimentare.

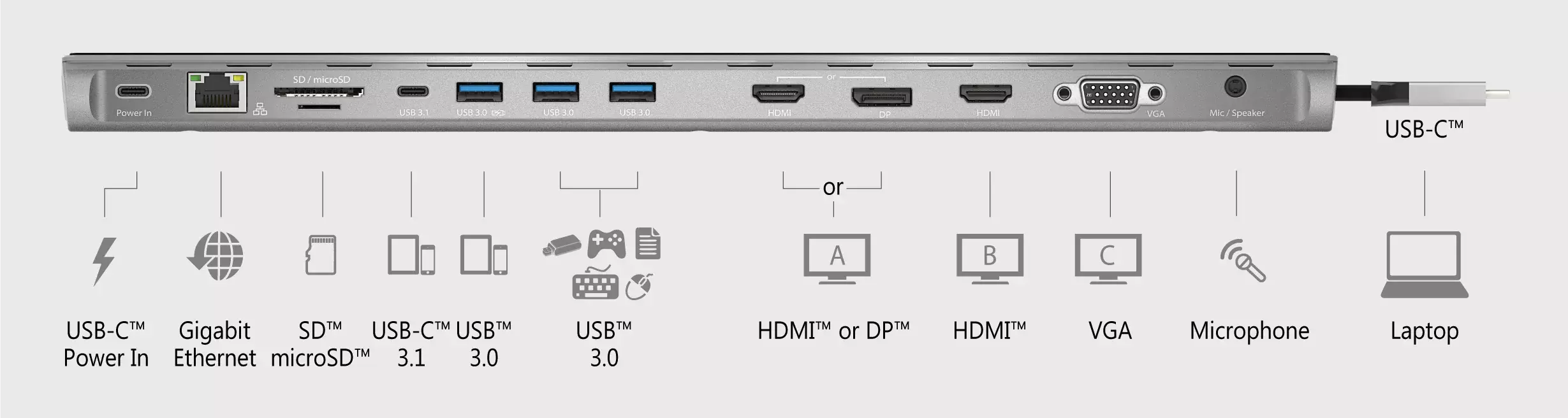

Conector gazda: USB-C tata
Interfata de retea: RJ45 (Gigabit Ethernet)
porturi: 2 - USB 3.0 Type-A
1 - USB 3.0 Type-A fast charge
1 - USB-C 3.1 Gen 1
1 - USB-C Power Delivery 3.0
2 - 4K HDMI
1 - DisplayPort
1 - VGA
1 - cititor/scriitor de carduri SD & microSD
1 - RJ45 Gigabit Ethernet
1 - 3.5 mm mufa audio combinata
Iesire video: 2 - HDMI mama
1 - DisplayPort mama
1 - VGA mama
canal audio: 2.1 prin HDMI / DisplayPort / 3.5 mm Aux
retele compatibile: 10/100/1000 Mbps
Afisaje sprijinite: 3 (HDMI™, VGA si DisplayPort sau HDMI)
Rata maxima de transfer de date: 5 Gbps
Rata maxima de reimproaspatare: HDMI/DisplayPort 4K: 30 Hz
HDMI/DisplayPort 1080p: 60 Hz
VGA: 60 Hz
Rezolutie maxima a afisajului: HDMI/DisplayPort: 3840 x 2160
VGA: 1920 x 1080
Curent de intrare: 5A
Tensiune de intrare: 20V
Curent de iesire: 5A
Tensiune de iesire: 20V

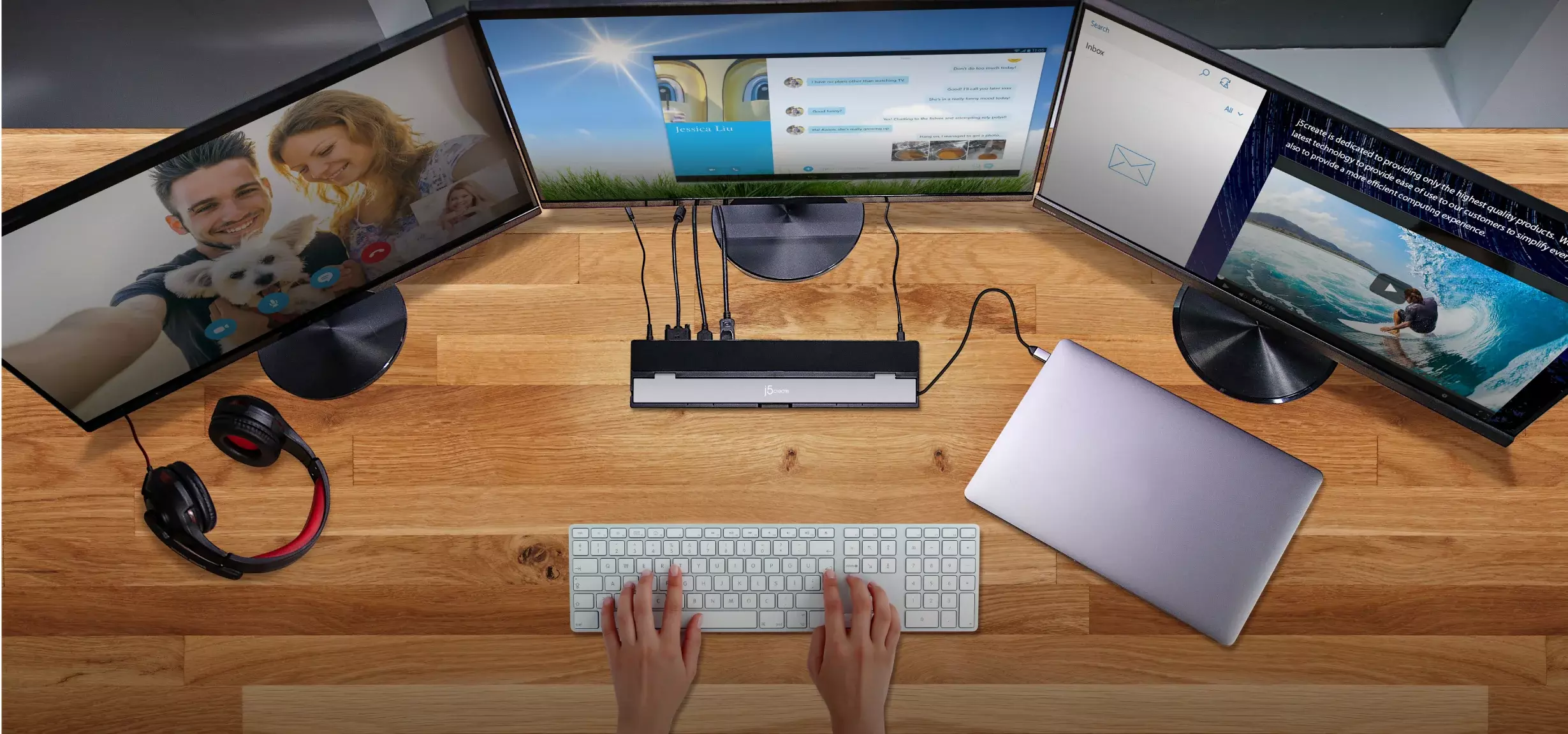

Simultaneous DisplayPort, HDMI and VGA Output
Supports Mirror and Extended modes on both Mac & Windows. The easiest way to add a second or third display.

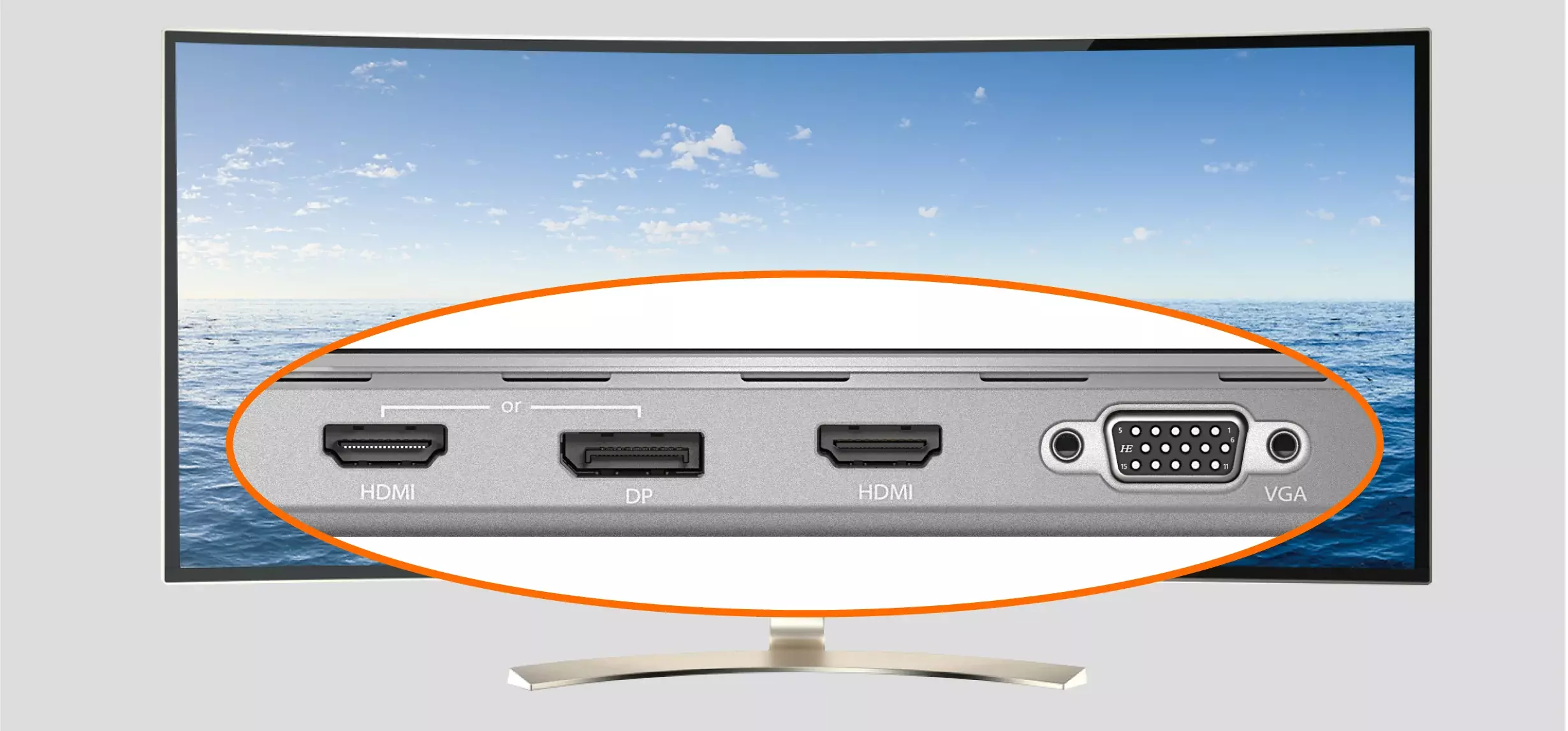

HDMI/DisplayPort/VGA Output Port
Supports 3 Video Interfaces
DisplayPort Alt mode for HDMI or DisplayPort resolution of 4K @ 30 Hz
HDMI resolution of 4K @ 30 Hz and VGA resolution of 1920 x 1080 via dual output

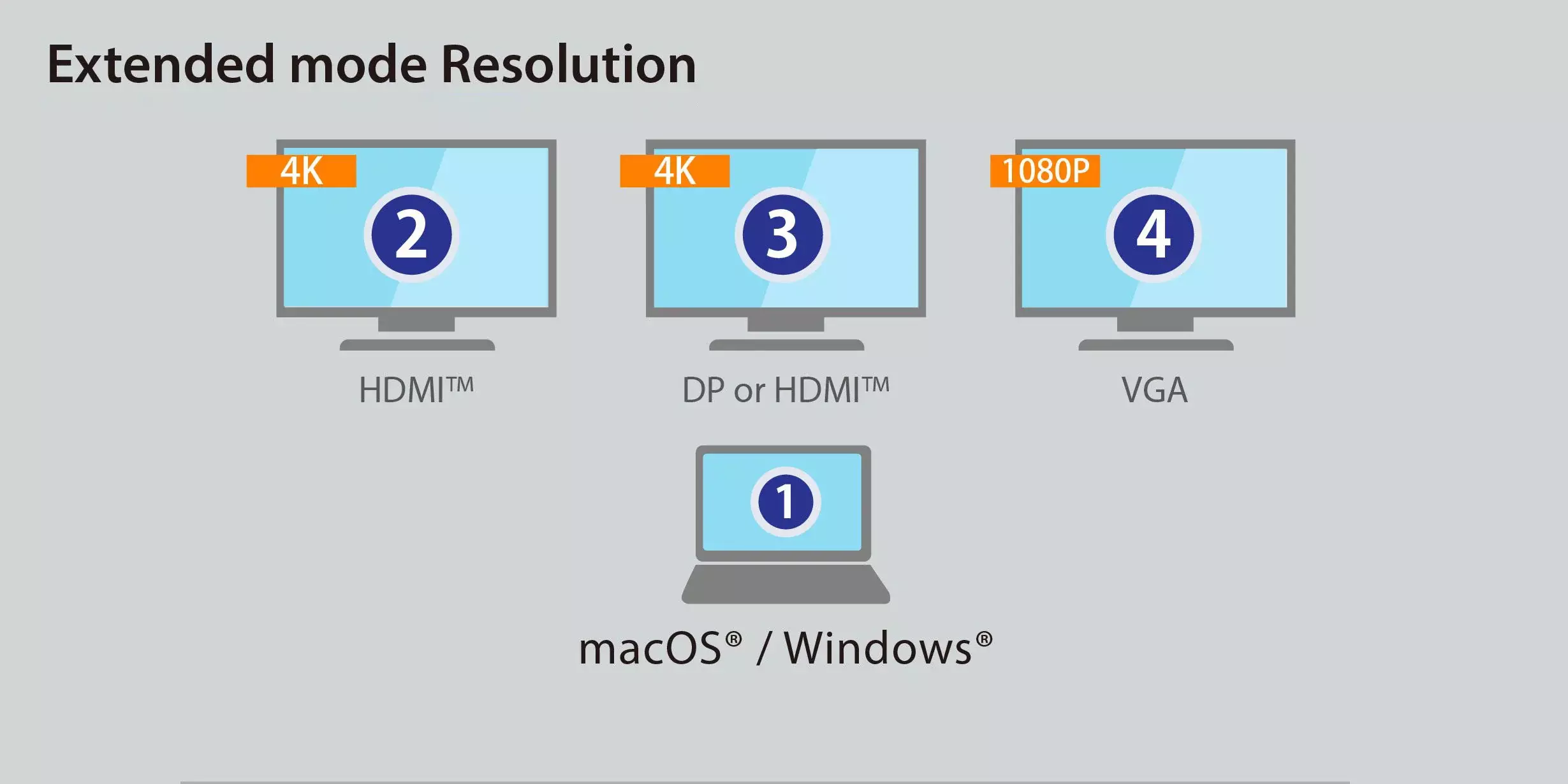

Maximum Resolutions Supported in Extended Mode
3 types of video outputs for you to connect up to 3 external monitors and together with your laptop display, you'll have a maximum of 4 displays.

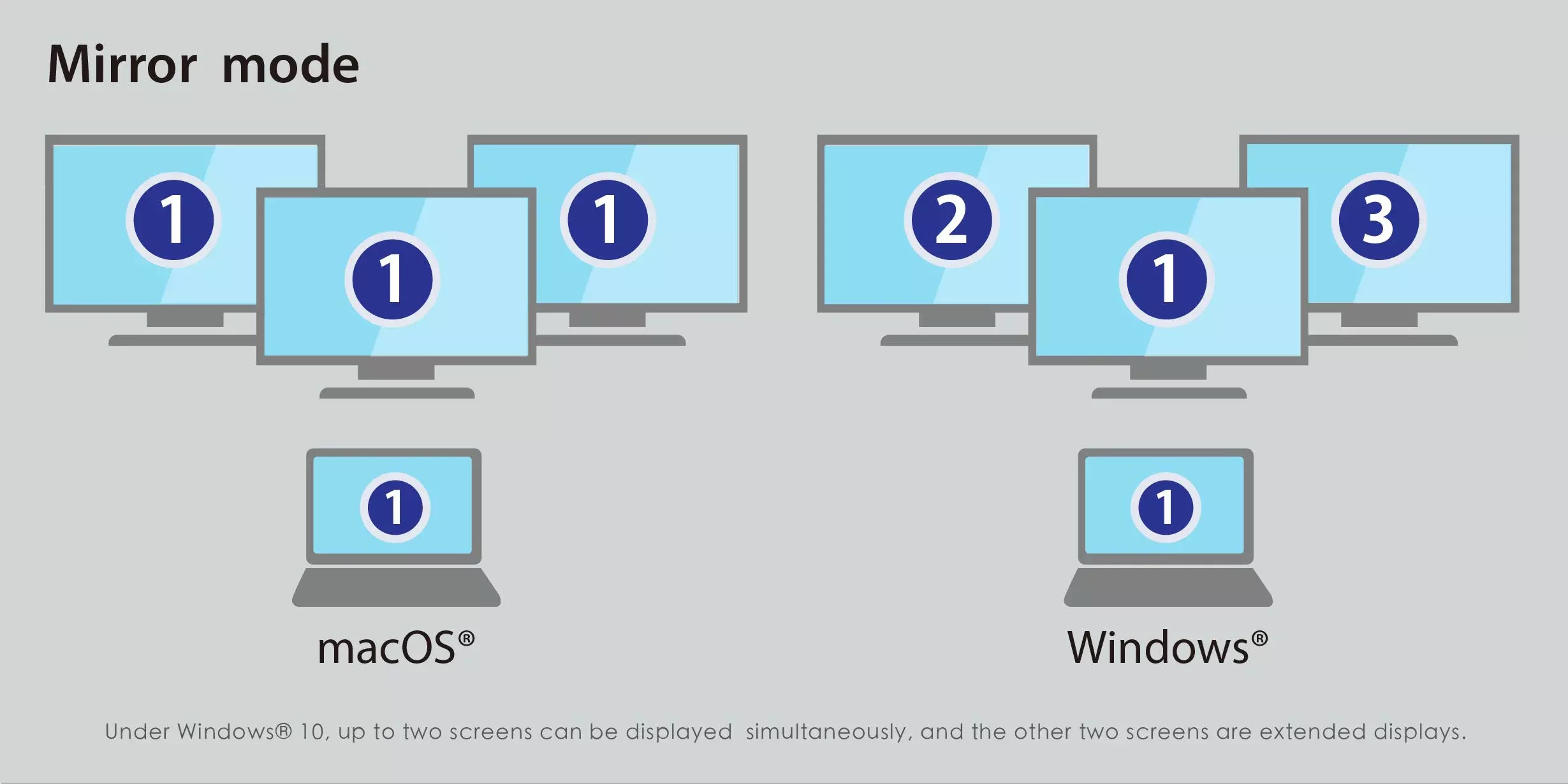

Maximum Resolutions Supported in Mirror Mode
1080p resolution is supported in a triple display configuration when VGA output is connected from macOS devices while 4K resolution is supported in a dual display configuration when VGA output is not connected from macOS devices

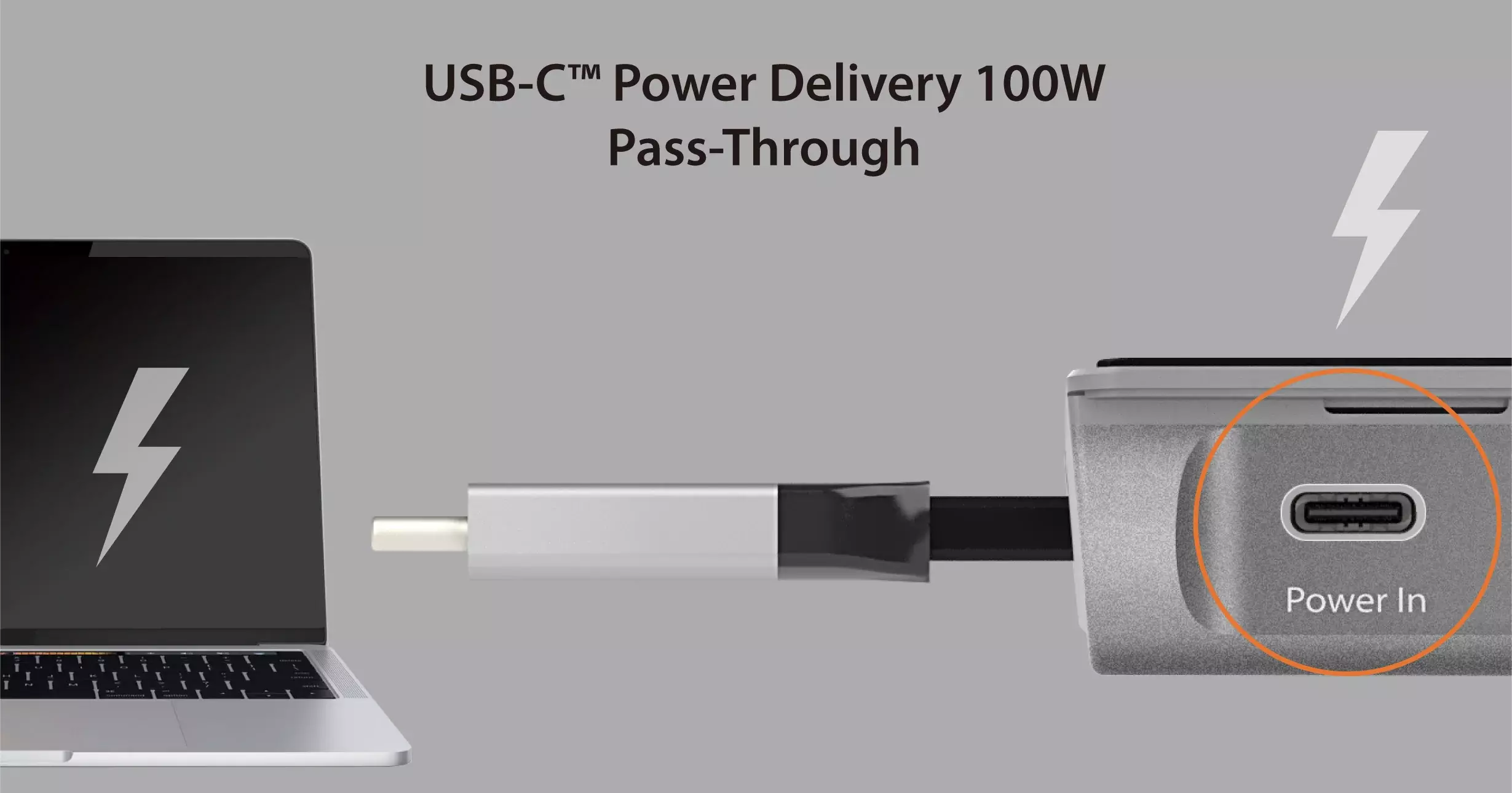

Charge your notebook or desktop through the JCD543

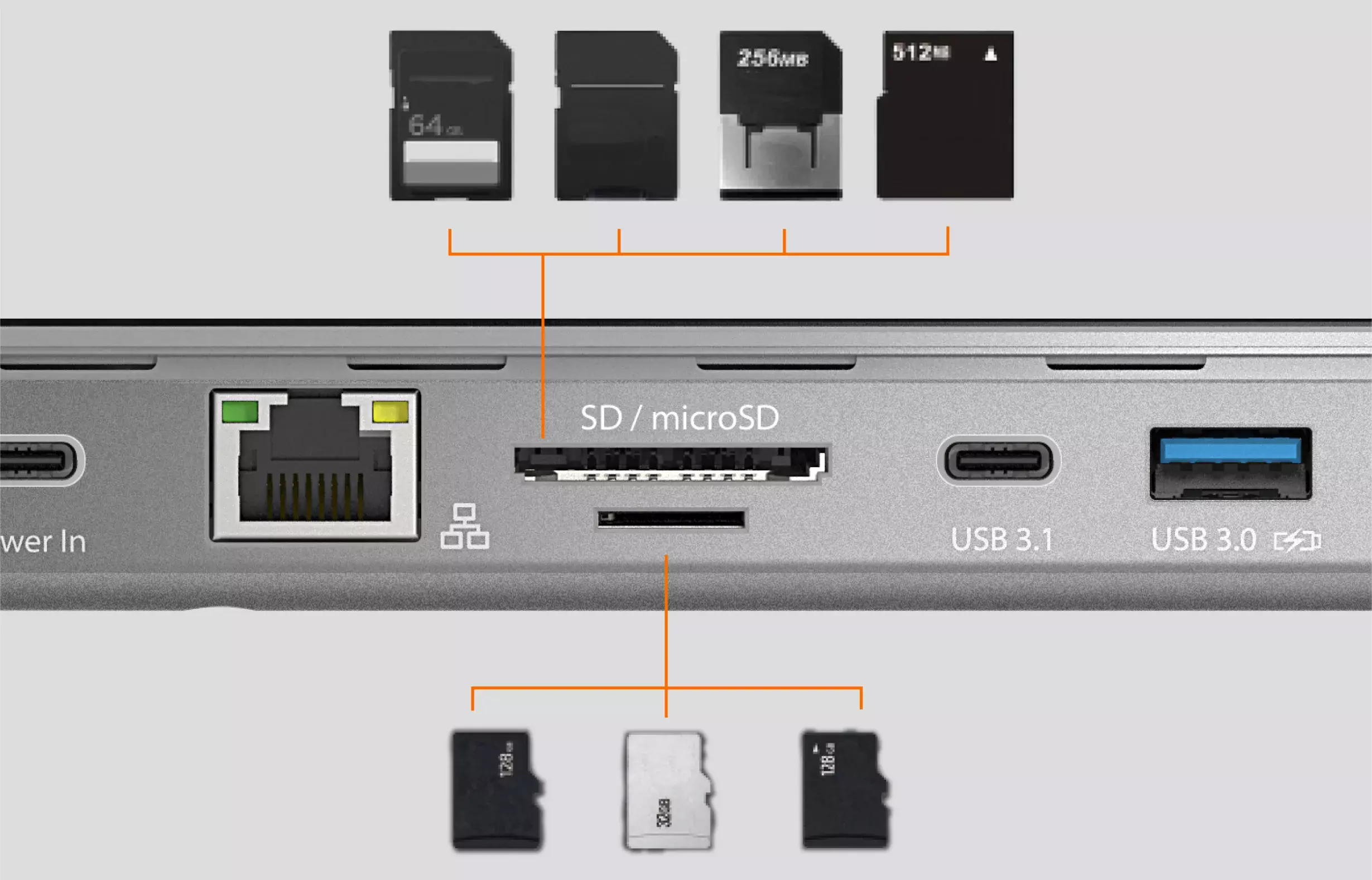

SD/microSD Card Reader
Easily manage and backup your data from your camera, video recorder and more

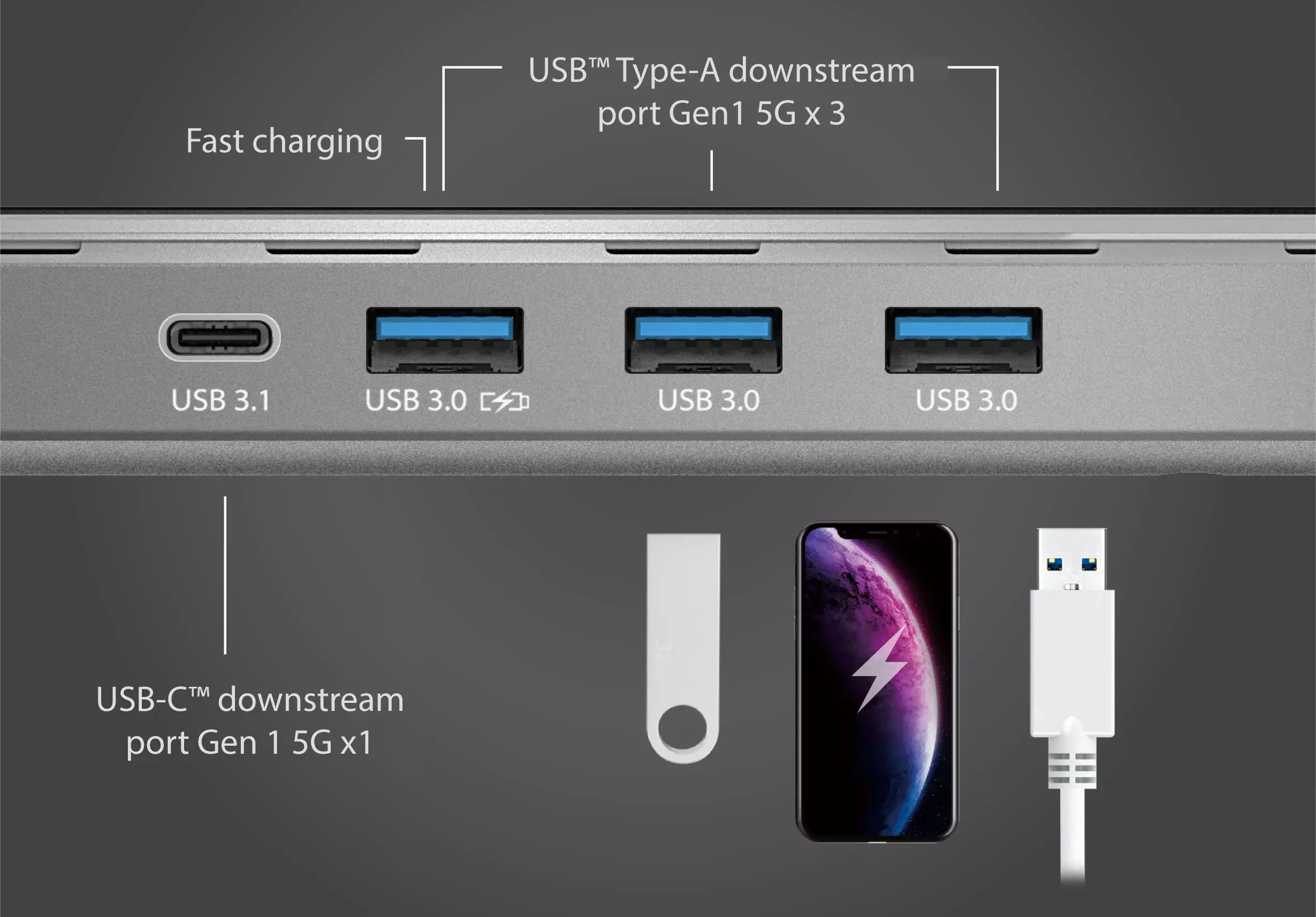

SuperSpeed USB 3.0 Ports
13 ports in one sleek design for all your needs

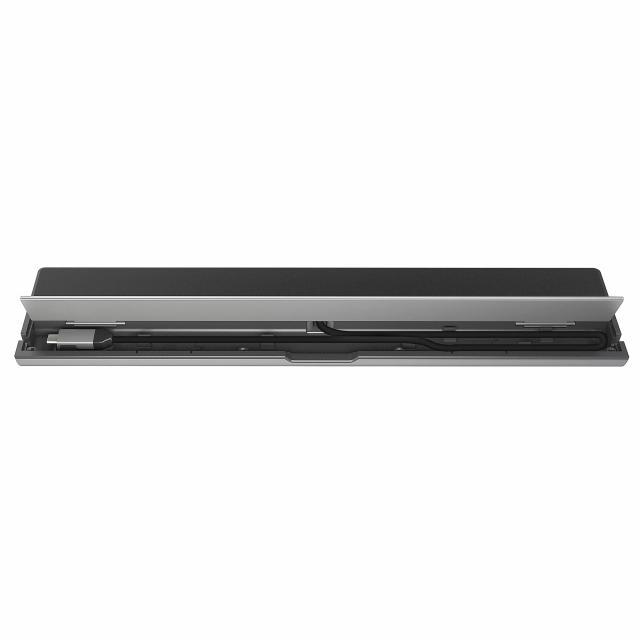

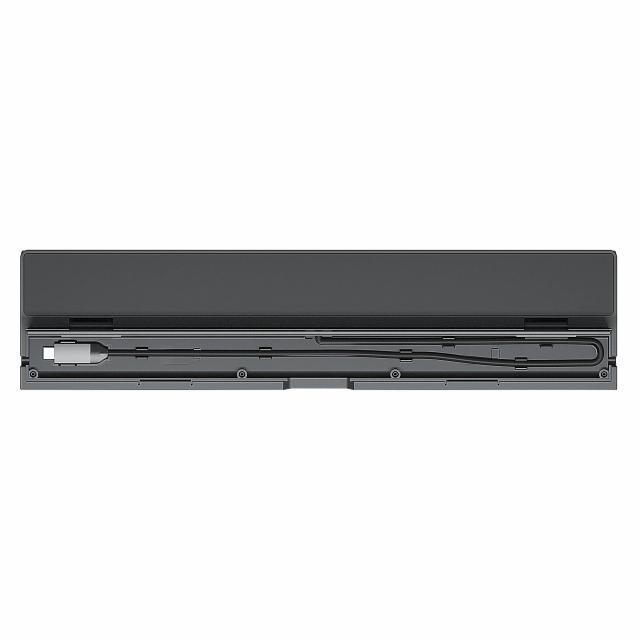

Double Sided Cable Storage Compartment
Place the cable anyway you like

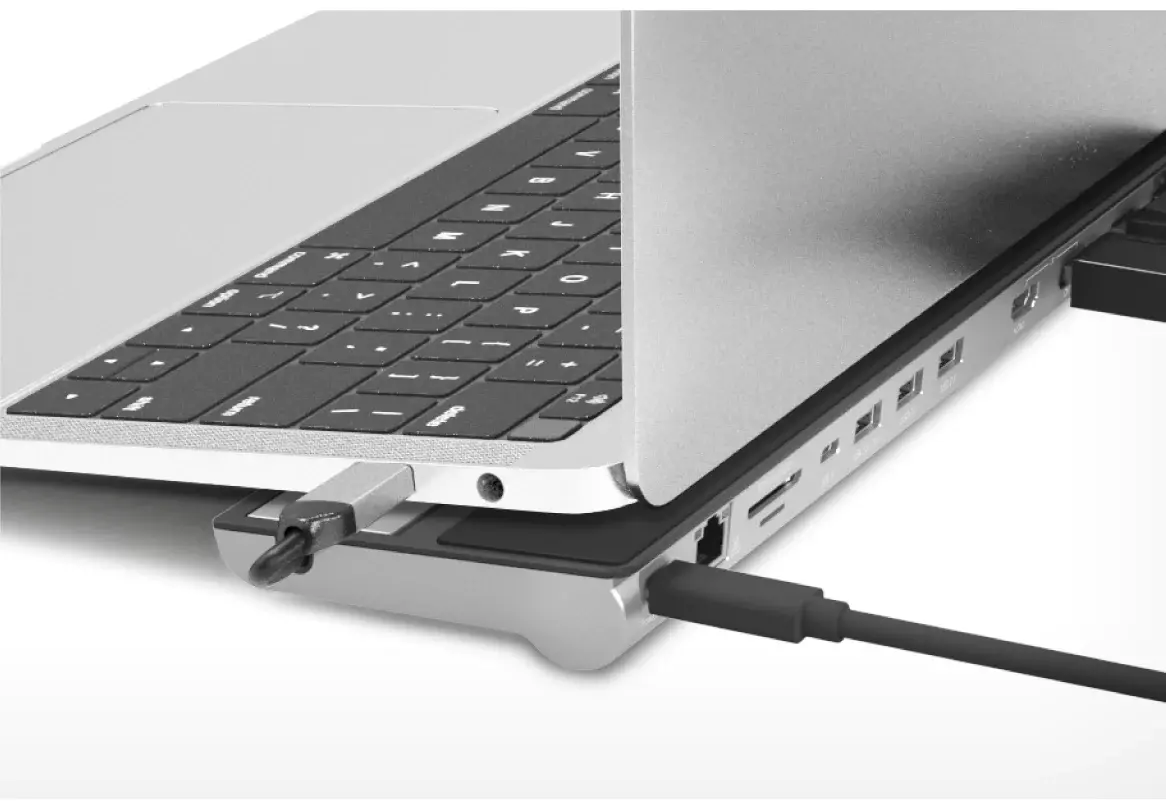

Cutting-Edge Design
The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating.

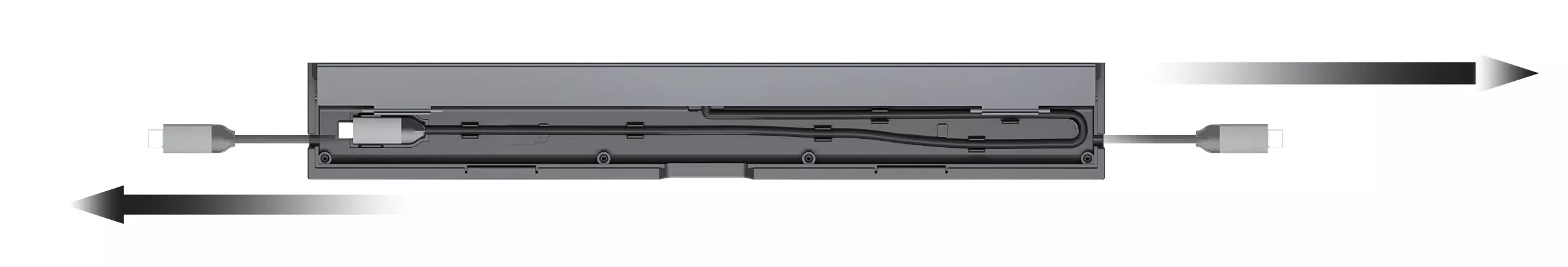

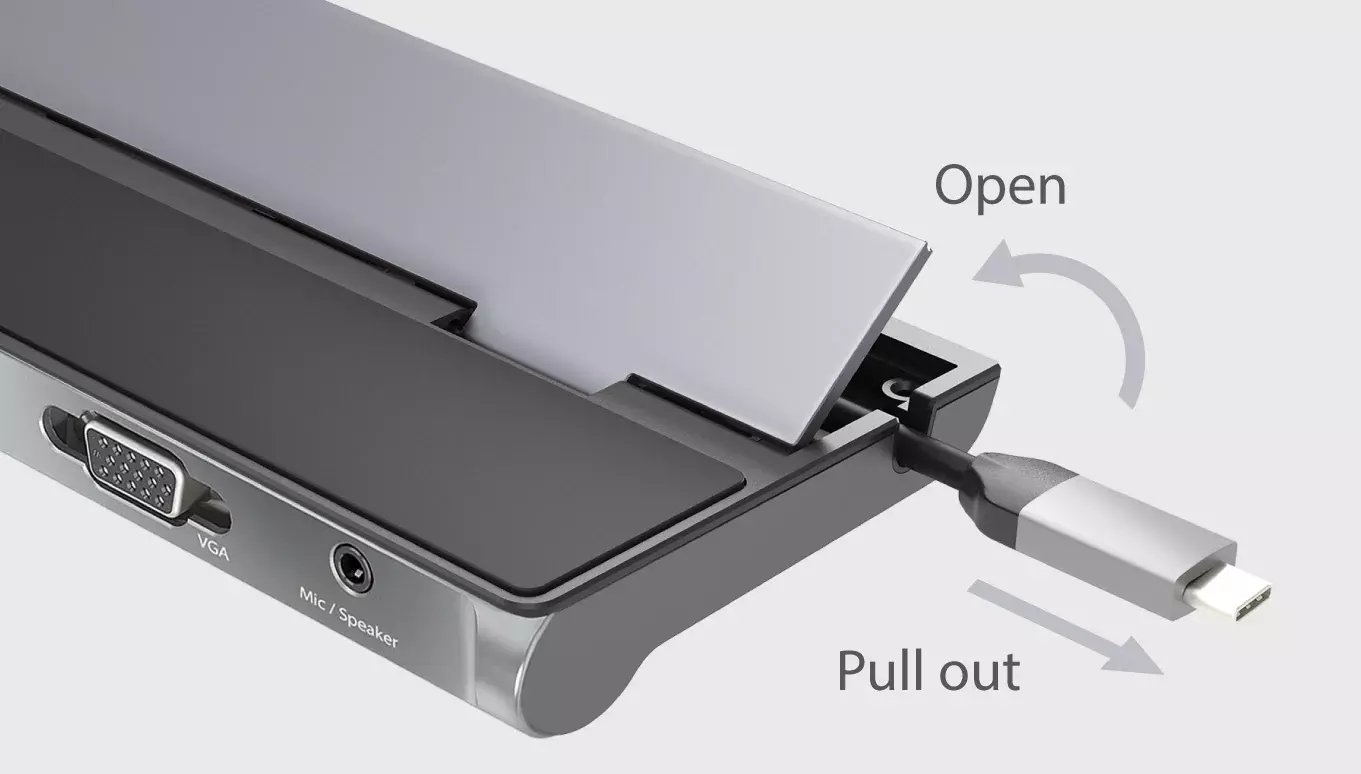

Cable Storage with Dual Openings

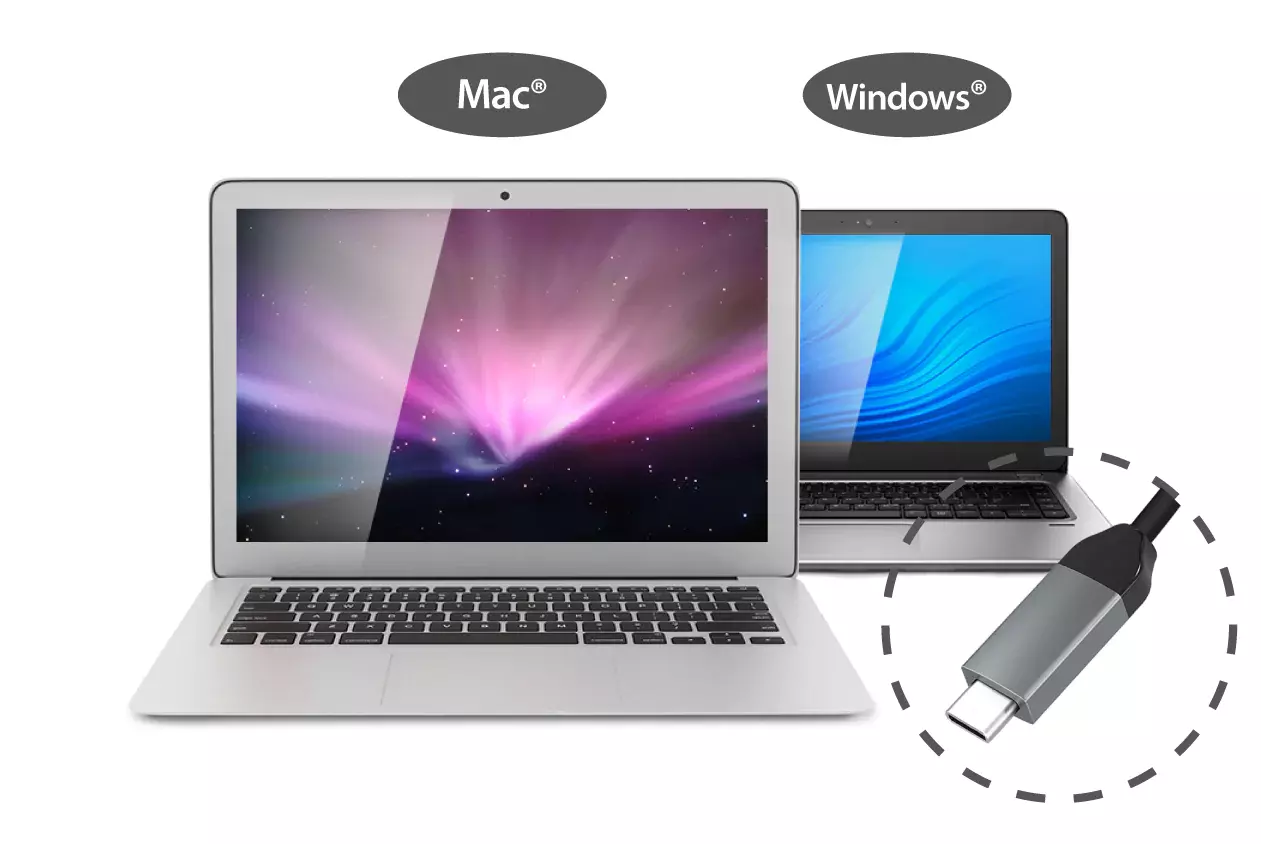

Universal Compatibility
Compatible with both Mac & Windows
Physical Specifications
Specifications
Hardware
| Audio Supported | Yes |
| Host Connector | USB-C Male |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Ports |
|
| Power Source | Bus-powered or Self-powered |
| Video Output |
|
| Warranty | 2 Year Limited |
Performance
| Audio Channel | 2.1 via HDMI/DisplayPort/3.5 mm Aux |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 3 (HDMI, VGA and DisplayPort or HDMI) |
| Max Data Transfer Rate | 5 Gbps |
| Max Display Refresh Rate |
|
| Max Display Resolution |
|
Power
| Input Current | 5A |
| Input Voltage | 20V |
| Output Current | 5A |
| Output Voltage | 20V |
| Power Consumption | ≤ 900 mA |
| Power Delivery | Up to 100W via USB-C |

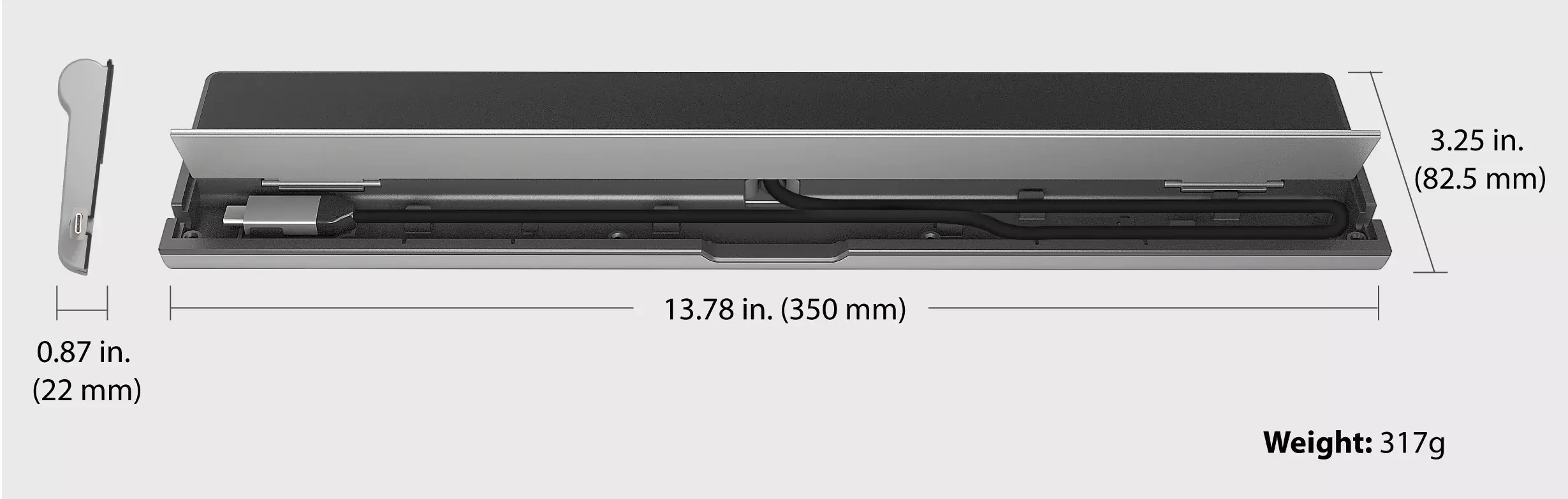

Physical Specifications
| Cable Length | 1.48 ft (45 cm) |
| Color | Silver, Black |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Product Depth | 13.78 in. (350 mm) |
| Product Height | 0.92 in. (23.37 mm) |
| Product Weight | 10.58 oz (300g) |
| Product Width | 3.25 in. (82.5 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
