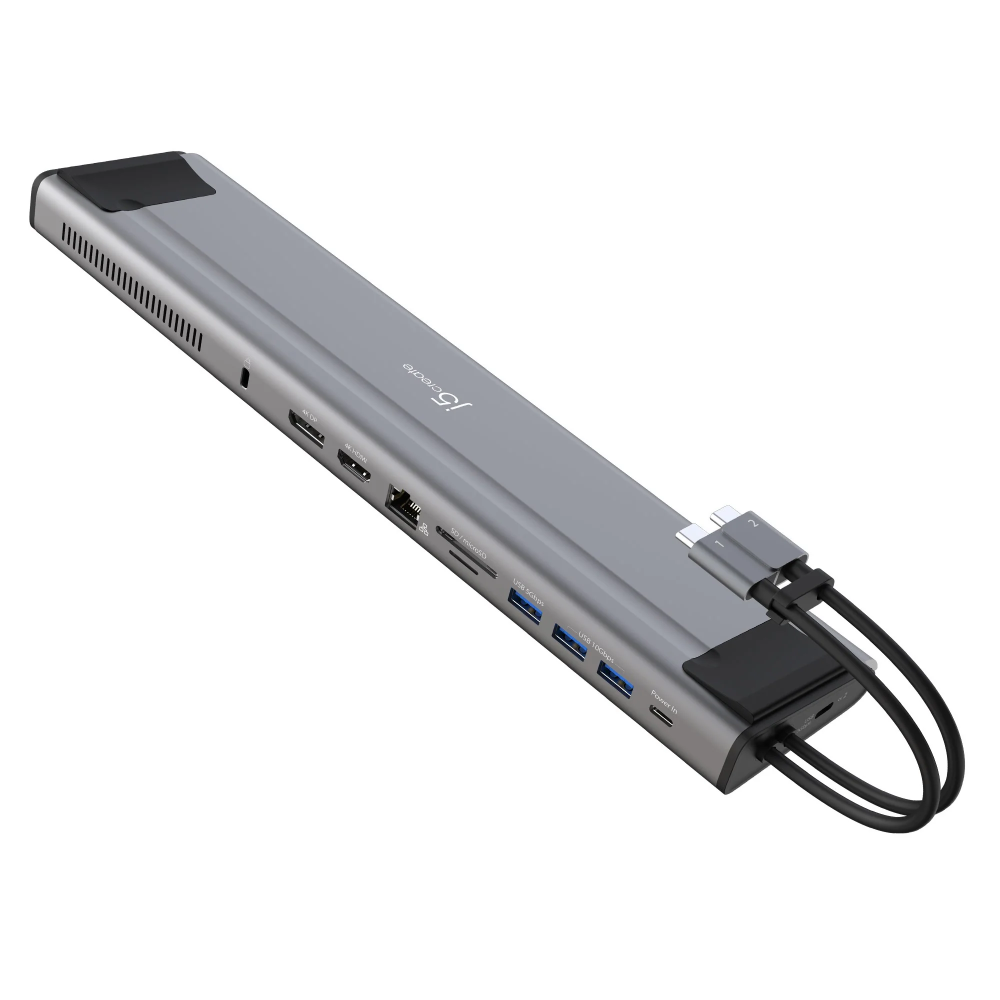

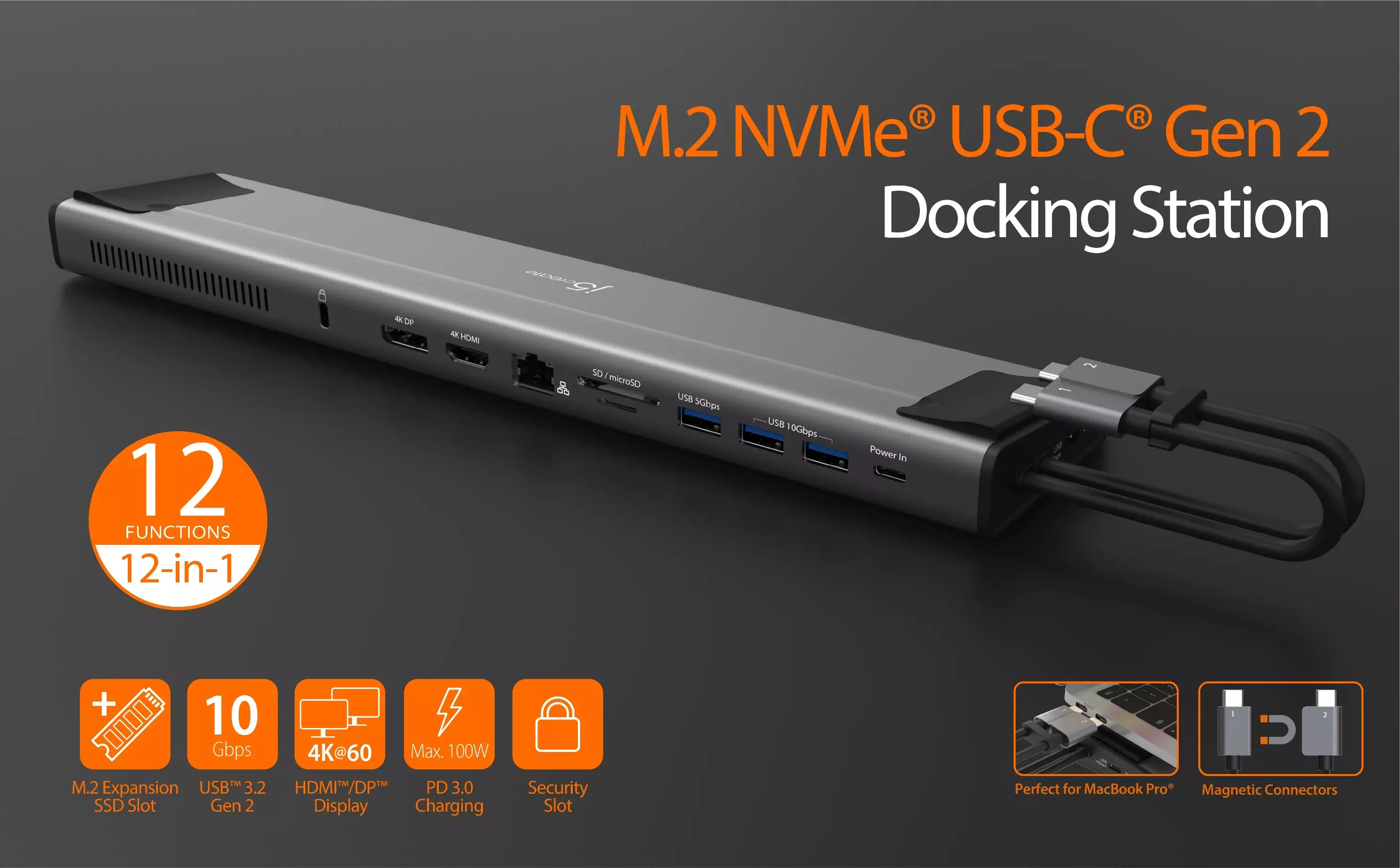

j5create M.2 NVMe USB-C Gen 2 Docking Station

Docking station j5create JCD552, M.2 NVMe, USB-C Gen 2

Cod produs: J5-JCD552

la cerere (contactați-ne)

Întrebare despre j5create M.2 NVMe USB-C Gen 2 Docking Station

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	24 luni
Interfață	USB-C
Standard USB	USB 3.2 Gen 2
Porturi	USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort, M.2
Rezoluție suportată	4K@60Hz

Related products

j5create Wood Monitor Stand with Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JTS427 Multi-Angle Dual HDMI Docking Stand

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI, LAN

Rezoluție suportată: 4K@30Hz

j5create JCD543P USB-C Triple Display Docking Station with 100W PD Adapter

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JCD543 USB-C Triple Display Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JTS224 Multi-Angle Stand with Docking Station for iPad Pro

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 4K@60Hz

j5create JCD403 USB4 8K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN

Rezoluție suportată: 8K@60Hz, 4K@144Hz

j5create 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort

Rezoluție suportată: 4K@60Hz, 1080p@240Hz, 1440p@144Hz

j5create Multi-Angle 4K Docking Stand

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 4K@30Hz

j5create USB-C Dual HDMI Docking Station

Interfață: USB-C

Standard USB: USB 3.0

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 1440p@60Hz, 4K@30Hz

j5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader

Rezoluție suportată: 4K@60Hz, 1080p@144Hz, 1440p@120Hz

j5create USB4 Dual 4K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, DisplayPort

Rezoluție suportată: 4K@60Hz

j5create USB-C Modular Multi-Adapter with 2 Kits

Interfață: USB-C

Standard USB: USB 3.1 Gen 2

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

Cresteti-va productivitatea cu statia de andocare M.2 NVMe USB-C Gen 2, transformand Thunderbolt 3 sau
Laptop compatibil USB-C intr-o statie de lucru duala 4K cu pana la 10 Gbps. Acest doc de inalta performanta are un
Slot SSD M.2 NVMe / SATA PCIe pentru a va extinde spatiul de stocare intern, trei porturi SuperSpeed USB 10 Gbps ( un USB-C si doua USB Type-A ),
un port Ethernet Gigabit, cititor / scriitor de carduri de memorie SD si microSD si un port USB de tip A 5 Gbps.

conector gazda: 2 - USB-C Masculin
porturi: 1 - M.2 slot NVMe / SATA ( 2230.2242.2260.2280 )
1 - USB-C 3.2 Gen 2
1 - USB-C Power Delivery 3.0
2 - USB tip A 3.2 Gen 2
1 - USB tip A 3.2 Gen 1
1 - 4K HDMI
1 - 4K DisplayPort
1 - Cititor / scriitor de carduri de memorie SD si microSD 3.0
1 - RJ45 Gigabit Ethernet
1 - Slot de blocare de securitate
iesire video: 1 - HDMI Femeie
1 - DisplayPort Femeie
canal audio: 2.1 prin HDMI / DisplayPort
retele compatibile: 10/100/1000 Mbps
afisaje acceptate: 2
rata maxima de transfer de date: 10 Gbps
Slot M.2 - Scriere: 900 MB / s, Citeste: 925 MB / s
rata maxima de actualizare a afisajului: 60 Hz
rezolutie maxima de afisare: 3840 x 2160
curent de intrare: 5A
tensiune de intrare: 20V
curent de iesire: 5A
tensiune de iesire: 20V
livrare de energie: Pana la 100W prin USB-C

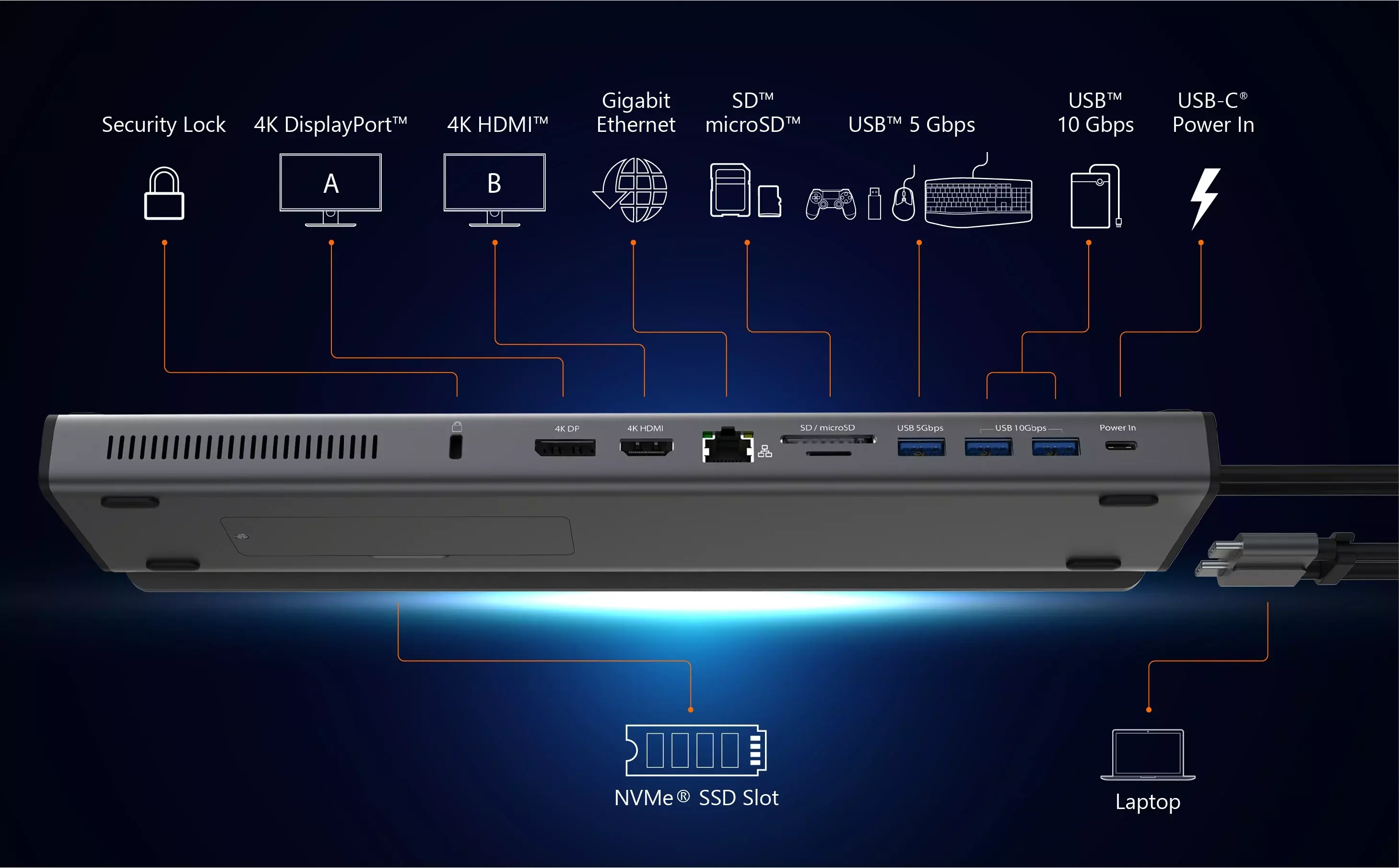

Multiple Connectivity Options for Greater Efficiency

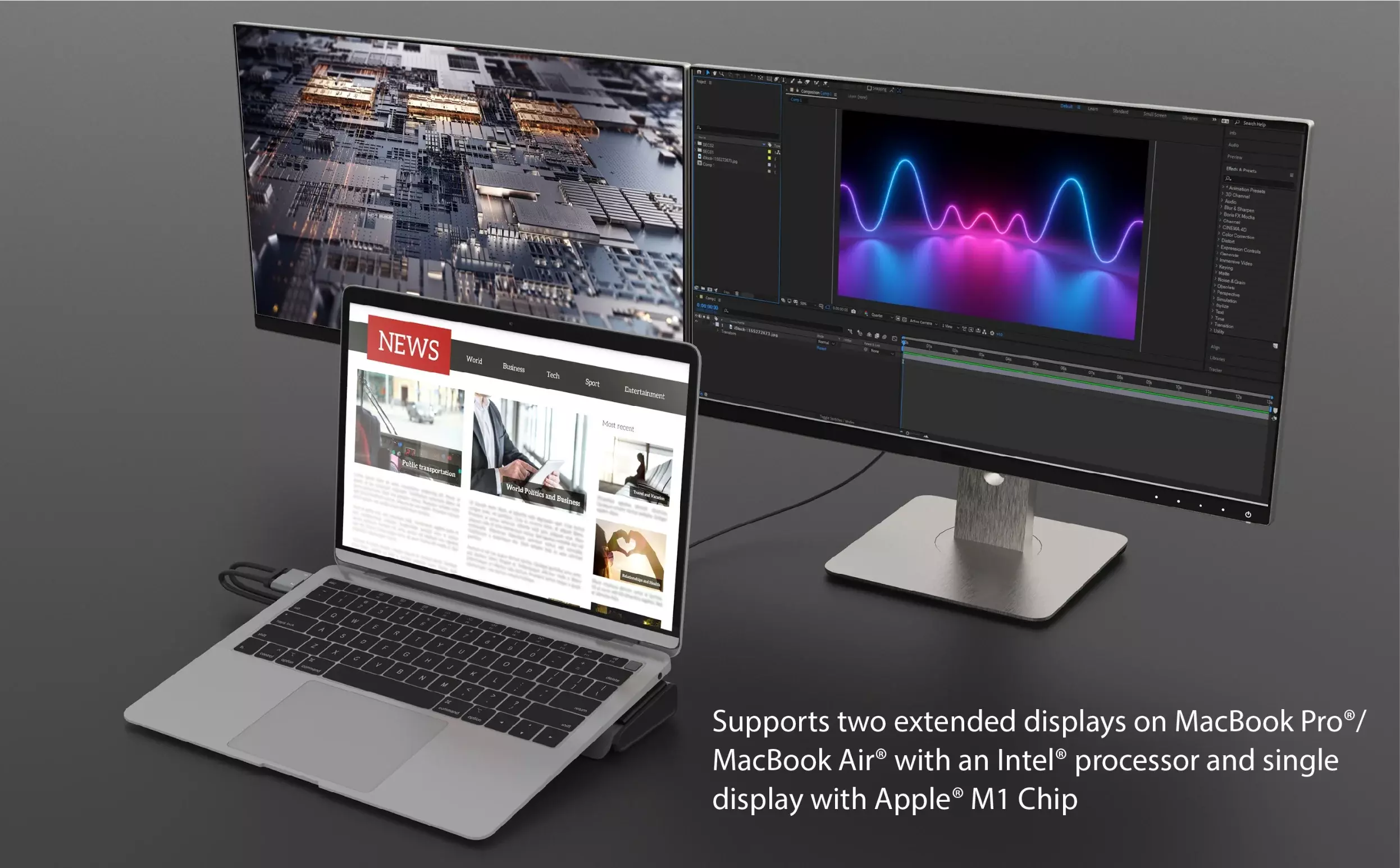

Dual 4K Monitor Setup

Supports up to dual 4K @ 60Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance
*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI display with one USB-C port supporting DP Alt Mode

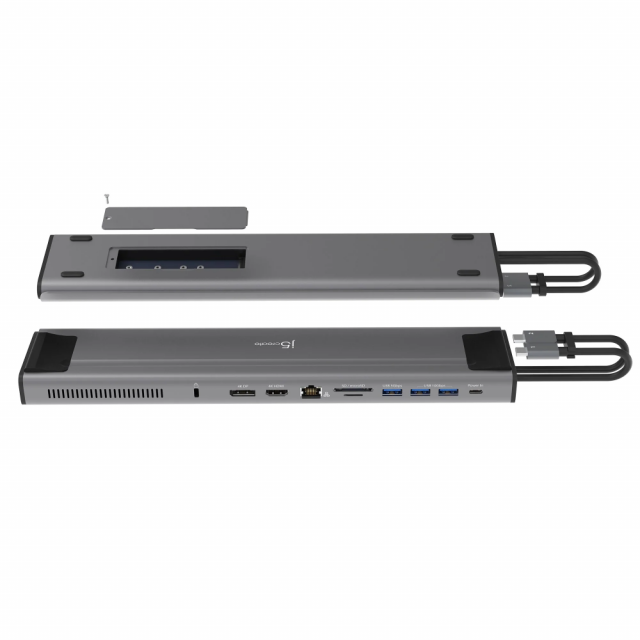

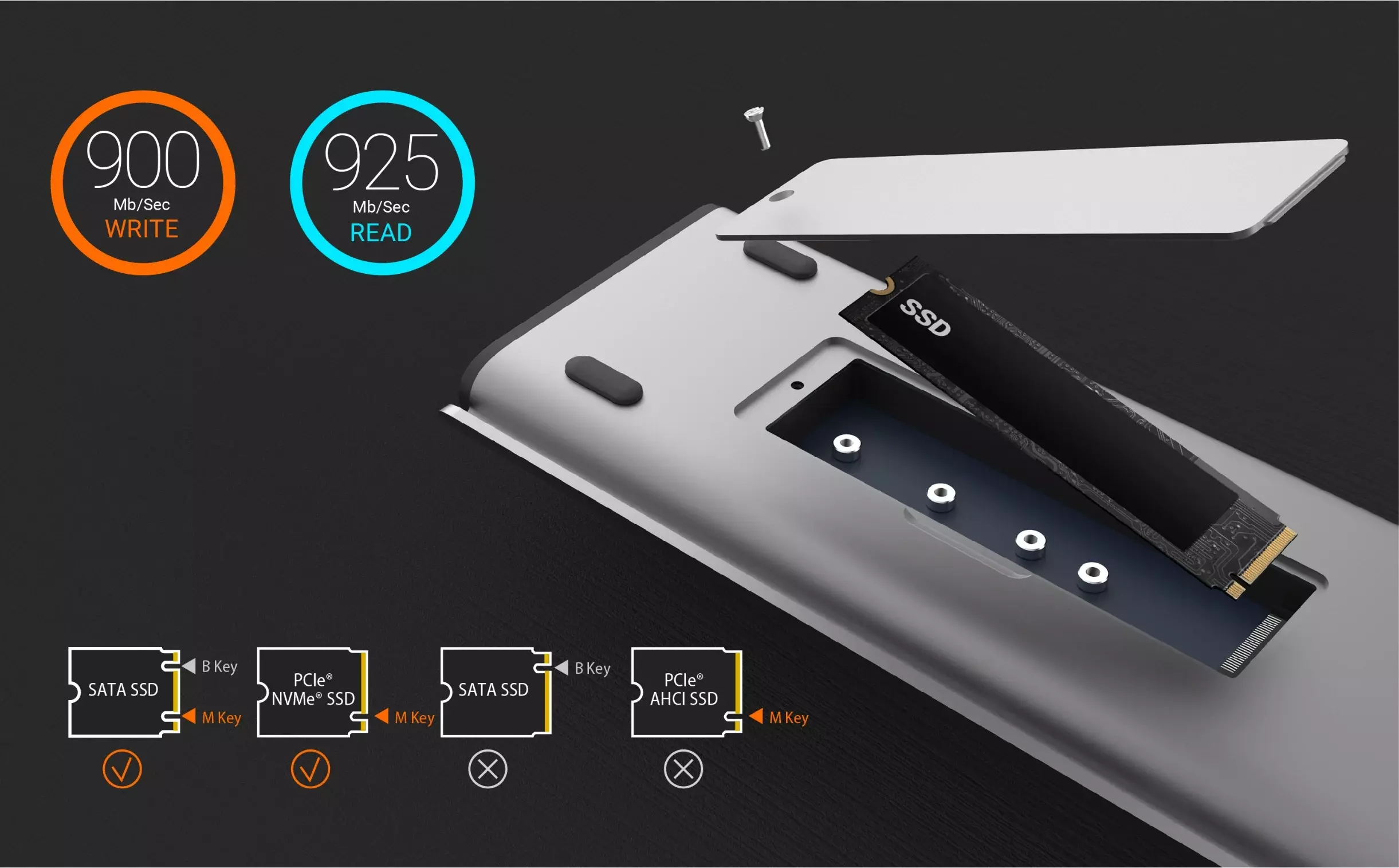

Enhanced Data Storage

Built-in M.2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M.2 NVMe SSD with ultra-fast read and write speeds

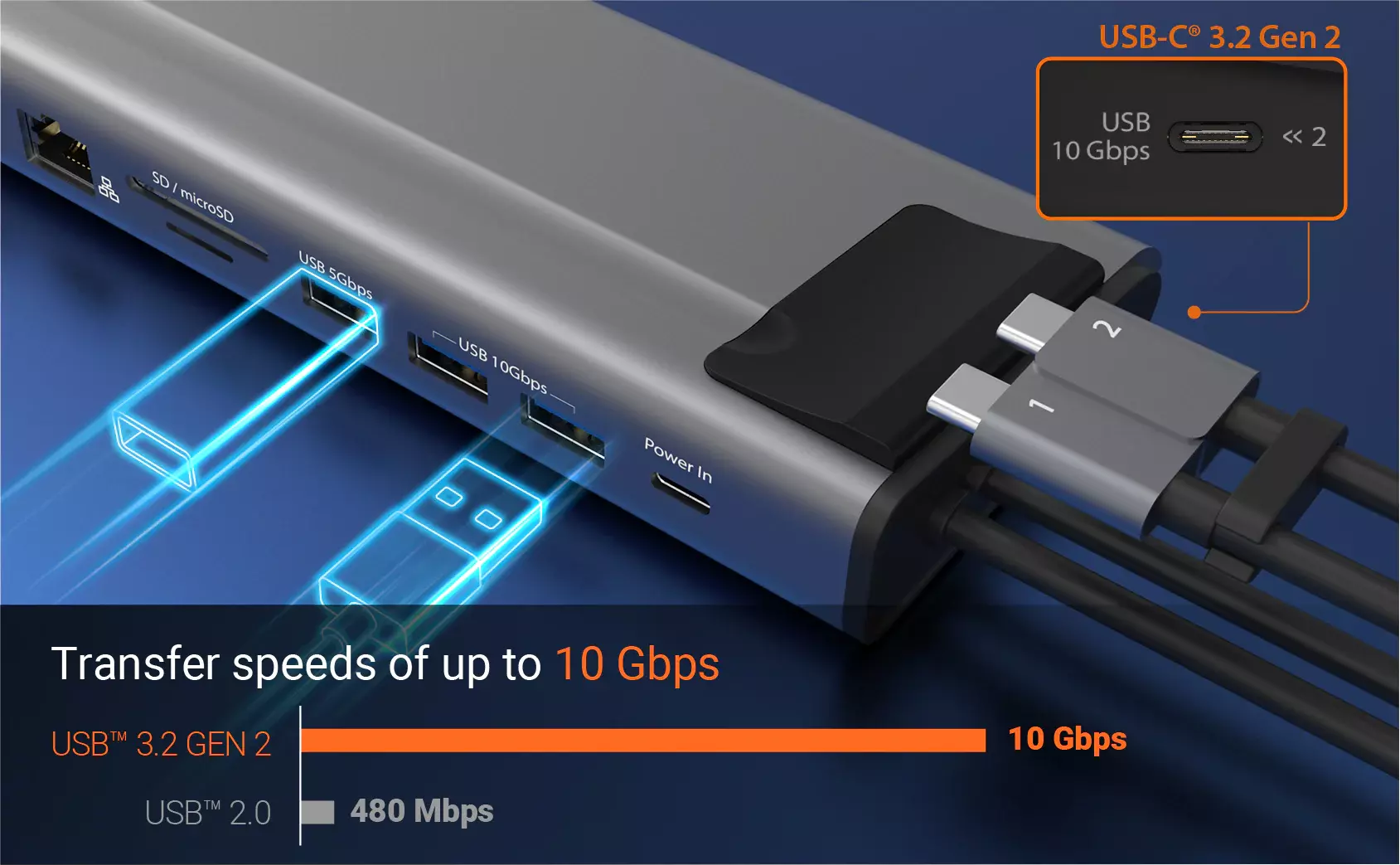

High-Speed Performance

Connect your latest and legacy devices with three SuperSpeed USB 10 Gbps ports (1 USB-C and 2 USB Type-A) and a SuperSpeed USB 5 Gbps port

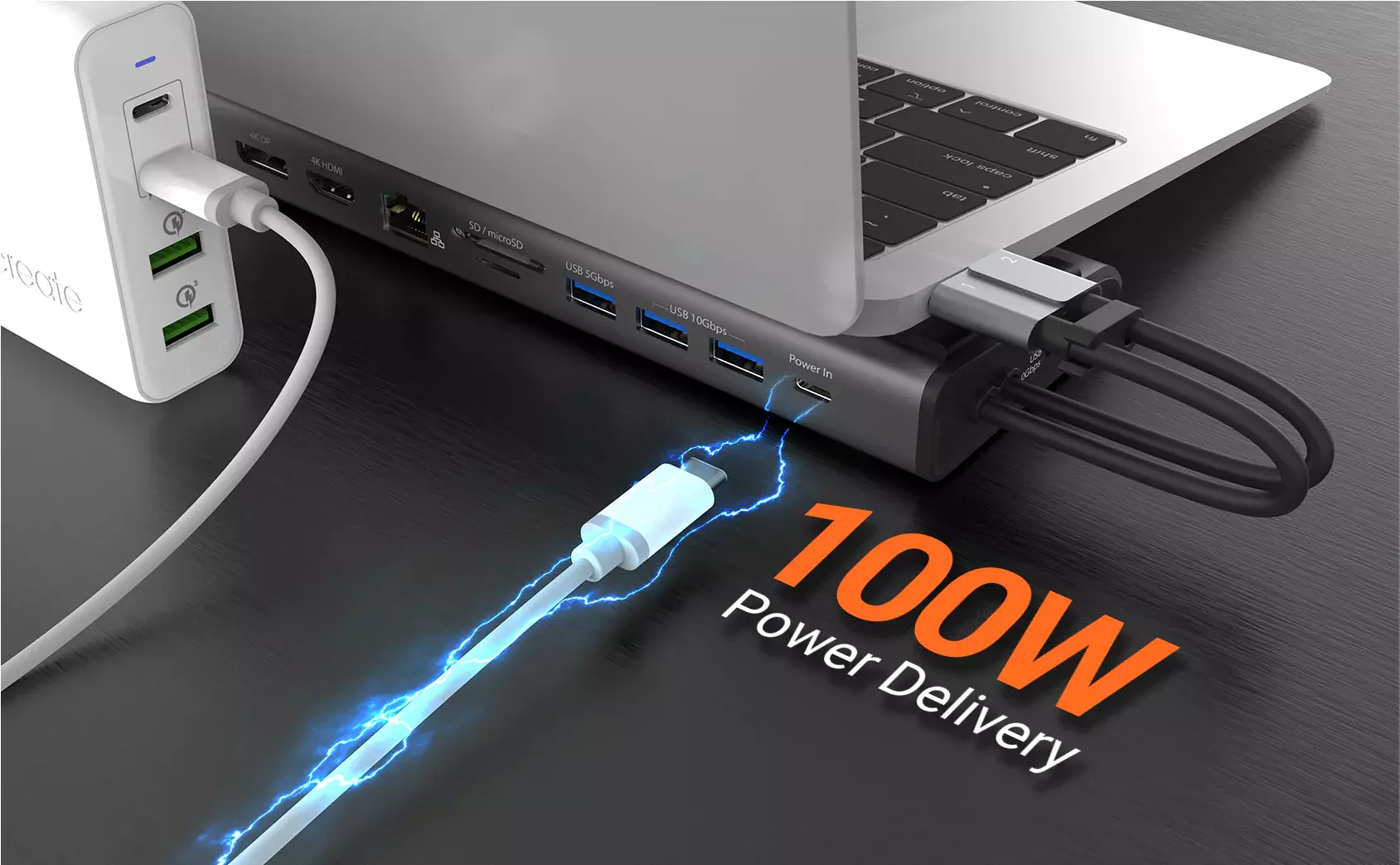

100W Power Delivery Pass-Through

Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

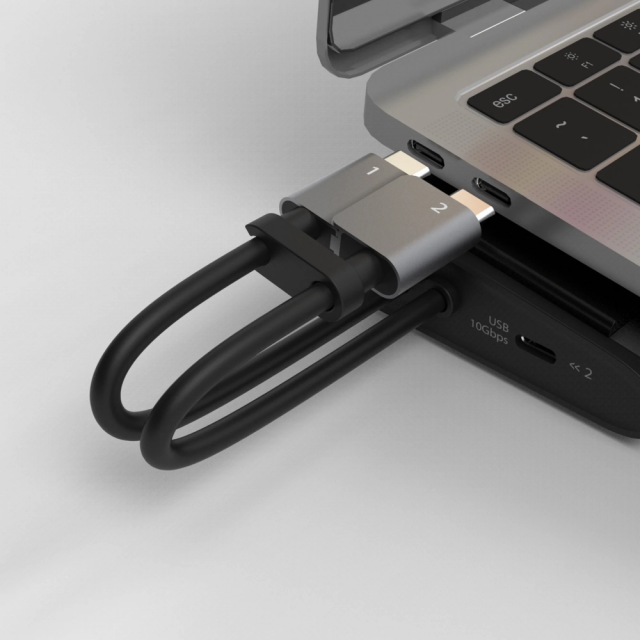

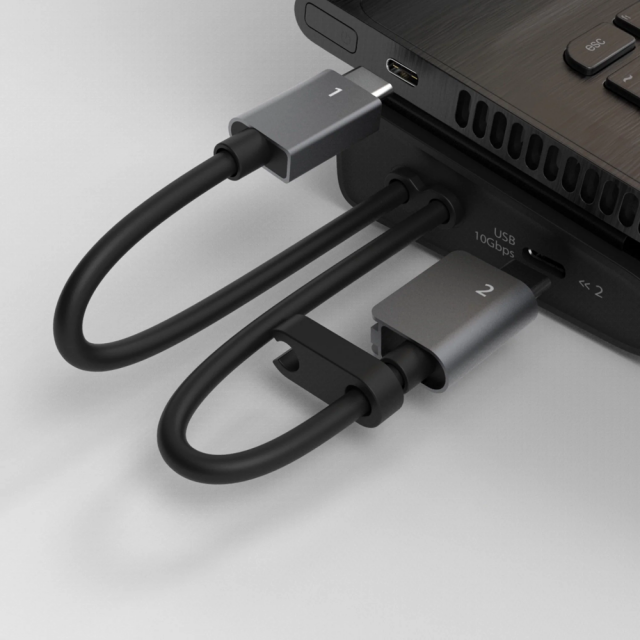

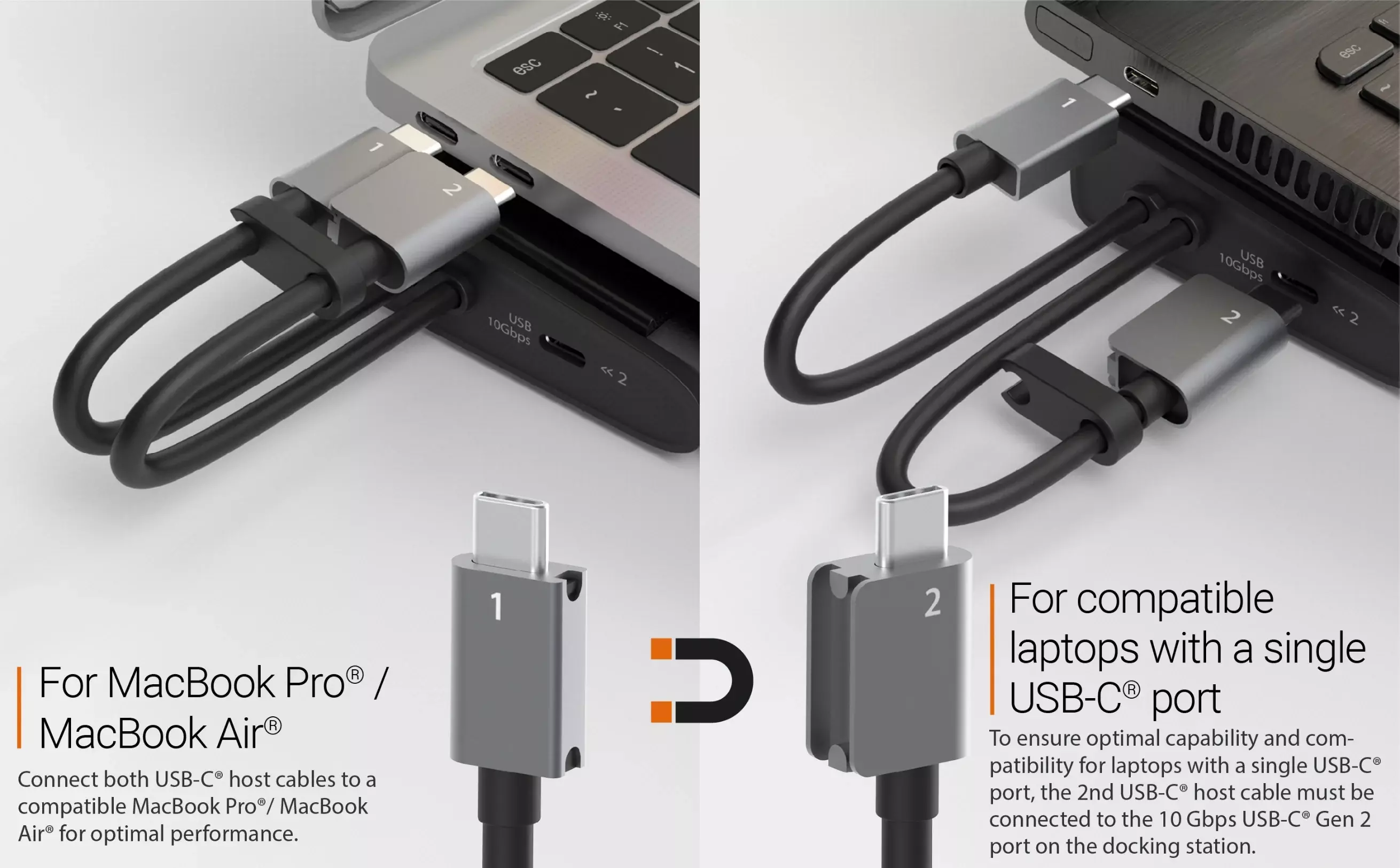

Detachable Magnetic Connectors

Its flexible design and universal USB-C connectors (Thunderbolt 3 compatible) make the docking station compatible with a wide range of devices and operating systems

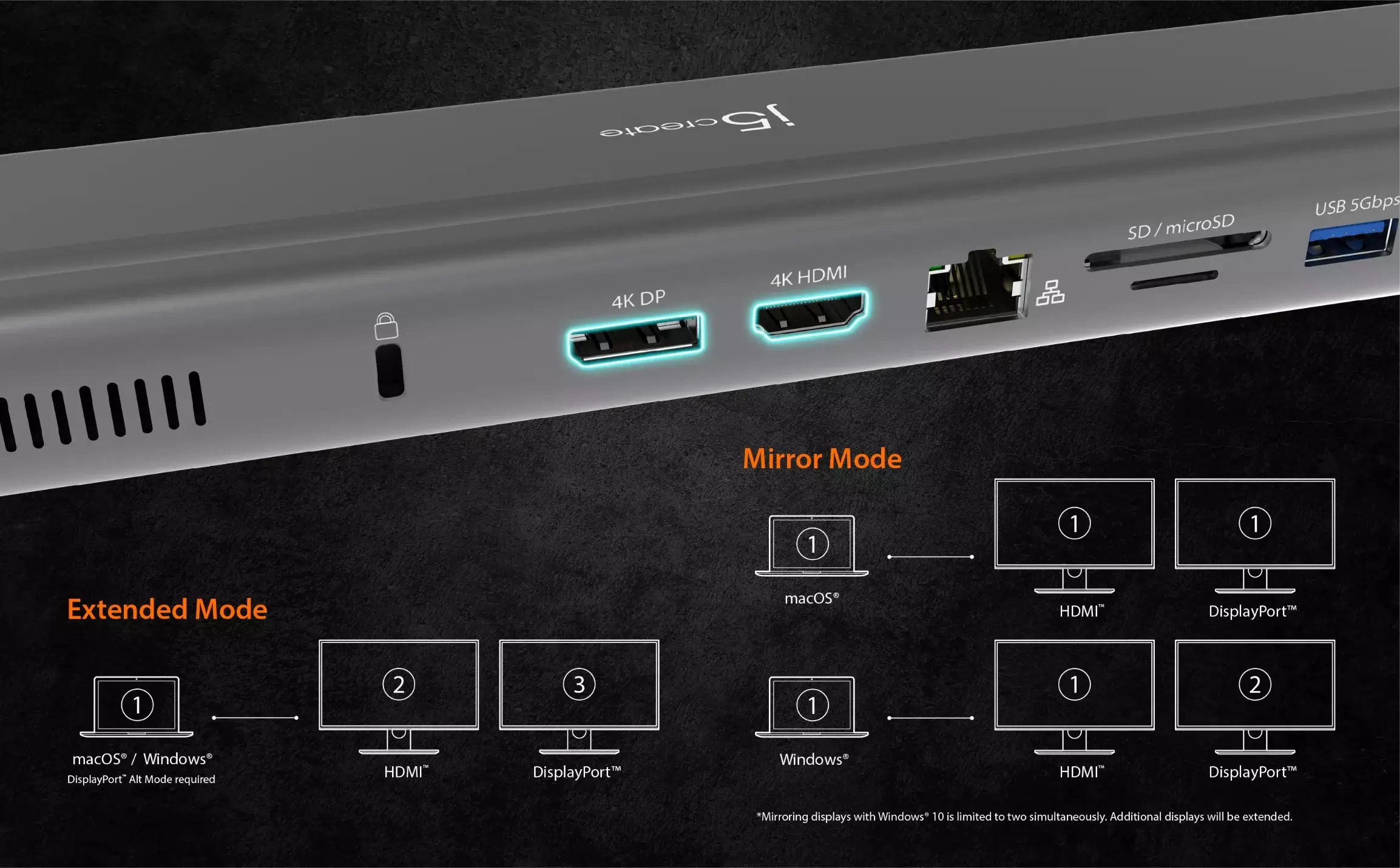

Flexible Display Connections

DisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI display when the docking station is connected to only one USB-C host

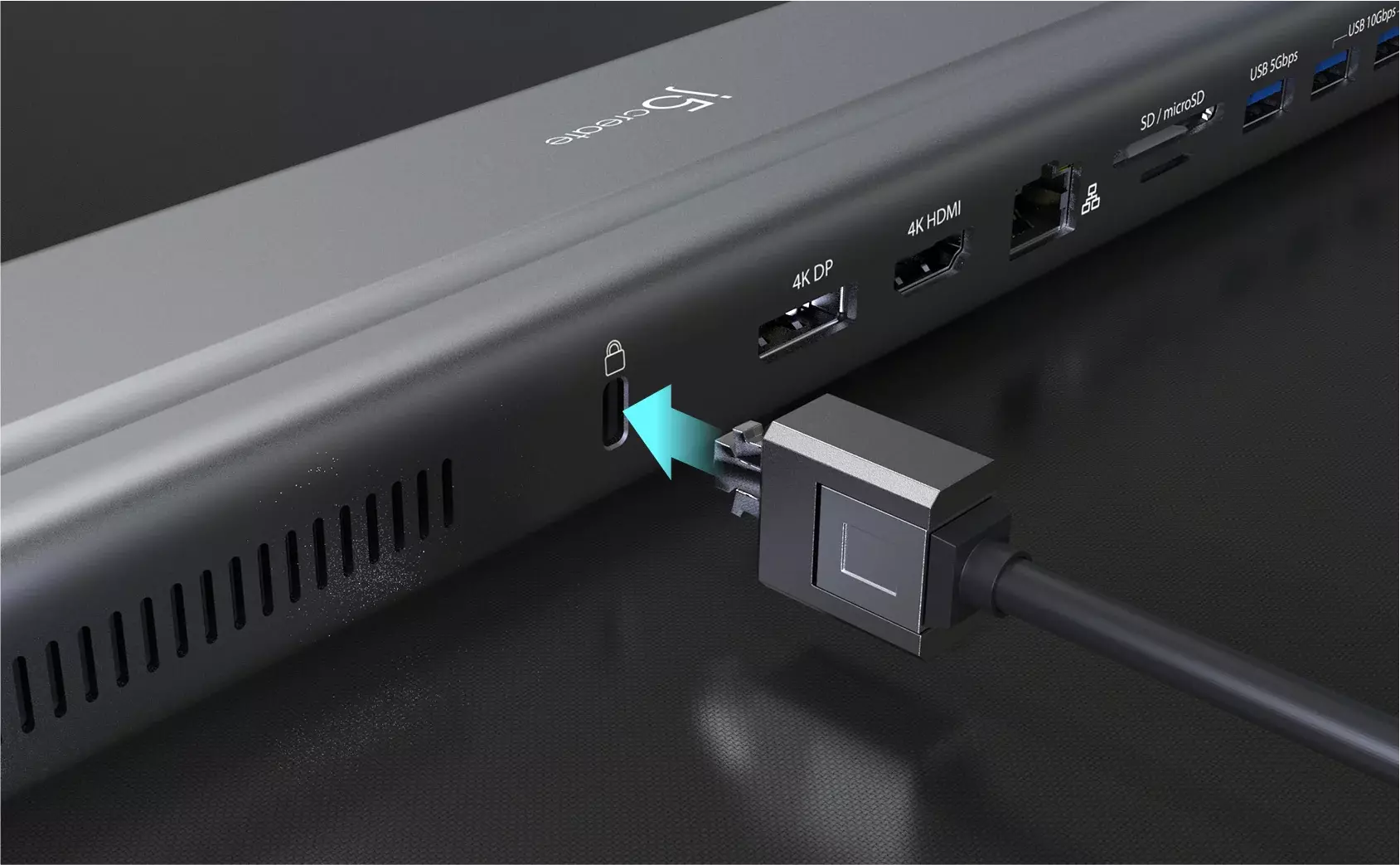

Anti-Theft Protection

Security slot to prevent equipment theft in a wide range of business or institutional environments.

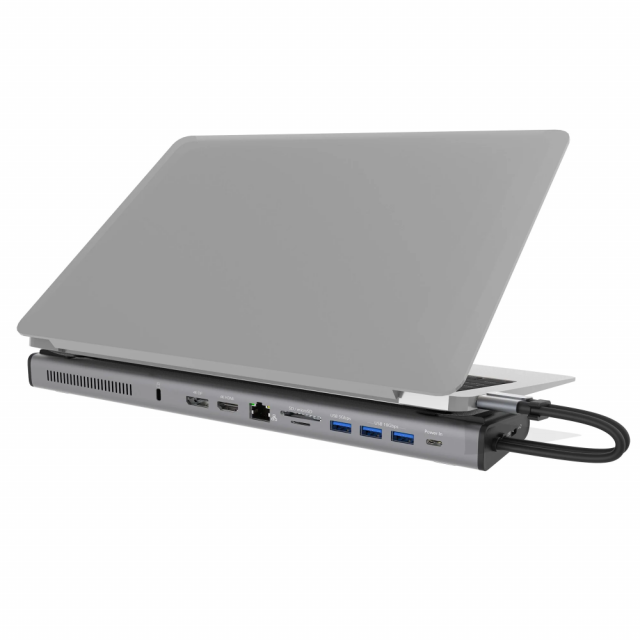

Ideal Accessory for MacBook Pro/Macbook Air

Great for working with graphics-intensive images and video editing

Provides Extra Connectivity for Your iPad Pro

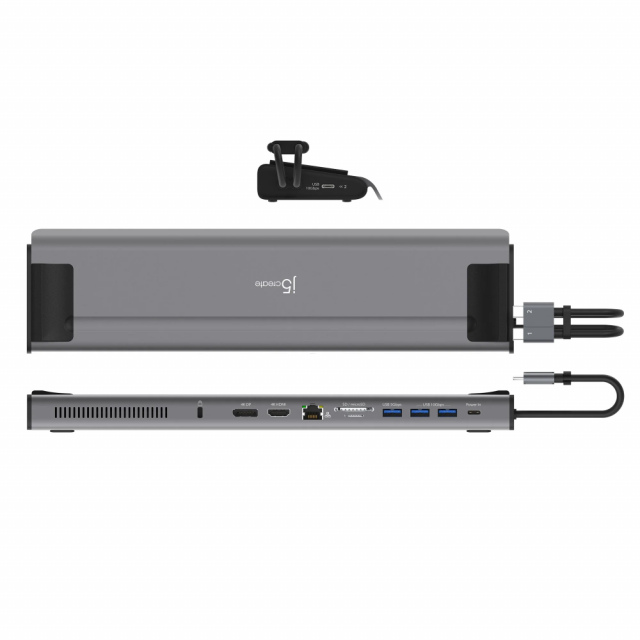

Physical Specifications

Specifications

Hardware

Audio Supported	Yes
Host Connector	2 - USB-C Male
Network Interface	RJ45 (Gigabit Ethernet)
Ports	1 - M.2 NVMe/SATA slot (2230,2242,2260,2280) 1 - USB-C 3.2 Gen 2 1 - USB-C Power Delivery 3.0 2 - USB Type-A 3.2 Gen 2 1 - USB Type-A 3.2 Gen 1 1 - 4K HDMI 1 - 4K DisplayPort 1 - SD & microSD 3.0 memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - Security Lock Slot
Power Source	Bus-powered
Video Output	1 - HDMI Female 1 - DisplayPort Female
Warranty	2 Year Limited

Performance

Audio Channel	2.1 via HDMI/DisplayPort
Compatible Networks	10/100/1000 Mbps
Displays Supported	2
Max Data Transfer Rate	10 Gbps M.2 slot - Write: 900 MB/s, Read: 925 MB/s
Max Display Refresh Rate	60Hz
Max Display Resolution	3840 x 2160

Power

Input Current	5A
Input Voltage	20V
Output Current	5A
Output Voltage	20V
Power Consumption	≤ 600 mA
Power Delivery	Up to 100W via USB-C

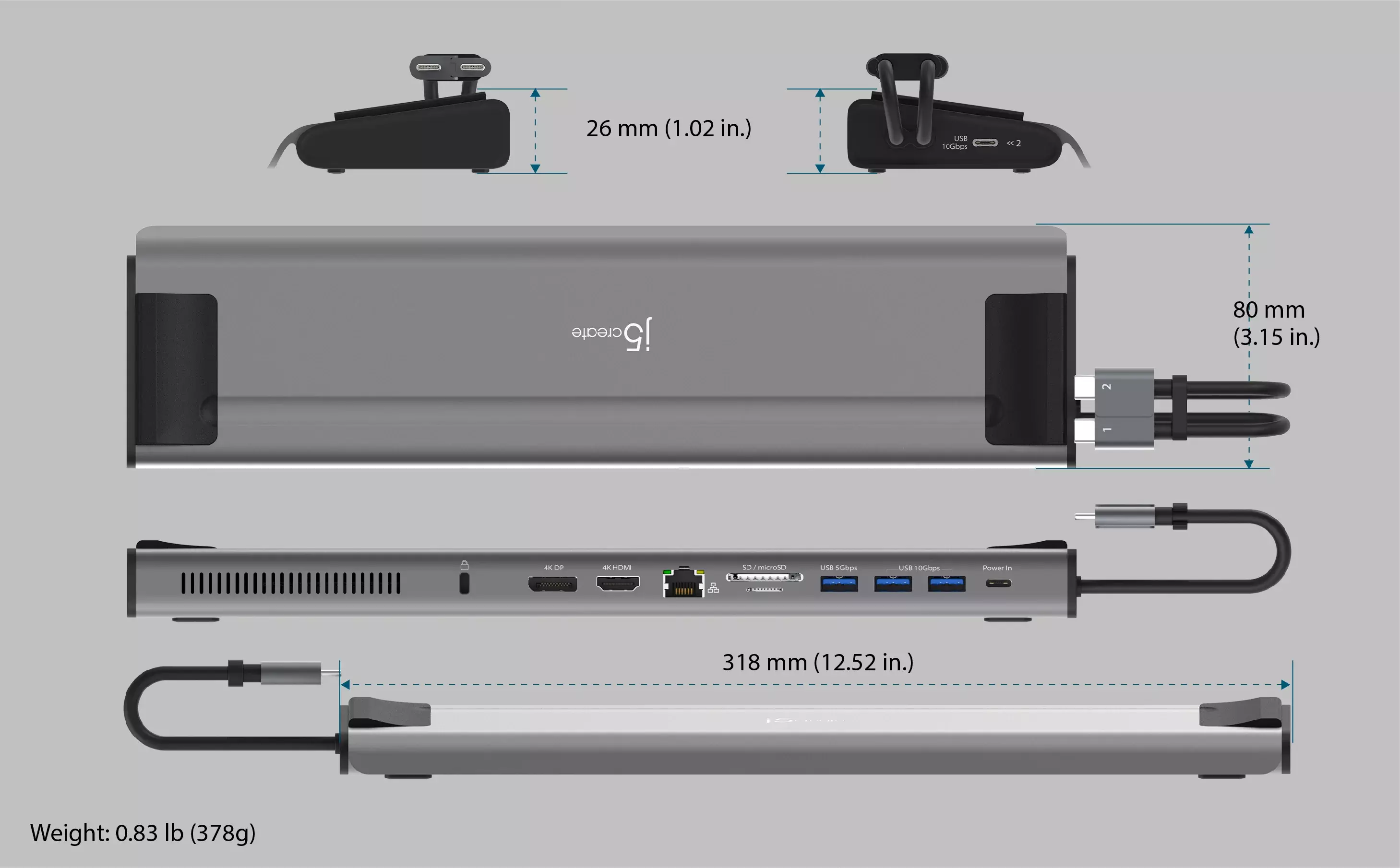

Physical Specifications

Cable Length	0.6 in. (15 cm)
Color	Grey & Black
Enclosure Type	Aluminum
Operating Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 48°C)
Product Depth	12.5 in. (318 mm)
Product Height	1.02 in. (26 mm)
Product Weight	0.83 lbs. (378g)
Product Width	3.14 in. (80 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 149°F (-10 to 65°C)
