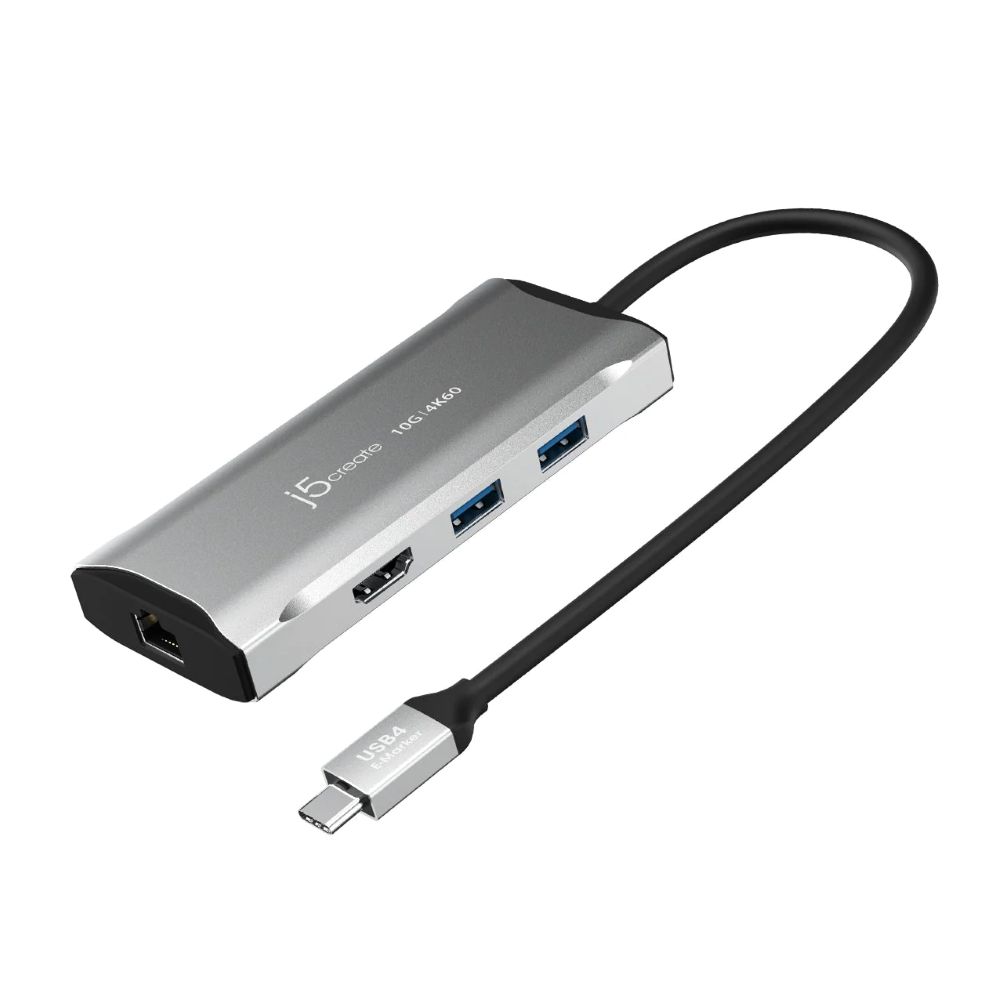

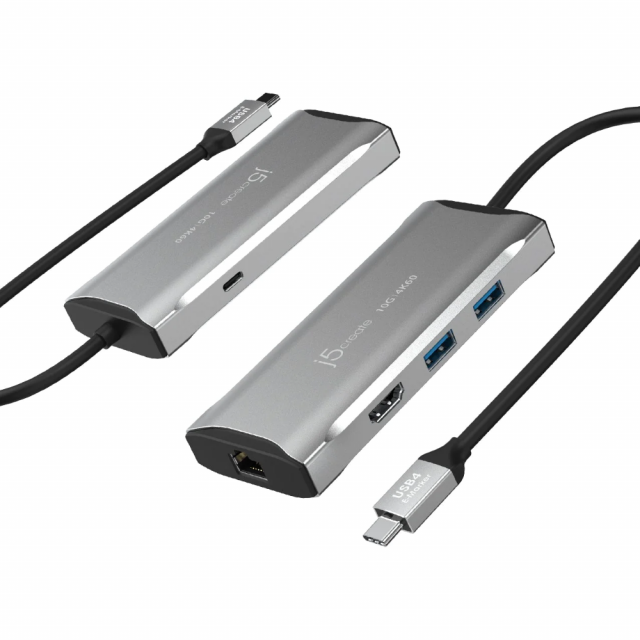

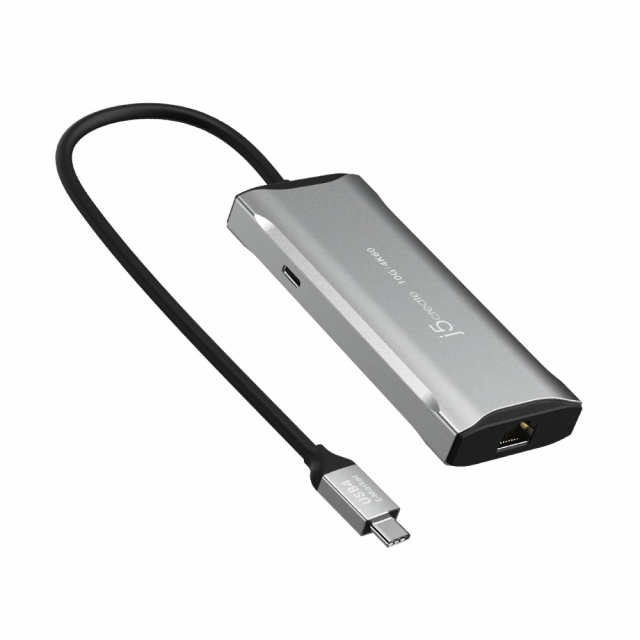

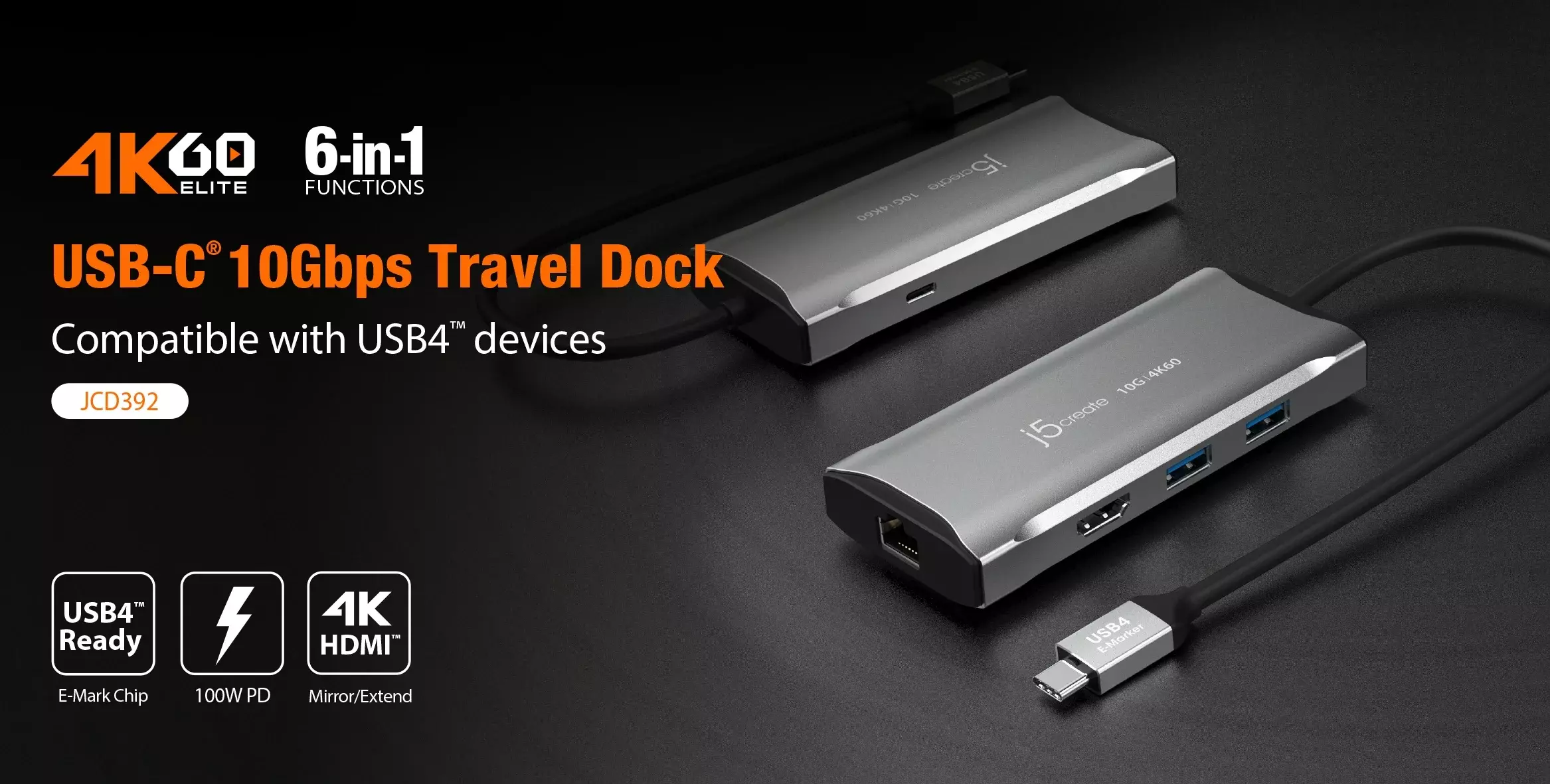

j5create 4K60 Elite USB-C 10Gbps Travel Dock
Docking station j5create JCD392 100W, USB-C, 10Gbps, 4K60
Întrebare despre j5create 4K60 Elite USB-C 10Gbps Travel Dock
| Garanție | 24 luni |
| Interfață | USB-C |
| Standard USB | USB4 |
| Porturi | USB-A, USB-C, HDMI, LAN |
| Rezoluție suportată | 4K@60Hz, 1080p@144Hz, 1440p@120Hz |
Related products

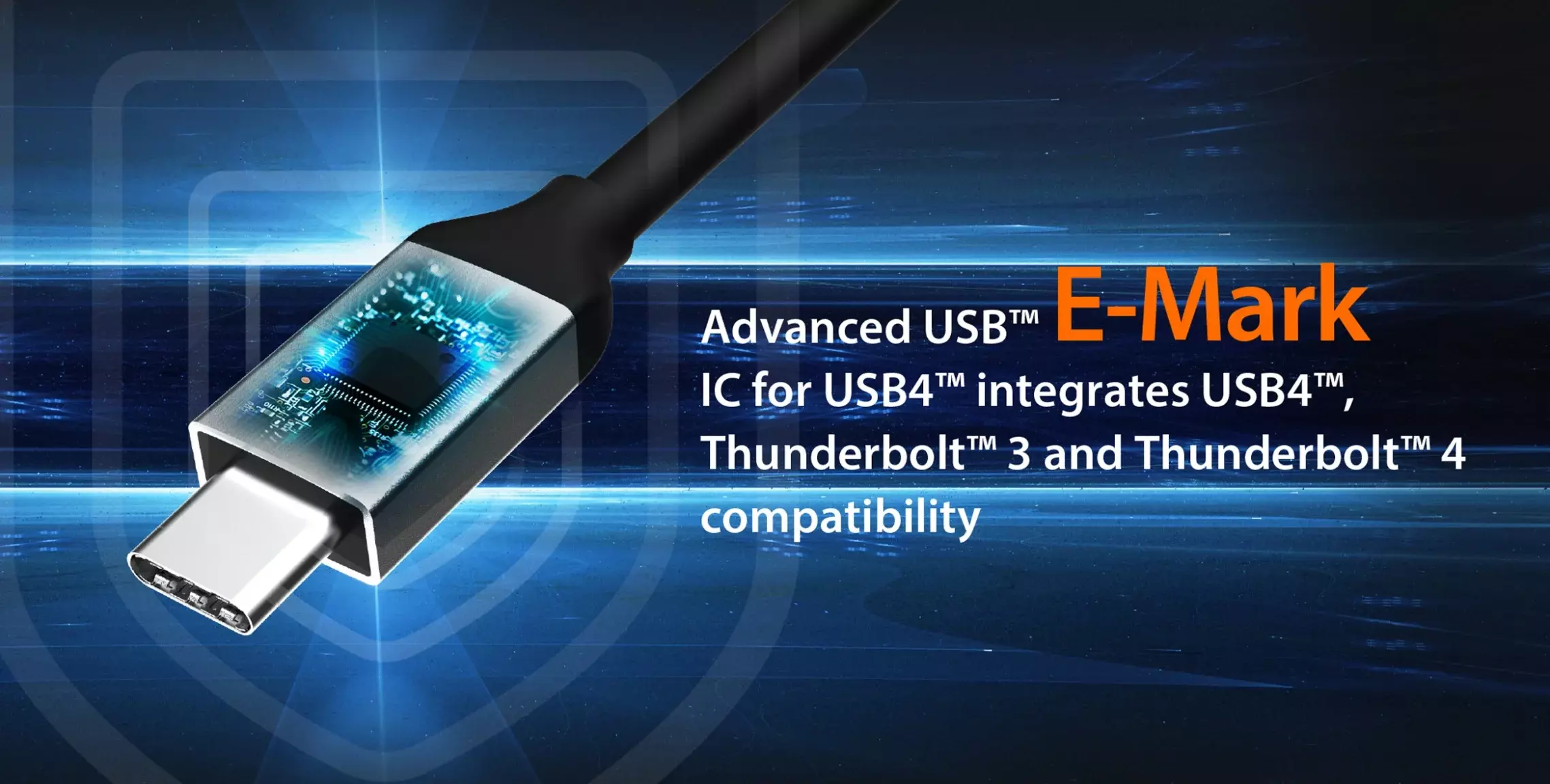

- USB-C E-Mark avansat incorporat integreaza compatibilitatea USB4, Thunderbolt 3 si Thunderbolt 4
- Compatibilitate cu USB 3.2/3.1
- Dispune de o iesire HDMI 4K, care accepta rezolutii video de pana la 3840 x 2160 la 60 Hz
- Maximizati experienta de joc cu o rata de reimprospatare de 1920 x 1080 la 144 Hz
- Extinderea unui afisaj de pana la 3840 x 2160 @ 60, comutati cu usurinta la o rata de reimprospatare mai mare de 2560 x 1440 @ 120 Hz prin intermediul portului HDMI pentru a va bucura de jocuri sub sistemul de operare Windows
- Trei porturi SuperSpeed USB 10Gbps (1 USB-C si 2 Type-A) pentru conectarea perifericelor
- Incarcati si alimentati laptopul si perifericele conectate cu 100 W Power Delivery
- Adaugati cu usurinta o conectivitate de retea cu fir cu ajutorul portului Gigabit Ethernet
- Plug-and-play, nu este necesara instalarea de drivere

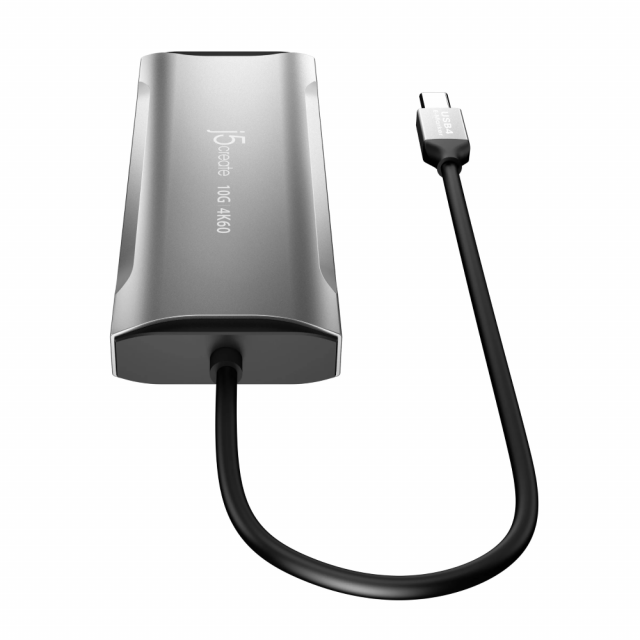

conector gazda: 1 - USB-C tata
interfata de retea: RJ45 (Gigabit Ethernet)
porturi:
1 x USB-C SuperSpeed 10Gbps cu Power Delivery 3.0
2 x USB Type-A SuperSpeed 10Gbps
1 x HDMI 4K
1 x RJ45 Gigabit Ethernet
iesire video: 1 - HDMI mama
canal audio: 2.1 prin HDMI
retele compatibile: 10/100/1000 Mbps
ecrane acceptate: 1
rata maxima de transfer de date: 10Gbps
rata maxima de reimprospatare a afisajului: 3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz
1920 x 1080 @ 144 Hz
(Windows®)
rezolutia maxima a ecranului: 3840 x 2160
curent de intrare: Pana la 5 A
tensiune de intrare: Pana la 20V
curent de iesire: Pana la 4,5 A
tensiune de iesire: Pana la 20V
livrare de energie: Pana la 100W prin USB-C

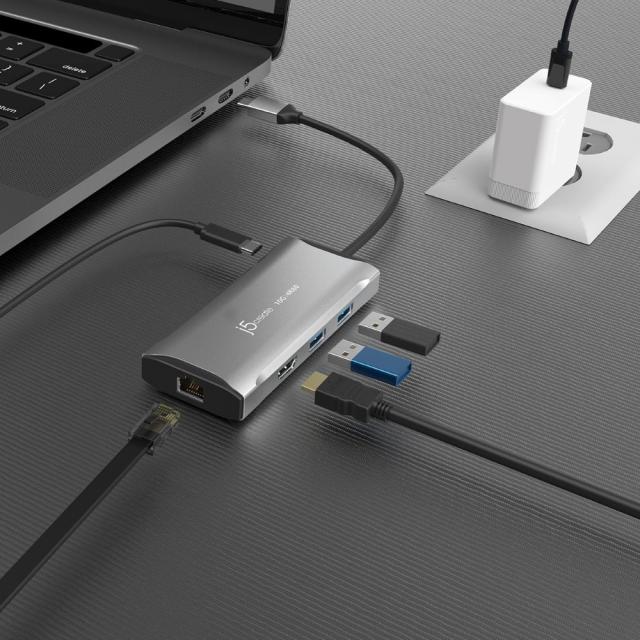

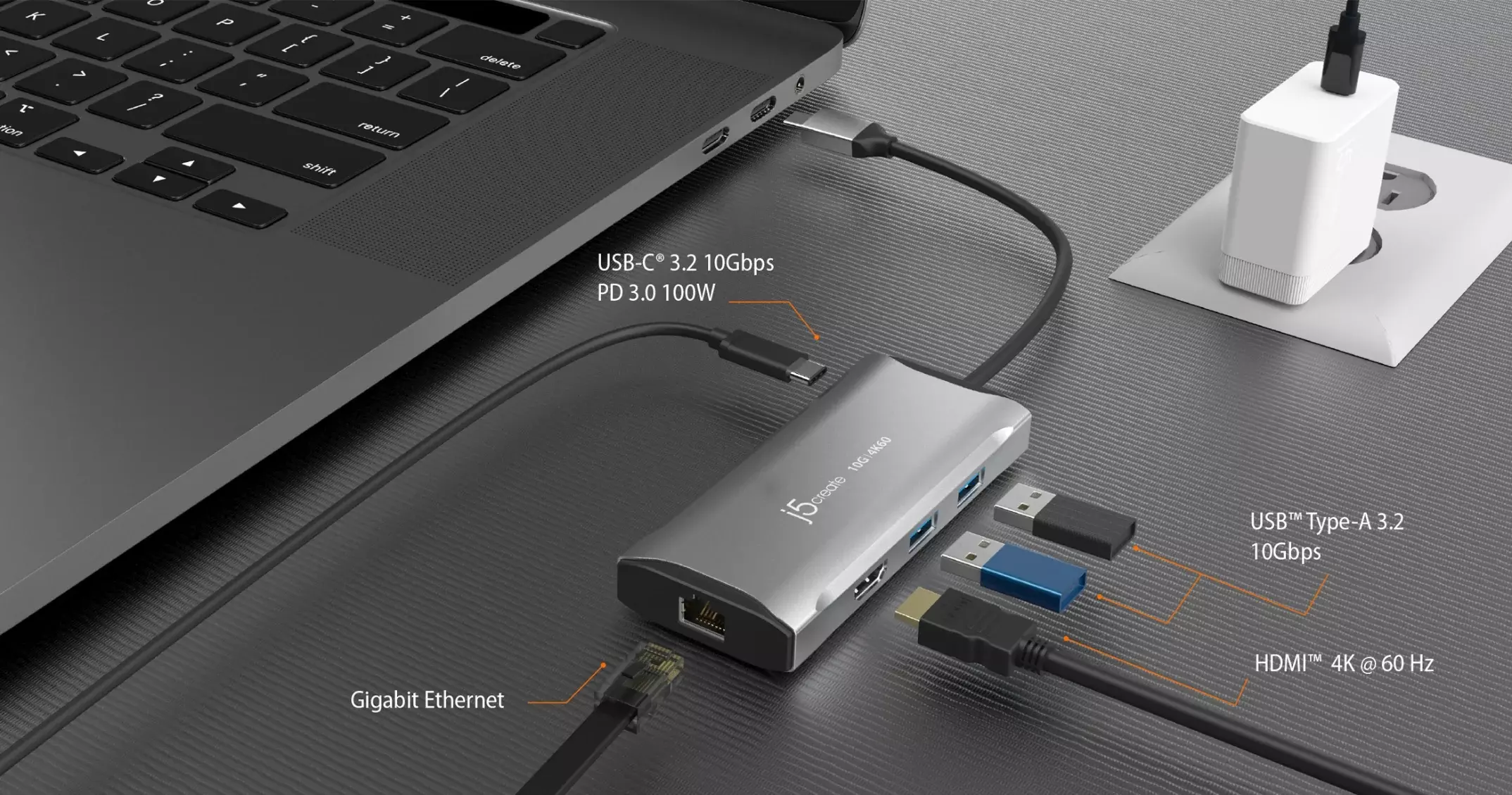

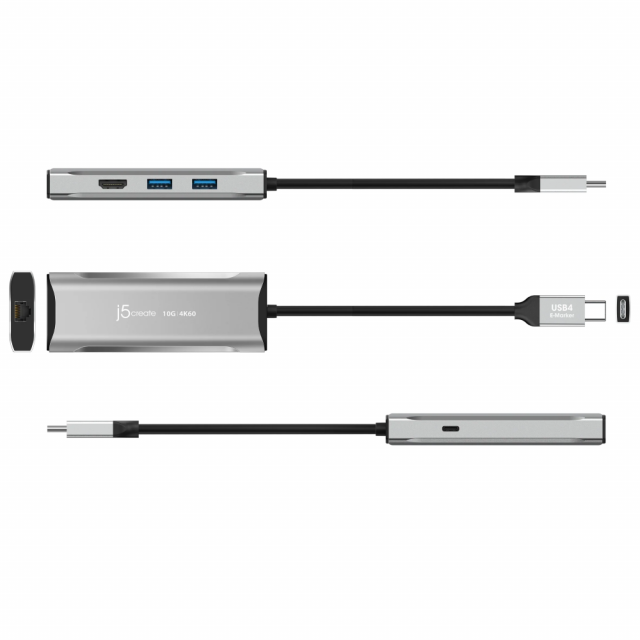

6-in-1 Functions
All the connections you need for maximum productivity

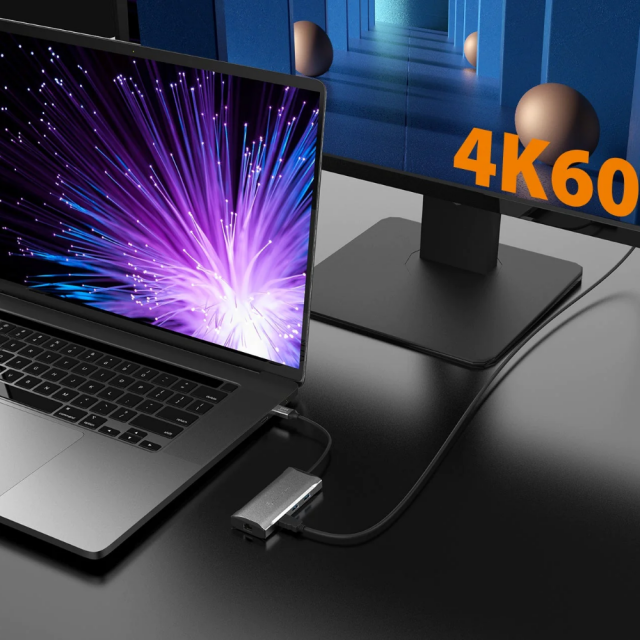

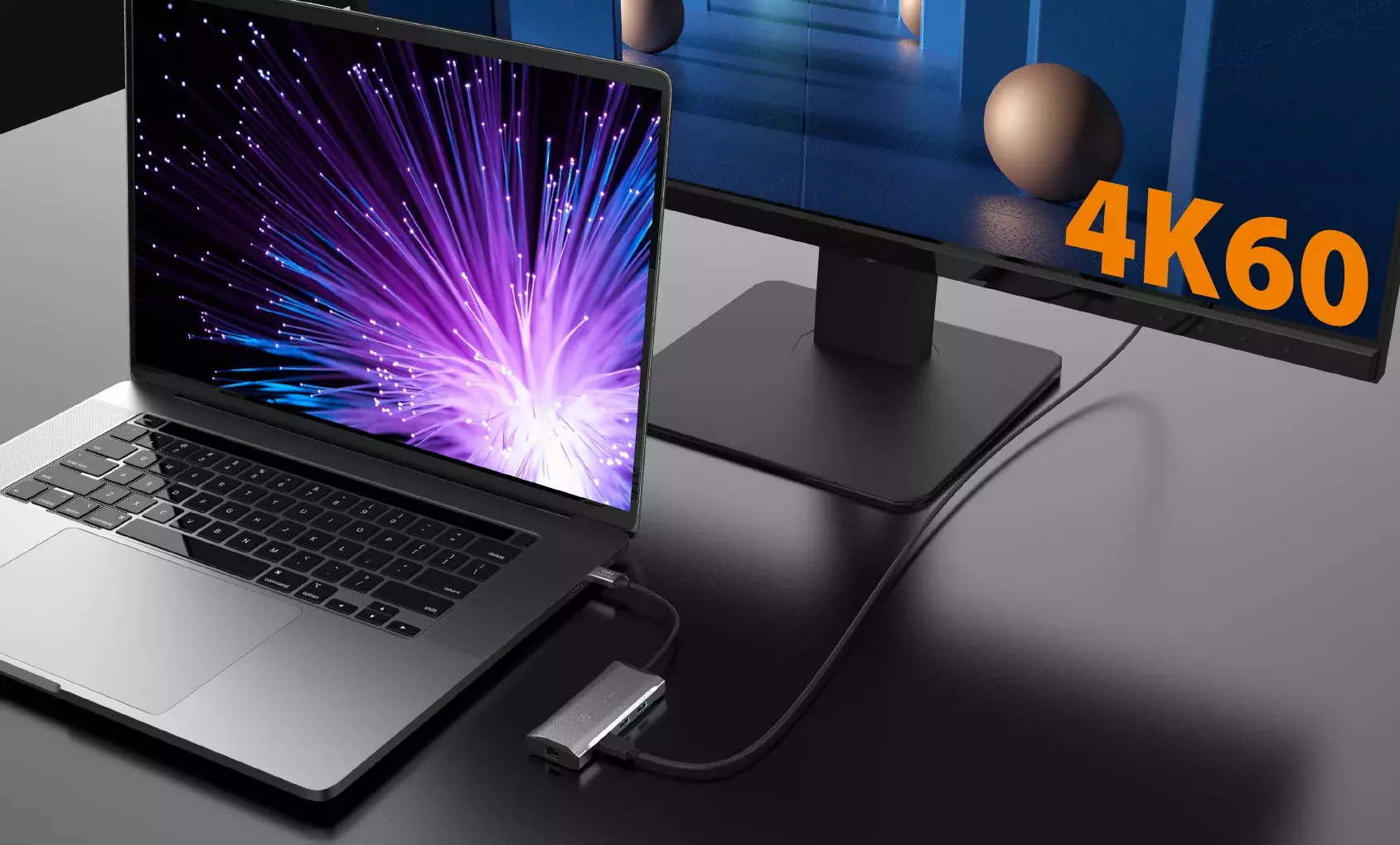

4K HDMI Output
Mirror or extend your screen and directly output resolutions up to 4K UHD @ 60Hz

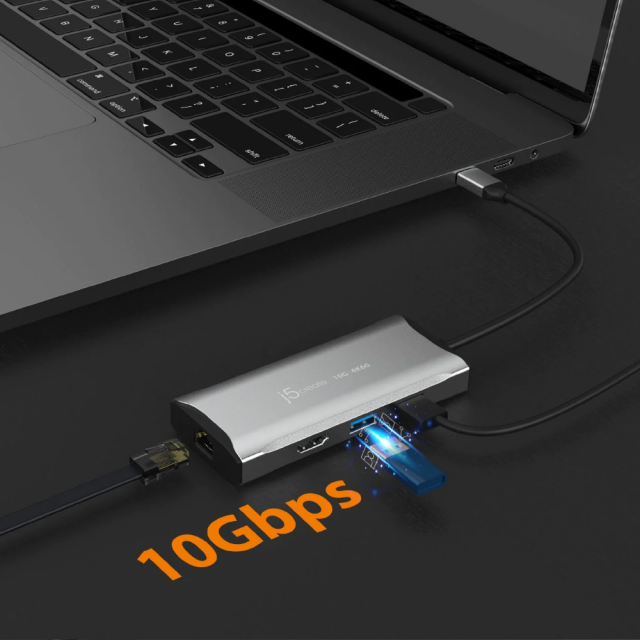

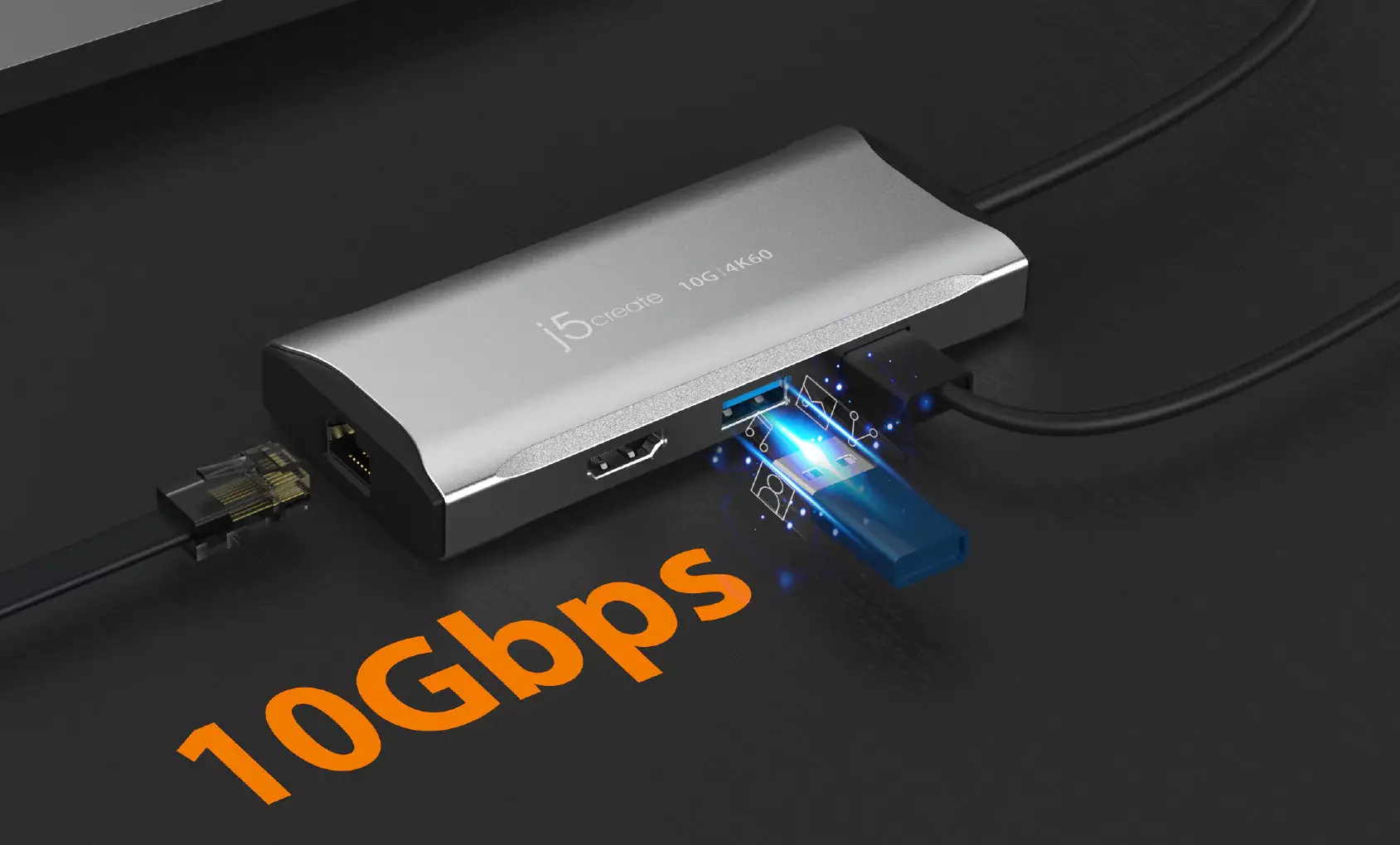

SuperSpeed USB 10Gbps Downstream Ports
1 USB-C and 2 USB Type-A for connecting peripherals or downstream charging

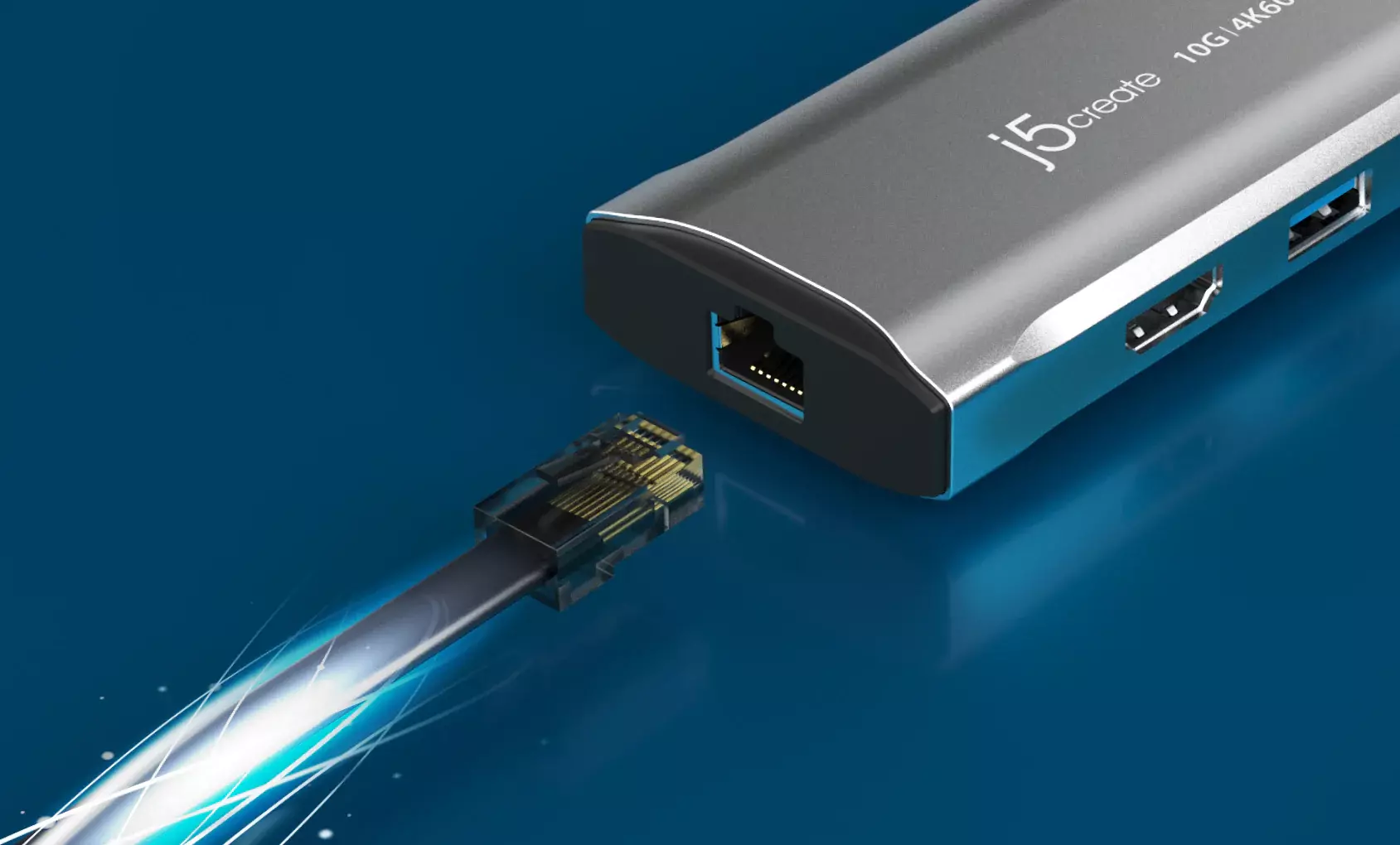

High-Speed Ethernet Port
Ethernet port included for a fast Gigabit network connection

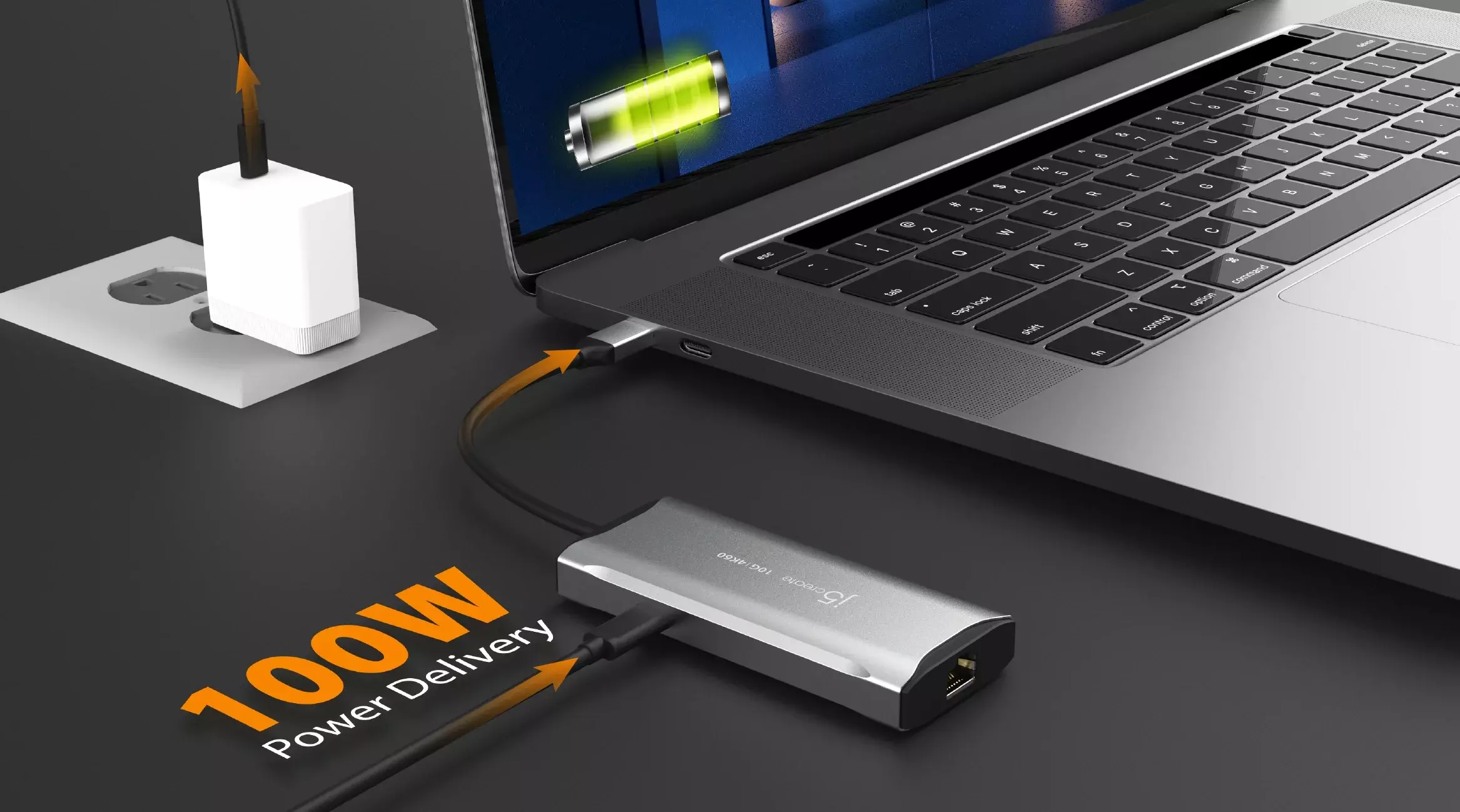

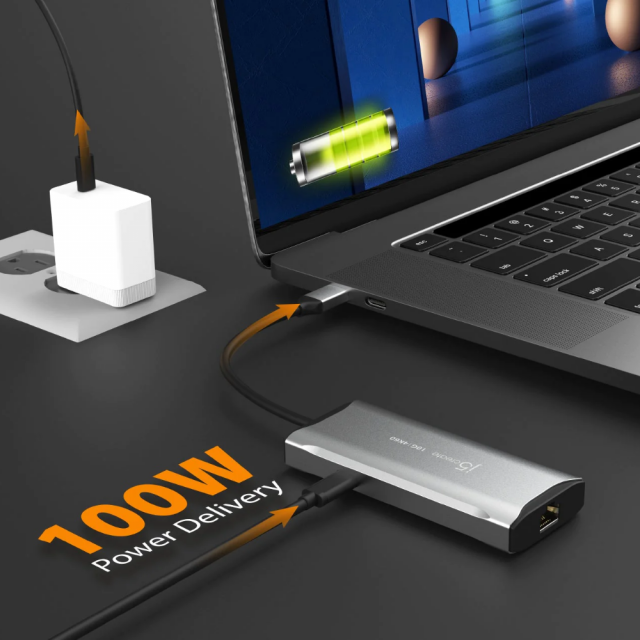

100W Power Delivery Pass-Through
Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

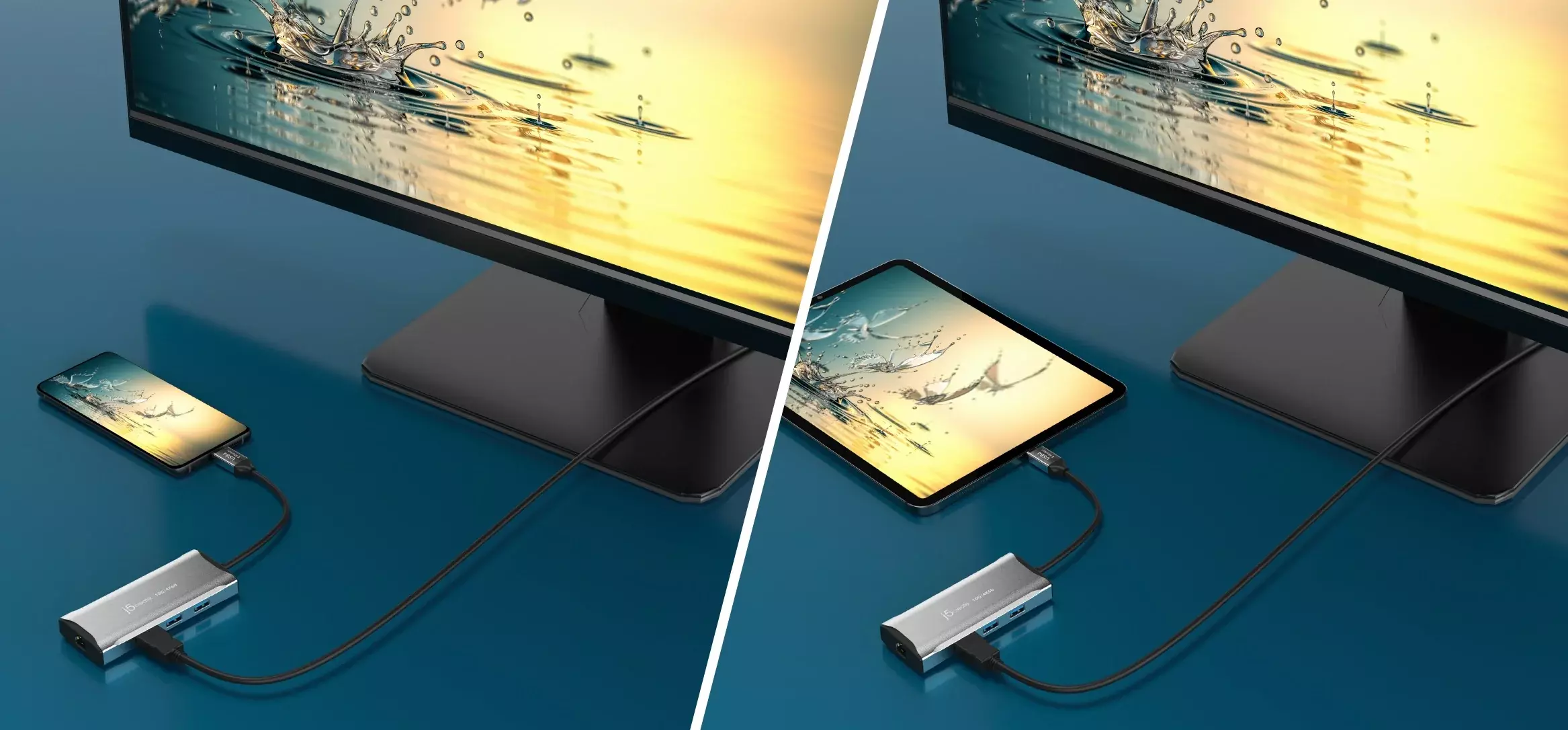

Universal Compatibility

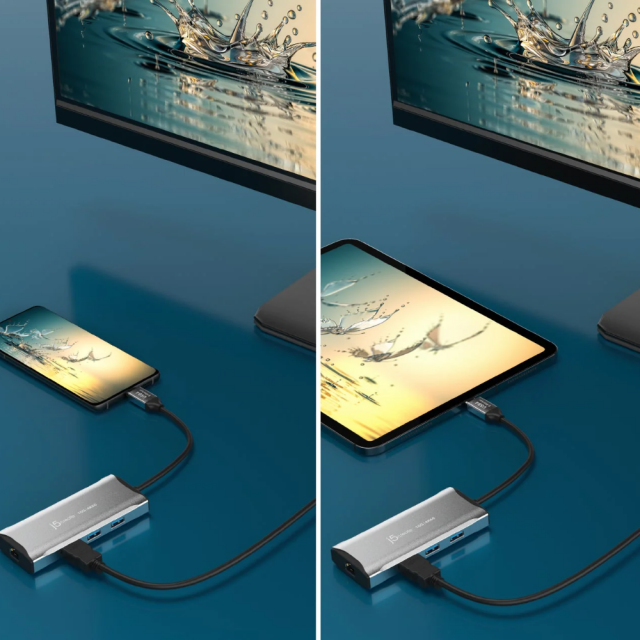

Works with a variety of USB-C enabled devices, including tablets and phones
Connect a High-Refresh Gaming Monitor
Supports 120Hz at 1440p QHD resolution for a smooth gaming experience while providing a sharp image
Quick Setup
Begin using immediately - no driver installation required
Specifications
Hardware
| Audio Supported | Yes |
| Host Connector | 1 - USB-C Male |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Ports |
|
| Power Source | Bus-powered or self-powered |
| Video Output | 1 - HDMI Female |
| Warranty | 2 Year Limited |
Performance
| Audio Channel | 2.1 via HDMI |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 1 |
| Max Data Transfer Rate | 10Gbps |
| Max Display Refresh Rate |
3840 x 2160 @ 60Hz 2560 x 1440 @ 120Hz 1920 x 1080 @ 144Hz (Windows) |
| Max Display Resolution | 3840 x 2160 |
Power
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.5A |
| Output Voltage | Up to 20V |
| Power Consumption | ≦ 400 mA |
| Up to 4.5A | Up to 100W via USB-C |
Physical Specifications
| Cable Length | 5.9 in. (150 mm) |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Product Depth | 1.85 in. (47 mm) |
| Product Height | 0.62 in. (16 mm) |
| Product Weight | 3.06 oz (87g) |
| Product Width | 4.33 in. (110 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
