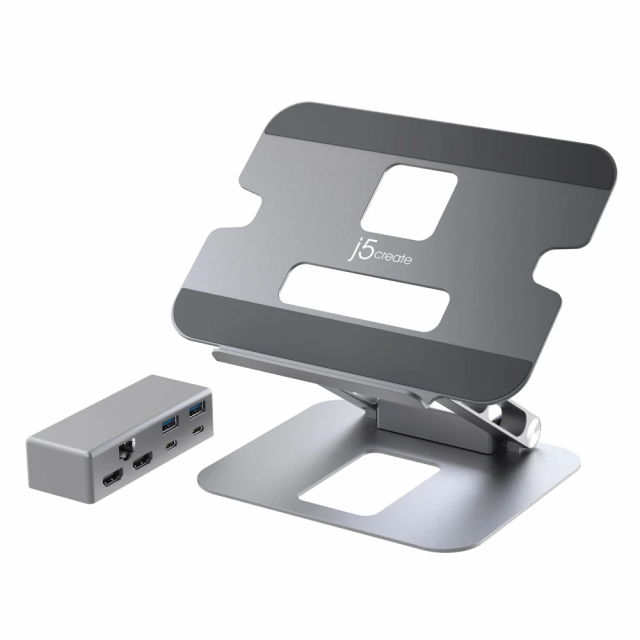

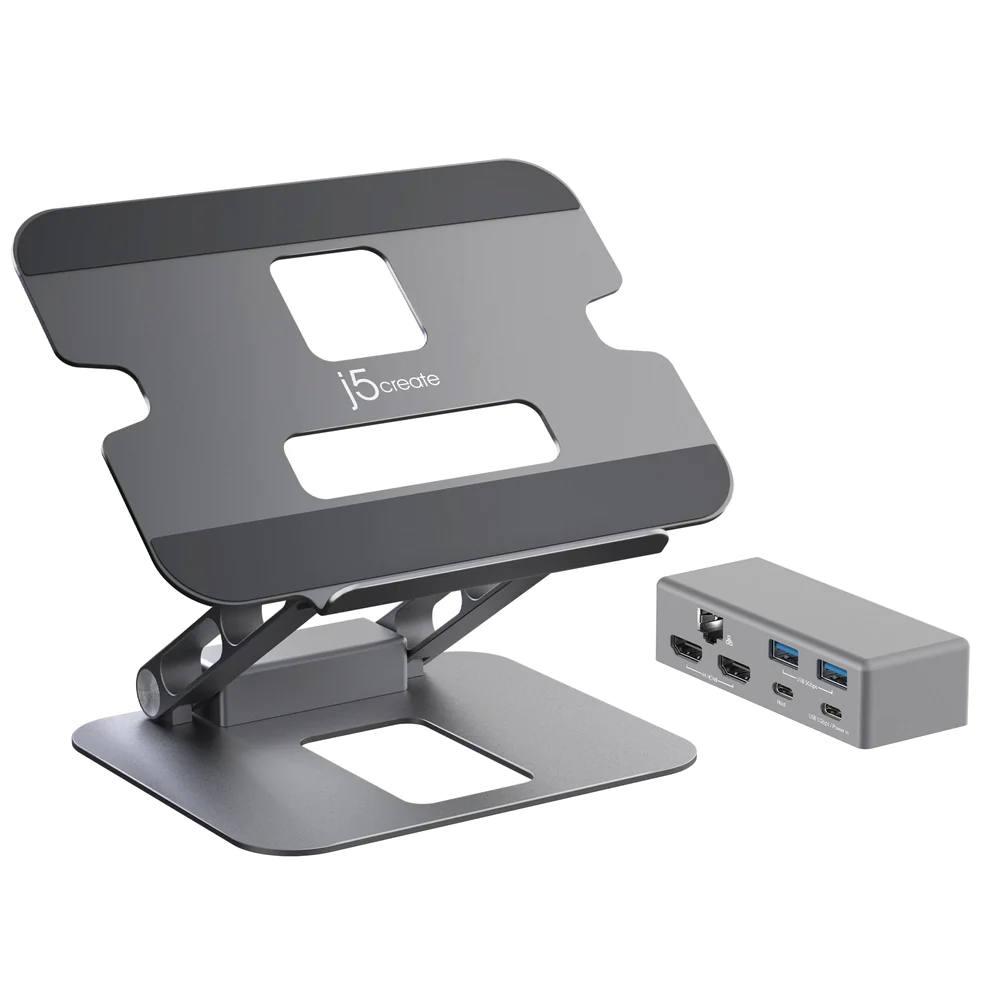

j5create JTS427 Multi-Angle Dual HDMI Docking Stand

Suport laptop cu docking station j5create JTS427, pana la 16", USB-C, HDMI, 4K

Cod produs: J5-JTS427

ultima bucată

Întrebare despre j5create JTS427 Multi-Angle Dual HDMI Docking Stand

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	24 luni
Interfață	USB-C
Standard USB	USB 3.2 Gen1
Porturi	USB-A, USB-C, HDMI, LAN
Rezoluție suportată	4K@30Hz

Related products

j5create M.2 NVMe USB-C Gen 2 Docking Station

Interfață: USB-C

Standard USB: USB 3.2 Gen 2

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort, M.2

Rezoluție suportată: 4K@60Hz

j5create Wood Monitor Stand with Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JCD543P USB-C Triple Display Docking Station with 100W PD Adapter

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JCD543 USB-C Triple Display Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JTS224 Multi-Angle Stand with Docking Station for iPad Pro

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 4K@60Hz

j5create JCD403 USB4 8K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN

Rezoluție suportată: 8K@60Hz, 4K@144Hz

j5create 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort

Rezoluție suportată: 4K@60Hz, 1080p@240Hz, 1440p@144Hz

j5create Multi-Angle 4K Docking Stand

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 4K@30Hz

j5create USB-C Dual HDMI Docking Station

Interfață: USB-C

Standard USB: USB 3.0

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 1440p@60Hz, 4K@30Hz

j5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader

Rezoluție suportată: 4K@60Hz, 1080p@144Hz, 1440p@120Hz

j5create USB4 Dual 4K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, DisplayPort

Rezoluție suportată: 4K@60Hz

j5create USB-C Modular Multi-Adapter with 2 Kits

Interfață: USB-C

Standard USB: USB 3.1 Gen 2

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

- Se potriveste cu majoritatea laptopurilor pana la 16 in.
- Constructie din aluminiu cu o capacitate de greutate de pana la 9 lbs. ( 4 kg )
- Unghiurile si inaltimile de vizualizare reglabile ajuta la reducerea tulpinii ochilor si la imbunatatirea posturii
- Garniturile de protectie antiderapant ajuta la prevenirea alunecarii si zgarieturilor
- Design pliabil pentru depozitare si portabilitate usoara
- Suporta afisaj HDMI 4K HDMI sau dual 1080p HDMI pe laptopuri USB-C compatibile cu modul DisplayPort 1.2 alt cu suport MST
- Mini dock USB-C integrat ofera suport pentru HDMI dual, acces la retea si trei porturi USB

conector gazda: 1 - USB-C Femeie
porturi: 1 - USB-C 5Gbps ( Transfer de date si livrare de energie 3.0 )
2 - USB 5Gbps tip A
2 - HDMI ( 4K pentru afisaj unic, 1080p pentru afisaj dublu )
1 - Gigabit Ethernet
iesire video: 2 - HDMI Femeie
canal audio: 2.1 prin HDMI
afisaje acceptate: 2
rata maxima de actualizare a afisajului: 4K @ 30 Hz
rezolutie maxima de afisare: 3840 x 2160
curent de intrare: Pana la 5A
tensiune de intrare: Pana la 20V
curent de iesire: Pana la 4.5A
tensiune de iesire: Pana la 20V
livrare de energie: pana la 100Wa

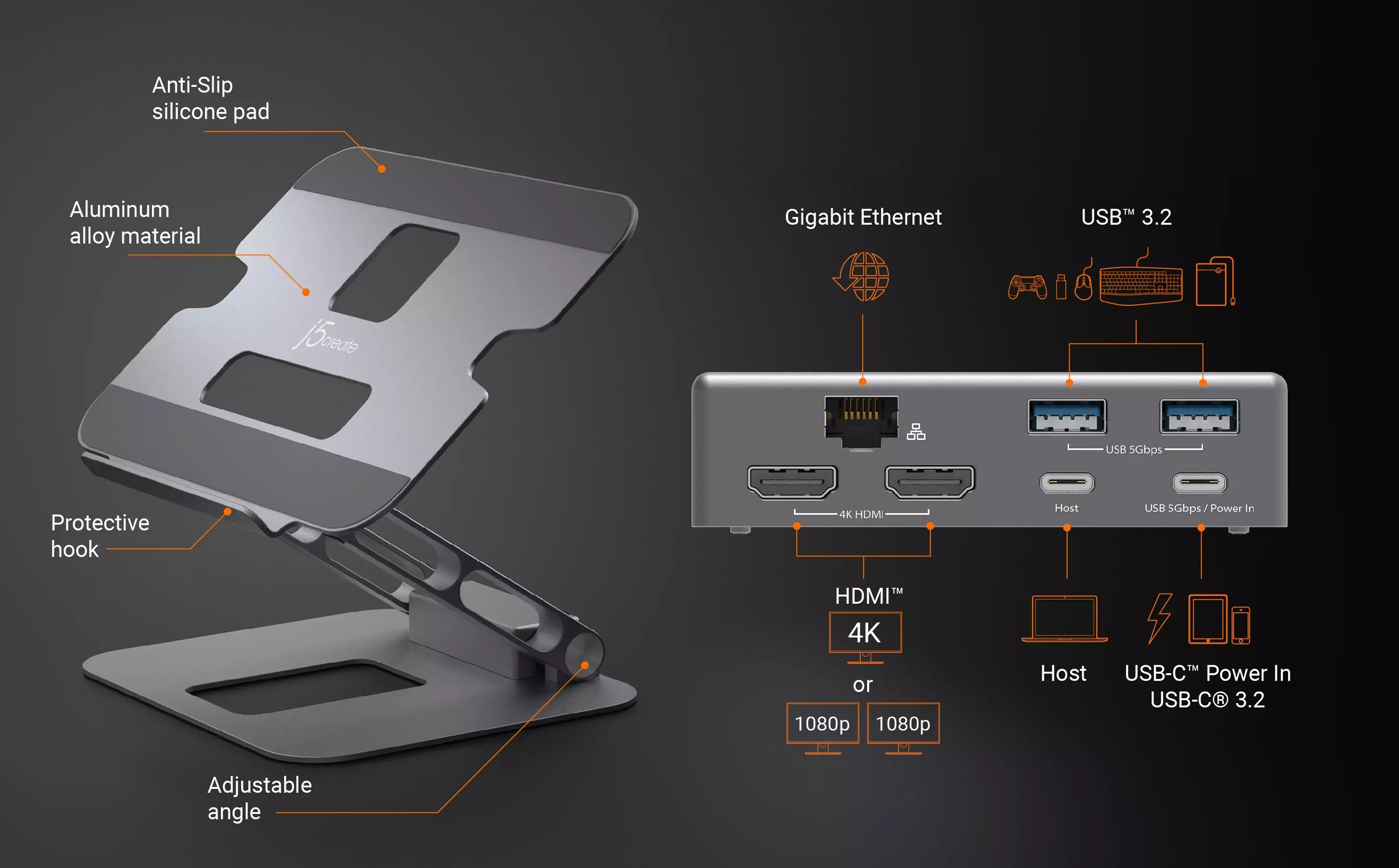

Multiple Ports for Greater Efficiency

Features 2 x HDMI, 2 x USB Type-A ports, Gigabit Ethernet, and PD 100W pass-through charging

Integrated USB-C Mini Dock

Offers support for dual HDMI, network access, and three USB ports

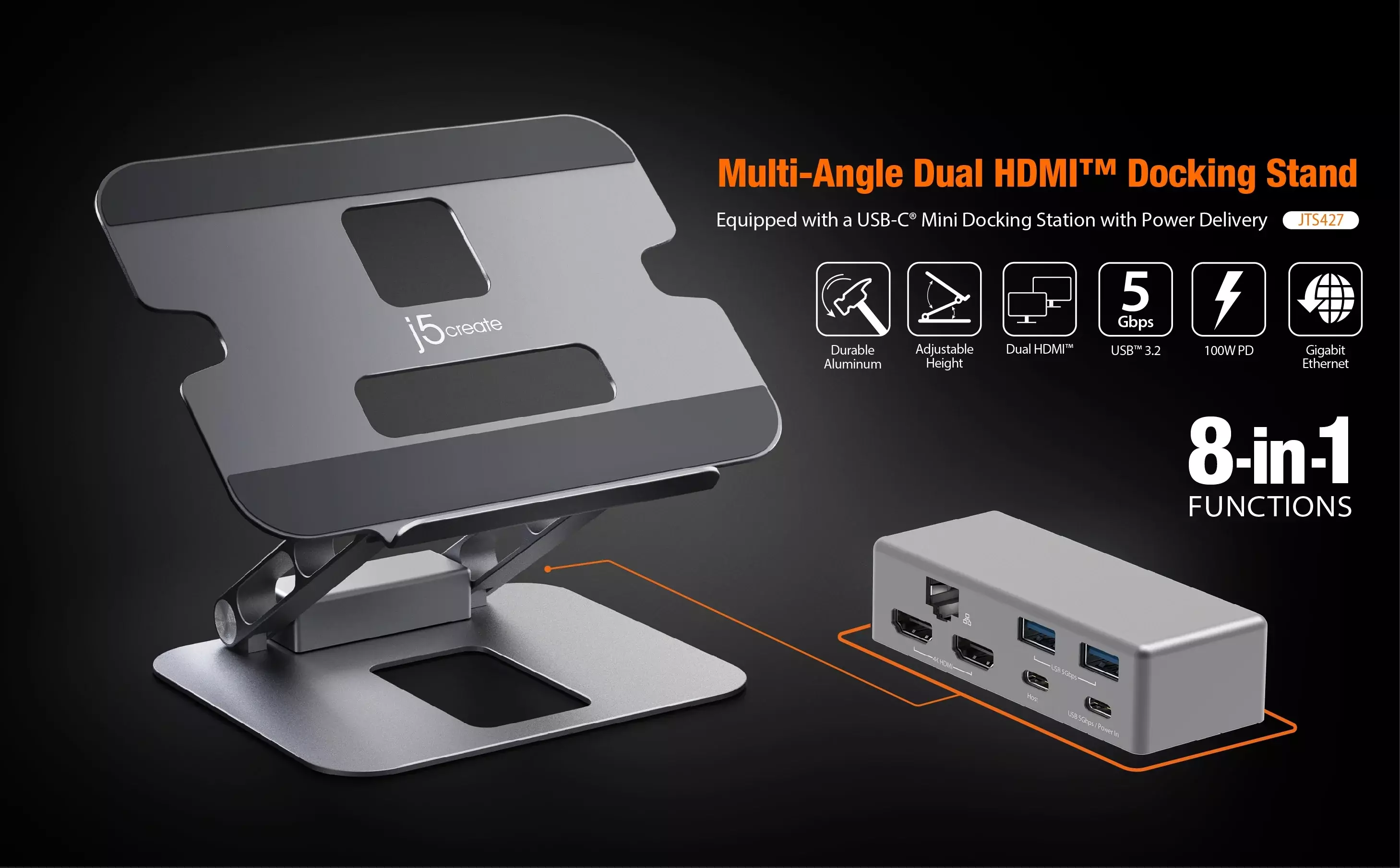

8-in-1 Functions

Laptop stand with multi-function docking station

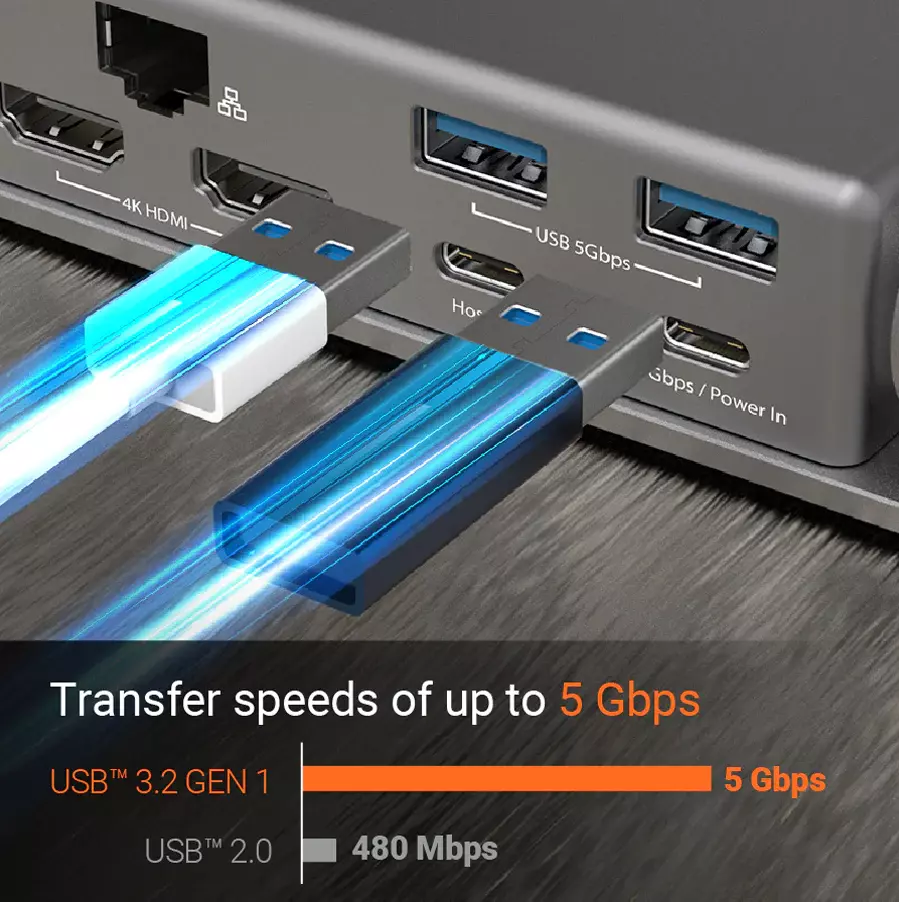

Data Transfer 5Gbps

2 USB Type-A ports for data transfer and syncing, or charging your USB devices

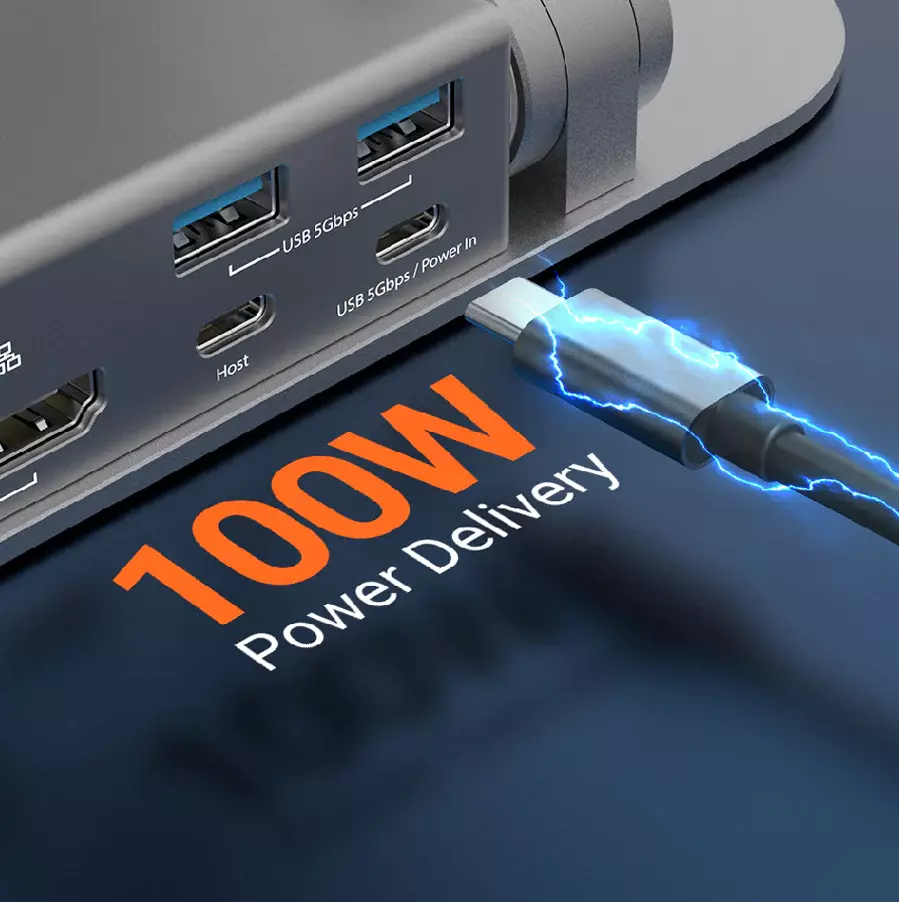

Power Delivery 100W

1 USB-C port with 5Gbps data transfer and support for 100W power pass-through

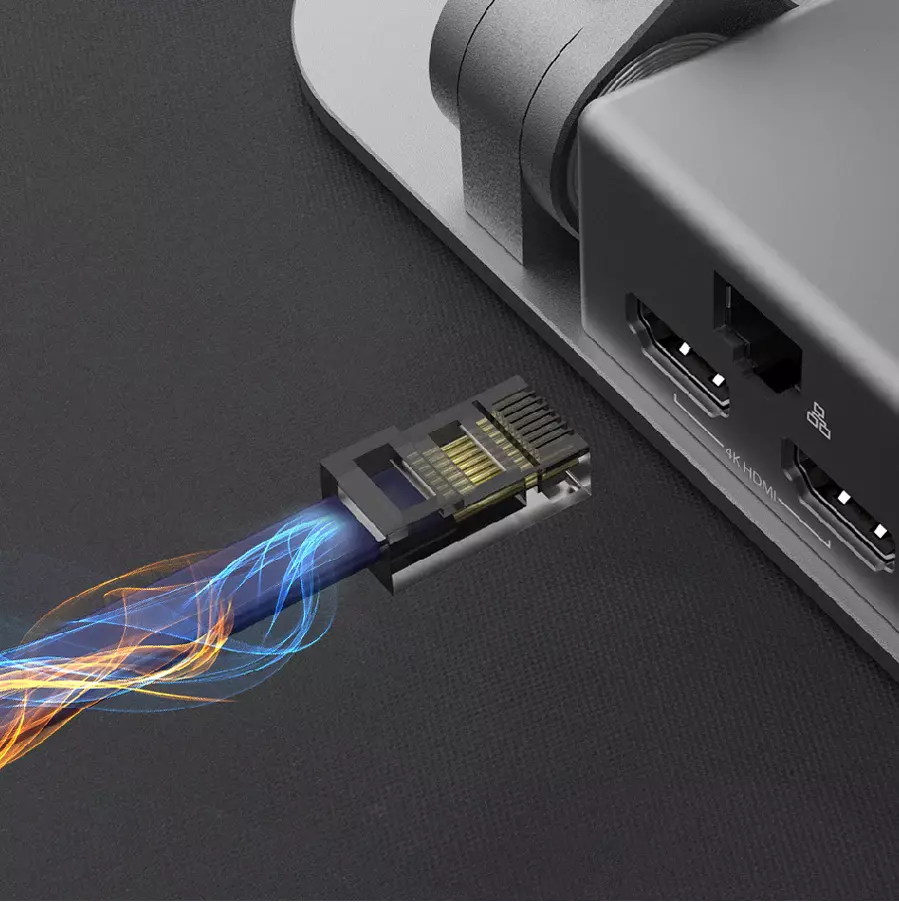

Gigabit Ethernet Port

Reliable Network Connectivity

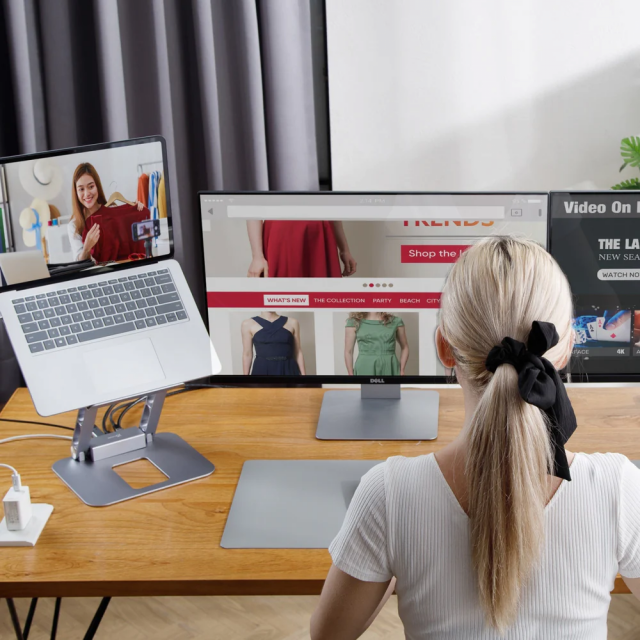

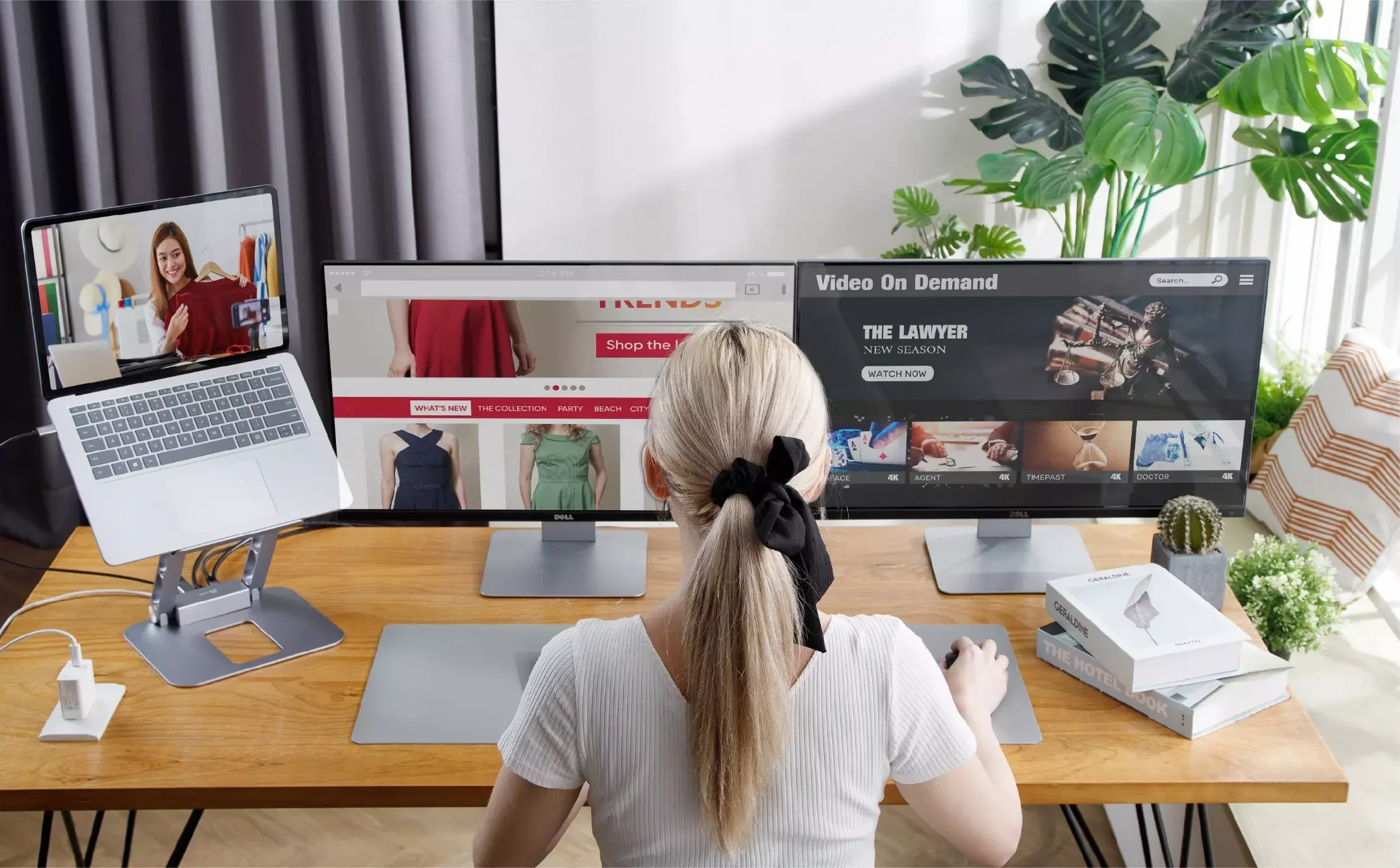

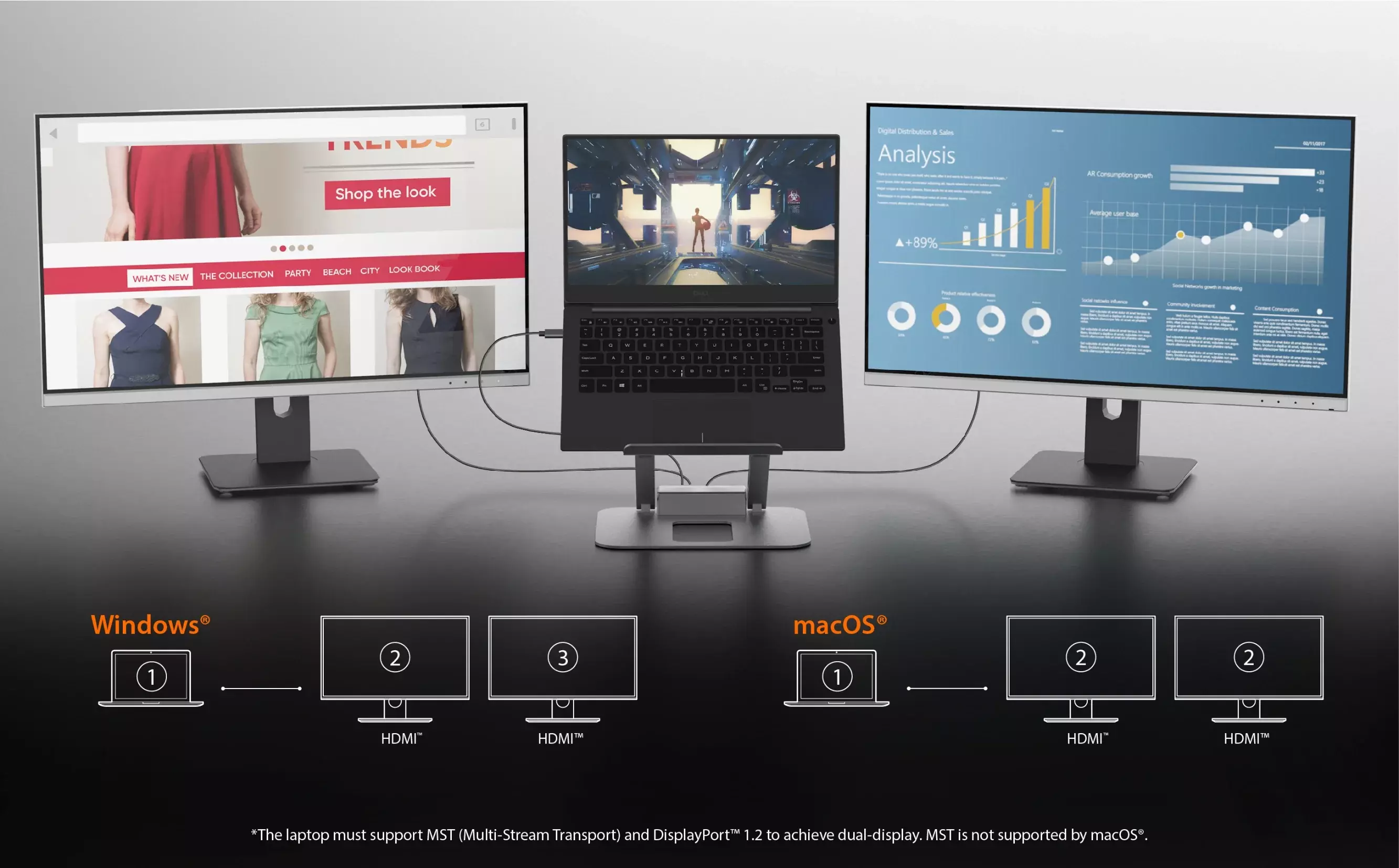

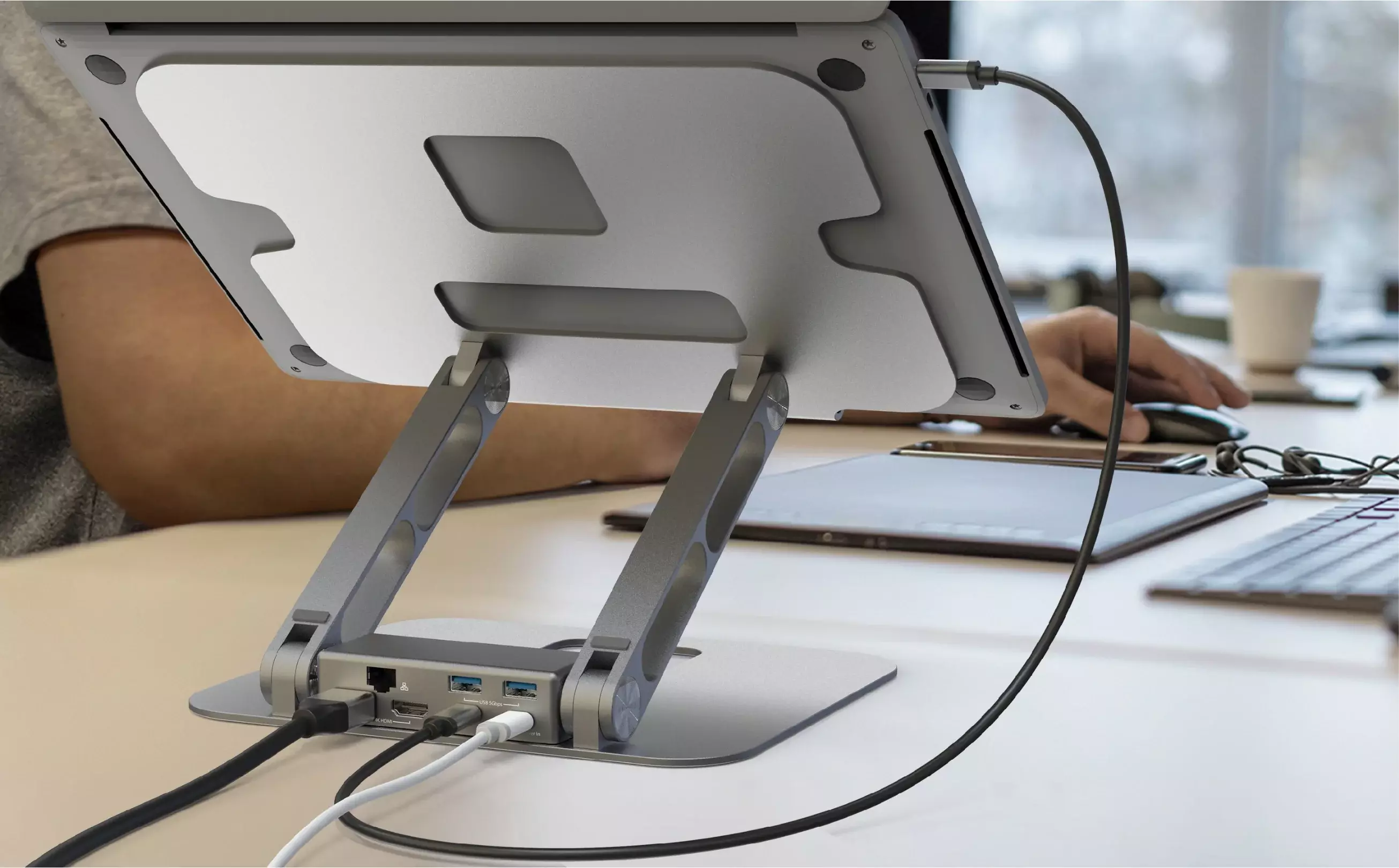

Create a Dual Workstation

Easily connect your Thunderbolt 3/4 or USB-C laptop with DP Alt mode to a 4K 30Hz display

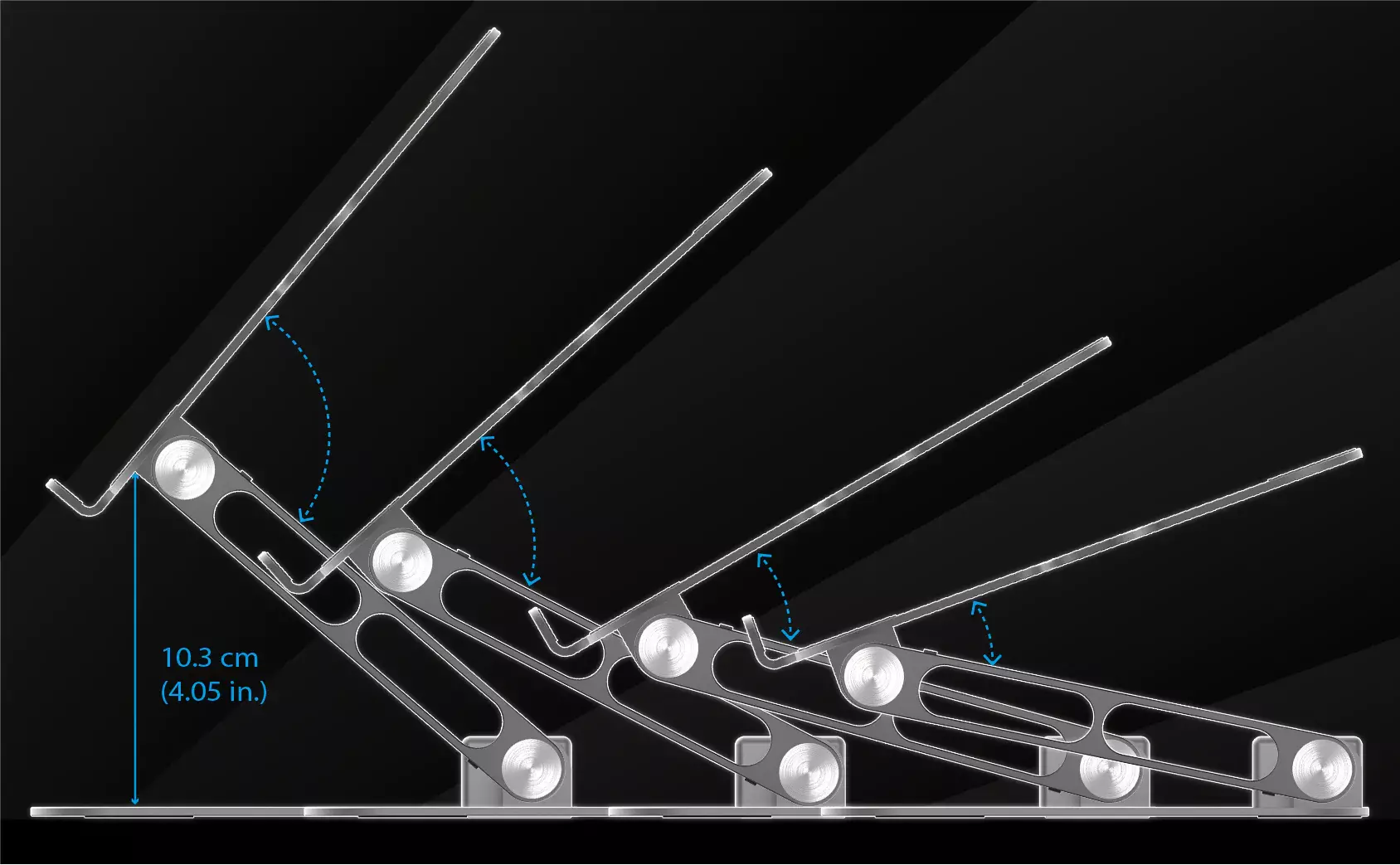

Adjustable Angle and Height Options for Comfort

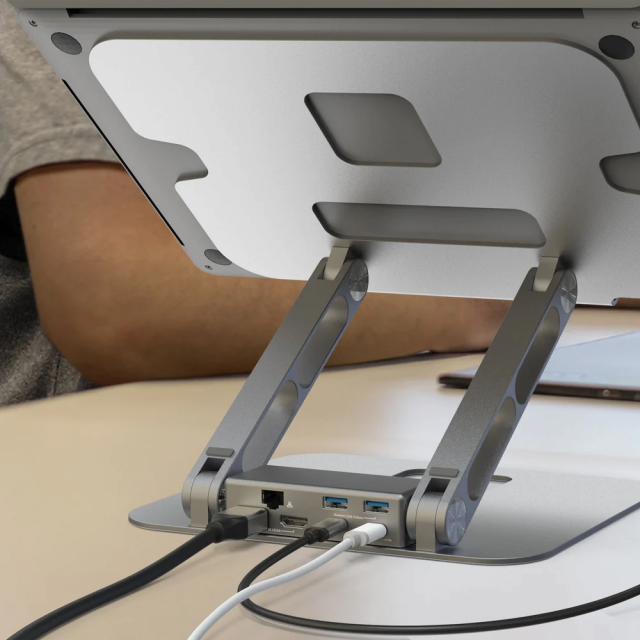

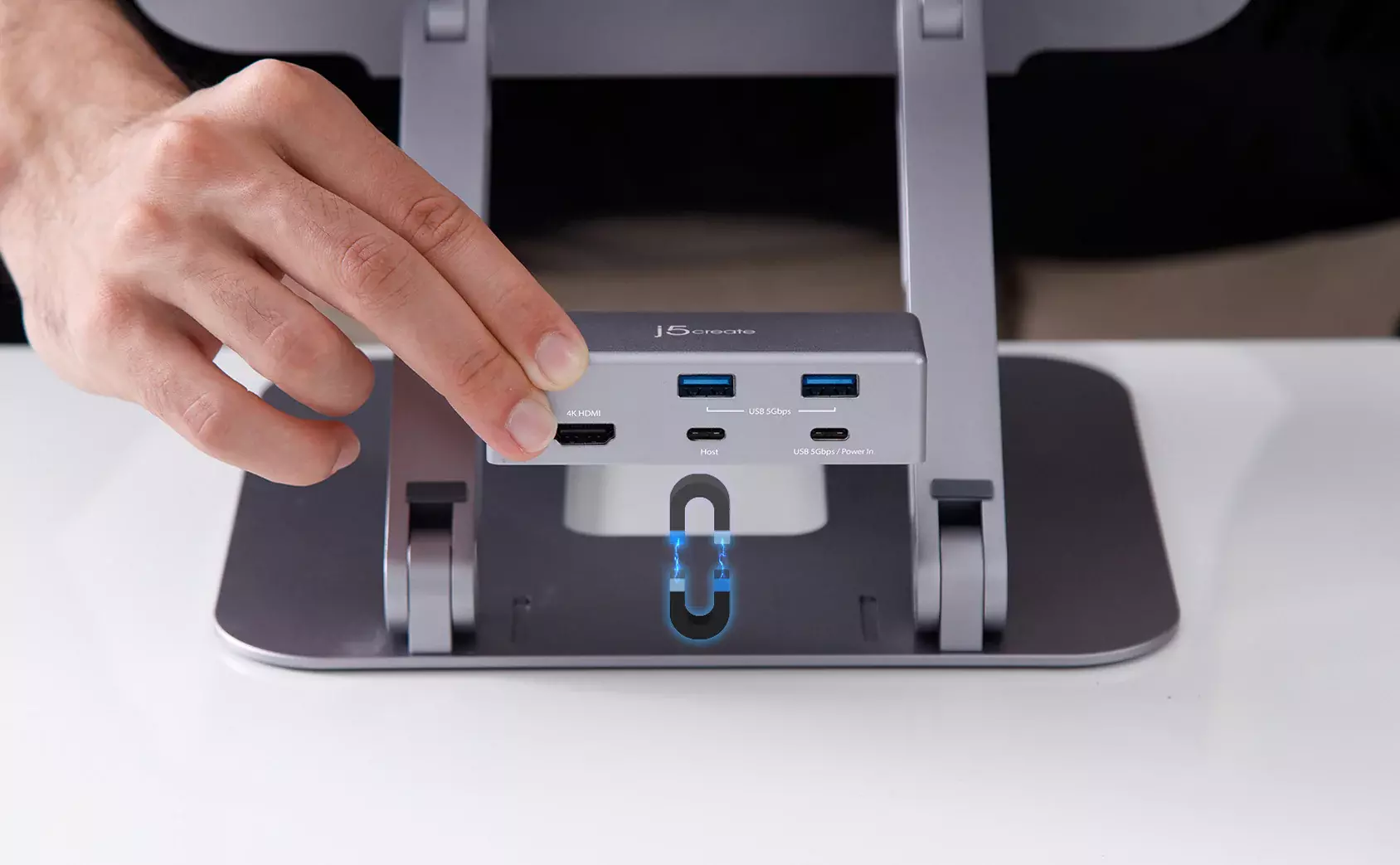

Dock Attaches Magnetically For Easy Assembly And Independent Use

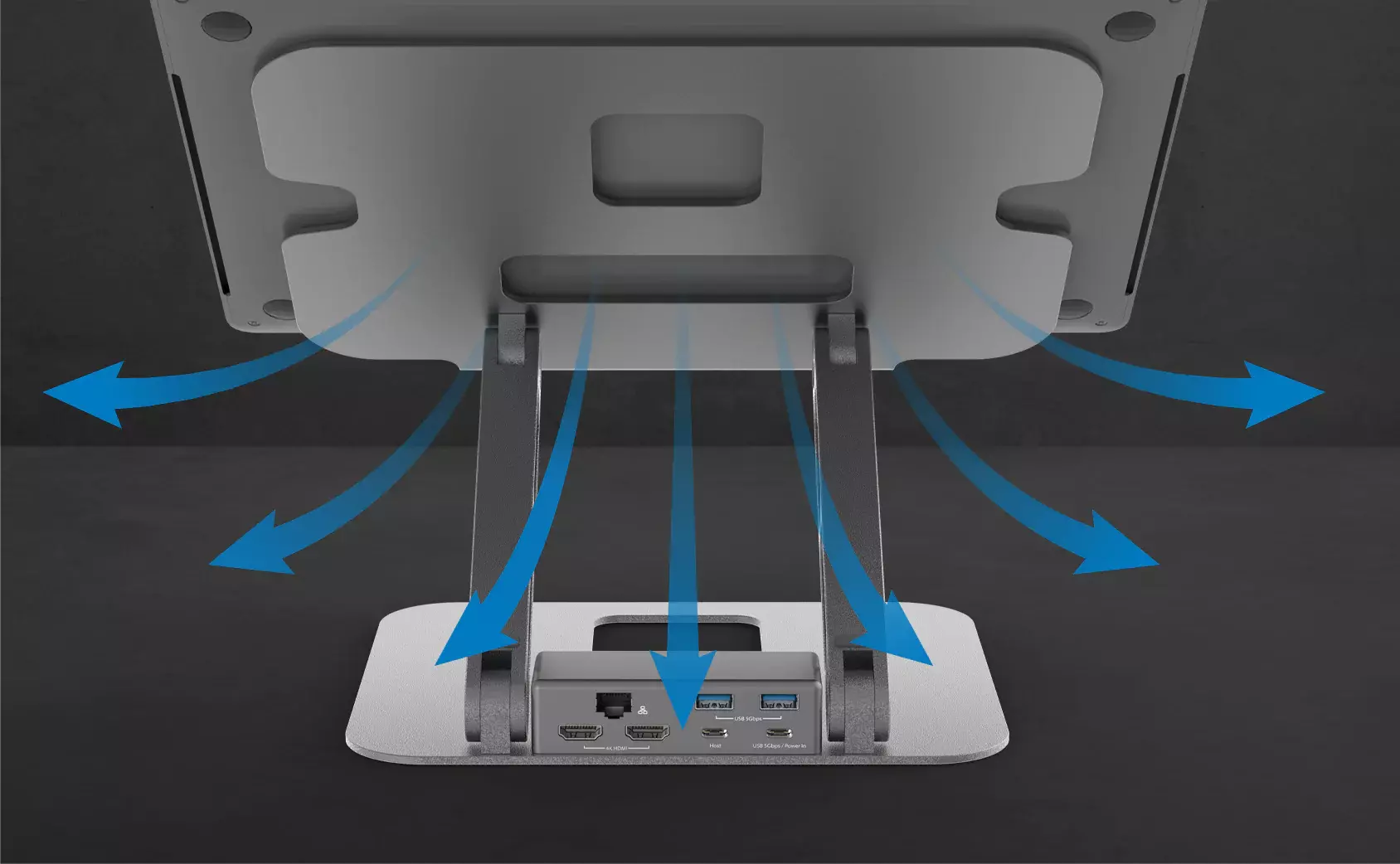

Open Design for Maximum Air-Flow and Heat Dissipation

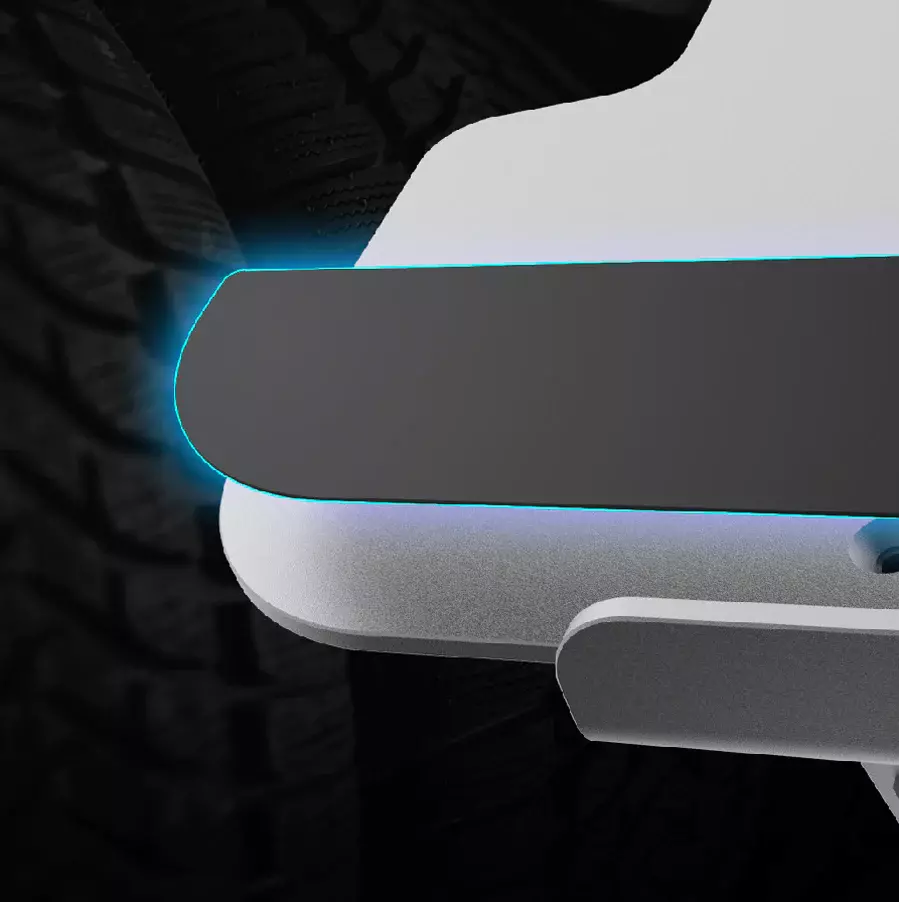

Nonslip Protective Pads

Help Prevent Slipping and Scratches

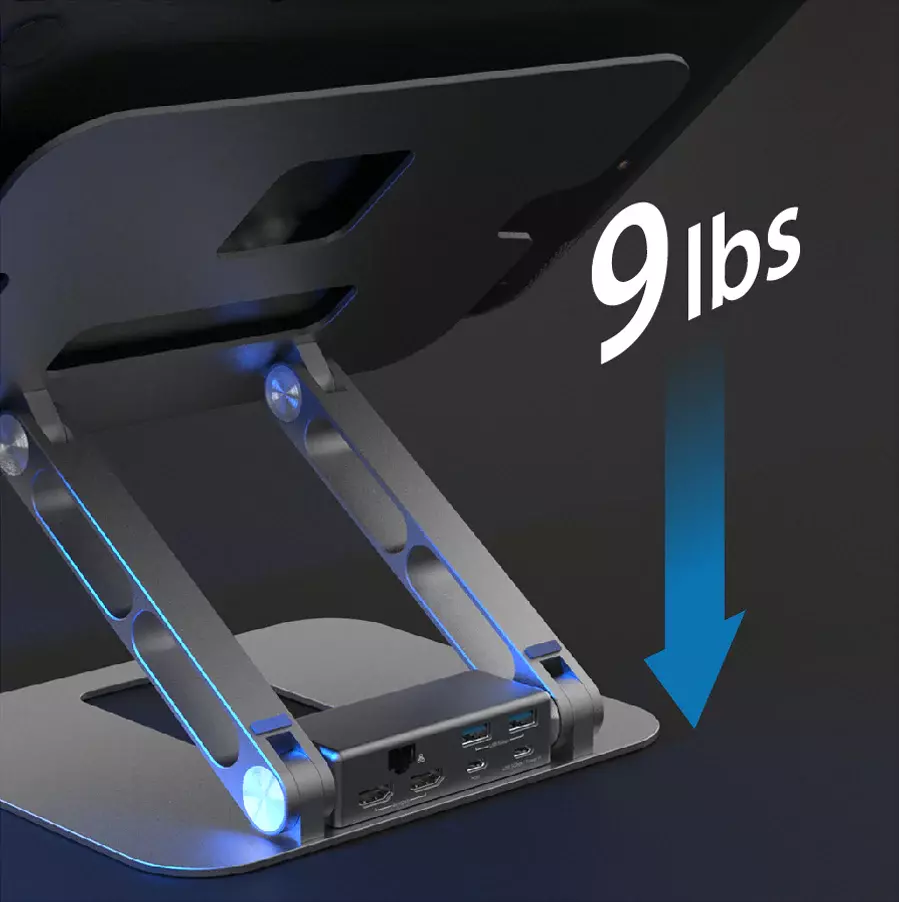

Aluminum Construction

With a weight capacity of up to 9 lbs. (4 kg)

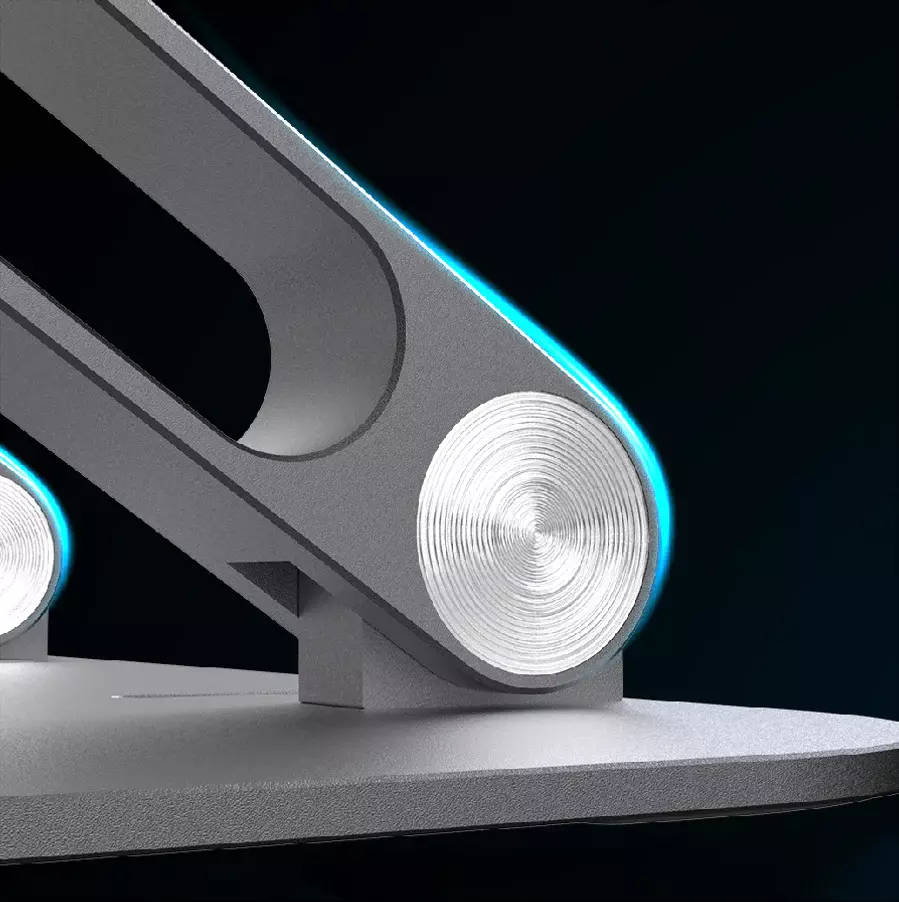

Durable Bearings and Axis

Made of high quality material to ensure stability

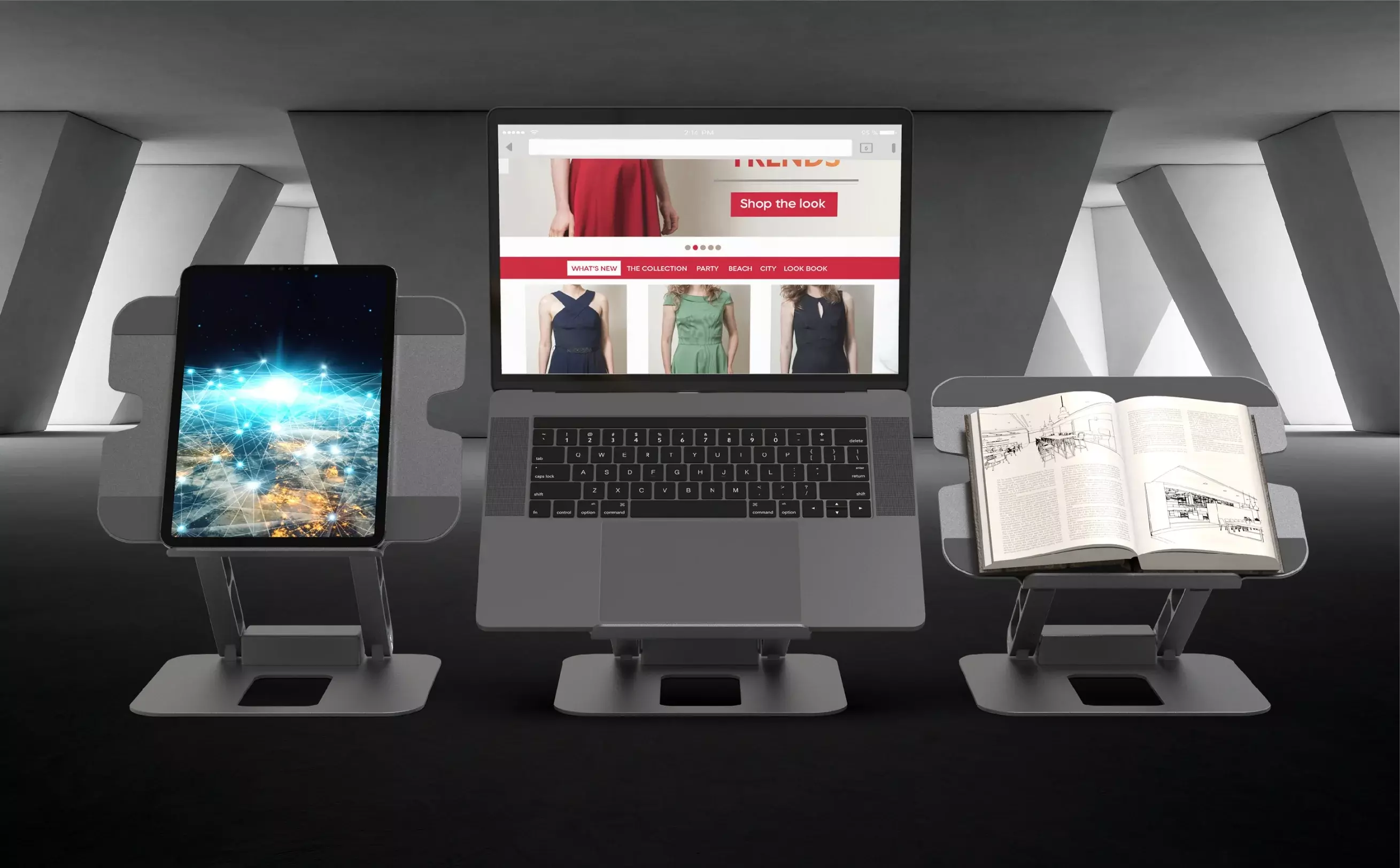

Universal Compatibility

Fits most laptops up to 16 in.

Cable Management For Better Desk Organization

Comfortable Viewing Angle

Adjustable viewing angles and heights help reduce eye strain and improve posture

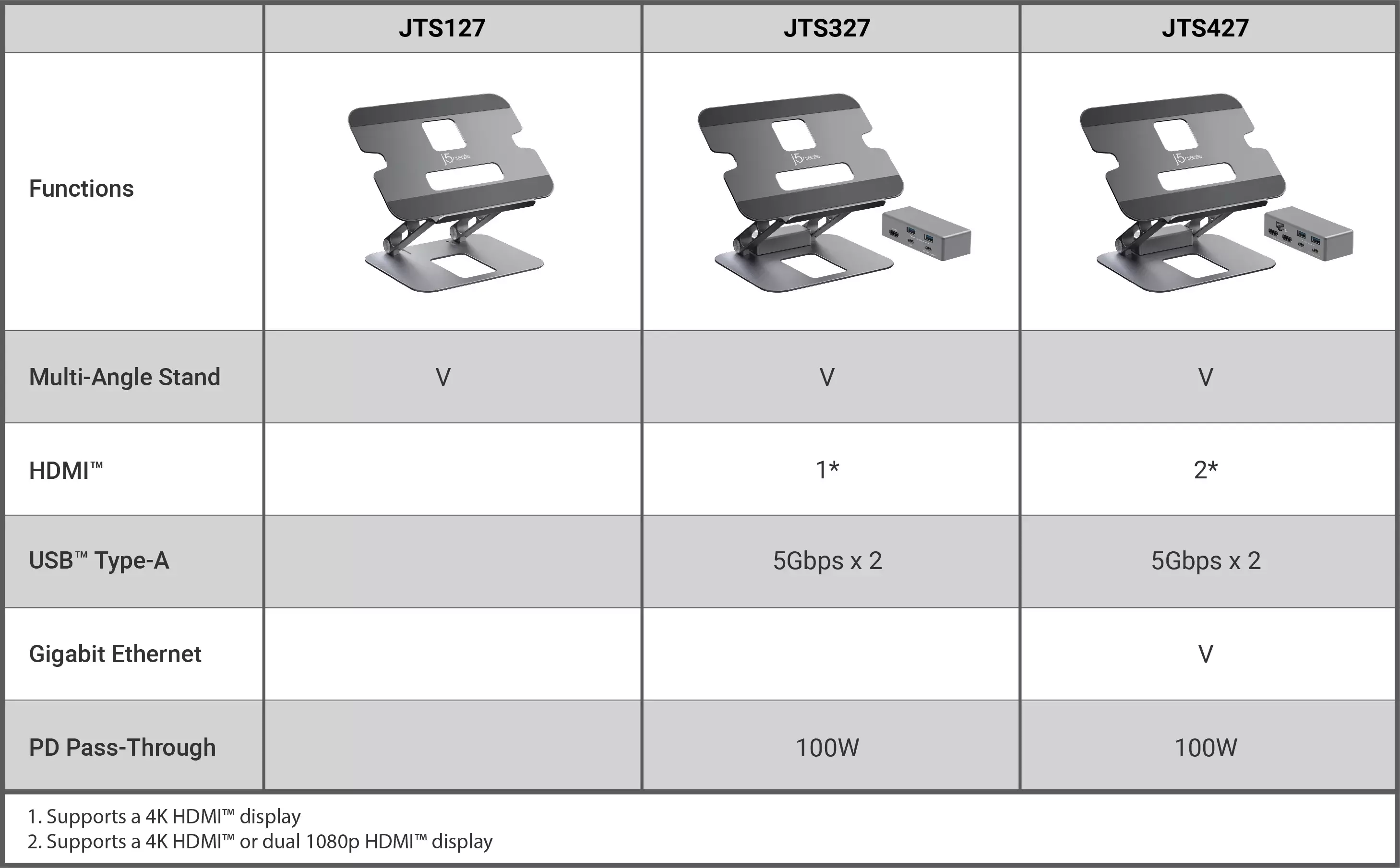

Comparison for the JTS Series

Specifications

Hardware

Additional Storage	No
Adjustable Angle	N/A
Assembly Required	No
Audio Supported	Yes
Docking Station Included	Yes
Host Connector	1 - USB-C Female
Maximum Weight Capacity	9 lbs. (4 kg)
Network Interface	Yes
Number Of Tiers	N/A
Ports	1 - USB-C 5Gbps (Data transfer & Power Delivery 3.0) 2 - USB 5Gbps Type-A 2 - HDMI (4K for Single display, 1080p for Dual display) 1 - Gigabit Ethernet
Power Source	Bus-powered or self-powered
Video Output	2 - HDMI Female
Warranty	2-Year Limited

Performance

Audio Channel	2.1 via HDMI
Displays Supported	2
Max Display Refresh Rate	4K @ 30Hz
Max Display Resolution	3840 x 2160
Wide Screen Supported	Yes

Power

Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.5A
Output Voltage	Up to 20V
Power Consumption	≤ 900 mA
Power Delivery	Up to 100W

Physical Specifications

Cable Length	23.6 in. (60 cm)
Color	Space Gray
Enclosure Type	Aluminum
Operating Humidity	< 85% non-condensing
Operating Temperature	30 to 116°F (0 to 30°C)
Product Depth	2.08 in. (53 mm)
Product Height	11.4 in. (290 mm)
Product Weight	≈ 2.89 lbs. (1.31 kg) (including cable)
Product Width	8.9 in. (226 mm)
Stand Material	Aluminum
Storage Humidity	< 85% non-condensing
Storage Temperature	0 to 155°F (-10 to 65°C)
