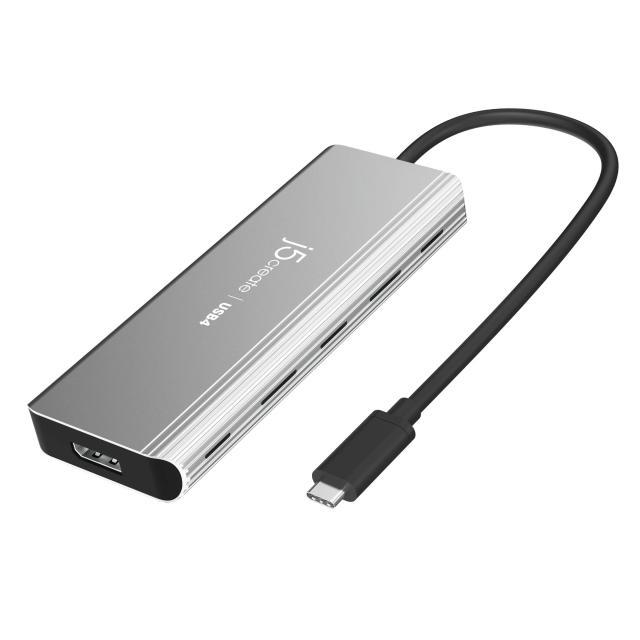

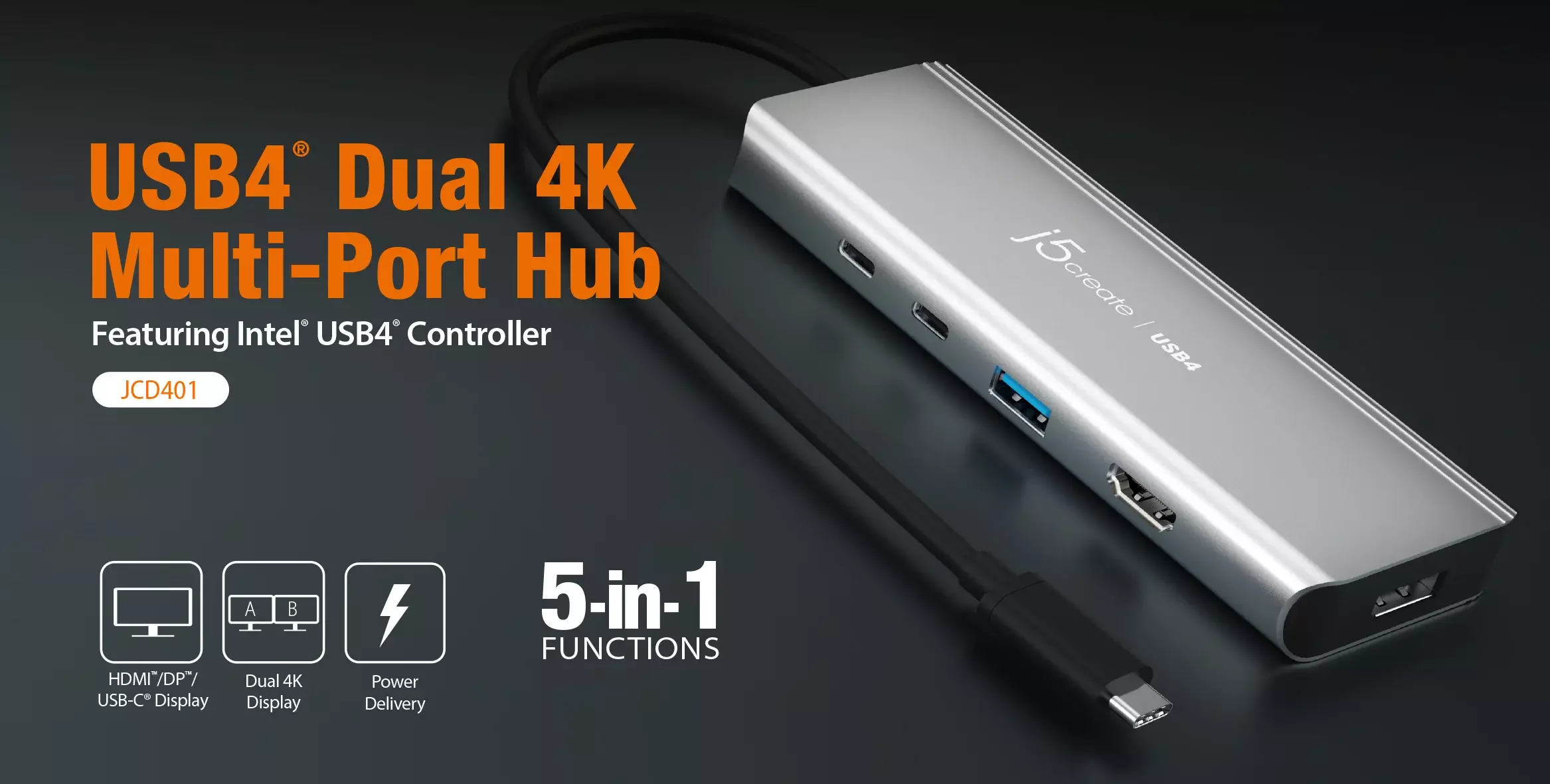

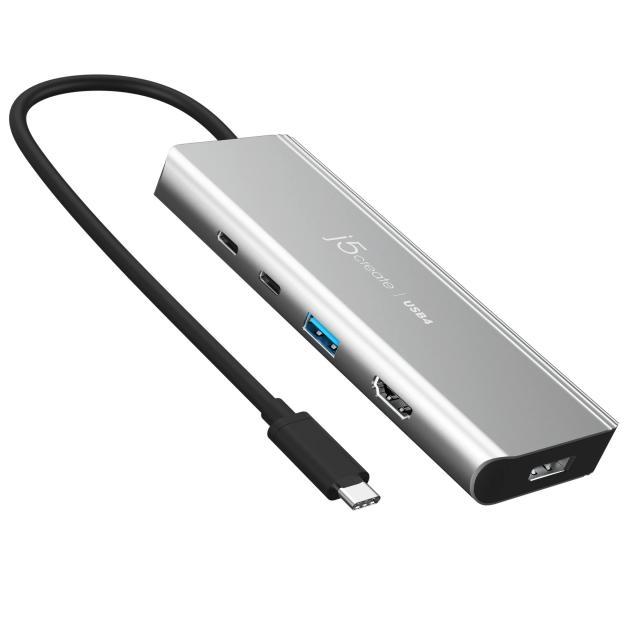

j5create USB4 Dual 4K Multi-Port Hub
Hub j5create JCD401 USB4 Dual 4K Multi-port, 5 porturi, USB-C, 4K HDMI
Cod produs: J5-JCD401
Întrebare despre j5create USB4 Dual 4K Multi-Port Hub
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Interfață | USB-C |
| Standard USB | USB4 |
| Porturi | USB-A, USB-C, HDMI, DisplayPort |
| Rezoluție suportată | 4K@60Hz |
Related products
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 2
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
1080p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
4K@60Hz, 1080p@144Hz, 1440p@120Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1, USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, USB-C, HDMI
Rezoluție suportată:
4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.0
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack
Rezoluție suportată:
1440p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1
Porturi:
USB-A, USB-C, HDMI
Rezoluție suportată:
1080p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
4K@60Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort
Rezoluție suportată:
4K@60Hz, 1080p@240Hz, 1440p@144Hz
Interfață:
USB-C
Standard USB:
USB4
Porturi:
USB-A, USB-C, HDMI, LAN
Rezoluție suportată:
4K@60Hz, 1080p@144Hz, 1440p@120Hz
Interfață:
USB-C
Standard USB:
USB 3.1 Gen 1, USB 3.0
Porturi:
USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort
Rezoluție suportată:
1080p@60Hz, 4K@30Hz
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, USB-C, HDMI, SD Card reader, microSD card reader, 3.5 mm audio jack
Rezoluție suportată:
4K@60Hz
- Controlerul Intel USB4 asigura o calitate si fiabilitate lider in industrie
- Pana la doua afisaje 4K cu conexiuni de monitorizare flexibile
1 DisplayPort + 1 HDMI
1 USB-C + 1 DisplayPort
1 USB-C + 1 HDMI
- Un port USB-C in aval accepta transmisie de date de pana la 10 Gbps si suport DP 1.2 pentru iesire video 4K @ 60Hz
- Un port SuperSpeed + USB Type-A 10Gbps pentru a vă acomoda perifericele
- Power Delivery 3.0 ofera o incarcare de pana la 85W cu un adaptor de alimentare USB-C
- Compatibilitate larga cu diverse sisteme si dispozitive de operare
- Plug-and-play, nu este necesarа instalarea driverului

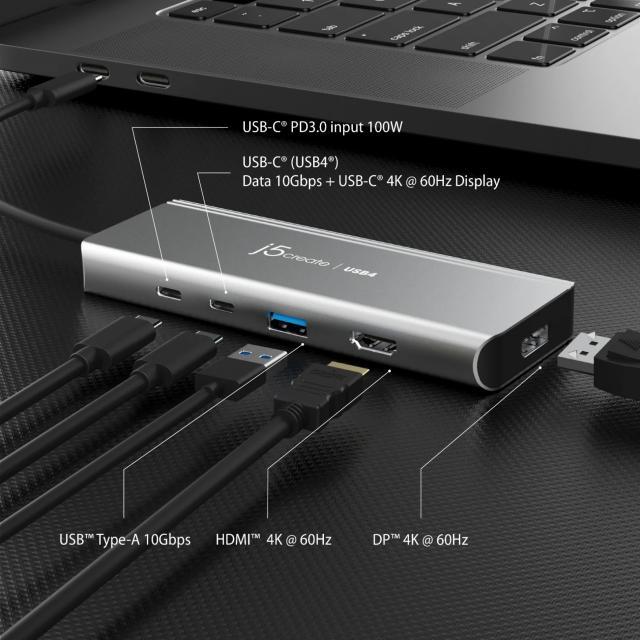

Conector gazda: 1 - USB4 tata
porturi: 1 - USB-C 3.2 Gen 2 ( 10 Gbps ) cu suport DP 1.2
1 - USB Type-A 3.2 Gen 2 (10Gbps)
1 - USB-C Power Delivery 3.0
1 - 4K HDMI
1 - DisplayPort 1.2
Iesire video: 1 - HDMI mama
1 - DisplayPort mama
1 - USB-C cu DisplayPort alt mode
Afosaje sprijinite: 2
Rata maxima de transfer de date: 10Gbps
Rata maixma de reimproaspatare: 60 Hz
Rezolutie maxima a afisajului: 3840 x 2160
Curent de intrare: pana la 3A
Tensiune de intrare: pana la 20V
Curent de iesire: pana la 4.25A
Tensiune de iesire: pana la 20V

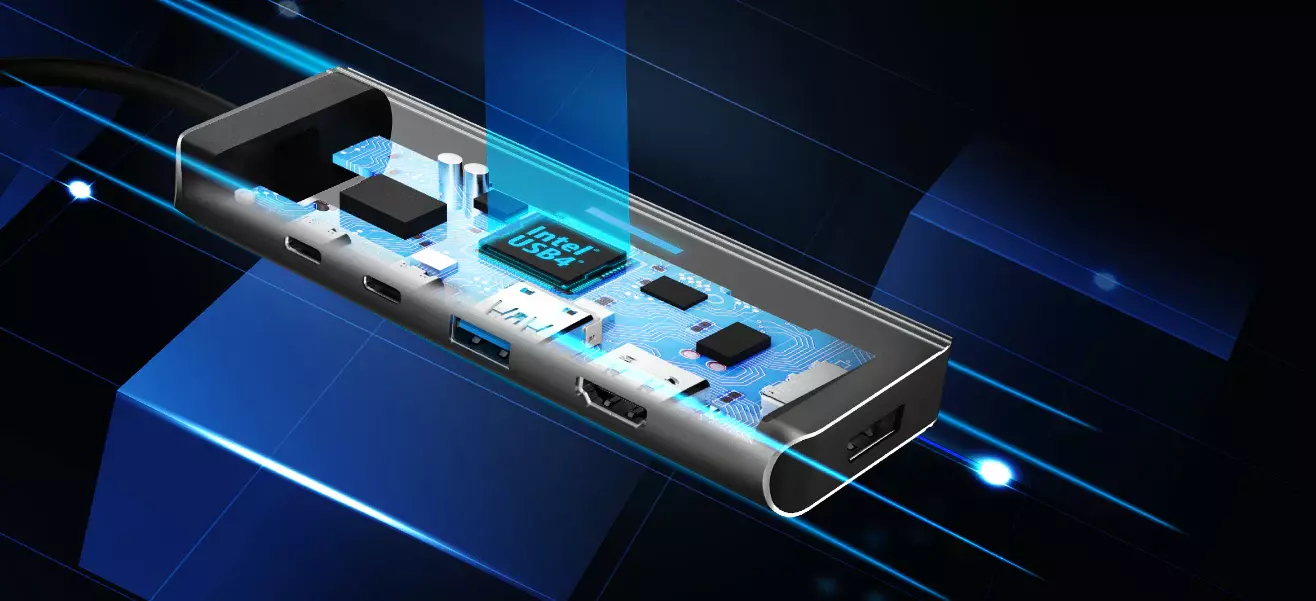

Featuring Intel USB4 Controller
Enhances Dynamic Bandwidth Sharing For Better Video And Optimized Data Transmission

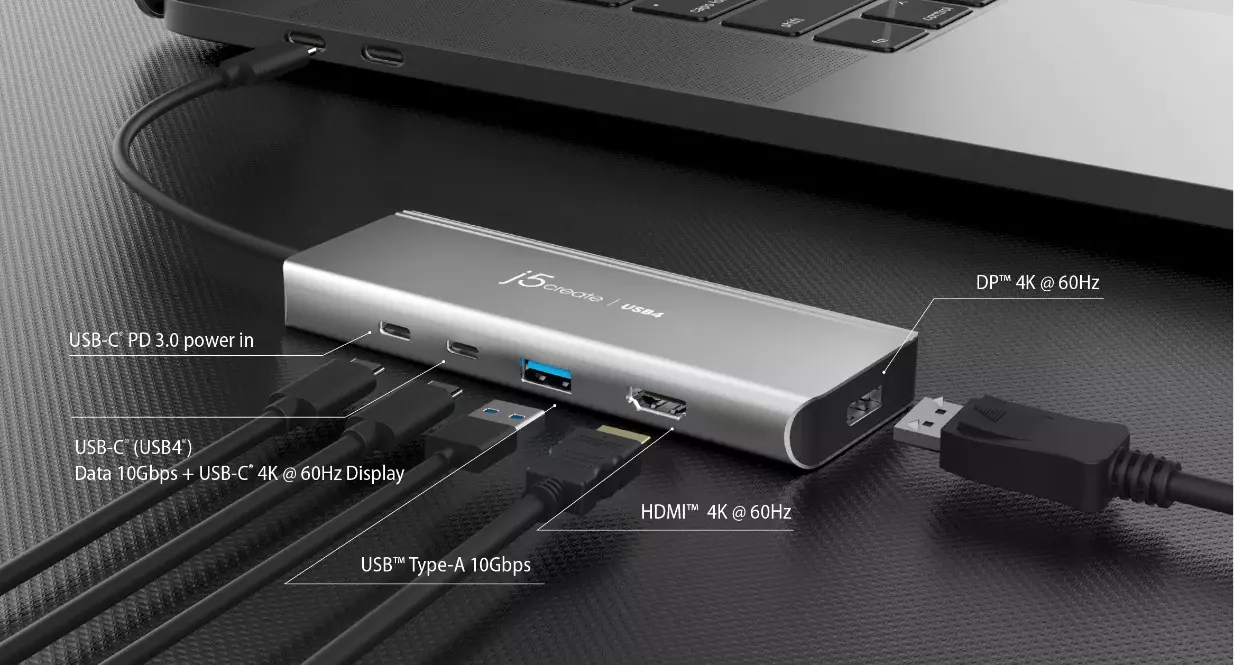

5-in-1 Functions
Multiple connectivity options for greater efficiency

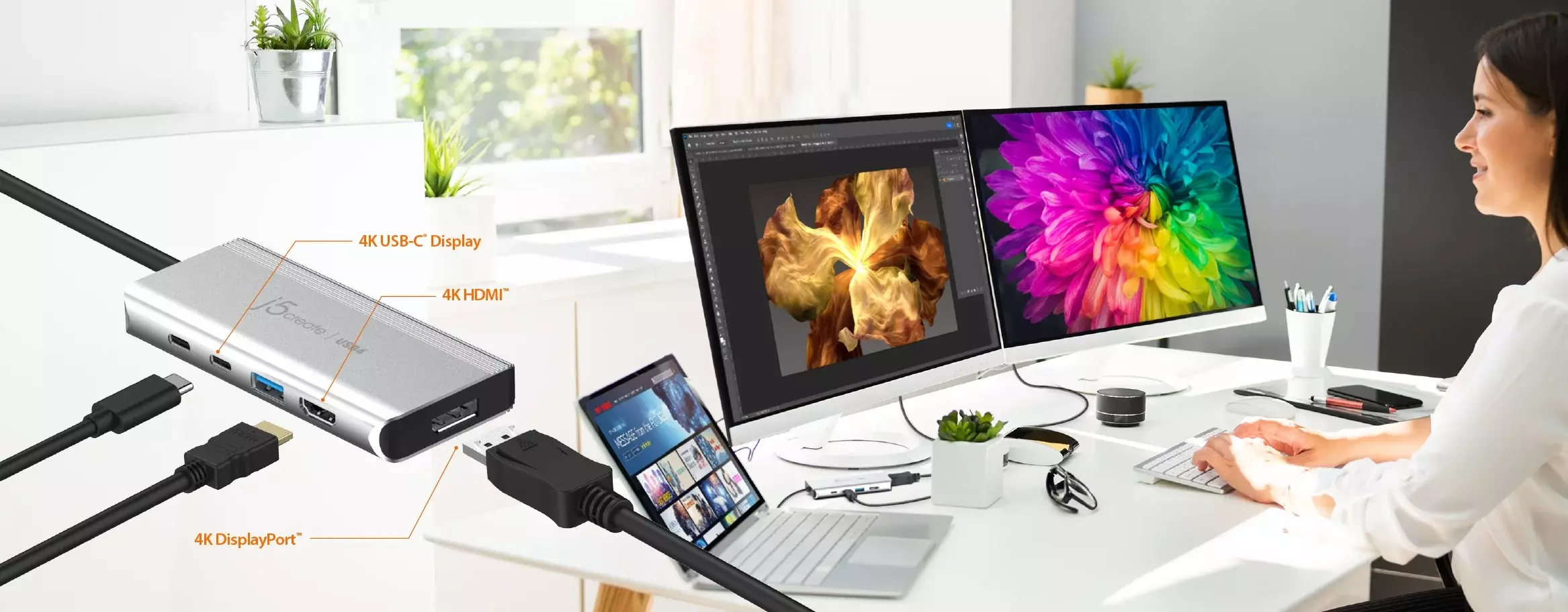

Dual 4K Monitor Setup, Increasing Productivity And Saving Time
Includes a 4K capable DisplayPort, HDMI, and USB-C display output for a dual monitor setup. Thunderbolt 3 | 4 compatible and no driver installation is needed. Supports extended desktop mode on macOS and Windows
* Dual display not supported on certain Apple M1 or M2 Macs. Contact your computer manufacturer to verify combability.
* If your dual monitors does not display properly, please manually set the resolution to a maximum of 4K30 to ensure dual 4K display output

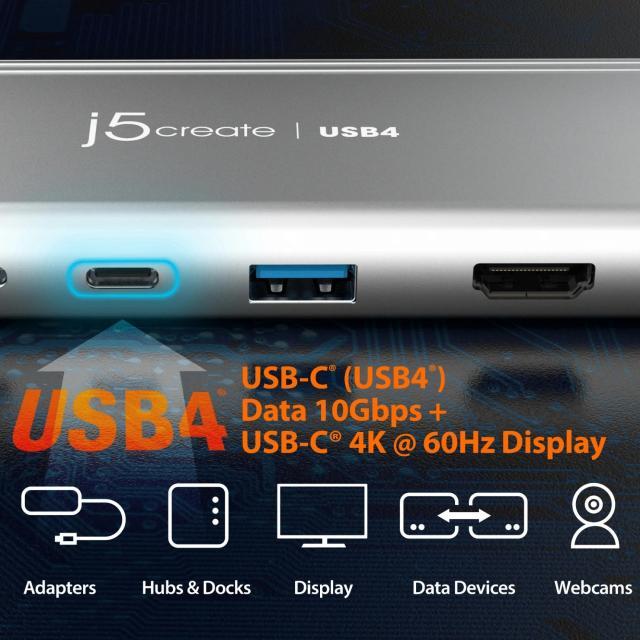

Built-in A Multi-Function USB-C Port
Multi-function USB-C port supports up to 4K display and 10Gbps data transfer. Let you connect hubs, docks, display, flash-drive, and other USB-C devices you need

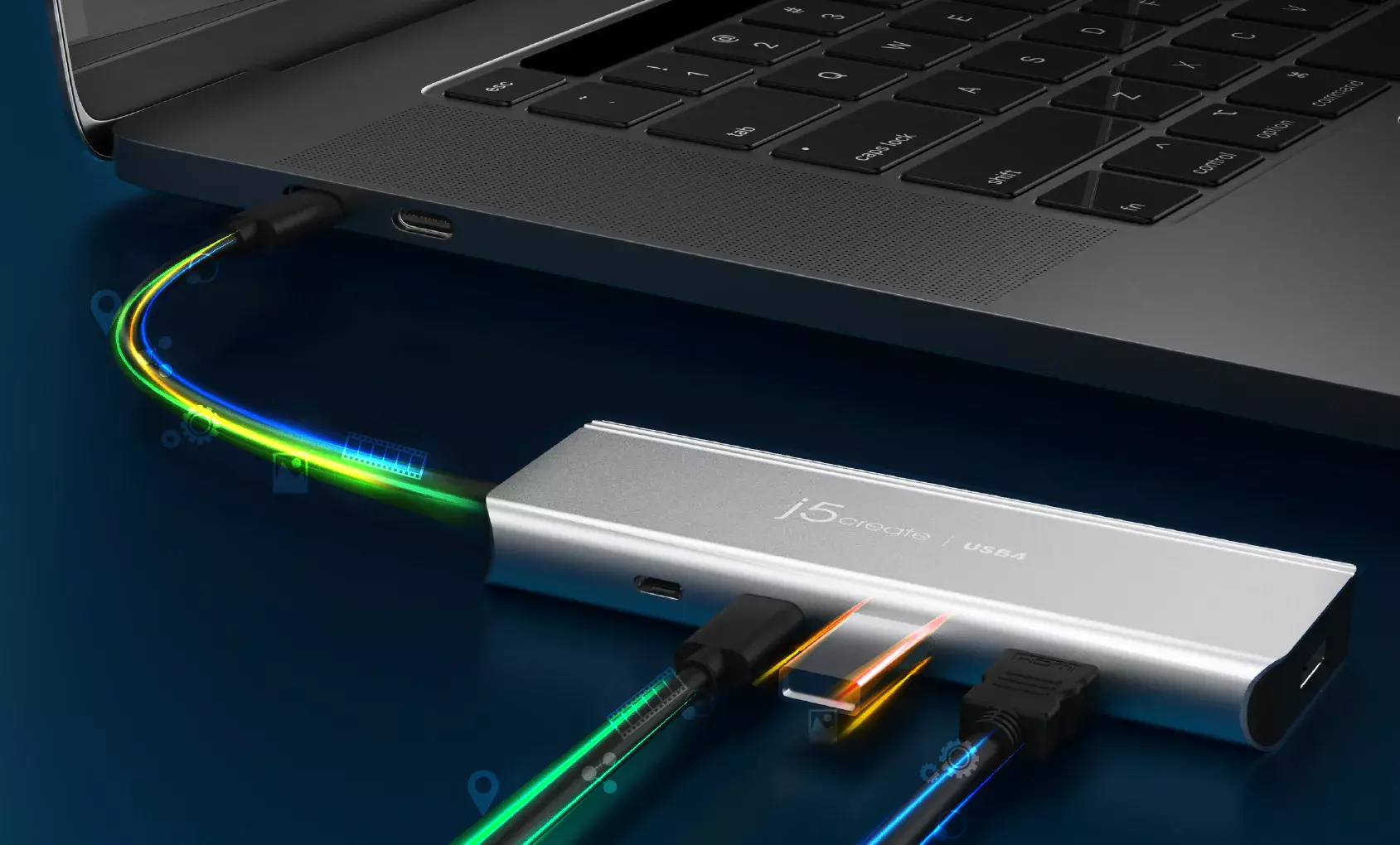

Supports Tunnel Transmission Technology
Multiple data and display protocols efficiently share bandwidth to offer optimal performance

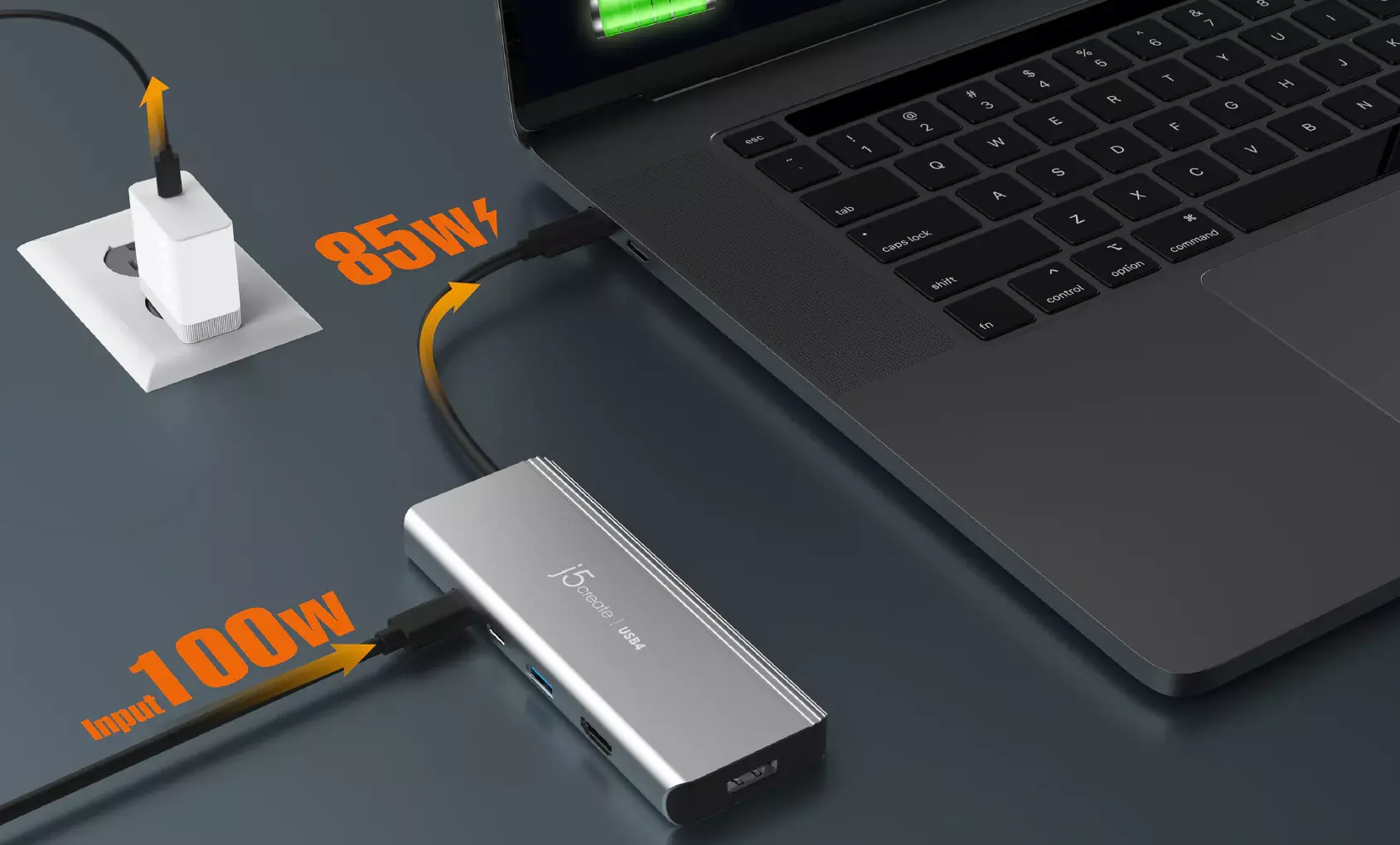

High-Speed PD Pass-Through Charging
Charges your laptops and provides power to connected peripherals with up to 85W of PD pass-through charging.
Efficient USB Ports
Connect your latest and legacy devices with two USB SuperSpeed+ 10Gbps ports (1 USB-C and 1 Type-A) for charging or connecting peripherals

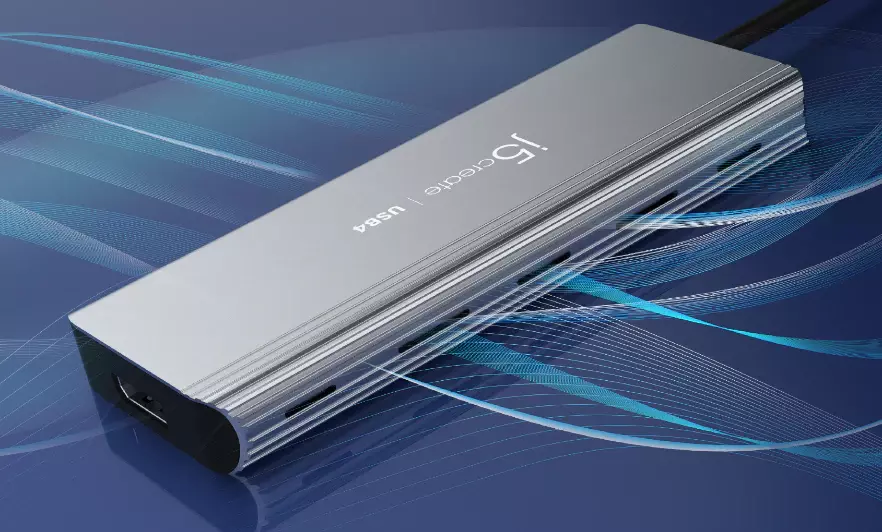

Effective Heat Dissipation
Design features aluminum housing and vents to help dissipate heat effectively and prevent overheating
Thunderbolt and USB4 Compatible
A high-performing USB4 multi-port hub and the first USB-C hub to incorporate the latest USB4 controller from Intel, compatible with Thunderbolt 3 and 4, and USB4
Simple and quick setup with no driver installation needed
Specifications
Hardware
| Audio Supported | No |
| Host Connector | 1 - USB4 Male |
| Network Interface | No |
| Ports |
1 - USB-C 3.2 Gen 2 (10Gbps) with DP 1.2 Support 1 - USB Type-A 3.2 Gen 2 (10Gbps) 1 - USB-C Power Delivery 3.0 1 - 4K HDMI 1 - DisplayPort 1.2 |
| Power Source | Bus-powered or self-powered |
| Video Output |
1 - HDMI Female 1 - DisplayPort Female 1 - USB-C with DisplayPort alt mode |
| Warranty | 2 Year Limited |
Performance
| Audio Channel | N/A |
| Compatible Networks | N/A |
| Displays Supported | 2 |
| Max Data Transfer Rate | 10Gbps |
| Max Display Refresh Rate | 60Hz |
| Max Display Resolution | 3840 x 2160 |
Power
| Input Current | Up to 3A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
| Power Consumption | ≤ 900 mA |
| Power Delivery | Up to 85W via USB-C |

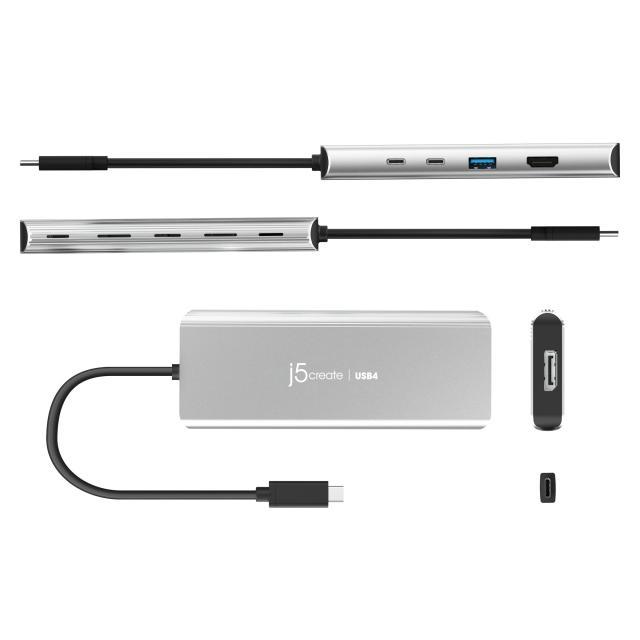

Physical Specifications
| Cable Length | 7.87 in. (200 mm) |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Product Depth | 0.59 in. (15 mm) |
| Product Height | 5.3 in. (135 mm) |
| Product Weight | 3.84 oz (109g) |
| Product Width | 2 in. (51 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
