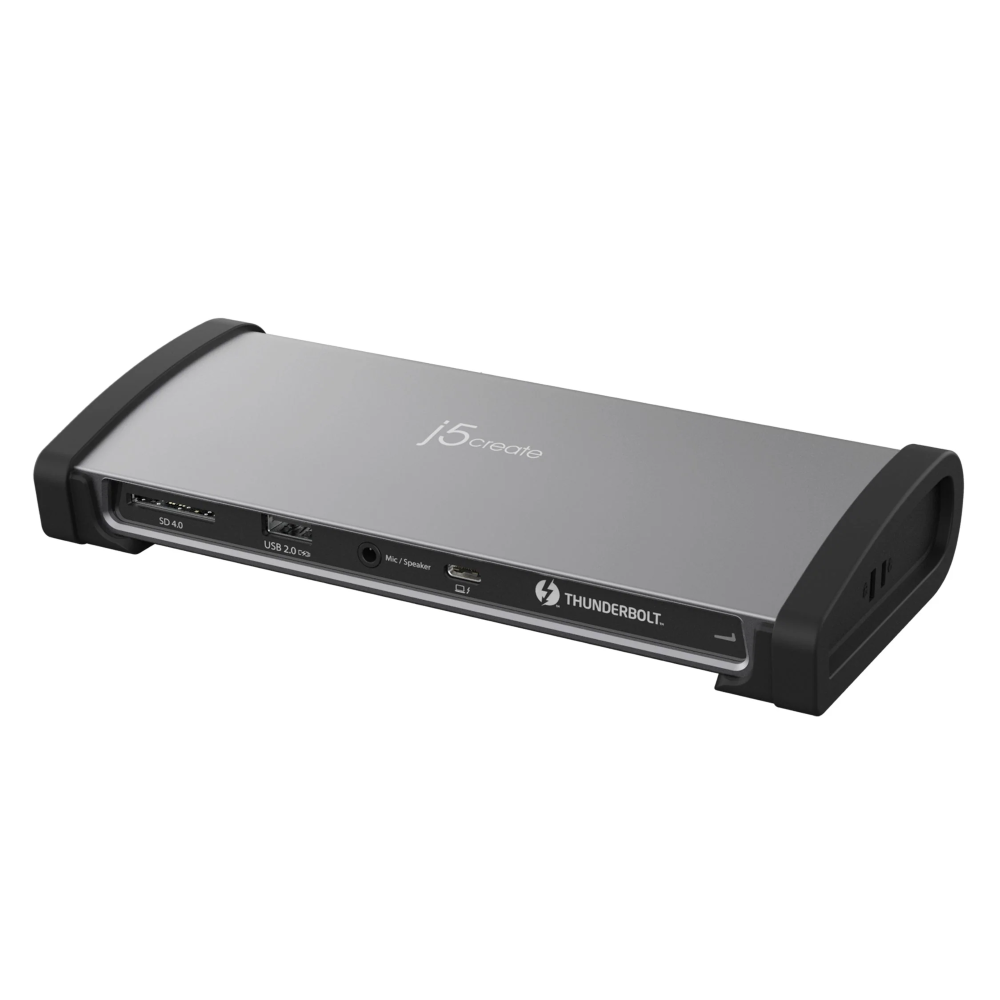

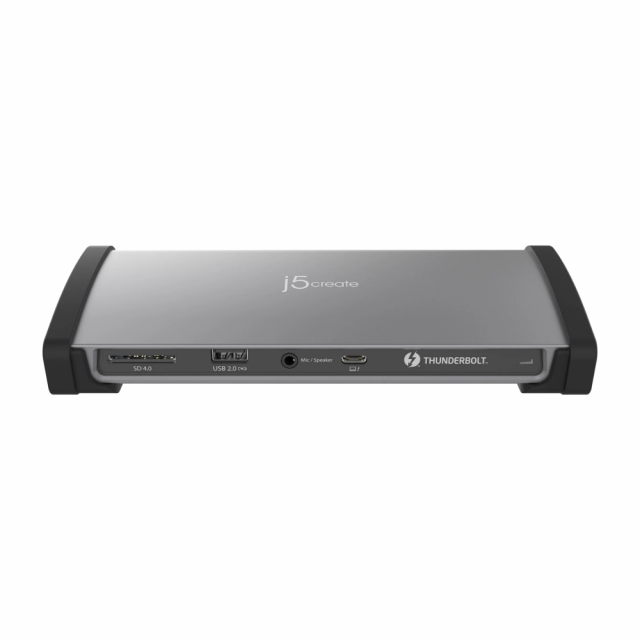

j5create 8K Thunderbolt 4 Docking Station

Docking Station j5create JTD562, Thunderbolt 4, USB-C, 8K

Cod produs: J5-JTD562

la cerere (contactați-ne)

Întrebare despre j5create 8K Thunderbolt 4 Docking Station

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	24 luni
Interfață	USB-C
Porturi	USB-A, USB-C, LAN, SD Card reader, 3.5 mm audio jack
Rezoluție suportată	8K@60Hz, 4K@144Hz

Related products

j5create JCD543P USB-C Triple Display Docking Station with 100W PD Adapter

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create Wood Monitor Stand with Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create M.2 NVMe USB-C Gen 2 Docking Station

Interfață: USB-C

Standard USB: USB 3.2 Gen 2

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort, M.2

Rezoluție suportată: 4K@60Hz

j5create JTS427 Multi-Angle Dual HDMI Docking Stand

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI, LAN

Rezoluție suportată: 4K@30Hz

j5create JCD543 USB-C Triple Display Docking Station

Interfață: USB-C

Standard USB: USB 3.1 Gen 1, USB 3.0

Porturi: USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack, DisplayPort

Rezoluție suportată: 1080p@60Hz, 4K@30Hz

j5create JTS224 Multi-Angle Stand with Docking Station for iPad Pro

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 4K@60Hz

j5create JCD403 USB4 8K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN

Rezoluție suportată: 8K@60Hz, 4K@144Hz

j5create 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, DisplayPort

Rezoluție suportată: 4K@60Hz, 1080p@240Hz, 1440p@144Hz

j5create Multi-Angle 4K Docking Stand

Interfață: USB-C

Standard USB: USB 3.2 Gen1

Porturi: USB-A, USB-C, HDMI

Rezoluție suportată: 4K@30Hz

j5create USB-C Dual HDMI Docking Station

Interfață: USB-C

Standard USB: USB 3.0

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack

Rezoluție suportată: 1440p@60Hz, 4K@30Hz

j5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, LAN, SD Card reader, microSD card reader

Rezoluție suportată: 4K@60Hz, 1080p@144Hz, 1440p@120Hz

j5create USB4 Dual 4K Multi-Port Hub

Interfață: USB-C

Standard USB: USB4

Porturi: USB-A, USB-C, HDMI, DisplayPort

Rezoluție suportată: 4K@60Hz

- Ofera conectivitate de ultima generatie pentru laptopurile Thunderbolt 4
- Certificat Intel Thunderbolt 4 pentru fiabilitate si compatibilitate
- Capabil de viteze de transfer de date ultra-inalte
- Suporta doua ecrane 4K@60Hz sau un singur ecran 8K de inalta rezolutie cu o calitate a imaginii foarte clara
- Suporta functia Thunderbolt daisy chain pentru a conecta mai multe dispozitive Thunderbolt
- Perfect pentru MacBook Pro (2021 si ulterior) si laptopurile Thunderbolt4
- 3 x Thunderbolt 4 USB-C 40Gbps
- Adaptor de alimentare AC de 135 W cu incarcare PD de pana la 96 W
- Compatibilitate cu Thunderbolt 3

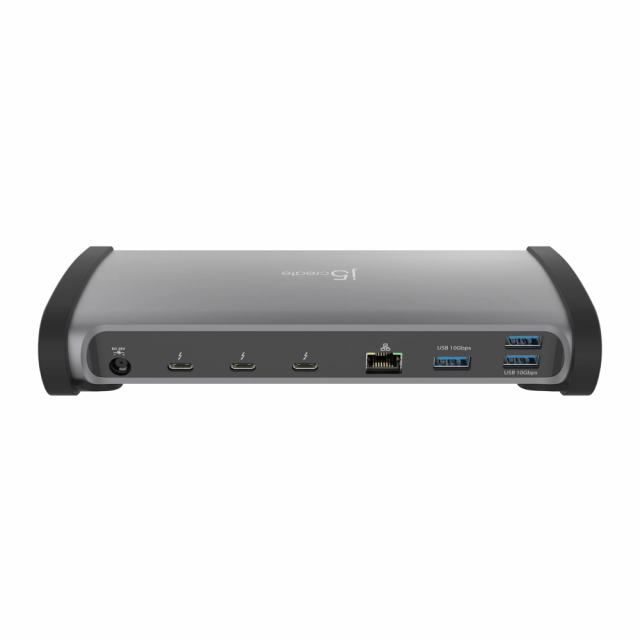

conector gazda: 1 - Thunderbolt 4 mama
interfata de retea: RJ45 (Gigabit Ethernet)

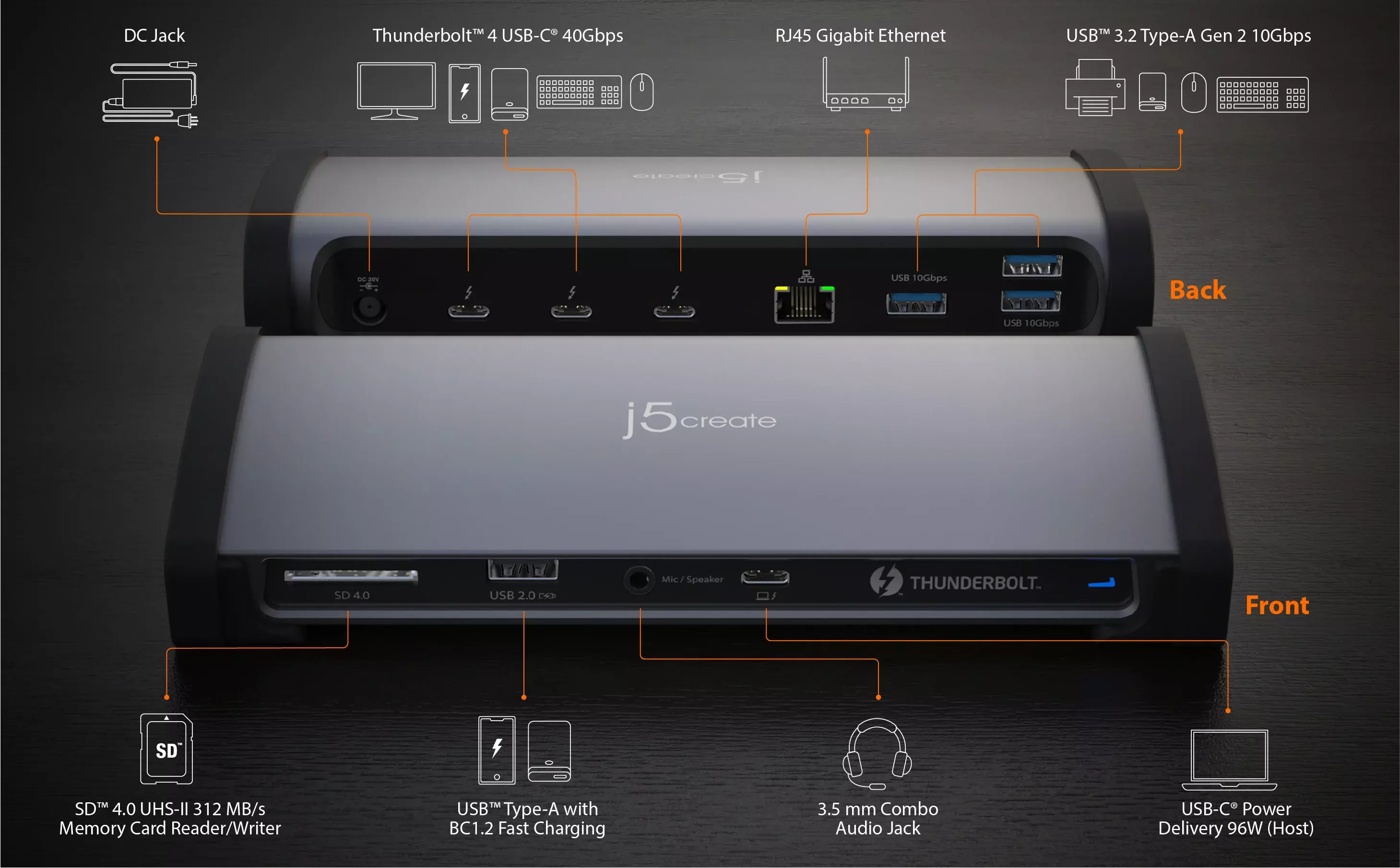

porturi:
1 x USB-C Power Delivery 96W (gazda)
3 x Thunderbolt 4 USB-C 40Gbps
3 x USB 3.2 Type-A Gen 2 10Gbps
1 x USB 2.0 Type-A cu incarcare rapida BC1.2
1 x Cititor/scriitor de carduri de memorie SD 4.0 UHS-II 312 MB/s
1 x mufa audio combo de 3,5 mm
1 x RJ45 Gigabit Ethernet Gigabit
iesire video: 3 - Thunderbolt 4 femela
canal audio: 3 - mufa audio combo Thunderbolt 4 / 3,5 mm
retele compatibile: 10/100/1000 Base-T, auto-negociere
ecrane acceptate: 2
rata maxima de transfer de date: 40Gbps
rata maxima de reimprospatare a afisajului: 60 Hz prin Thunderbolt 4
rezolutie maxima a ecranului: Mod Thunderbolt
2 - 4K la 60 Hz
1 - 4K @ 120 Hz (prin DP)
1 - 4K @ 144 Hz (cu DSC)
1 - 8K @ 30 Hz
1 - 8K @ 60 Hz (cu DSC)

Mod MFDP (pe baza gazdei HBR3)
1 - 4K @ 60 Hz
curent de intrare: 2,5 A
tensiune de intrare: 110V-240V
curent de iesire: 6,75A
tensiune de iesire: 20V
consum de energie: 1.2A
livrare de putere: 96W

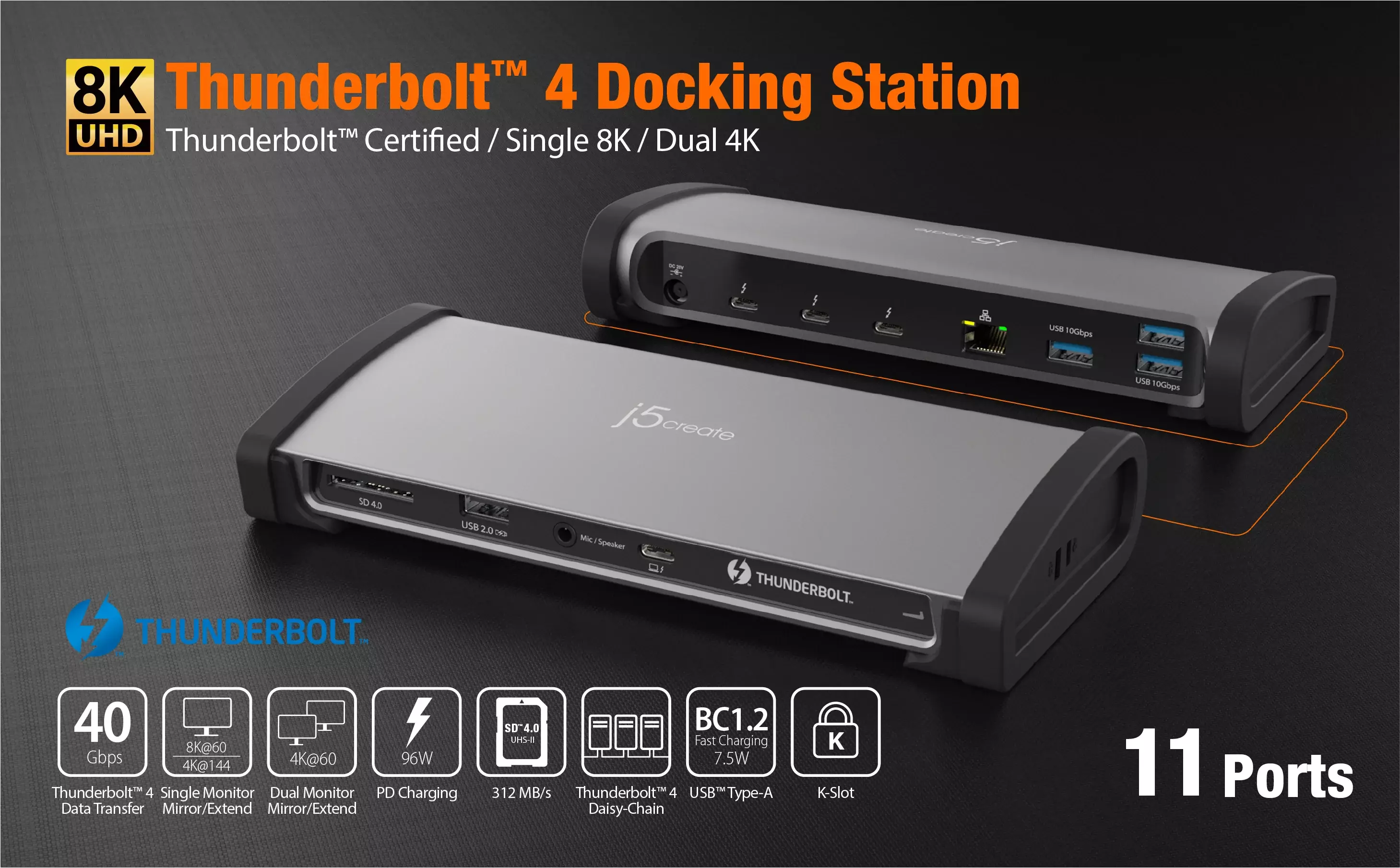

11-in-1 Functions

Maximize productivity with 11-in-1 functions

High Quality Video Experience with 8K 60Hz Resolution

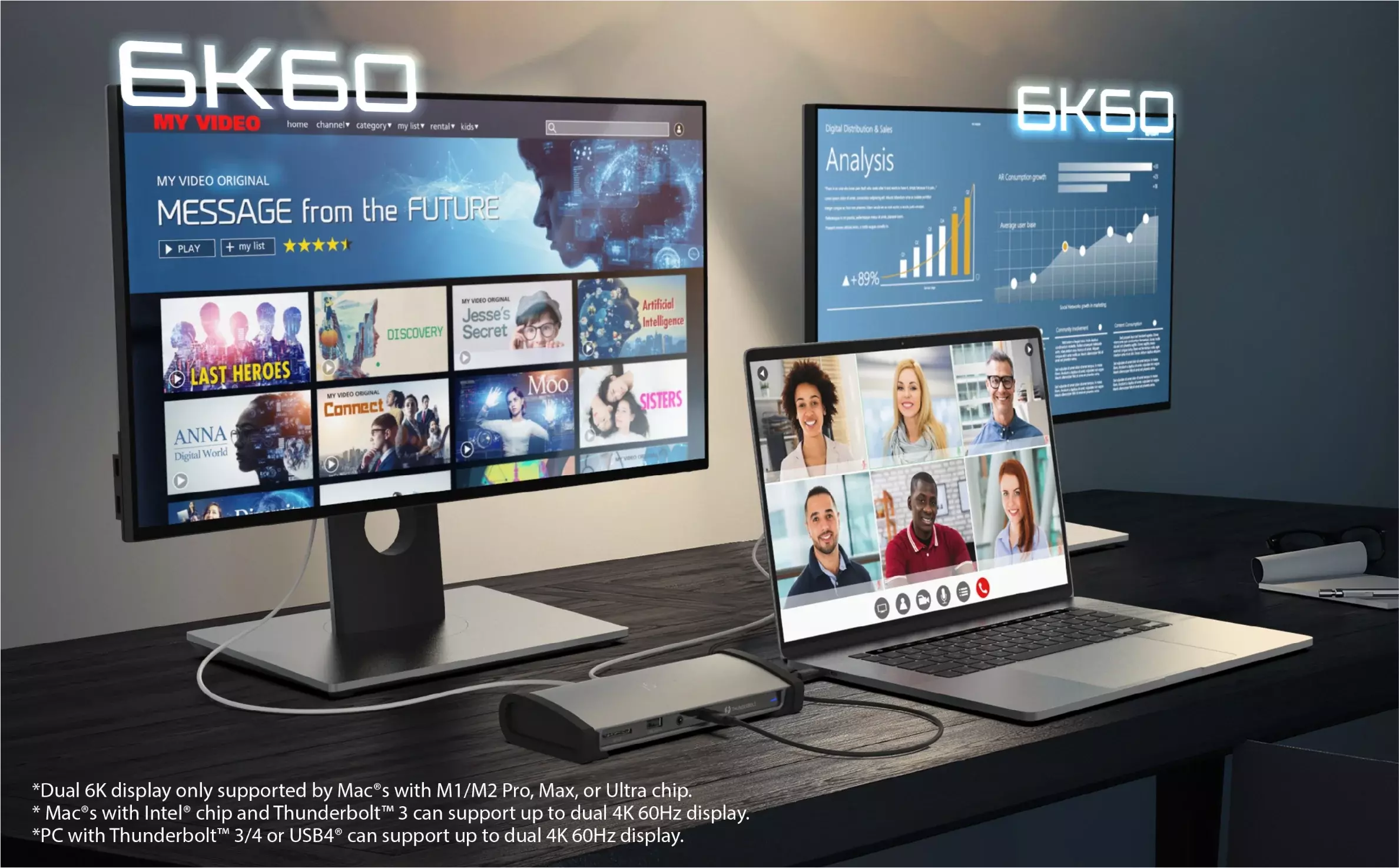

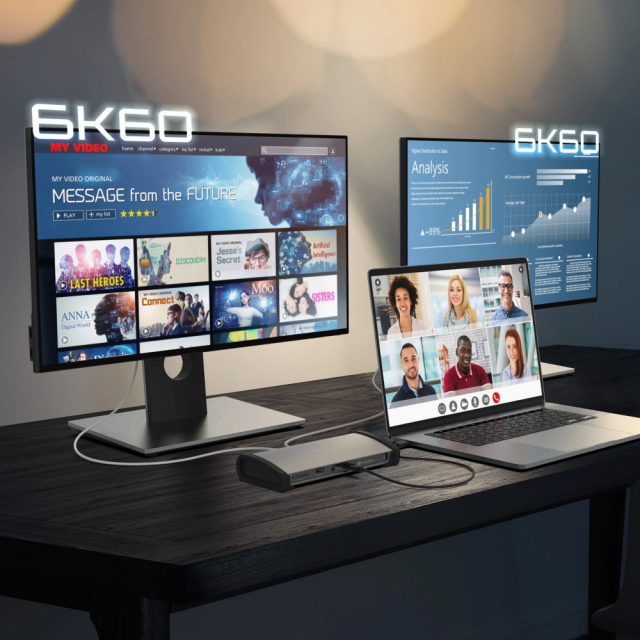

Increase Productivity with Dual 6K 60Hz Display

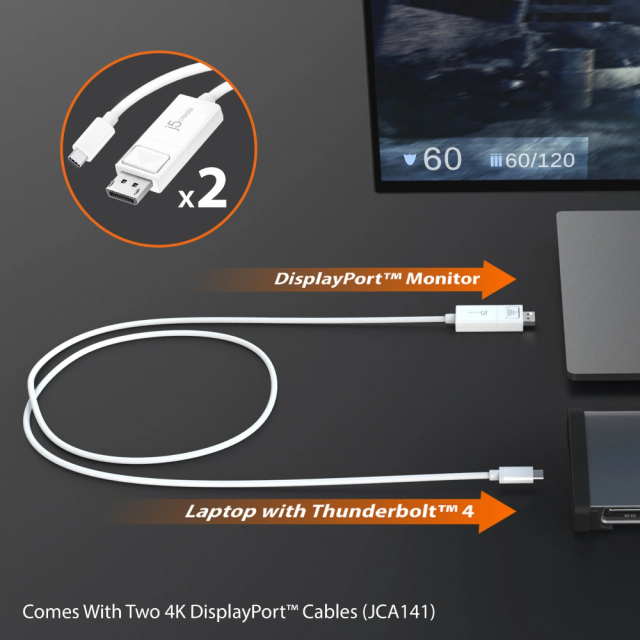

Comes With Two 4K DisplayPort Cables (JCA141)

With refresh rates of 4K 144Hz and 8K 60Hz, you can get the most out of your movie and gaming experiences.

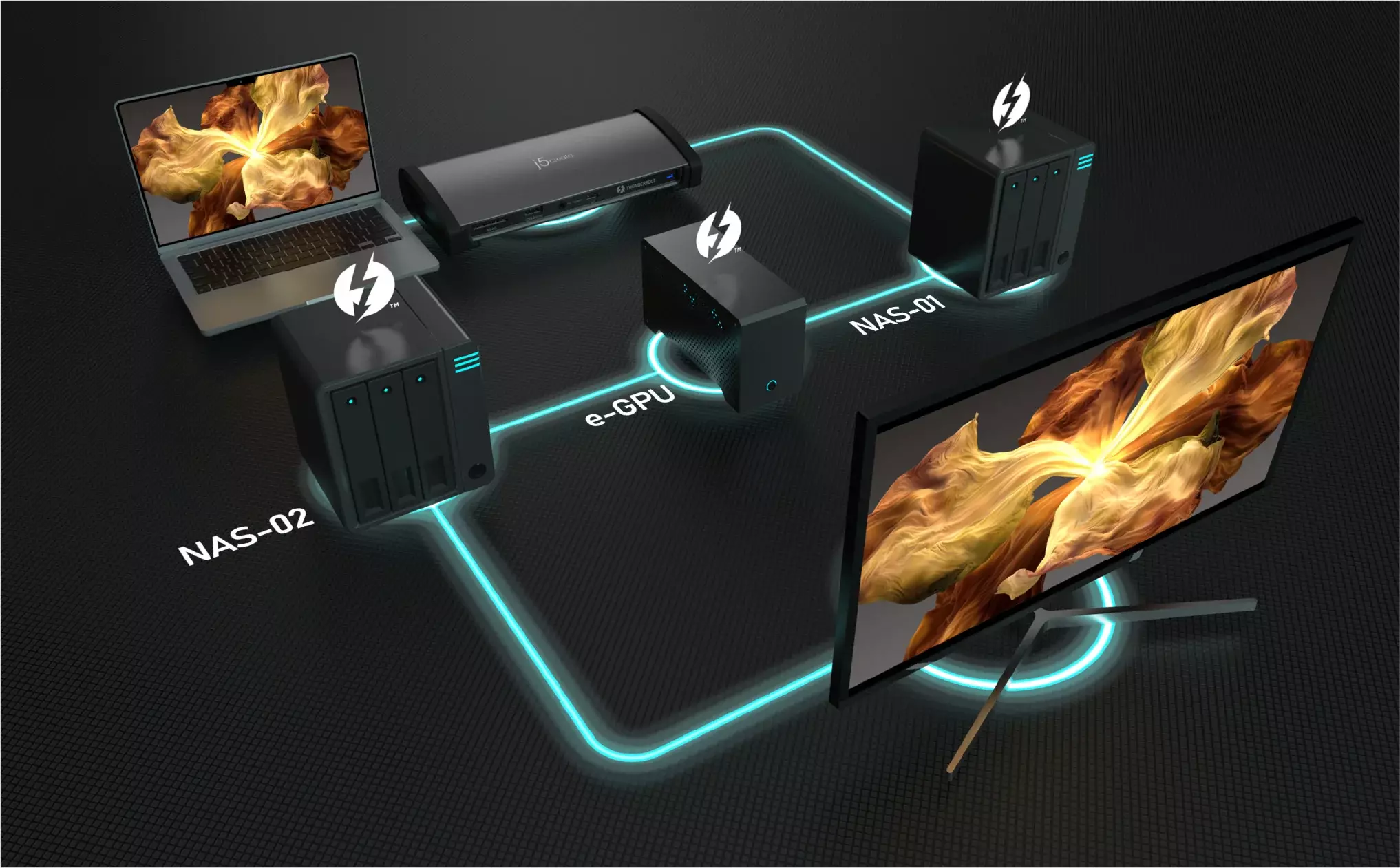

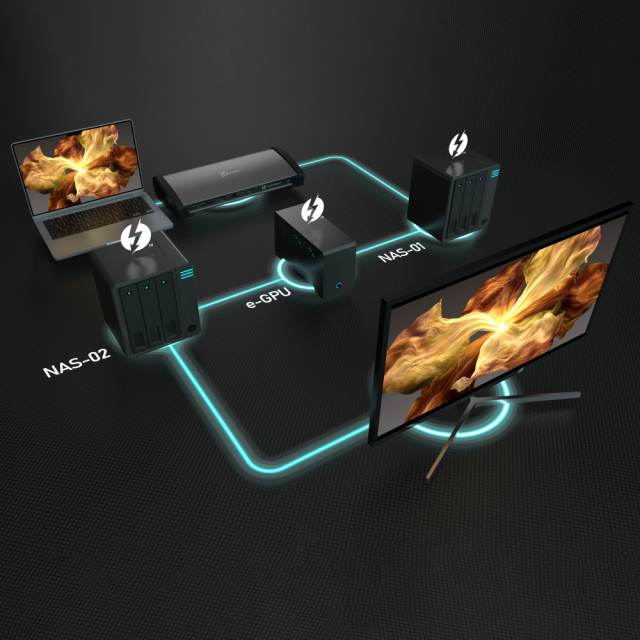

Thunderbolt Daisy Chain Support

Equipped with 3 Thunderbolt 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.

Extreme Speed of 40Gbps for Maximum Performance

Large files, such as videos or images, can be transferred in seconds.

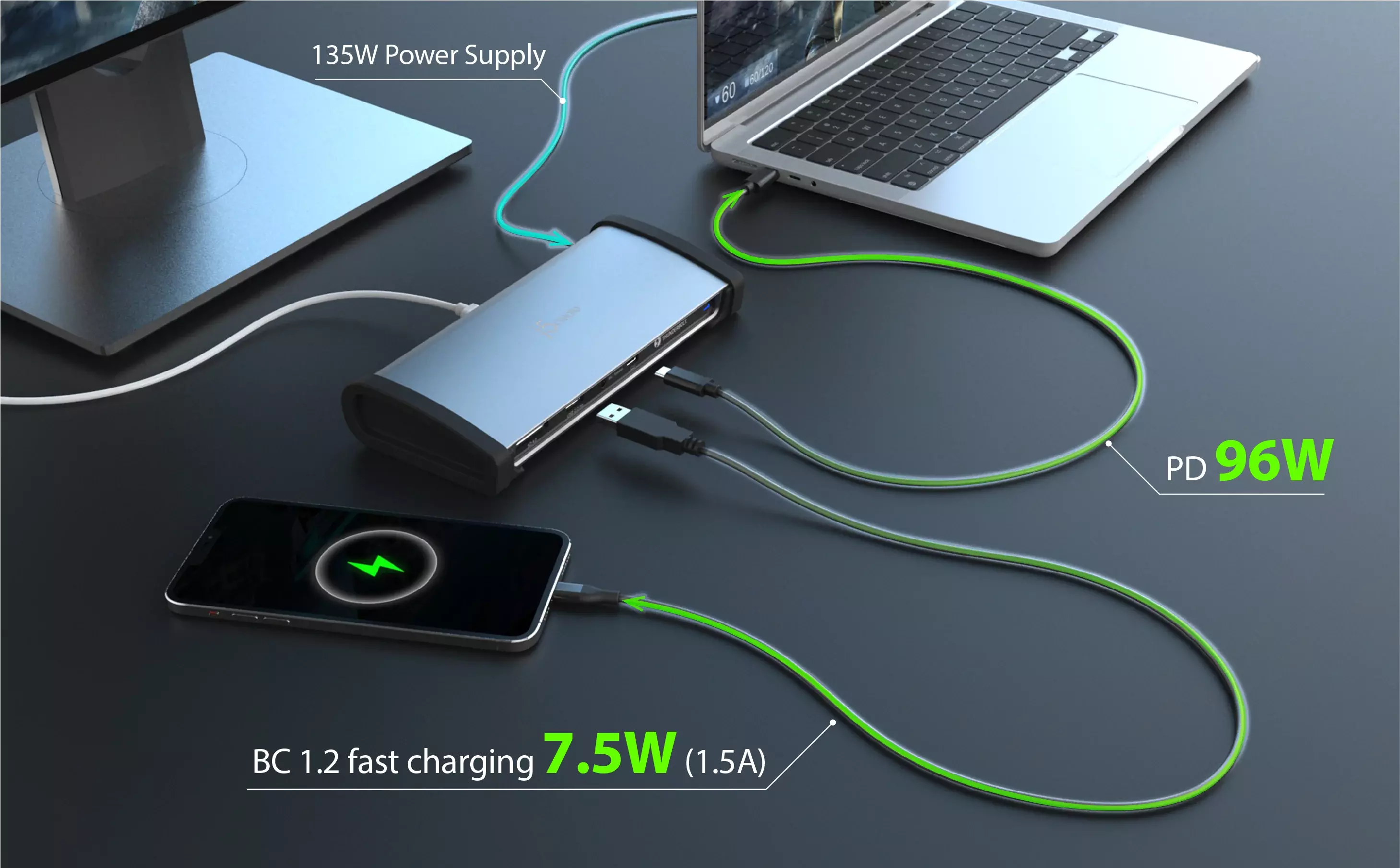

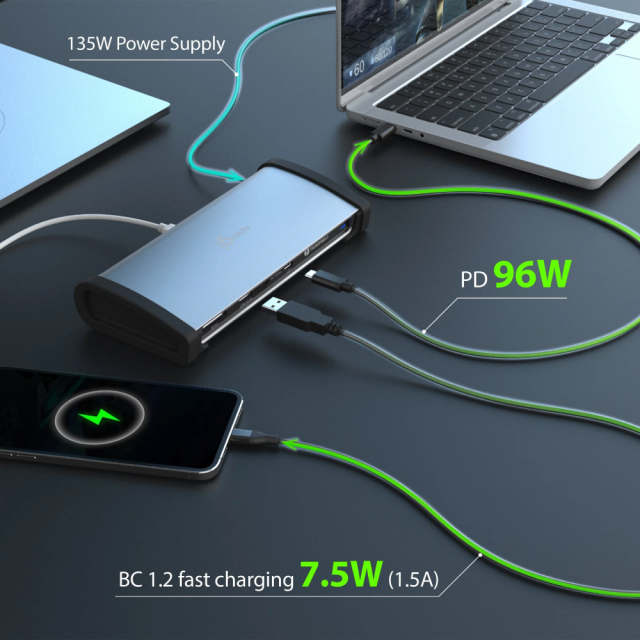

High-Speed Charging

PD 96W and USB BC1.2 quick-charging capabilities for your laptop and mobile device.

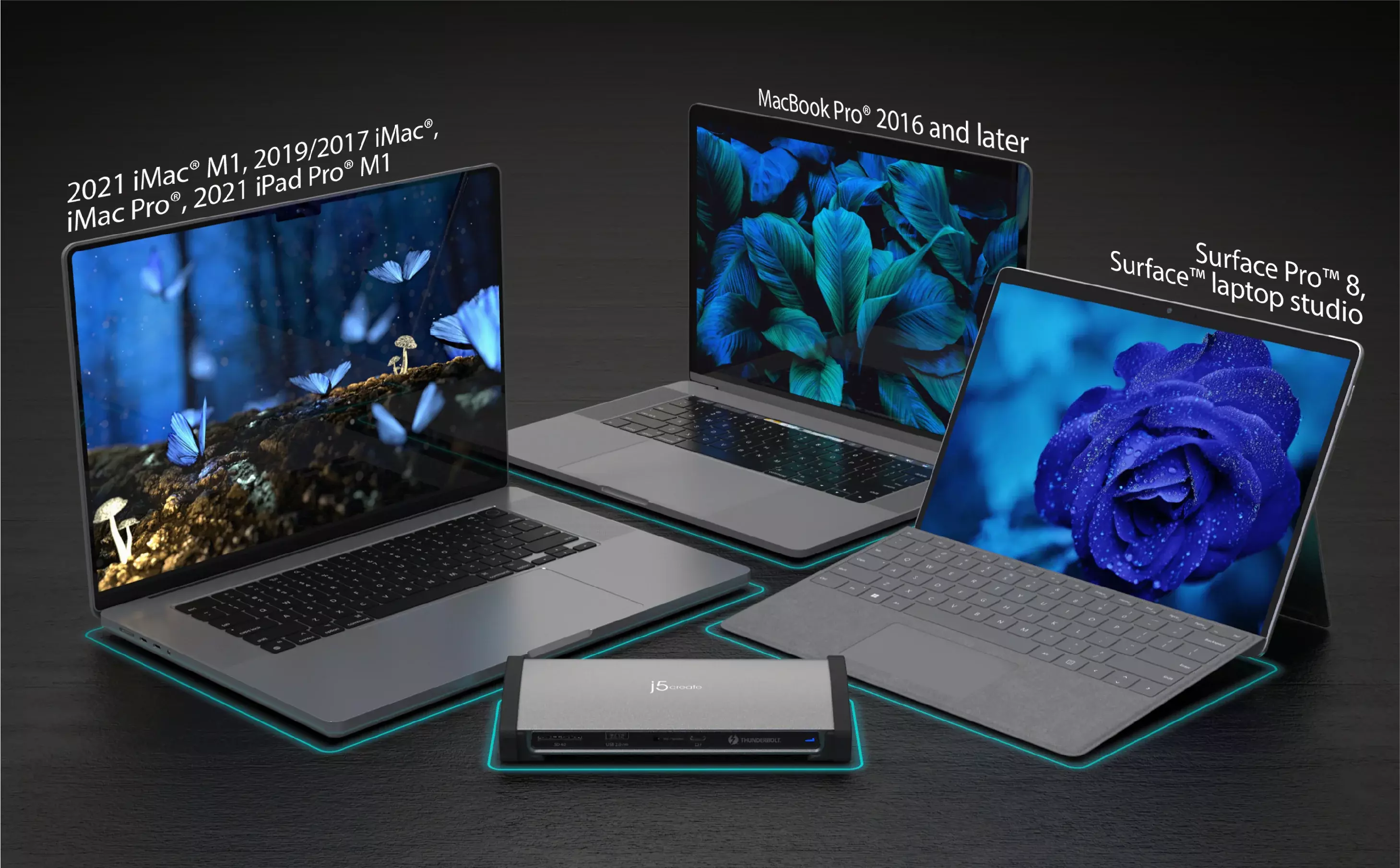

Wide Compatibility

With an Intel Thunderbolt 4 chip specifically designed for MacBook Pro 2021 and Thunderbolt 4 laptops.

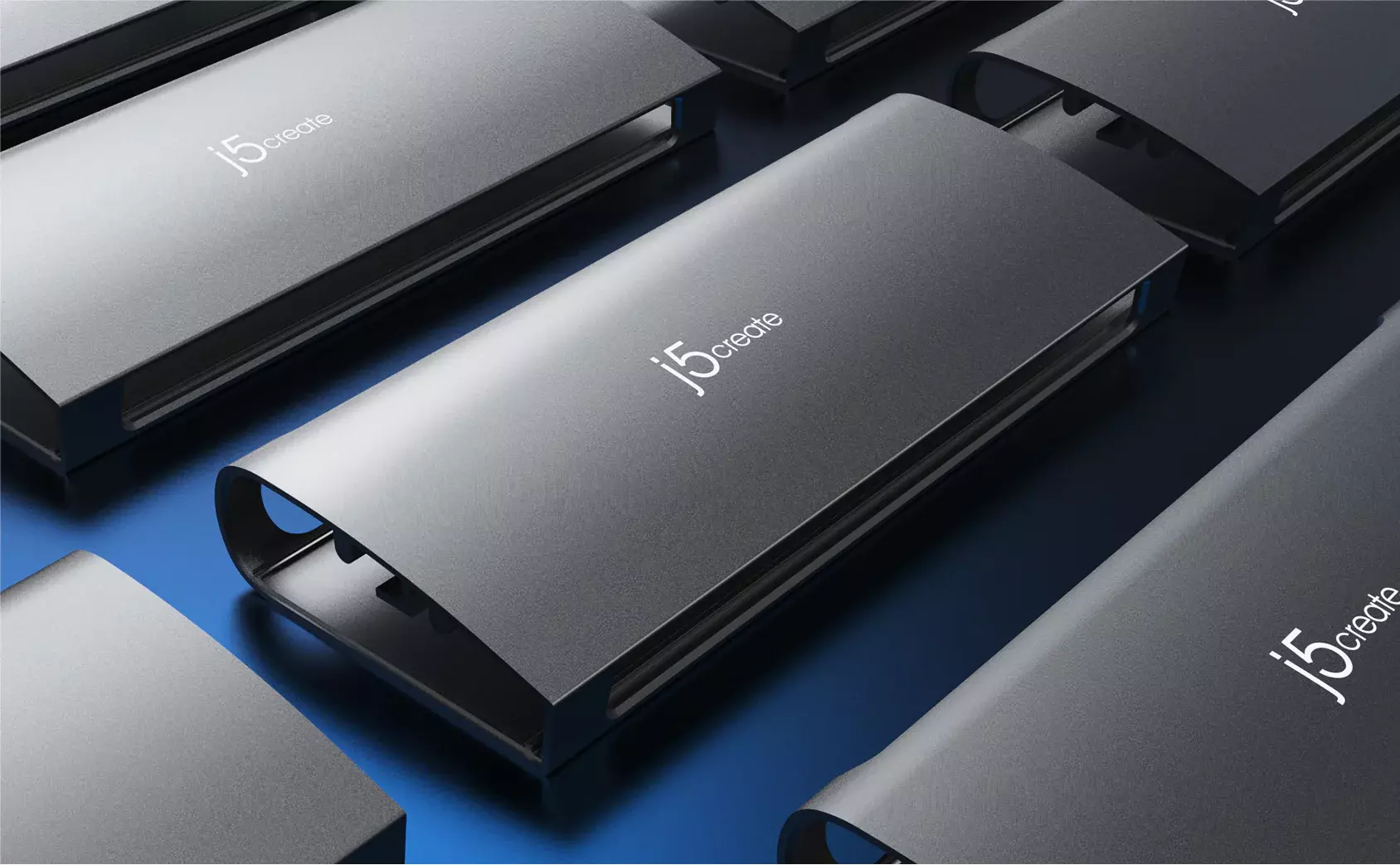

Premium Aluminum Construction

High-quality, long-lasting construction offers excellent
protection and effcient heat dissipation.

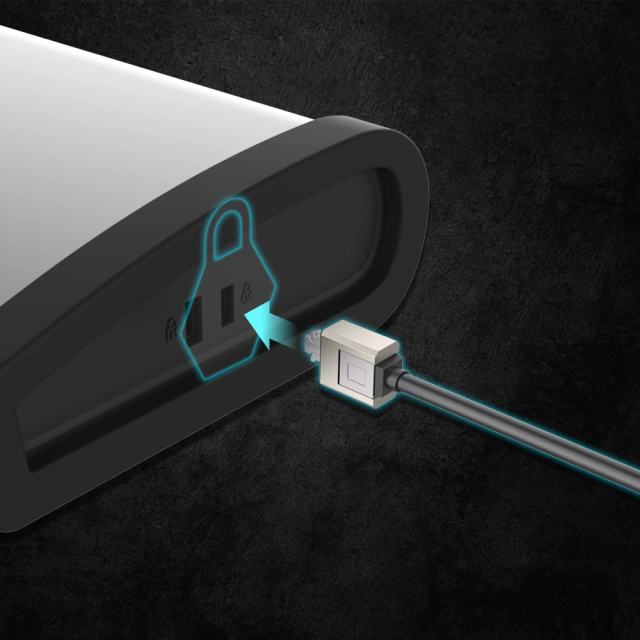

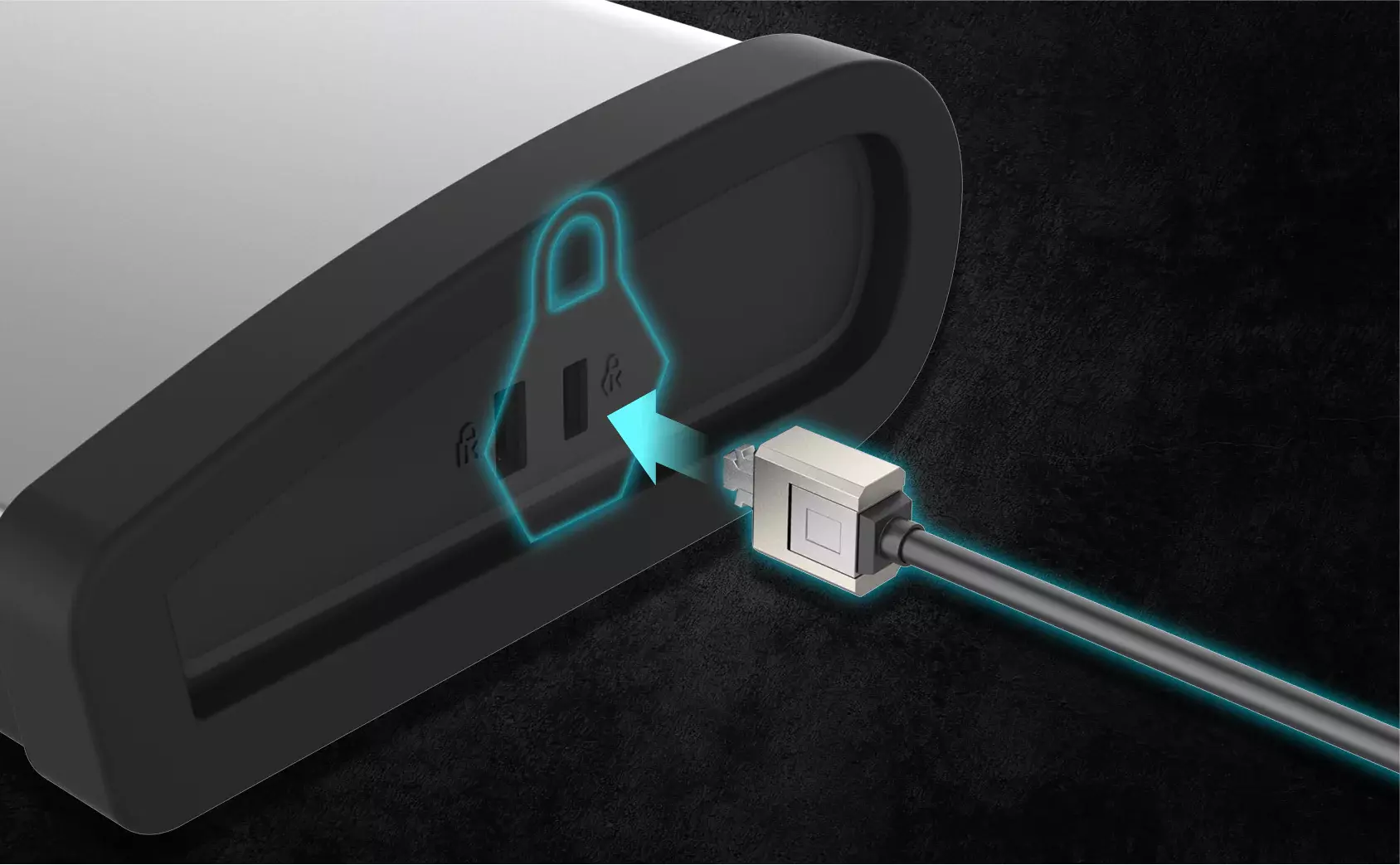

Anti-Theft Protection

Security slot to prevent equipment theft in a wide range of
business or institutional environments.

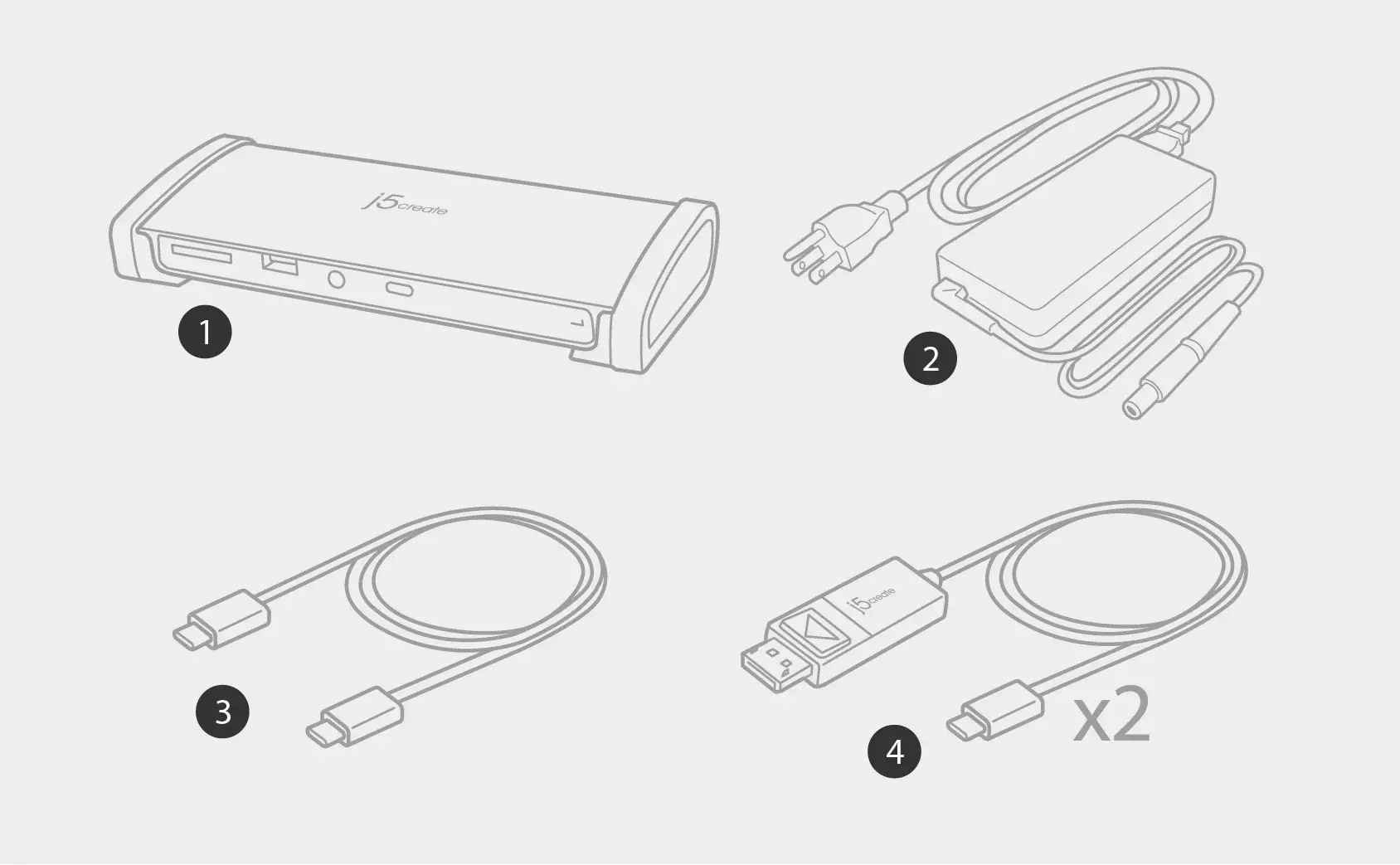

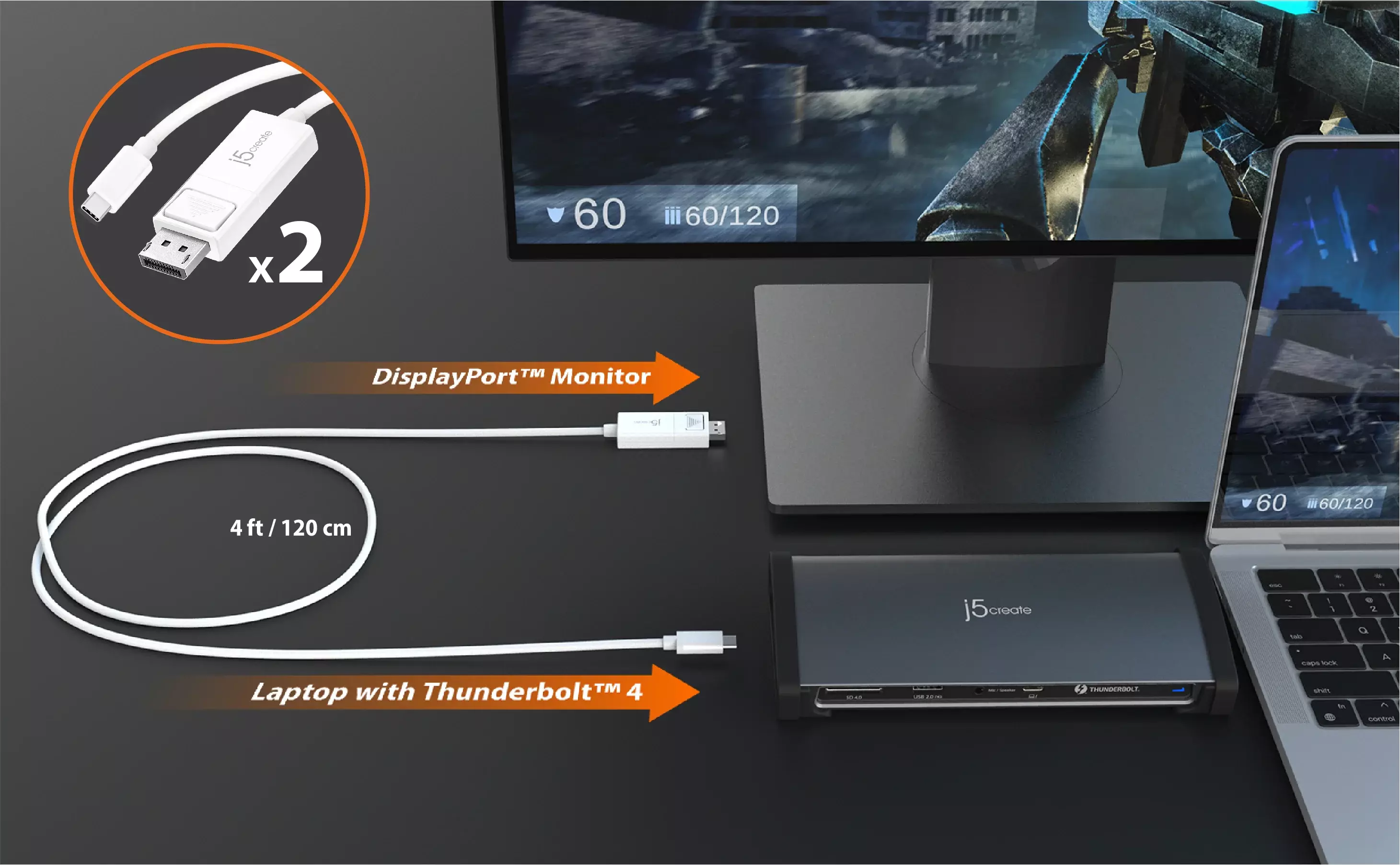

Package Contents

Includes two extra USB-C to 4K DisplayPort Cable for the
best user experience.
1. JTD562 Thunderbolt 4 Docking Station * 1
2. 135W AC adapter with up to 96W PD charge * 1
3. Thunderbolt 4 to Thunderbolt 4 Cable (2.3 ft / 70 cm) * 1
4. USB-C to 4K DisplayPort Cable (JCA141) * 2

Specifications

Hardware

Audio Supported	Yes
Host Connector	1 - Thunderbolt 4 Female
Network Interface	RJ45 (Gigabit Ethernet)
Ports	1 - USB-C Power Delivery 96W (Host) 3 - Thunderbolt 4 USB-C 40Gbps 3 - USB 3.2 Type-A Gen 2 10Gbps 1 - USB 2.0 Type-A with BC1.2 fast charging 1 - SD 4.0 UHS-II 312 MB/s memory card reader/writer 1 - 3.5 mm combo audio jack 1 - RJ45 Gigabit Ethernet
Power Source	Self-powered
Video Output	3 - Thunderbolt 4 Female
Warranty	2 Year Limited

Performance

Audio Channel	3 -Thunderbolt 4 / 3.5 combo audio jack
Compatible Networks	10/100/1000 Base-T, auto-negotiating
Displays Supported	2
Max Data Transfer Rate	40Gbps
Max Display Refresh Rate	60Hz via Thunderbolt 4
Max Display Resolution	Thunderbolt Mode 2 - 4K @ 60Hz 1 - 4K @ 120Hz (Via DP) 1 - 4K @ 144Hz (with DSC) 1 - 8K @ 30Hz 1 - 8K @ 60Hz (with DSC) MFDP Mode (Base on HBR3 Host) 1 - 4K @ 60Hz

Power

Input Current	2.5A
Input Voltage	110V-240V
Output Current	6.75A
Output Voltage	20V
Power Consumption	1.2A
Power Delivery	96W

Physical Specifications

Cable Length	2.3 ft. / 70 cm
Color	Black / Space Grey
Enclosure Type	Aluminum
Operating Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 48°C)
Product Depth	1.21in./ 30.85 mm
Product Height	7.64 in./194 mm
Product Weight	14.5 oz /411g
Product Width	3.32 in./ 84.39 mm
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 149°F (-10 to 65°C)
