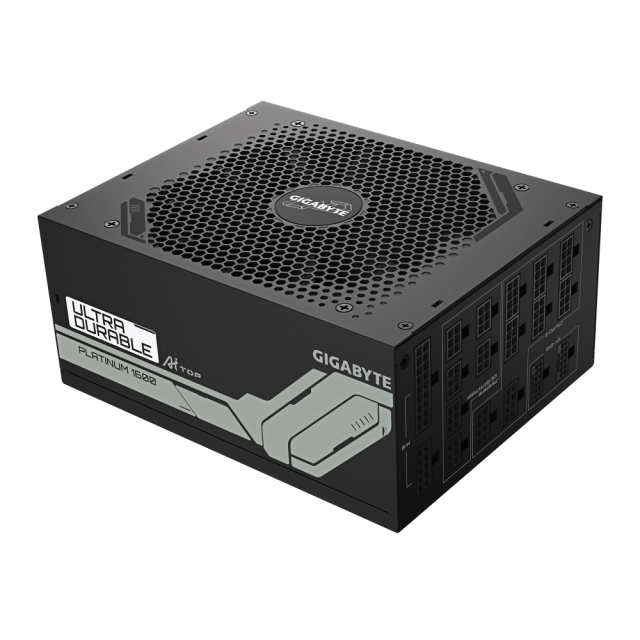

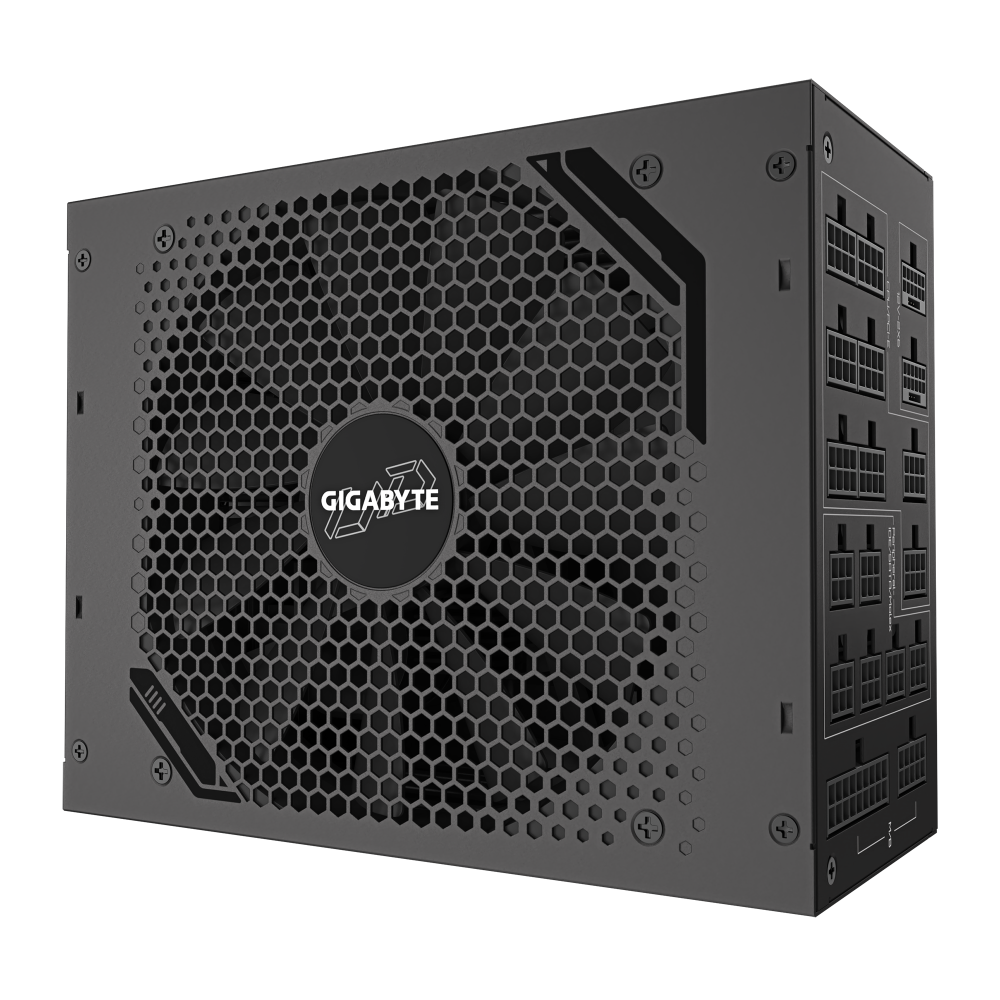

GIGABYTE UD1600PM PG5 AI TOP

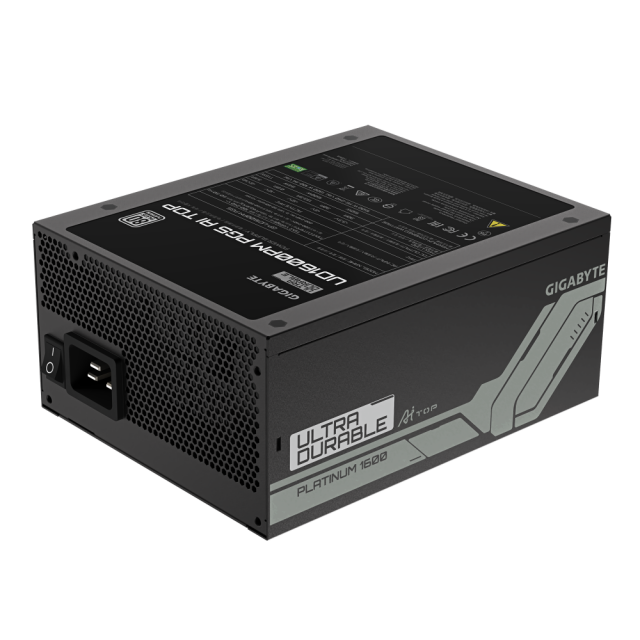

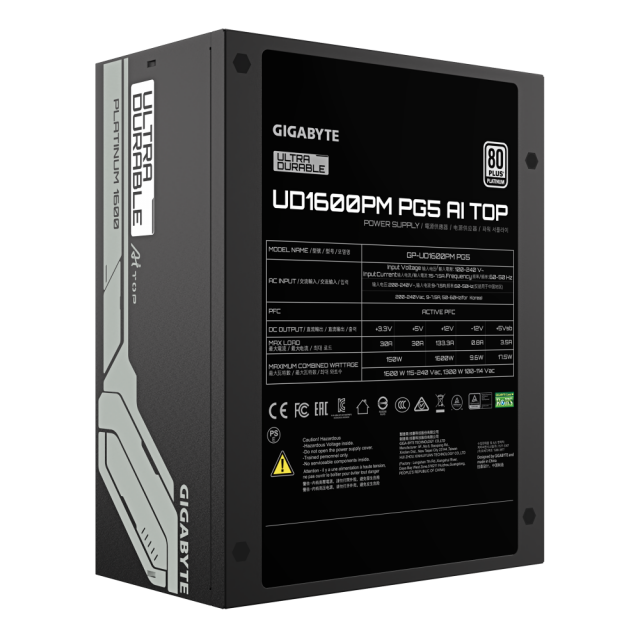

Sursa alimentare GIGABYTE UD1600PM PG5 AI TOP - 1600W 80+ Platinum PCIe 5.1 Ready
Cod produs: GA-PS-UD1600PM-PG5
Întrebare despre GIGABYTE UD1600PM PG5 AI TOP
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 1600W |
| Certificat | 80+ Platinum |
| Eficienţă | 92 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 120 luni |
Related products
Putere:
1300W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
GIGABYTE UD1600PM PG5 AI TOP este o sursa de alimentare de 1600W proiectata pentru sisteme de inalta performanta, oferind eficienta ridicata, stabilitate excelenta si suport pentru cele mai noi componente. Cu certificare 80+ Platinum si tehnologii avansate, este ideala pentru PC-uri puternice si configuratii AI.
- Putere 1600W – Suporta fara efort sisteme high-end, placi video puternice si configuratii complexe.
- Certificare 80+ Platinum – Eficienta energetica ridicata pentru consum redus si functionare stabila.
- Conector PCIe 5.0 (PG5) – Compatibil cu cele mai noi placi video de generatie moderna.
- Tehnologie AI TOP – Optimizari inteligente pentru stabilitate si performanta constanta.
- Racire eficienta – Ventilator silentios si design intern optimizat pentru disiparea caldurii.
- Constructie premium – Componente de calitate superioara pentru durabilitate indelungata.
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards

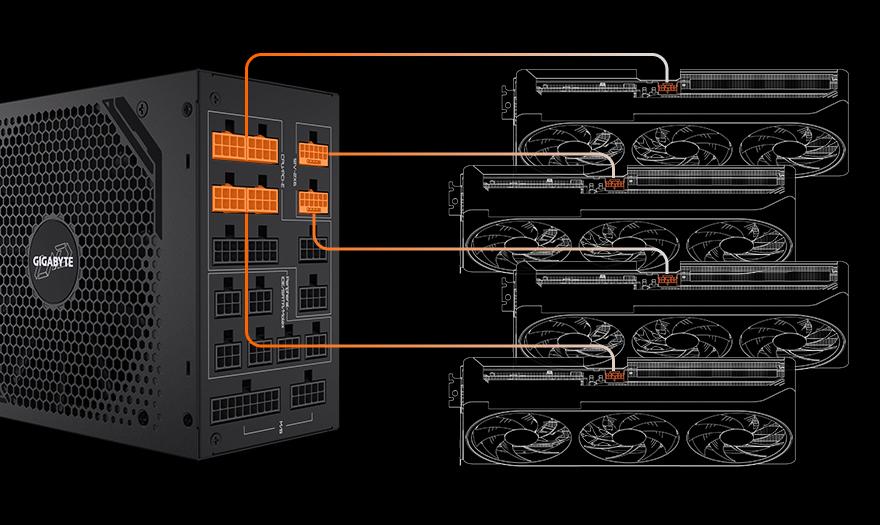

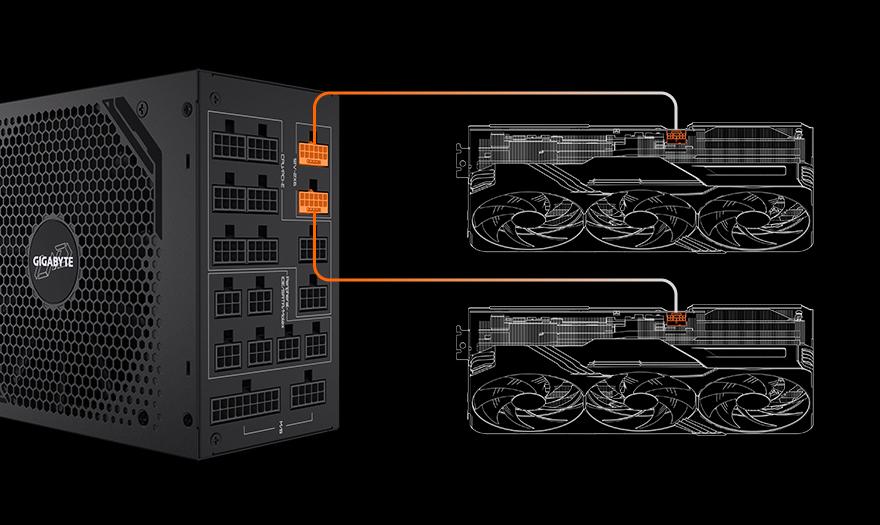

Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.
(Note: When installing 4 graphics cards, each card receives an independent power supply of up to 300W.)
300W x4
600W x2
Specification
| Model | GP-UD1600PM PG5 | ||
| Type | Intel Form Factor ATX 12V v3.1 | 80 PLUS | Platinum |
| PFC | Active PFC (>0.9 typical) | Efficiency | 92% at typical load |
| Input Voltage | 100-240 Vac (full range) | MTBF | >100,000 hours |
| Input Current | 15-7.5A | Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Frequency | 60-50 Hz | Power Good Signal | 100-150ms |
| Output Capacity | 1600W | Hold Up Time | >16ms |
| Dimensions | 150 x 190 x 86mm | Cable Type | Flat, All black |

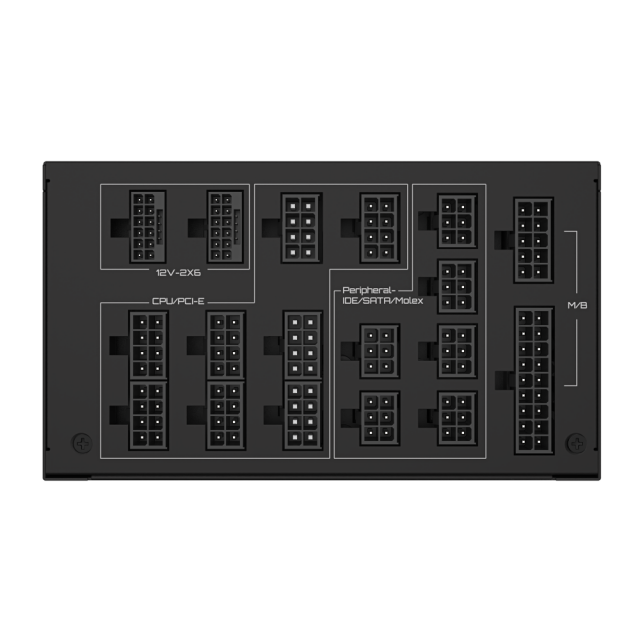

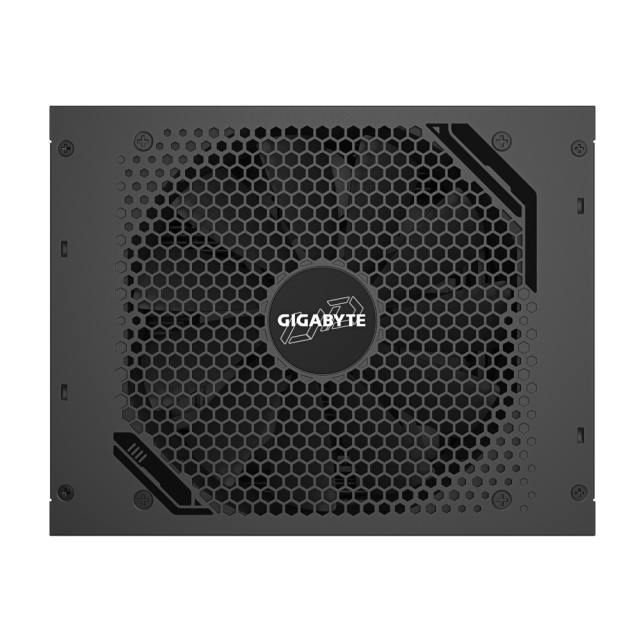

| Fan Type | 140mm Double Ball Bearing fan | Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
