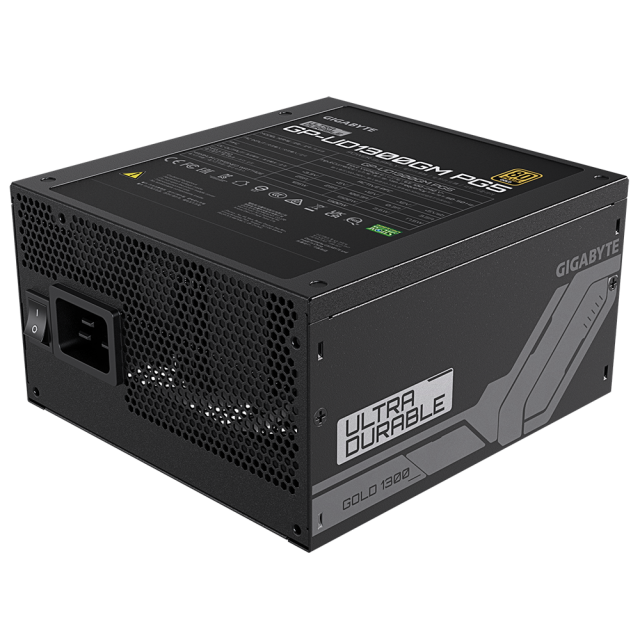

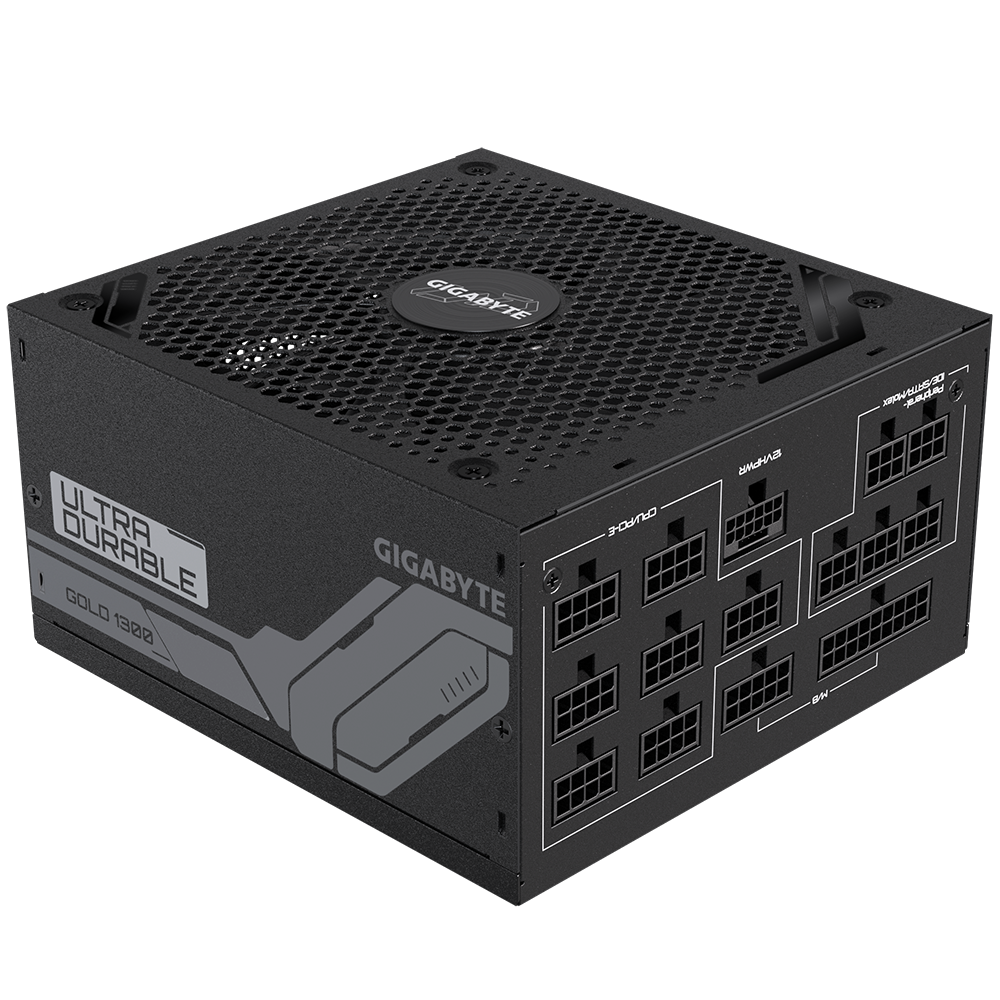

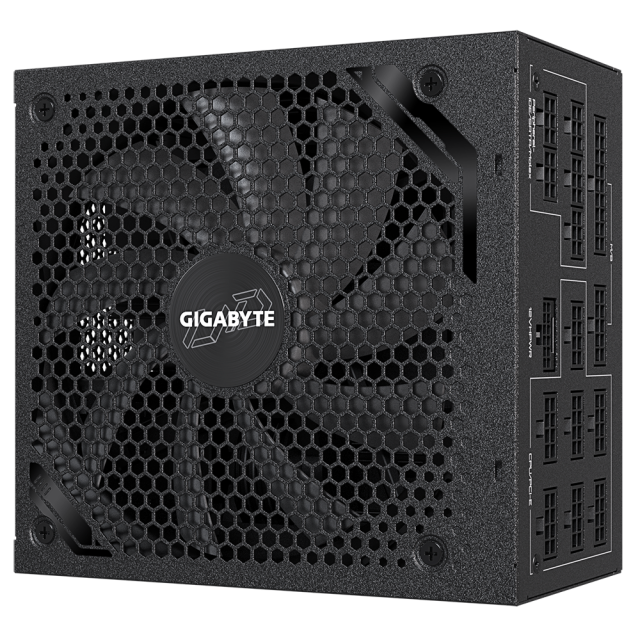

GIGABYTE UD1300GM PG5
Sursa de alimentare Gigabyte UD1300GM PG5, 1300W, 80+ GOLD, Modular, PCIe 5.0 Ready
Cod produs: GA-PS-UD1300GM-PG5
Întrebare despre GIGABYTE UD1300GM PG5
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 1300W |
| Certificat | 80+ Gold |
| Eficienţă | 90 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.0 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 120 luni |
Related products
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1600W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Gigabyte UD1300GM PG5, 1300W, 80+ GOLD, Modular, PCIe 5.0 Ready
- Ultra Durabil
- Condensatoare japoneze principale
- Solutie termica imbunatatita
- Ventilator cu rulment dublu de 140 mm
- Protectie OVP/OPP/SCP/UVP/OCP/OTP
- Suport pentru placa grafica PCIe Gen 5.0
- Suport Intel ATX 3.0 standard
- Certificat 80 PLUS Gold
- Design complet modular
- Dimensiuni compacte
KEY FEATURE

|
 |
Support PCIe Gen 5.0 graphics cardThe UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
|
||
 |
Support Intel ATX 3.0 standardThe UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
|
||
 |
 |
ULTRA
|
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. |
HIGH QUALITY
|
|
|
|
ENHANCED THERMAL
|

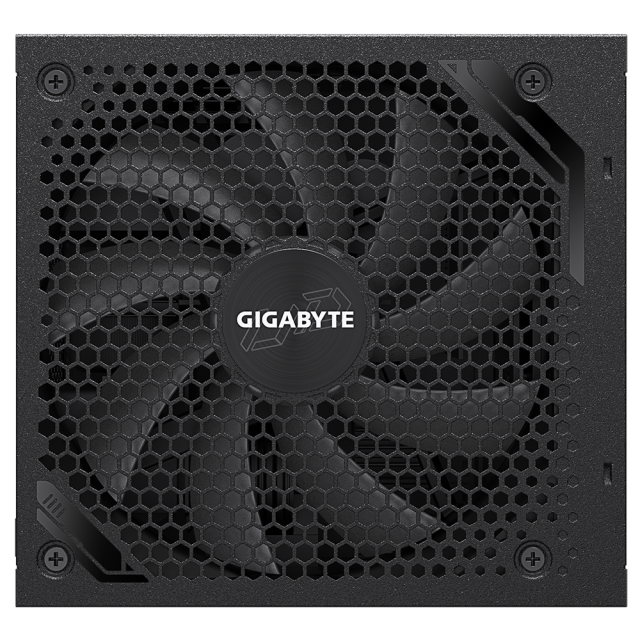

140mm DOUBLE BALL
|
 |
 |
 |
PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. |

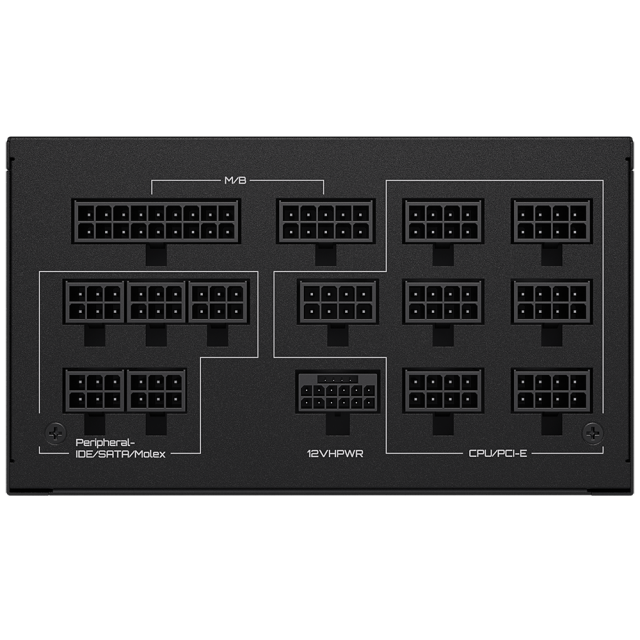

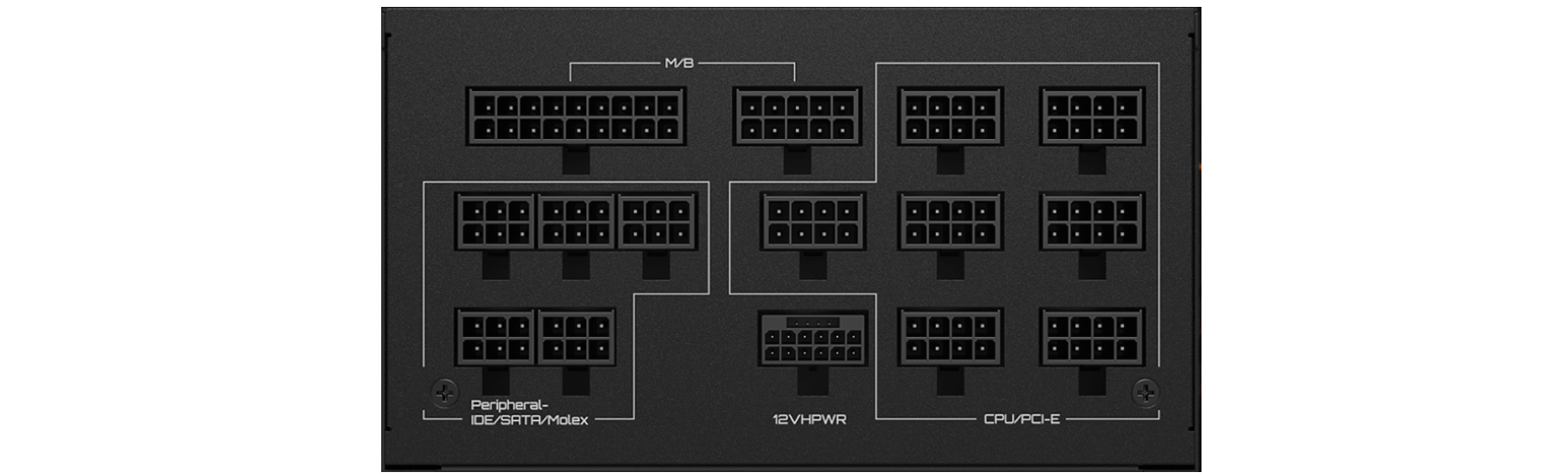

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
|
 |
 |
PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card. |
COMPACT DESIGNLeveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
|
||
 |

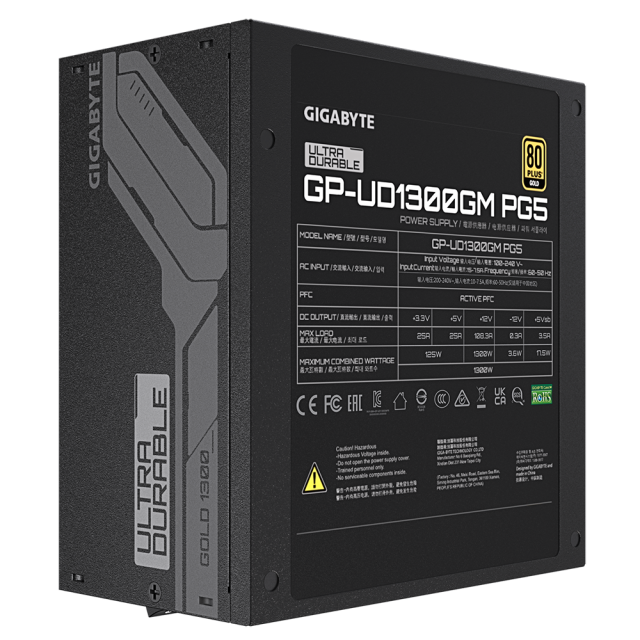

Specification
Model |
GP-UD1300GM PG5 |
80 PLUS |
Gold |
Type |
Intel Form Factor ATX 12V v3.0 |
Efficiency |
90% at typical load |
PFC |
Active PFC (>0.9 typical) |
MTBF |
>100,000 hours |
Input Voltage |
100-240 Vac (full range) |
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
Input Current |
15-6.5A |
Power Good Signal |
100-150ms |
Input Frequency |
60-50 Hz |
Hold Up Time |
>16ms |
Output Capacity |
1300W |
Cable Type |
Flat, All black |
Dimension |
150 x 160 x 86 mm |

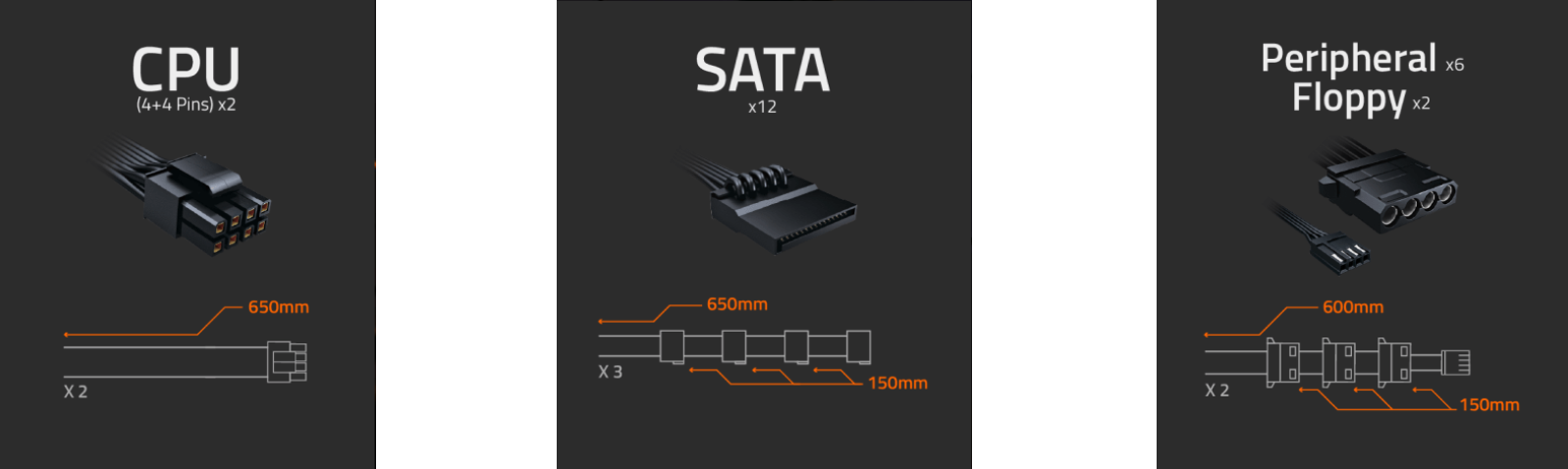

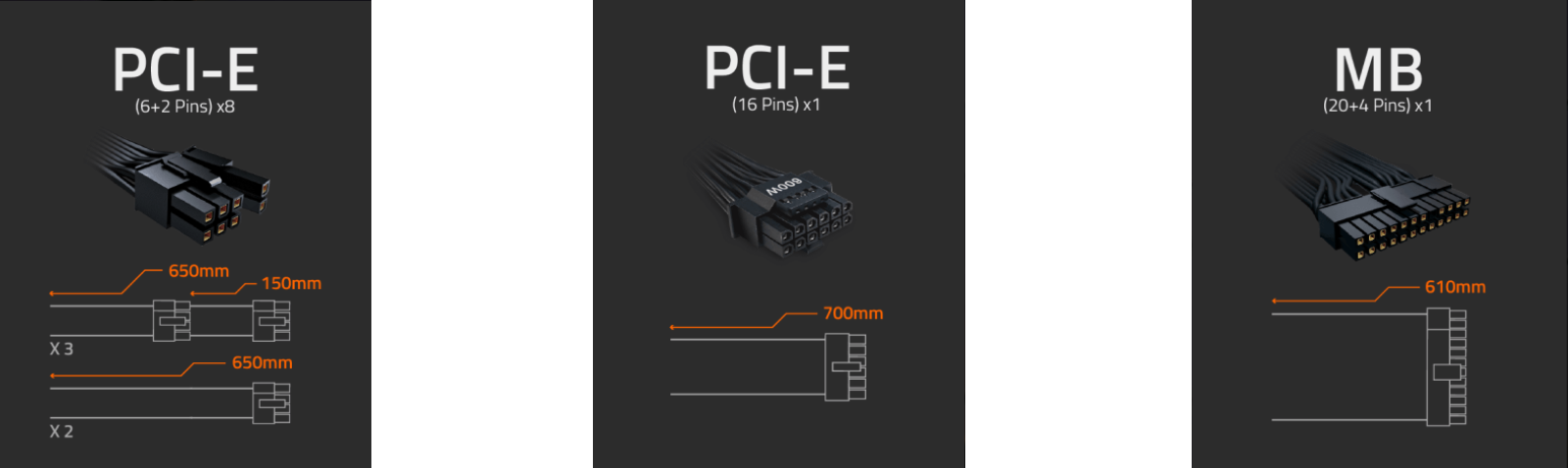

Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
Fan Type |
140mm double ball bearing fan |
