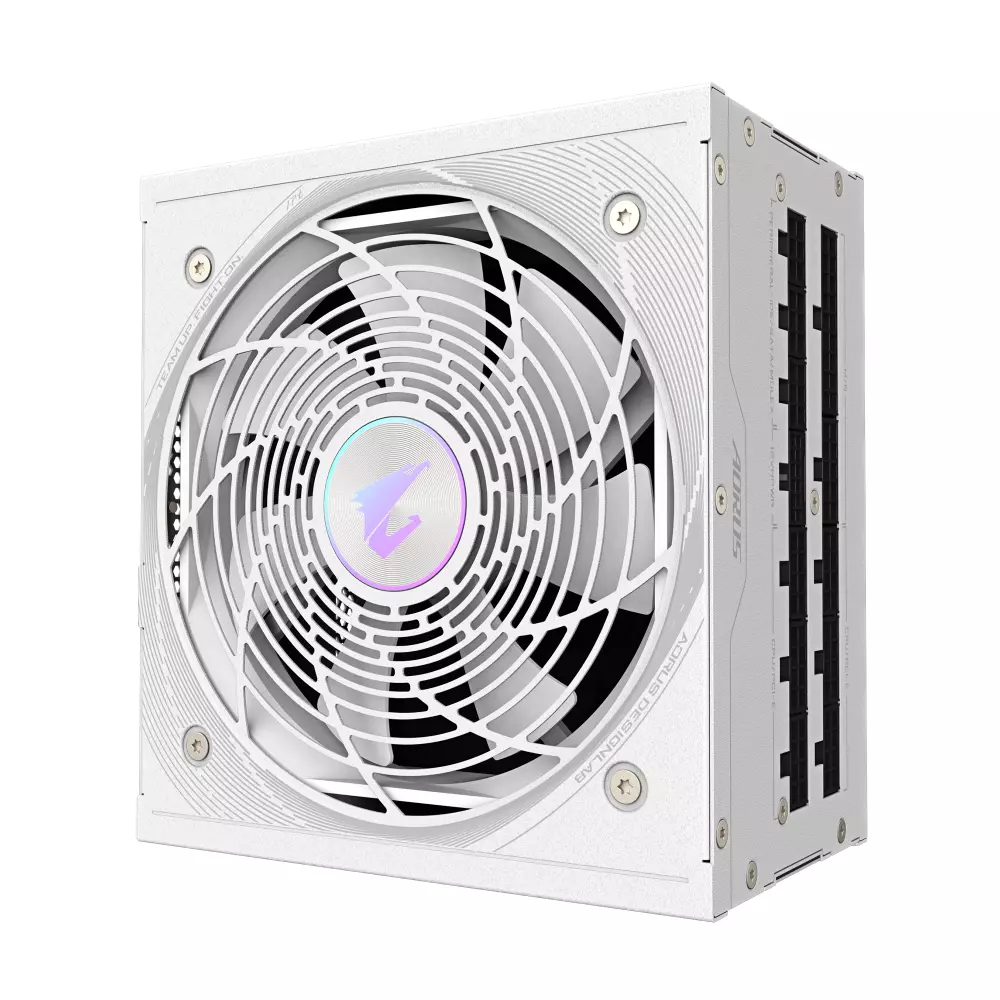

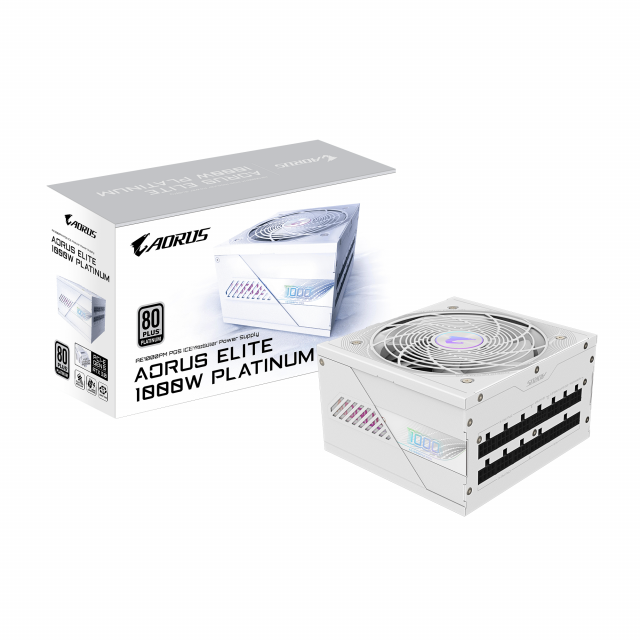

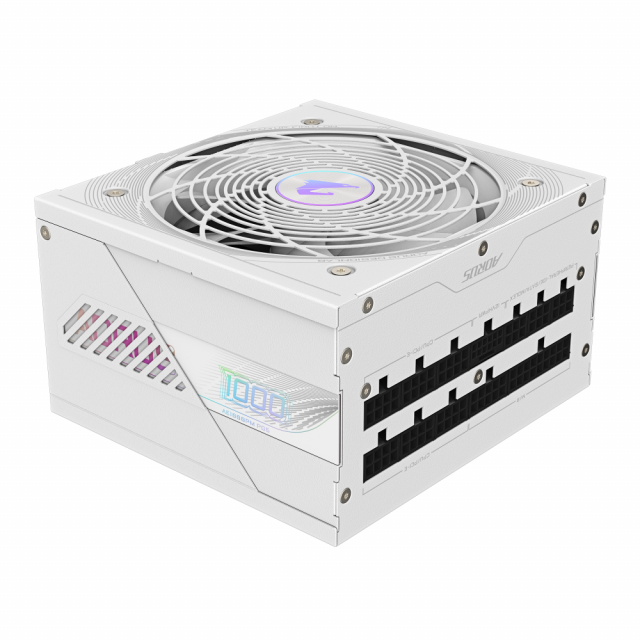

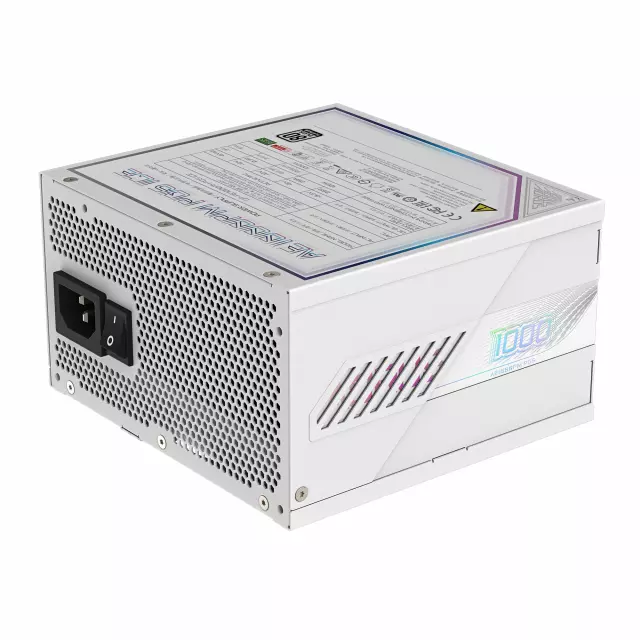

GIGABYTE AORUS ELITE P1000W ICE

Sursa de alimentare GIGABYTE AORUS ELITE P1000W ICE

Cod produs: GA-PS-AE1000PM-PG5-ICE
nu este disponibil

Întrebare despre GIGABYTE AORUS ELITE P1000W ICE

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Putere 1000W
Certificat 80+ Platinum
Eficienţă 92 %
Tip Modulară
Form Factor ATX
Specificație ATX 3.1
PCIe Gen5 Da
Iluminare RGB Nu
Culoare Alb
Garanție 120 luni

Related products

AORUS ELITE P1000W este o sursa de alimentare premium conceputa pentru gameri si entuziasti PC care cauta fiabilitate si performanta. Iata caracteristicile sale principale:



  • Eficienta: Certificata cu 80 PLUS Platinum, ofera pana la 92% eficienta la o incarcare de 50%, reducand pierderile de energie si zgomotul ventilatorului.
  • ATX 3.0 si PCIe Gen 5.0 Ready: Compatibila pe deplin cu cele mai noi standarde, inclusiv suport pentru placile grafice PCIe Gen 5.0, capabila sa livreze pana la 600W putere.
  • Condensatori Japonezi: Dotata cu 100% condensatori japonezi de inalta calitate pentru durabilitate si performanta stabila.
  • Racire Inteligenta: Dispune de un ventilator de 120mm cu rulment Fluid Dynamic Bearing (FDB) care ajusteaza viteza in functie de sarcina si se opreste complet in conditii de sarcina redusa.
  • Design Compact: Cu o lungime de doar 140mm, se potriveste usor in carcasele cu spatiu restrans.
  • Design Modular: Include cabluri plate si modulare pentru a reduce aglomeratia si a imbunatati fluxul de aer in carcasa.
  • Protectie: Ofera mai multe caracteristici de siguranta precum OVP, OPP, SCP, UVP, OCP si OTP pentru o operare stabila.
  • Garantie: Vine cu o garantie de 10 ani (in functie de regiune).









KEY FEATURE



              • ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
              • 80 PLUS Platinum certified
              • 100% Japanese capacitors

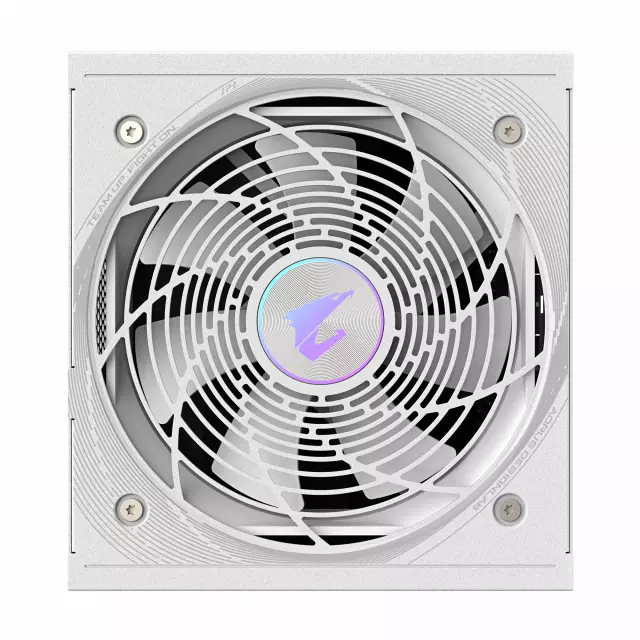

              • 120mm smart Fluid Dynamic Bearing (FDB) fan
              • Compact design
              • Fully modular design
              • Powerful single +12V rail
              • OVP/OPP/SCP/UVP/OCP/OTP protection
              • 10 years warranty (Adjusted according to different regions)



















Specifications

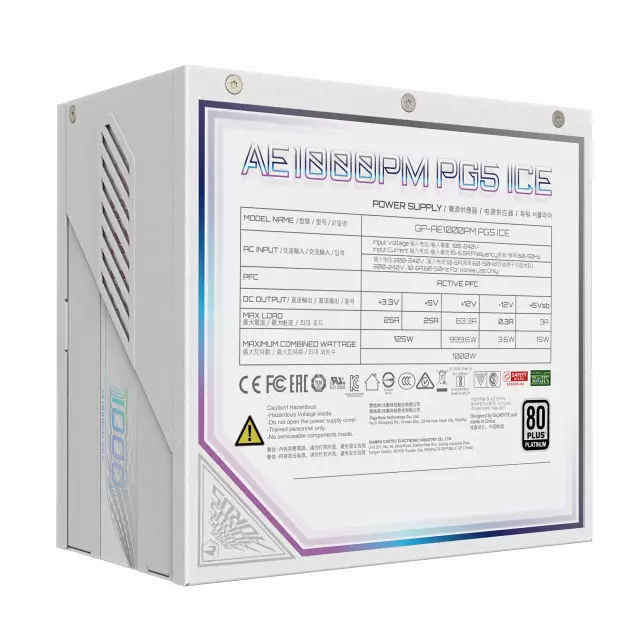

Model GP-AE1000PM PG5 ICE
Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimensions 150 x 140 x 86mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protections OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All white

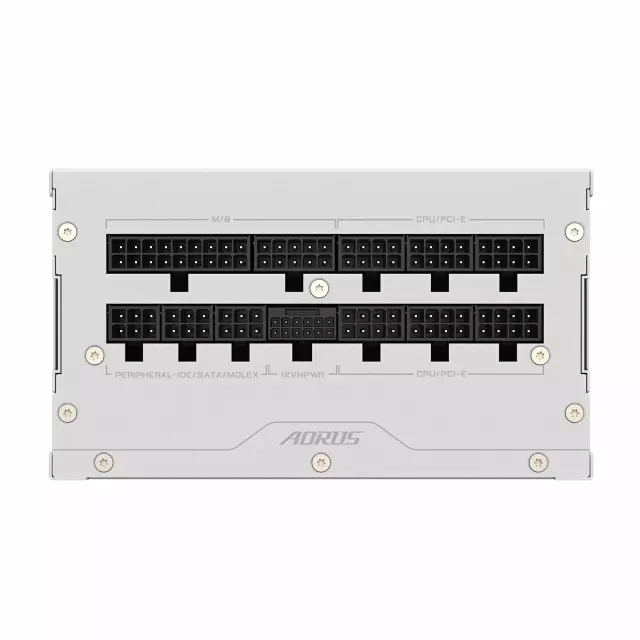

Connectors ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1



* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
