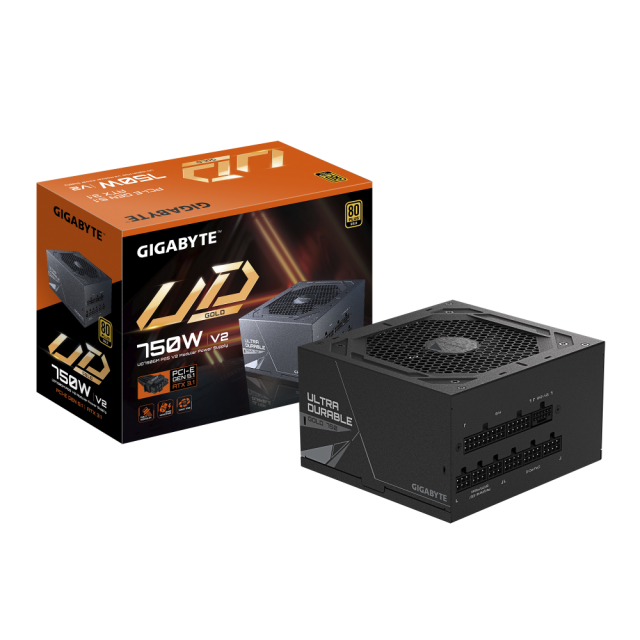

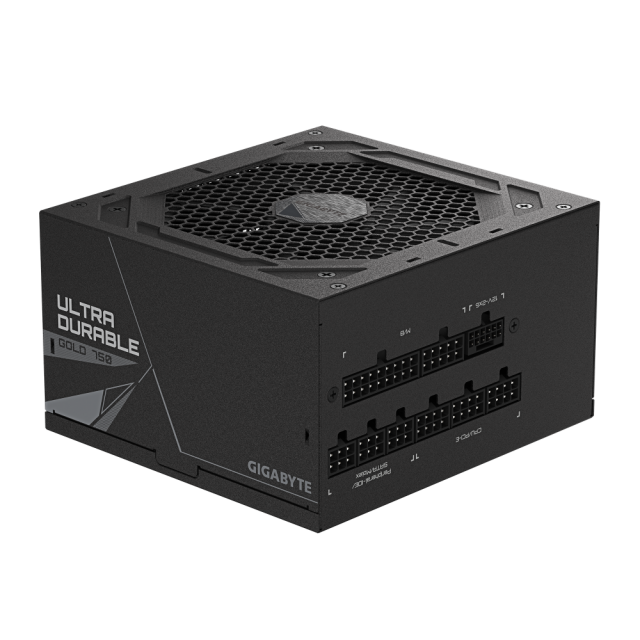

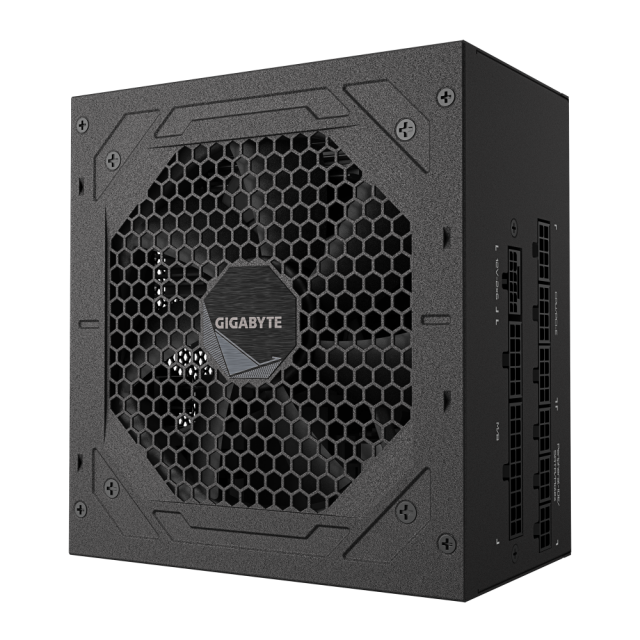

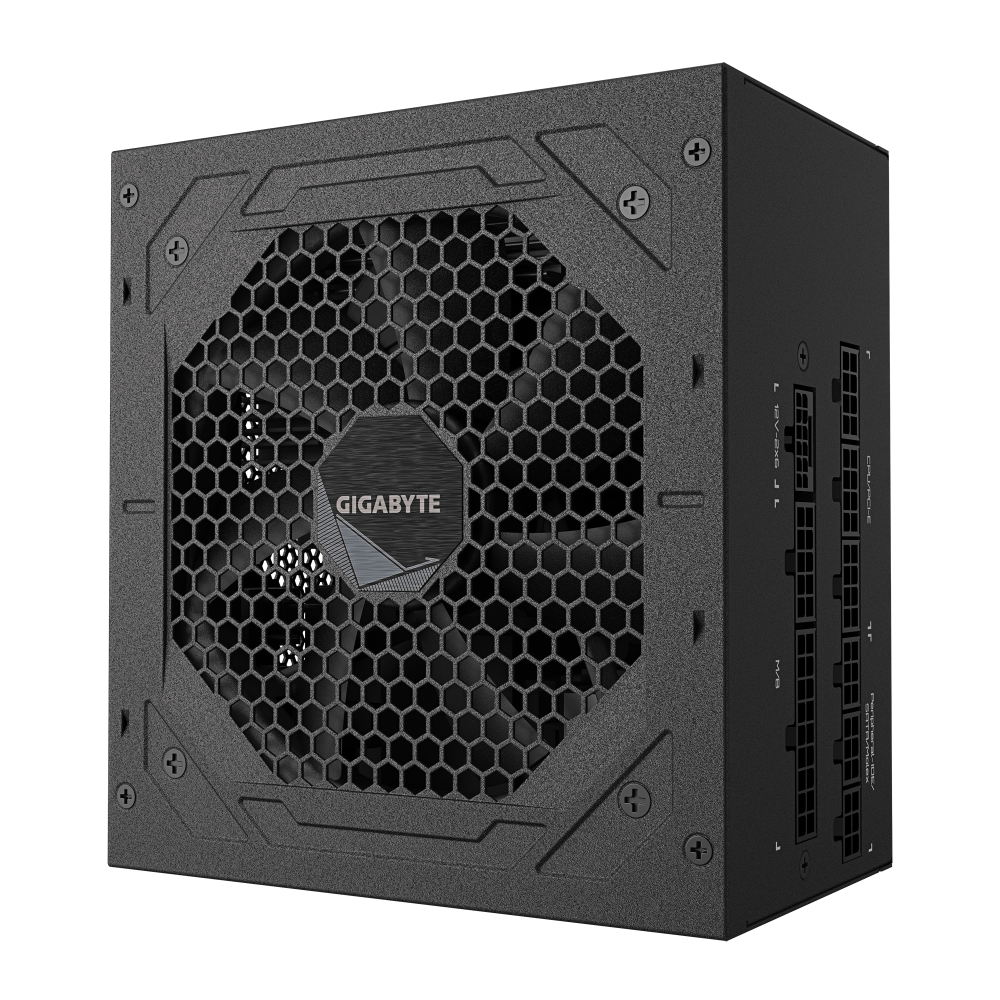

GIGABYTE UD750GM PG5 V2

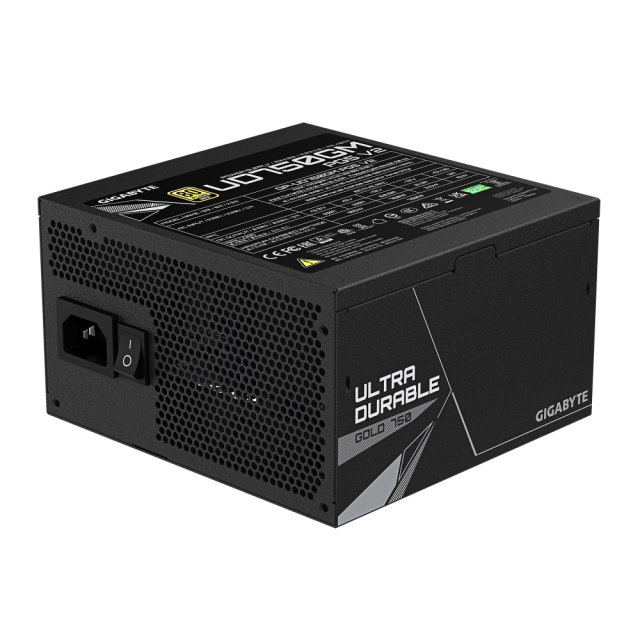

Sursa de alimentare Gigabyte UD750GM PG5 V2 , 750W, 80+ GOLD, PCIe 5.1
Cod produs: GA-PS-UD750GM-PG5-V2
Întrebare despre GIGABYTE UD750GM PG5 V2
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 750W |
| Certificat | 80+ Gold |
| Eficienţă | 90 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 60 luni |
Related products
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Bronze
Eficienţă:
88 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Silver
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Gigabyte UD750GM PG5 V2 este o sursa de alimentare de 750W, certificata 80 PLUS Gold, proiectata pentru sisteme moderne de gaming si PC-uri performante. Ofera eficienta ridicata, suport pentru PCIe 5.0 cu cablu 12VHPWR si multiple protectii pentru siguranta si stabilitate.
- Putere nominala: 750W, suficienta pentru configuratii mainstream si high-performance.
- Certificare 80 PLUS Gold: Eficienta energetica de pana la 90%, reducand consumul si caldura.
- Suport PCIe 5.0: Include cablu 12VHPWR pentru placi video de ultima generatie.
- Design compact: Format ATX standard, usor de integrat in carcase diverse.
- Ventilator de 120 mm: Functionare silentioasa si racire eficienta.
- Fiabilitate: Condensatori japonezi de calitate si protectii multiple (OVP, OPP, SCP, UVP).
- Durabilitate: Construita pentru functionare stabila pe termen lung.
- Raport performanta/pret: Solutie echilibrata pentru gameri si entuziasti care cauta eficienta si siguranta.
Features
-
-
-
-
- Ultra Durable

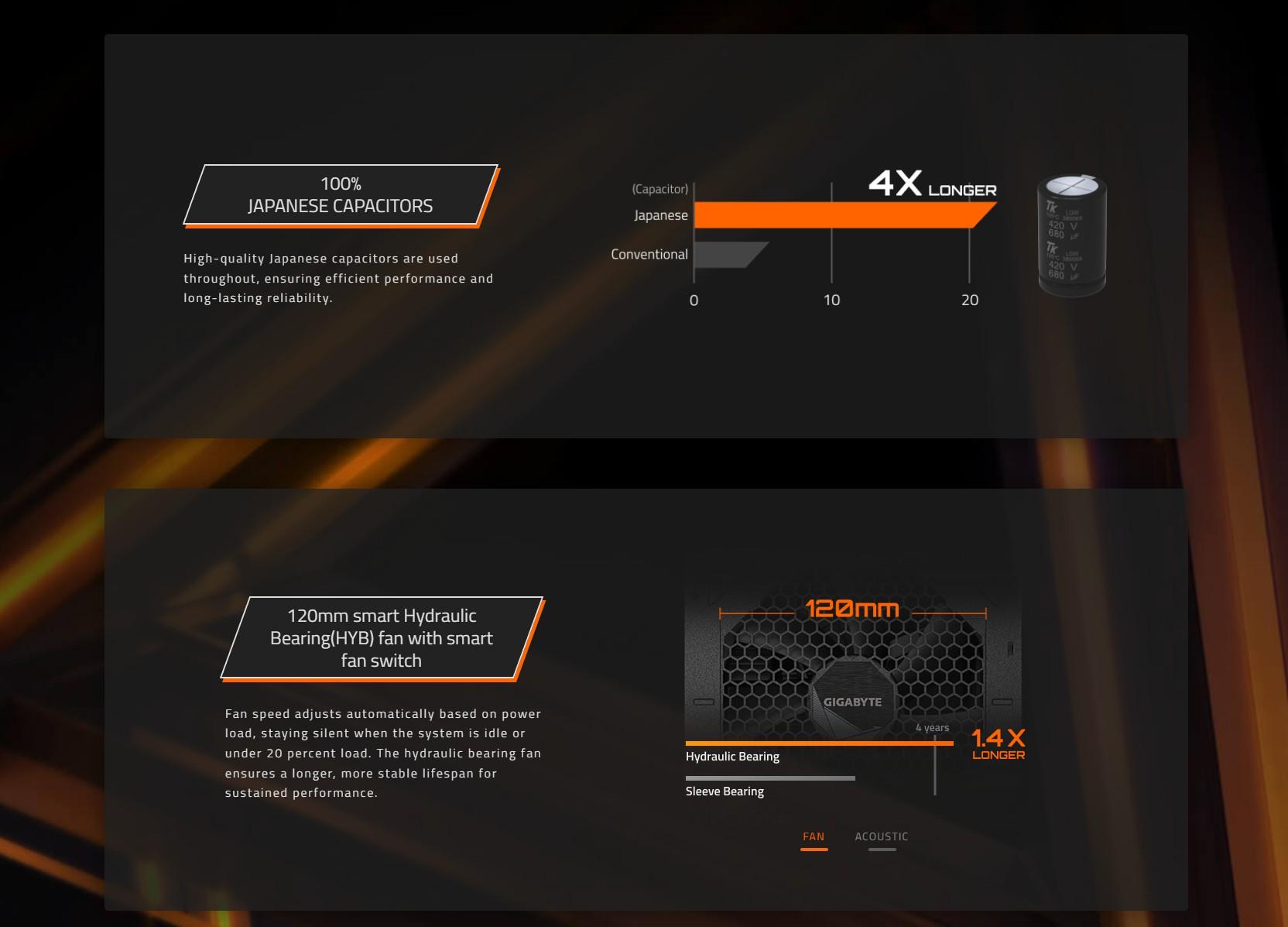

- 100% Japanese capacitors

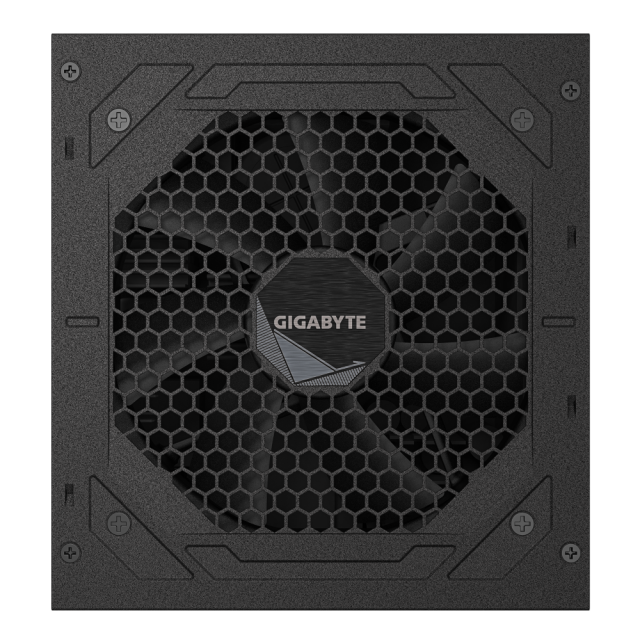

- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Fully modular design

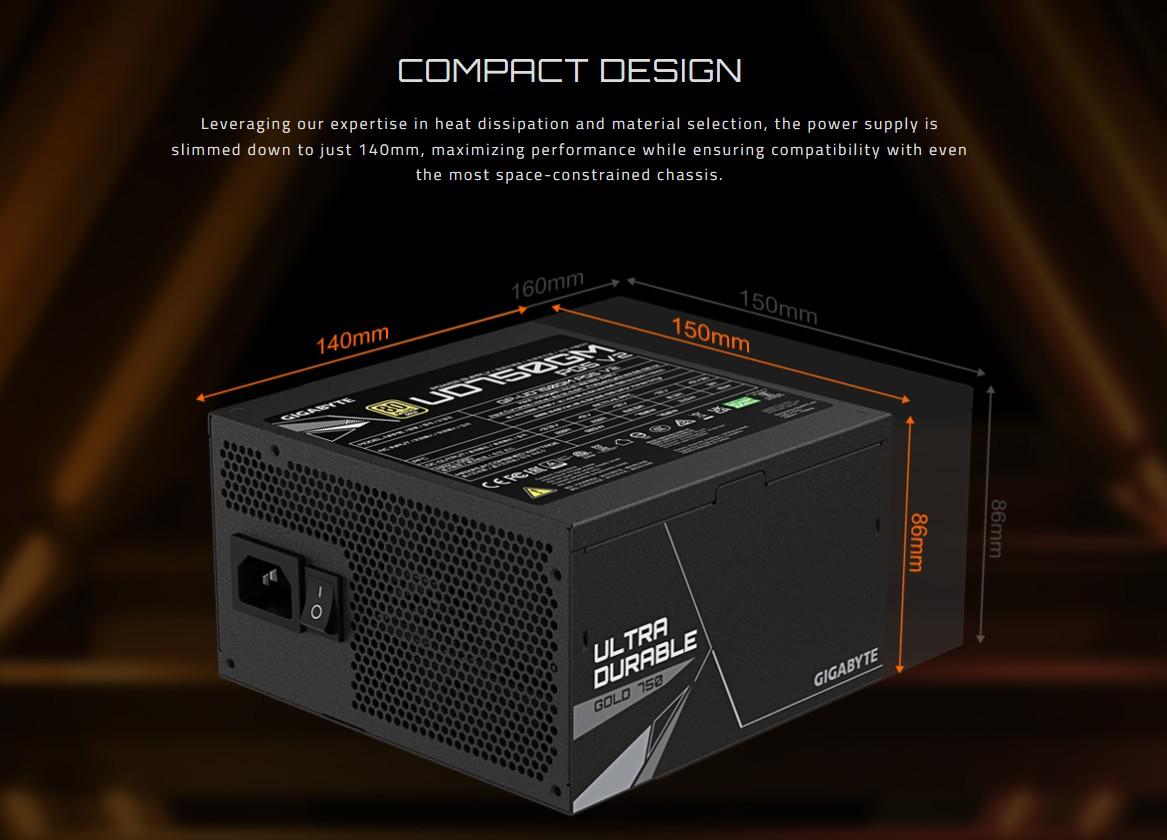

- Powerful single +12V rail
- Compact size
- Ultra Durable
-
-
-
ATX 3.1 and PCIe GEN 5.1 READY
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles
up to 3× GPU and 2× system power excursions with 70% efficiency at low loads.
The high-performance native 16-pin cable delivers up to 450W for PCIe Gen 5.1 graphics cards,
such as the GeForce RTX 50 Series and beyond.
Specification

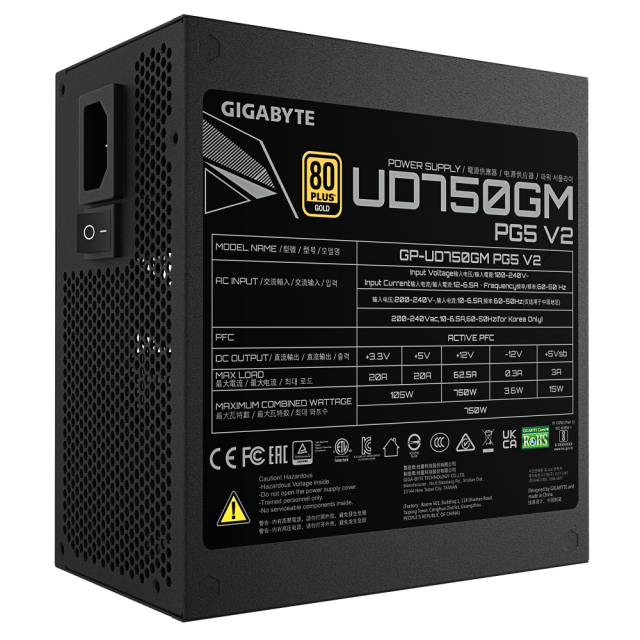

| Model | GP-UD750GM PG5 V2 | 80 PLUS | Gold |
| Type | Intel Form Factor ATX 12V v3.1 | Efficiency | 90% at typical load |
| PFC | Active PFC (>0.9 typical) | MTBF | >100,000 hours |
| Input Voltage | 100-240 Vac (full range) | Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Current | 15-6.5A | Power Good Signal | 100-150ms |
| Input Frequency | 60-50 Hz | Hold Up Time | >16ms |
| Output Capacity | 750W | Cable Type | Embossed, All black |

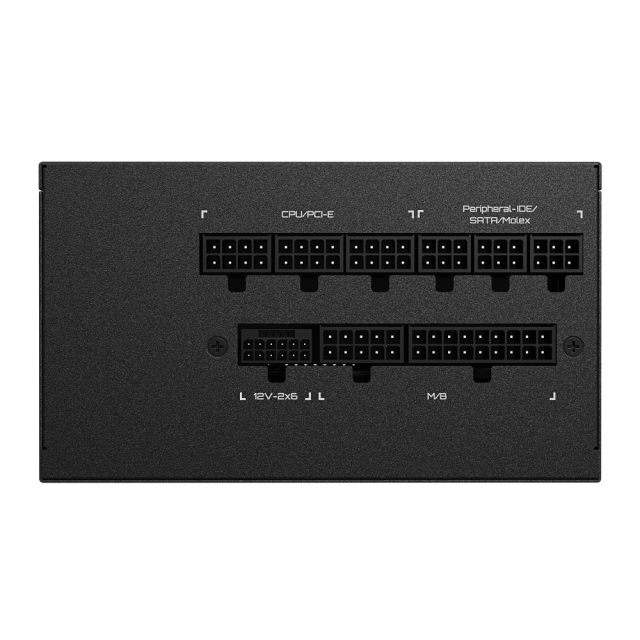

| Dimension | 150 x 140 x 86 mm | Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1:700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
