GIGABYTE H610M D3H WIFI DDR4
Placa de baza GIGABYTE H610M D3H WIFI DDR4, socket 1700, Micro ATX
Cod produs: GA-MB-H610M-D3H-WF-D4
Întrebare despre GIGABYTE H610M D3H WIFI DDR4
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1700 |
| Form Factor | Micro ATX |
| Chipset | Intel H610 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 64 GB |
| Frecvența memoriei | până la 3200 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR4 |
| Wi-Fi încorporat | Da |
Related products
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel H810
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD A520
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel H810
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
GIGABYTE H610M D3H WIFI DDR4 este o placa de baza echilibrata si fiabila, ideala pentru sisteme moderne accesibile. Oferind suport pentru procesoare Intel de generatie noua, memorie DDR4 si conectivitate wireless integrata, acest model asigura performanta stabila si functionalitate completa intr-un format compact.
- Compatibilitate actuala – suport pentru procesoare Intel din generațiile recente pentru performanta solida.
- Memorie DDR4 – ofera o solutie accesibila si stabila pentru multitasking si utilizare zilnica.
- WiFi integrat – conectivitate wireless rapida si convenabila fara a necesita placi suplimentare.
- Format microATX – design compact potrivit pentru sisteme eficiente si carcase mici.
- Conectivitate variata – porturi bine echilibrate pentru periferice, stocare si retea.
- Fiabilitate GIGABYTE – componente durabile si protectii integrate pentru functionare pe termen lung.
Specification
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
|
Chipset |
Intel H610 Express Chipset |
Memory |
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
|
Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
|
Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
LAN |
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
Wireless Communication module |
Intel Wireless- AC 9560
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
Expansion Slots |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
Storage Interface |
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
|
USB |
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+2 USB 2.0 Hubs:
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
2 x addressable RGB Gen2 LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
|

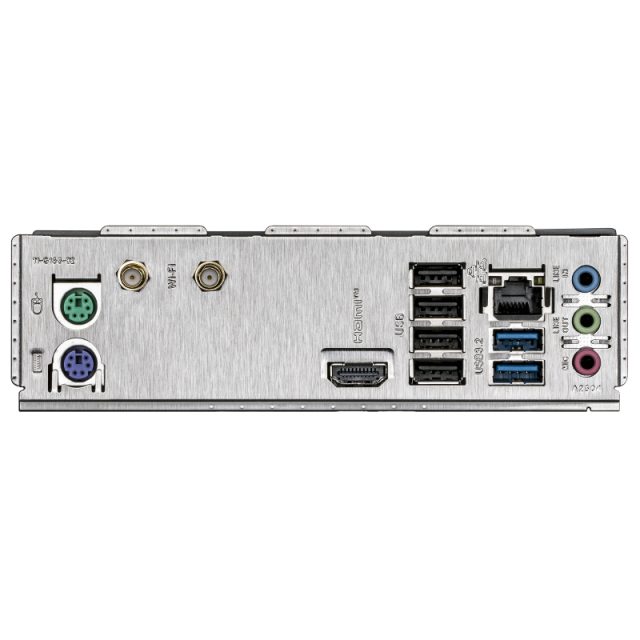

Back Panel Connectors |
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
|
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
|
Bundled Software |
Norton Internet Security (OEM version) LAN bandwidth management software |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor |
Micro ATX Form Factor; 24.4cm x 22.0cm |
