Acasă Hardware gaming Plăci de bază GIGABYTE B550M K WIFI6E

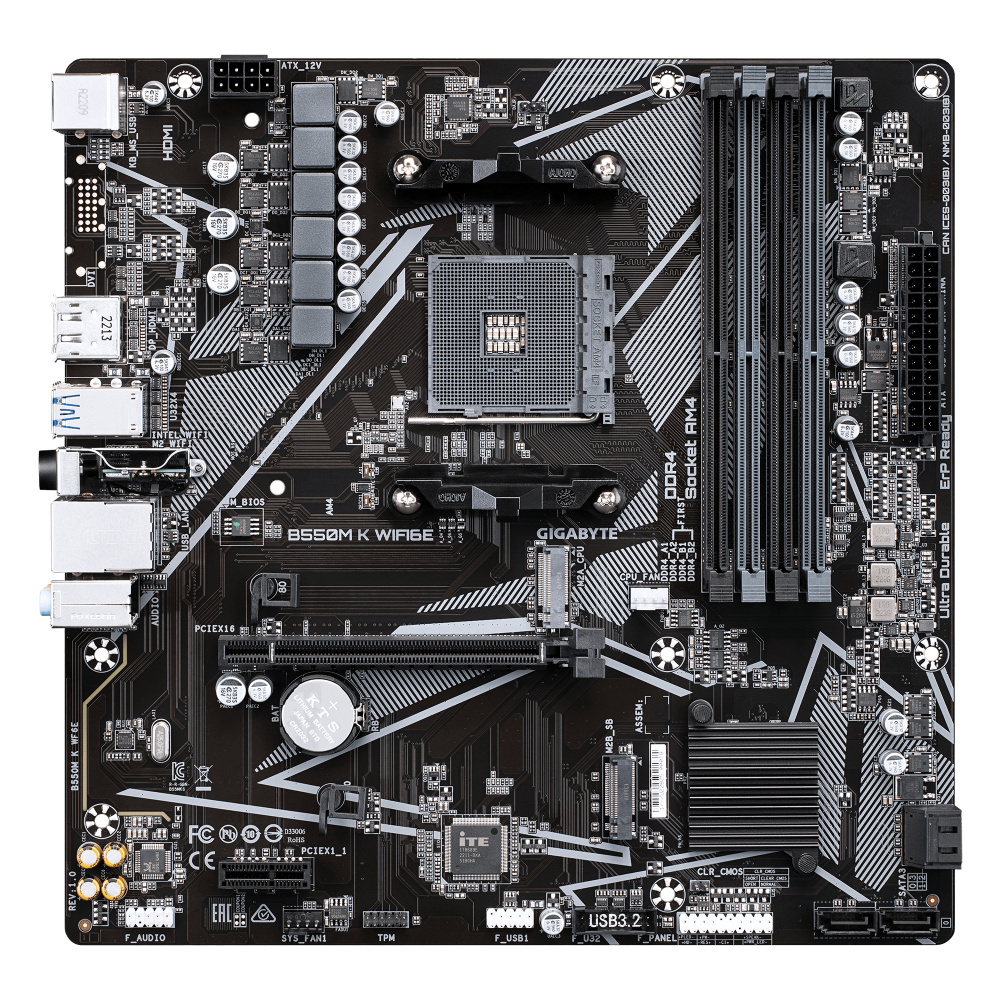

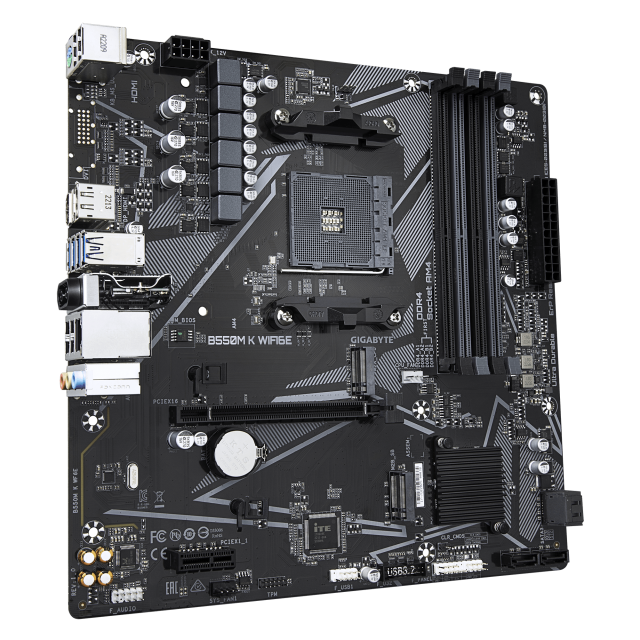

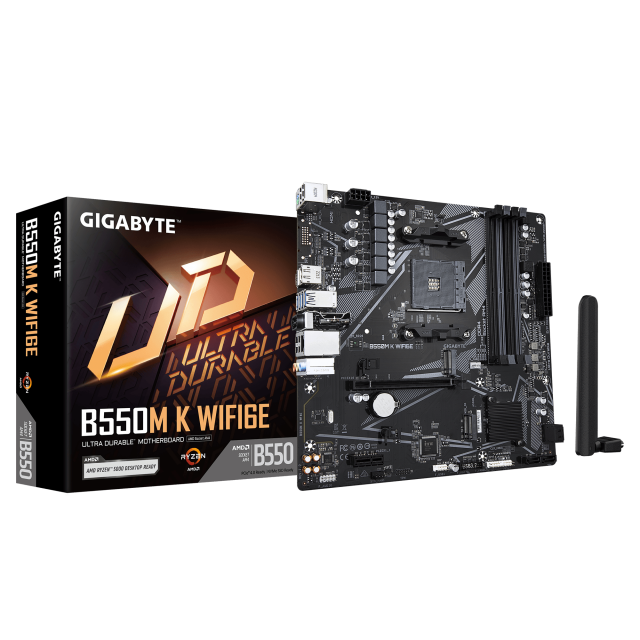

GIGABYTE B550M K WIFI6E

Placa de baza GIGABYTE B550M K Wi-Fi 6E, AM4

Cod produs: GA-MB-B550M-K-WF6E

disponibil

Întrebare despre GIGABYTE B550M K WIFI6E

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	AMD AM4
Form Factor	Micro ATX
Chipset	AMD B550
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 4733 MHz
Iluminare RGB	Nu
Memorie suportată	DDR4
Wi-Fi încorporat	Da

Related products

GIGABYTE B550M AORUS ELITE

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE A620M DS3H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE H810M H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M DS3H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B650M S2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B550M DS3H AC R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B840M D2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE A520I AC WiFi

Socket: AMD AM4

Form Factor: Mini-ITX

Chipset: AMD A520

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE H810M S2H GEN5

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M DS3H R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

Placa de baza GIGABYTE B550M K Wi-Fi 6E este o solutie moderna pentru procesoarele AMD Ryzen pe socket AM4, oferind performanta ridicata, conectivitate de ultima generatie si suport pentru memorii rapide. Formatul Micro-ATX, Wi-Fi 6E integrat si optiunile extinse de conectivitate o fac ideala pentru sisteme de gaming si productivitate.

Socket AM4: Compatibila cu o gama larga de procesoare AMD Ryzen pentru flexibilitate si performanta.
Chipset B550: Ofera suport pentru tehnologii moderne si componente de inalta performanta.
Wi-Fi 6E integrat: Asigura conexiuni wireless rapide, stabile si cu latenta redusa.
Suport pentru memorii DDR4: Permite utilizarea modulelor RAM de mare viteza pentru performanta sporita.
PCIe 4.0: Ofera latime de banda ridicata pentru placi video si SSD-uri compatibile.
Stocare rapida: Dispune de slot M.2 pentru SSD-uri NVMe si porturi SATA pentru unitati suplimentare.
Format Micro-ATX: Ideal pentru sisteme compacte, fara compromisuri in ceea ce priveste functionalitatea.
Conectivitate extinsa: Include porturi USB moderne, retea Gigabit si iesiri video pentru compatibilitate ridicata cu diverse periferice.

AMD B550 Ultra Durable Motherboard with WIFI EZ-Plug, Wi-Fi 6E, Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 6 with FAN STOP

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	MediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. 1 x PCI Express x1 slot, integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: - Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

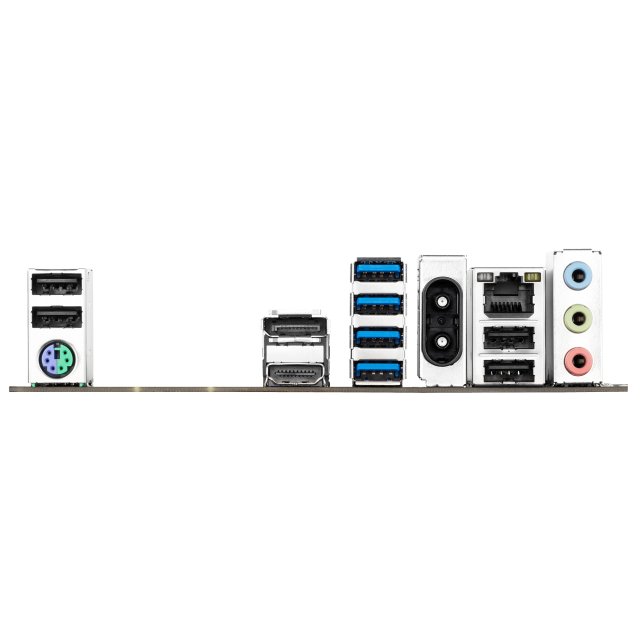

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) 3 x audio jacks * Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
