Acasă Hardware gaming Plăci de bază GIGABYTE B760M H V2

GIGABYTE B760M H V2

Placa de baza GIGABYTE B760M H V2 DDR5, socket 1700

Cod produs: GA-MB-B760M-H-V2

disponibil

Întrebare despre GIGABYTE B760M H V2

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1700
Form Factor	Micro ATX
Chipset	Intel B760
Numărul de sloturi pentru memorie	2
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 8000 MHz
Iluminare RGB	Nu
Memorie suportată	DDR5
Wi-Fi încorporat	Nu

Related products

GIGABYTE B760M D3HP DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE A620M DS3H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE B550M AORUS ELITE

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M DS3H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE H810M H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M E

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B650M S2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B840M D2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M DS3H AC R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B550M DS3H R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE H810M K

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M H V2 este o placa de baza moderna si fiabila, conceputa pentru procesoare Intel de generatie noua. Ofera suport stabil, componente de calitate si functii esentiale pentru sisteme de birou sau home, asigurand performanta echilibrata si conectivitate versatila.

Compatibilitate procesor Suporta procesoare Intel din seriile recente pentru performanta optima.
Memorie RAM Sloturi DDR4 pentru functionare stabila si eficienta.
Conectivitate variata Include porturi USB, HDMI si alte interfete necesare pentru periferice moderne.
Slot PCIe Permite instalarea unei placi video dedicate sau a altor extensii.
Calitate GIGABYTE Componente durabile si protectii integrate pentru functionare sigura si stabila.

Specification

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
Memory	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper

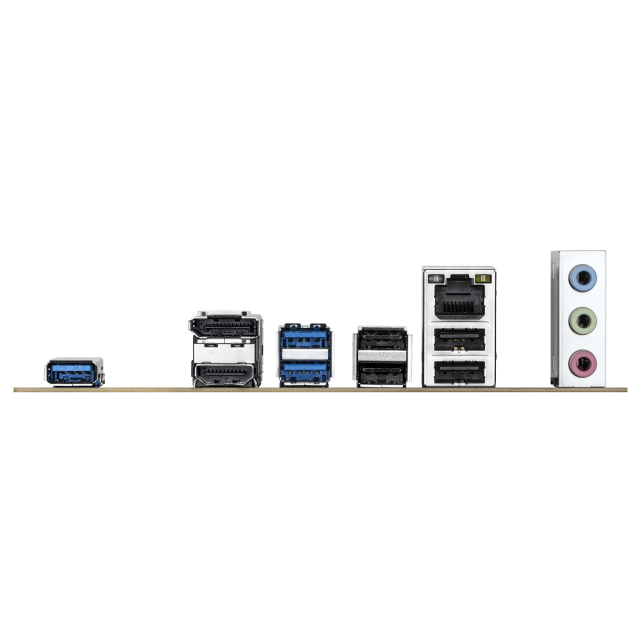

Back Panel Connectors	1 x DisplayPort (Note) 1 x HDMI port (Note) 3 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.0cm
