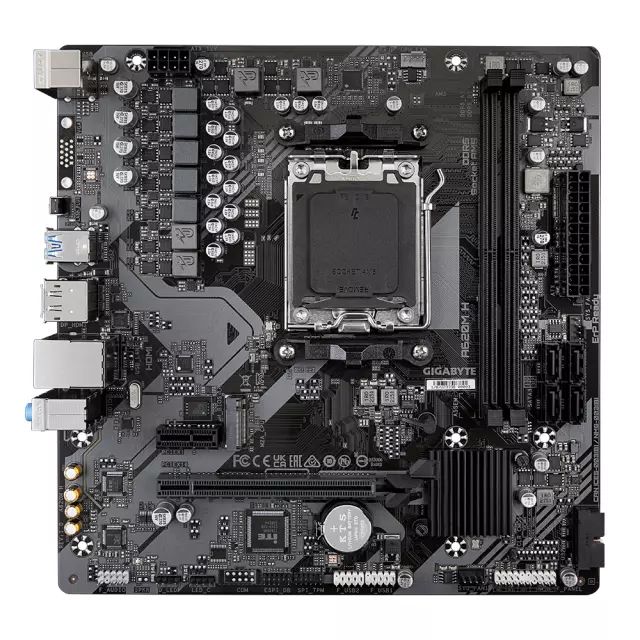

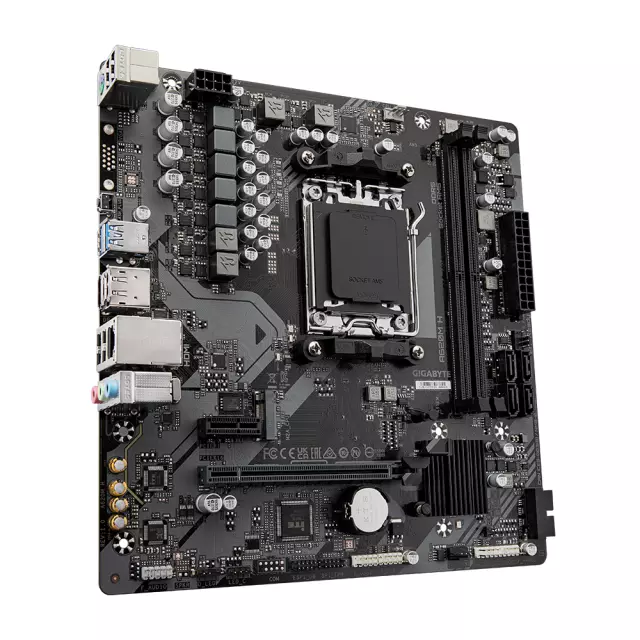

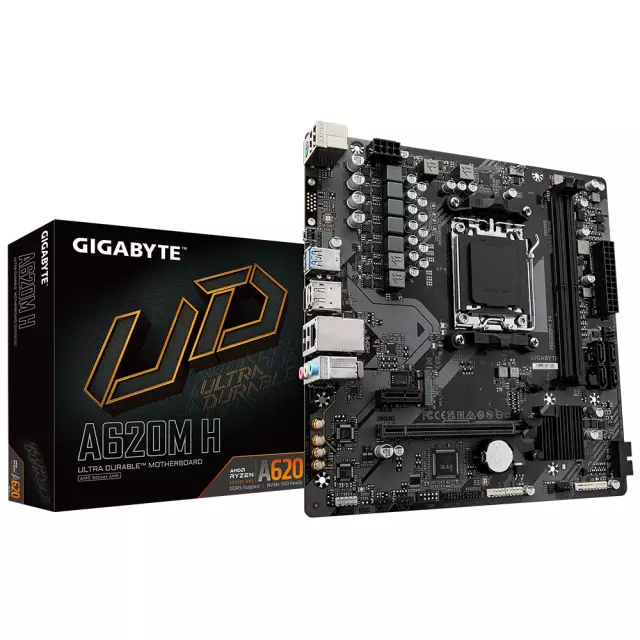

GIGABYTE A620M H

CPU

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x Clear CMOS jumper

Chipset

1. AMD A620

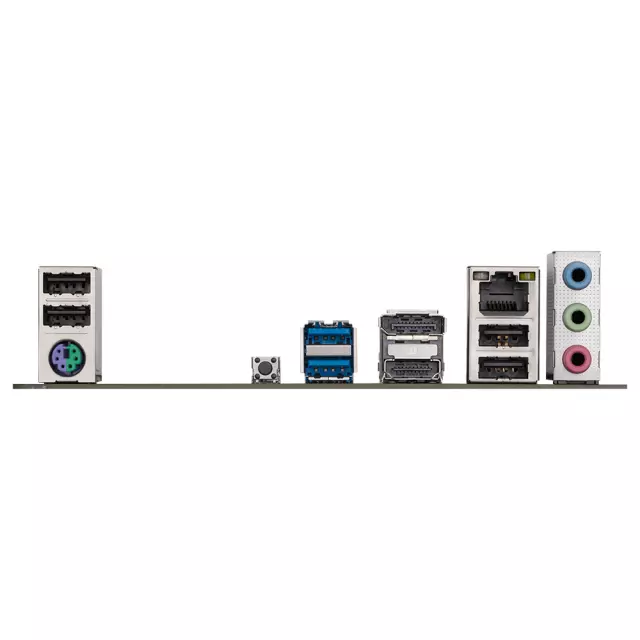

Back Panel Connectors

1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x Q-Flash Plus button
4. 2 x USB 3.2 Gen 1 ports
5. 1 x DisplayPort
6. 1 x HDMI port
7. 1 x RJ-45 port
8. 3 x audio jacks

Memory

1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

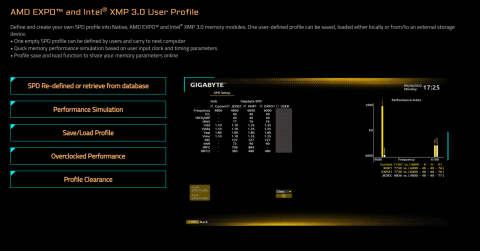

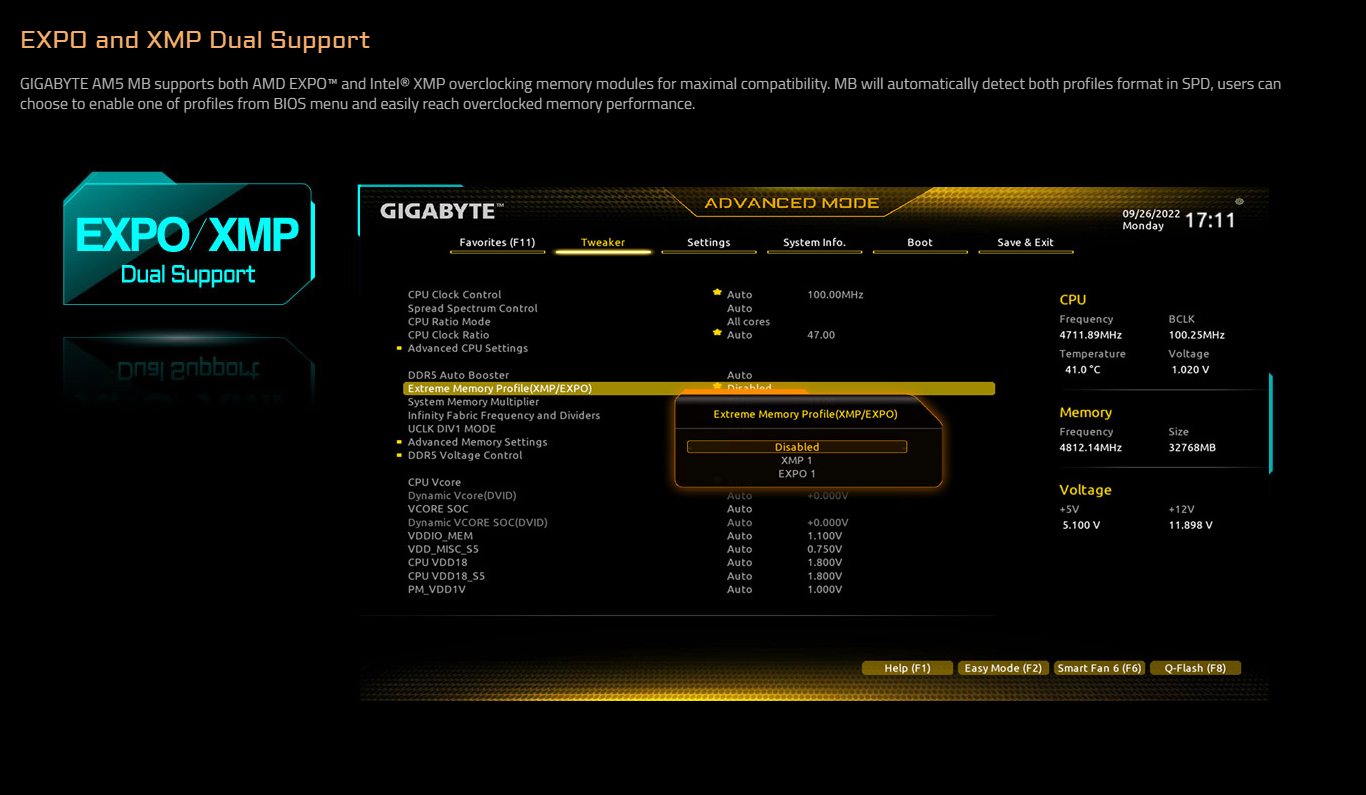

5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

I/O Controller

1. iTE® I/O Controller Chip

Onboard Graphics

1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
   * Support for DisplayPort 1.4 version.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

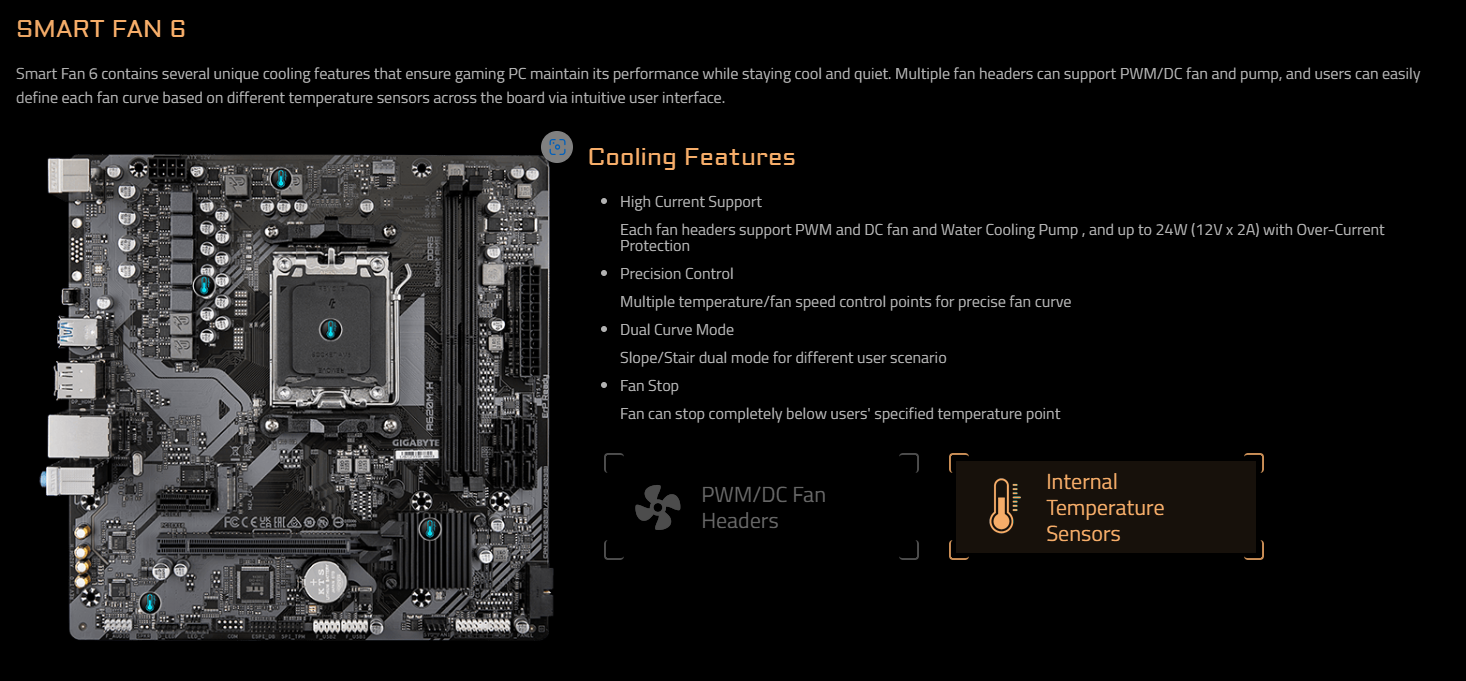

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning

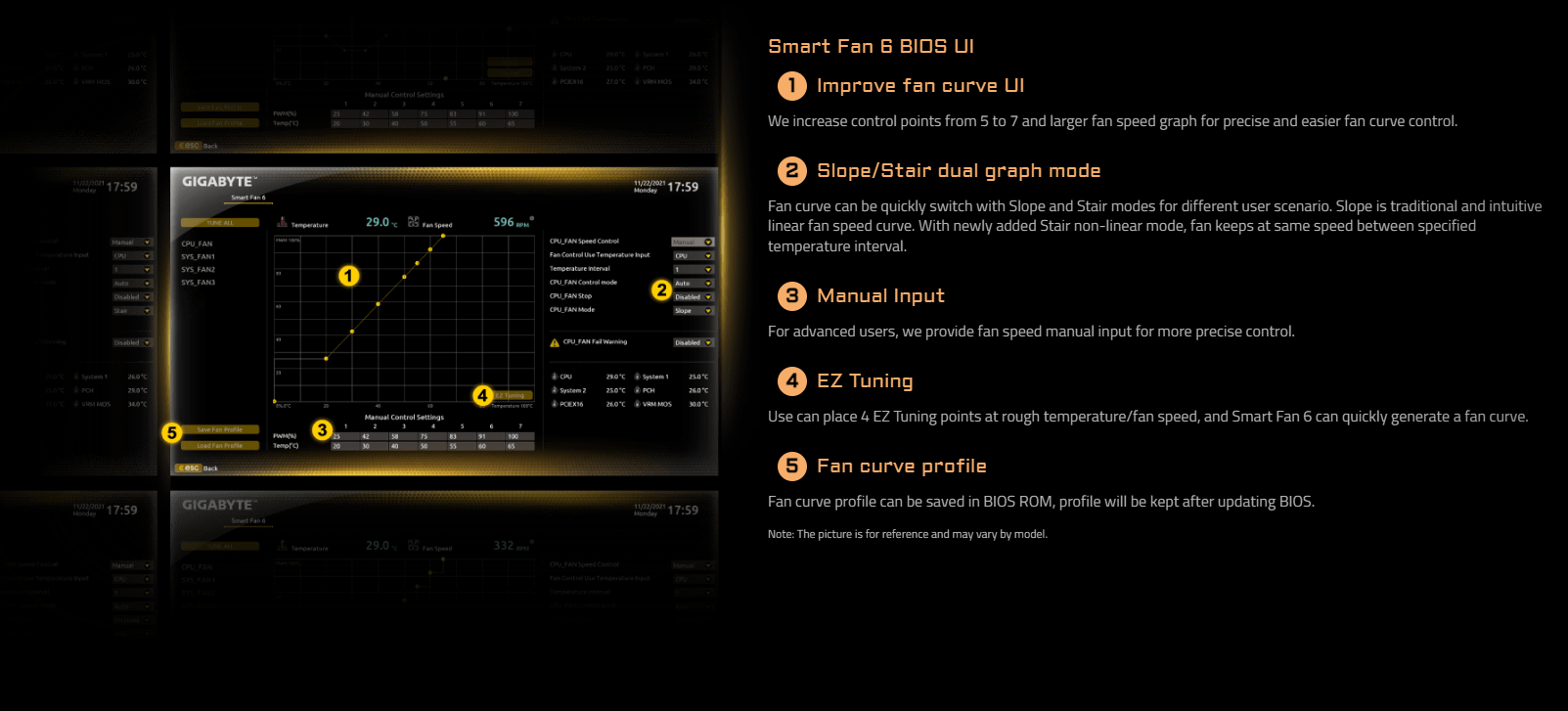

6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.

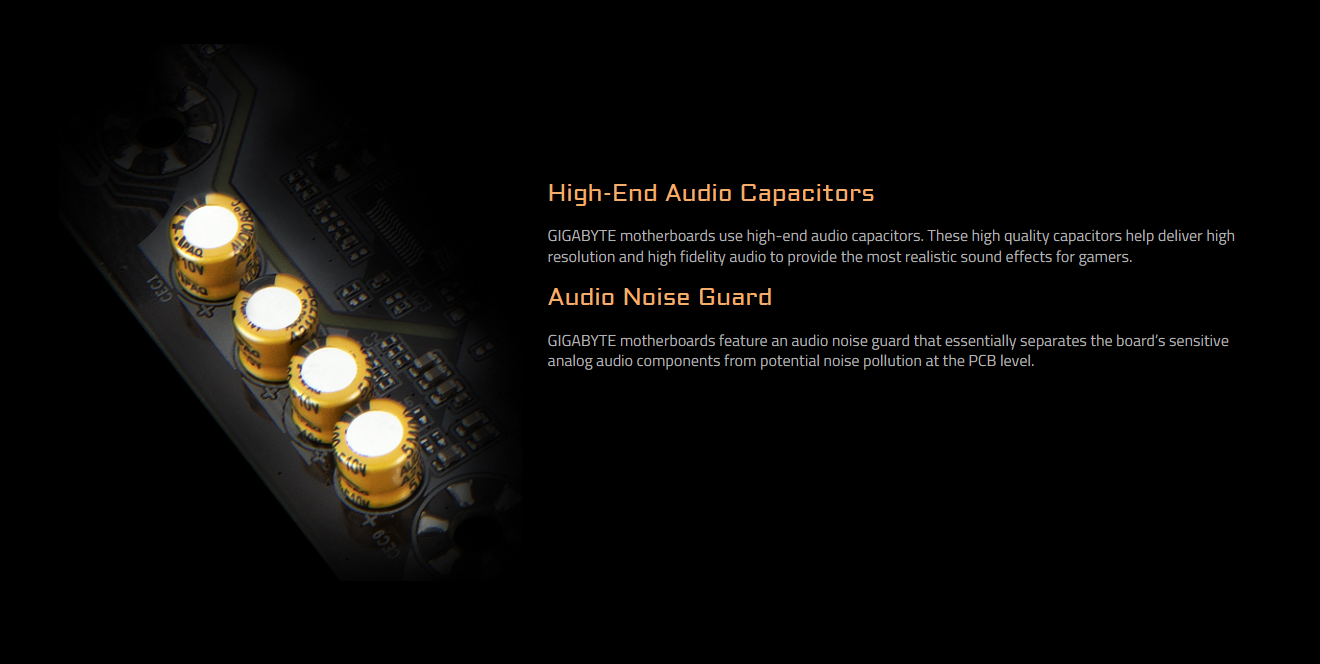

Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Unique Features

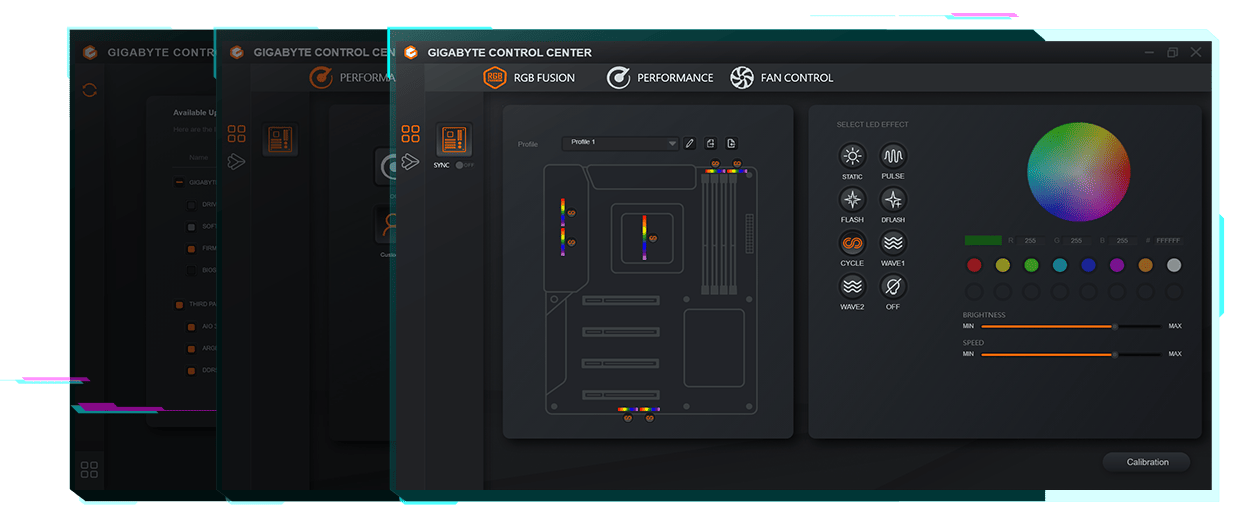

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

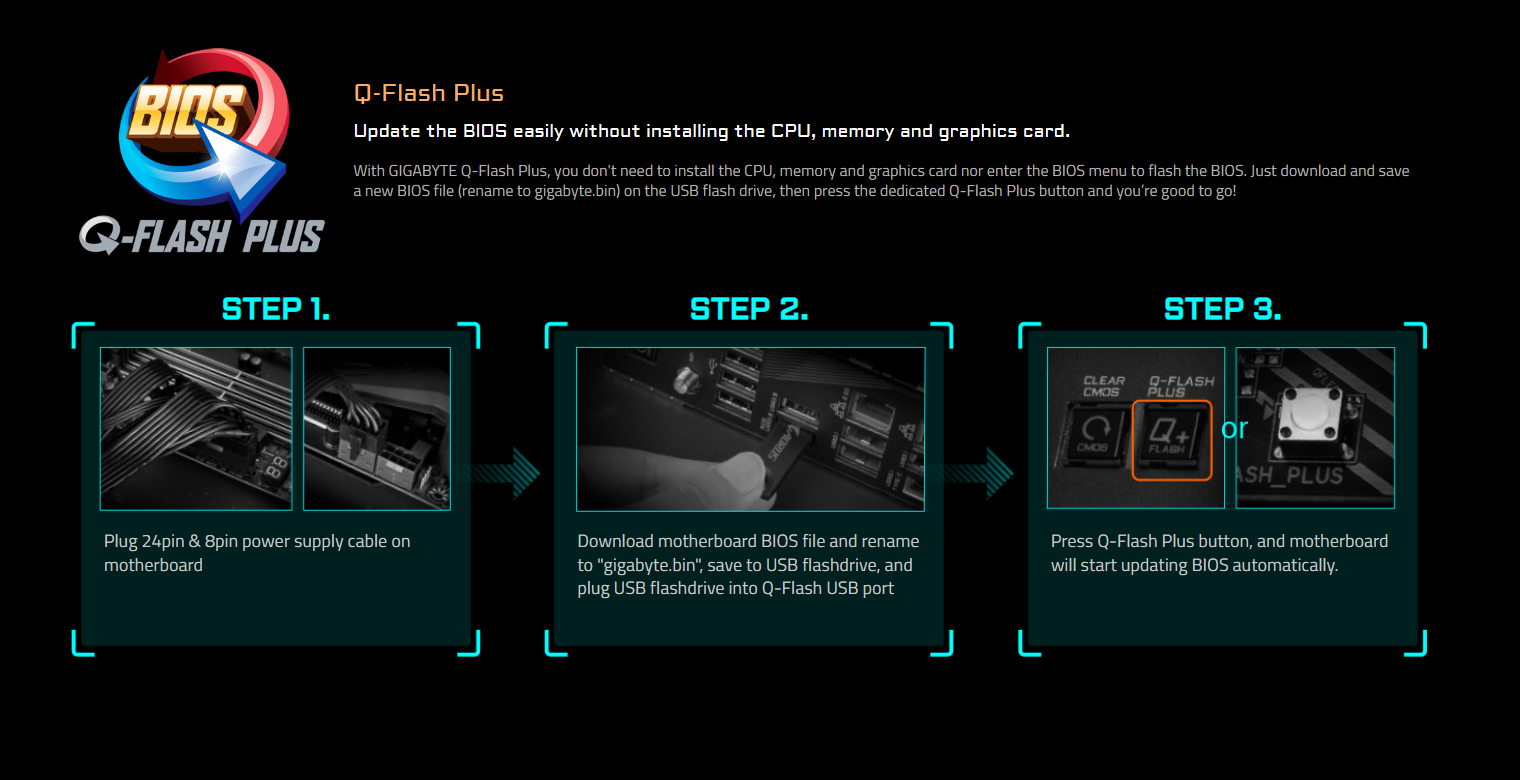

2. Support for Q-Flash Plus
3. Support for Q-Flash

Expansion Slots

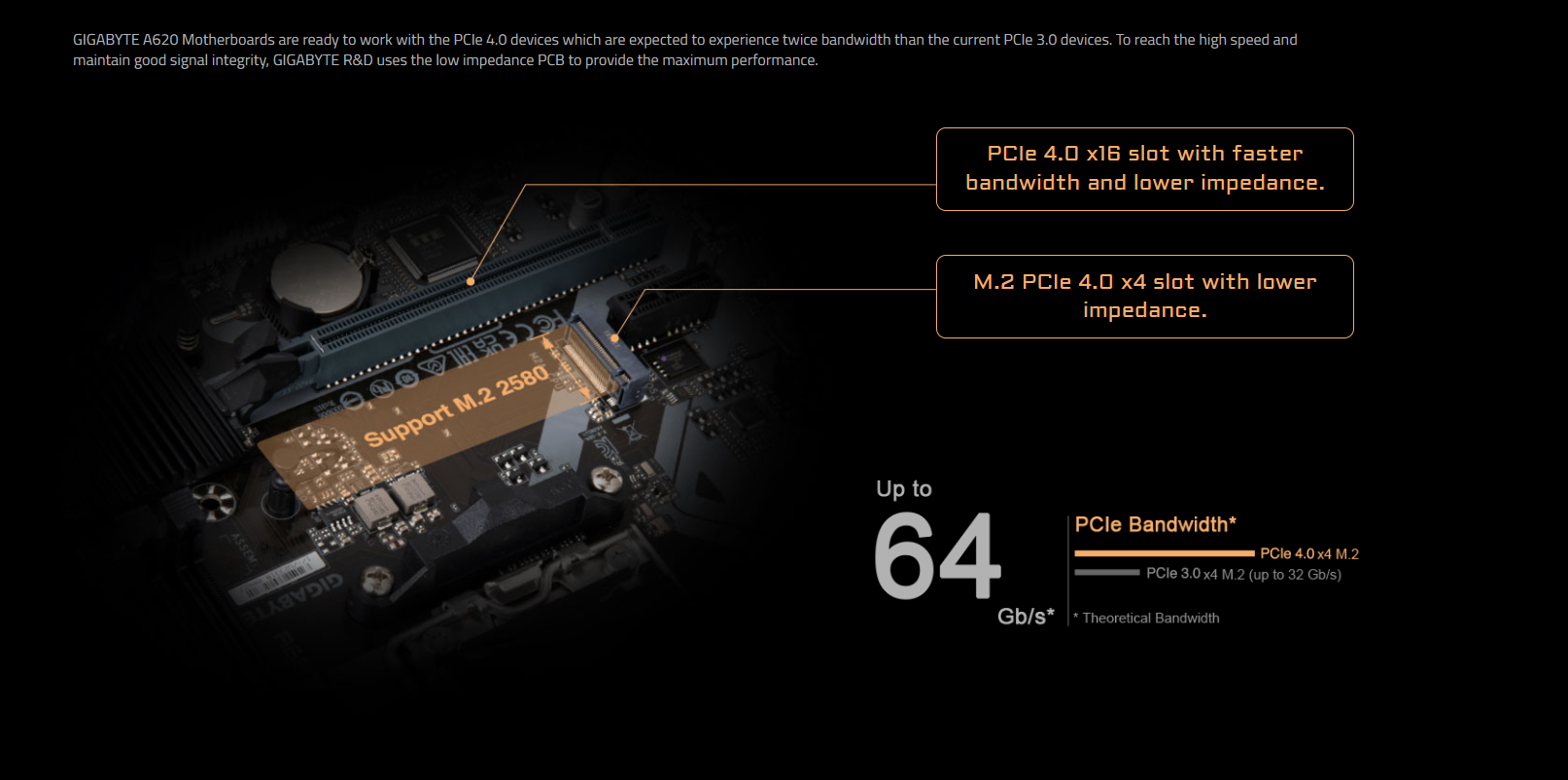

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Bundled Software

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

1. 4 x SATA 6Gb/s connectors

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

USB

1. 2 x USB 3.2 Gen 1 ports on the back panel
2. 1 x USB 2.0/1.1 port on the back panel

1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Form Factor

1. Micro ATX Form Factor; 23.0cm x 22.5cm
