Acasă Hardware gaming Plăci de bază GIGABYTE A520I AC WiFi

GIGABYTE A520I AC WiFi

Placa de baza GIGABYTE A520I AC WI-FI, Socket AM4, Mini-ITX

Cod produs: GA-MB-A520I-AC

disponibil

Întrebare despre GIGABYTE A520I AC WiFi

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	AMD AM4
Form Factor	Mini-ITX
Chipset	AMD A520
Numărul de sloturi pentru memorie	2
Capacitate RAM	până la 64 GB
Frecvența memoriei	până la 5300 MHz
Iluminare RGB	Nu
Memorie suportată	DDR4
Wi-Fi încorporat	Da

Related products

GIGABYTE B840M D2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE H810M S2H GEN5

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M DS3H AC R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B650M S2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B760M D3HP

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B760M DS3H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE A620M DS3H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE B760M H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M K WIFI6E

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B550 Gaming X V2

Socket: AMD AM4

Form Factor: ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B550M AORUS ELITE

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE H810M H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

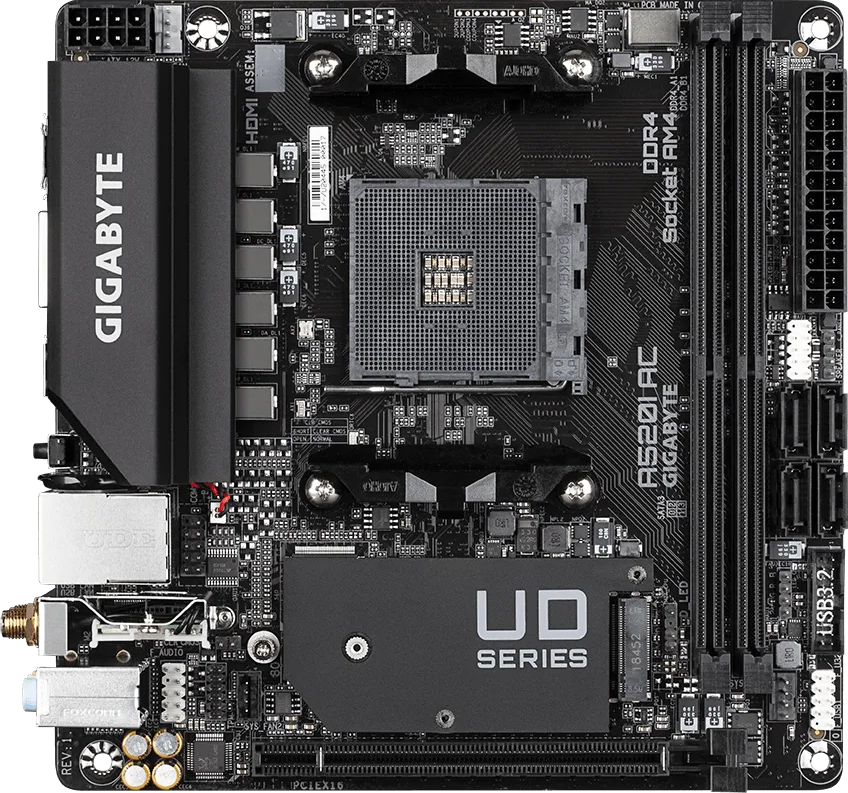

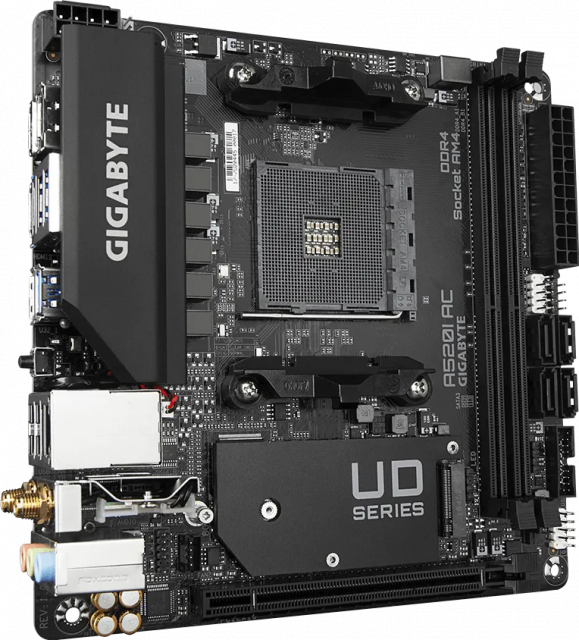

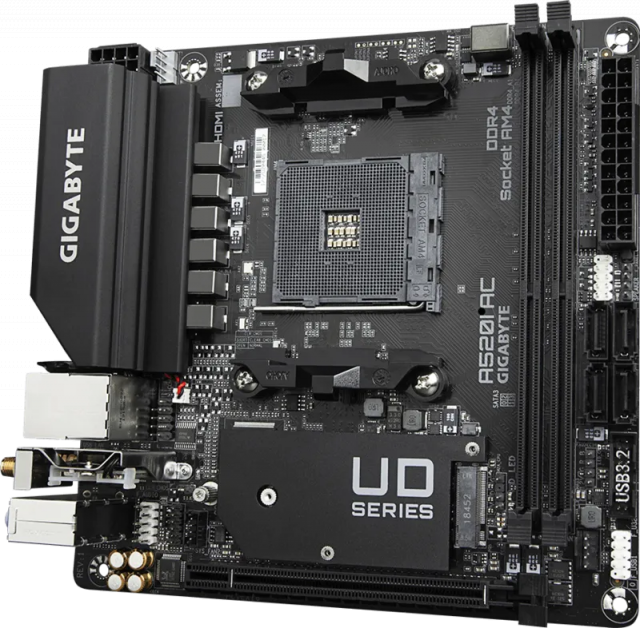

Placa de baza GIGABYTE A520I AC este o solutie compacta in format Mini-ITX pentru procesoarele AMD Ryzen cu socket AM4. Ofera conectivitate wireless integrata, suport pentru memorii DDR4 si stocare rapida M.2, fiind ideala pentru sisteme compacte de gaming, multimedia sau utilizare zilnica.

Socket AM4: Compatibila cu o gama larga de procesoare AMD Ryzen pentru performanta si flexibilitate.
Chipset AMD A520: Ofera stabilitate si suport pentru componente moderne.
Format Mini-ITX: Perfecta pentru configuratii compacte cu economie de spatiu.
Wi-Fi AC integrat: Asigura conexiuni wireless rapide si stabile pentru retea si internet.
Suport pentru memorii DDR4: Permite utilizarea modulelor RAM de mare viteza pentru performanta imbunatatita.
Slot M.2 NVMe: Ofera suport pentru SSD-uri rapide, reducand timpii de incarcare ai sistemului si aplicatiilor.
Conectivitate extinsa: Include porturi USB, retea Gigabit si iesiri video pentru conectarea diverselor periferice.
Constructie fiabila: Realizata din componente de calitate pentru stabilitate si functionare pe termen lung.

AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
Realtek GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD A520
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Intel Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard * Actual data rate may vary depending on environment and equipment.
Expansion Slots	Integrated in the CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Storage Interface	Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

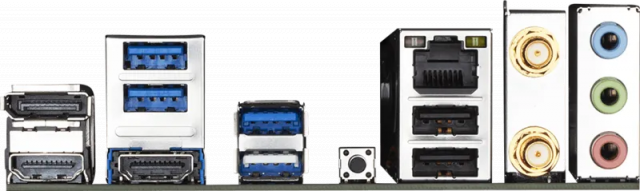

Back Panel Connectors	1 x DisplayPort 2 x HDMI ports 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 ports 2 x SMA antenna connectors (1T1R) 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
