Acasă Hardware gaming Plăci de bază GIGABYTE B550M DS3H AC R2

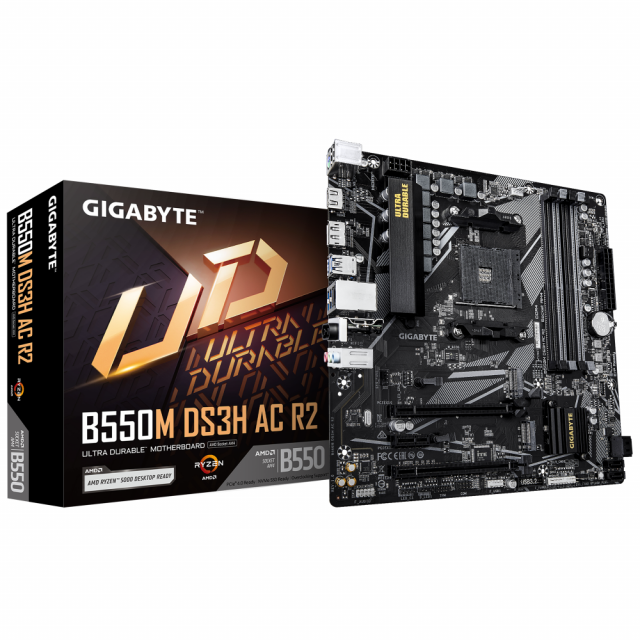

GIGABYTE B550M DS3H AC R2

Placa de baza GIGABYTE B550M DS3H AC R2 Socket AM4

Cod produs: GA-MB-B550M-DS3H-AC-R2

nu este disponibil

Întrebare despre GIGABYTE B550M DS3H AC R2

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	AMD AM4
Form Factor	Micro ATX
Chipset	AMD B550
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 4733 MHz
Iluminare RGB	Nu
Memorie suportată	DDR4
Wi-Fi încorporat	Da

Related products

GIGABYTE B650M S2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B840M D2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M AORUS ELITE

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M DS3H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B760M H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE A620M DS3H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE B550 Gaming X V2

Socket: AMD AM4

Form Factor: ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

Frecvența memoriei: până la 4733 MHz

GIGABYTE H810M H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M E

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B650M D3HP

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

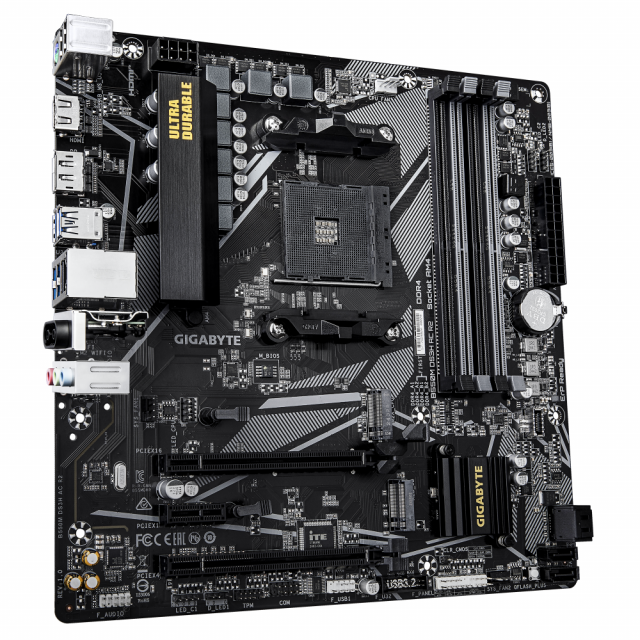

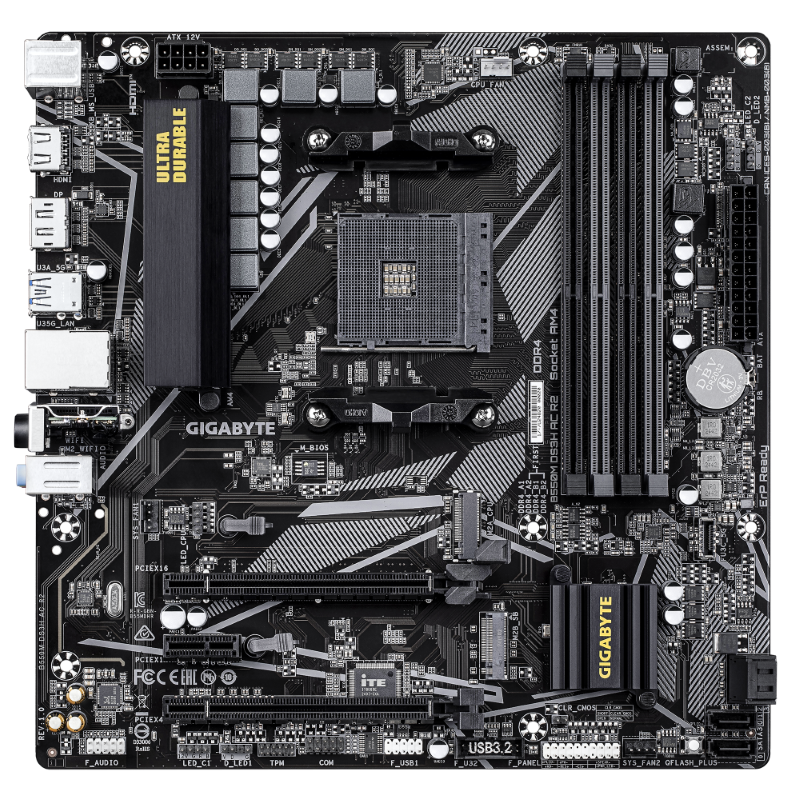

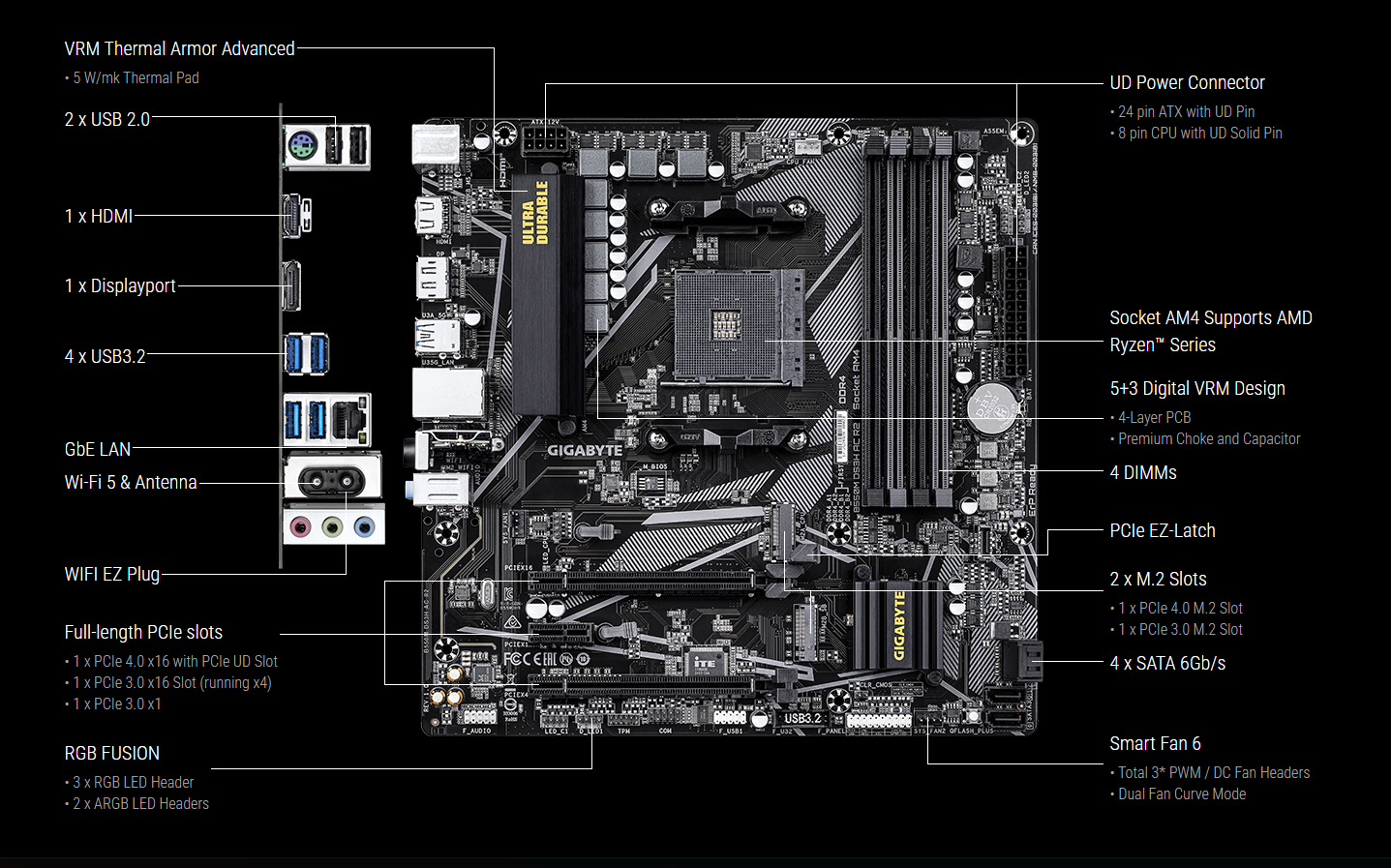

GIGABYTE B550M DS3H AC R2 este o placa de baza Micro-ATX fiabila si moderna, compatibila cu procesoarele AMD Ryzen din seriile 3000, 4000 si 5000. Ofera conectivitate extinsa, stocare rapida prin PCIe 4.0, suport pentru memorie DDR4 de mare viteza si Wi-Fi integrat, fiind ideala pentru sisteme compacte de gaming sau productivitate.

Compatibilitate CPU: Suporta procesoare AMD Ryzen din seriile 3000, 4000G si 5000, inclusiv modelele cu grafica integrata
Memorie: 4 sloturi DDR4, pana la 128GB, cu frecvente de pana la 4733MHz (OC), in configuratie dual-channel
Stocare: 2 sloturi M.2 (unul PCIe 4.0 x4 si unul PCIe 3.0 x4) si 4 porturi SATA 6Gb/s, cu suport RAID 0/1/10
Sloturi de extensie: 1 x PCIe 4.0 x16 pentru placa video, 1 x PCIe 3.0 x16 (x4) si 1 x PCIe 3.0 x1 pentru periferice
Video integrat: HDMI 2.1 si DisplayPort 1.4, cu suport pentru rezolutii de pana la 5K@60Hz (necesita CPU cu grafica integrata)
Audio: Codec Realtek ALC897, sunet HD 7.1 cu condensatori audio de calitate
Retea: LAN Gigabit Realtek si modul Wi-Fi 5 (802.11ac) cu Bluetooth 5.0 integrat
Conectivitate USB: 4 x USB 3.2 Gen 1 si 2 x USB 2.0 pe panoul I/O, plus header-e interne pentru extensii
Racire si control: Smart Fan 6 cu 3 conectori pentru ventilatoare si senzori de temperatura, control PWM/DC
Design si durabilitate: PCB cu 4 straturi, protectie termica si alimentare digitala 5+3 faze pentru stabilitate si eficienta

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module	Realtek Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

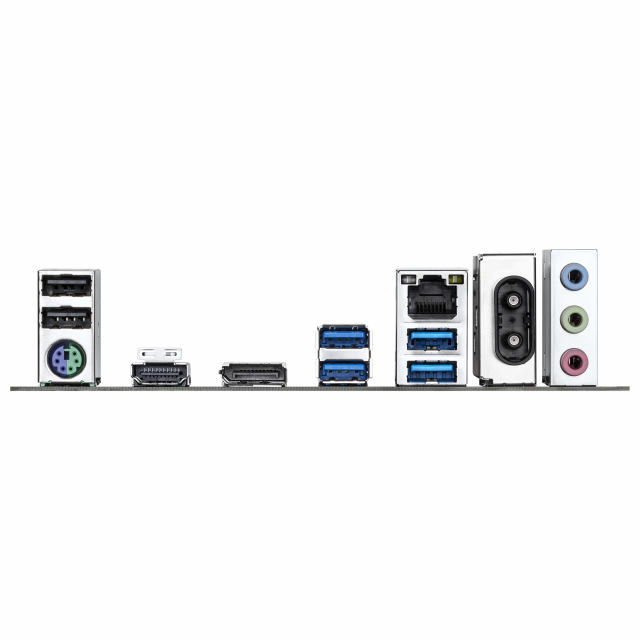

Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
