Lian Li V3000 PLUS White GGF Edition

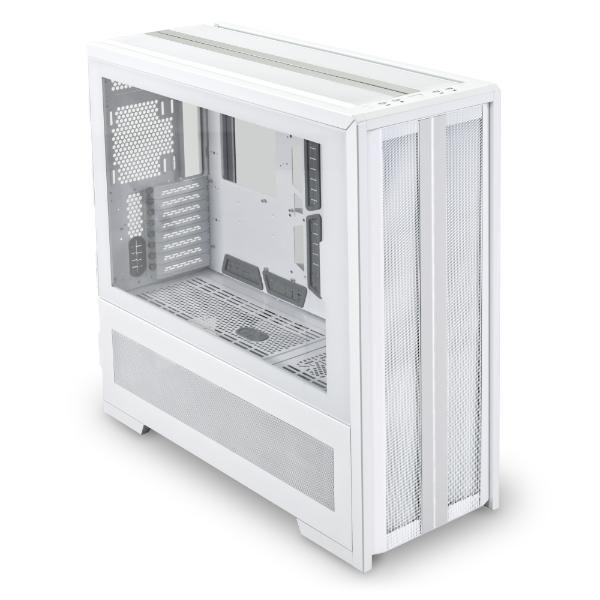

Carcasa Lian Li V3000 PLUS Full-Tower, Tempered Glass, Alb
Cod produs: LL-CASE-GELI-925
Epuizat
Întrebare despre Lian Li V3000 PLUS White GGF Edition
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Full Tower |
| Format | ATX, Micro ATX, Mini ITX, EATX |
| Ventilatoare incluse | Nu |
| Panou frontal | USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C) |
| Culoare | Alb |
| Lungime | 678.5 mm |
| Lăţime | 279 mm |
| Înălţime | 674 mm |
| Înălțimea maximă a coolerului cu aer | 198 mm |
| Lungimea maximă a plăcii video | 589 mm |
| În plus | Butoane de control al iluminarii |
| Ventilatoare suportate în față | 3x 140mm, 4x 120mm |
| Ventilatoare suportate în partea de jos | 3x 120mm, 3x 140mm |
| Ventilatoare suportate în spate | 1x 120mm, 1x 140mm |
| Ventilatoare suportate în partea de sus | 2x 200mm, 3x 140mm, 4x 120mm |
| Ventilatoare suportate pe lateral | 4x 120mm, 3x 140mm |
| Coolere cu lichid suportate în fată | 1x 420mm, 1x 480mm |
| Coolere cu lichid suportate în partea de jos | 1x 360mm, 1x 420mm |
| Coolere cu lichid suportate în partea de sus | 1x 420mm, 1x 480mm |
| Coolere cu lichid suportate pe lateral | 1x 420mm, 1x 480mm |
| Panou Mesh frontal | Da |
Related products
Form Factor:
Full Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Full Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
2x 120mm, 1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Alb
Carcasa Lian Li V3000 PLUS Full-Tower, Tempered Glass, Alb
- Sasiu full-towercu 3 moduri: Standard/Rotire/Dual-System
- Capacitate de a sprijini o placa de baza EEB si o placa de baza ITX
- Suporta pana la 3 × 480 + 1 × 360 radiatoare si maximum 16 ventilatoare
- Doua placi de rezervor gazduiesc o pompa mare D5/DDC
- Stocheaza pana la 16 unitati de stocare la custi si tavi de actionare
- Suporturile modulare detasabile ofera flexibilitate pentru constructii
- Gestionarea cablurilor cu 7 curele Velcro
THE LEGEND RETURNS
V3000 PLUS, the legend’s continuation, is an eye-catching full tower chassis. Designed for enthusiasts, the V3000 PLUS offers a great building process and improved thermal control.
- Full Aluminum Exterior
- Exterior Mesh Panel for best possible airflow
- Front ARGB Lighting
- Projected LIAN LI Logo

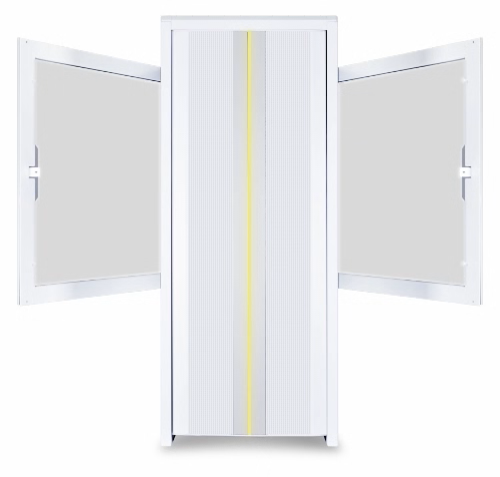

- Push-pull Hinged Glass Panels
- Toolless SSD Mounting
- Dual Side Tinted Tempered Glass Panel
- Rotatable PSU Bracket for thicker bottom radiator

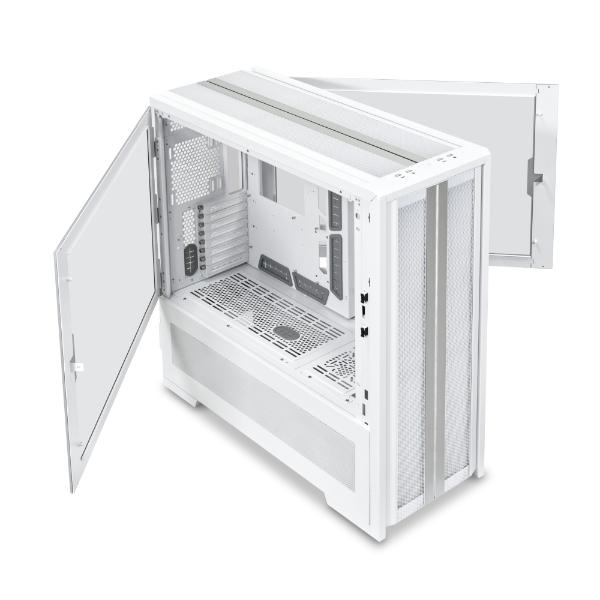

IDENTIFY YOUR MODE
V3000 PLUS is designed with flexibility and possibilities in mind. Thanks to a removable motherboard tray and an adaptable PSU shroud compartment, the V3000 PLUS can be set in Mode 1 as a standard build, Mode 2 for a rotated motherboard with a unique look, or Mode 3, as a dual system.
Standard Mode
A spacious case for housing large components.
Rotated Mode
Benefits GPU cooling with direct airflow.
Dual System Mode
Accommodates 2 full systems at a time.

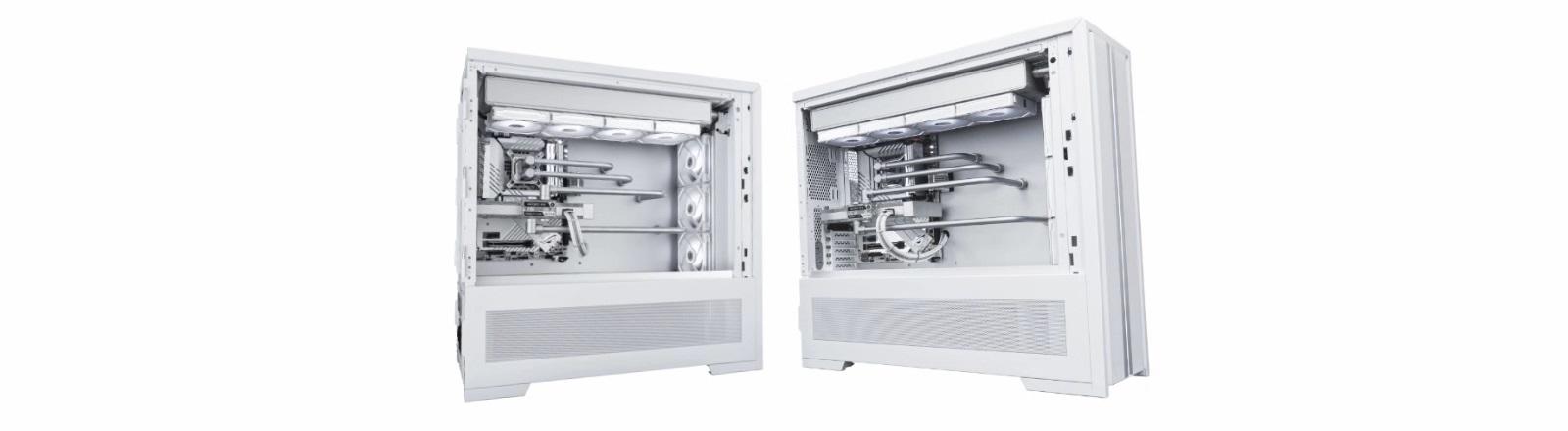

IN PURSUIT OF PERFORMANCE

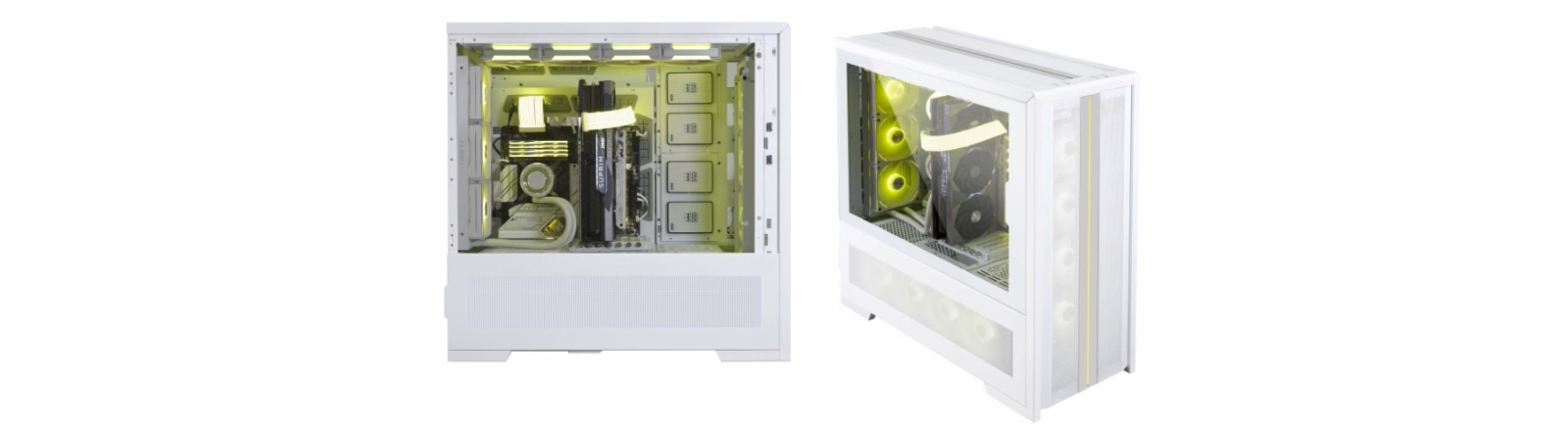

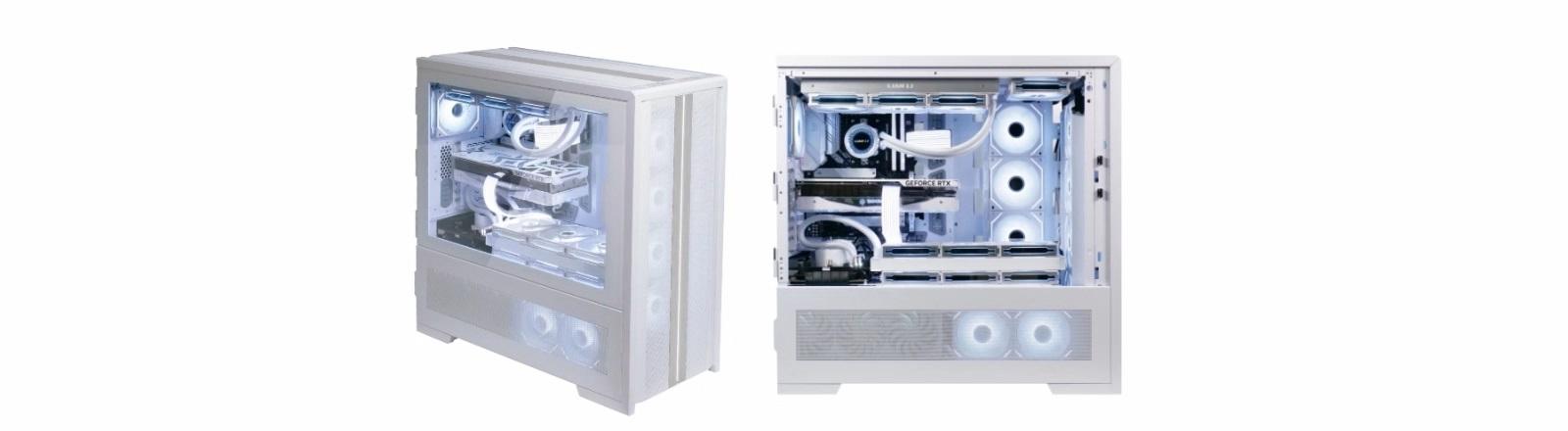

V3000 PLUS is designed with enthusiast-level custom water-cooling in mind, leveraging its spacious room for custom loops and endless possibilities.
|
|
Standard |
 |
 |
|
Rotated
|
Dual System
|
 |
 |
POWERFUL POTENTIAL
2 reservoir mounting plates are included for D5 or DDC pump, allowing configuration personalization.
Top of PSU Shroud
Leaving space for HHD cages inside the PSU shroud.
Max height (mm)
In the PSU Shroud
Allowing aesthetic reservoirs to be shown off in the striking chassis.
Max height (mm)
RAISE THE LIMITS

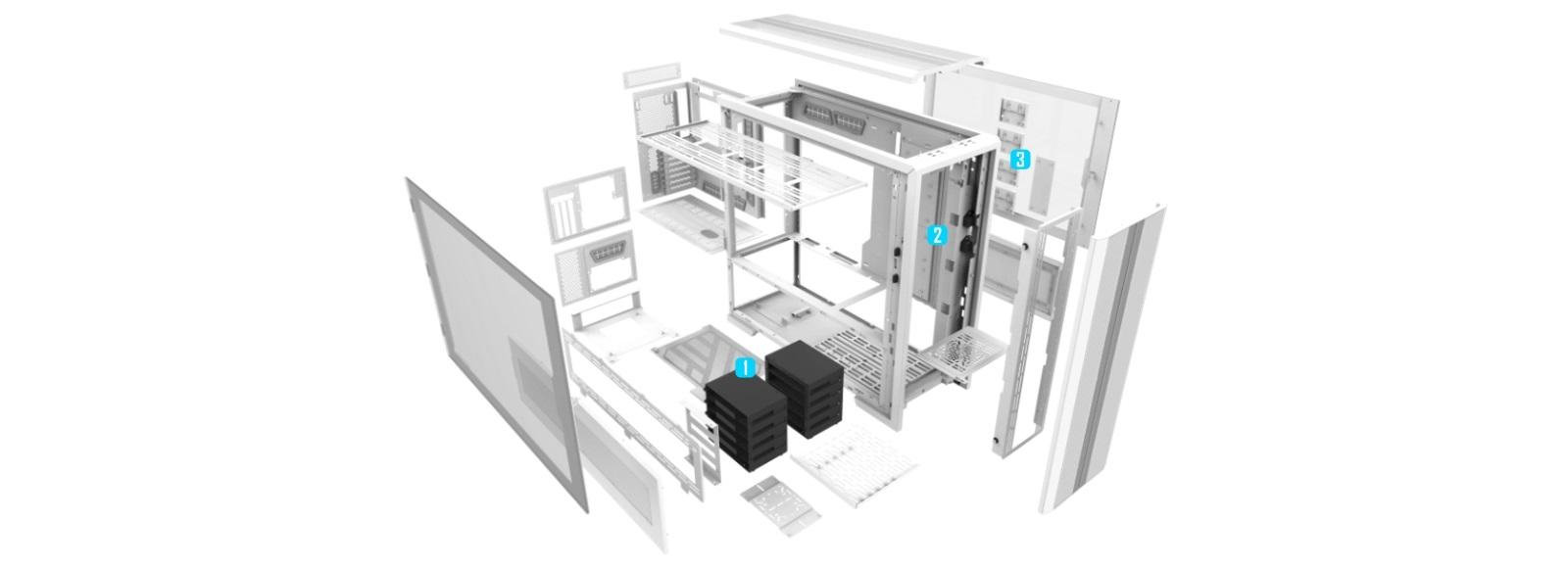

The V3000 PLUS implements 1. relocatable drive cage (in the PSU shroud compartment or main chamber), 2. SSD plates (besides the motherboard), and 3. toolless SSD drive trays (behind the motherboard) for all kinds of storage needs.

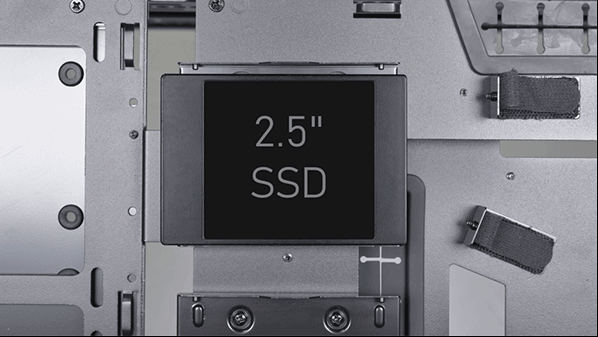

TOOL-FREE INSTALLATION
The toolless SSD trays behind the motherboard simplifies the mounting of SSDs.

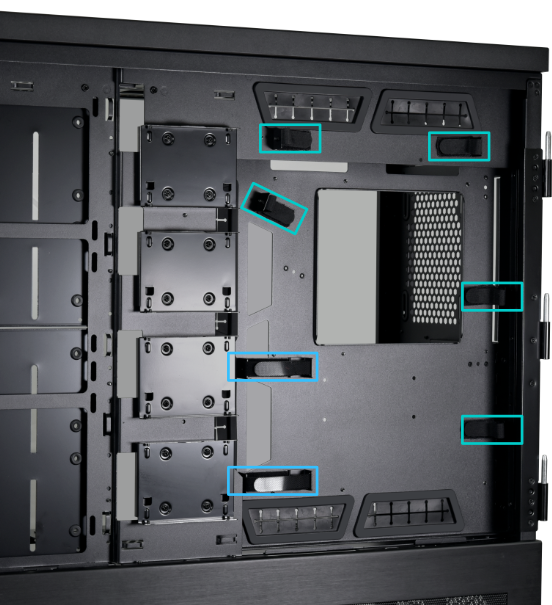

CABLE ROUTING SPACE
With cable management in mind, V3000 PLUS offers 5 small Velcro straps and 2 large multi-layer ones to create a clear routing path. In addition, the rear tempered glass panel features a dark tint to keep the cables as hidden as possible.

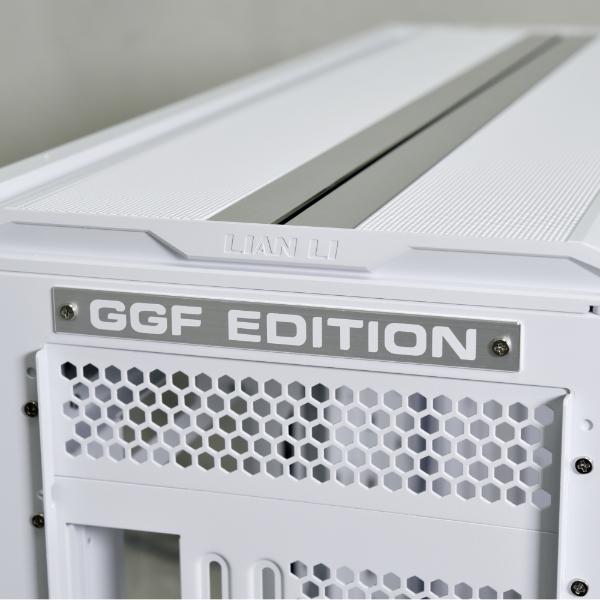

IN COLLABORATION WITH GGF EVENTS
“I’ve always been passionate about designing cases tailored for hardcore enthusiasts. I would strongly recommend the V3000 Plus as an excellent option, for anyone looking to build their dream machine.”
Stuart Tonks, CEO of GGF Events
Specifications
PRODUCT NAME |
LIAN LI V3000 PLUS White GGF Edition |
MODEL |
V3000PW |
DIMENSIONS |
(D) 678.5mm x (W) 279mm x (H) 674mm |
COLOR |
White |
MATERIALS |
Aluminum Steel 4.0mm Dark Tinted Tempered Glass (right side) 4.0mm Tinted Tempered Glass (left side) |
MOTHERBOARD SUPPORT |
Standard EEB/E-ATX/ATX/Micro-ATX/Mini-ITX Rotated EEB/E-ATX/ATX/Micro-ATX/Mini-ITX Dual System System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX System 2 – Mini-ITX |
FAN SUPPORT |
Standard Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Above PSU Chamber：3 x 120mm or 3 x 140mm Bottom side：4 x 120mm or 3 x 140mm Rear: 1 x 120mm or 1 x 140mm Rotated Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Bottom side：4 x 120mm or 3 x 140mm Rear: 3 x 120mm or 2 x 140mm Above PSU Chamber: 1 x 120mm or 1 x 140mm Dual System Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Above PSU Chamber：2 x 120mm or 2 x 140mm Bottom side：4 x 120mm or 3 x 140mm (without System 2 GPU) Rear: 1 x 120mm or 1 x 140mm |
RADIATOR SUPPORT |
Standard Front：480mm or 420mm Top：480mm or 420mm Above PSU Chamber：360mm or 420mm Bottom side：480mm or 420mm Rotated Front：480mm or 420mm Top：480mm or 420mm Bottom side：480mm or 420mm Rear: 360mm or 280mm Dual System Front：480mm or 420mm Top：480mm Above PSU Chamber：240mm or 280mm Bottom side：480mm or 420mm (without System 2 GPU) |
PSU SUPPORT |
System 1 – ATX (Max 220mm) System 2 – SFX-L/SFX |
GPU LENGTH CLEARANCE |
Standard Max 589mm Rotated Max 358mm Dual System System 1 – Max 589mm System 2 – Max 320mm (Width max 125mm) |
CPU COOLER HEIGHT CLEARANCE |
System 1 – Max 198mm System 2 – Max 80mm |
DRIVE SUPPORT |
Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD Side：4 × 2.5” SSD Behind MB tray: 4 × 2.5” SSD |
EXPANSION SLOT |
System 1 – 8 System 2 – 3 (at PSU shroud, with optional riser cable) |

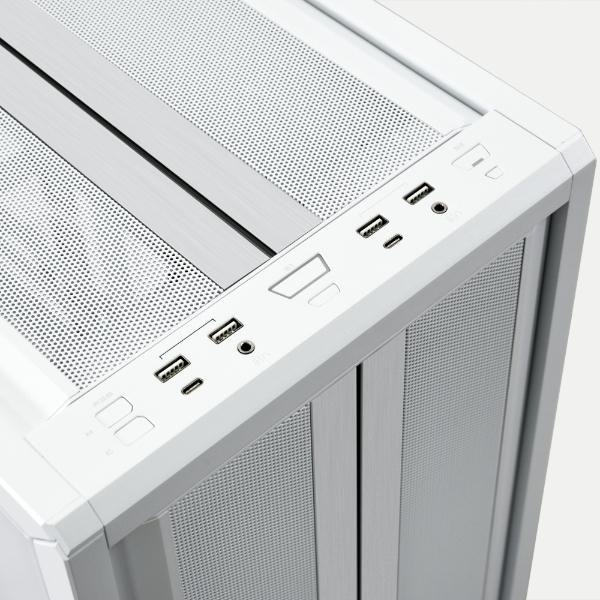

I/O PORTS |
System 1 1 x Power Button 1 x Reset Button 1 x Light Color Button (C) 1 x Light Mode Button (M) 2 x USB 3.0 1 x USB Type C 1 x Audio System 2 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
DUST FILTER |
1 x Bottom |
WARRANTY |
1 year |
