Lian Li O11 Dynamic EVO RGB
Carcasa Lian Li PC-O11 Dynamic EVO RGB Mid-Tower, Tempered Glass, Alb
Cod produs: LL-CASE-GELI-943
Întrebare despre Lian Li O11 Dynamic EVO RGB
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Mid Tower |
| Format | ATX, Micro ATX, Mini ITX, EATX |
| Ventilatoare incluse | Nu |
| Panou frontal | USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C) |
| Culoare | Alb |
| Lungime | 478 mm |
| Lăţime | 290 mm |
| Înălţime | 471 mm |
| Înălțimea maximă a coolerului cu aer | 167 mm |
| Lungimea maximă a plăcii video | 455 mm |
| În plus | Butoane de control al iluminarii |
| Ventilatoare suportate în partea de jos | 3x 120mm, 3x 140mm |
| Ventilatoare suportate în spate | 1x 120mm |
| Ventilatoare suportate în partea de sus | 3x 120mm, 3x 140mm |
| Ventilatoare suportate pe lateral | 3x 120mm, 3x 140mm |
| Coolere cu lichid suportate în partea de jos | 1x 240mm, 1x 280mm, 1x 360mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 360mm, 1x 420mm |
| Coolere cu lichid suportate pe lateral | 1x 240mm, 1x 280mm, 1x 360mm |
| Panou Mesh frontal | Nu |
Related products
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Full Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
2x 120mm, 1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Full Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb

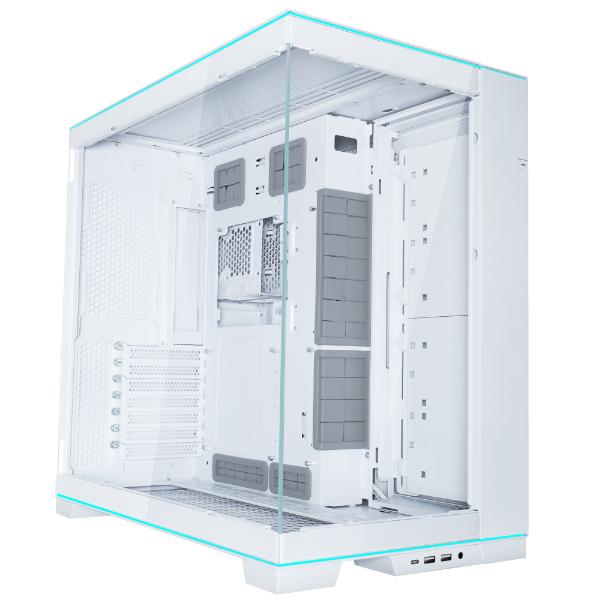

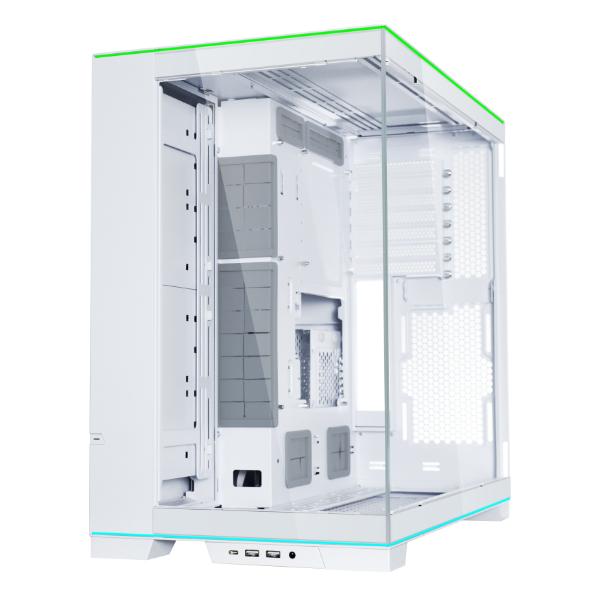

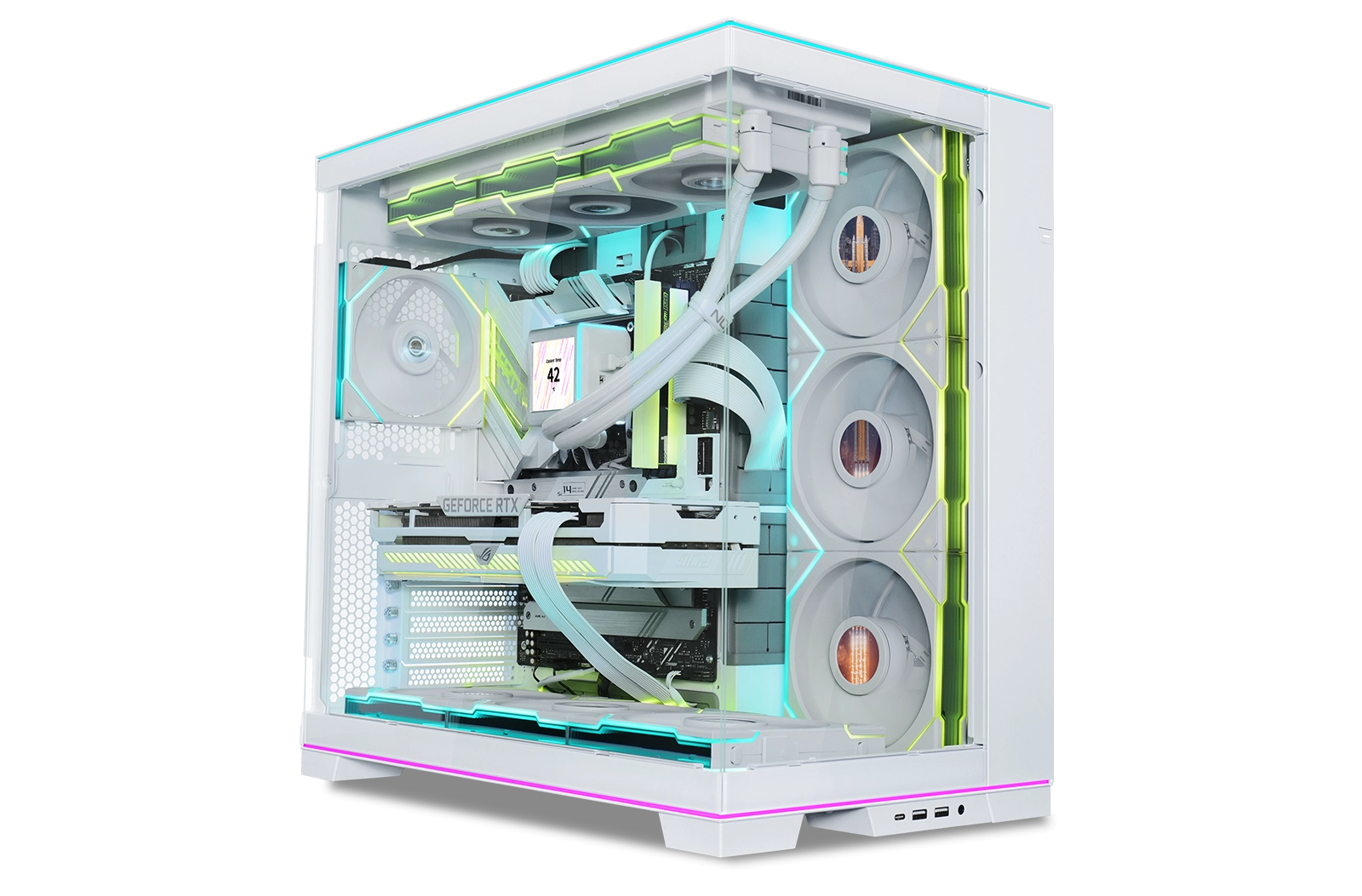

Carcasa Lian Li PC-O11 Dynamic EVO RGB Mid-Tower, Tempered Glass, Alb

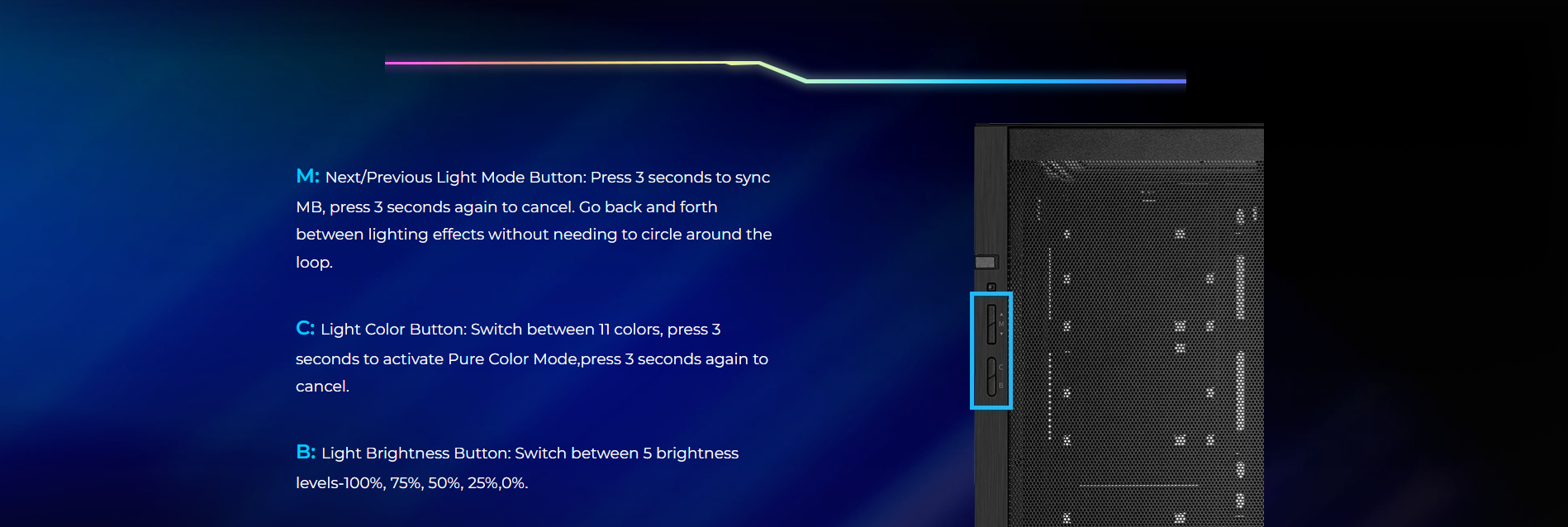

• Doua benzi luminoase in forma de L pe partea superioara si inferioara cu efecte de iluminare potrivite.
• Panouri din sticla securizata frontala si laterala, cu un pilar detasabil pentru o vedere perfecta a componentelor si a iluminarii RGB.
• Placa de baza spate I/O si puncte de montare reglabile la doua inaltimi

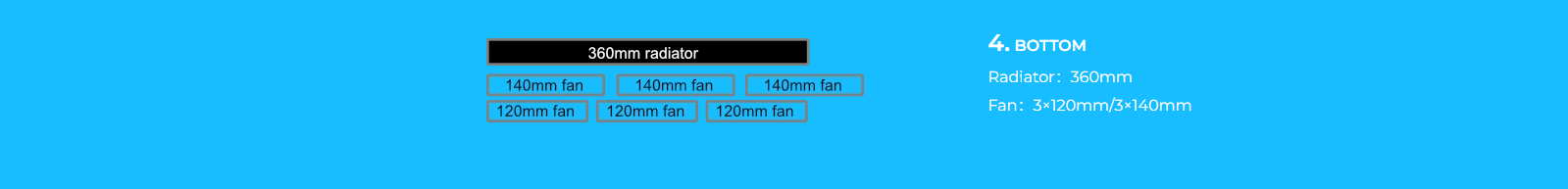

• Sprijina radiatoare de pana la 420mm pe partea de sus, si radiatoare de pana la 360mm pe partea laterala si pe partea de jos.
• Sprijina 3 ventilatoare de 140mm pe partea de sus, partea laterala, si partea de jos.
• Gestionare usoara a cablurilor cu mai mult spatiu in cea de-a doua camera.
• Accesorii optionale pentru montare GPU verticala sau verticala.
★ |
For certain batches, fitting the 3.5″ HDD into the hard drive cage might be challenging. Please contact us to inquire about a replacement. |

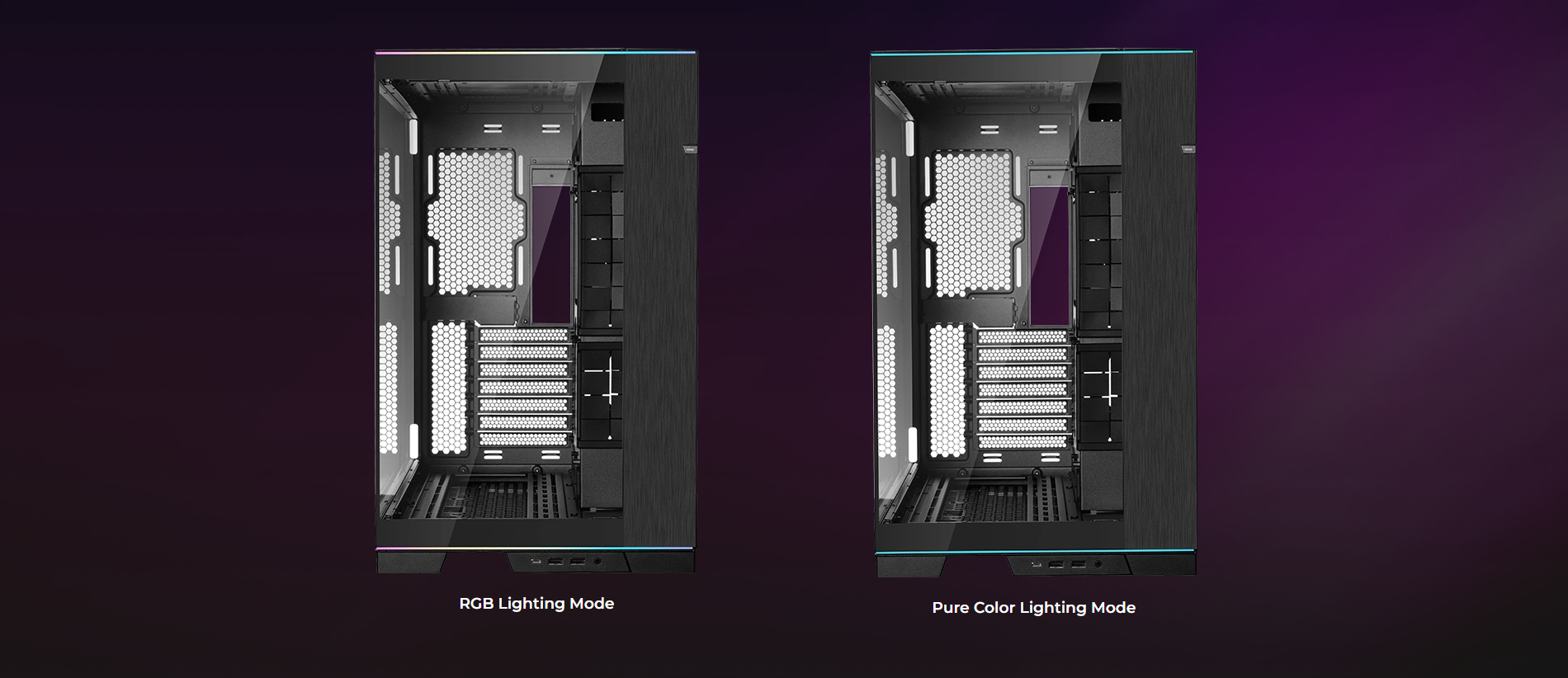

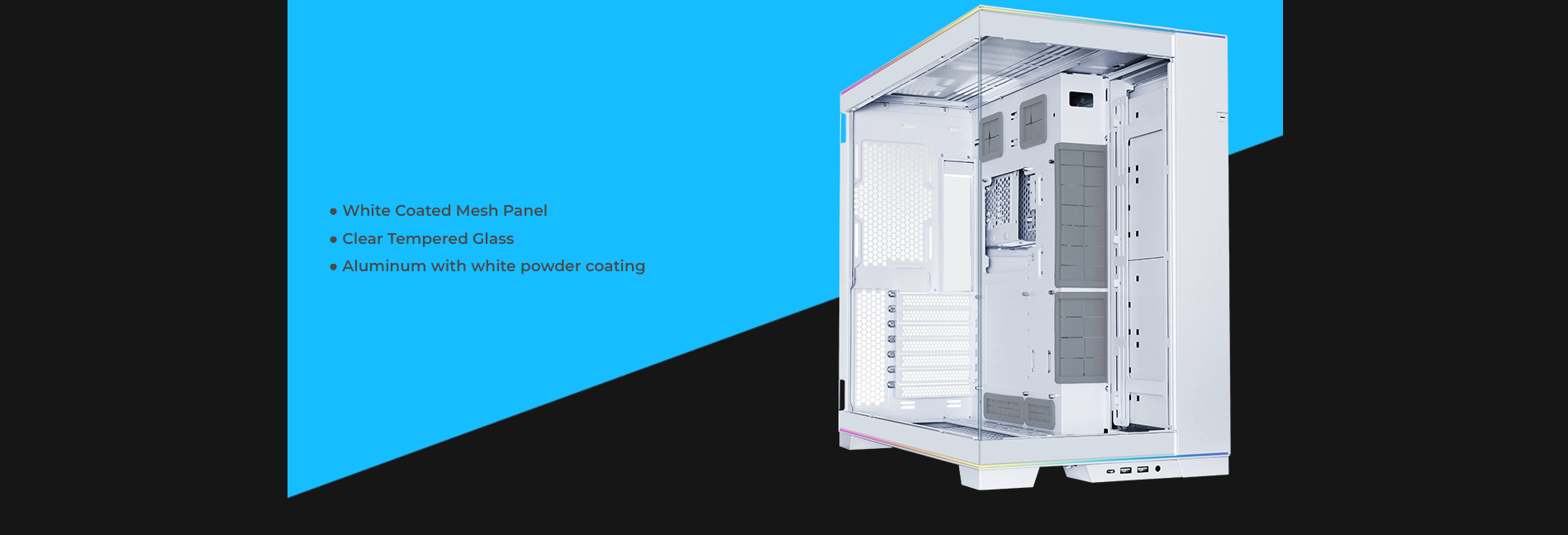

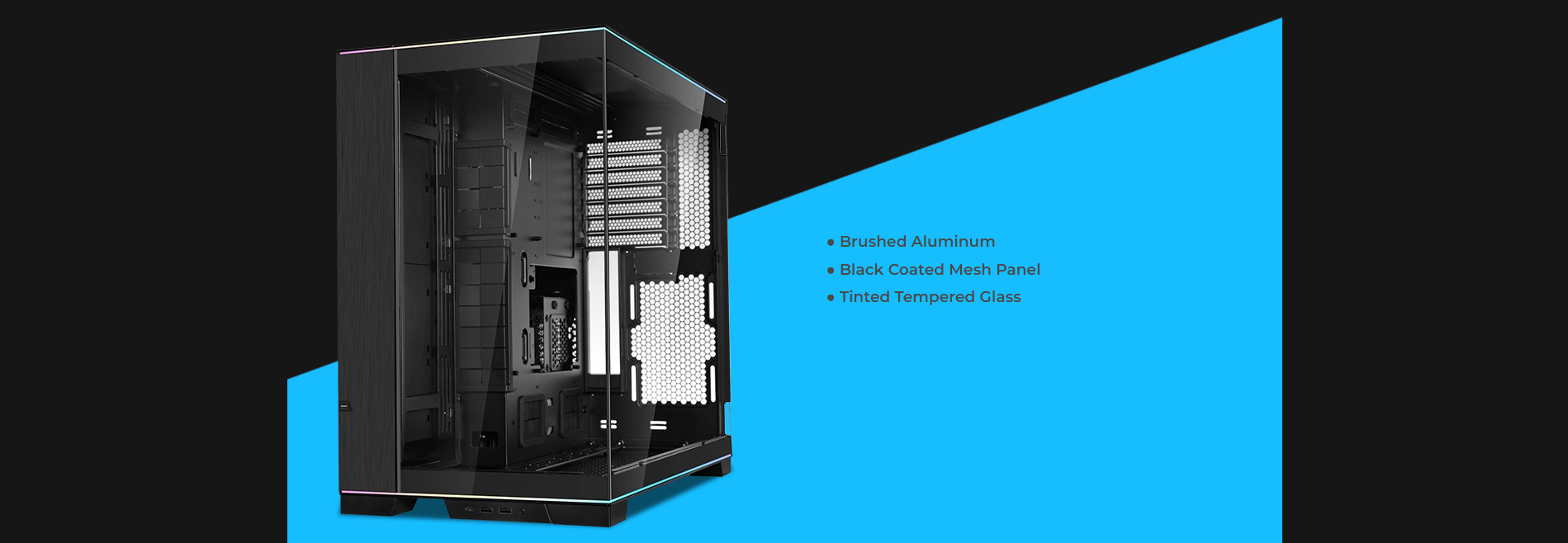

TWO COLORS/TWO MODES
Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with just a few simple
steps, allowing for a left or right view. It also comes in two color options: Black and White.

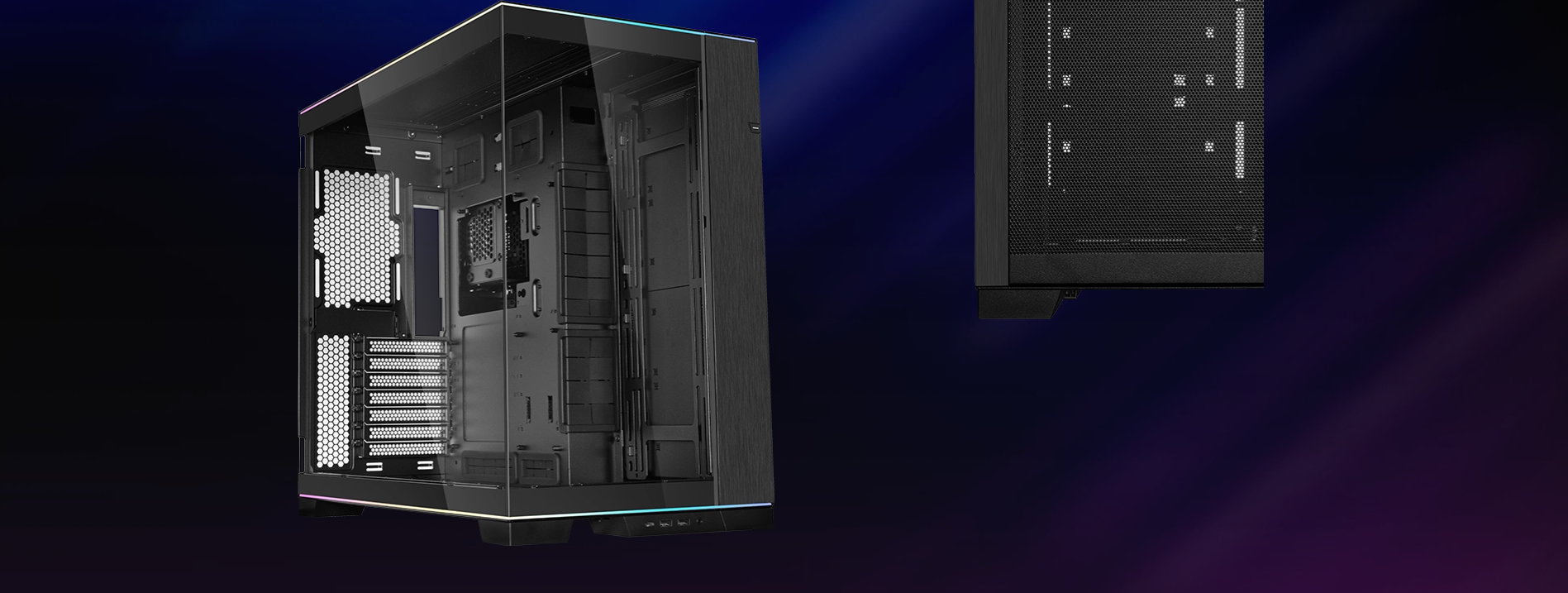

COMPLETELY UNOBSTRUCTED VIEW
The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing
hardware without affecting the case’s structure.

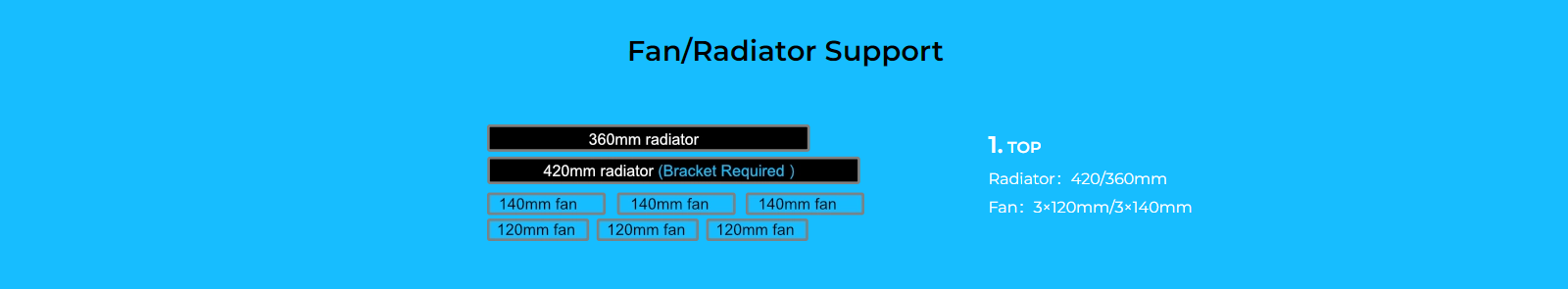

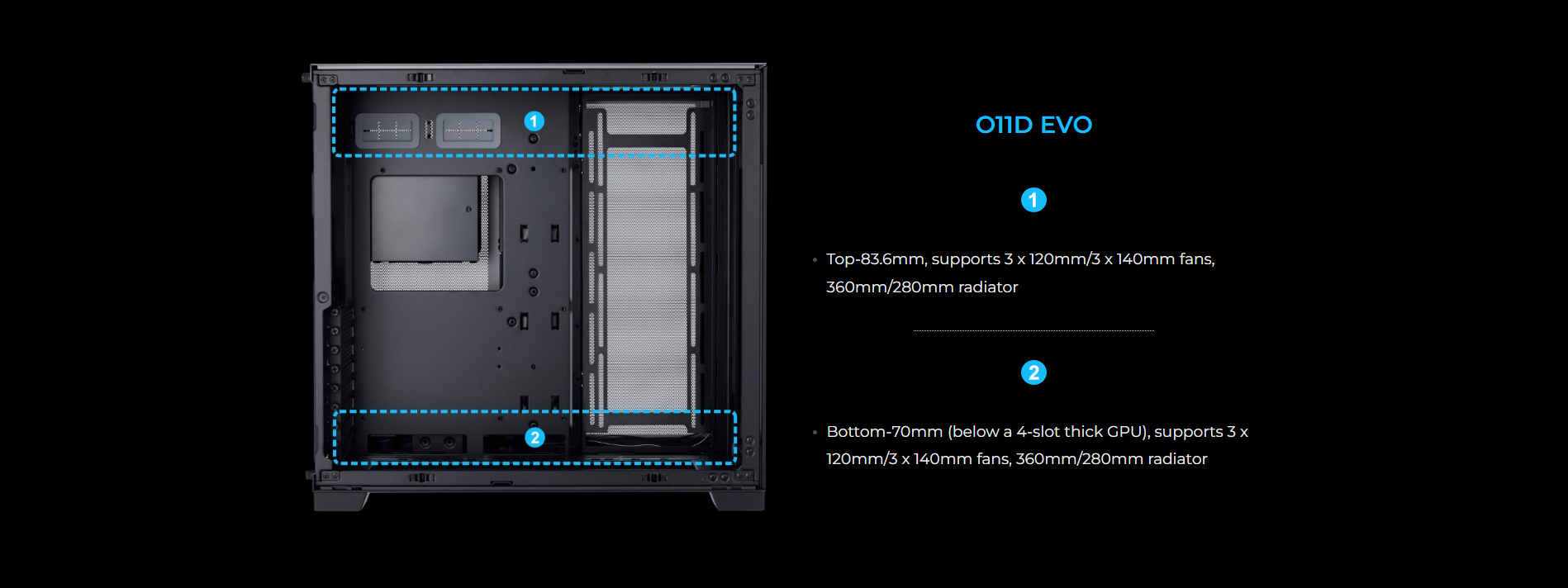

LARGER SIZE, HIGHER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component
compatibility: it supports a 420mm radiator at the top (requires a separate bracket, 360mm radiator at
the side/bottom, and 3x140mm fans at all three sides.
MODULAR DESIGN FLEXIBLE CONFIGURATION
Modularity has always been one of the design languages of the O11D EVO series, and the O11D EVO
RGB is no exception.

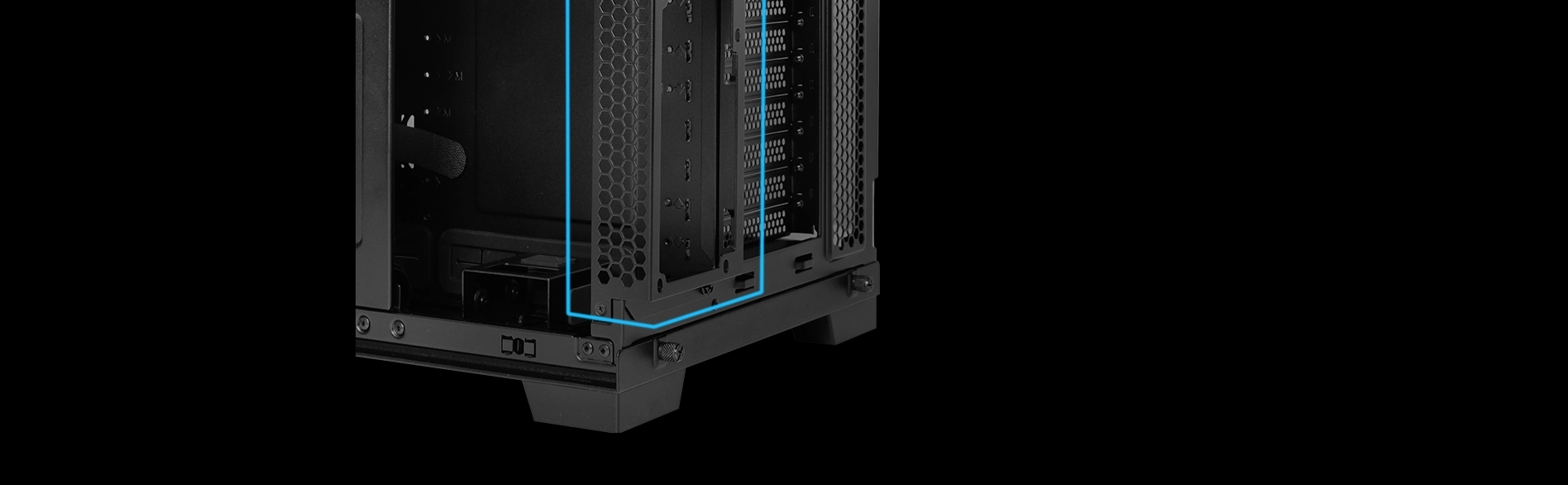

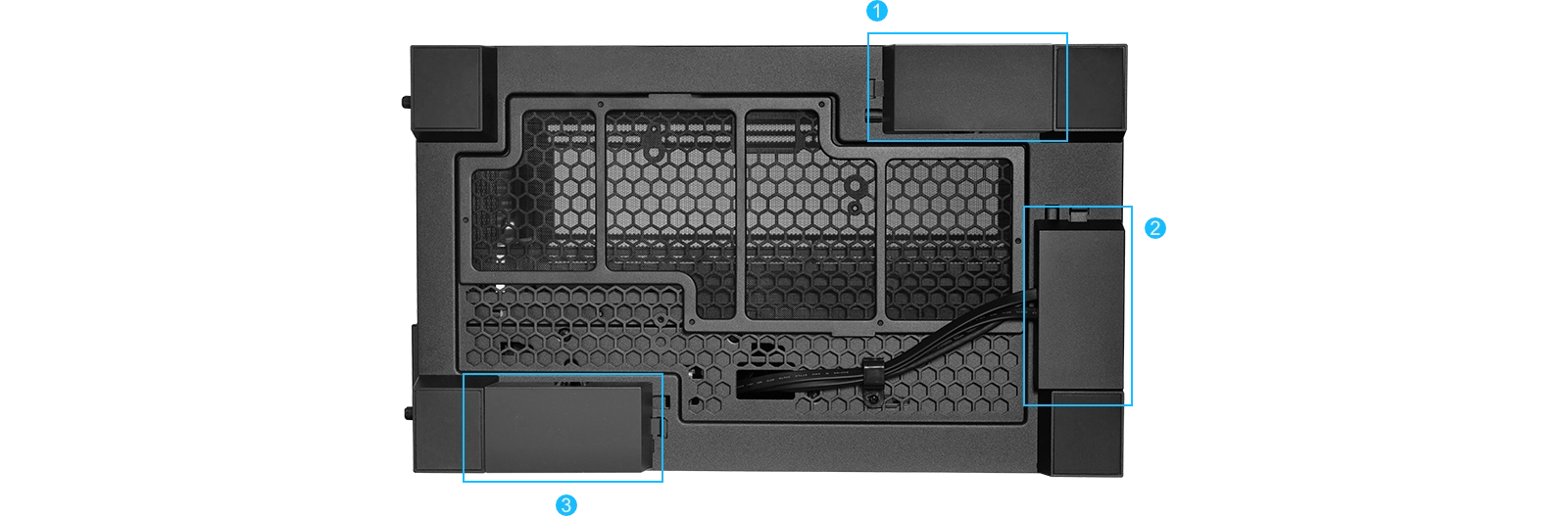

At the bottom of the chassis, the I/O module with a wealth of ports, can be relocated to 3 different
locations without the use of any tools.

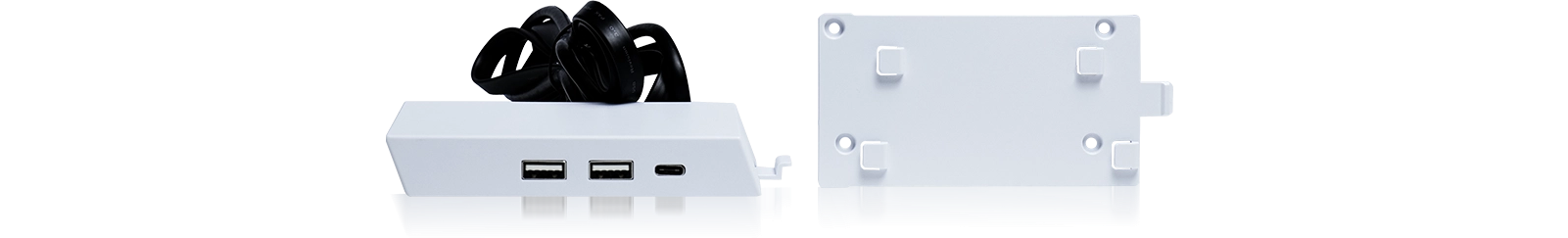

In addition, we have a separate I/O module O11DE-3XV2/O11DE-3WV2 as an optional accessory to meet
the needs of the users that require more I/O ports.

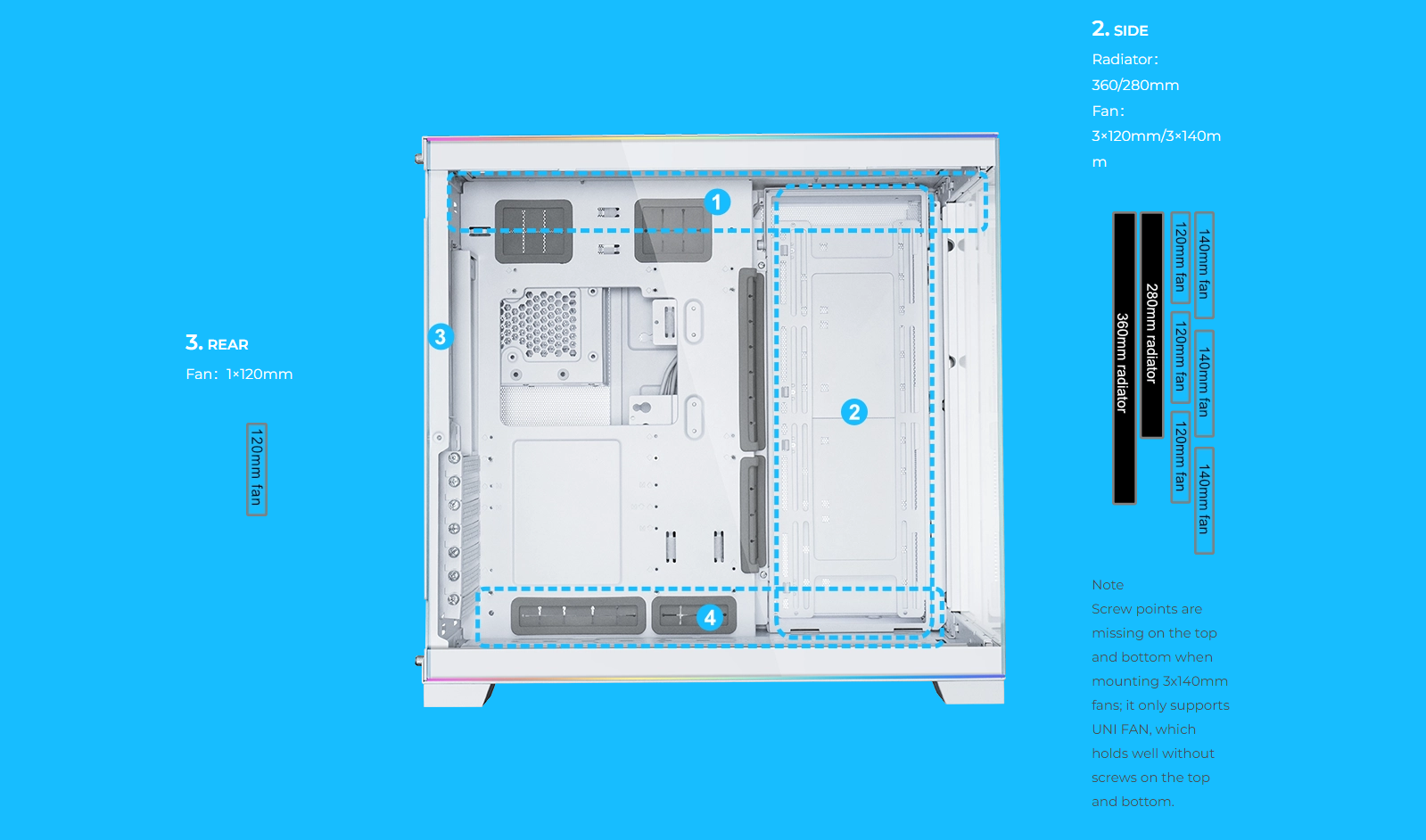

Struggle-Free Fan Brackets
Equipped with a quick-release design, the fan brackets of all three sides can be easily removed or
installed.
The side bracket can be flipped vertically or horizontally, offering 4 different installation styles.

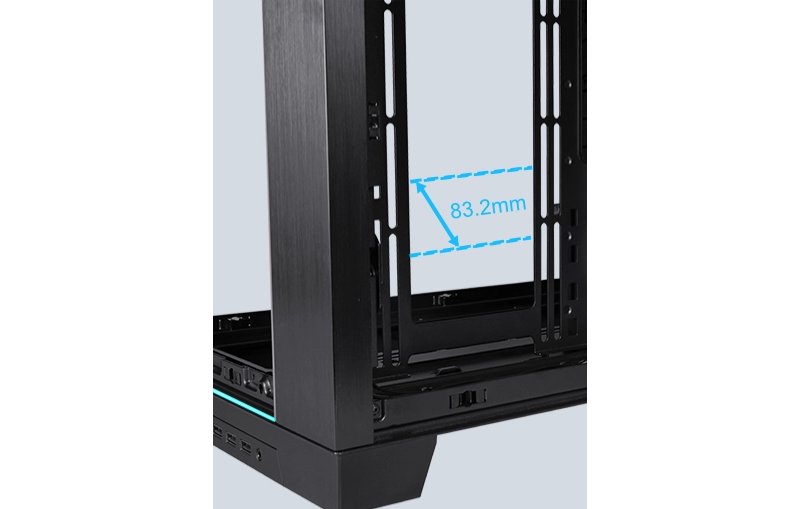

TOWARD THE MAIN CHAMBER
Supports up to 83.2 mm thick radiator/ fan combo in the
main chamber.

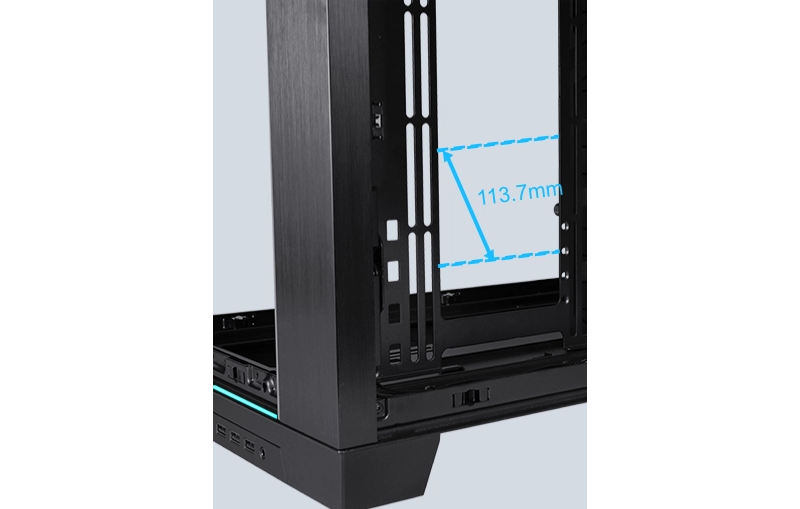

TOWARD THE SECOND CHAMBER
Supports up to 113.7 mm thick radiator/ fan combo in the
main chamber.

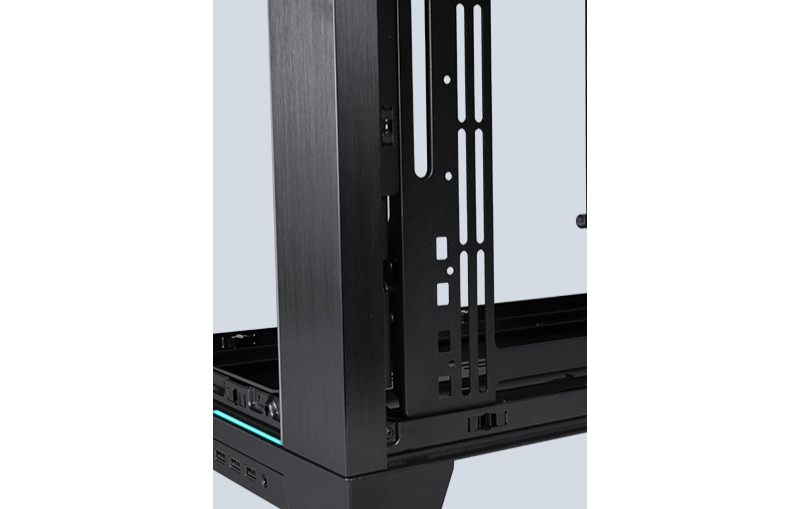

TOWARD THE MOTHERBOARD
(LEFT SIDE)

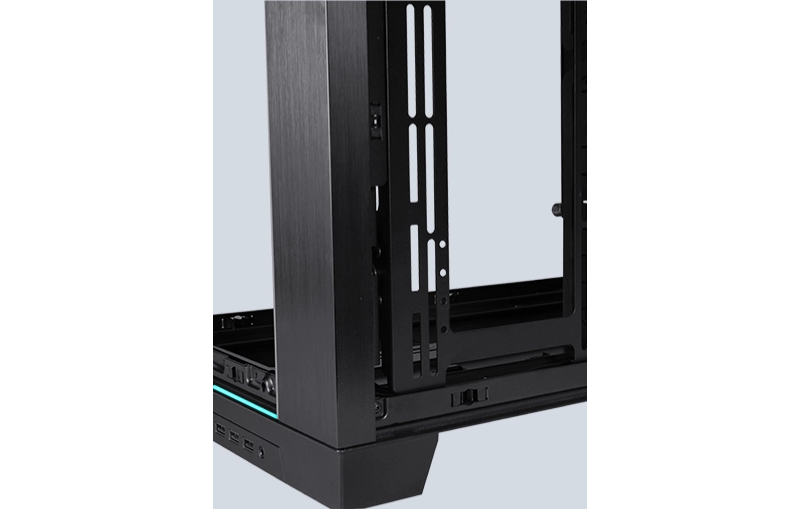

TOWARD THE FRONT PANEL
(RIGHT SIDE)
The distance between the left-sided and right-sided installation positions reaches 20mm, so users
who use EATX motherboards can choose the right-sided installation to avoid the fans from being
blocked by the motherboard while gaining more cable management space. Additionally, the O11D
EVO RGB features a newly designed vertical corner grommet, making cable management friendlier
even when using a large motherboard.
NOTE: Unlike the O11D EVO, the O11D EVO RGB’s top fan bracket now supports direct radiator installation without
disassembly, making it more convenient to use.

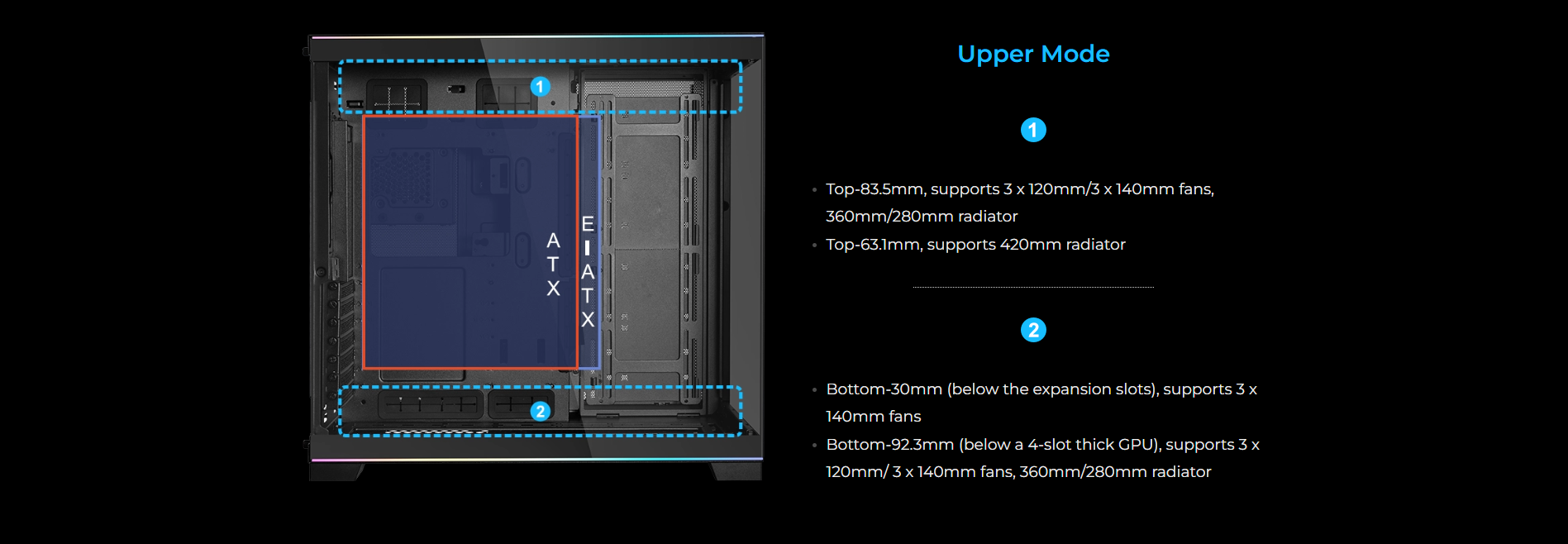

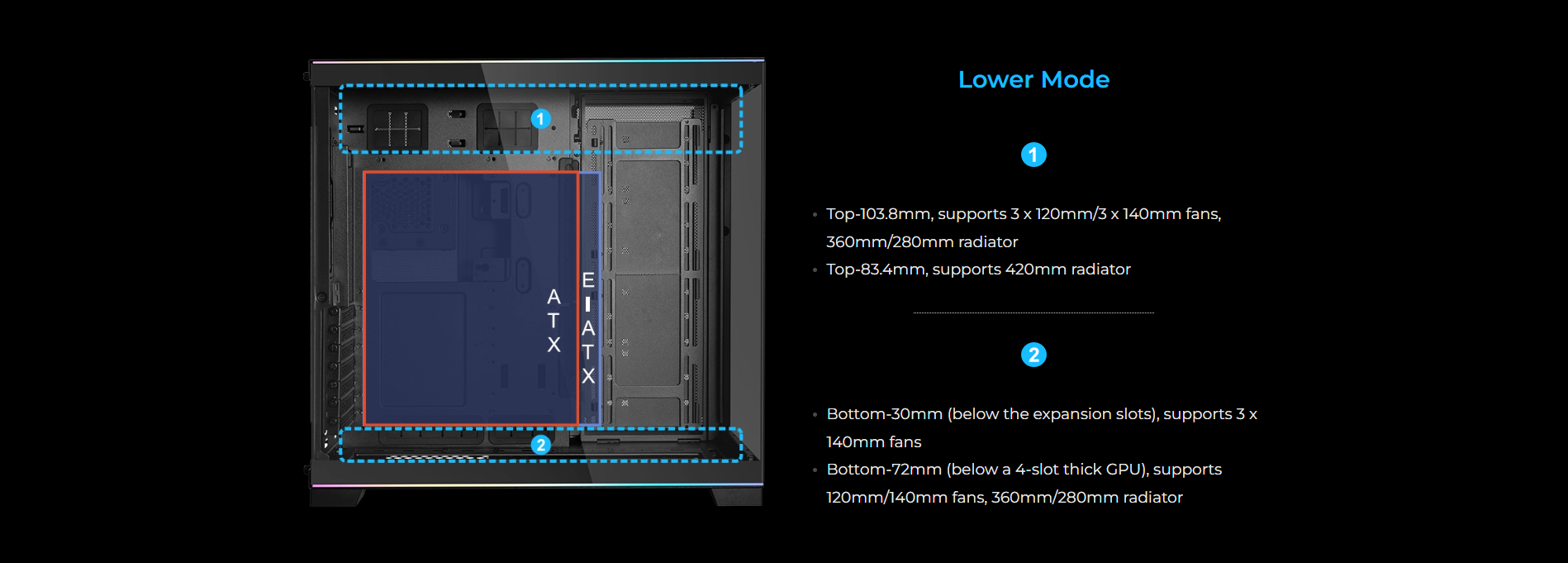

ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing the users to adjust the
installation position of the motherboard to accommodate different builds.
NOTE: To install a motherboard with special specifications
(e.g., with a thicker shield), please trim the rubber pads accordingly.
CUSTOMIZED CABLE MANAGEMENT
O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near
the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm
of extended space from the rear of the PSU chamber for more cable management room.
ELEVATE YOUR GPU
O11D EVO RGB comes with the new anti-sag bracket GB-003 with easy height adjustment to support
heavy GPUs.
FRIENDLY STORAGE CAPACITY
O11D EVO RGB offers multiple easily accessible storage mounting locations that support up to 8 ×
SSDs or 4 × HDDs + 2 × SSDs.
SPECIFICATIONS
| PRODUCT NAME | O11 Dynamic EVO RGB | STORAGE | Side Fan Bracket:2 × 3.5″ HDD or 4 × 2.5″ SSD Behind MB Tray: 2 × 2.5″ SSD Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD |
| MODEL | O11DERGBW | RADIATOR SUPPORT | Top: 240mm × 1 or 360mm × 1 or 420mm × 1 Side: 240mm × 1 or 280mm × 1 or 360mm × 1 Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1 |
| CASE TYPE | Tower Chassis | FAN SUPPORT | Top: 120mm × 3 or 140mm × 3 Side: 120mm × 3 or 140mm × 3 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 |
| COLOR | White | GPU LENGTH CLEARANCE | 455.7mm（Max） |
| DIMENSIONS | (D) 478mm × (W) 290mm × (H) 471mm | CPU COOLER HEIGHT CLEARANCE | 167mm（MAX） |
| MATERIAL | 4.0mm tempered glass, Aluminum, Steel | PSU SUPPORT | ATX (Under 220mm) |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX | I/O PORTS | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Color Button × 1 Mode Button × Brightness Button × 1 Reset Button × 1 Power Button × 1 |
| EXPANSION SLOT | 7 | DUST FILTER | 1 × Bottom |
