GIGABYTE Z790 EAGLE

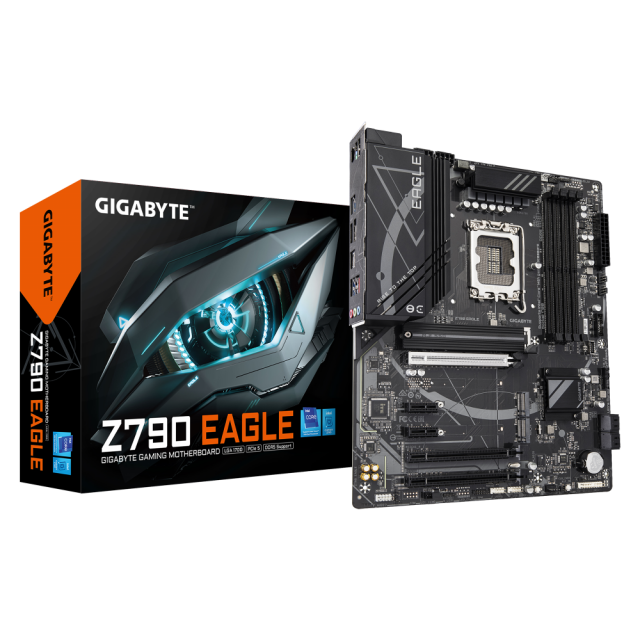

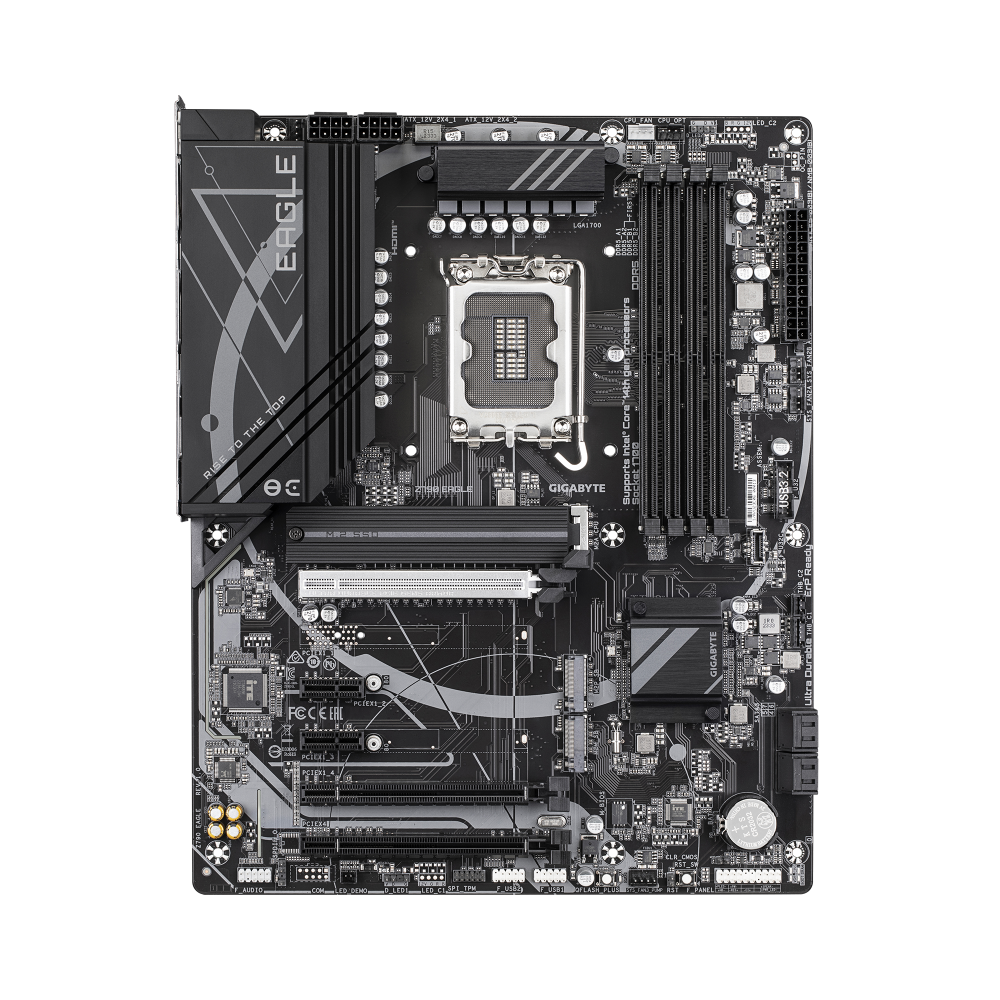

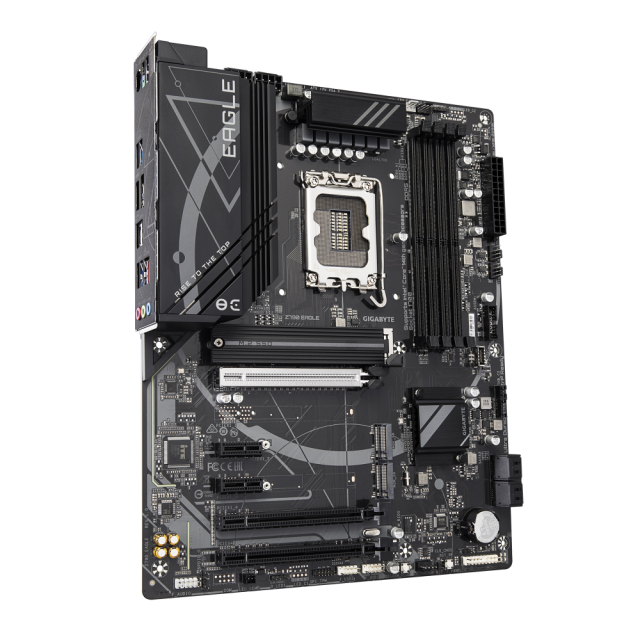

Placa de baza GIGABYTE Z790 EAGLE LGA 1700
Cod produs: GA-MB-Z790-EAGLE
Întrebare despre GIGABYTE Z790 EAGLE
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1700 |
| Form Factor | ATX |
| Chipset | Intel Z790 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 256 GB |
| Frecvența memoriei | până la 7600 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel Z790
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B840
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel Q870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB

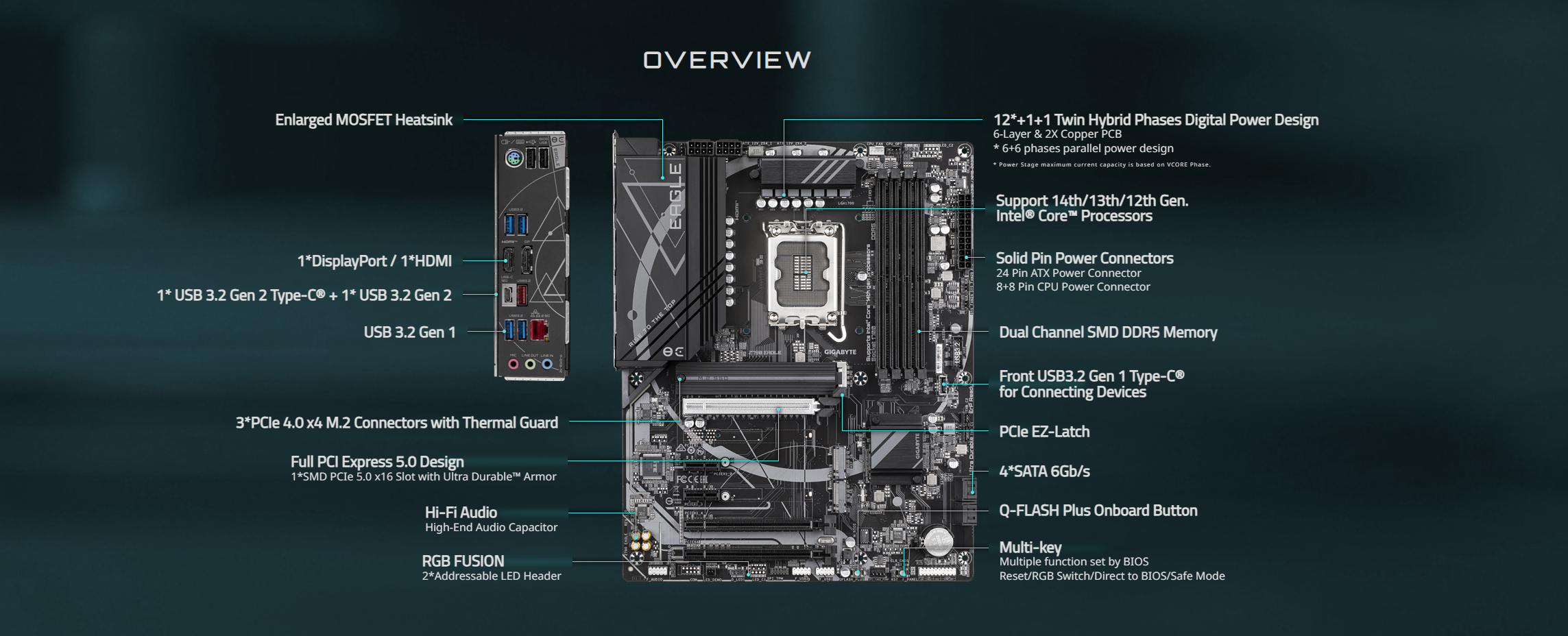

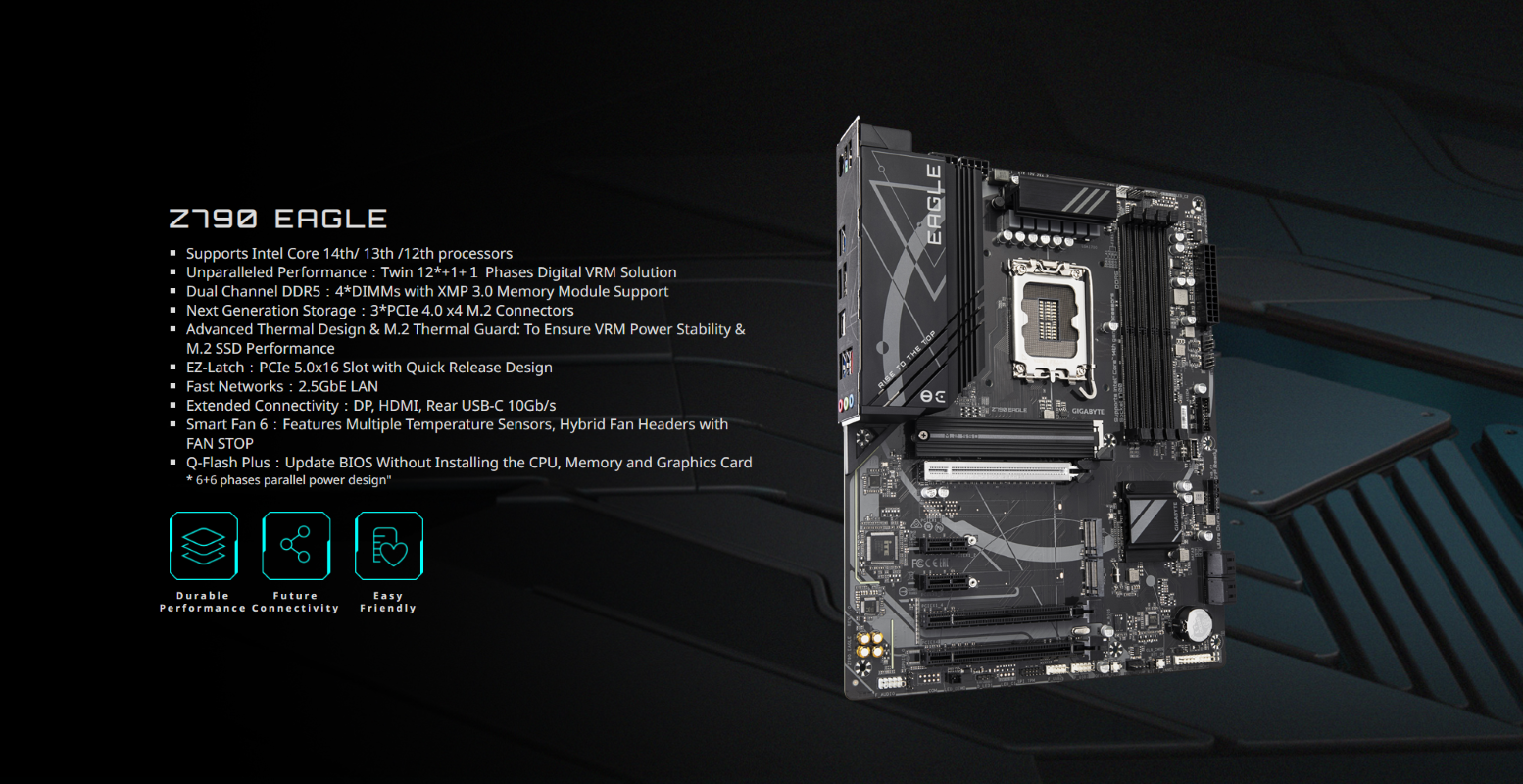

Placa de baza GIGABYTE Z790 EAGLE este proiectata pentru procesoarele Intel Core pe socket LGA 1700, oferind performanta ridicata, suport pentru memorii DDR5 si conectivitate moderna. Formatul ATX, compatibilitatea cu PCIe 5.0 si optiunile extinse de extindere o recomanda pentru sisteme de gaming si productivitate de inalta performanta.
- Socket LGA 1700: Compatibila cu procesoarele Intel Core din generatiile 12, 13 si 14 pentru performanta excelenta.
- Chipset Intel Z790: Ofera suport pentru overclocking si tehnologii moderne dedicate utilizatorilor entuziasti.
- Suport DDR5: Permite utilizarea memoriilor de mare viteza pentru un plus de performanta in jocuri si aplicatii.
- PCIe 5.0: Asigura latime de banda ridicata pentru placi video si SSD-uri compatibile cu cele mai noi standarde.
- Sloturi M.2 NVMe: Suporta SSD-uri rapide pentru pornirea accelerata a sistemului si incarcarea rapida a aplicatiilor.
- Format ATX: Ofera numeroase optiuni de extindere si flexibilitate pentru configuratii performante.
- Conectivitate extinsa: Include porturi USB moderne, retea de mare viteza si iesiri video pentru conectarea diverselor periferice.
- Constructie robusta: Sistem de alimentare fiabil si componente de calitate pentru stabilitate si functionare pe termen lung.
Specifications
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel Z790 Express Chipset |
| Memory |
14th and 13th Generation Intel Core i9/i7 Pocessors:
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Storage Interface |
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB |
Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

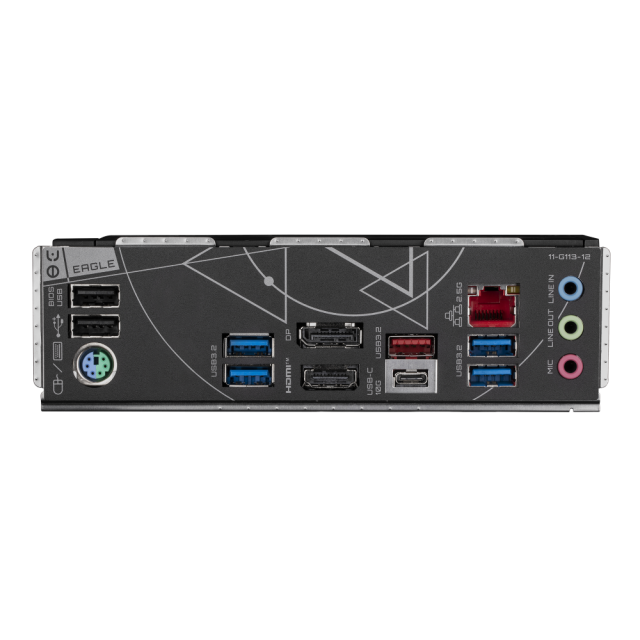

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
