Acasă Hardware gaming Plăci de bază GIGABYTE B840 GAMING X WIFI6E

GIGABYTE B840 GAMING X WIFI6E

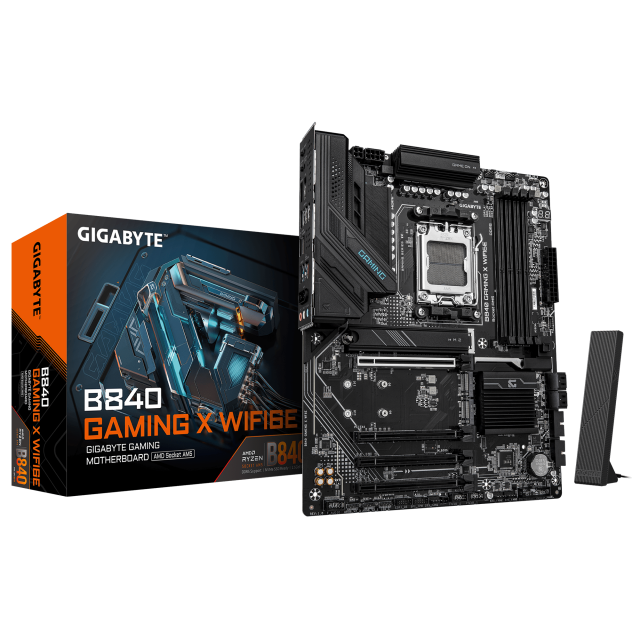

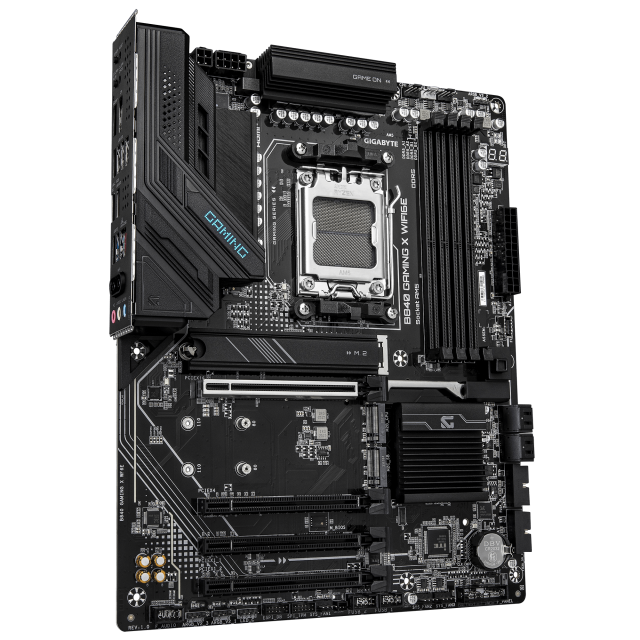

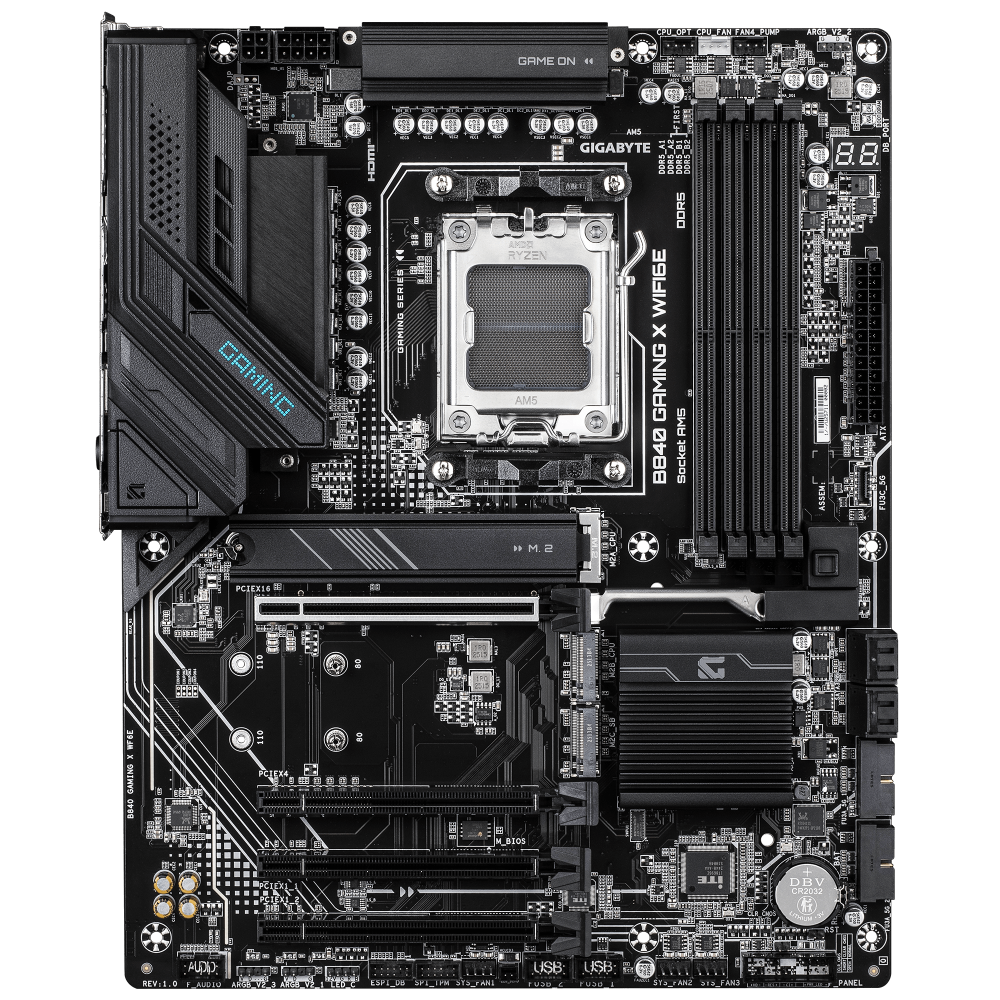

Placa de baza GIGABYTE B840 GAMING X WIFI 6E socket AM5

Cod produs: GA-MB-B840-GAM-X-WF6

disponibil

Întrebare despre GIGABYTE B840 GAMING X WIFI6E

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	AMD AM5
Form Factor	ATX
Chipset	AMD B840
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 256 GB
Frecvența memoriei	până la 8200 MHz
Iluminare RGB	Nu
Memorie suportată	DDR5
Wi-Fi încorporat	Da

Related products

GIGABYTE B860 DS3H WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B550I AORUS PRO AX

Socket: AMD AM4

Form Factor: Mini-ITX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE Z790 D

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z790

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B650M AORUS ELITE AX ICE

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE B650E EAGLE WIFI6E

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850 EAGLE WIFI6E

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860M DS3H WIFI6E

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B840M GAMING X WIFI6E

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z790 EAGLE

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z790

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860 EAGLE WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B650 GAMING X AX V2

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z590M GAMING X

Socket: Intel 1200

Form Factor: Micro ATX

Chipset: Intel Z590

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

Placa de baza GIGABYTE B840 GAMING X WIFI6E este conceputa pentru procesoarele AMD Ryzen pe socket AM5, oferind suport pentru memorii DDR5, conectivitate Wi-Fi 6E si performanta excelenta pentru gaming si productivitate. Formatul ATX, sistemul de alimentare robust si optiunile moderne de extindere o fac ideala pentru configuratii de ultima generatie.

Socket AM5: Compatibila cu procesoarele AMD Ryzen din noile generatii pentru performanta ridicata si eficienta.
Chipset AMD B840: Ofera suport pentru tehnologii moderne si componente de inalta performanta.
Suport DDR5: Permite utilizarea memoriilor de mare viteza pentru un plus de performanta in jocuri si aplicatii.
Wi-Fi 6E integrat: Asigura conexiuni wireless rapide, stabile si cu latenta redusa.
Sloturi M.2 NVMe: Suporta SSD-uri rapide pentru pornirea accelerata a sistemului si incarcarea rapida a aplicatiilor.
Format ATX: Ofera mai multe optiuni de extindere si flexibilitate pentru configuratii performante.
Conectivitate extinsa: Include porturi USB moderne, retea de mare viteza si iesiri video pentru conectarea diverselor periferice.

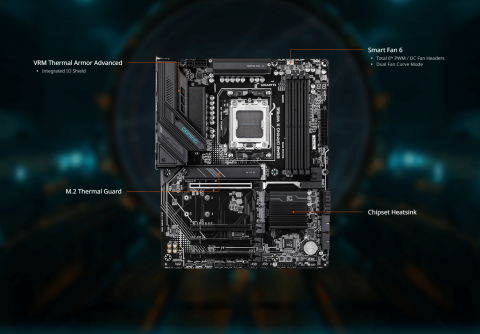

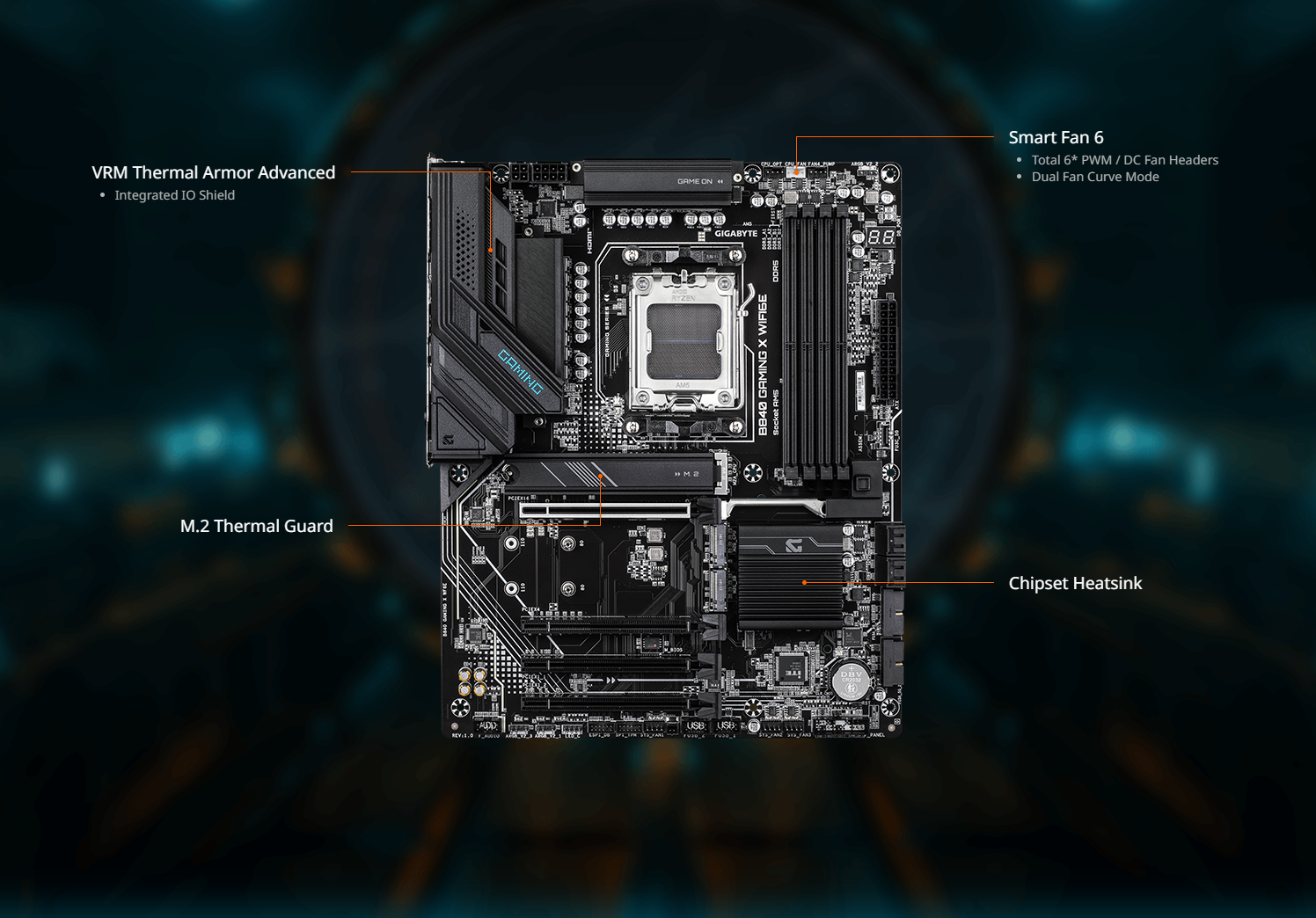

Constructie premium: Sistem de alimentare stabil si componente de calitate pentru fiabilitate si functionare pe termen lung.

Specifications

CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B840
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)

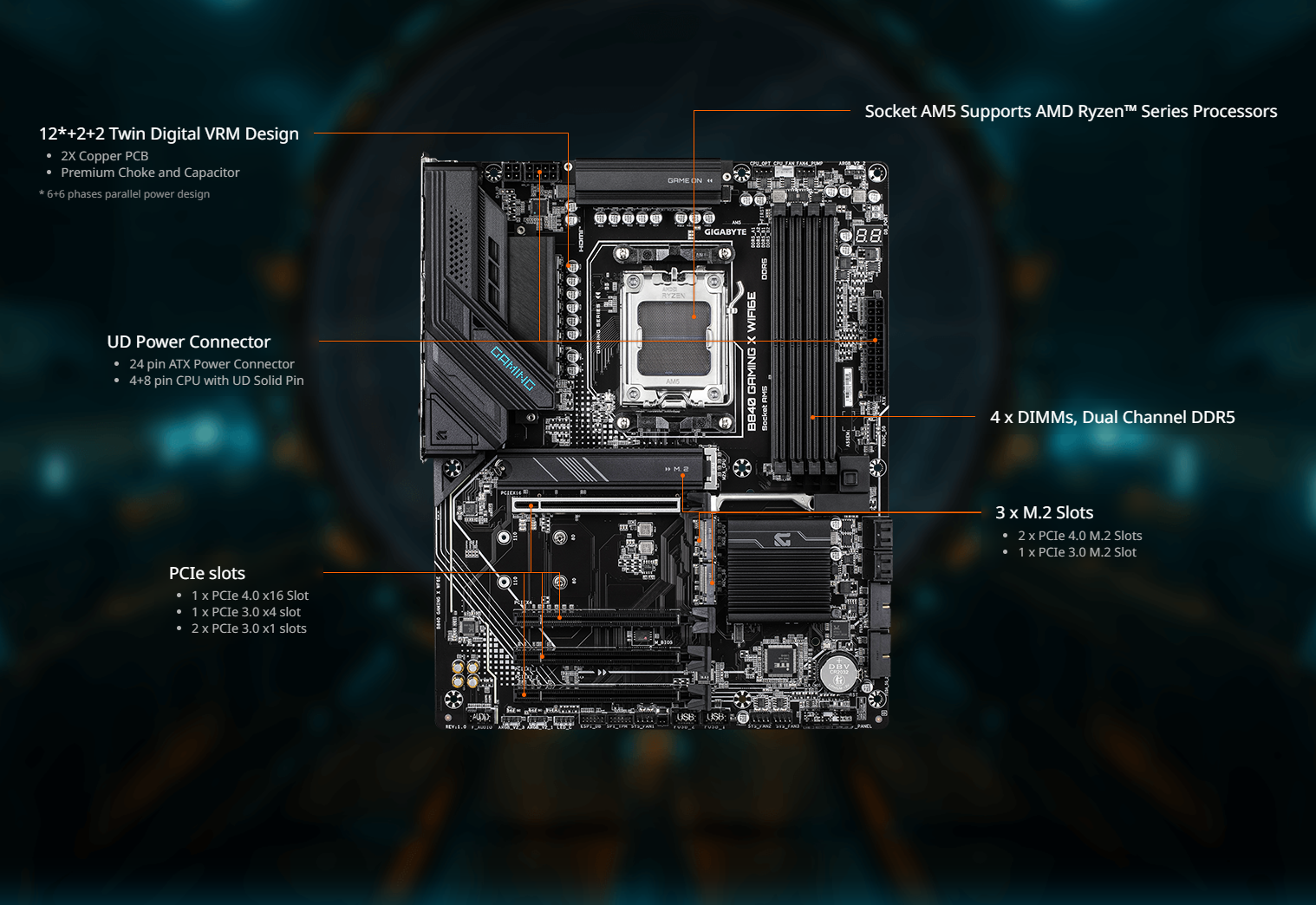

Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper

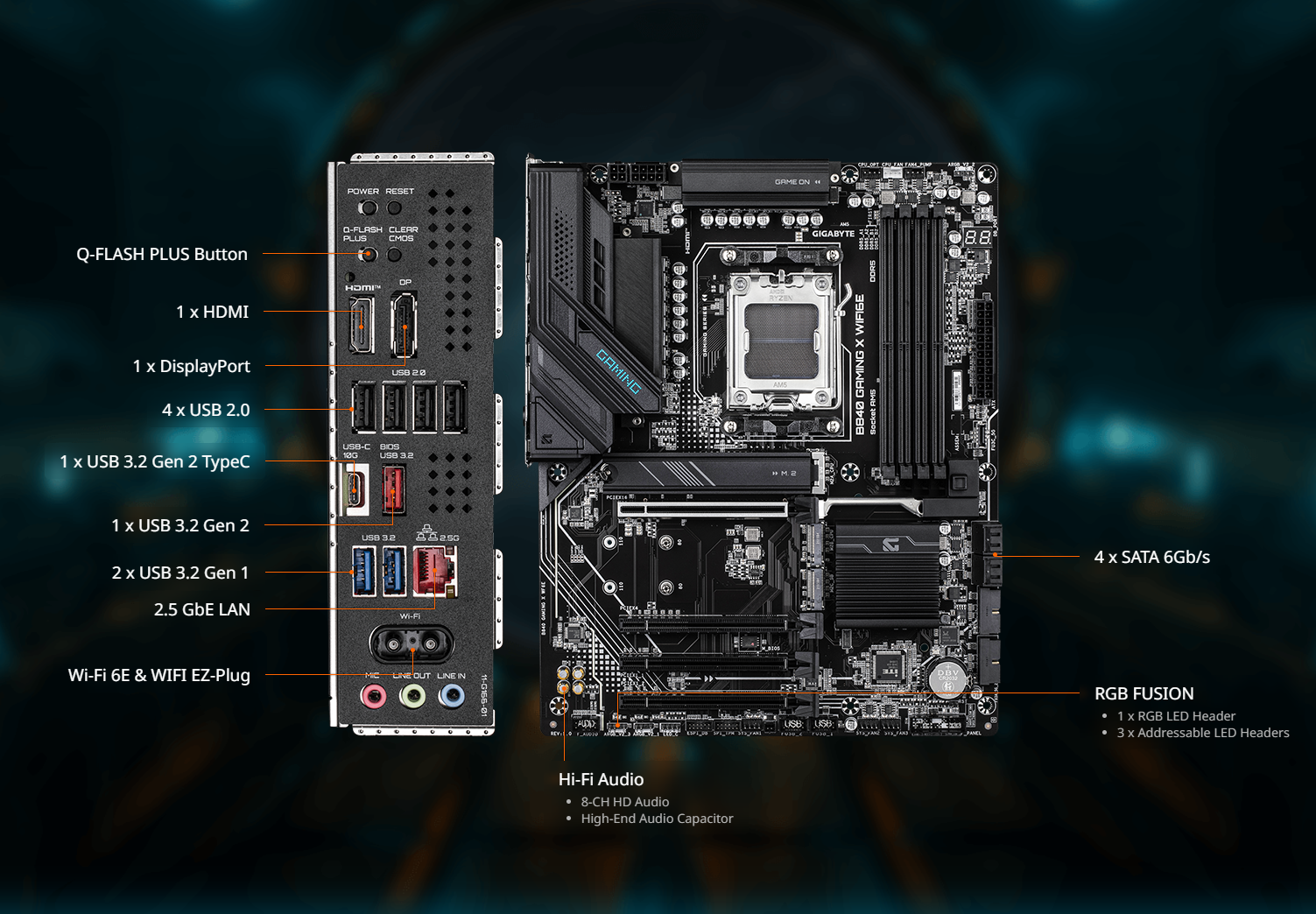

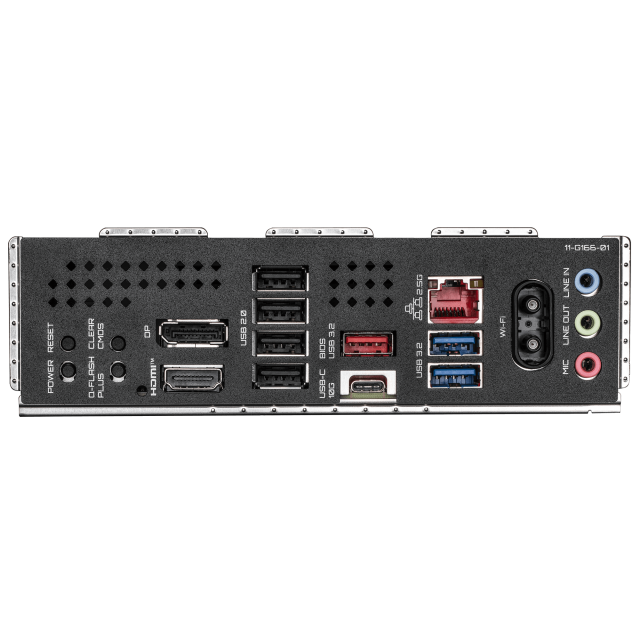

Back Panel Connectors	1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x DisplayPort* 1 x HDMI port* 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks * Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
