Acasă Hardware gaming Plăci de bază GIGABYTE Q870M D3H

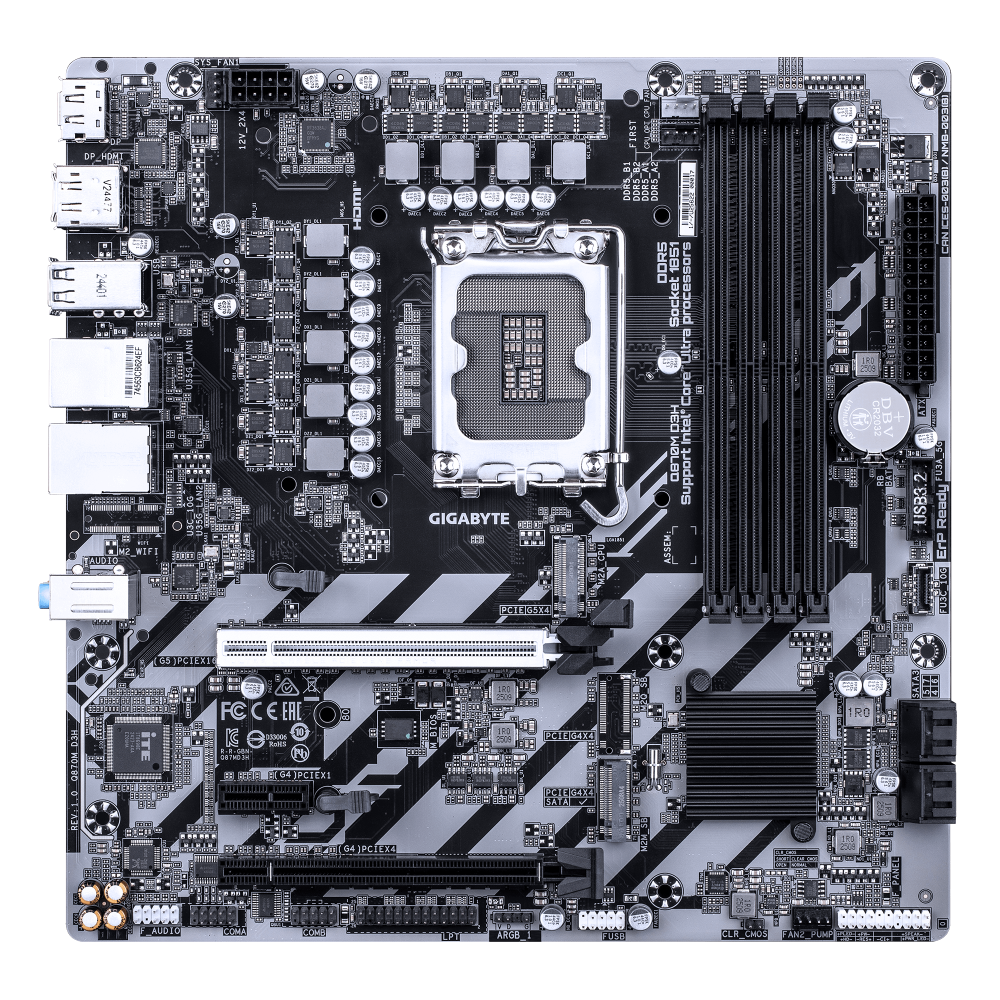

GIGABYTE Q870M D3H

Placa de baza GIGABYTE Q870M D3H, LGA 1851

Cod produs: GA-MB-Q870M-D3H

ultima bucată

Întrebare despre GIGABYTE Q870M D3H

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1851
Form Factor	Micro ATX
Chipset	Intel Q870
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 256 GB
Frecvența memoriei	până la 6400 MHz
Iluminare RGB	Nu
Memorie suportată	DDR5
Wi-Fi încorporat	Nu

Related products

GIGABYTE B850M AORUS ELITE WIFI6E ICE

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860M AORUS ELITE WIFI6E ICE

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z790 EAGLE AX

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z790

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860 GAMING X WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850M GAMING X WIFI6E

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890M GAMING X

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890 UD WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860 EAGLE WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850 GAMING X WIFI6E

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B650 GAMING X AX V2

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z690 GAMING X DDR4

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z690

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE X870 GAMING WIFI6

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Q870M D3H este o placa de baza moderna in format mATX, proiectata pentru sisteme fiabile si eficiente, oferind suport pentru procesoare de generatie noua, memorie DDR5 si conectivitate variata, totul intr-o constructie durabila si stabila.

Chipset Q870 – compatibilitate cu procesoare moderne pentru performanta echilibrata si stabilitate excelenta.
Format mATX – dimensiune compacta, ideala pentru sisteme de birou sau configuratii cu spatiu redus.
Suport DDR5 – memorie rapida pentru timpi de raspuns imbunatatiti si multitasking fluid.
Sloturi PCIe – posibilitati de extindere pentru placi video si dispozitive de mare viteza.
Conectivitate variata – porturi USB multiple si interfete moderne pentru periferice si stocare.
Racire optimizata – design termic gandit pentru functionare stabila in sarcini intense.
Constructie durabila – componente de calitate pentru fiabilitate pe termen lung.

Specifications

CPU	LGA1851 socket: Support for Intel Core Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel Q870 Express Chipset
Memory	Support for DDR5 6400/6200/6000/5800/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Intel GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)(LAN1) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)(LAN2)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x1 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 1 x addressable RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 2 x serial port headers 1 x parallel port header 1 x Clear CMOS jumper

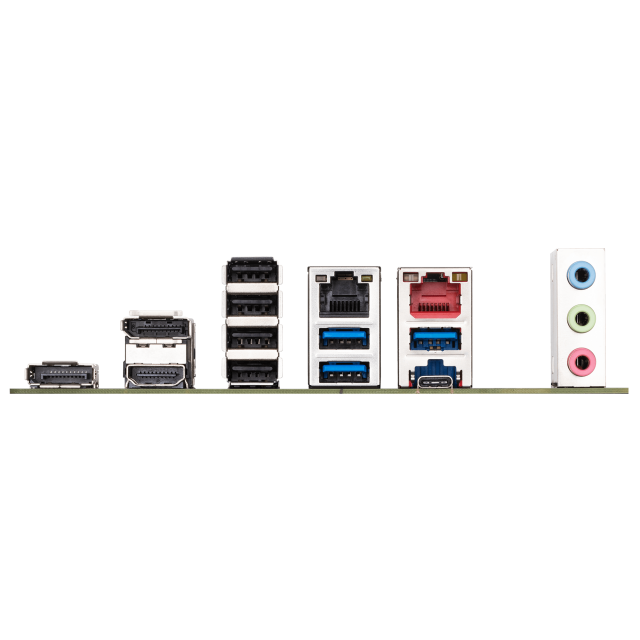

Back Panel Connectors	2 x DisplayPorts* 1 x HDMI port* 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11.
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
