GIGABYTE B860M AORUS ELITE WIFI6E ICE

Placa de baza GIGABYTE B860M AORUS ELITE WiFi 6E ICE, LGA 1851

Cod produs: GA-MB-B860M-A-EL-WF6-IC

nu este disponibil

Întrebare despre GIGABYTE B860M AORUS ELITE WIFI6E ICE

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1851
Form Factor	Micro ATX
Chipset	Intel B860
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 256 GB
Frecvența memoriei	până la 9200 MHz
Iluminare RGB	Dа
Memorie suportată	DDR5
Wi-Fi încorporat	Da

Related products

GIGABYTE B850M AORUS ELITE WIFI6E ICE

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890 UD WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Q870M D3H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel Q870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850 GAMING X WIFI6E

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z690 GAMING X DDR4

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z690

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE X870 GAMING WIFI6

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z790 EAGLE AX

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z790

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860 GAMING X WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850M GAMING X WIFI6E

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890M GAMING X

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B860 EAGLE WIFI6E

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel B860

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B650 GAMING X AX V2

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

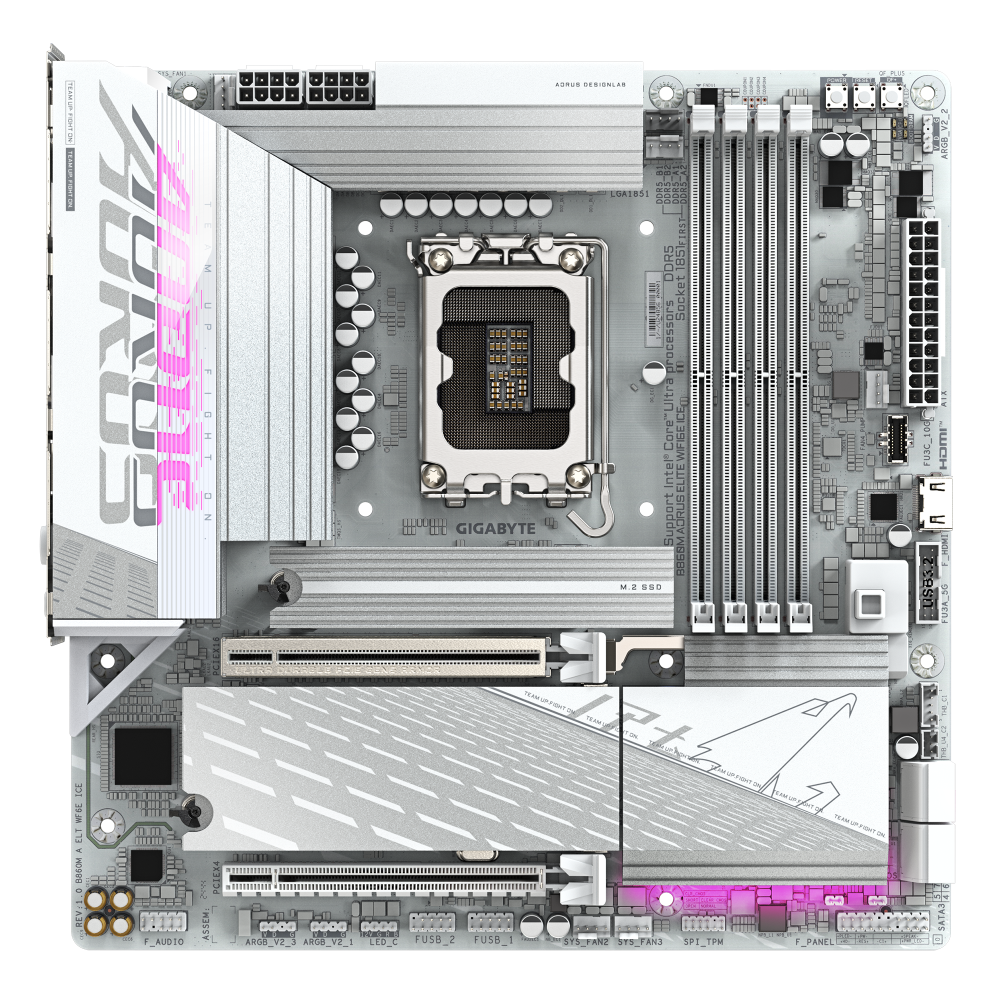

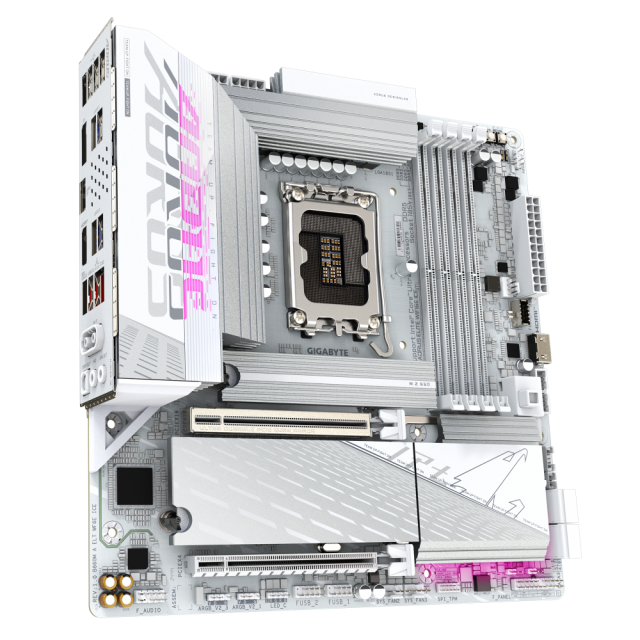

GIGABYTE B860M AORUS ELITE WIFI6E ICE este o placa de baza Micro-ATX moderna, conceputa pentru procesoarele Intel Core Ultra (Seria 2), cu suport avansat pentru DDR5, conectivitate de ultima generatie si racire eficienta. Este ideala pentru gaming si creatie, oferind performanta stabila, design durabil si facilitati prietenoase pentru asamblare.

Compatibilitate CPU: Suporta procesoare Intel Core Ultra (Seria 2) cu socket LGA1851, oferind performanta de top pentru aplicatii intensive.
Memorie DDR5: Include 4 sloturi DDR5 cu suport pentru frecvente ridicate si capacitate maxima de 256 GB, plus profiluri XMP pentru overclocking automat.
Sloturi de expansiune: Dispune de 3 sloturi M.2 (inclusiv unul PCIe 5.0) si un slot PCIe 5.0 x16 pentru placi video sau SSD-uri NVMe ultra-rapide.
Conectivitate avansata: Integreaza Wi-Fi 6E si Bluetooth 5.3 pentru viteze mari si stabilitate in retea, plus LAN 2.5GbE pentru conexiuni prin cablu.

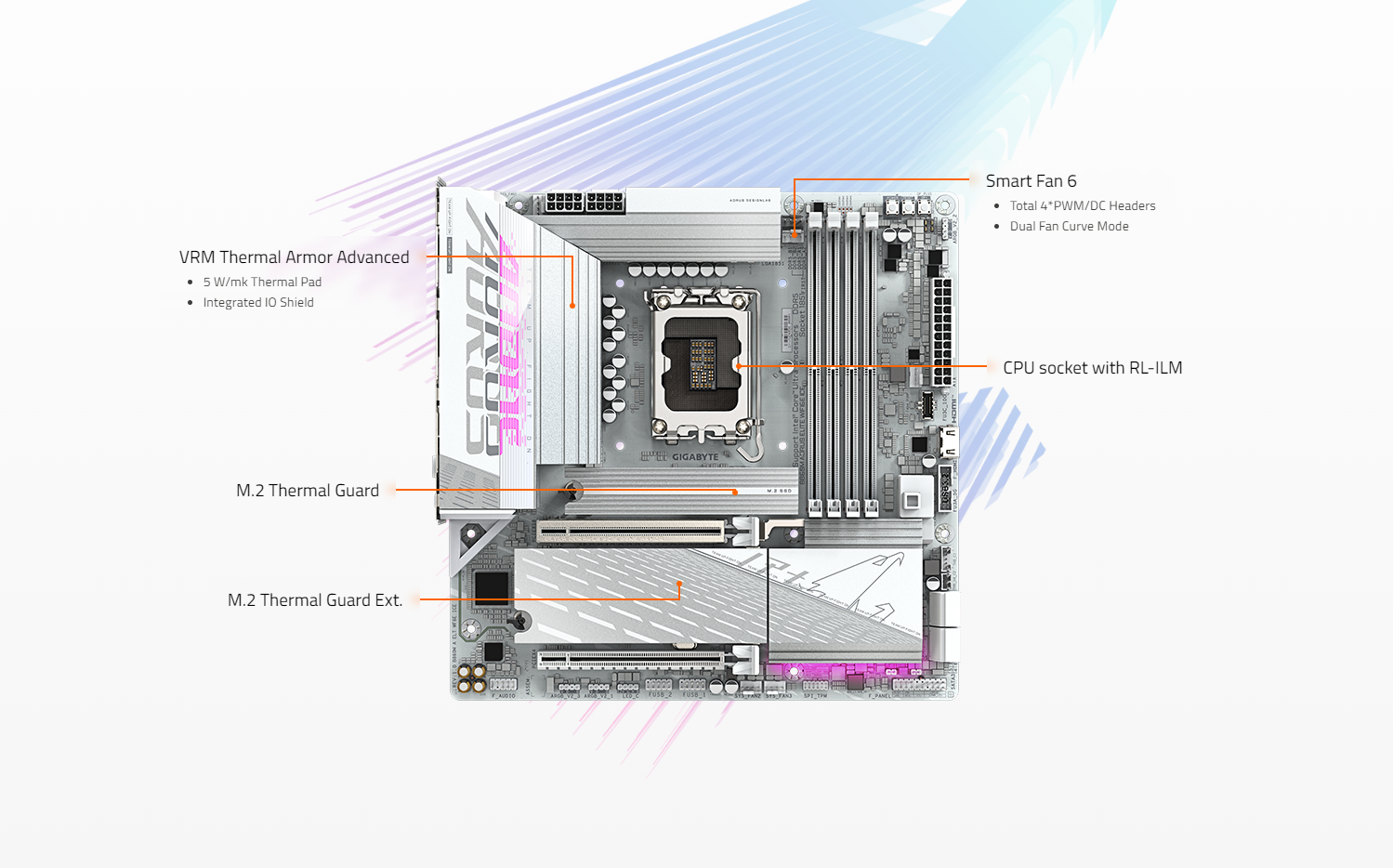

Racire eficienta: Design termic avansat cu radiatoare masive si protectie M.2 Thermal Guard pentru mentinerea temperaturilor optime.
Design durabil: Constructie Ultra Durable cu PCB cu 6 straturi si componente premium, asigurand fiabilitate pe termen lung.

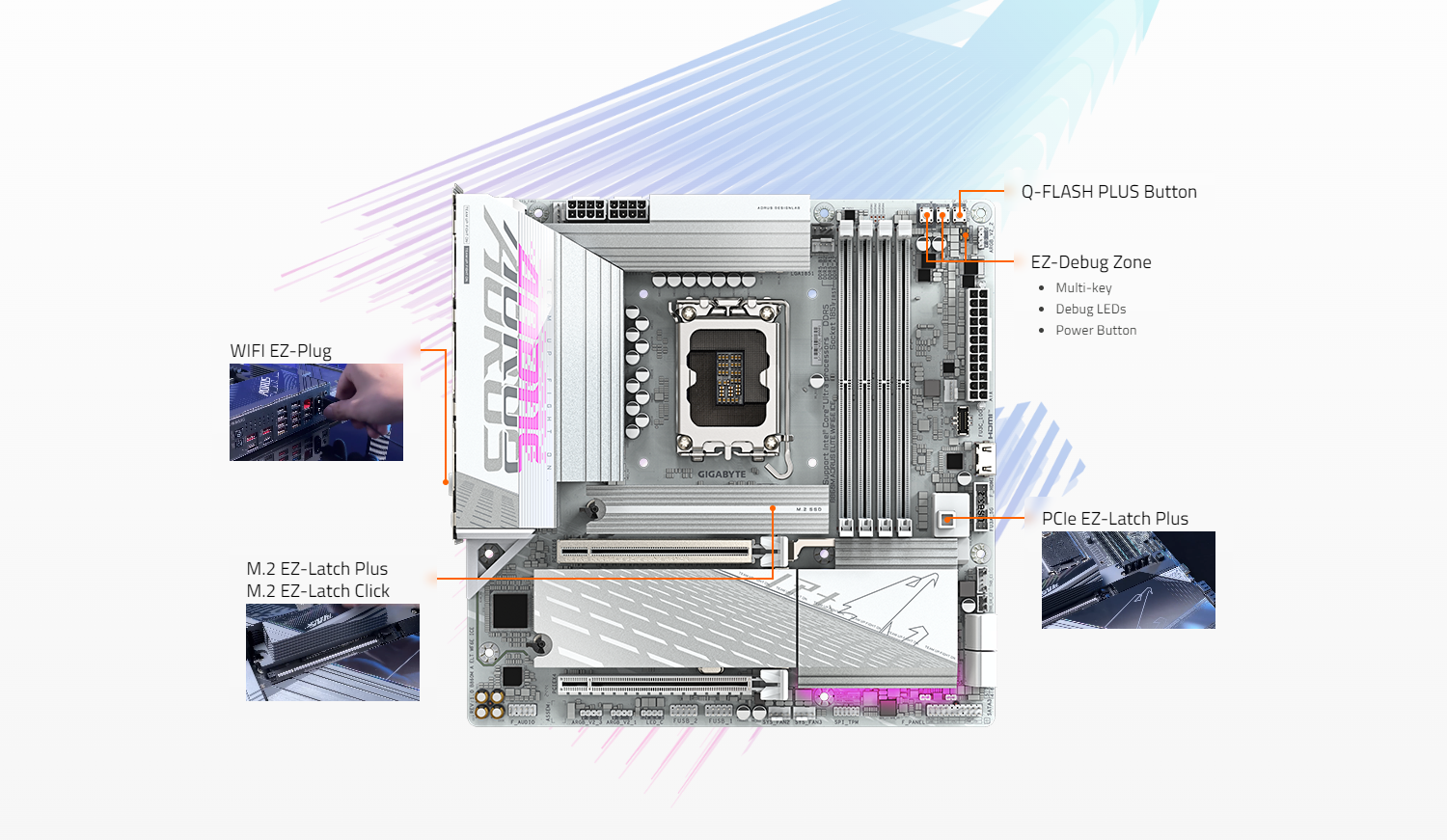

Usurinta in asamblare: Include functii precum EZ-Latch si WIFI EZ-Plug, care simplifica instalarea si configurarea sistemului.
Grafica integrata: Suporta afisare pe pana la 4 monitoare simultan prin HDMI, DisplayPort si USB4, cu rezolutii inalte si compatibilitate extinsa.

Specifications

CPU	LGA1851 socket: Support for Intel Core Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel B860 Express Chipset
Memory	Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

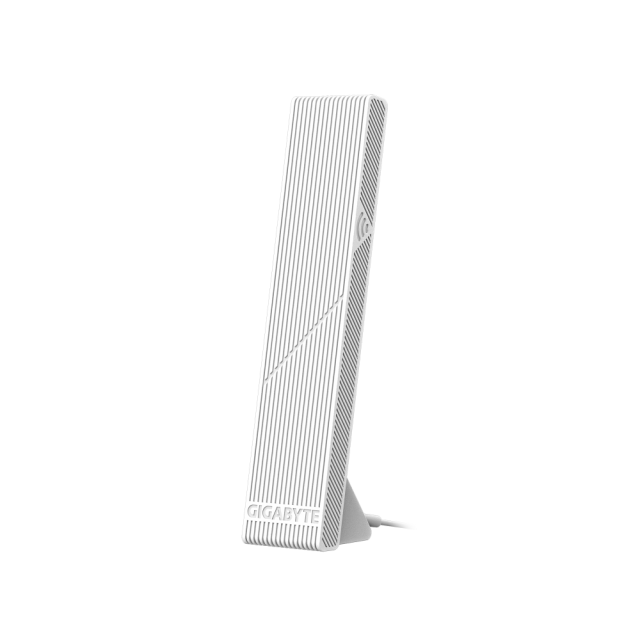

Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU.

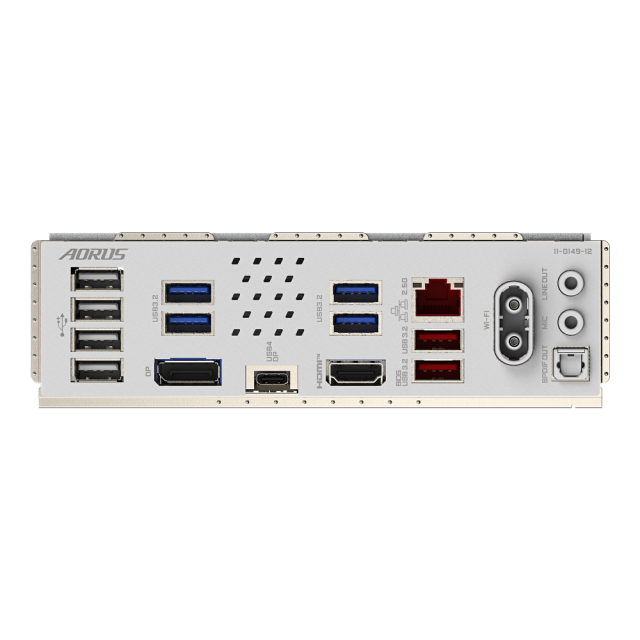

Back Panel Connectors	4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort) 1 x HDMI port 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
