GIGABYTE B850 AORUS ELITE ICE WIFI7
Placa de baza GIGABYTE B850 AORUS ELITE ICE WIFI7 socket AM5
Cod produs: GA-MB-B850-A-ELITE-WF7-IC
Întrebare despre GIGABYTE B850 AORUS ELITE ICE WIFI7
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | AMD AM5 |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 256 GB |
| Frecvența memoriei | până la 8200 MHz |
| Iluminare RGB | Dа |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Da |
Related products
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel Z790
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel Z690
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel Q870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB

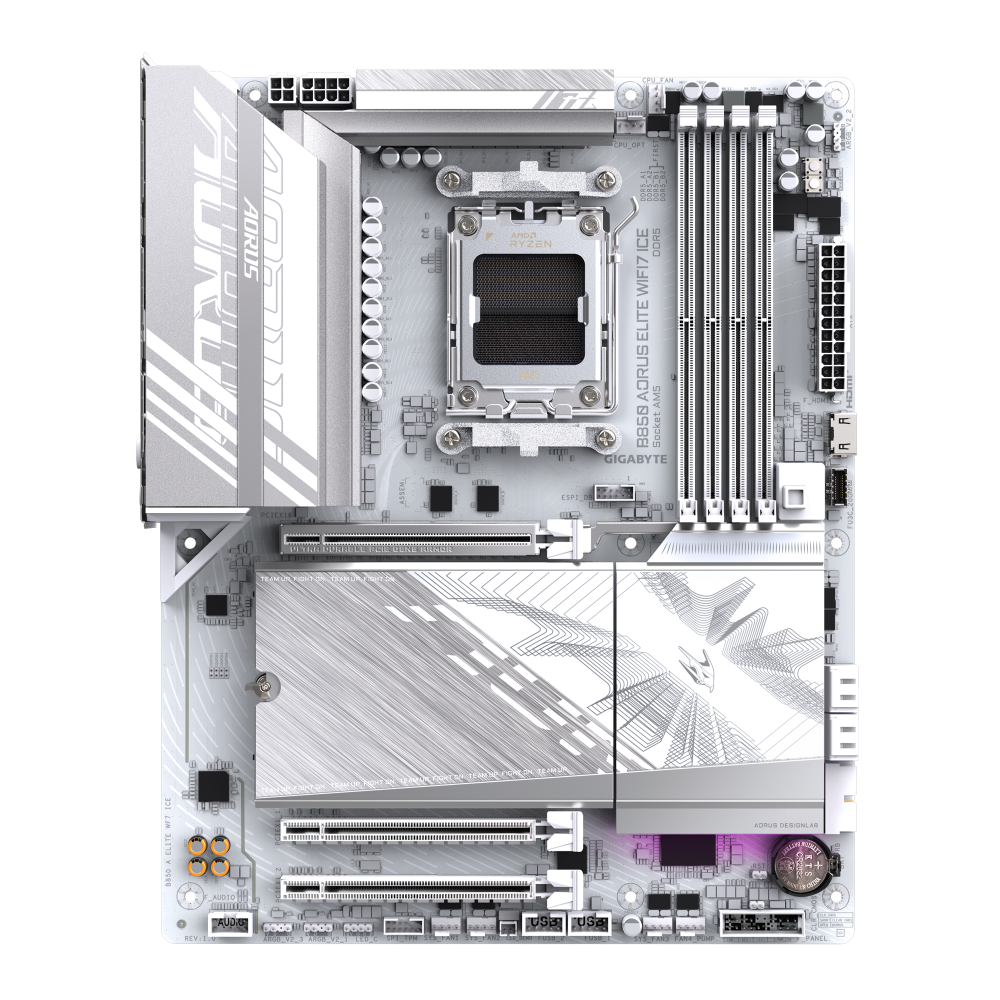

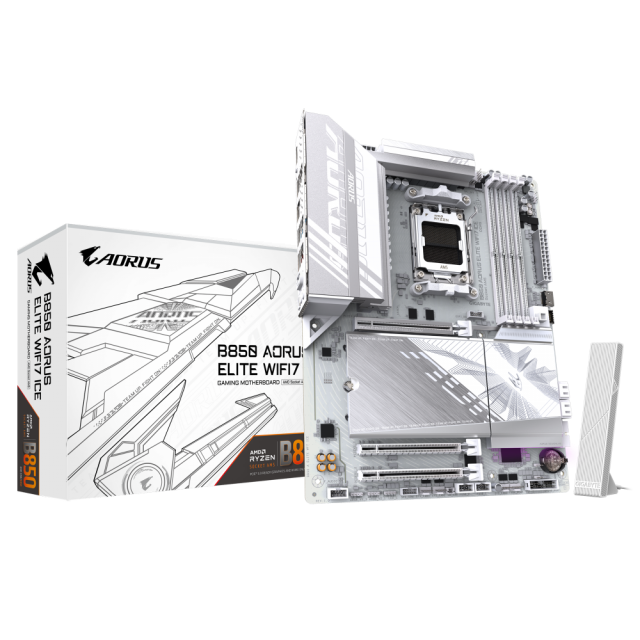

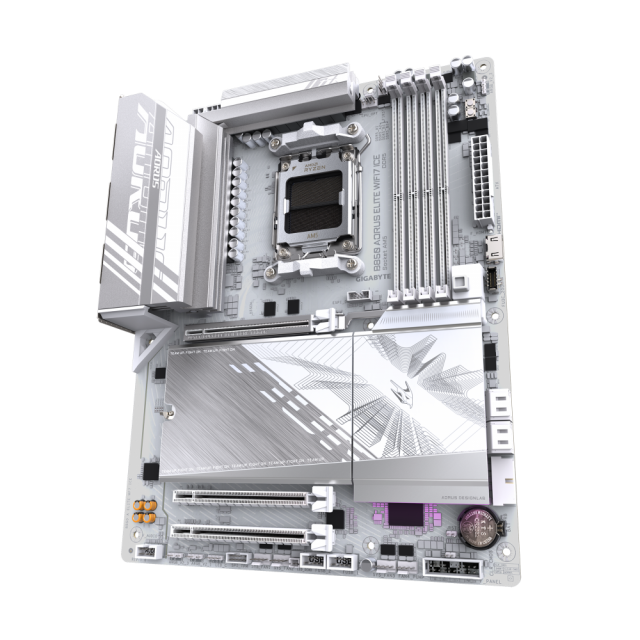

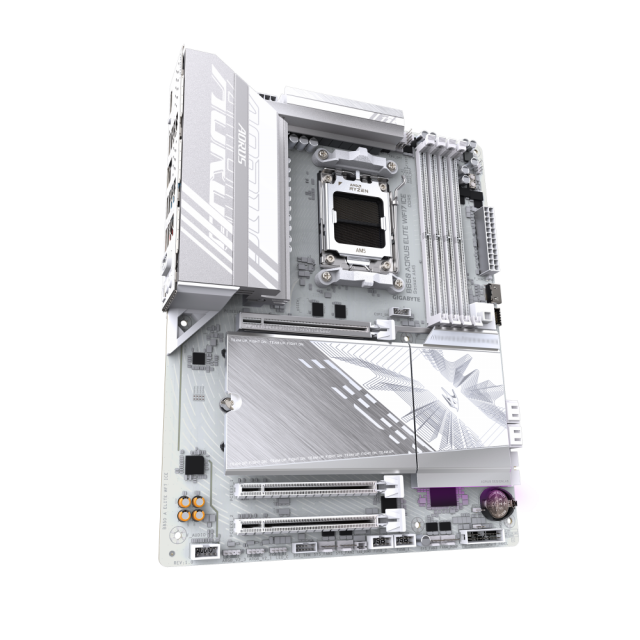

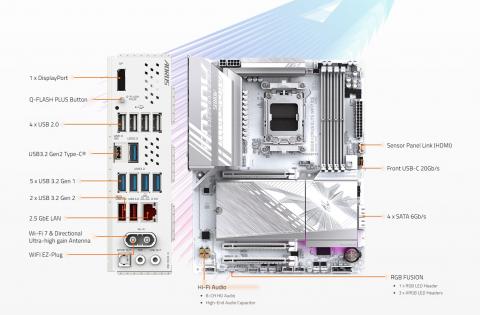

GIGABYTE B850 AORUS ELITE ICE WIFI7 este o placa de baza ATX cu design alb elegant, construita pe noul chipset AMD B850 si socket AM5. Ofera performanta ridicata, conectivitate ultra-rapida si functii avansate pentru gaming si creatie, fiind ideala pentru sistemele moderne cu procesor Ryzen.
- Compatibilitate CPU: Suporta procesoare AMD Ryzen™ din seriile 7000, 8000 si 9000, inclusiv modelele X3D.
- Memorie DDR5: 4 sloturi DIMM cu suport EXPO si overclocking AI pana la 8600 MT/s.
- Stocare ultra-rapida: 3 sloturi M.2, inclusiv unul PCIe 5.0 x4 pentru SSD-uri de ultima generatie.

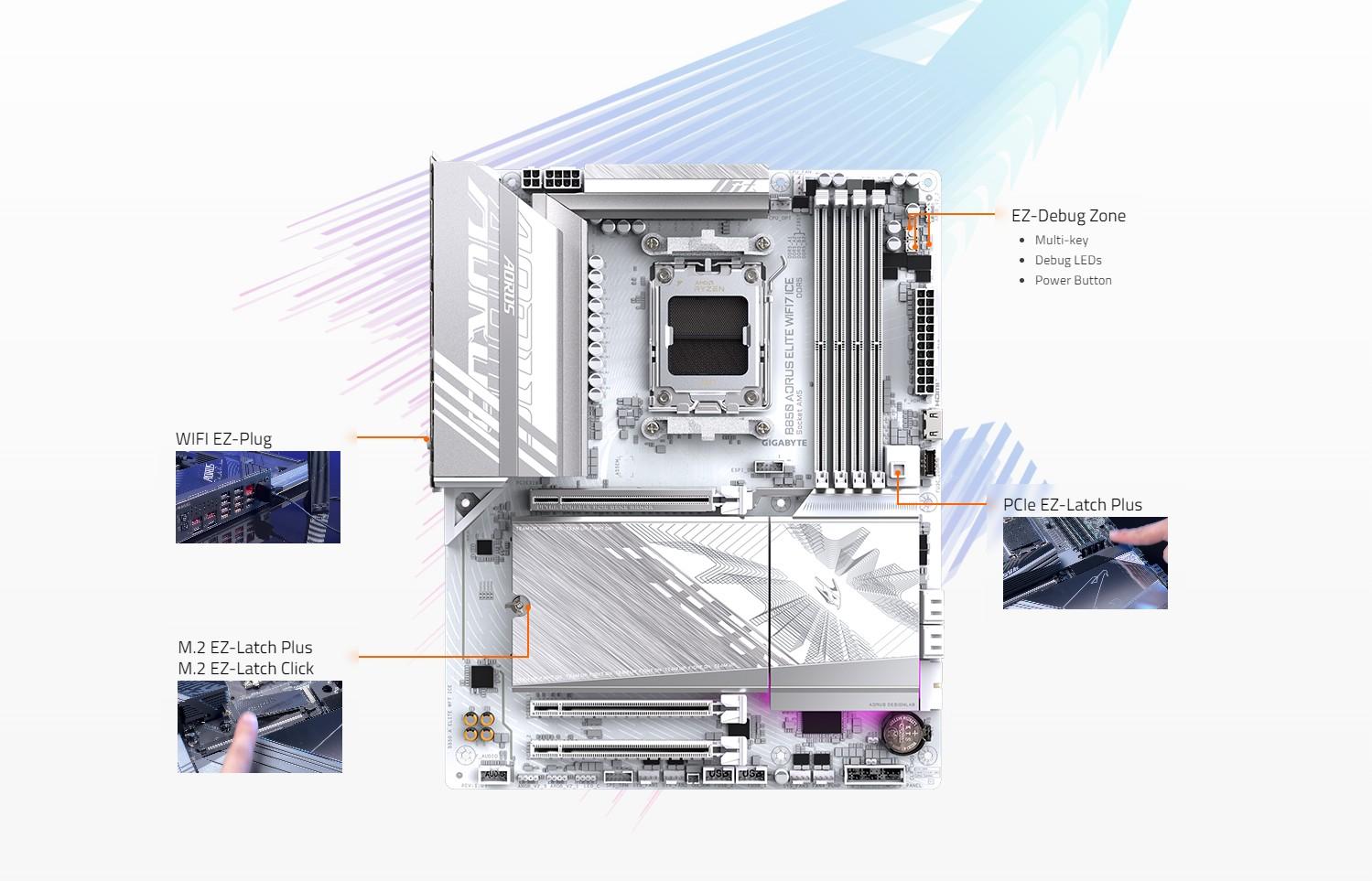

- Slot PCIe 5.0 x16: Ideal pentru placi video performante, cu sistem EZ-Latch Plus pentru montare fara suruburi.
- Wi-Fi 7 integrat: Conectivitate wireless de top cu antena ultra-high gain directionala.
- LAN 2.5GbE: Retea rapida si stabila pentru gaming si transferuri mari de date.
- X3D Turbo Mode: Activare rapida a performantei maxime pentru procesoarele Ryzen X3D si non-X3D.

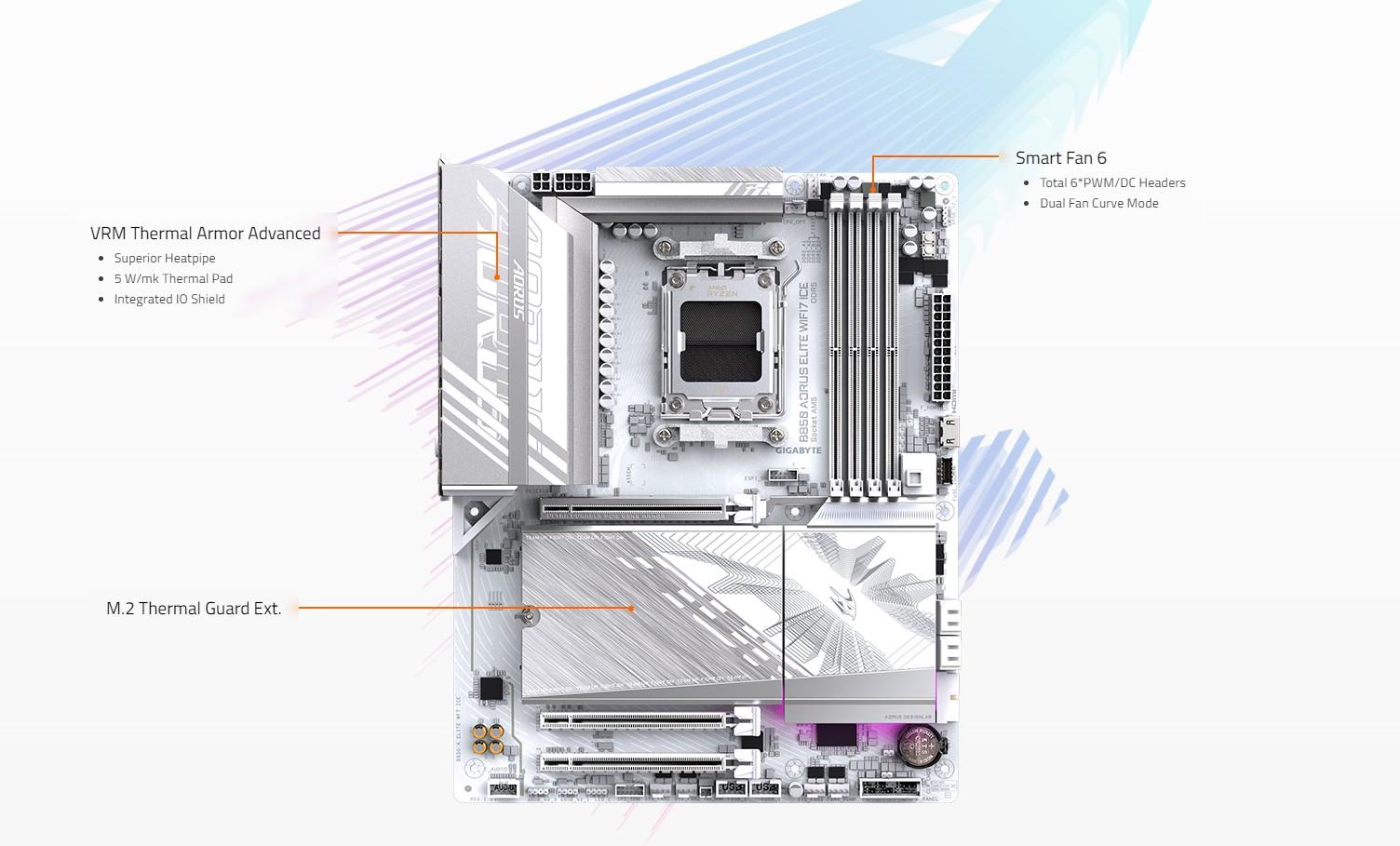

- Design termic avansat: VRM Thermal Armor si M.2 Thermal Guard pentru racire eficienta.

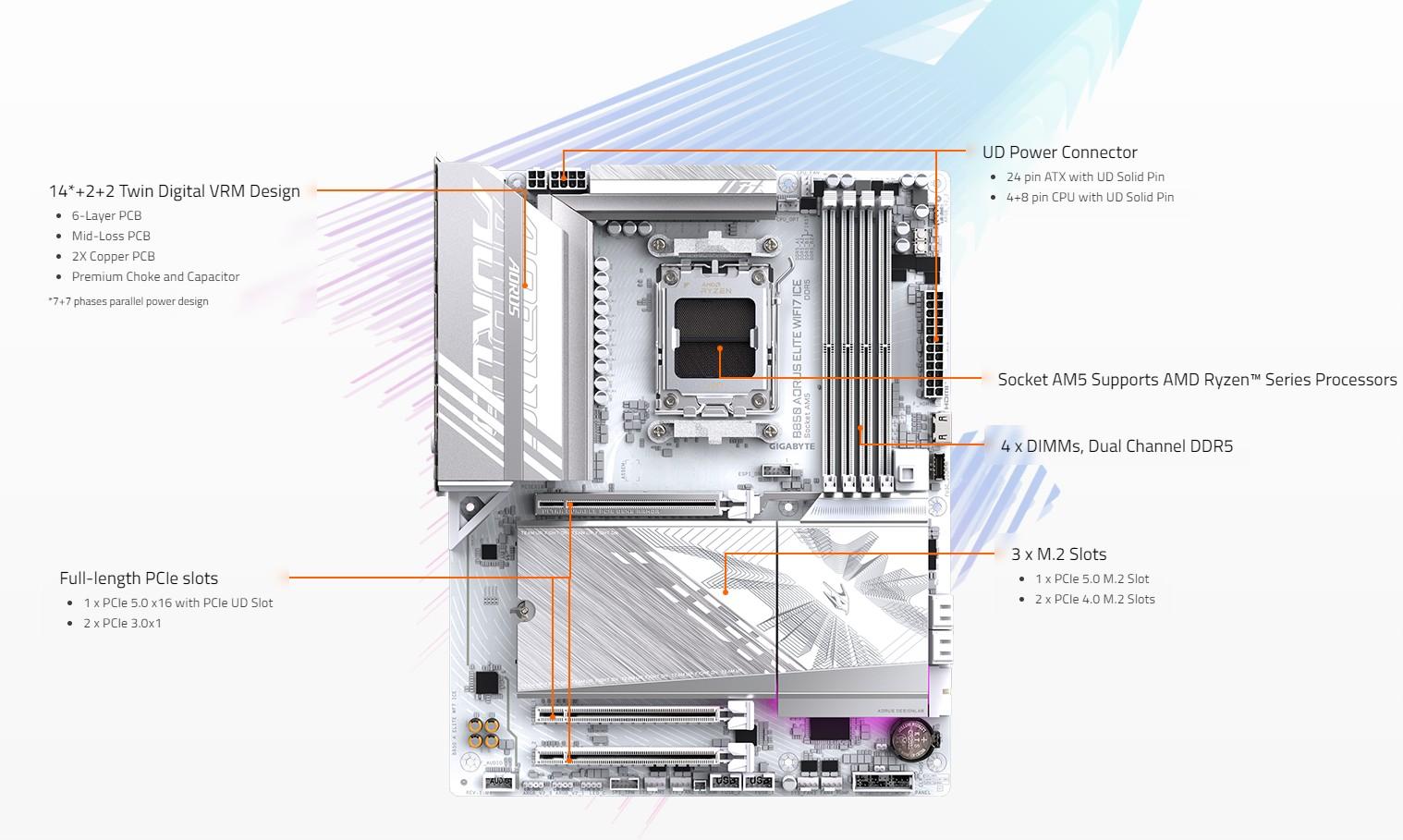

- VRM digital 14+2+2 faze: Alimentare stabila si eficienta pentru overclocking si multitasking.
- Estetica ICE: Tema alba premium cu PCB cu 6 straturi si componente Ultra Durable.
Specifications
| CPU |
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory |
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek Audio CODEC (Only for rev. 1.0)
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek ALC1220 CODEC(Only for rev. 1.1) * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU. |

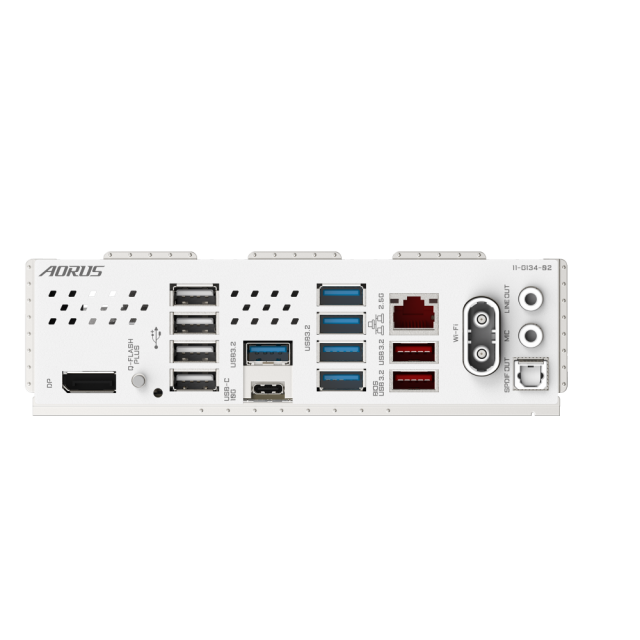

| Back Panel Connectors |
1 x DisplayPort (Note)
1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
