GIGABYTE B560M DS3H V3

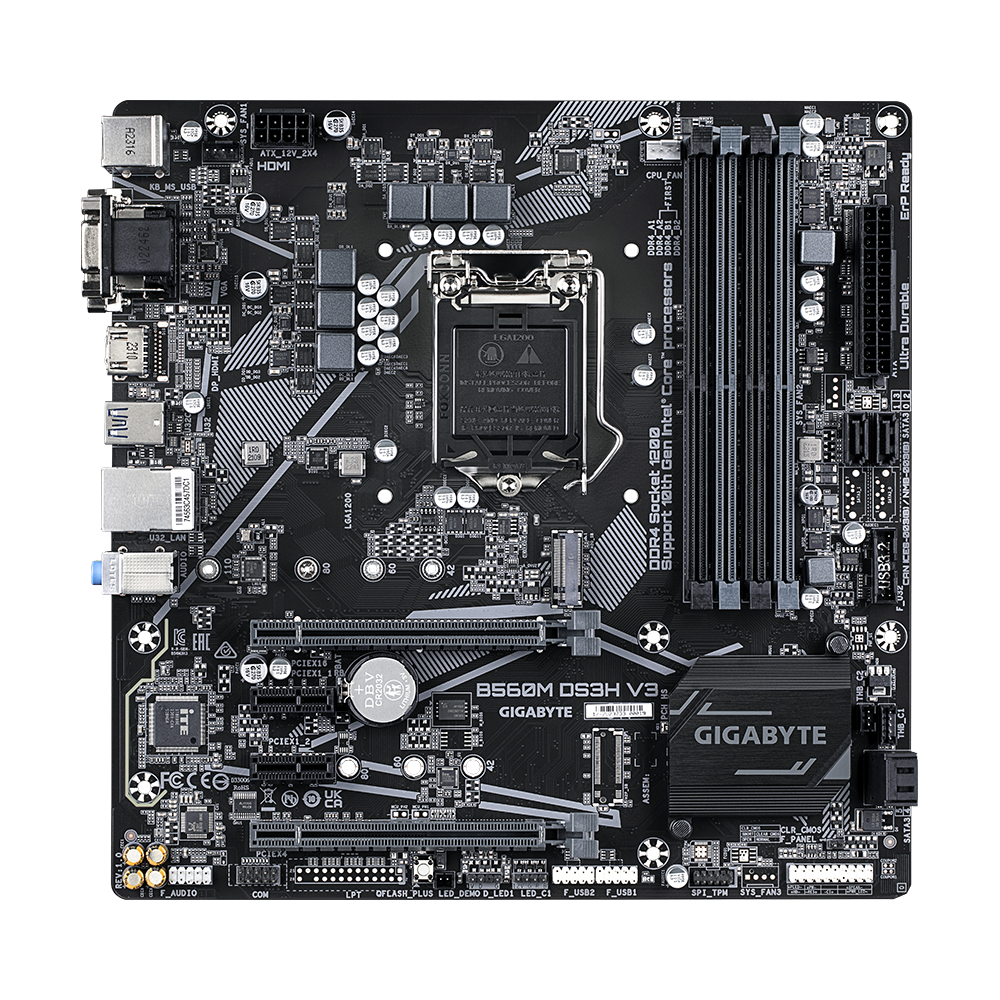

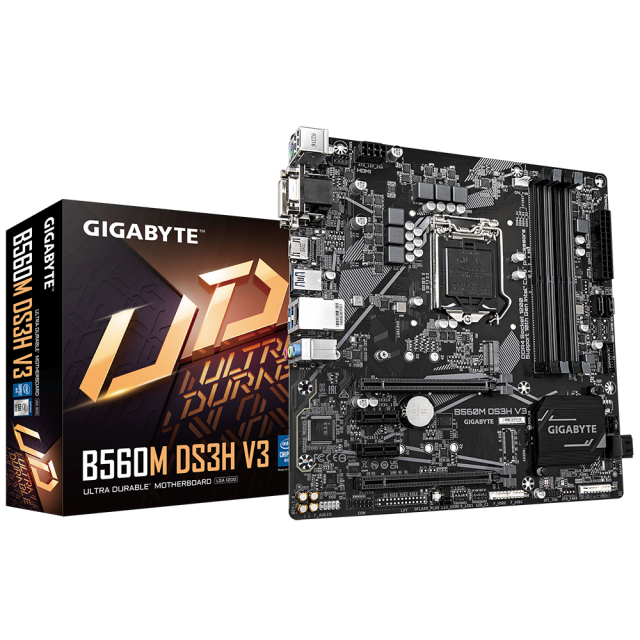

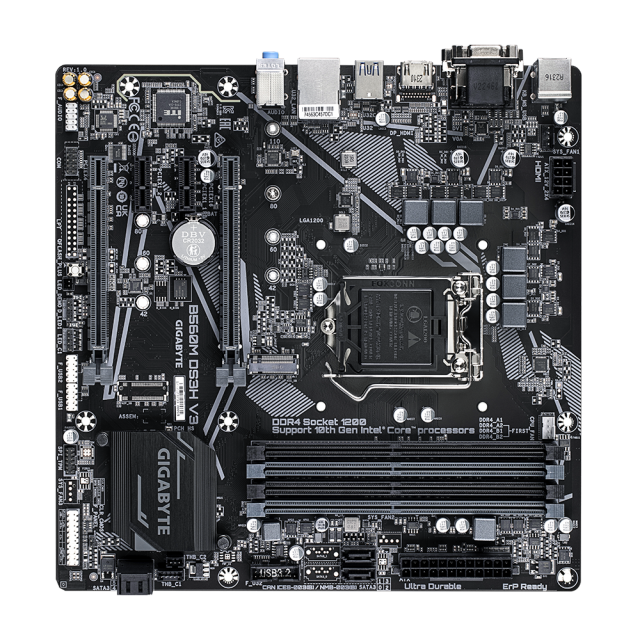

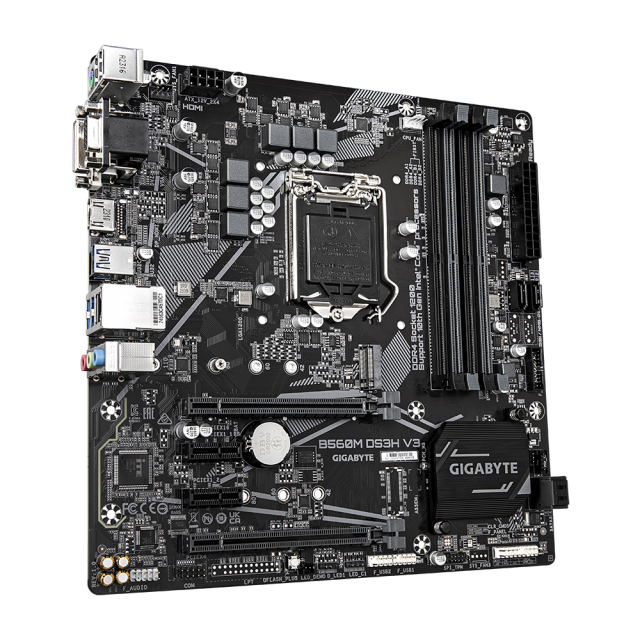

Placa de baza GIGABYTE B560M DS3H V3, socket 1200, mATX 4xDDR4

Cod produs: GA-MB-B560M-DS3H-V3

Epuizat

Întrebare despre GIGABYTE B560M DS3H V3

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1200
Form Factor	Micro ATX
Chipset	Intel H470
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 3200 MHz
Iluminare RGB	Nu
Memorie suportată	DDR4
Wi-Fi încorporat	Nu

Related products

GIGABYTE B760M H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE A620M DS3H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 192 GB

GIGABYTE B550M AORUS ELITE

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M DS3H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE H810M H

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel H810

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B650M S2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B650

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B840M D2H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD B840

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B550M DS3H AC R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B760M E

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE B760M D3HP

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B550M DS3H R2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

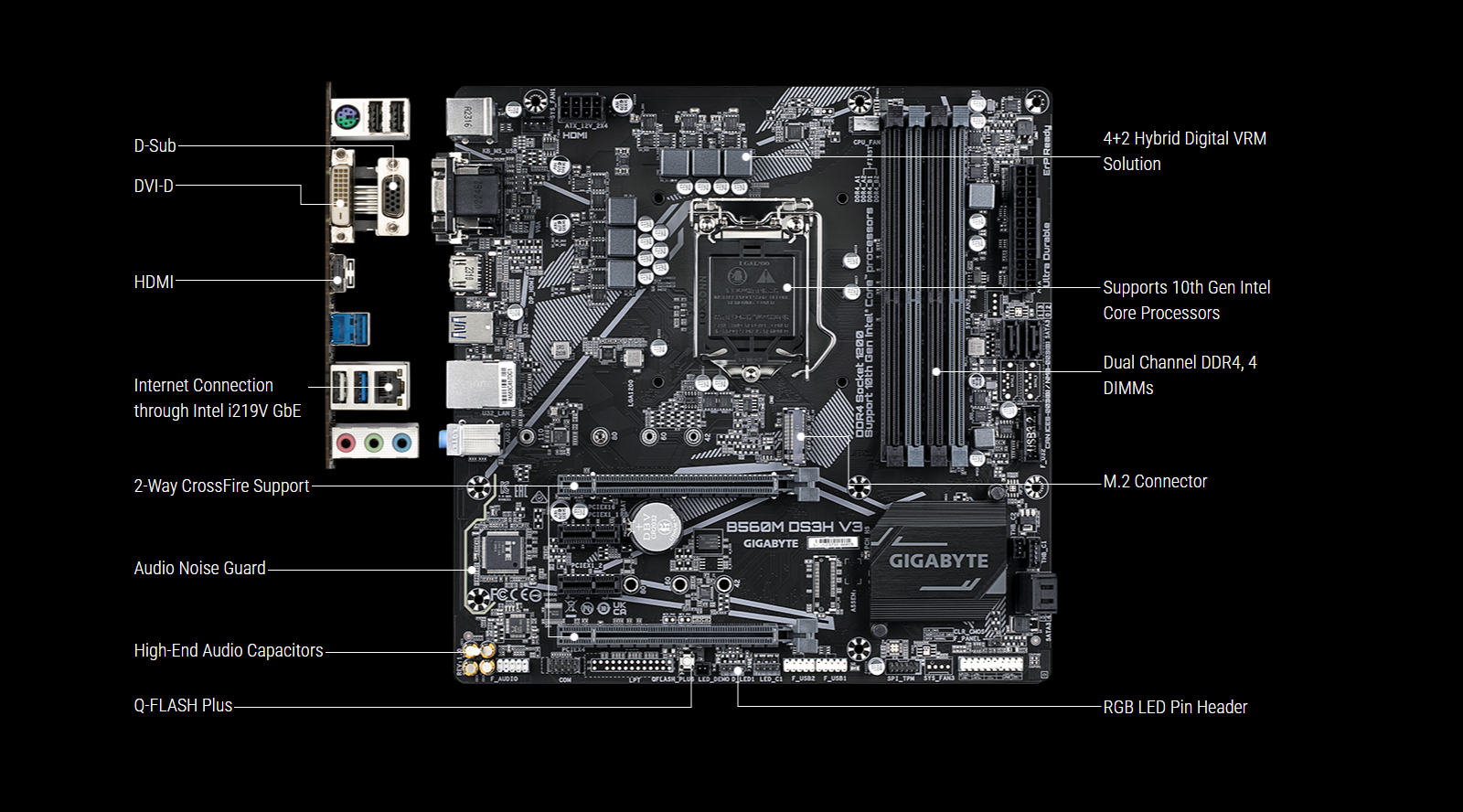

Placa de baza GIGABYTE B560M DS3H V3, socket 1200, mATX 4xDDR4

Accepta procesoare din a 10-a si a 11-a Generatie Intel® Core™
Memorie unbuffered Non-ECC DDR4 pe doua canale, 4 DIMM-uri
Conectori NVMe PCIe Gen3 X4 M.2
Smart Fan 5 dispune de senzori de temperatura multipli, antete hibride cu ventilator FAN STOP
Accepta Intel® Optane™ Memory
Intel® GbE LAN cu software FosSpeed Internet Accelerator
Suporta interfata cu 3 afisaje
RGB FUSION 2.0 cu LED-uri adresabile Multi-Zone Design Show, Suport LED-uri adresabile si benzi LED RGB
Proiectarea rezistentelor anti-sulf
Q-Flash Pluss actualizeaza BIOS fara a instala CPU, memorie si placa grafica

Specifications

CPU	LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel H470 Express Chipset
Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * The D-Sub port is only available with the 10th Generation processors. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Intel GbE LAN chip (1 Gbps/10 Mbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB	Chipset: 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

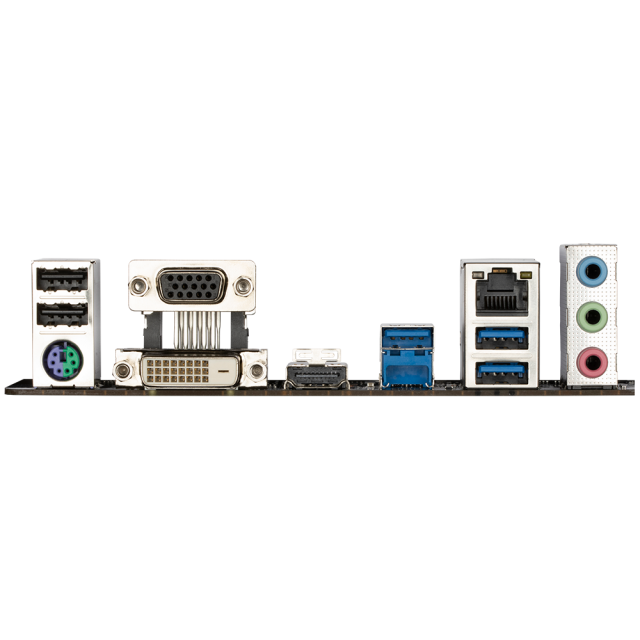

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
