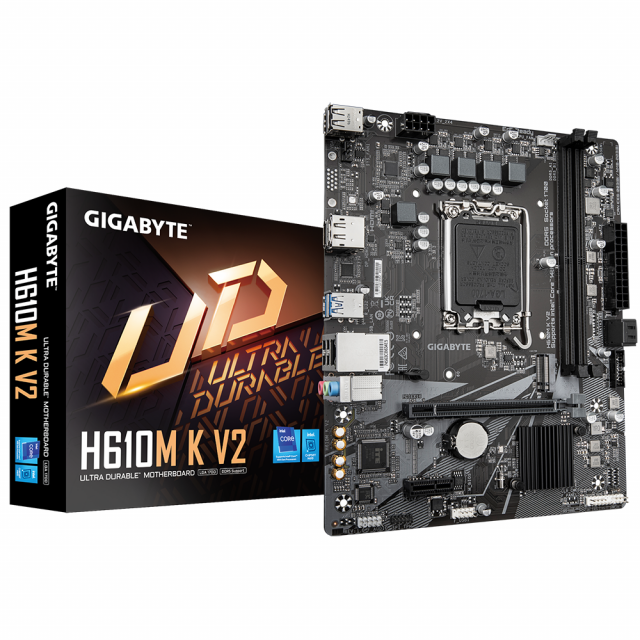

GIGABYTE H610M K V2

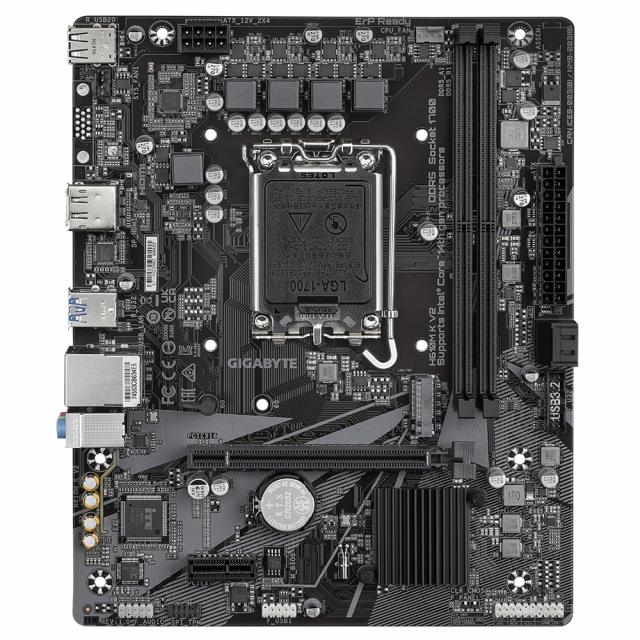

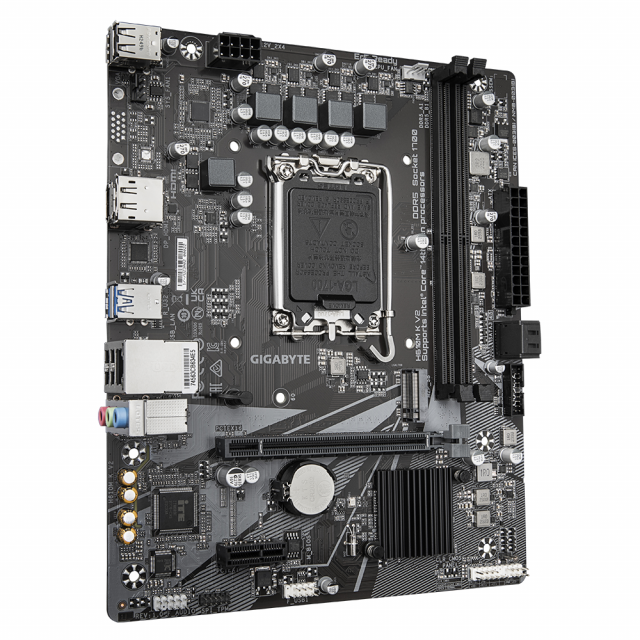

Placa de baza GIGABYTE H610M K V2 DDR5, socket 1700, Micro ATX

Cod produs: GA-MB-H610M-K-V2

disponibil

Întrebare despre GIGABYTE H610M K V2

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1700
Form Factor	Micro ATX
Chipset	Intel H610
Numărul de sloturi pentru memorie	2
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 5600 MHz
Iluminare RGB	Nu
Memorie suportată	DDR5
Wi-Fi încorporat	Nu

Related products

GIGABYTE H610M H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE H610M S2H V2

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE H610M S2H V3 DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE H610M H V3 DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE A520M DS3H V2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD A520

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE B550M K

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

GIGABYTE H610M D3W

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 128 GB

GIGABYTE A520M S2H

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD A520

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE A620M H

Socket: AMD AM5

Form Factor: Micro ATX

Chipset: AMD A620

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

GIGABYTE B550M DS3H

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD B550

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

Gigabyte A520M K V2

Socket: AMD AM4

Form Factor: Micro ATX

Chipset: AMD A520

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

GIGABYTE B760M H DDR4

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel B760

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

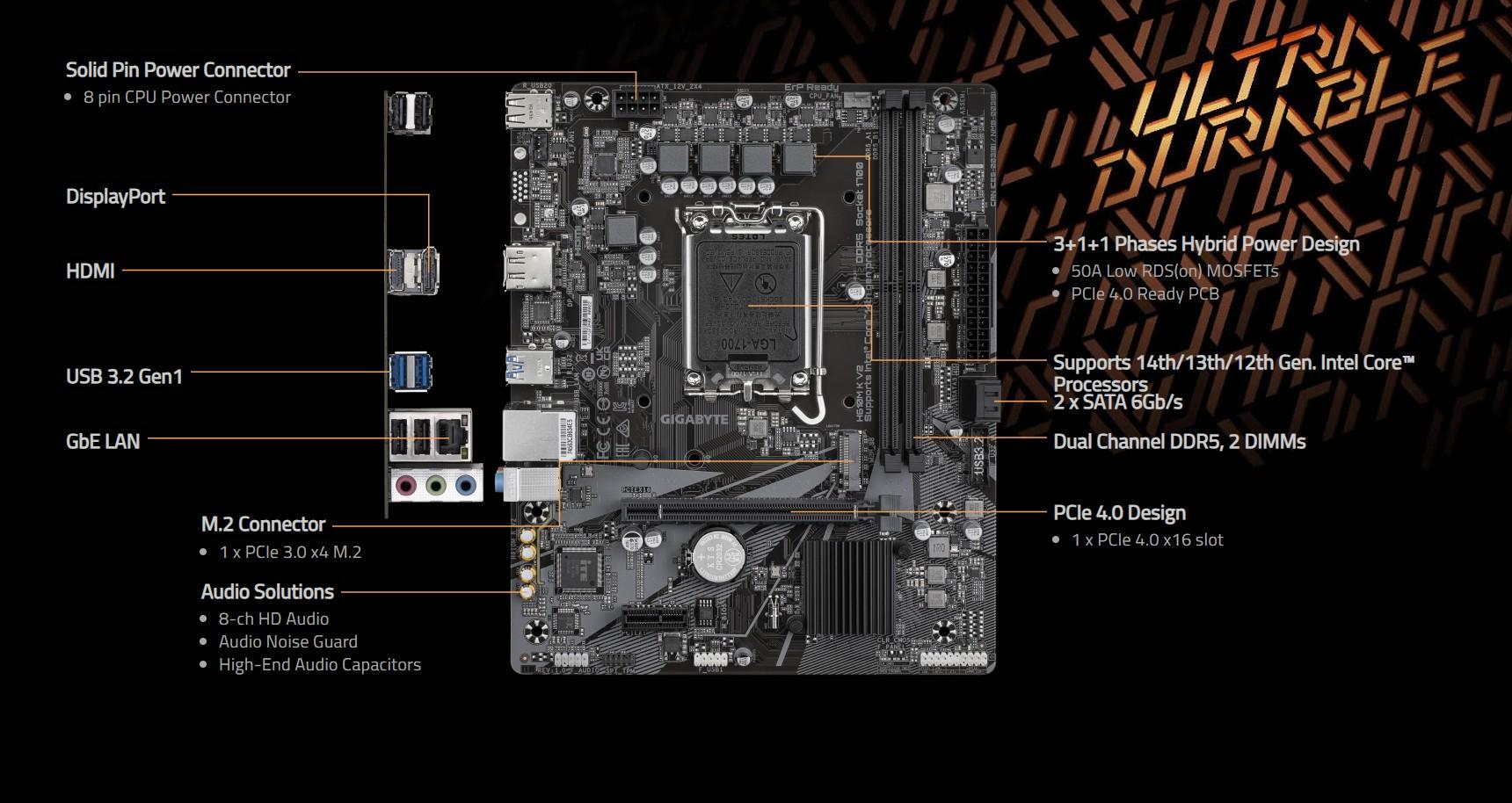

GIGABYTE H610M K V2 este o placa de baza Micro-ATX accesibila, ideala pentru configuratii de buget cu procesoare Intel din generatiile 12, 13 si 14. Ofera suport pentru DDR5, conectivitate esentiala si fiabilitate ridicata, fiind potrivita pentru utilizare zilnica, birou sau gaming moderat.

Compatibilitate CPU: Suporta procesoare Intel Core, Pentium Gold si Celeron din generatiile 12, 13 si 14 pe socket LGA1700
Memorie DDR5: 2 sloturi DDR5 cu suport dual-channel, frecvente de pana la 5600 MHz si capacitate maxima de 128 GB

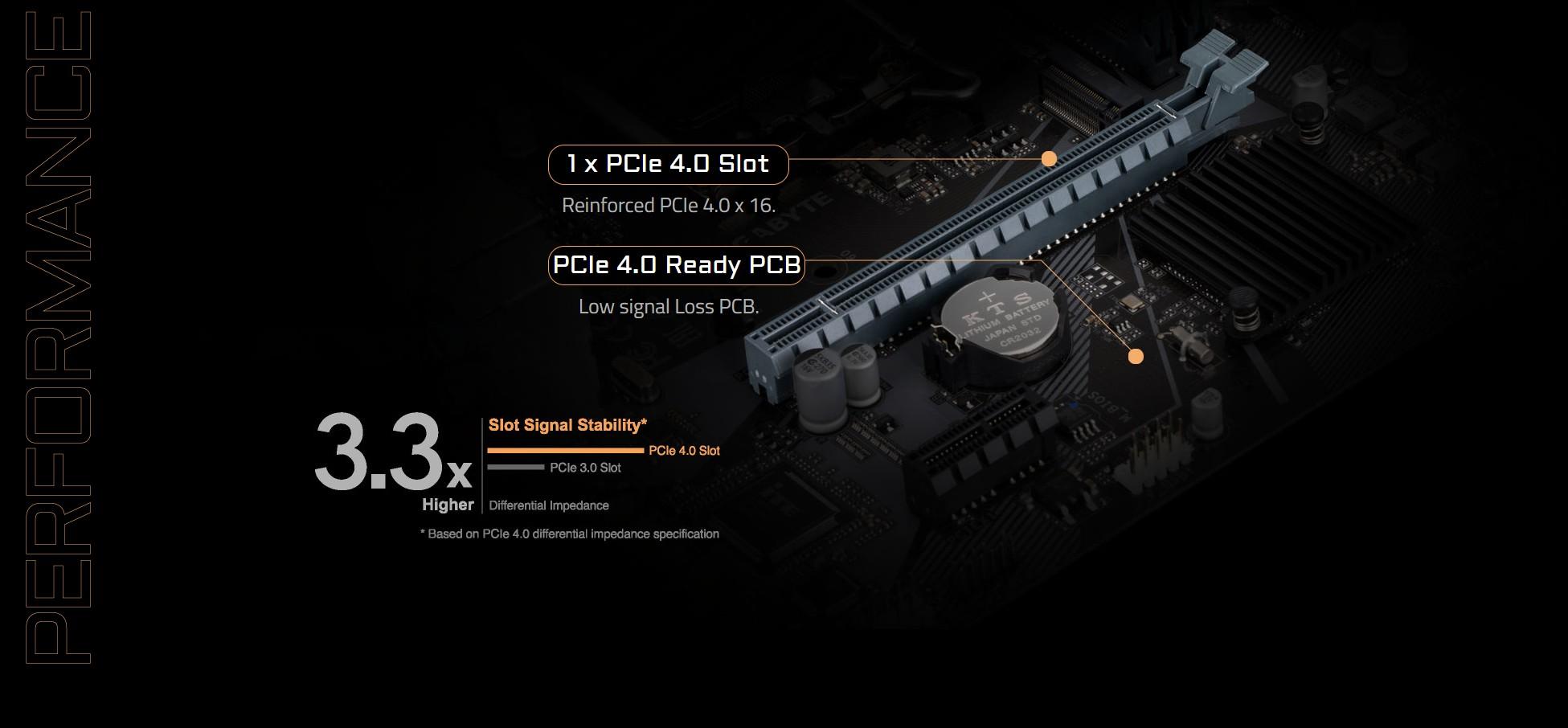

Sloturi de expansiune: 1 slot PCIe 4.0 x16 pentru placa video si 1 slot PCIe 3.0 x1 pentru extensii suplimentare
Stocare rapida: 1 slot M.2 PCIe 3.0 x4 pentru SSD NVMe si 2 porturi SATA III pentru HDD/SSD
Conectivitate video: HDMI 2.1 si DisplayPort 1.2 cu suport pentru rezolutii 4K
Audio de calitate: Sunet 7.1 HD cu condensatori audio de inalta calitate si protectie Audio Noise Guard

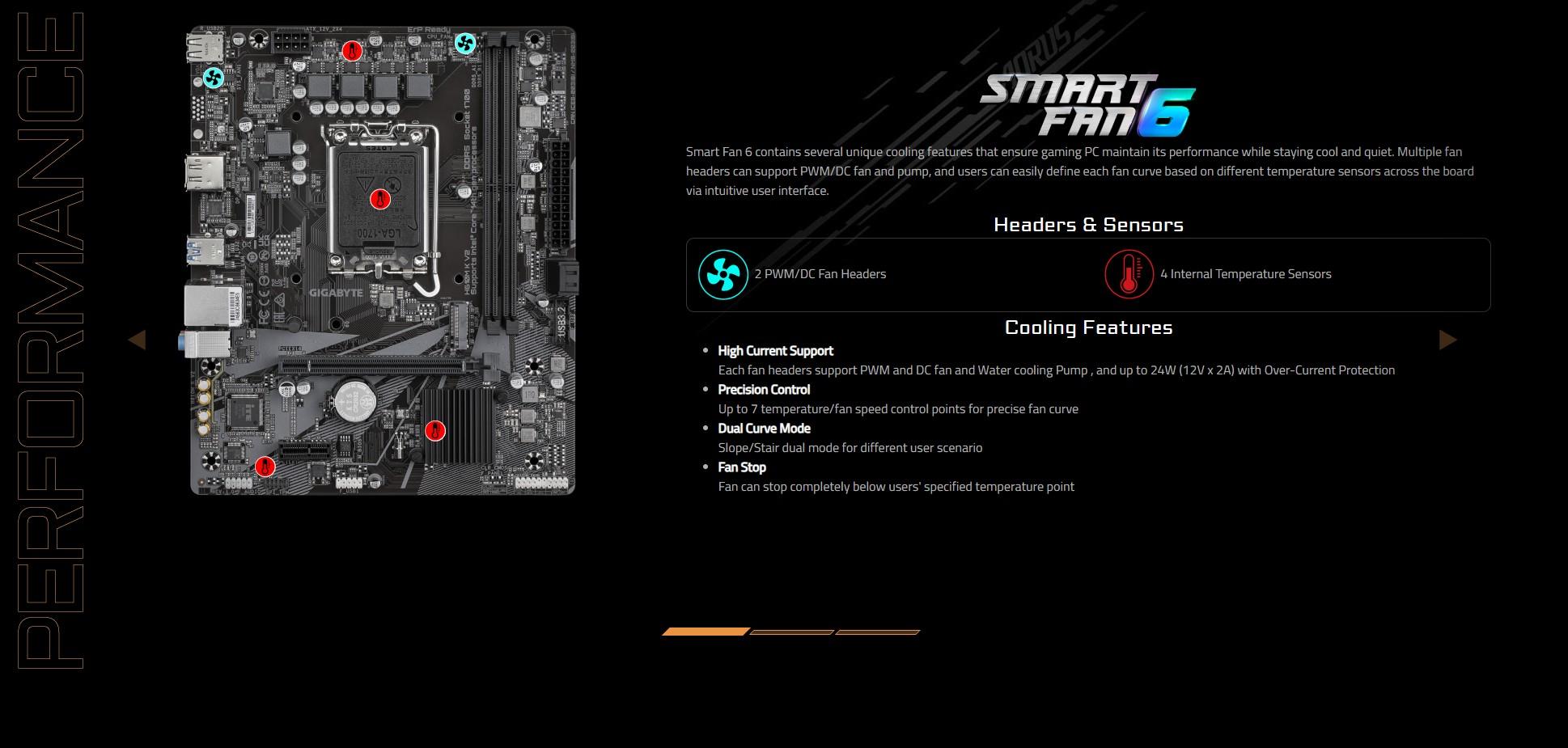

Racire inteligenta: Sistem Smart Fan 6 cu senzori multipli si control avansat al curbei ventilatoarelor
Conectivitate USB: 2 porturi USB 3.2 Gen 1 si 4 porturi USB 2.0 pentru periferice si stocare externa
Durabilitate: Design Ultra Durable cu rezistori anti-sulf si conectori solizi pentru alimentare stabila

Specifications

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors * Please refer to "CPU Support List" for more information. L3 cache varies with CPU
Chipset	Intel H610 Express Chipset
Memory	14th and 13th Generation Intel Core i9/i7 Processors - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 2 x SATA 6Gb/s connectors
USB	Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper

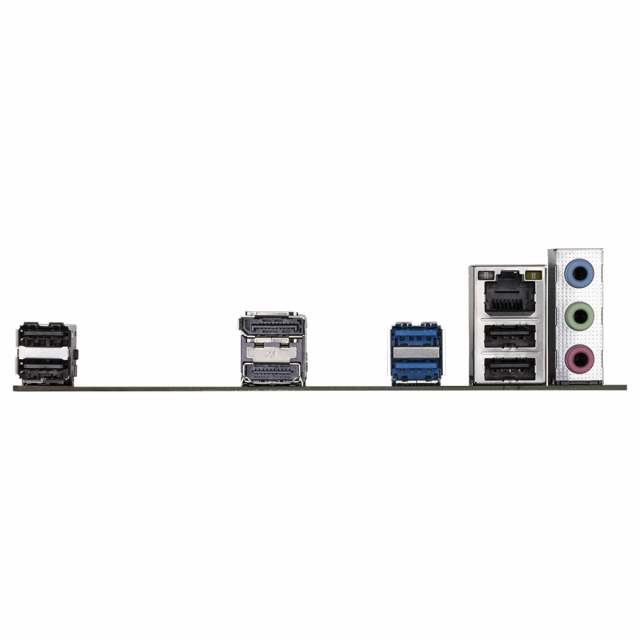

Back Panel Connectors	1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider.
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
