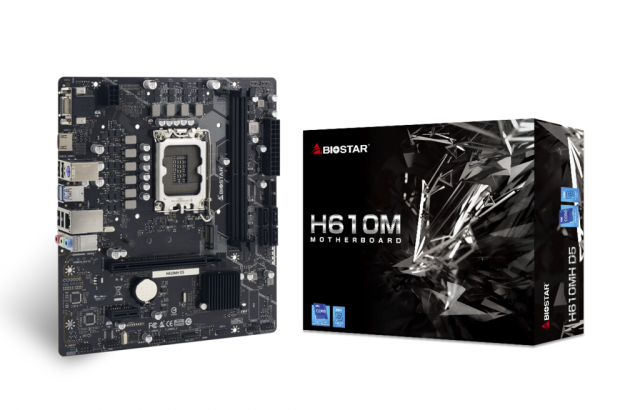

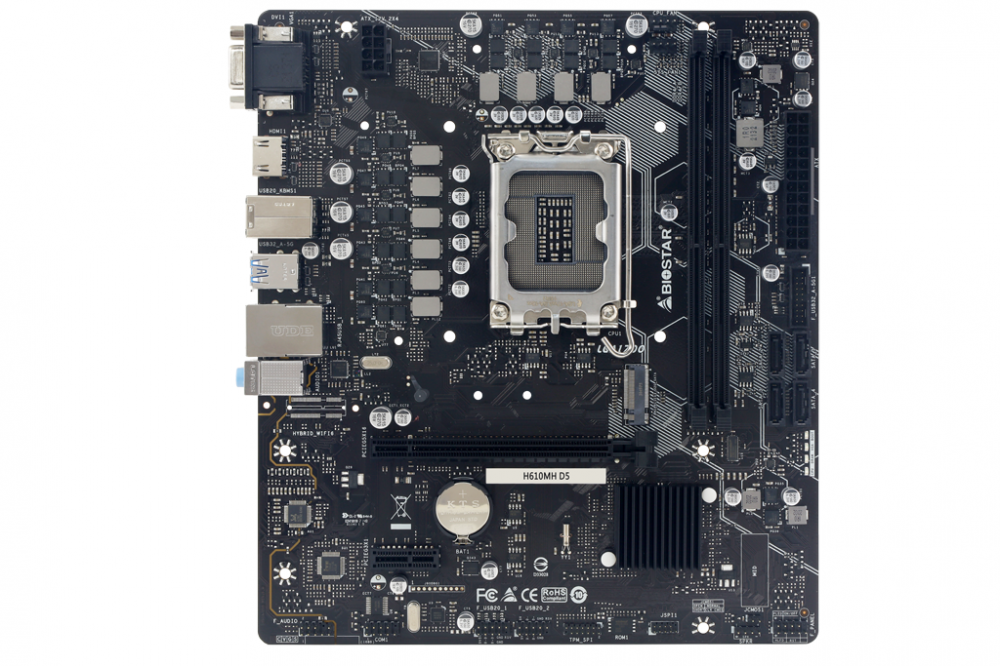

BIOSTAR H610MH D5
Placa de baza BIOSTAR MH610MH D5, DDR5, Socket 1700, mATX
Cod produs: BIO-MB-H610MH-D5
Întrebare despre BIOSTAR H610MH D5
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1700 |
| Form Factor | Micro ATX |
| Chipset | Intel H610 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 96 GB |
| Frecvența memoriei | până la 4800 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
Intel 1200
Form Factor:
Micro ATX
Chipset:
Intel H410
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1150
Form Factor:
Micro ATX
Chipset:
Intel H81
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 16 GB
Socket:
Intel 1155
Form Factor:
Micro ATX
Chipset:
Intel H61
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 16 GB
Socket:
Intel 1151
Form Factor:
ATX
Chipset:
Intel B360
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 32 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1200
Form Factor:
ATX
Chipset:
Intel Z590
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1200
Form Factor:
Mini-ITX
Chipset:
Intel Z590
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB

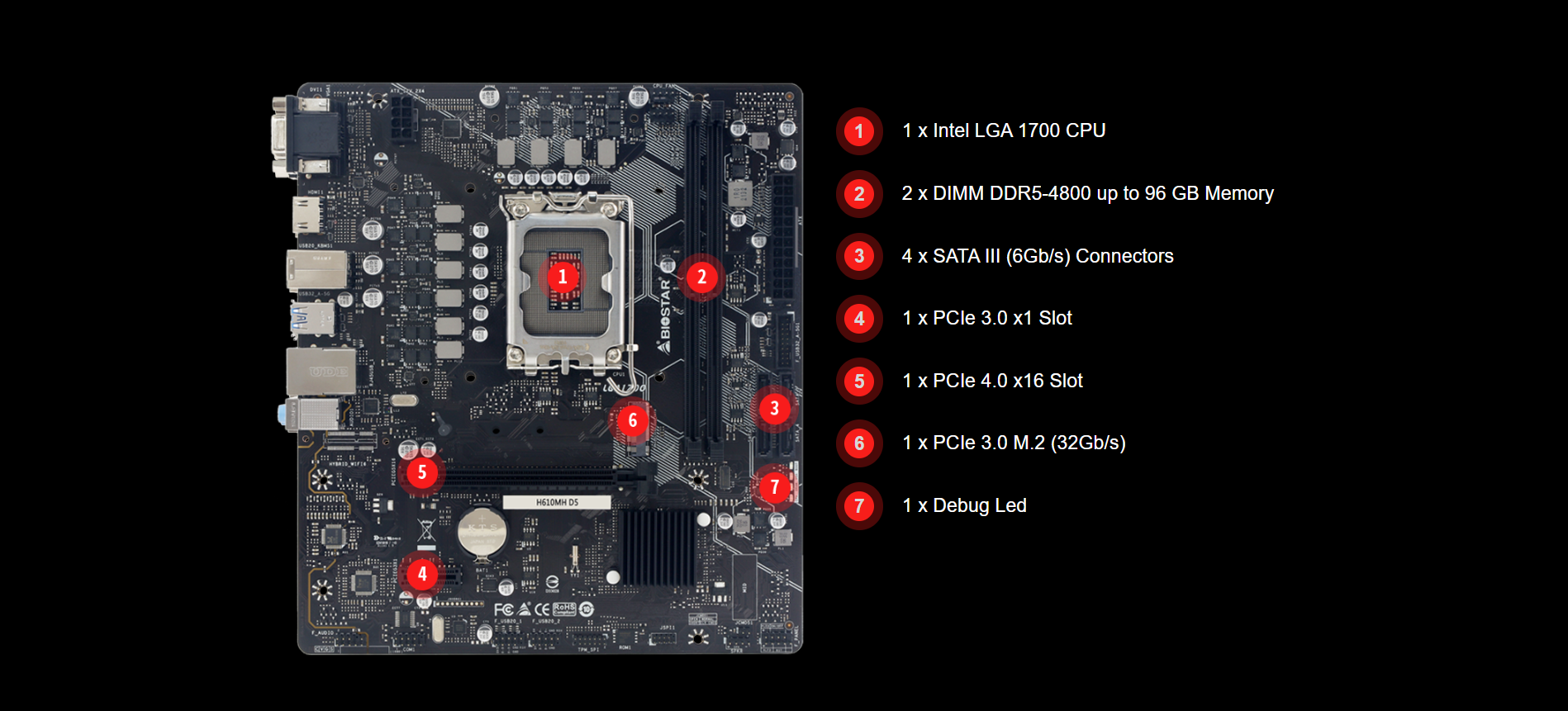

Specifications
| Chipset | Intel H610 |
| CPU SUPPORT | Support for 12th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR5 4800 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | Supports DX12 Supports HDCP |
| STORAGE | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA SSD 4 x SATA III Connector (6Gb/s) |
| LAN | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897 7.1 Channels, High Definition Audio |
| USB | 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | INTEL 12th/13th Processors 1 x PCIe 4.0 x16 Slot Intel H610 Chipset 1 x PCIe 3.0 x1 Slot |

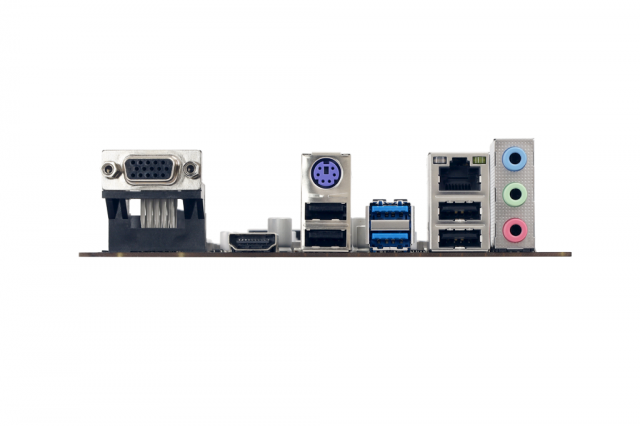

| REAR I/O | 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA Port 2 x USB 3.2 (Gen1) ports 4 x USB 2.0 ports 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
| OS SUPPORT | Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
