Acasă Hardware gaming Plăci de bază BIOSTAR Z590 VALKYRIE

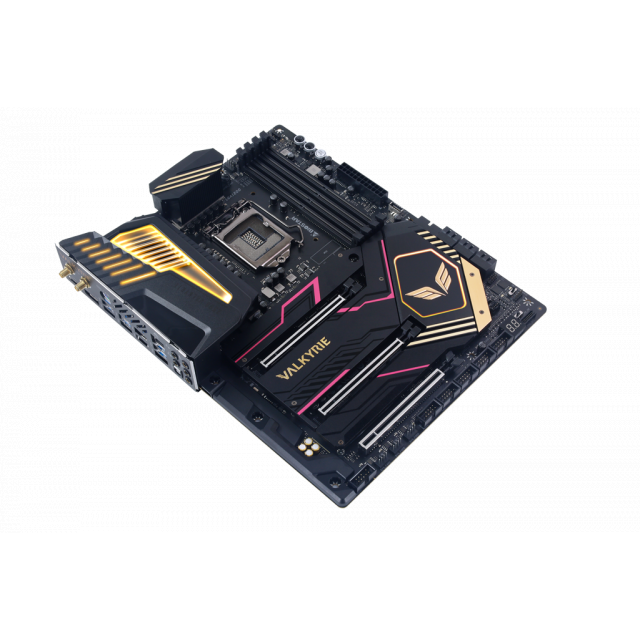

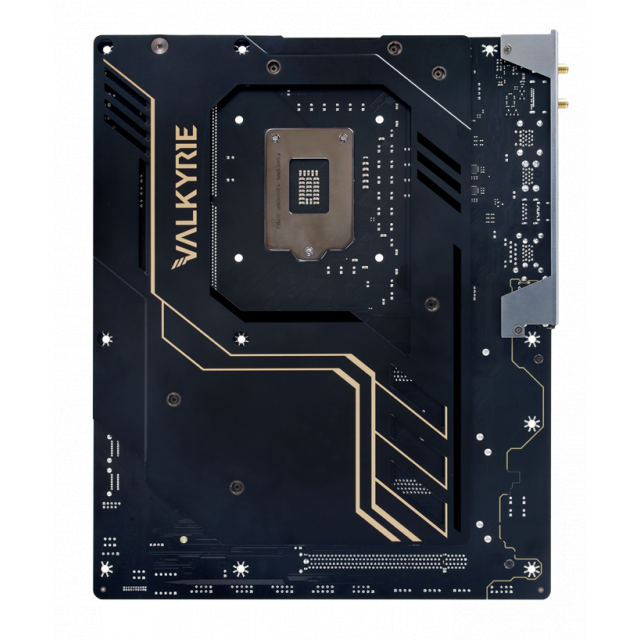

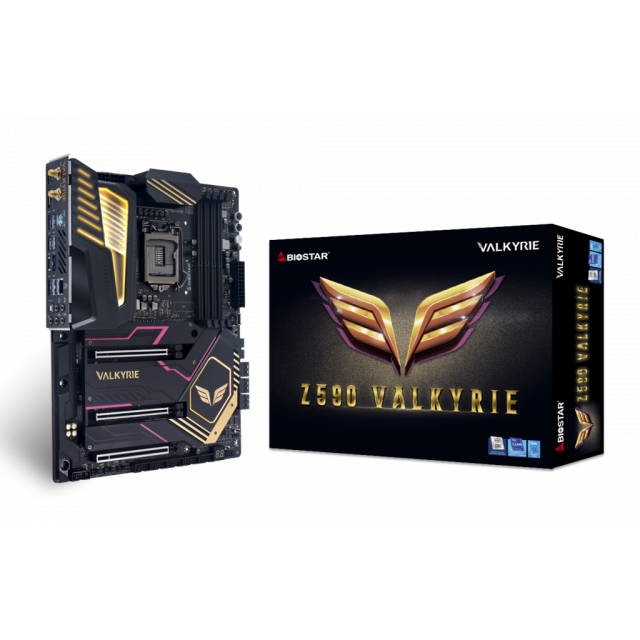

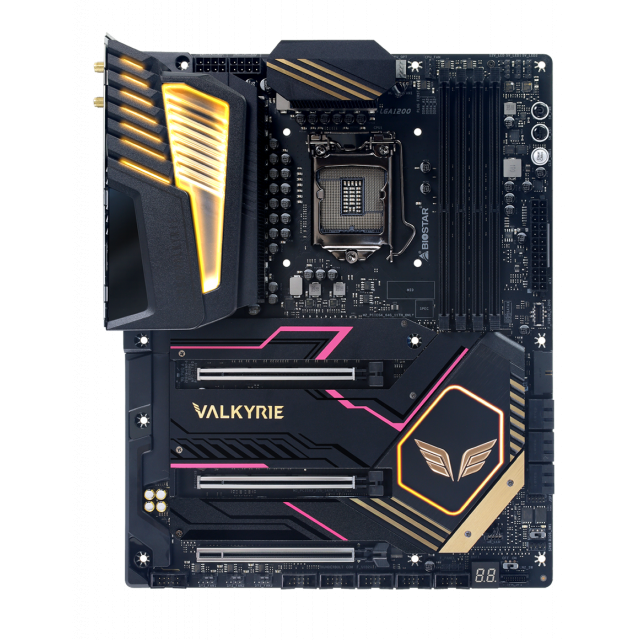

BIOSTAR Z590 VALKYRIE

Placa de baza BIOSTAR Z590 VALKYRIE, WI-FI 6, ATX, socket 1200

Cod produs: BIO-MB-Z590-VALKYRIE

nu este disponibil

Întrebare despre BIOSTAR Z590 VALKYRIE

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	Intel 1200
Form Factor	ATX
Chipset	Intel Z590
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 128 GB
Frecvența memoriei	până la 5000 MHz
Iluminare RGB	Dа
Memorie suportată	DDR4
Wi-Fi încorporat	Da

Related products

BIOSTAR Z590I VALKYRIE

Socket: Intel 1200

Form Factor: Mini-ITX

Chipset: Intel Z590

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

BIOSTAR H610MH D5

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 96 GB

BIOSTAR H410MHG

Socket: Intel 1200

Form Factor: Micro ATX

Chipset: Intel H410

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

BIOSTAR H81MHV3

Socket: Intel 1150

Form Factor: Micro ATX

Chipset: Intel H81

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 16 GB

BIOSTAR H61MHV3

Socket: Intel 1155

Form Factor: Micro ATX

Chipset: Intel H61

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 16 GB

BIOSTAR TB360-BTC PRO

Socket: Intel 1151

Form Factor: ATX

Chipset: Intel B360

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 32 GB

BIOSTAR H610MHC 2.0

Socket: Intel 1700

Form Factor: Micro ATX

Chipset: Intel H610

Numărul de sloturi pentru memorie: 2

Capacitate RAM: până la 64 GB

Suporta procesorul Intel Core ™ din generatia a 10-a / a 11-a
Arhitectura cu un singur cip Intel Z590
Suporta 4-DIMM DDR4- 2133/2400/2666/2800/2933 3200/3600 (OC) / 3733 (OC) / 3800 (OC) / 3866 (OC) / 4000 (OC) / 4133 (OC) / 4266 (OC) ) / 4333 (OC) / 5000+ (OC) pana la 128 GB memorie
Suporta PCIe 4.0
Suporta PCIe M.2 4.0 (64Gb / s)
Suporta tehnologia Intel Optane
Suporta Display Port 5K
Suporta 2,5 GbE LAN
Suporta USB 3.2 Gen2x2 tip C.
Suporta modulul WiFi 6 (fara card WiFi 6 inclus)

Chipset	Intel Z590
CPU SUPPORT	Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package Supports Intel Turbo Boost Max 3.0 Technology * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	-- Total supports 3 x M.2 socket and 6x SATA III (6Gb/s) ports 6 x SATA III (6Gb/s) Connector : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) Support 11th Gen processor only 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1): Supports M.2 Type 2280/ 22110 SSD module Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD Supports Intel Rapid Storage Technology and Intel Optane Technology 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_2): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD Supports Intel Rapid Storage Technology and Intel Optane Technology * M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only. * When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_RST_1), the SATA_5 connector will be disabled. * When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_2), the SATA_6 connector will be disabled.
LAN	Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC1220 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
USB	2 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O and 1 via internal header) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal header) 4 x USB 2.0 port (4 via internal header)
EXPANSION SLOT	1 x PCIe 4.0 x 16 Slot (x16 or x8 mode) 1 x PCIe 4.0 x 16 Slot (x8 mode) 1 x PCIe 3.0 x 16 Slot (x4 mode) * The PCIe x 16 (PCIE4X16) slot speed is changed to x 8 mode in the following situations: 1. The use of the PCIe x16 (PCIE4X16) slot and PCIe x 8 (PCIE4X8) slot simultaneously. 2. When using AMD Crossfire™ technology. * According to different CPUs will have different speeds. * PCIe 4.0 speed only for INTEL 11th Gen CPUs.

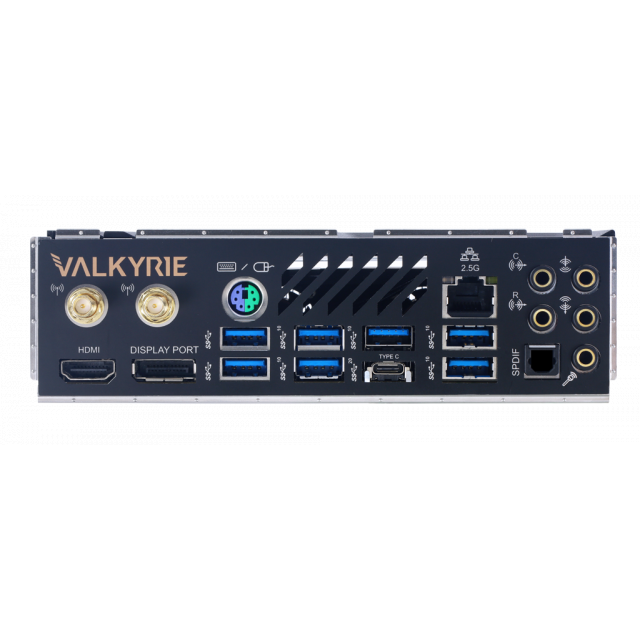

REAR I/O	2 x WIFI Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI Port (HDMI2.0) 1 x DP Port (DP1.4) 1 x USB 3.2 (Gen2x2) Type-C Port 5 x USB 3.2 (Gen2) Ports 2 x USB 3.2 (Gen1) ports 1 x 2.5 GbE LAN port 5 x Audio Jack 1 x SPDIF_Out
INTERNAL I/O	6 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port) 2 x 8-Pin Power Connectors 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 2 x MOSFET Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Switch Button 1 x Power Switch Button 1 x Reset Switch Button 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x IO LED Header 1 x SB LED Header * M.2 (E key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring
DIMENSION	ATX Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )
OS SUPPORT	Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard AURORA Utility
ACCESSORIES	4 x SATA Cable 1 x DVD Driver 1 x User Manual 1 x Smart Connector
FEATURES	VIVID LED DJ M.2 Cooling Protection Touch Button Dual BIOS Tweak Tech Rapid Debug3 BIO-FLASHER A.I FAN LED ROCK ZONE RGB Memory Sync BIOS EZ Mode /Advanced Mode Intel Optane technology
