BIOSTAR H410MHG

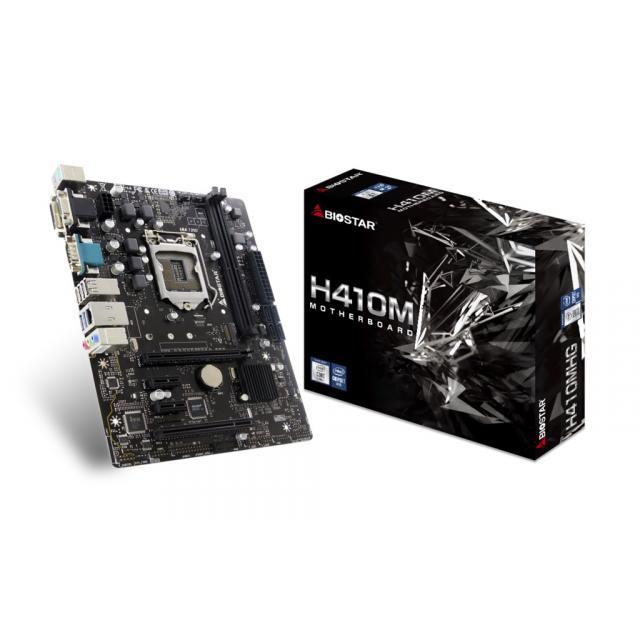

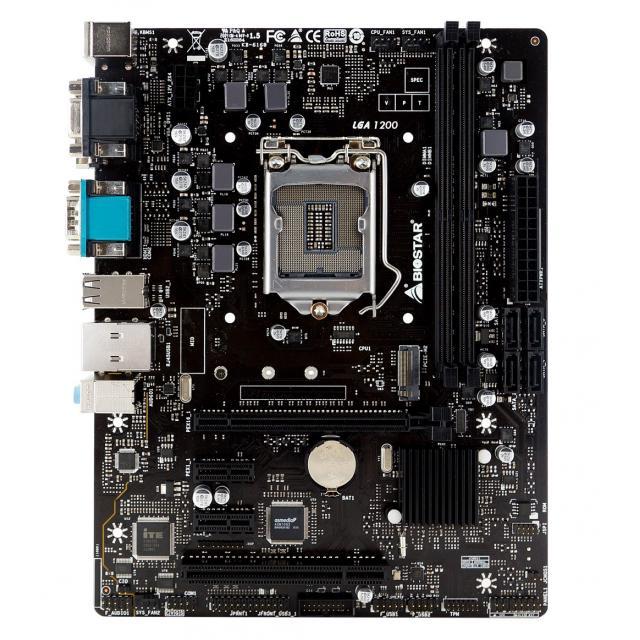

Placa de baza BIOSTAR H410MHG Version 6.0, mATX, socket 1200
Cod produs: BIO-MB-H410MHG
Întrebare despre BIOSTAR H410MHG
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Socket | Intel 1200 |
| Form Factor | Micro ATX |
| Chipset | Intel H410 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 64 GB |
| Frecvența memoriei | până la 2933 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR4 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
Intel 1150
Form Factor:
Micro ATX
Chipset:
Intel H81
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 16 GB
Socket:
Intel 1155
Form Factor:
Micro ATX
Chipset:
Intel H61
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 16 GB
Socket:
Intel 1151
Form Factor:
ATX
Chipset:
Intel B360
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 32 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1200
Form Factor:
ATX
Chipset:
Intel Z590
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1200
Form Factor:
Mini-ITX
Chipset:
Intel Z590
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
- Supporta a 10-a Generatie Procesori Intel Core™
- Arhitectura Intel H410 cu un singur cip
- Supporta 2-DIMM DDR4- 2933/ 2666/ 2400/2133/ 1866 pana la 64 GB memorie
- Supporta PCIe 3.0
- Supporta PCIe M.2 (32Gb/s)
- Supporta USB 3.2 Gen1
Chipset |
Intel H410 |
CPU SUPPORT |
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package * Please refer to www.biostar.com.tw for CPU support list. |
MEMORY |
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module * Please refer to Memory Support List for more information. Core (i9/i7) support DDR4 up to 2933 MHz; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666 MHz. |
INTEGRATED VIDEO |
By CPU model Supports DX12 Supports HDCP |
STORAGE |
Total supports 1 x M.2 slots and 4 x SATA III(6Gb/s) ports 1 x PCIe-M2 socket , with M key, type 2242/2260/2280 storage devices support SATA & PCIE 3.0 x 2 mode 4 x SATA III (6Gb/s) * When using SATA SSD module on M.2(PCIe-M2)slot, the SATA_1 connector will be disabled. |
LAN |
RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
AUDIO CODEC |
ALC887 7.1 Channels, High Definition Audio |
USB |
4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
EXPANSION SLOT |
1 x PCI Slot 2 x PCIe 3.0 x 1 Slots 1 x PCIe 3.0 x 16 Slot |

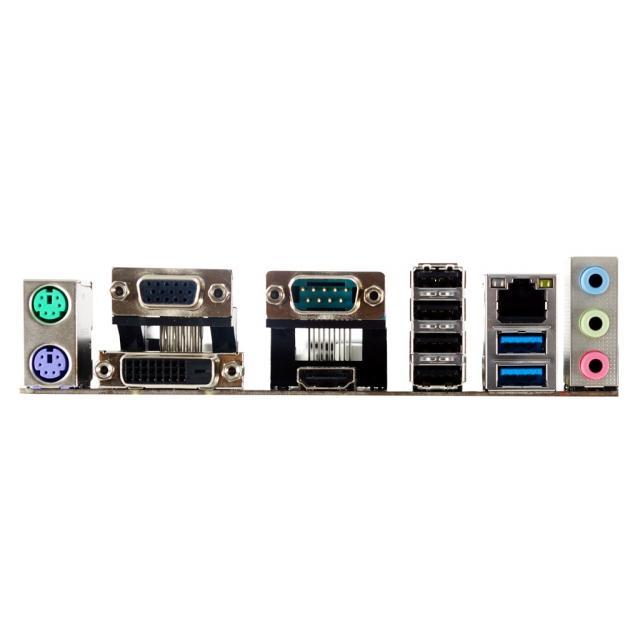

REAR I/O |
1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x DVI-D Port 1 x VGA Port 1 x HDMI Port 1 x COM Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
INTERNAL I/O |
4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Printer Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Instruction Header |
H/W MONITORING |
CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
DIMENSION |
Micro ATX Form Factor Dimension: 19.1cm x 24.4cm ( W x L ) |
OS SUPPORT |
Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
BUNDLE SOFTWARE |
BullGuard |
ACCESSORIES |
2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
FEATURES |
Supports 100% Solid capacitor |
Caution!! The specification and pictures are subject to change without notice!
