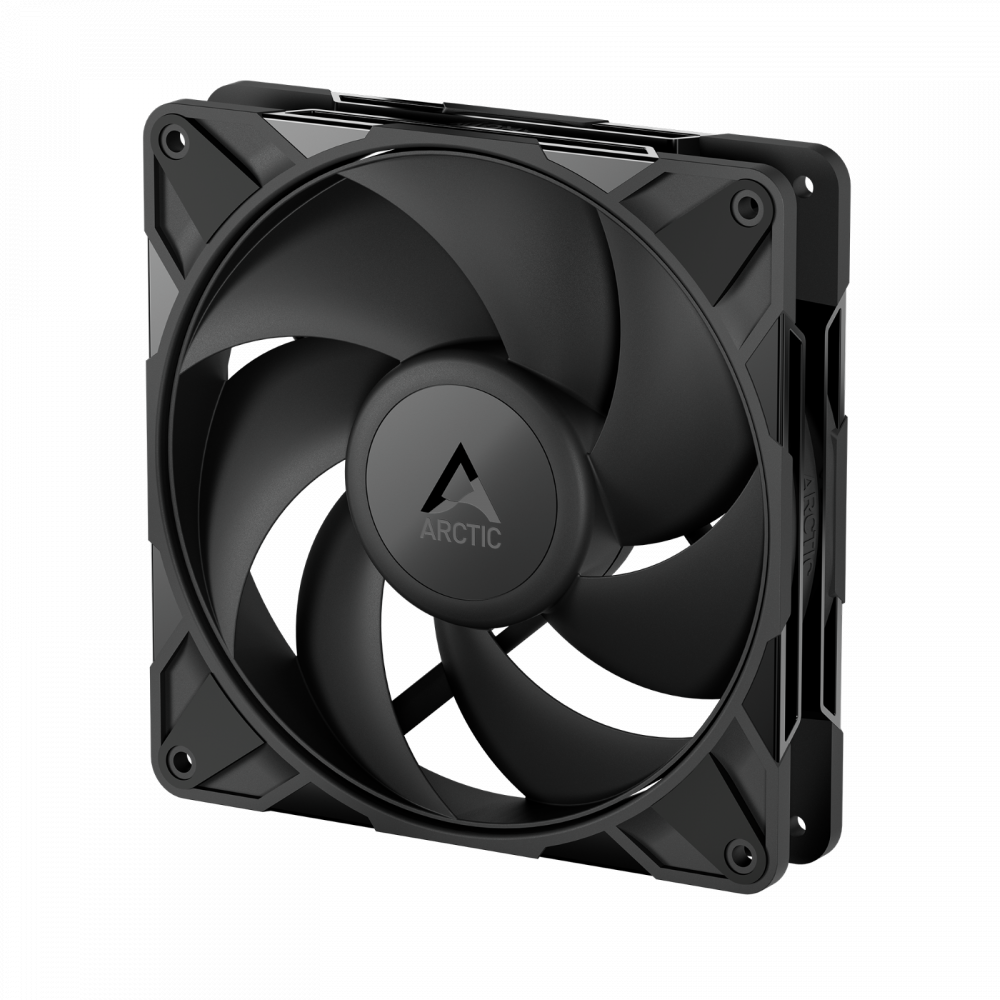

Arctic P14 Pro PST CO

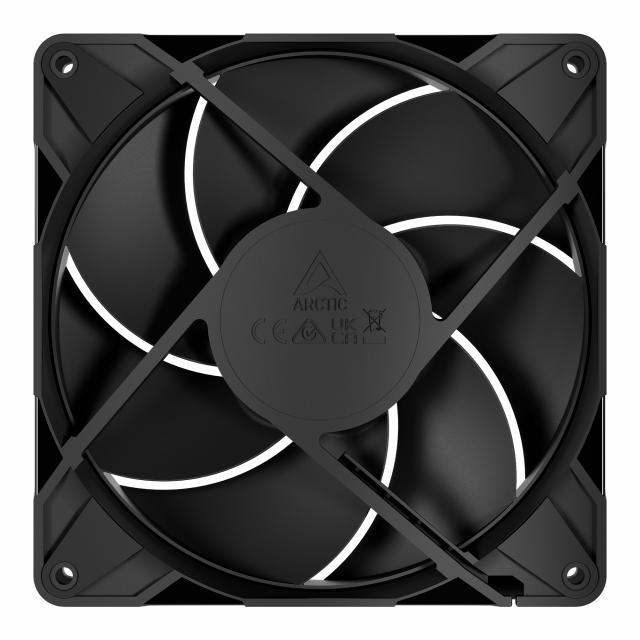

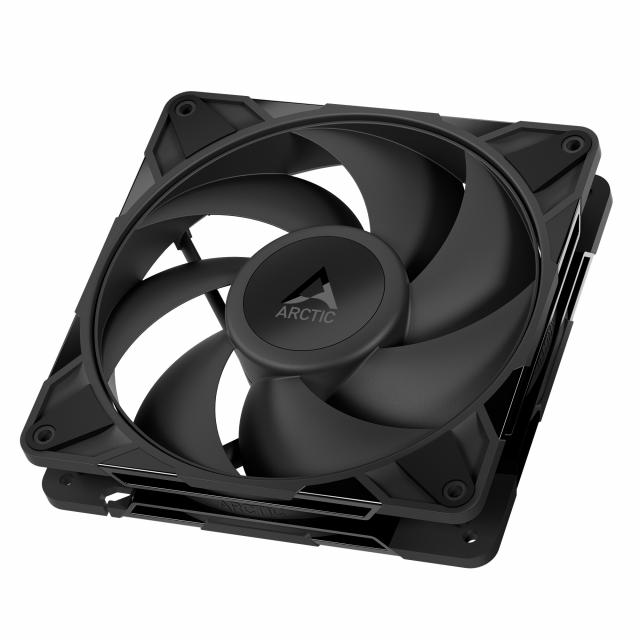

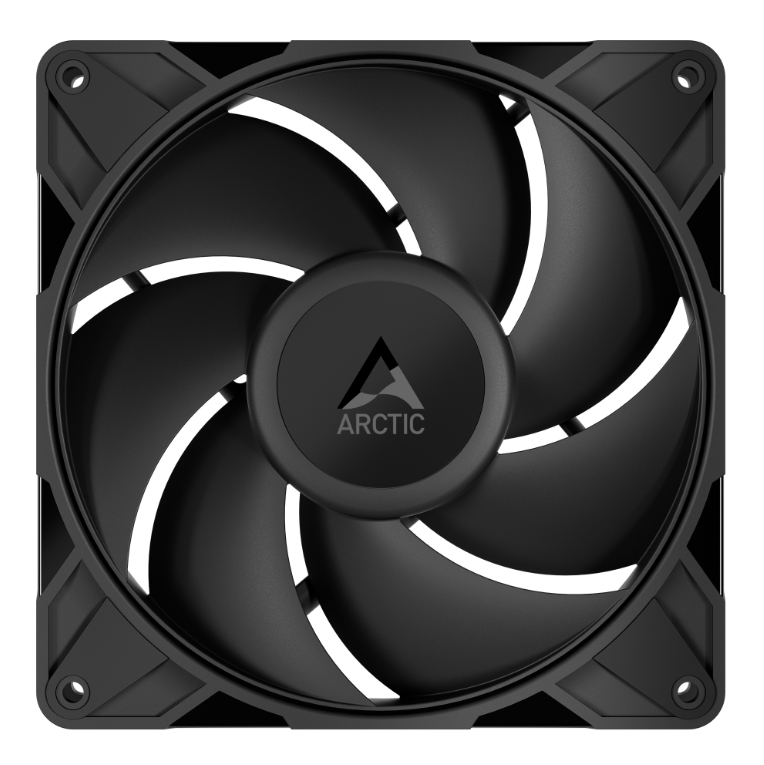

Ventilator ARCTIC P14 Pro PST CO - 140mm PWM

Cod produs: ARCTIC-FAN-ACFAN00316A
nu este disponibil

Întrebare despre Arctic P14 Pro PST CO

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 72 luni
Dimensiuni 140 x 140 x 27 mm
Turație până la 2500 RPM
Flux de aer până la 110 CFM
Conector 4-pin PWM
Reverse Nu
Culoare Negru
Iluminare Nu

Related products

ARCTIC P14 Pro PST CO este un ventilator de 140 mm, proiectat pentru functionare continua 24/7 datorita rulmentilor dubli cu bile si constructiei avansate. Este ideal pentru servere, statii de lucru si sisteme cu sarcina ridicata.

Caracteristici principale

  • Dimensiune: 140 mm

  • Turatie: 400–2500 RPM cu control PWM

  • Nivel de zgomot: pana la 25 dB(A) — silentios chiar si la performanta ridicata

  • Rulment: Double Ball Bearing (DBB) — durata de viata extinsa, rezistenta la praf si temperaturi ridicate

  • Conector: 4-pin PWM + PST (PWM Sharing Technology) — permite sincronizarea mai multor ventilatoare

  • Oprire sub <5% PWM: ventilatorul poate opri complet la sarcina redusa

Performanta si durabilitate


  • Presiune statica ridicata: eficient pentru radiatoare, filtre si panouri dense

  • Distante minime intre pale si rama: pentru eficienta maxima

  • Echilibrare automata pe doua axe: reduce vibratiile si zgomotul

  • Microcontroler de noua generatie: reduce zgomotul motorului si protejeaza impotriva socurilor electrice si polaritatii inverse

  • „CO” = Continuous Operation: ventilator proiectat pentru functionare neintrerupta, fara compromisuri la fiabilitate

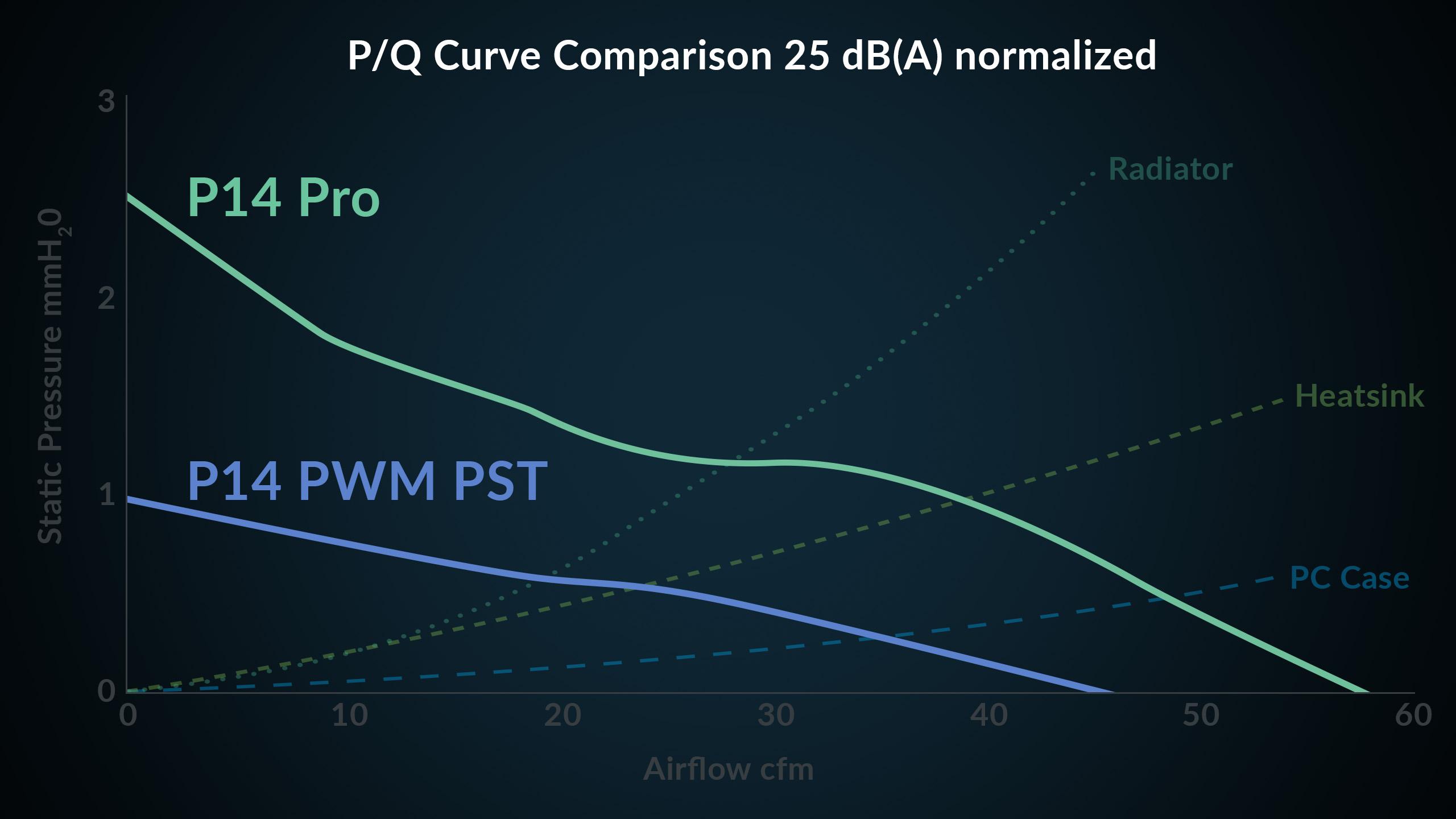

Efficient Performance at High Air Resistance



Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.

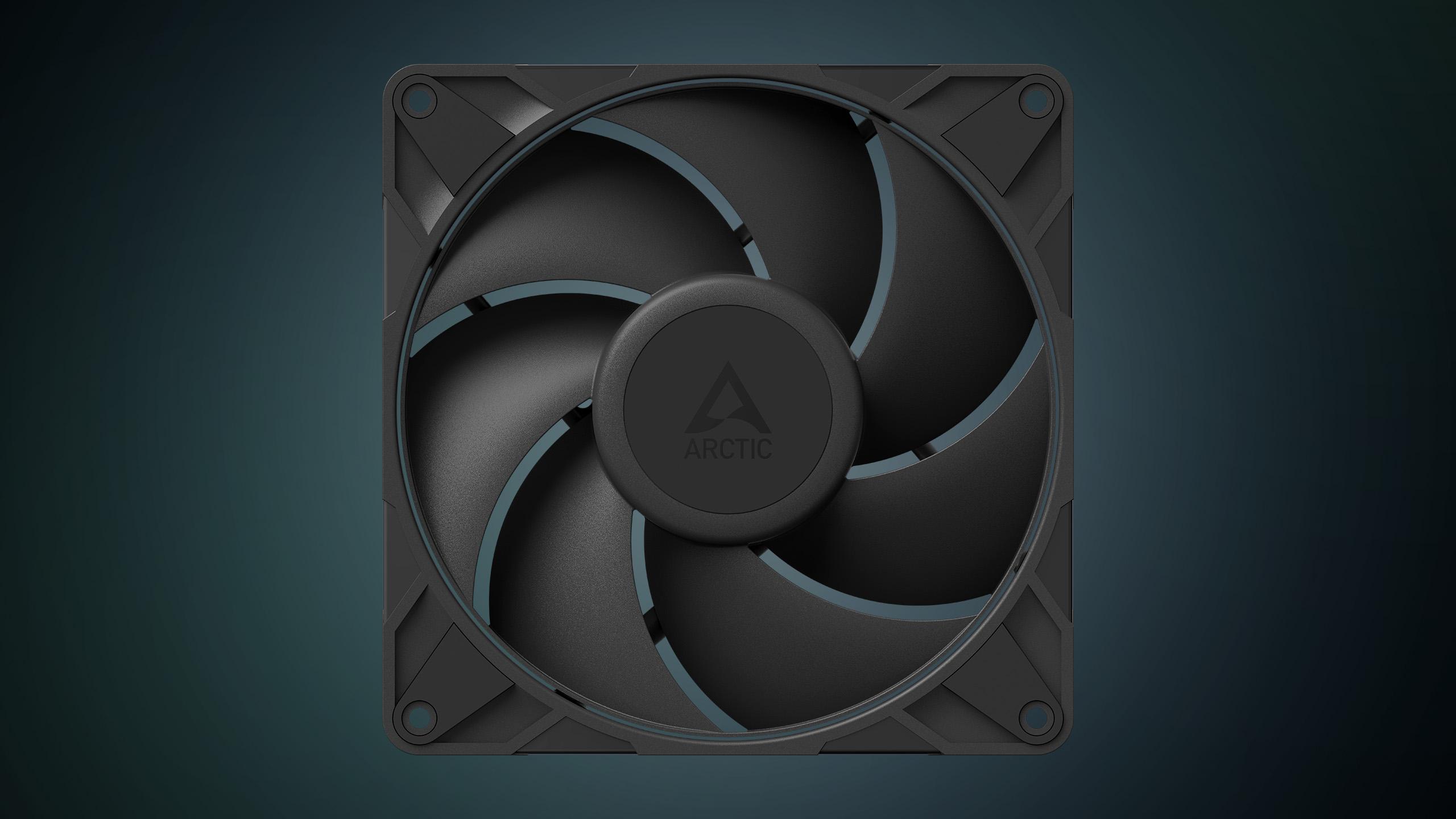

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

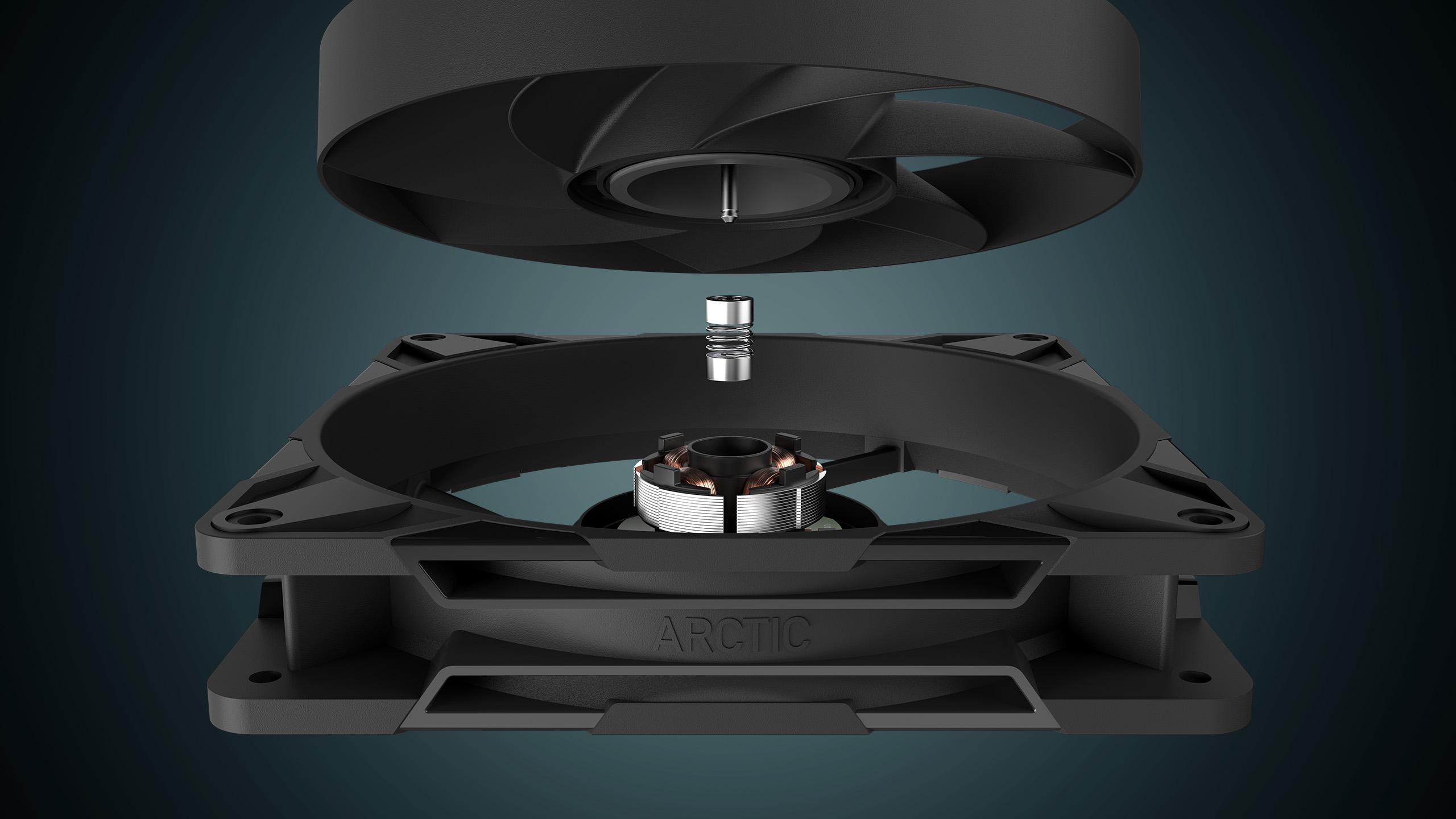

Optimized Bearing-Shaft Design (DBB)

A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.





Automated Two-Plane Balancing



An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

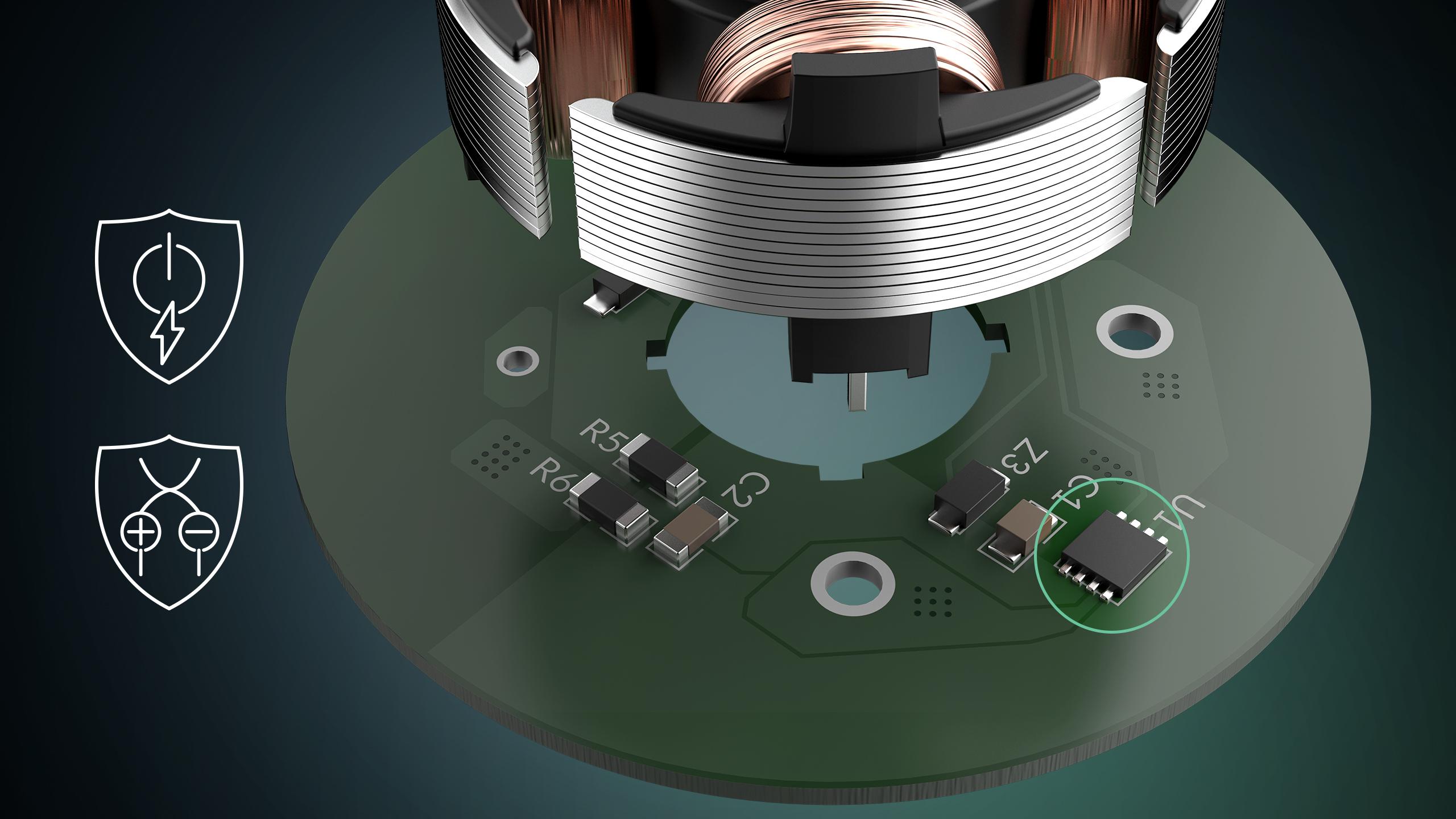

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

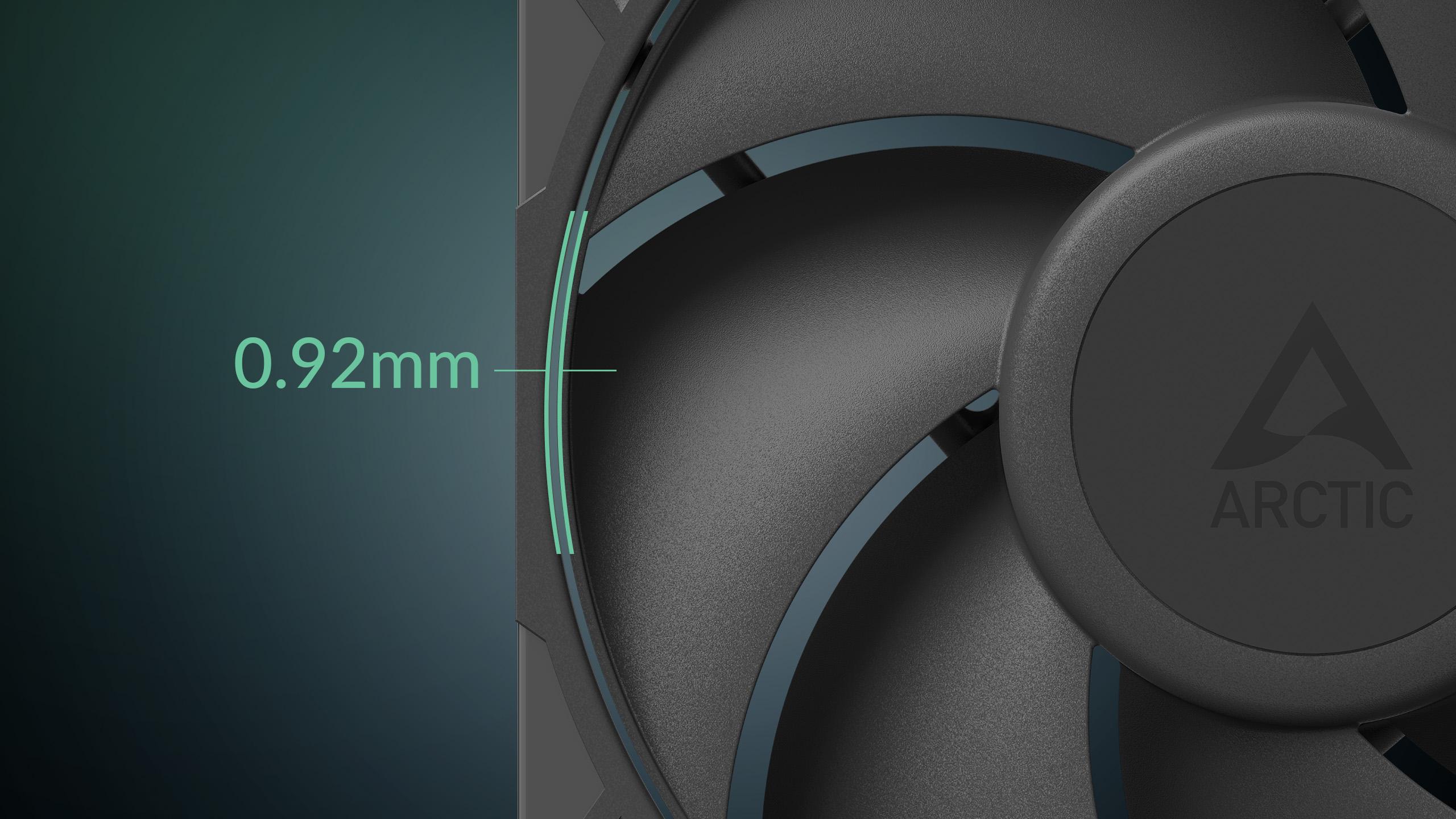

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.





PST – PWM-Based Synchronized Fan Control



An additional PWM connector allows multiple fans to be synchronized in series using a single header.







Specifications



Fan Specifications

Fan Speed 400–2500 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow 110 cfm | 186 m³/h
Static Pressure 5.2 mmH2O
Fan Bearing Dual Ball Bearing
Typical Voltage 12 V DC
Start Up Voltage 5 V DC
Current 0.35 A
Cable Length 400 mm + 80 mm Daisy-Chain Cable
Connector 4-Pin Fan Plug + 4-Pin Socket



General Specifications

Operating Ambient Temperature 0–40 °C

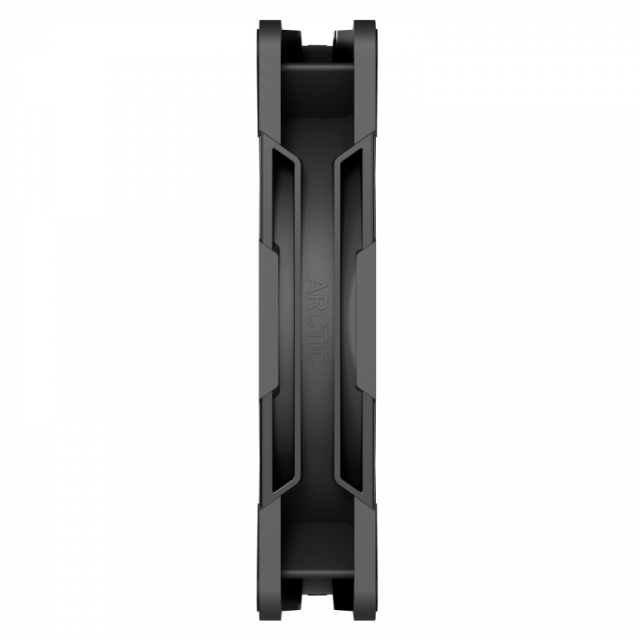

Dimensions 140 (L) x 140 (W) x 27 (H) mm
Net Weight 242 g
Packaging

Width: 145 mm
Height: 32 mm
Length: 145 mm
Weight: 0.294 kg
