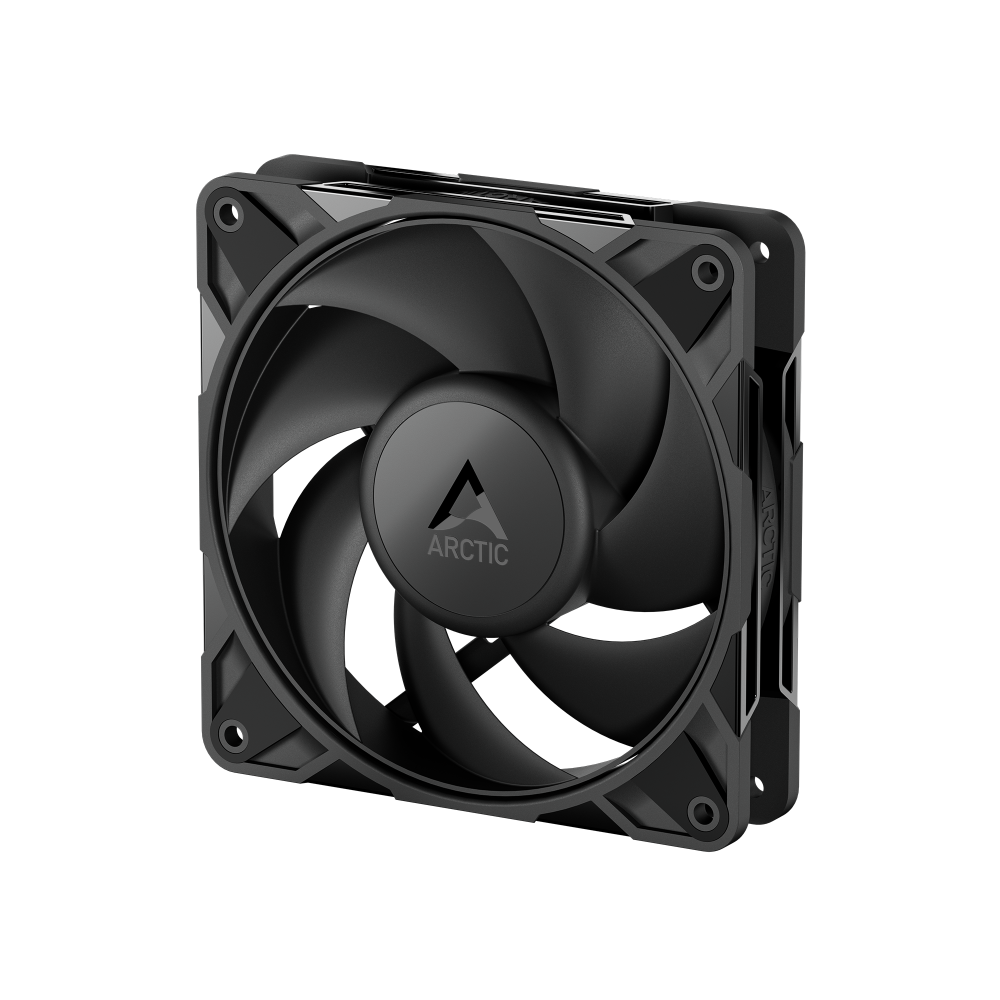

ARCTIC P12 Pro
Ventilator ARCTIC P12 Pro 120mm PWM
Întrebare despre ARCTIC P12 Pro
| Garanție | 72 luni |
| Dimensiuni | 120 x 120 x 25 mm |
| Turație | până la 3000 RPM |
| Flux de aer | până la 77 CFM |
| Conector | 4-pin PWM |
| Reverse | Nu |
| Culoare | Negru |
| Iluminare | Nu |
Related products
ARCTIC P12 Pro este un ventilator de 120 mm conceput pentru presiune statica ridicata, eficienta excelenta pe radiatoare si panouri dense, cu un design al palelor optimizat pentru performanta si zgomot redus. Combinatia dintre rulmentul fluid dynamic, microcontrollerul avansat si procesul automat de echilibrare ofera functionare lina, silentioasa si fiabila.
- Presiune statica ridicata – ideal pentru radiatoare, panouri perforate si filtre dense, mentinand un flux de aer puternic chiar si cu rezistenta.
- Design cu 7 pale optimizate – creste eficienta aerodinamica si reduce zgomotul, oferind performanta superioara fata de generatiile anterioare.
- Rulment FDB imbunatatit – reduce vibratiile si asigura o durata de viata mai mare si functionare silentioasa.
- Microcontroller SOTA – minimizeaza zgomotul motorului, stabilizeaza functionarea si protejeaza impotriva fluctuatiilor de sarcina.
- Echilibrare automata – proces de calibrare de mare precizie pentru vibratii reduse si performanta constanta.
- Control PWM cu plaja larga – permite ajustarea precisa a turatiei intre 600 si 3000 RPM pentru echilibru optim intre racire si silentiozitate.
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.

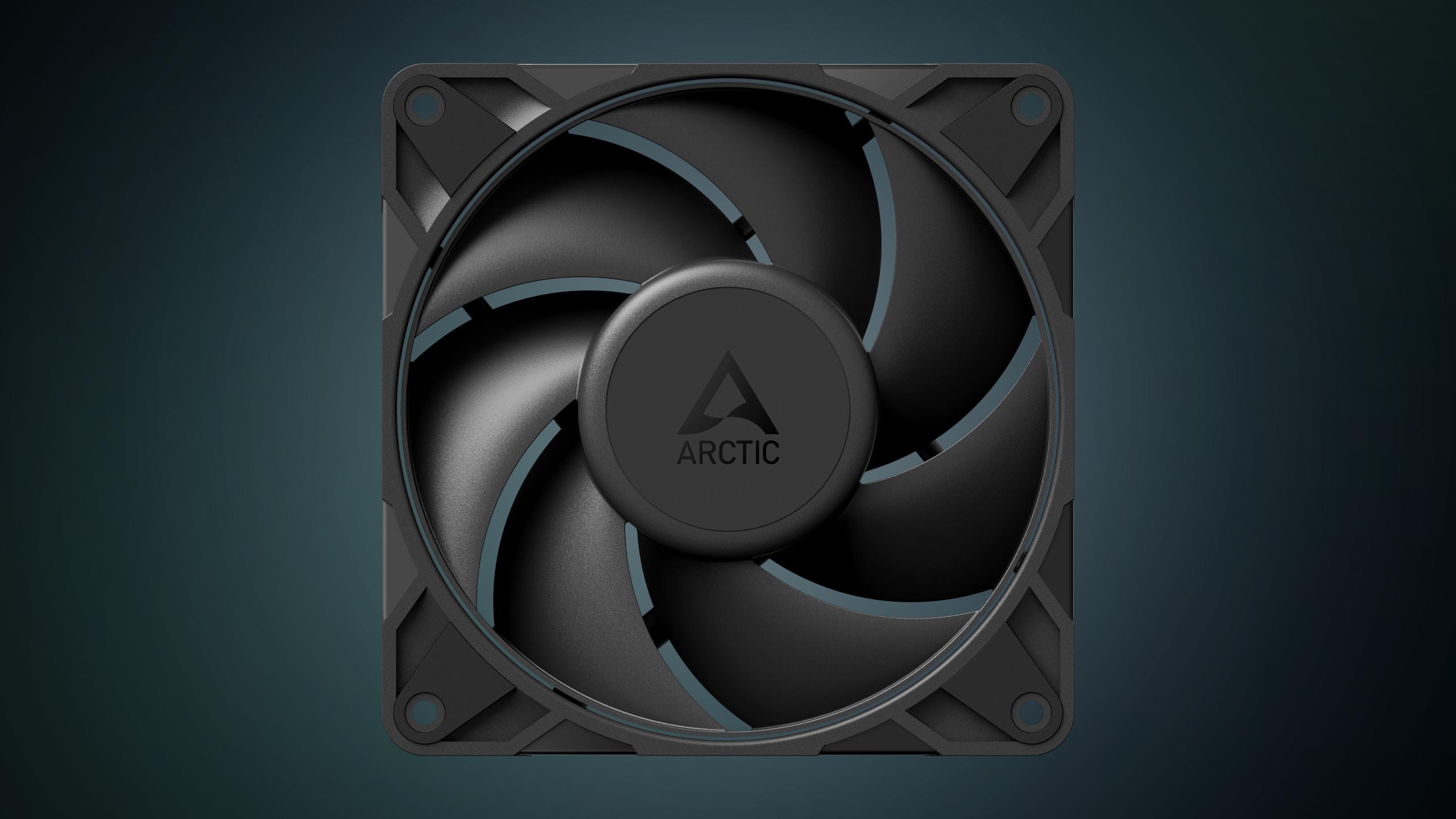

Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

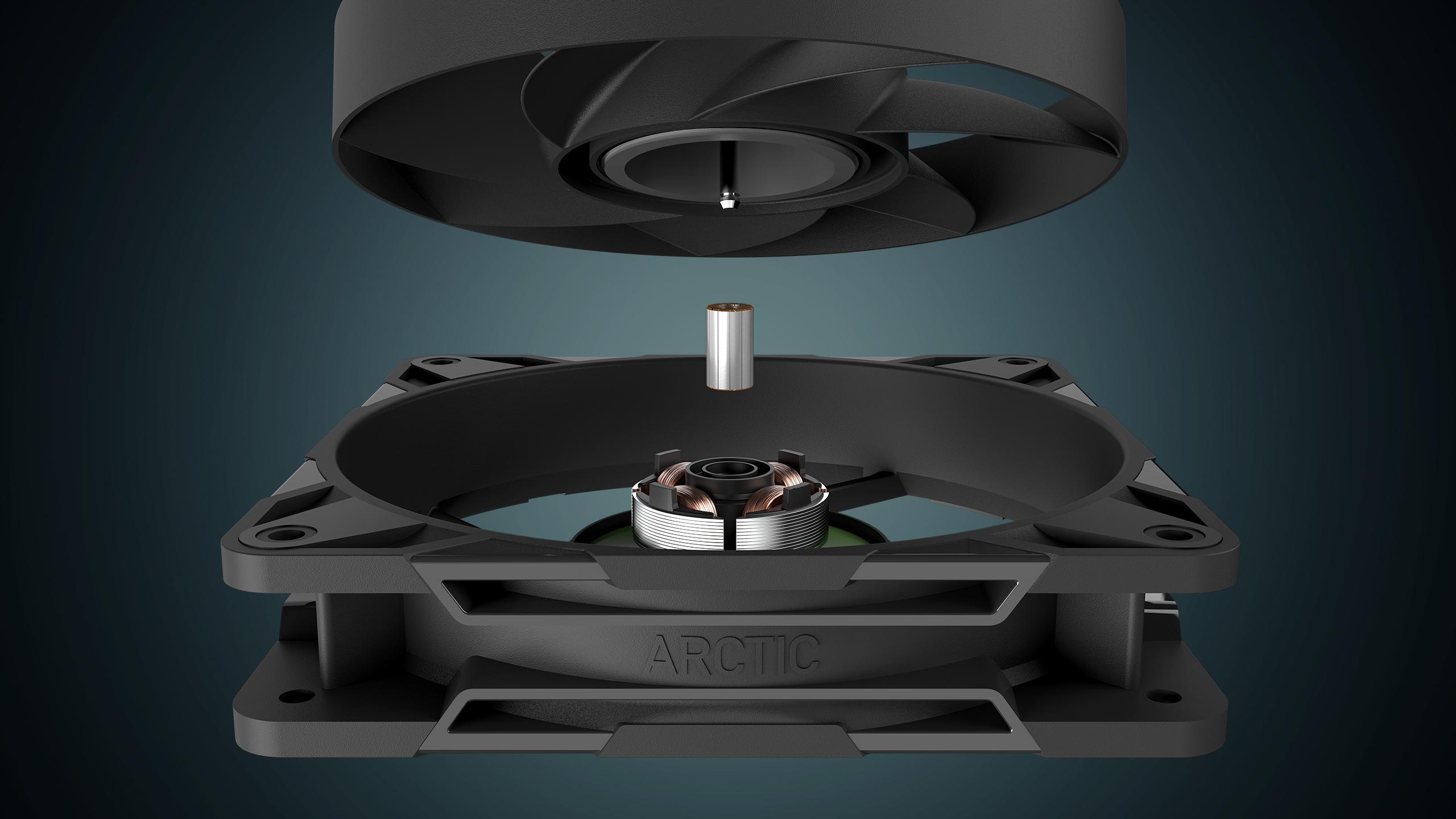

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

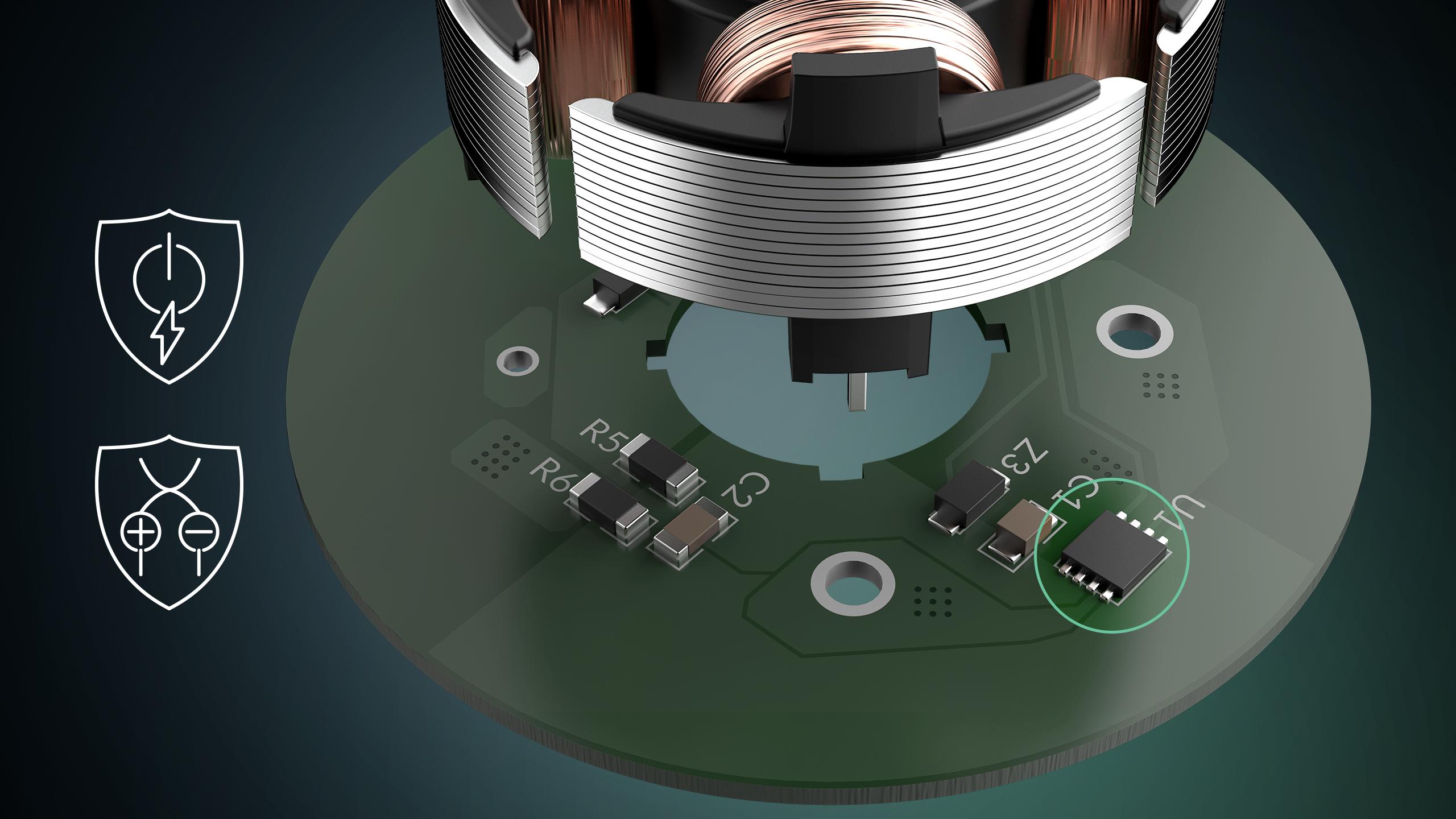

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

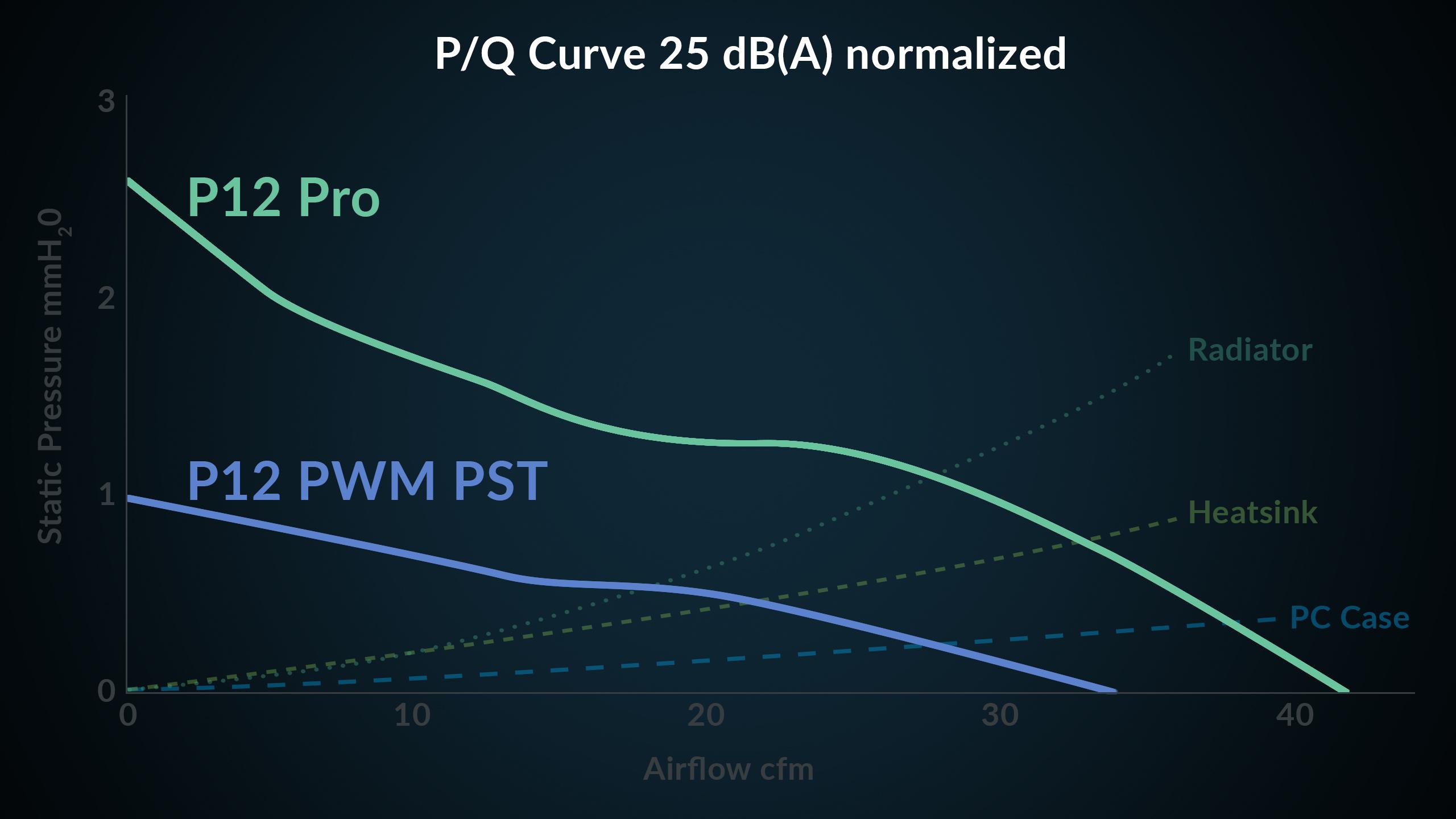

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

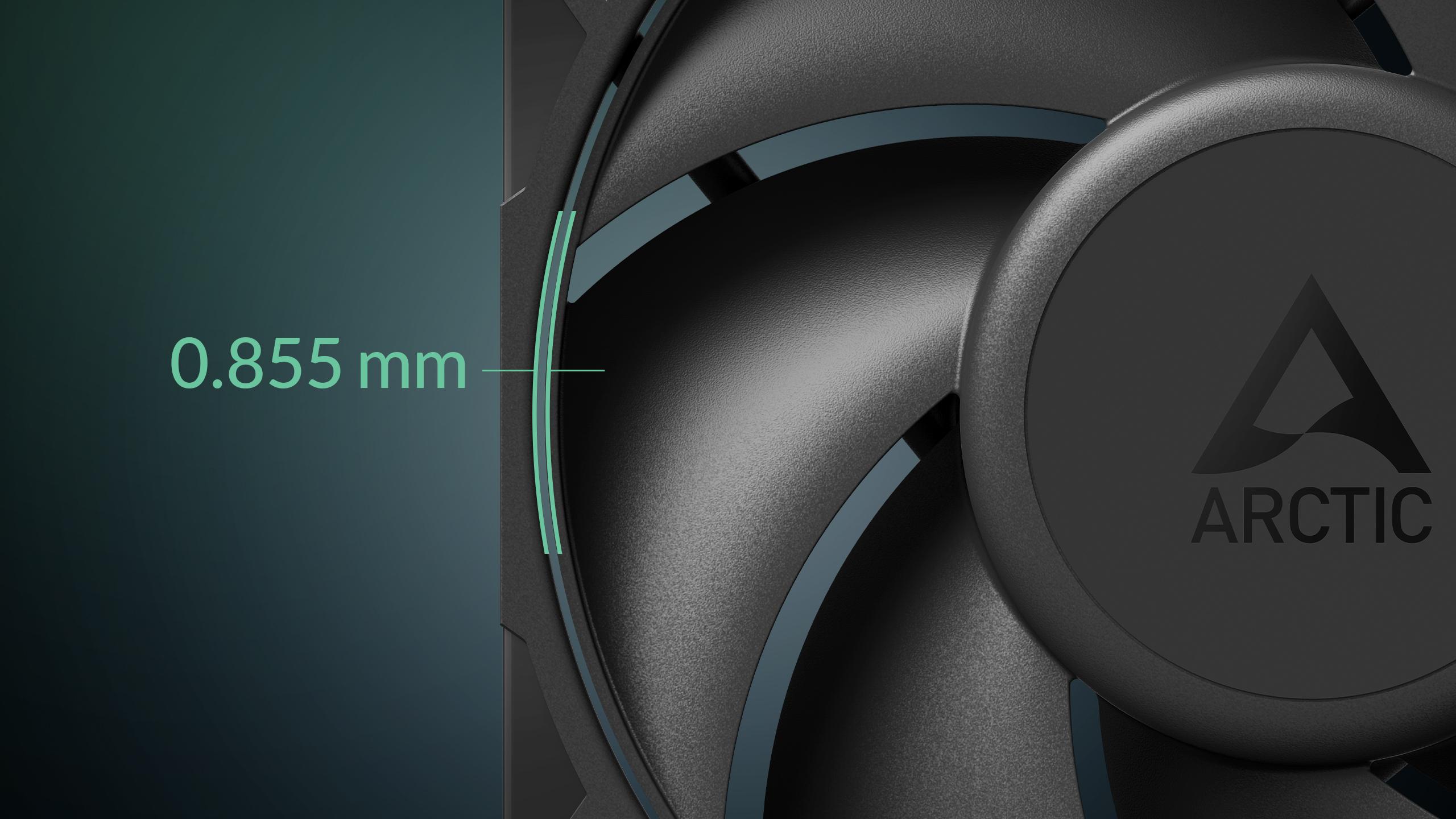

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
Specifications
Fan Specifications
| Fan Speed | 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm |
| Connector | 4-Pin Fan Plug |
General Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 183 g |
| Packaging |
Width: 125 mm |
