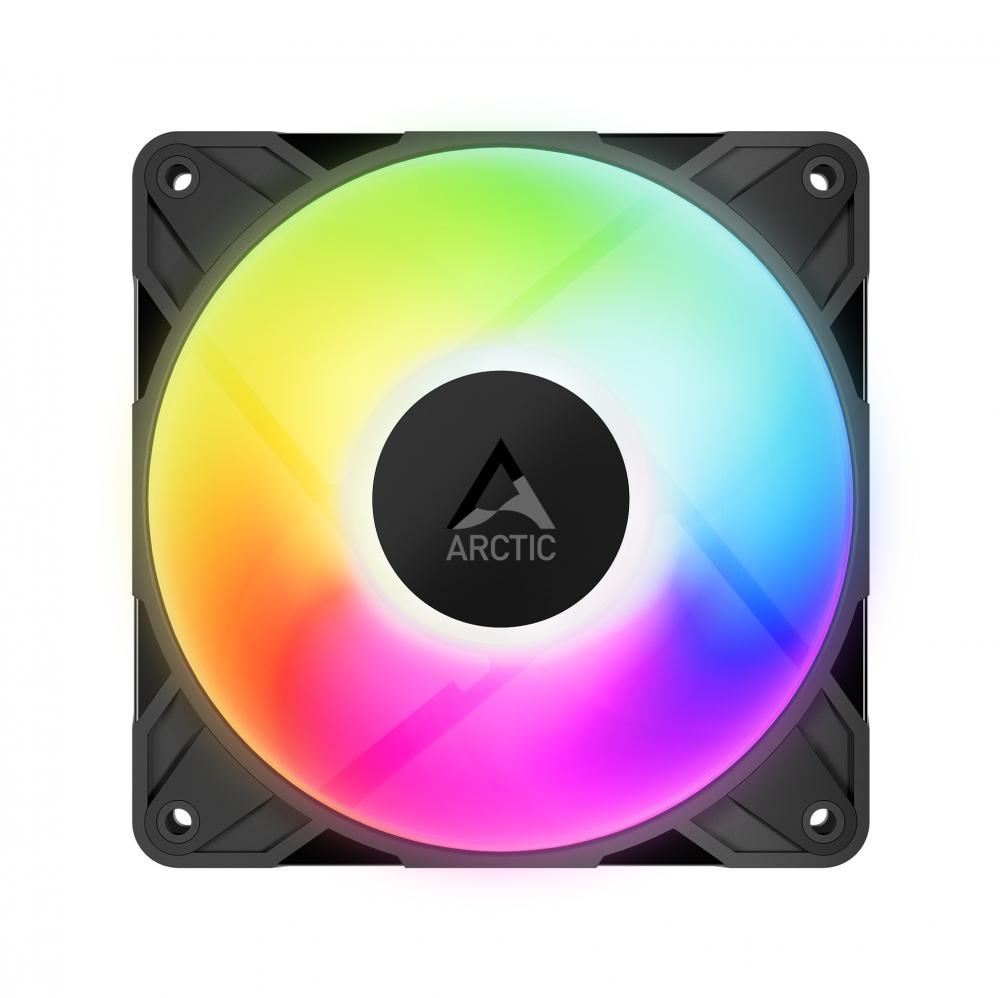

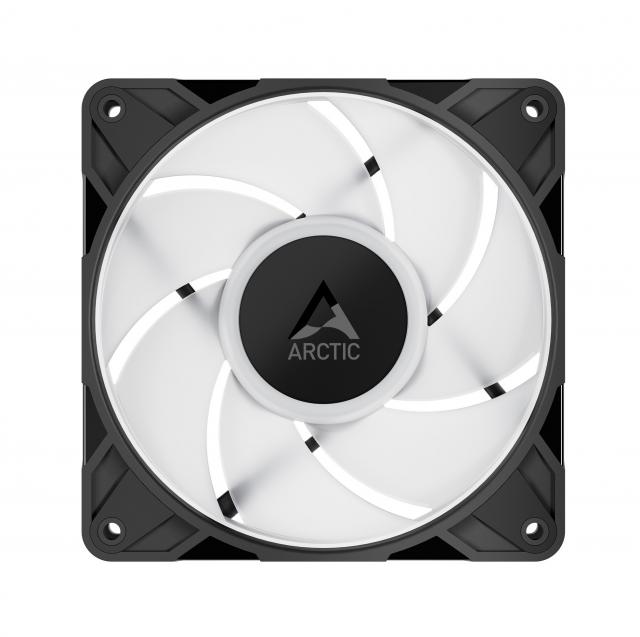

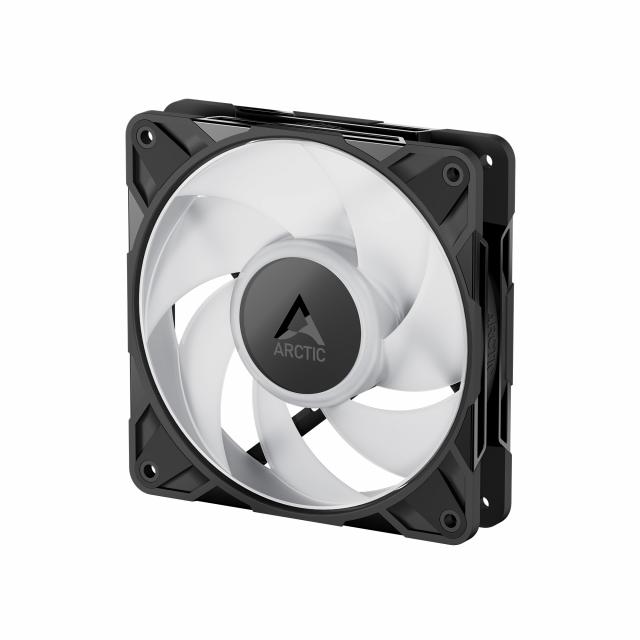

ARCTIC P12 Pro A-RGB
Ventilator ARCTIC P12 Pro A-RGB 120mm PWM
Întrebare despre ARCTIC P12 Pro A-RGB
| Garanție | 72 luni |
| Dimensiuni | 120 x 120 x 25 mm |
| Turație | până la 3000 RPM |
| Flux de aer | până la 77 CFM |
| Conector | 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Nu |
| Culoare | Negru |
| Iluminare | ARGB |
Related products
ARCTIC P12 Pro A-RGB este un ventilator de 120 mm cu iluminare A‑RGB adresabila, construit pentru presiune statica ridicata si performanta excelenta pe radiatoare si carcase restrictive. Motorul optimizat, rulmentul FDB si controlul PWM asigura functionare lina, silentioasa si eficienta, iar iluminarea uniforma adauga un plus de stil oricarui build.

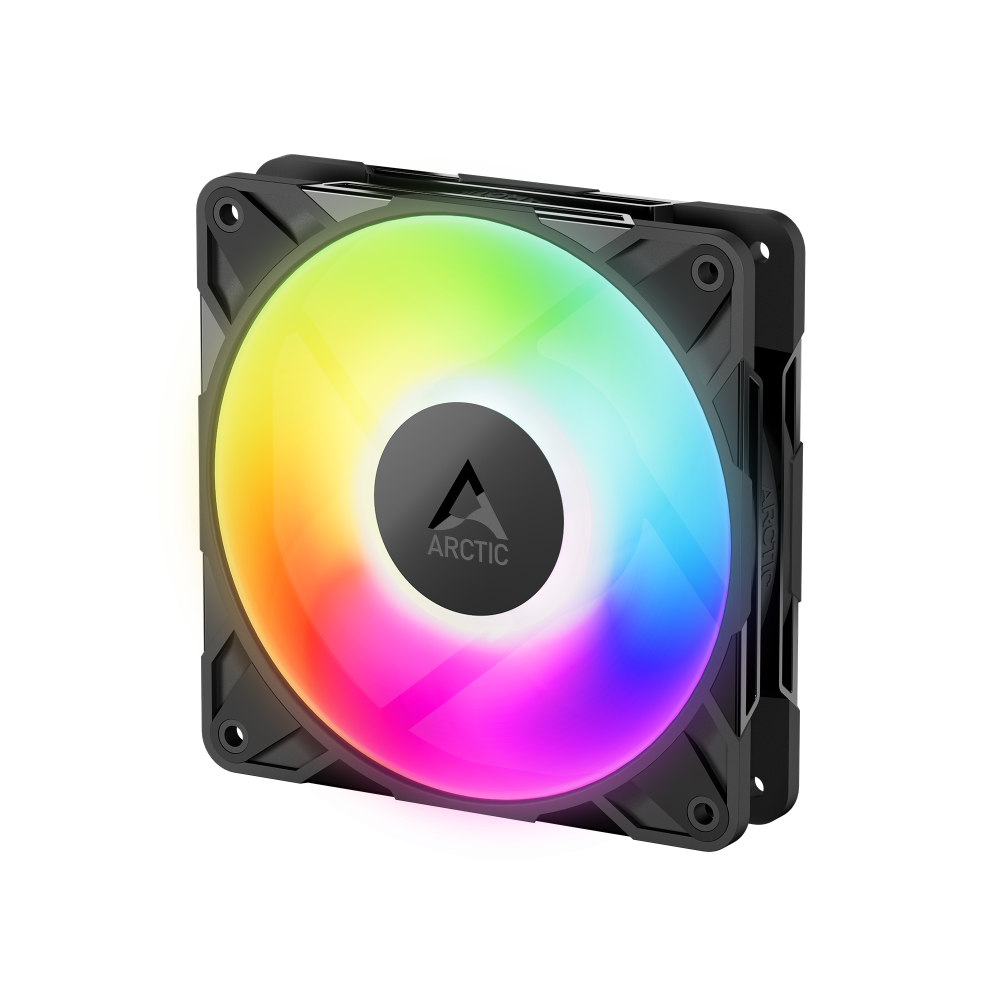

- Iluminare A‑RGB adresabila – LED-uri integrate cu efecte uniforme si compatibilitate larga cu controlere si software de la producatori populari.
- Presiune statica ridicata – ideal pentru radiatoare AIO, coolere tower si panouri dense, mentinand flux de aer puternic.
- Motor si pale optimizate – design aerodinamic pentru performanta crescuta si zgomot redus chiar la turatii mari.
- Rulment FDB de calitate – durabilitate ridicata, vibratii reduse si functionare silentioasa pe termen lung.
- Control PWM extins – permite ajustarea precisa a turatiei pentru echilibru perfect intre racire si silentiozitate.
- Constructie solida – materiale rezistente si stabilitate buna, potrivite pentru sisteme de gaming si workstation.
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

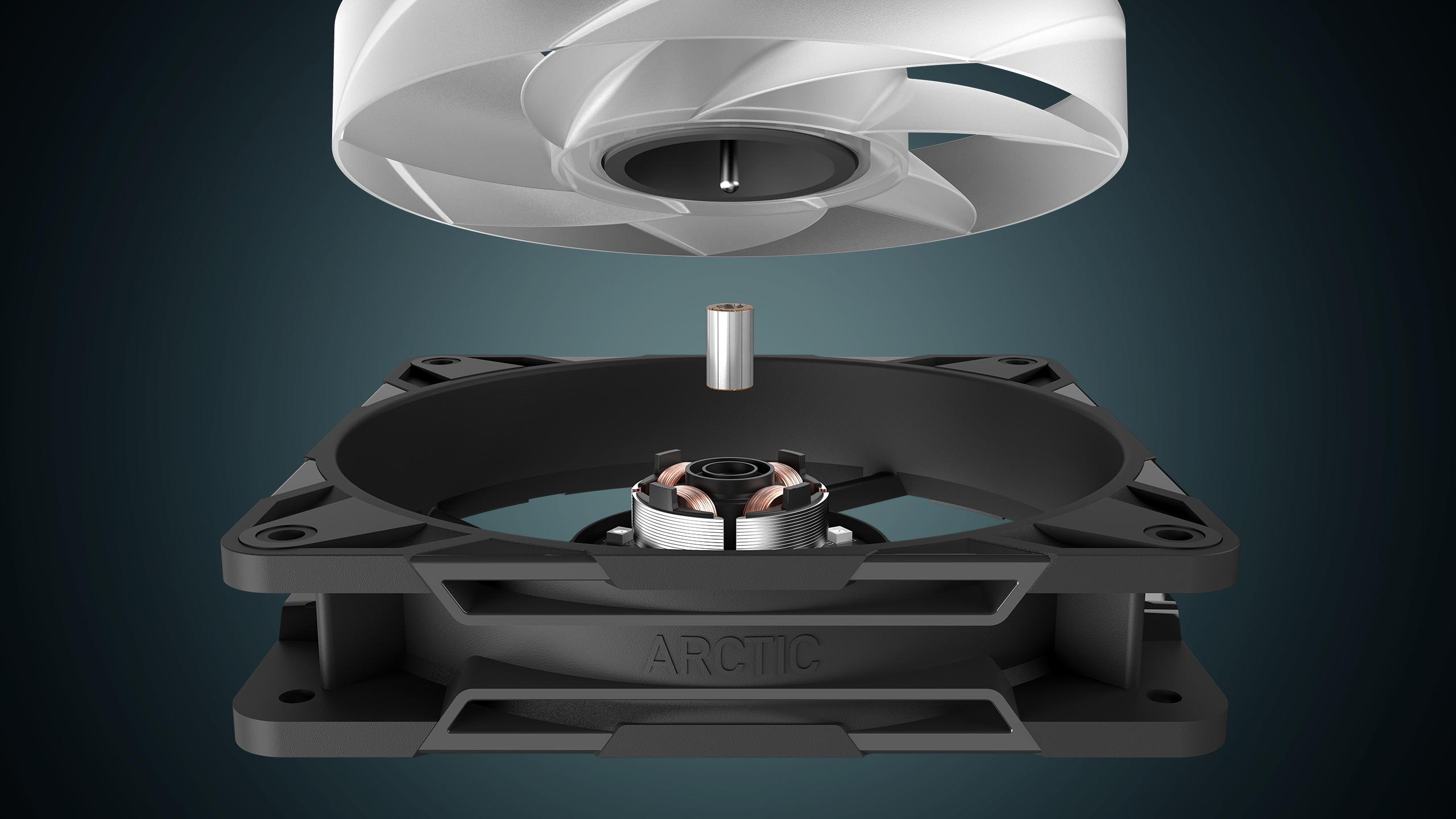

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

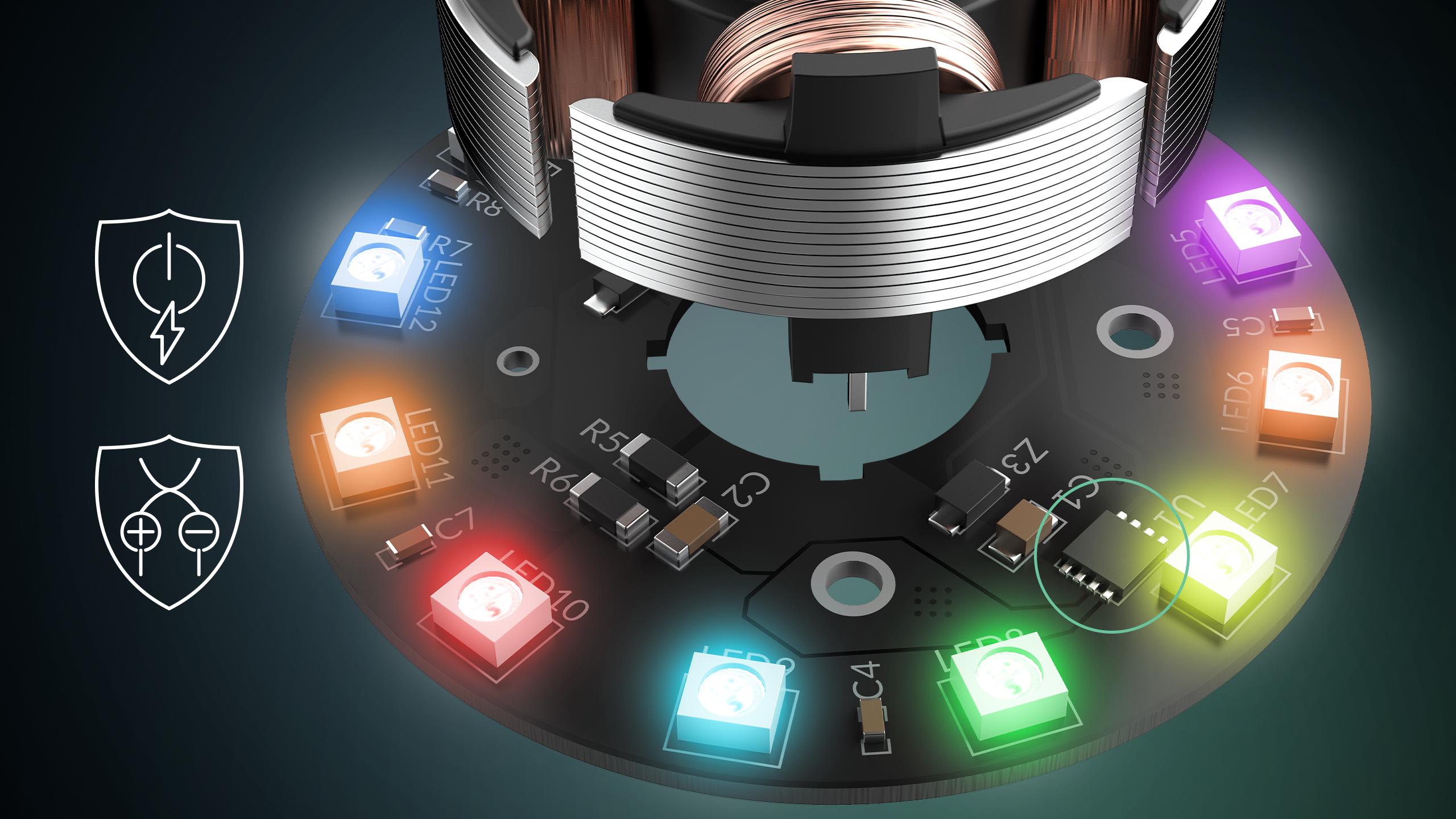

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

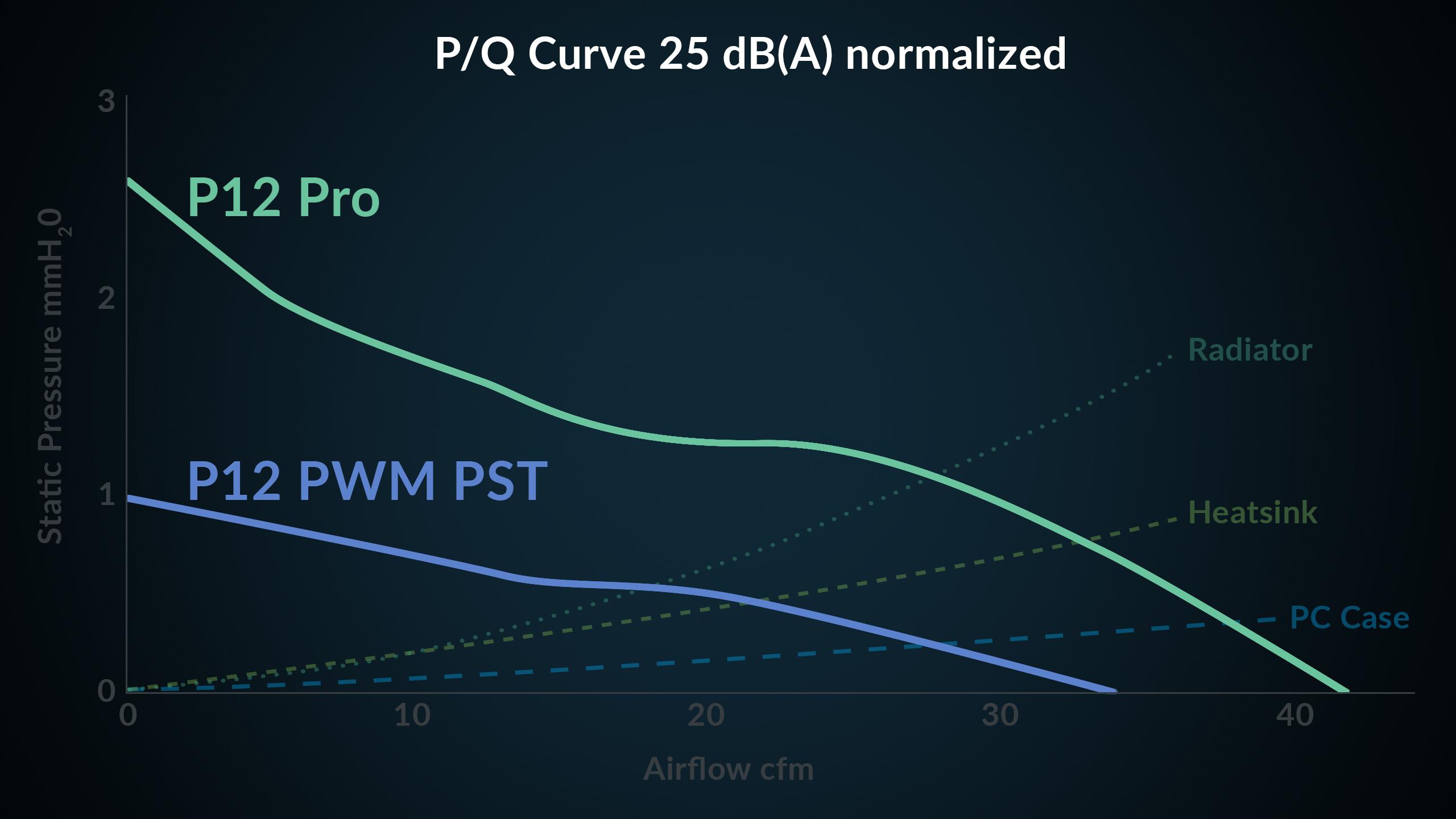

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

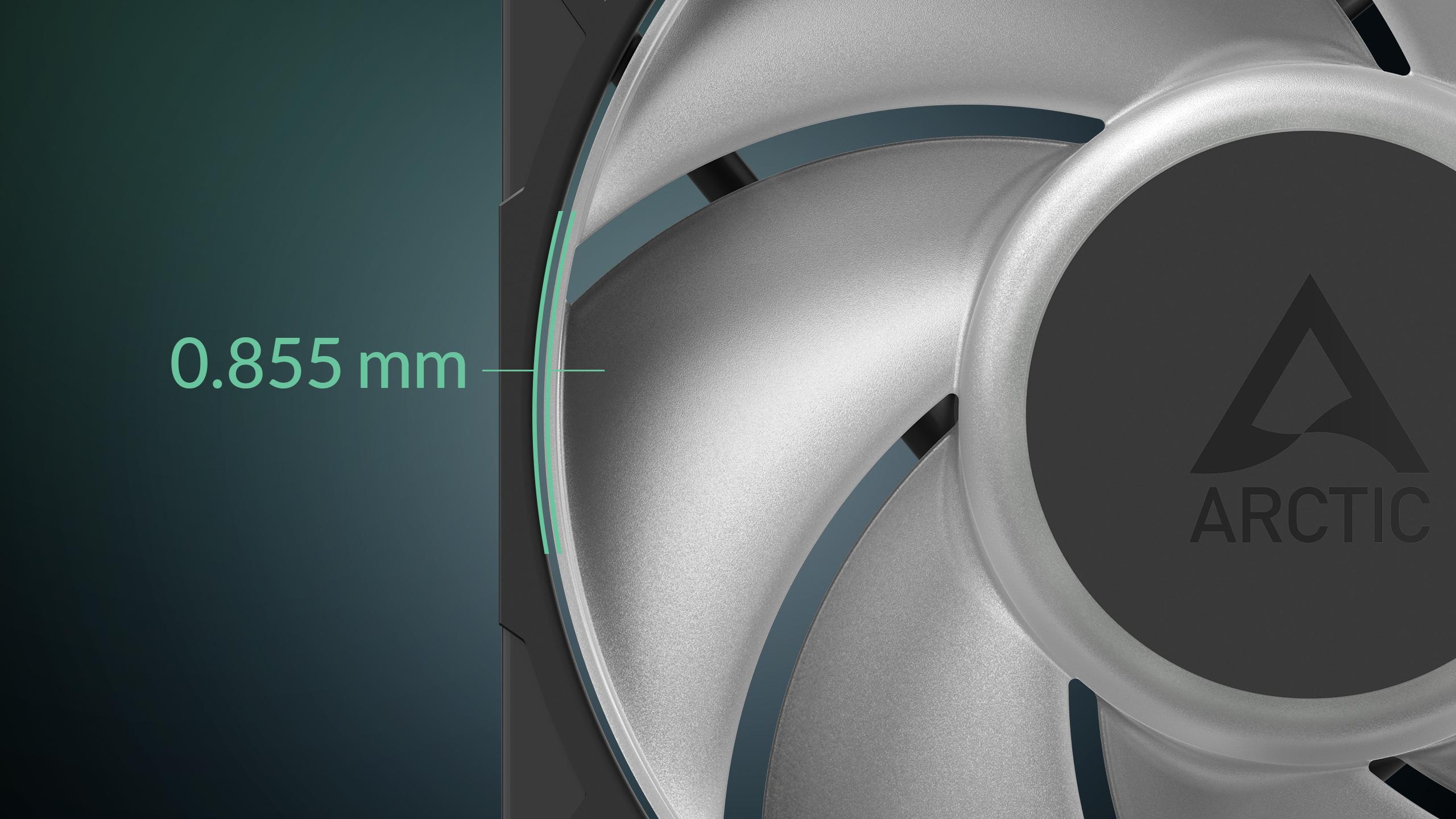

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
Fan & RGB Specifications
| Fan Speed | 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 A | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
General Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 185 g |
| Packaging |
Width: 125 mm |
