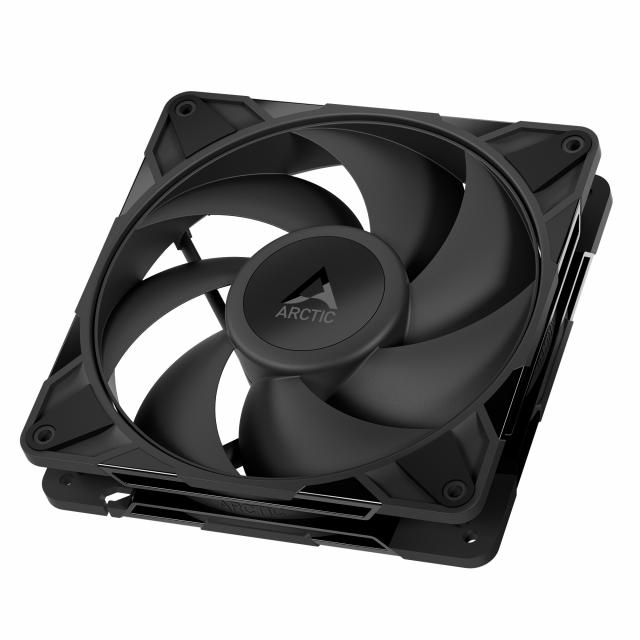

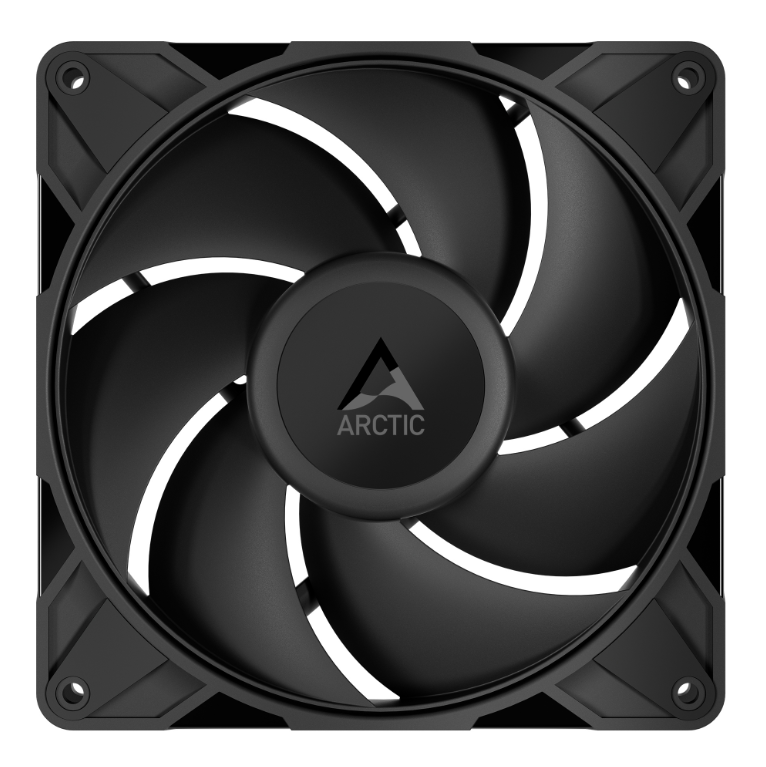

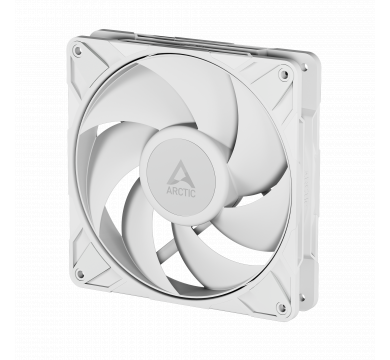

Arctic P14 Pro PST

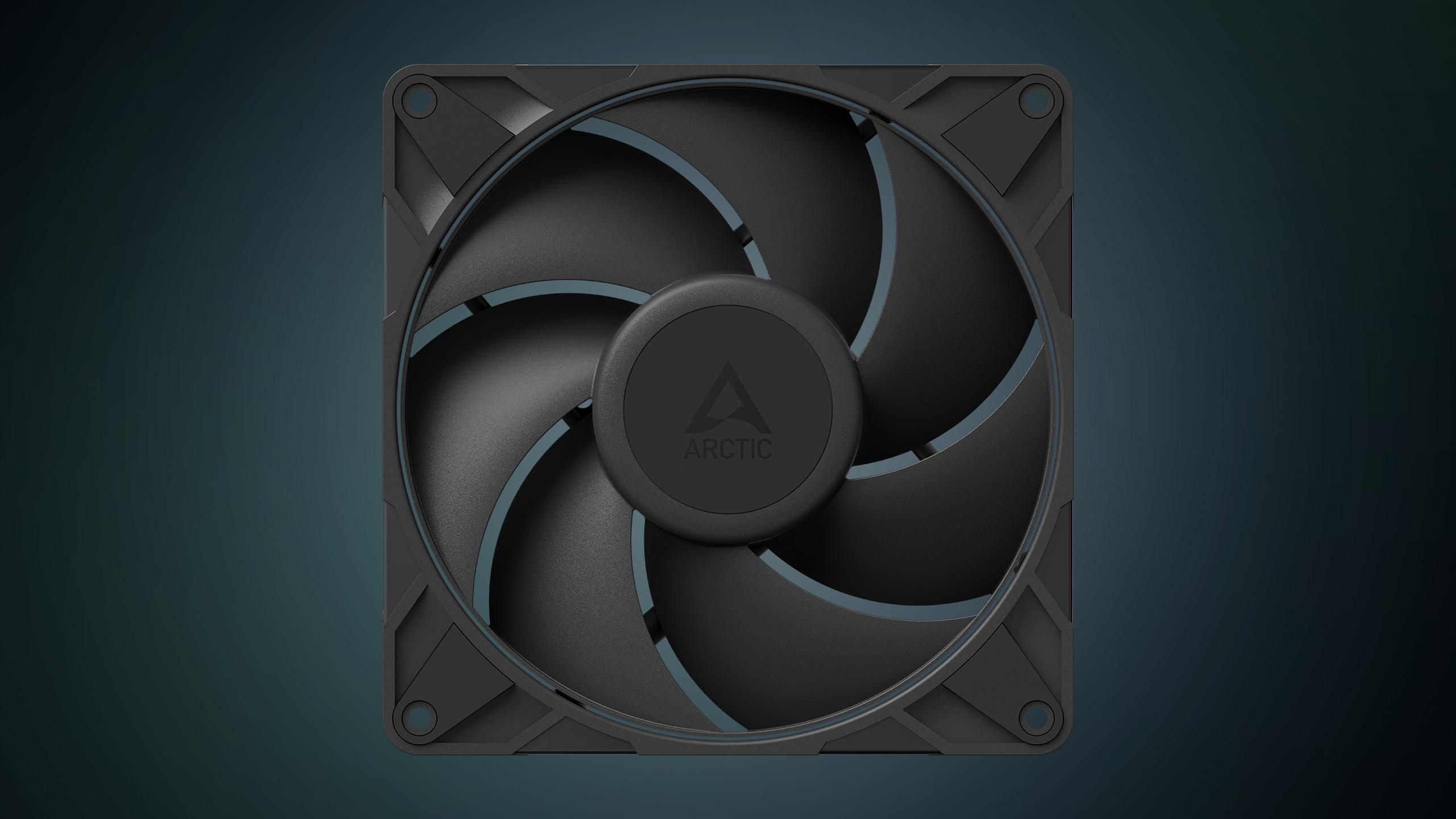

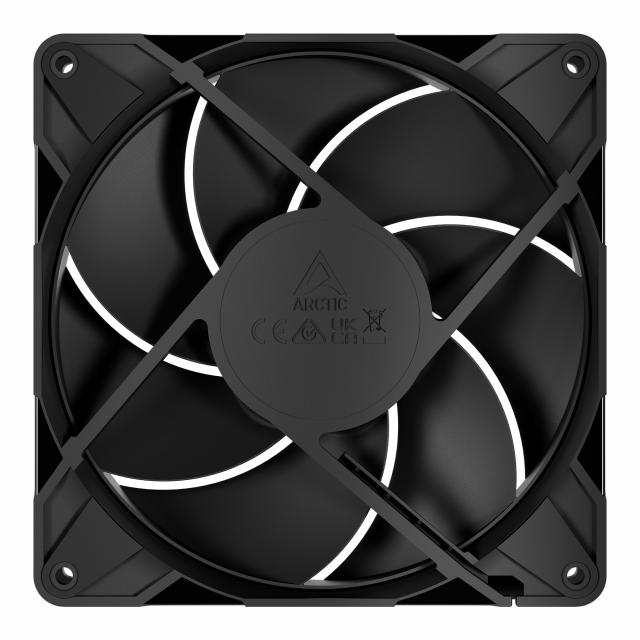

Ventilator ARCTIC P14 Pro PST - 140mm PWM

Cod produs: ARCTIC-FAN-ACFAN00314A
nu este disponibil

Întrebare despre Arctic P14 Pro PST

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 72 luni
Dimensiuni 140 x 140 x 27 mm
Turație până la 2500 RPM
Flux de aer până la 110 CFM
Conector 4-pin PWM
Reverse Nu

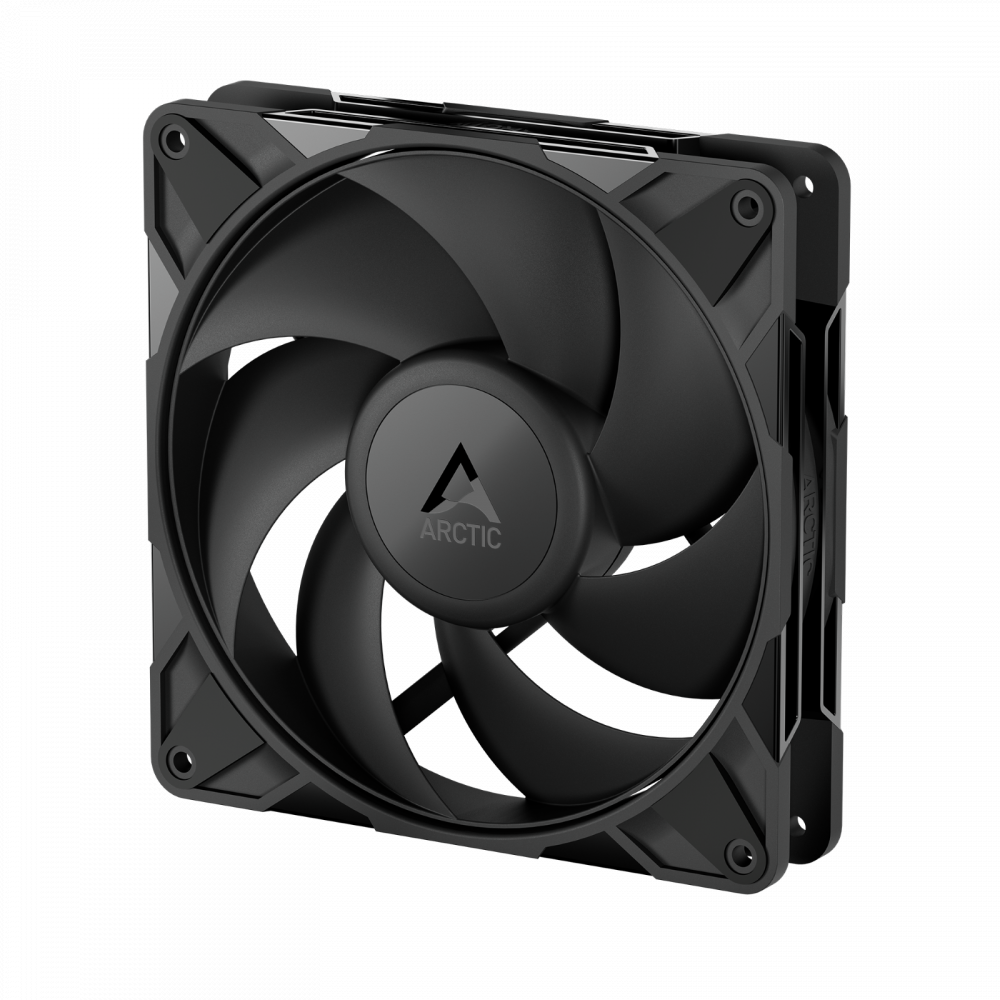

Culoare Negru
Iluminare Nu

Related products

Arctic P14 Pro PST este un ventilator de 140 mm orientat spre performanta pura, cu presiune statica excelenta, control PWM sincronizat si un design optimizat pentru flux de aer puternic si silentiozitate. Ideal pentru radiatoare, carcase spatioase si configuratii unde eficienta si stabilitatea sunt prioritare.

  • Presiune statica ridicata – perfect pentru radiatoare, filtre dense si zone restrictive.
  • PST (PWM Sharing Technology) – permite sincronizarea turatiei cu alte ventilatoare pentru un control termic uniform.
  • Motor eficient si silentios – vibratii reduse si functionare lina chiar la sarcini mari.
  • Pale optimizate pentru airflow – debit de aer puternic si stabil, potrivit pentru carcase mari.
  • Constructie robusta – rame solide si pad-uri anti-vibratii pentru durabilitate si stabilitate pe termen lung.





Efficient Performance at High Air Resistance



Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.



Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

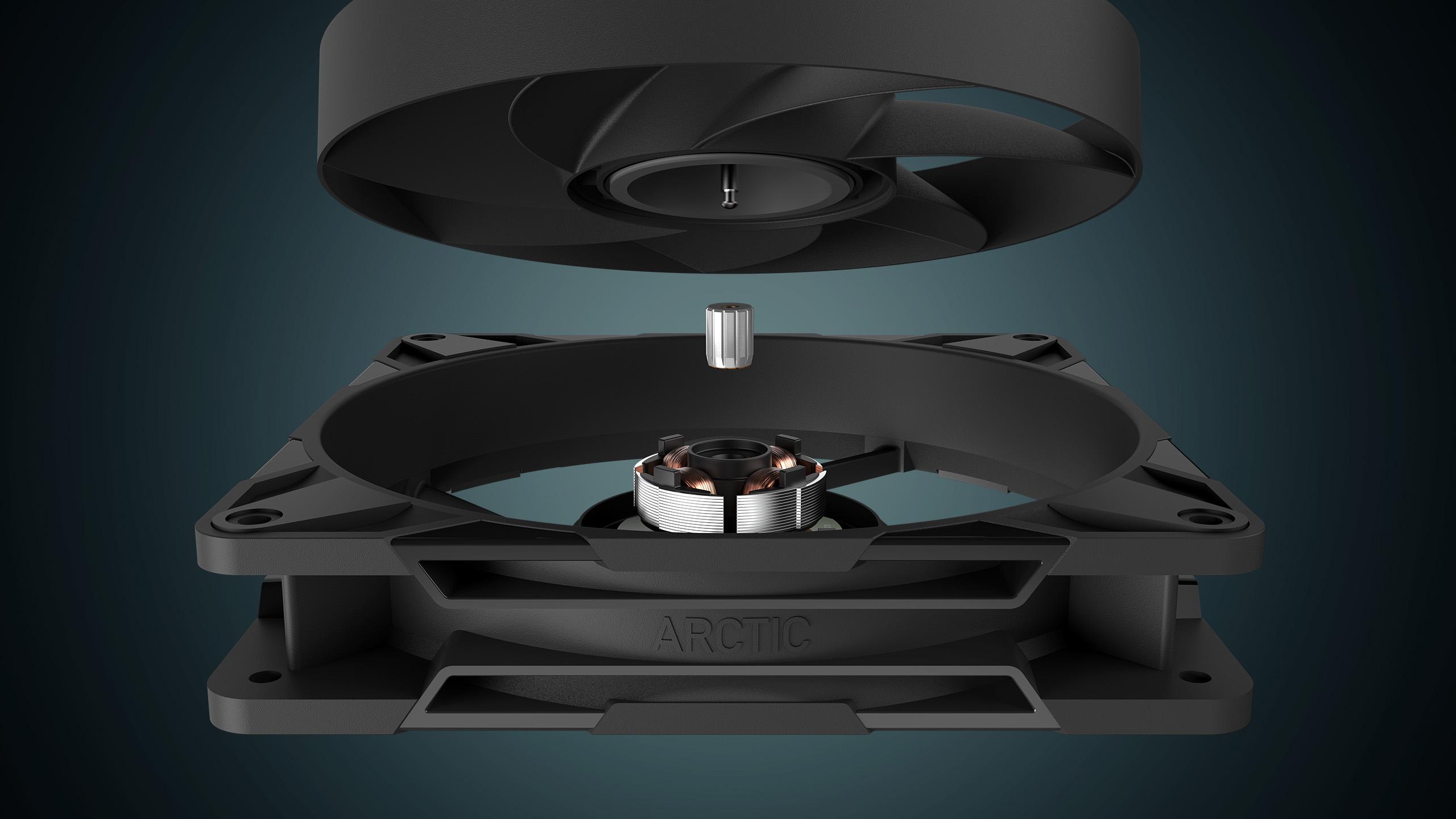

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.





Automated Two-Plane Balancing



An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

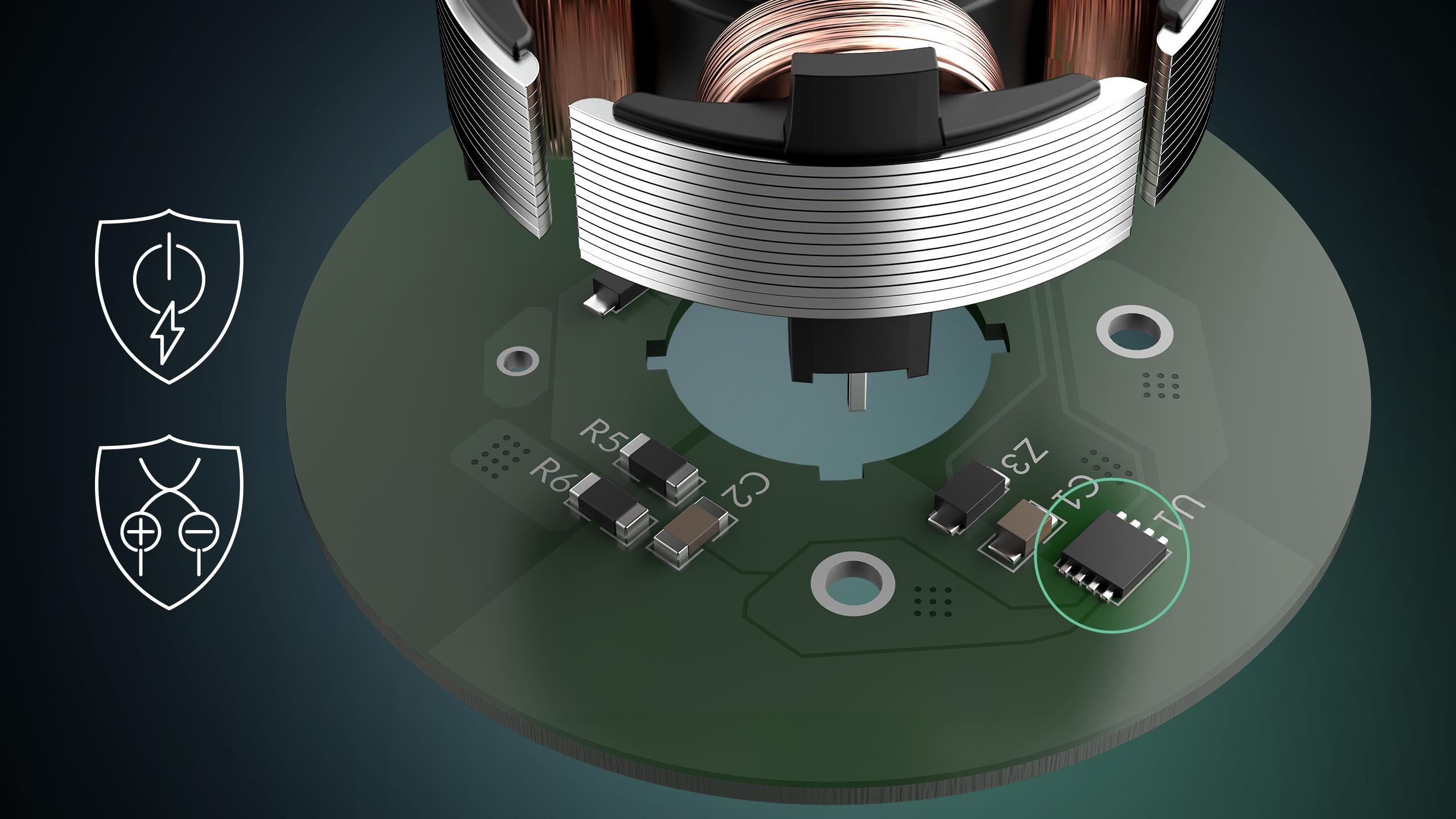

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

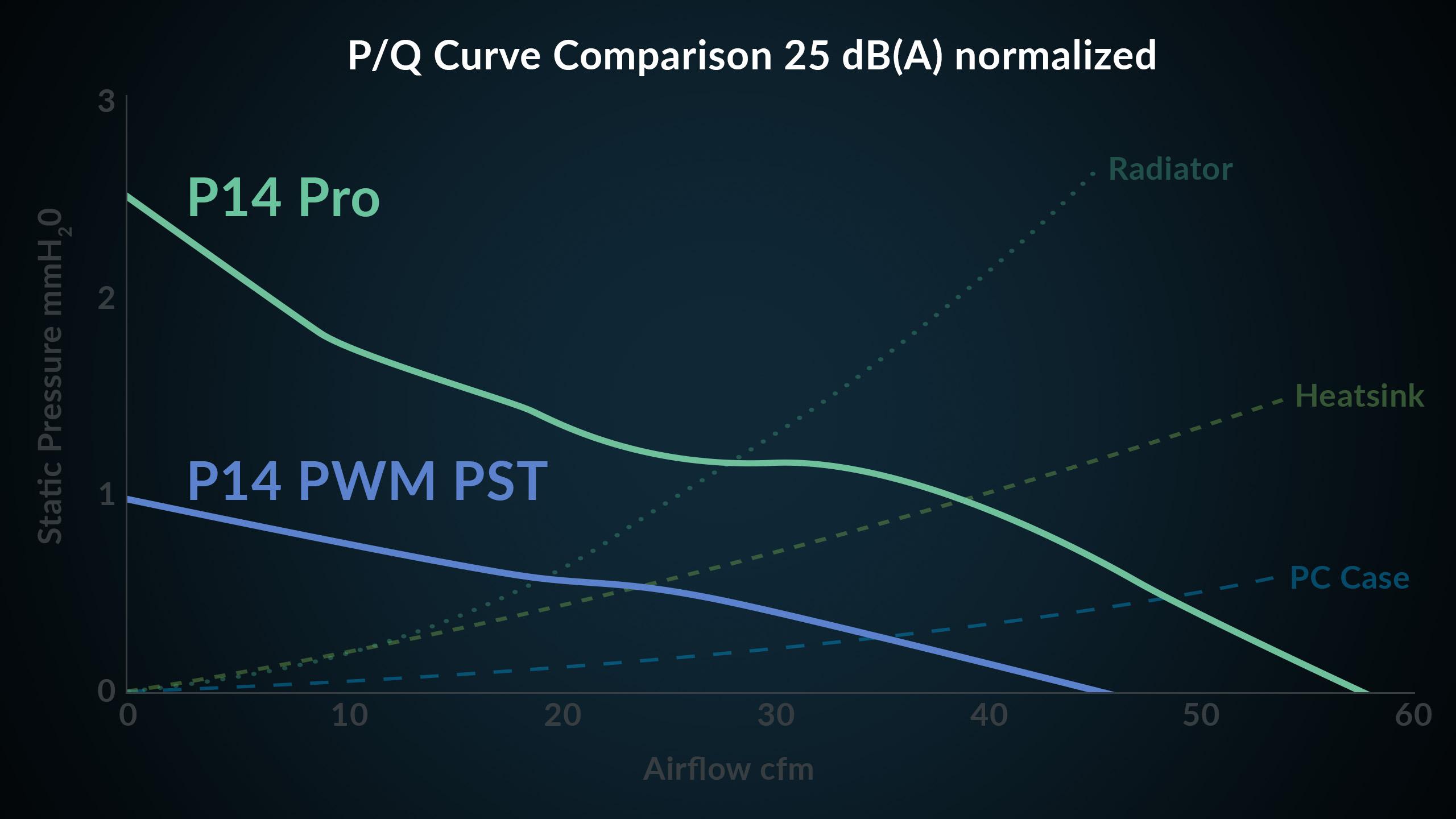

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

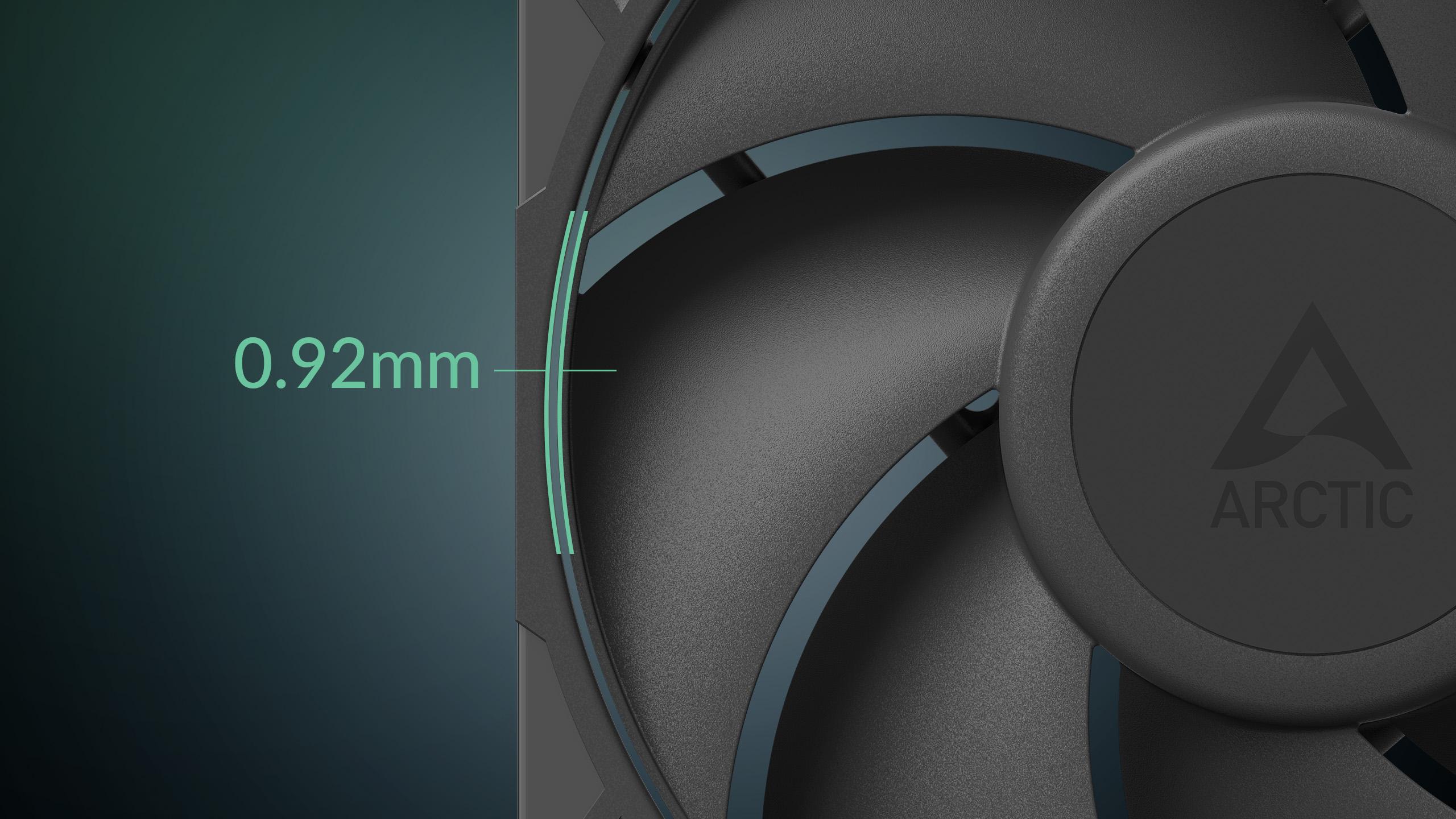

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.





PST – PWM-Based Synchronized Fan Control



An additional PWM connector allows multiple fans to be synchronized in series using a single header.







Specifications



Fan Specifications

Fan Speed 400–2500 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow 110 cfm | 186 m³/h
Static Pressure 5.2 mmH2O
Fan Bearing Fluid Dynamic Bearing
Typical Voltage 12 V DC
Start Up Voltage 5 V DC
Current 0.35 A
Cable Length 400 mm + 80 mm Daisy-Chain Cable
Connector 4-Pin Fan Plug + 4-Pin Socket



General Specifications

Operating Ambient Temperature 0–40 °C

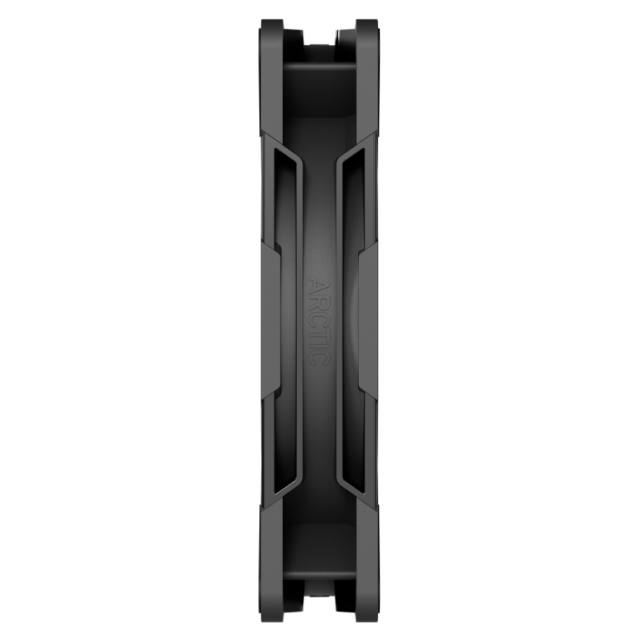

Dimensions 140 (L) x 140 (W) x 27 (H) mm
Net Weight 242 g
Packaging

Width: 145 mm
Height: 32 mm
Length: 145 mm
Weight: 0.294 kg
