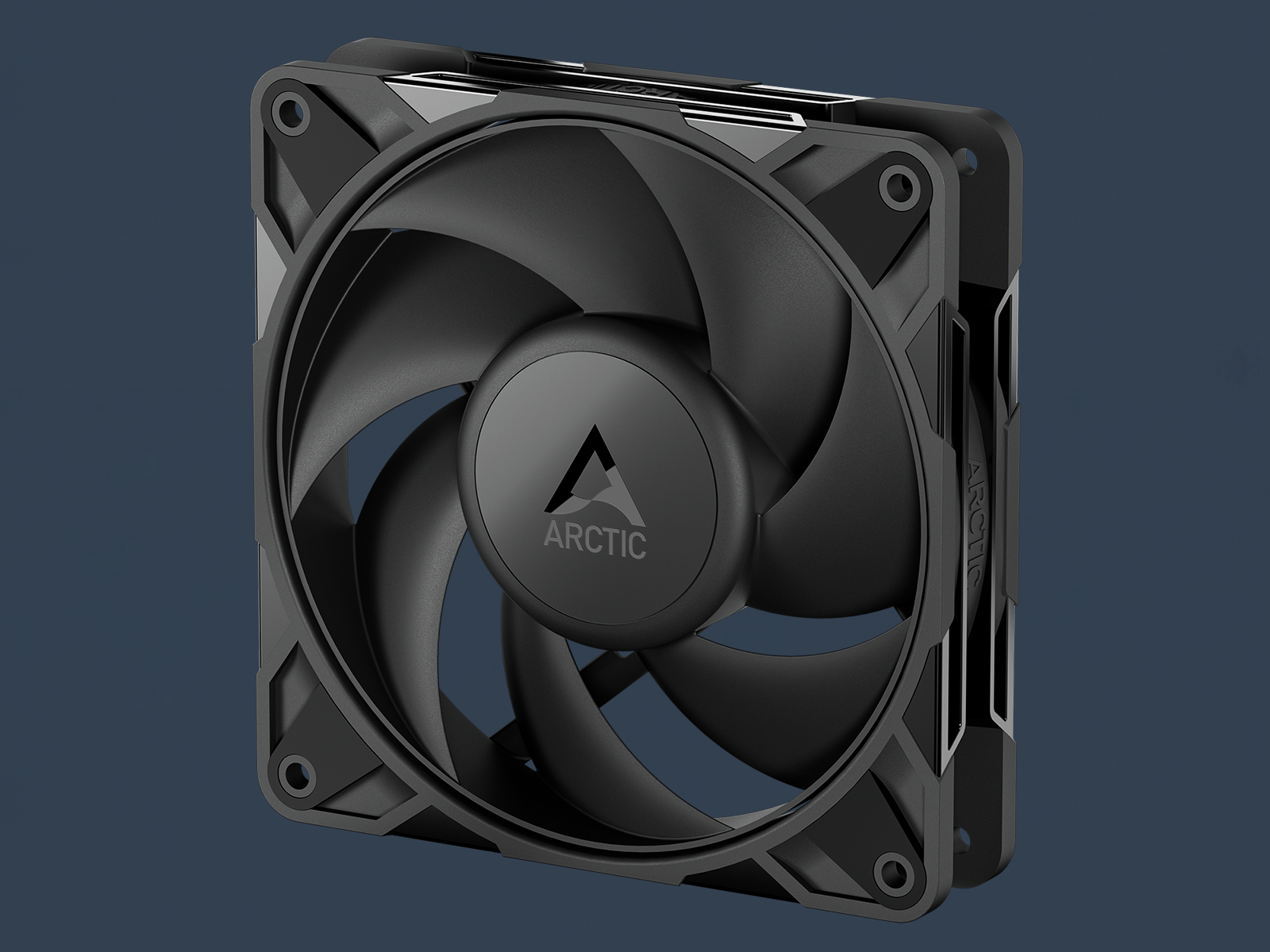

Arctic P12 Pro PST LN
Ventilator ARCTIC P12 Pro PST LN 120mm PWM
Întrebare despre Arctic P12 Pro PST LN
| Garanție | 72 luni |
| Dimensiuni | 120 x 120 x 25 mm |
| Turație | până la 2000 RPM |
| Flux de aer | până la 49 CFM |
| Conector | 4-pin PWM |
| Reverse | Nu |
| Culoare | Negru |
| Iluminare | Nu |
Related products
Arctic P12 Pro PST LN este un ventilator de 120 mm proiectat pentru racire puternica, presiune statica ridicata si functionare silentioasa. Tehnologia PST permite sincronizarea turatiei tuturor ventilatoarelor pentru un flux de aer echilibrat si eficient.
- Dimensiune 120 mm – Compatibil cu majoritatea carcaselor si radiatoarelor.
- Tehnologie PST – Permite conectarea si controlul sincronizat al mai multor ventilatoare prin PWM.
- Presiune statica ridicata – Ideal pentru radiatoare, coolere si zone cu restrictii de aer.
- Functionare Low Noise – Nivel redus de zgomot, perfect pentru sisteme silentioase.
- Control PWM – Reglare precisa a vitezei pentru echilibru intre racire si silentiozitate.
- Rulment durabil – Constructie robusta pentru o durata lunga de viata.
- Flux de aer optimizat – Pale proiectate pentru performanta superioara si stabila.
- Compatibilitate extinsa – Functioneaza cu majoritatea placilor de baza moderne.
- Cablare eficienta – Conectori ganditi pentru management facil al cablurilor.
- Design discret – Aspect profesional, potrivit pentru orice build.
P12 Pro LN Fan - Efficient. Quiet. Powerful.
Premium fan with a speed range optimised for silent enthusiasts. Instead of extreme peak values, the LN series focuses on a balanced ratio of performance and quiet operation.
| Fan Speed | Fan Bearing |
450 - 2000 rpm |
Fluid Dynamic Bearing |
| Static Pressure | Airflow |
3.5 mm H2O |
49 cfm | 83 m³/h |

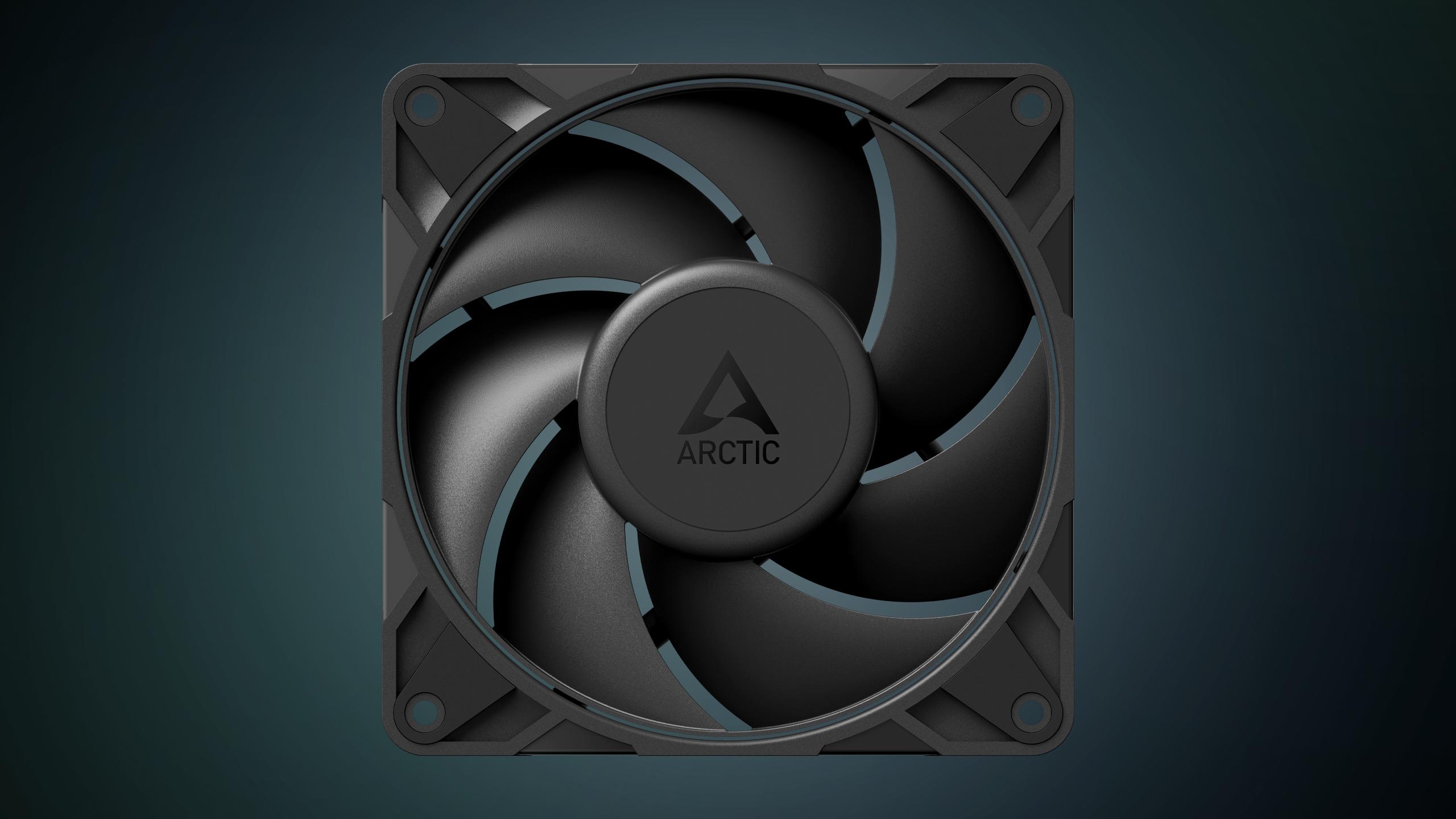

Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

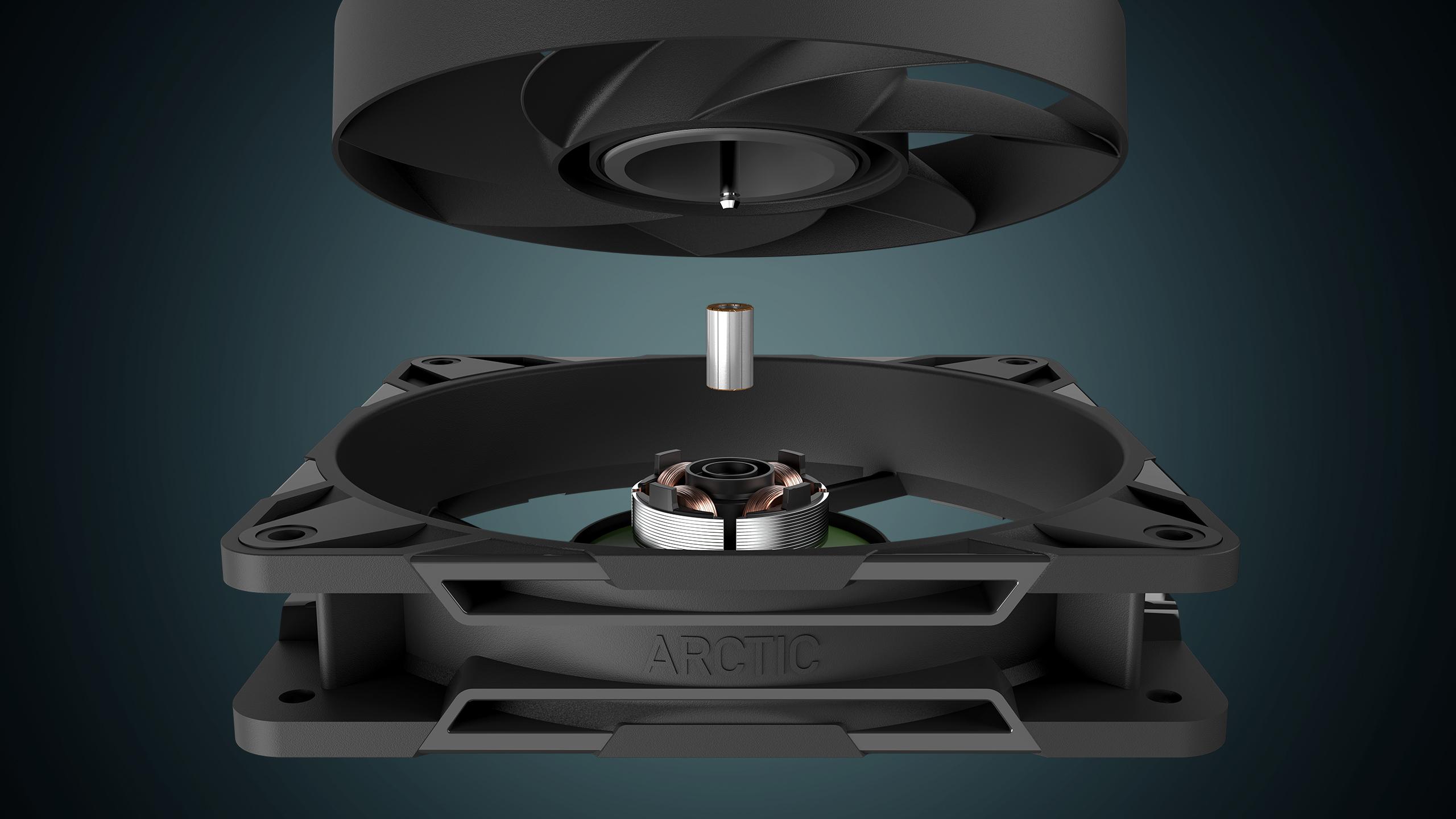

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

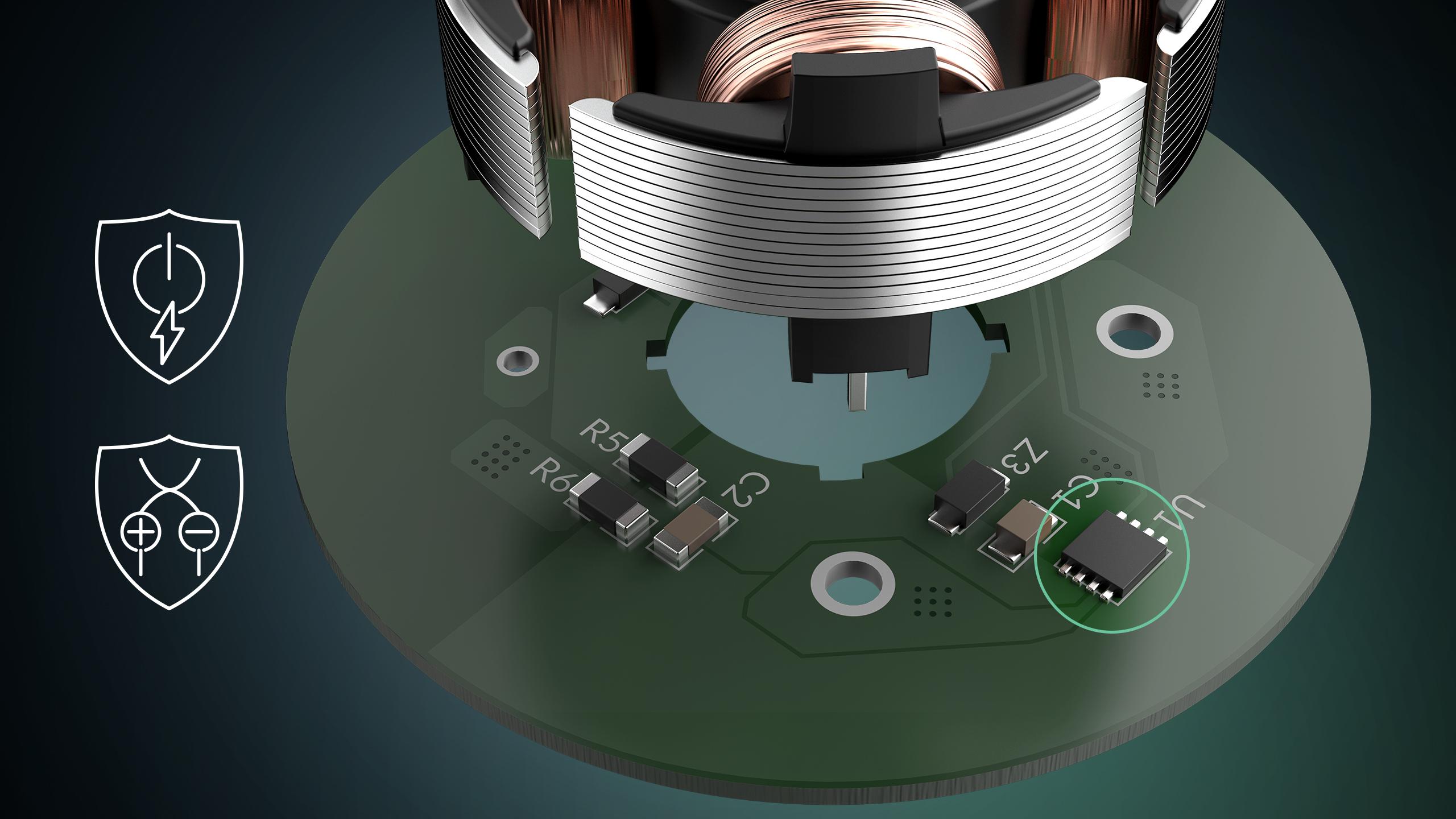

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

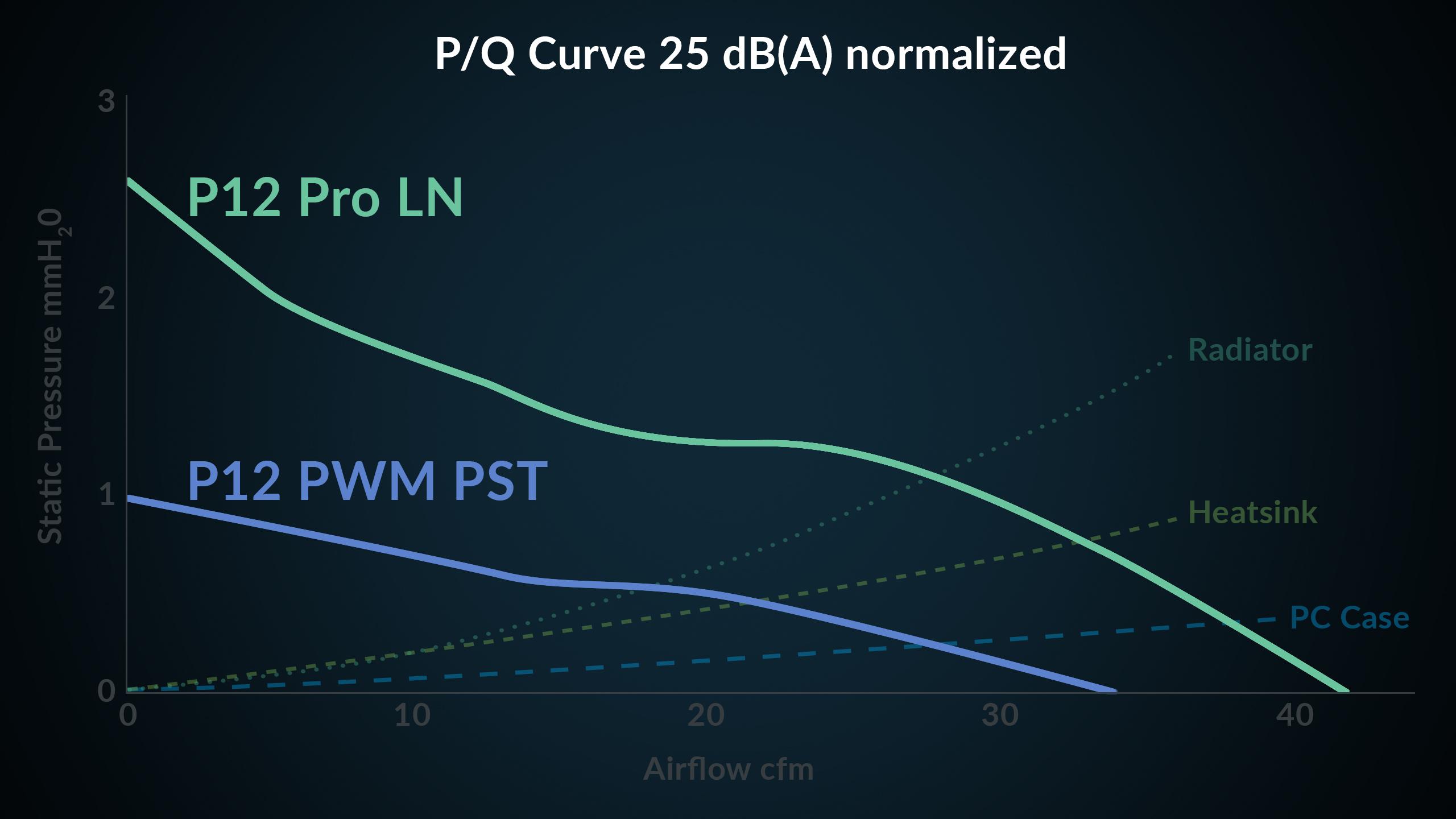

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

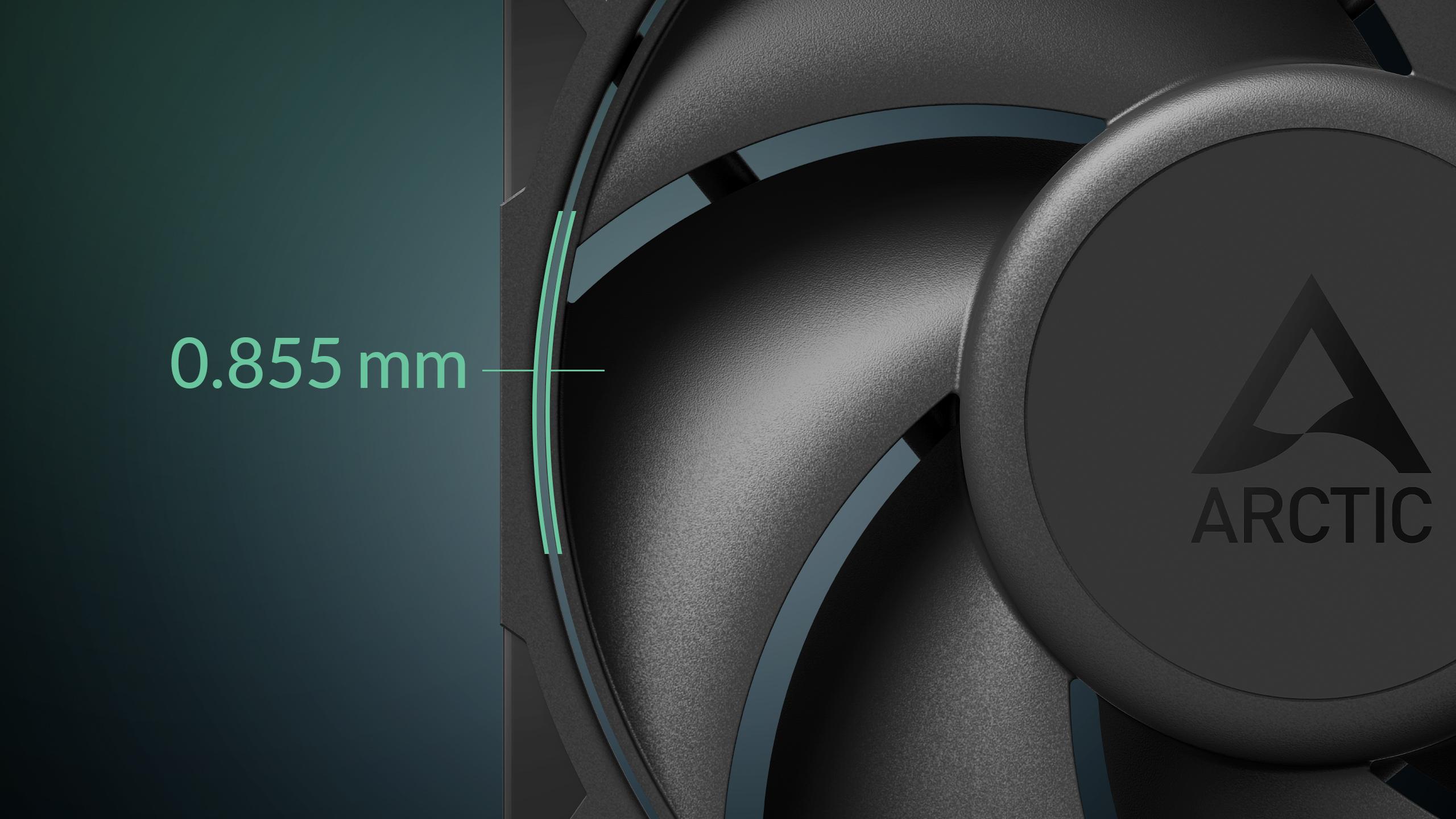

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
General Specifications
| Weight | 186 g | Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Operating Ambient Temperature | 0-40 °C | Packaging |
Width: 125 mm |
Fan Specifications
| Fan Speed | 450-2000 rpm | Current | Voltage | 0.33 A | 12 V DC |
| 0dB below | 5 % | Start-up Voltage | 3.3 V DC |
| Airflow | Airflow | 49 cfm | 83 m³/h | Cable Length | 400 mm |
| Static Pressure | 3.5 mm H20 | Connector | 4-Pin PWM-Connector + 4-Pin Plug |
| Bearing | Fluid Dynamic Bearing |
