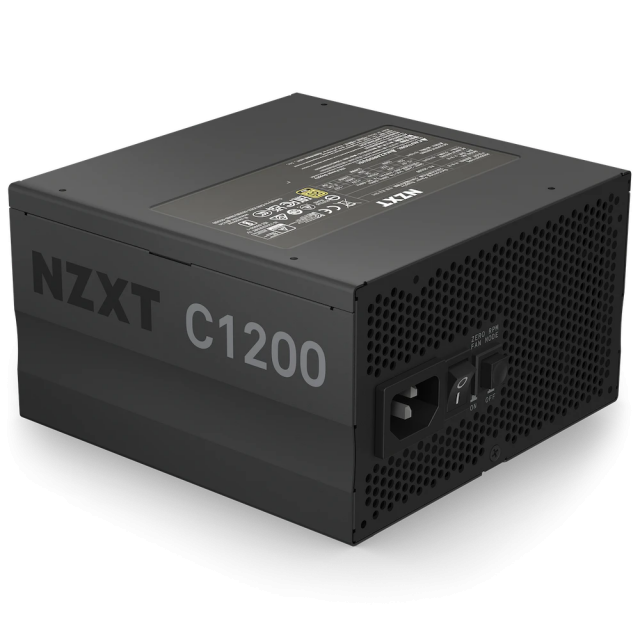

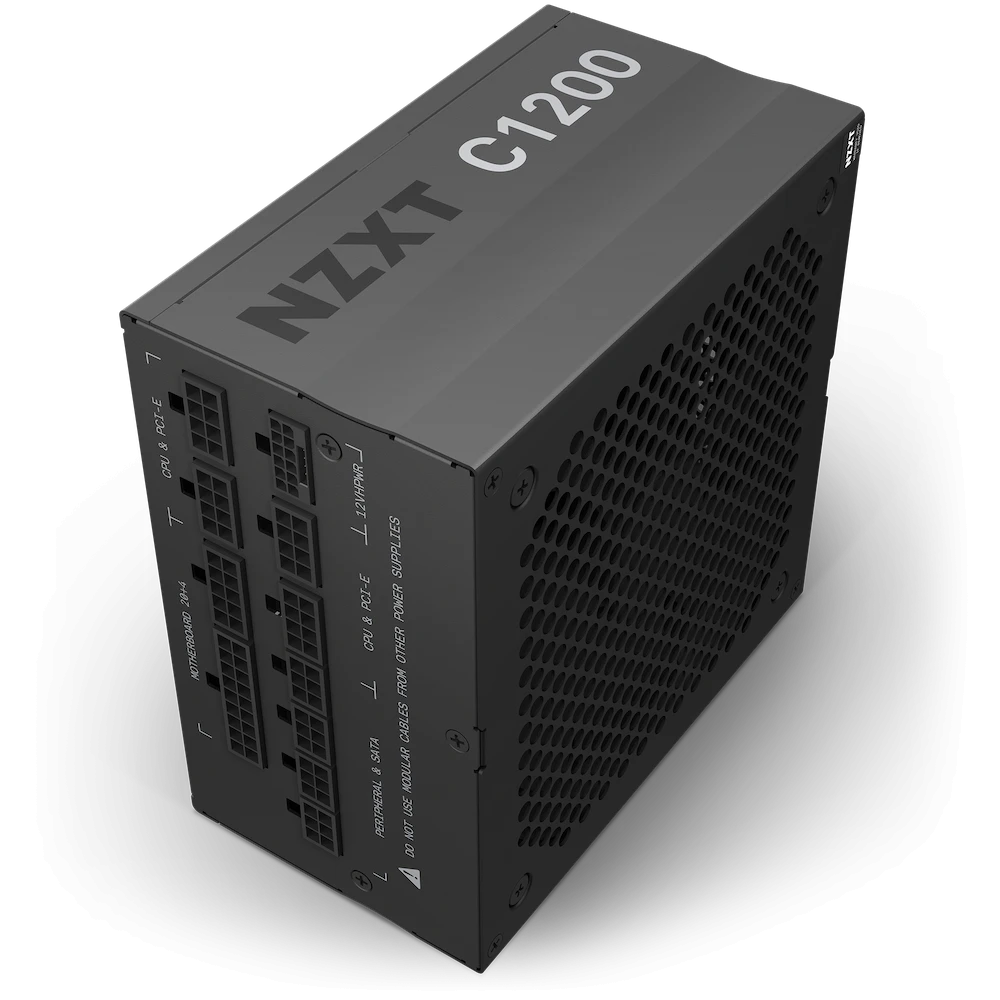

NZXT C1200 Gold

Sursa de alimentare NZXT C1200, 1200W 80+ Gold Full Modular, PCIe 5.0 Ready

Cod produs: NZXT-PS-PA-2G1BB-EU

nu este disponibil

Întrebare despre NZXT C1200 Gold

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Putere	1200W
Certificat	80+ Gold
Eficienţă	90 %
Tip	Modulară
Form Factor	ATX
Specificație	ATX 3.0
PCIe Gen5	Da
Iluminare RGB	Nu
Culoare	Negru
Garanție	120 luni

Related products

NZXT C1000 Gold ATX 3.1

Putere: 1000W

Certificat: 80+ Gold

Eficienţă: 91 %

Tip: Modulară

Form Factor: ATX

NZXT C1000 Gold

Putere: 1000W

Certificat: 80+ Gold

Eficienţă: 89 %

Tip: Modulară

Form Factor: ATX

NZXT C850 Gold ATX 3.1

Putere: 850W

Certificat: 80+ Gold

Eficienţă: 91 %

Tip: Modulară

Form Factor: ATX

NZXT C850 Gold Core

Putere: 850W

Certificat: 80+ Gold

Eficienţă: 89.33 %

Tip: Modulară

Form Factor: ATX

NZXT C1200 Gold ATX 3.1

Putere: 1200W

Certificat: 80+ Gold

Eficienţă: 91 %

Tip: Modulară

Form Factor: ATX

NZXT C750 Gold Core

Putere: 750W

Certificat: 80+ Gold

Eficienţă: 89.53 %

Tip: Modulară

Form Factor: ATX

NZXT 12VHPWR Adapter Cable

Accesorii: 12-Pin 12VHPWR

NZXT C1500 Platinum ATX 3.1

Putere: 1500W

Certificat: 80+ Platinum

Eficienţă: 94 %

Tip: Modulară

Form Factor: ATX

Specificație: ATX 3.1

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
Built and tested with the strictest standards for trouble-free installation and operation
90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
Zero Fan Mode stops the fan when under light loads to reduce system noise
135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
Constructed with high-quality Japanese 105°C capacitors
10-year warranty

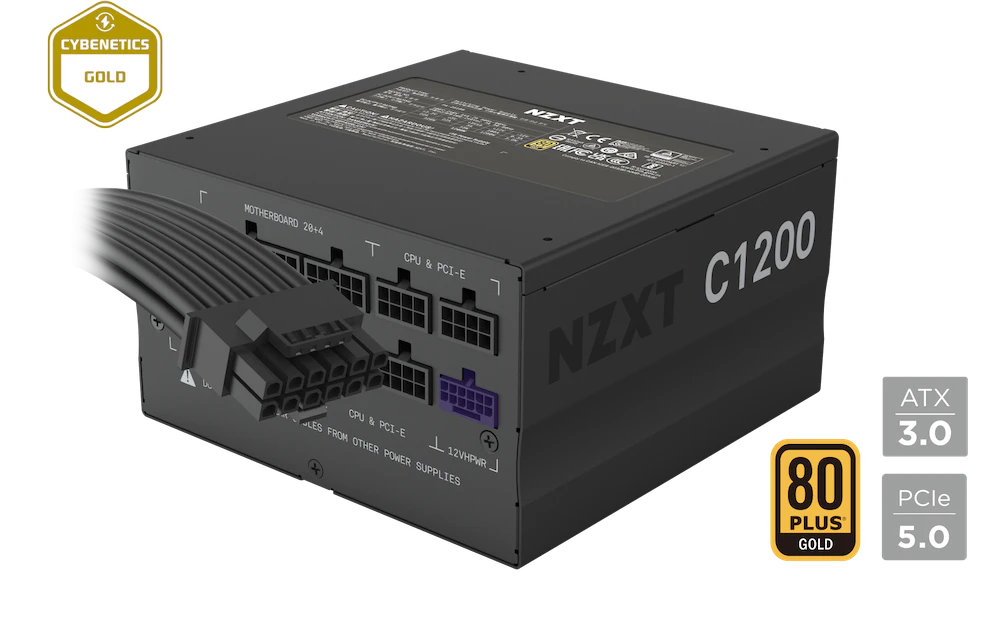

Next-Gen Power

Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector.

Future-Proof Design

Built to handle massive power spikes from next-gen GPUs.

High-Quality Components

Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.

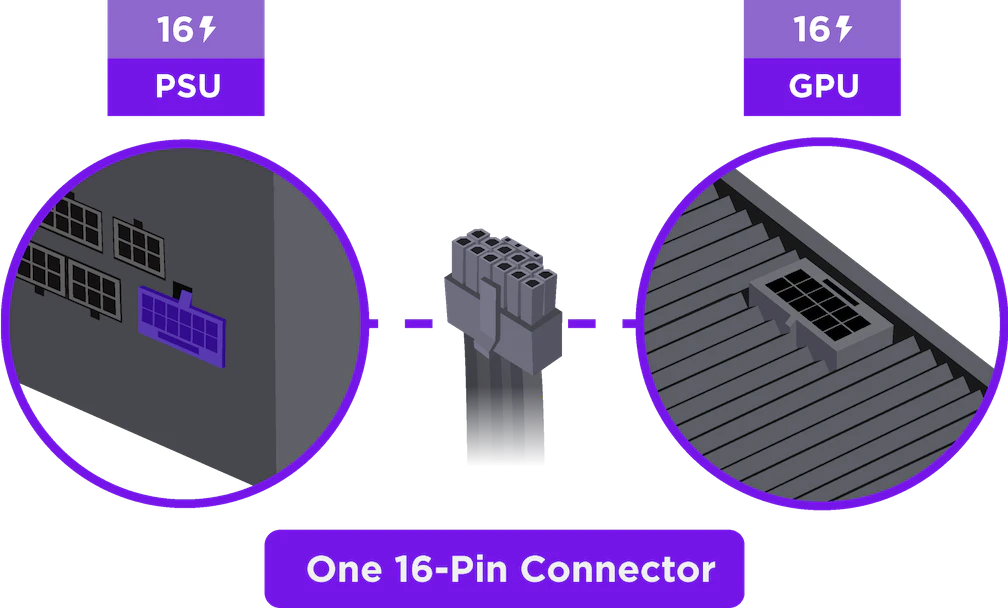

Single Cable Connection

Featuring a single 16-pin connection cable—perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.

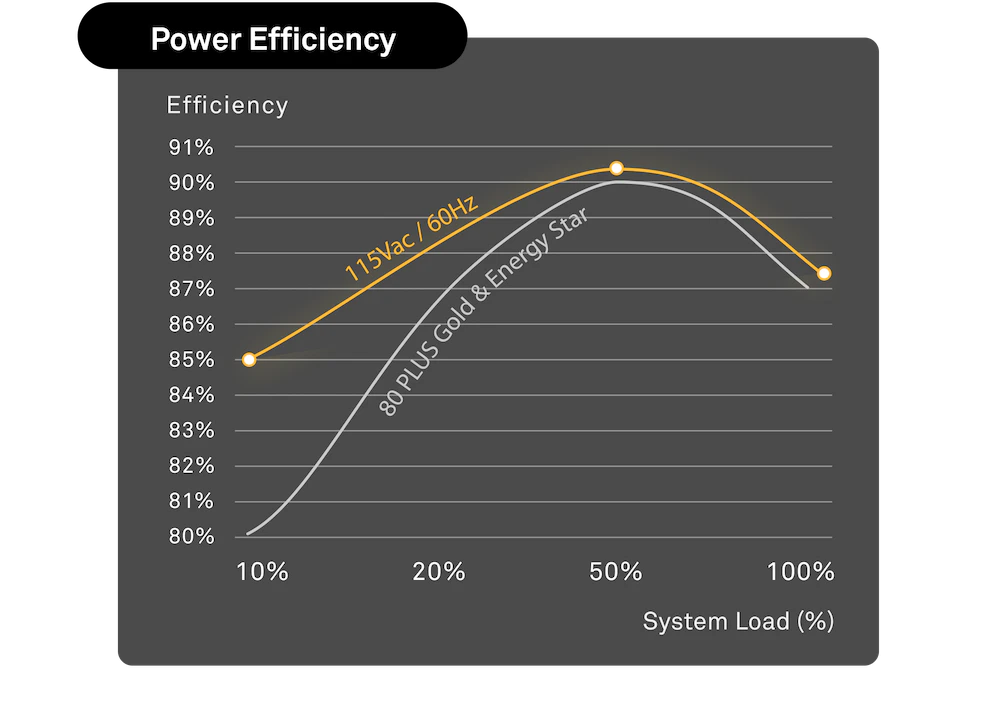

Elite Efficiency

With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs.

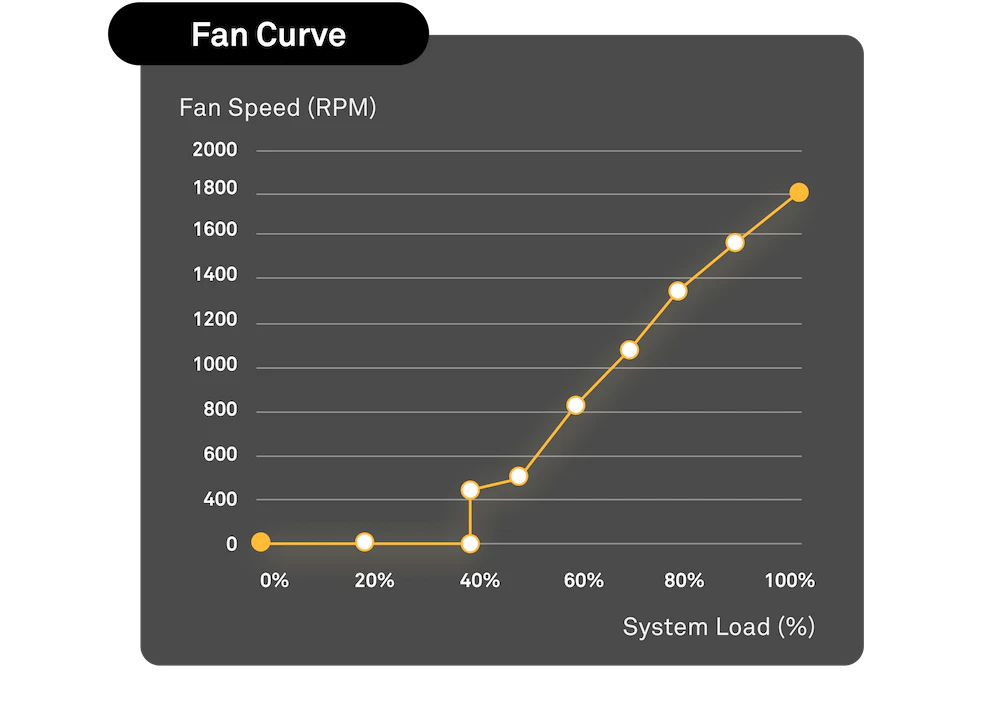

Silent Operation

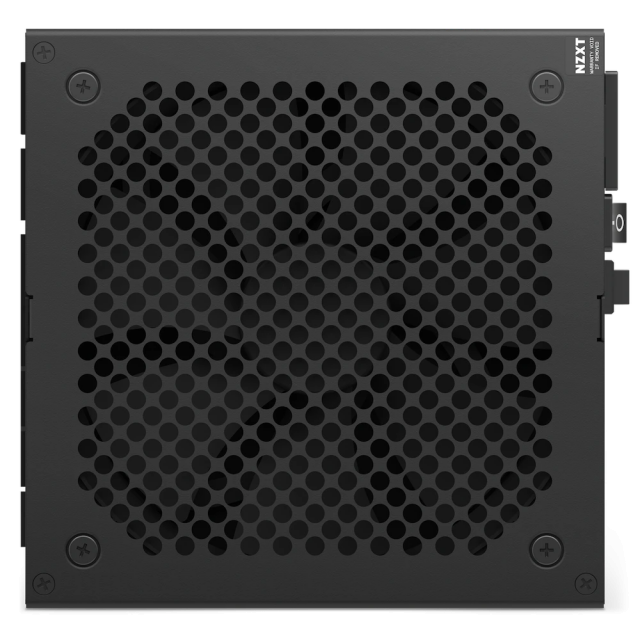

The 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.

Tech Specs

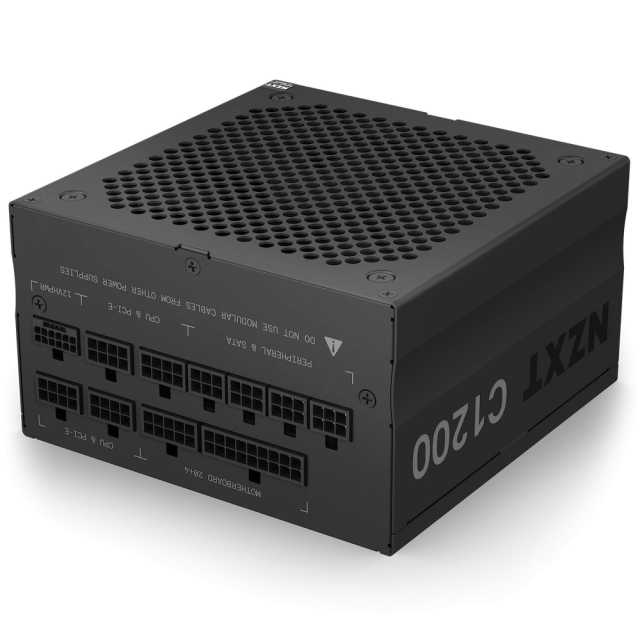

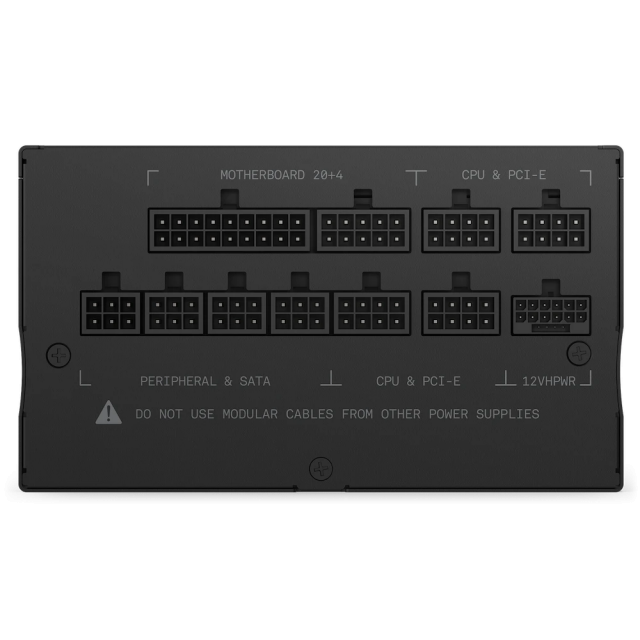

OUTPUT CONNECTORS

24-pin ATX power	1	16-pin (12+4) 12VHPWR PCIe Cable	1
4+4-pin CPU power	1	SATA power	8
8-pin CPU Cable	1	Peripherals	4
6+2-pin PCIe power	2

CABLE SPECS

24-pin ATX power	600 mm, Nylon sleeving	16-Pin (12+4) 12VHPWR PCIe Cable	650mm, Nylon sleeving
4+4-pin CPU power	700 mm, Nylon sleeving	SATA power	500 + 150 mm
8-Pin CPU Power Cable	700mm, Nylon sleeving	Peripherals	500 + 150 mm
6+2-pin PCIe power	650 + 150 mm, Nylon sleeving

AC INPUT RATING

100 - 240Vac

14A-7A 50Hz-60Hz

DC OUTPUT RATING

+3.3V and +5V	22A (120W)	5Vsb	3A (15W)
+12V	100A (1200W)	Total	1200W
-12V	0.3A (3.6W)

OPERATION

PF Correction	Active @0.96	Temperature	0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
MTBF	100,000 hours

ENERGY EFFICIENCY

Rating	80 Plus Gold	50% loading	91.55% @115Vac
20% loading	90.97% @115Vac	100% loading	88.51% @115Vac

FAN SPECS

Dimensions	135 x 135 x 25 mm	Noise	44.5 dBA max
Speed	0-2300 ± 10% RPM	Bearing	Fluid Dynamic Bearing (FDB)
Airflow	93.02 CFM (Tpy.)

GENERAL

Dimensions	150 x 150 x 86mm	Warranty	10 years
Material(s)	Steel, PCB and Plastic	Model Number	PA-2G1BB
Compliance Standard	ATX12V v3.0 / EPS12V v2.92	UPC	810074842570
Regulation & Certification	cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA	EAN	5056547202495
