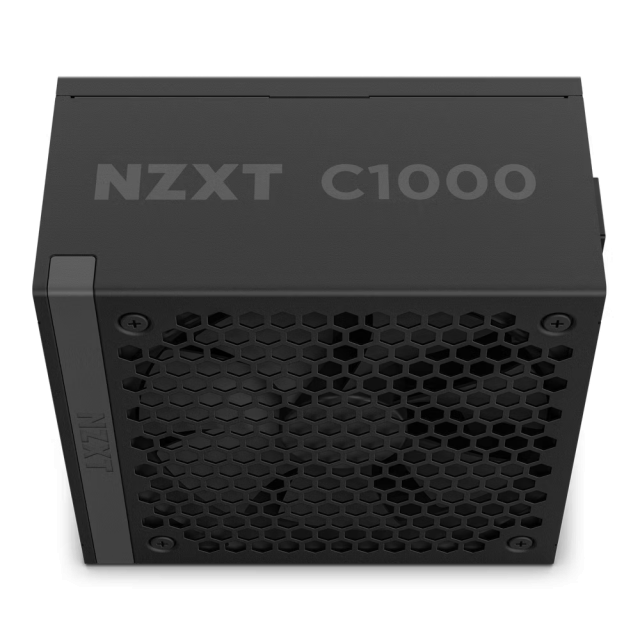

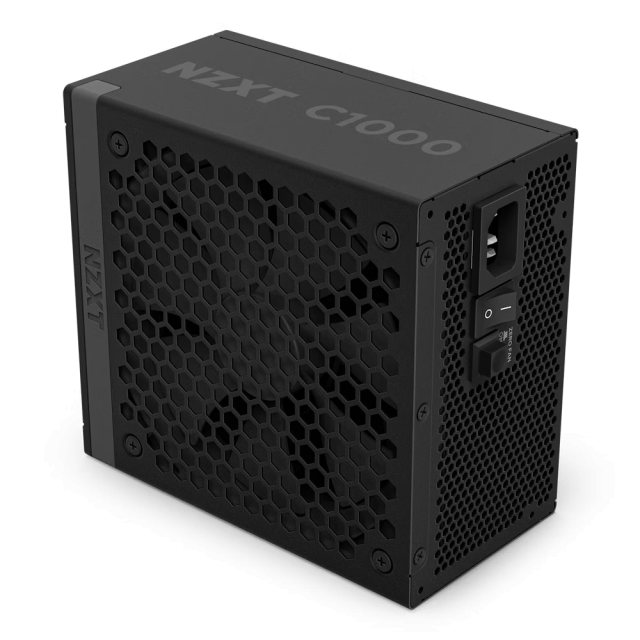

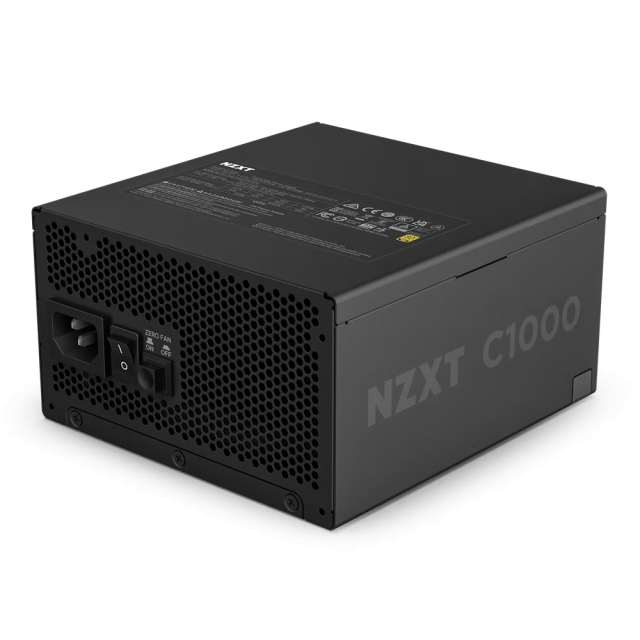

NZXT C1000 Gold ATX 3.1
Sursa de alimentare NZXT C1000, 1000W 80+ Gold ATX 3.1 - Fully Modular
Cod produs: NZXT-PS-PA-0G2BB-EU
Întrebare despre NZXT C1000 Gold ATX 3.1
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 1000W |
| Certificat | 80+ Gold |
| Eficienţă | 91 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 120 luni |
Related products
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
91 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1200W
Certificat:
80+ Gold
Eficienţă:
91 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
89.33 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
89.53 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1500W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Specificație:
ATX 3.1
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high
efficiency, low noise, and premium
construction.
efficiency, low noise, and premium
construction.

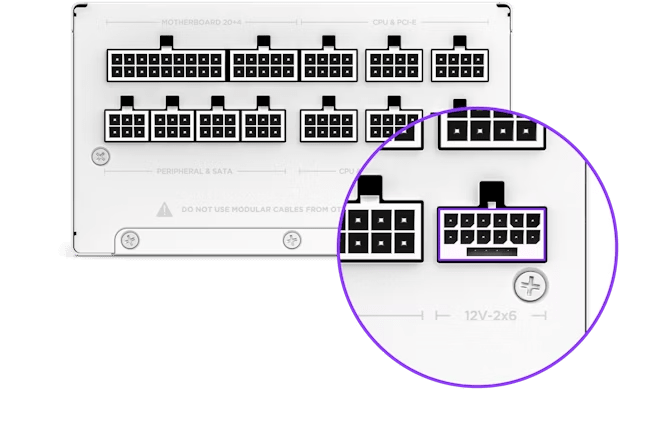

ATX 3.1 Compliant
ATX 3.1 powers high-performance components
with stable delivery and improved efficiency.
with stable delivery and improved efficiency.

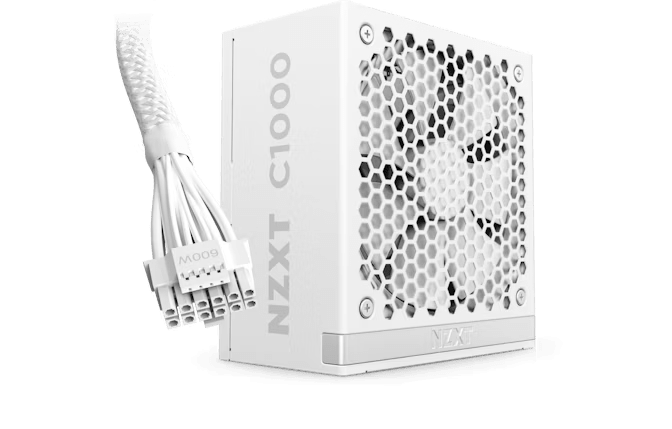

40 Series Ready
12V-2x6 cable delivers up to 600 watts of
power to NVIDIA GeForce RTX 40 Series
GPUs.

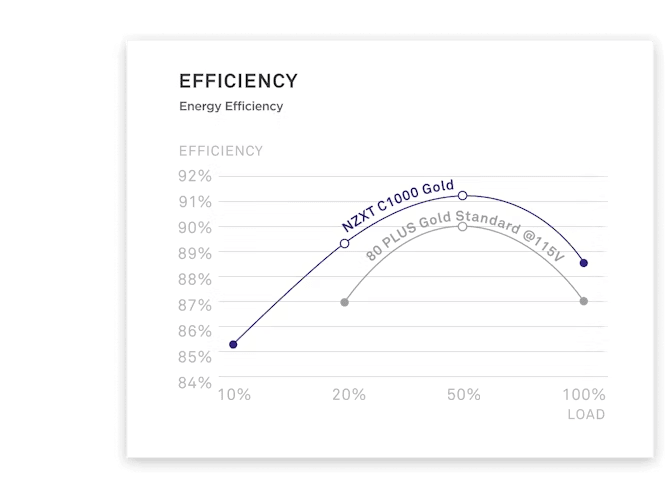

Certified for High Efficiency
& Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold
Efficiency, and Cybenetics A Noise Level
Ratings.
Efficiency, and Cybenetics A Noise Level
Ratings.

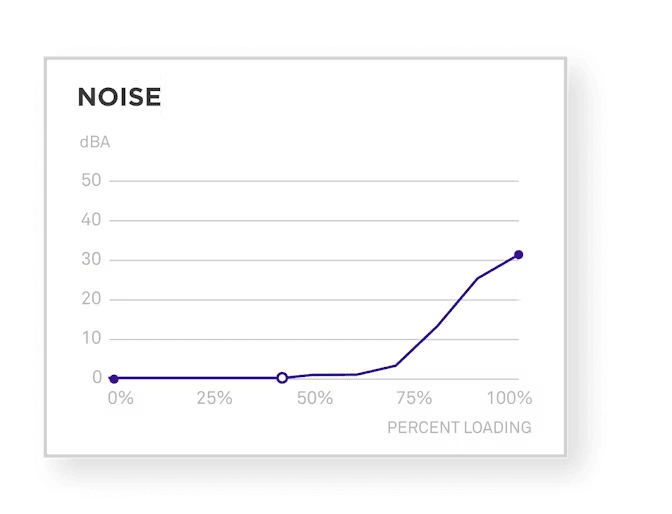

Silence is Golden
135mm FDB fan with Zero Fan Mode stops
spinning under 50% load for total silence.
spinning under 50% load for total silence.

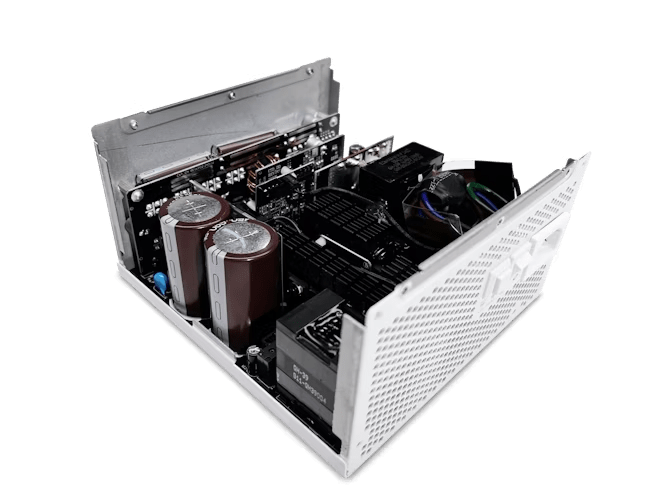

100% Japanese Capacitors
Improved hold-up time and
reduced ripple noise for stable,
reliable power delivery.
reduced ripple noise for stable,
reliable power delivery.

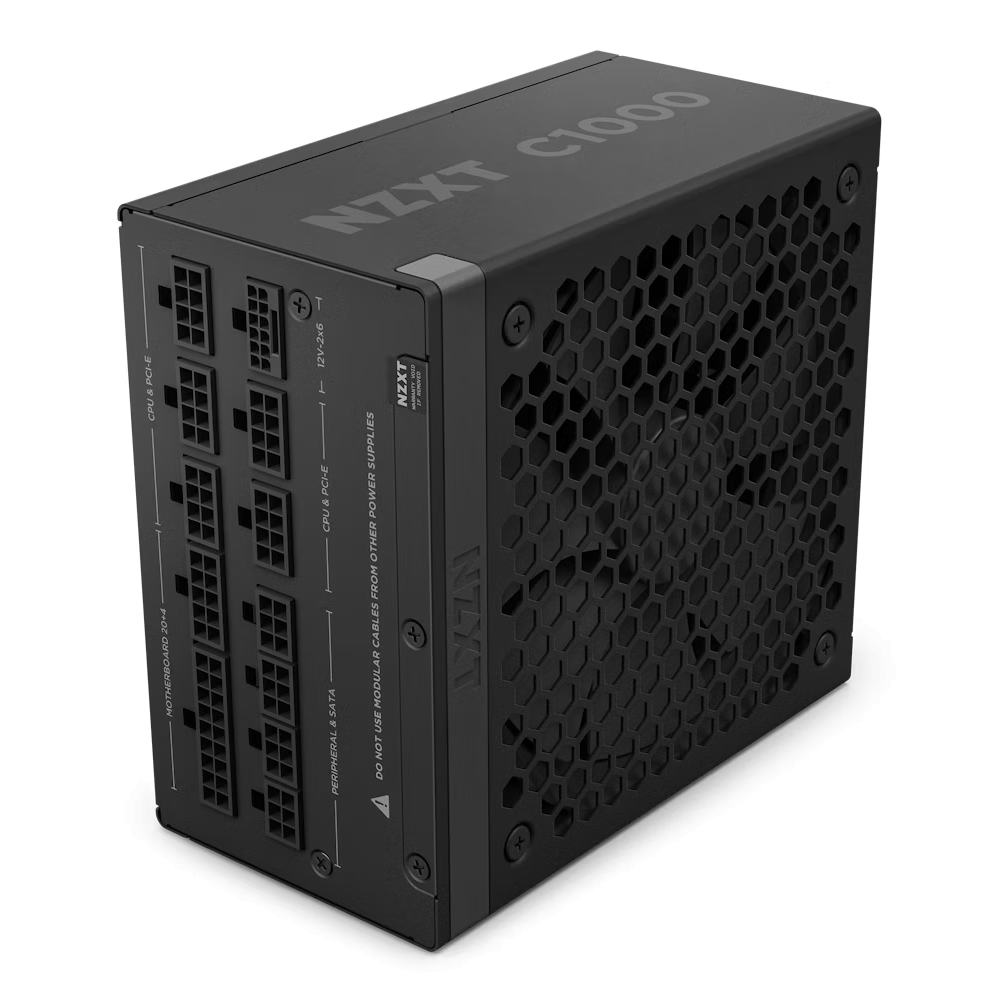

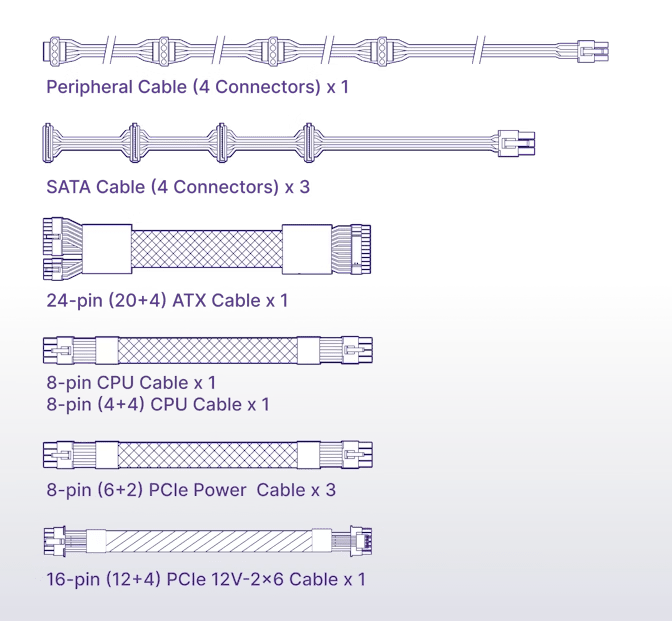

Fully Modular
Only connect the cables needed
to keep a tidy build. Full cable set
included.
to keep a tidy build. Full cable set
included.

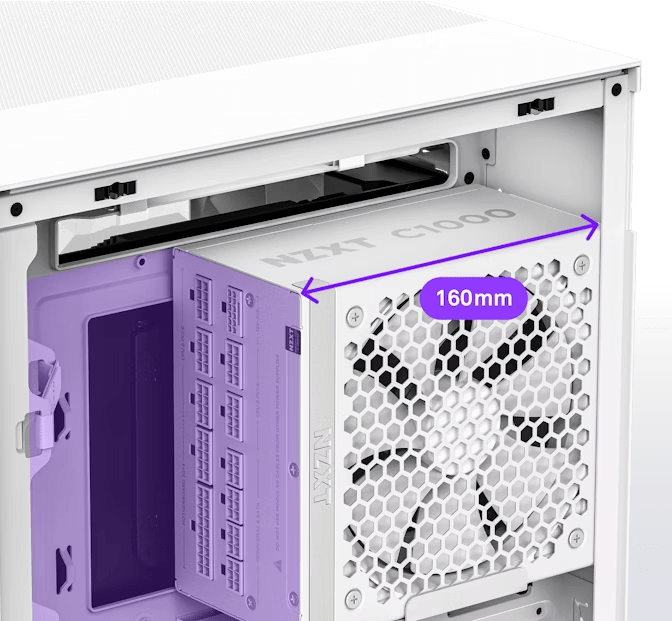

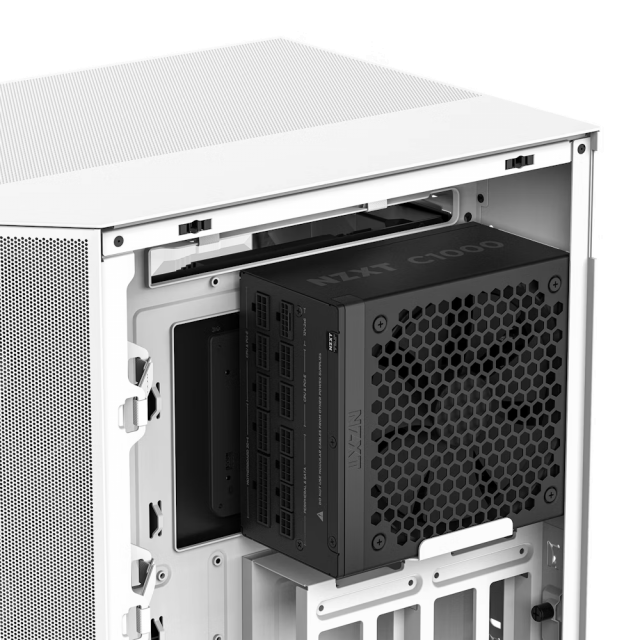

Space-Saving Size
Compact form factor frees up
room for cable management and
improved airflow.
room for cable management and
improved airflow.

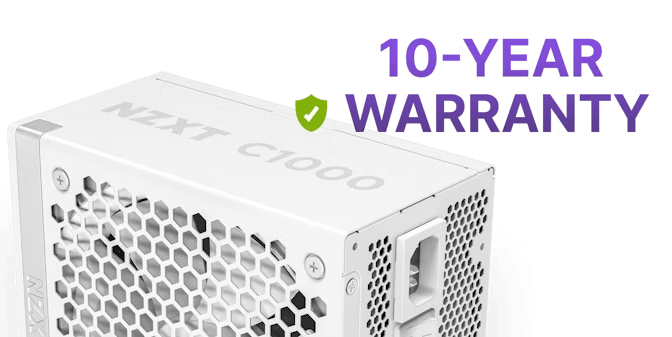

Peace of Mind
Backed by a 10-year warranty and reliable
customer support.
customer support.
Tech Specs

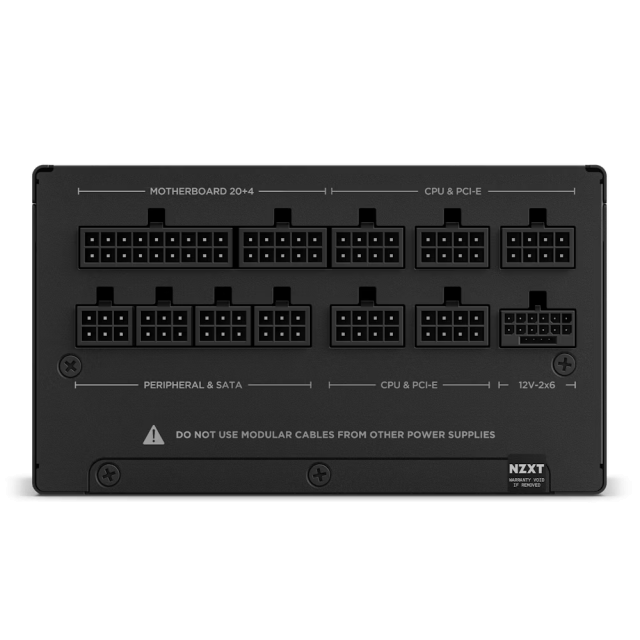

OUTPUT CONNECTORS
| 24-pin ATX power | 1 | 16-pin (12+4) 12VHPWR PCIe Cable | 1 |
| 4+4-pin CPU power | 1 | SATA Cable | 12 |
| 8-pin CPU Cable | 1 | Peripherals Cable | 4 |
| 6+2-pin PCIe power | 3 |
CABLE SPECS
| 24-pin ATX power | 600 mm, Nylon sleeving | 16-Pin (12+4) 12VHPWR PCIe Cable | 650mm, Nylon sleeving |
| 4+4-pin CPU power | 700 mm, Nylon sleeving | SATA Cable | 500 + 150 mm |
| 8-Pin CPU Power Cable | 700mm, Nylon sleeving | Peripherals Cable | 500 + 150 mm |
| 6+2-pin PCIe power | 650mm, Nylon sleeving |
AC INPUT RATING
| 100 - 240Vac | 13A 50Hz-60Hz | 200 - 240Vac | 6.5A 50Hz-60Hz (China & South Korea) |
DC OUTPUT RATING
| +3.3V and +5V | 22A (120W) | 5Vsb | 3A (15W) |
| 12V | 83.3A (1000W) | Total | 1000W |
OPERATION
| MTBF | 100,000 hours | Temperature | 0 - 50 °C |
ENERGY EFFICIENCY
| Rating | 80 Plus Gold | 50% loading | 91.9% @115Vac |
| 10% loading |
85.5% @115Vac | 100% loading |
89.3% @115Vac |
| 20% loading | 89.7% @115Vac |
ELECTRICAL FEATURES
| PF Correction | Active @0.99 | Protections | OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |
FAN SPECS
| Dimensions | 135 x 135 x 25 mm | Noise | 44.5 dBA max |
| Speed | 2300 ± 10% RPM | Bearing | Fluid Dynamic Bearing (FDB) |
| Airflow | 93.02 CFM (Tpy.) |
GENERAL
| Dimensions | 160 x 150 x 86mm | Warranty | 10 years |
| Material(s) | Steel, PCB and Plastic | Model Number | PA-0G2BB-EU |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 | UPC | 810074844789 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 | EAN | 5056547204710 |
