Lian Li UNI P28 3-Pack

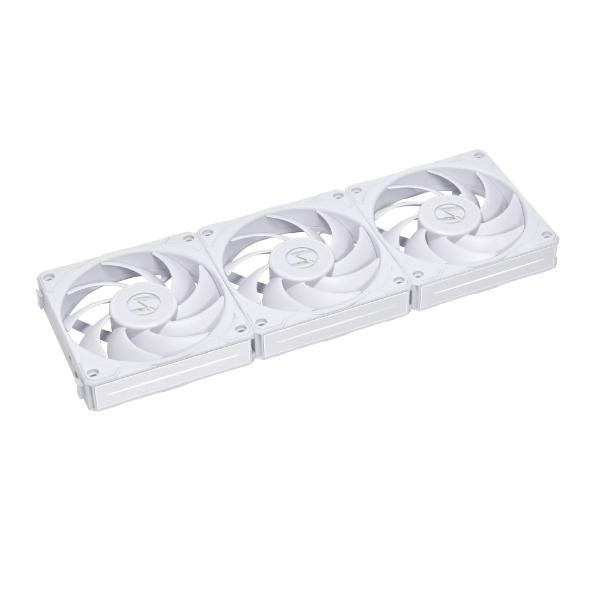

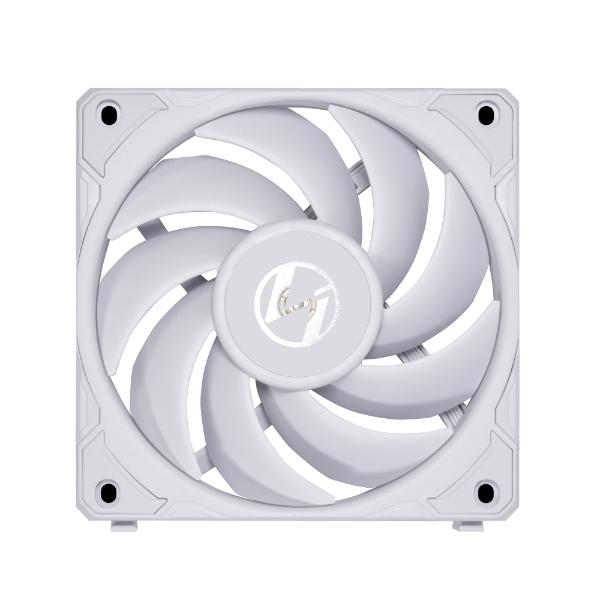

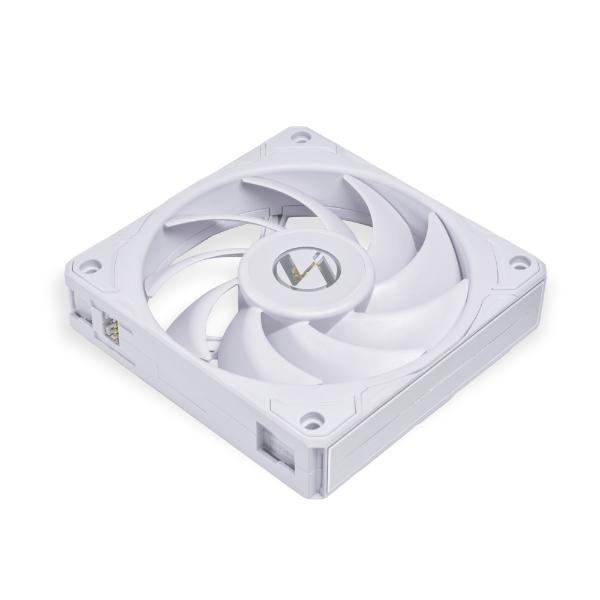

Kit 3 ventilatoare Lian Li UNI P28 - 120mm, Alb
Cod produs: LL-FAN-LULI-050
Întrebare despre Lian Li UNI P28 3-Pack
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Dimensiuni | 120 x 120 x 28 mm |
| Turație | până la 2600 RPM |
| Nivel de zgomot | până la 32.1 dBA |
| Flux de aer | până la 92 CFM |
| Conector | 4-pin PWM |
| Reverse | Nu |
| Culoare | Alb |
| Iluminare | Nu |
Related products
Dimensiuni:
140 x 140 x 25 mm
Turație:
până la 1500 RPM
Nivel de zgomot:
până la 30 dBA
Flux de aer:
până la 70.5 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2100 RPM
Nivel de zgomot:
până la 30.8 dBA
Flux de aer:
până la 72.73 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2100 RPM
Nivel de zgomot:
până la 30.8 dBA
Flux de aer:
până la 72.73 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2150 RPM
Nivel de zgomot:
până la 29.8 dBA
Flux de aer:
până la 77.34 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2150 RPM
Nivel de zgomot:
până la 29.8 dBA
Flux de aer:
până la 77.34 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 120 x 28 mm
Turație:
până la 2000 RPM
Nivel de zgomot:
până la 28.7 dBA
Flux de aer:
până la 77.3 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 2000 RPM
Nivel de zgomot:
până la 31 dBA
Flux de aer:
până la 69.5 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 2000 RPM
Nivel de zgomot:
până la 31 dBA
Flux de aer:
până la 69.5 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Kit 3 ventilatoare Lian Li UNI P28 - 120mm, Alb
- Ventilatoare de performanta de 120 mm controlate de tensiune de la Lian Li
- Interblocare inovatoare cu design de conexiune consecutiv cu conexiune pin la placa
- Pana la doua grupuri de trei ventilatoare pot fi conectate la un antet
- Grosime de 28 mm pentru performante imbunatatite
- Lame ventilatoare LCP care imbunatatesc performanta si reduc vibratiile
- Flux de aer maxim de 92 CFM, cu o presiune statica a aerului de 4,79 mmH2O
- Gaurile cu suruburi incasate permit o instalare usoara cu suruburi de 25 mm
PERFORMANCE EVOLVED
The 1st performance-oriented UNI FAN with uncompromising airflow and static pressure at an optimized noise level that is ideal for
air cooling and water cooling configurations.
|
|
|
|
|
|
|
| SLIDE IN DAISY-CHAIN STYLE | PERFORMANCE ORIENTED | 3 FAN SPEED MODES | CABLELESS INSTALLATION | 6 YEARS WARRANTY | OPTIONAL ARGB SIDE STRIPS |
EFFORTLESS INSTALLATION
UNI FAN P28 features an interlocking system to connect up to 6 fans in two clusters to a single fan speed controller, making fan installation and cable management jobs too easy.
|
SINGLE CABLE FOR A CLUSTER OF FANS Only 1 cable is needed for a cluster of fans and can connect directly to the motherboard or fan speed controller.
|
PLUG-IN POWER CABLE MODULE Flush with fan frame, reduces clearance issues. |
SLIDE-IN MECHANISM Pin-to-pad contact, daisy-chaining the fan into a cluster. |
|
REMOVABLE KEY Remove the interlocking key to improve compatibility. |
EXTENSION CABLE Bridges 2 fan clusters with a minimalistic cable solution. |

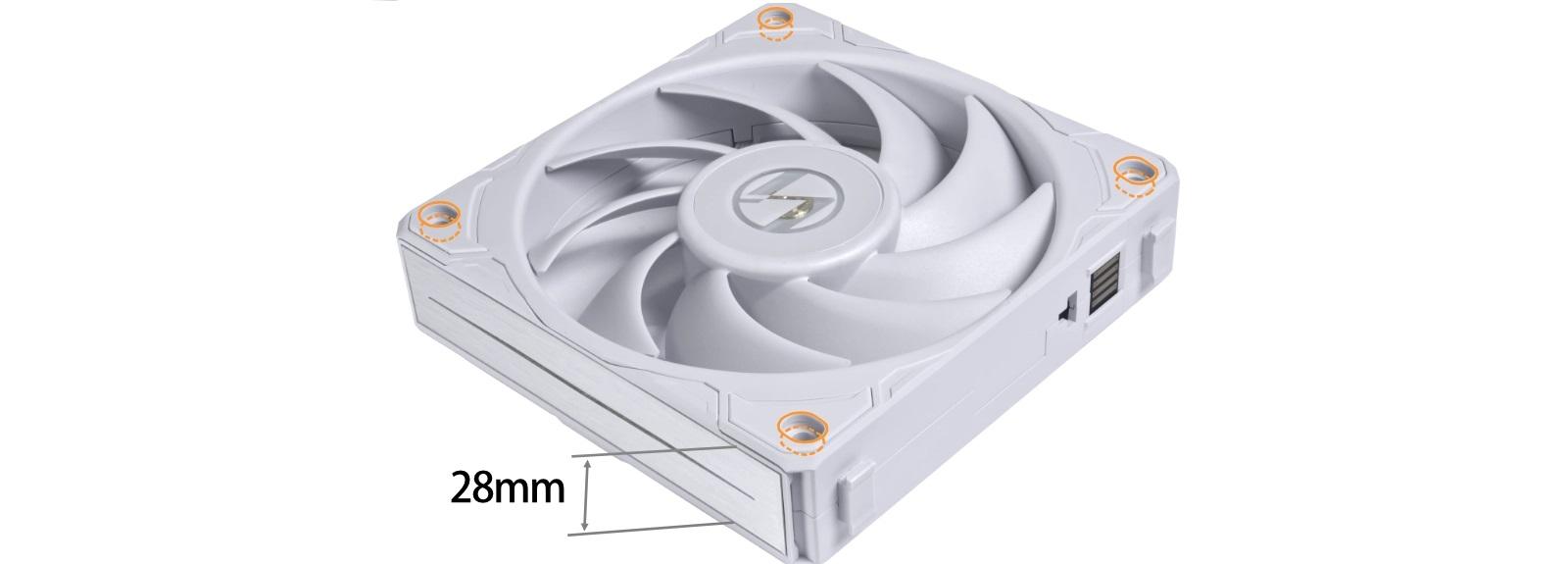

INCREASED THICKNESS FOR MORE PERFORMANCE
The UNI FAN P28 is a high-performance fan designed for optimal cooling. It has a 28mm thick frame that can help deliver more airflow and static pressure. The fan also features indented screw holes that are compatible with 25mm fan screws for easy installation.
Note: The optional 33.8mm long screw set is provided for those who need to mount the UNI FAN P28 through a fan bracket used in a push-pull rad/fan configuration.
STURDY FAN BLADE – LCP MATERIAL
The UNI FAN P28 fan blade is made of liquid-crystal polymer (LCP), a strong material that reduces vibration and allows the fan to run at high speed without compromising stability.

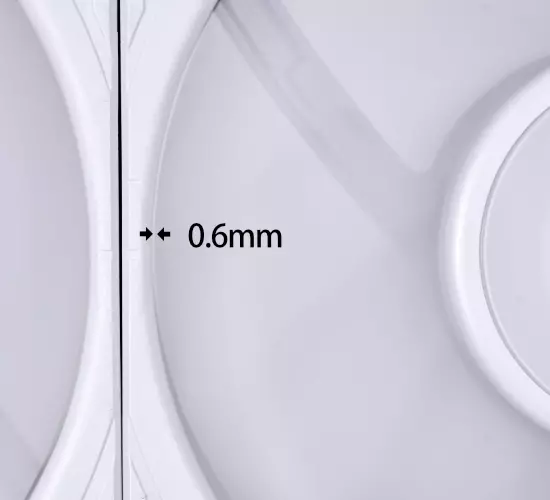

LCP also allows for a tight design structure between the fan blades and fan frame, which increases the surface of the impeller to boost performance and minimize the acoustic level while operating.
EVER RUNNING MOTOR
To achieve high performance with a low noise level, the UNI FAN P28 has implemented the metal bearing shell and the copper shielding to reduce the friction and vibration between the impeller and the frame.
|
METAL BEARING SHELL To securely hold the impeller to the shaft
|
MAGNETIC RUBBER RING To ensure extreme stability
|
FLUID DYNAMIC BEARING (FDB) To effectively reduce the internal friction for improved durability |
STATOR To provide a rotating magnetic field that generates momentum |
|
COPPER SHIELDING To reinforce the shaft and ensure stability at high-speed operation
|
GRAPHITE PAD To reduce shaft friction
|
EXTRA MAGNETIC FORCE To support the fan blades and reduce vibration levels, thus ensuring low noise levels while in operation |
RUBBER PADS To reduce vibrations and maintain extremely low noise levels
|
CUSTOMIZABLE FAN SPEED
The UNI FAN P28 triple pack comes with an innovative magnetic fan speed controller that can be easily attached to any metal surface inside the PC case for convenience.
 |
 |
 |
Three different fan speed modes can be switched with a simple push of the button:
| MODE | L (Silent) | M (Normal) | H (Performance) |
| FAN SPEED (RPM) | 200~1300 | 200~2200 | 200~2600 |
| STATIC PRESSURE (MMH2O) | 1.3 | 3.62 | 4.79 |
| AIRFLOW (CFM) | 44.94 | 77.76 | 92 |
| NOISE (DB(A)) | 20.4 | 28.1 | 32.1 |
|
L |
M |
H |
| Operates at less noise level. | Offering the perfect balance of noise and performance. | Achieving maximum performance. |
6 YEAR WARRANTY
Built with high quality materials and with a durable structure, the UNI FAN P28 is proudly backed by a 6 year warranty.
OPTIONAL ACCESSORY FOR MORE RADIANCE
Side ARGB Strips
P28ARGB-B/W
For a different look with customizable lighting effects, the UNI FAN P28 can use the optional side ARGB strips to replace the aluminum strips for a more sophisticated look.
Specifications
PRODUCT NAME |
UNI FAN P28 |
RATED VOLTAGE |
DC 12V |
MODEL |
P28120-3W |
FAN SPEED |
200 – 2600 RPM |
COLOR |
White |
MAX. AIR PRESSURE |
4.79 mmH2O |
NUMBER OF FANS |
3 |
MAX. AIRFLOW |
92 CFM |
CONTROLLER |
Yes |
MAX. ACOUSTIC NOISE |
32.1 dB(A) |
CABLE |
3 × Adaptor Cable 1 x Extension Cable |
BEARING TYPE |
Fluid Dynamic Bearing (FDB) |
FAN DIMENSION |
120 X 120 X 28 (mm) |
WARRANTY |
6 years |
MATERIAL |
LCP / PBT / PC / Aluminum |
