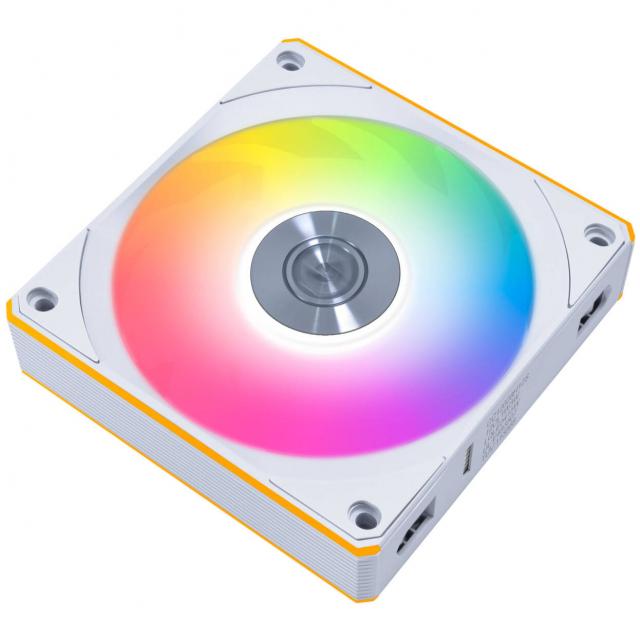

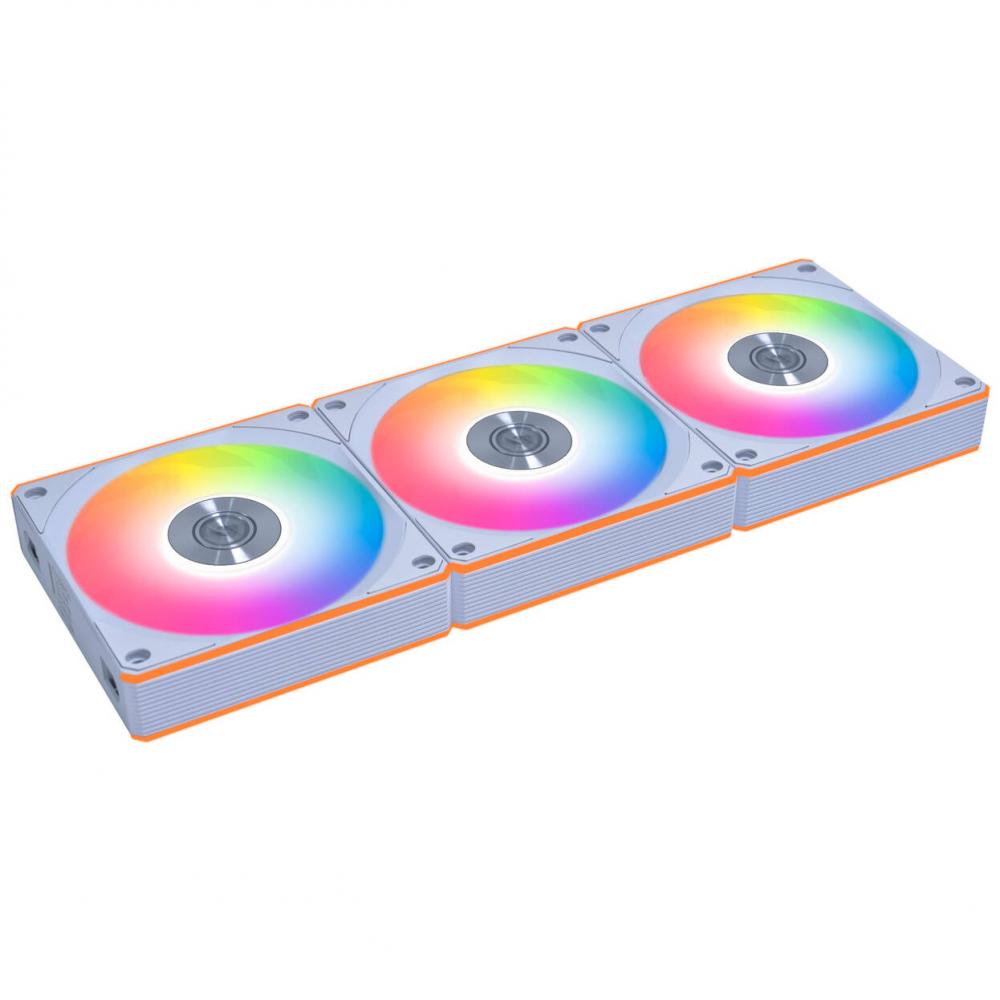

Lian Li UNI FAN CL Wireless Reverse Blade 3 Fan Pack
Kit de 3 ventilatoare Lian Li UNI FAN CL Wireless ARGB PWM Reverse - 120 mm + Controller, Alb
Întrebare despre Lian Li UNI FAN CL Wireless Reverse Blade 3 Fan Pack
| Garanție | 36 luni |
| Dimensiuni | 124 x 120 x 28 mm |
| Turație | până la 2100 RPM |
| Nivel de zgomot | până la 30.8 dBA |
| Flux de aer | până la 72.73 CFM |
| Conector | USB Header, 4-pin PWM |
| Reverse | Da |
| Culoare | Alb |
| Iluminare | ARGB |
Related products
Lian Li UNI FAN SL-INF Wireless Fan, ARGB, PWM – 3-Pack este un set de trei ventilatoare de 120 mm de inalta calitate, echipate cu sincronizare wireless inovatoare, iluminare RGB spectaculoasa si performanta puternica.
Caracteristici principale
-
Dimensiune: 120 mm
-
Tip: Ventilatoare PWM – cu control precis al turatiei
-
Viteza: Pana la 2300 RPM – pentru presiune ridicata si racire eficienta
-
Flux de aer: Airflow si presiune statica ridicate – potrivite pentru radiatoare si carcase
Iluminare si design
Iluminare ARGB in trei zone:
-
Hub central pe palele ventilatorului
-
Banda LED difuza pe lateral
-
Margine interioara cu efect infinity mirror
58 LED-uri adresabile per ventilator – pentru efecte luminoase profunde si complet personalizabile
Doua tipuri de rame – pentru flexibilitate la montaj si estetica variata
Conectivitate wireless si control
Controller L-Wireless SYNC (inclus):
-
Conexiune wireless 2.4 GHz – elimina cablurile dintre ventilatoare si controller
-
Controleaza viteza ventilatoarelor si iluminarea prin software-ul L-Connect 3
-
Suporta pana la 10 grupuri sau dispozitive de ventilatoare
Sistem daisy-chain: Conectare rapida prin pini – fara cabluri suplimentare
Instalare si compatibilitate
-
Instalare usoara – datorita designului modular si sincronizarii wireless
-
Compatibilitate: Potrivite pentru majoritatea carcaselor si radiatoarelor moderne
-
Culori disponibile: Negru si alb

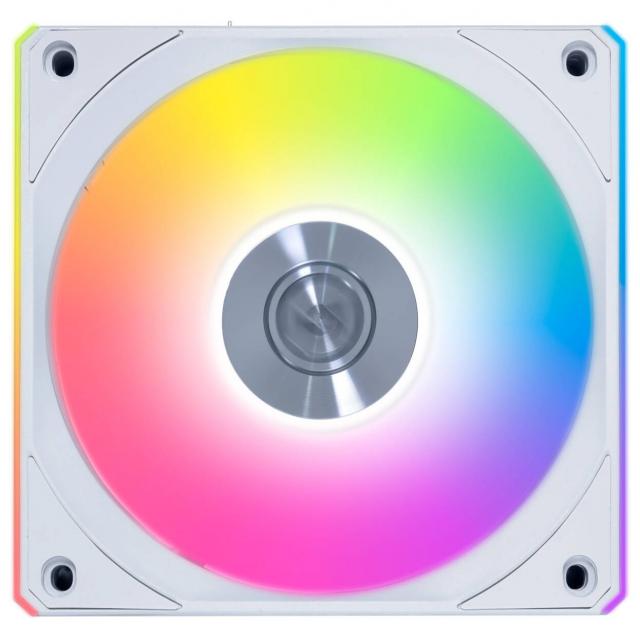

DUAL-ZONE LIGHTING FOR RGB
Independently control the fan blades and side strips to create layered lighting effects that elevate the build’s visual impact.

REFINED DETAIL,
STYLE IN EVERY SPIN

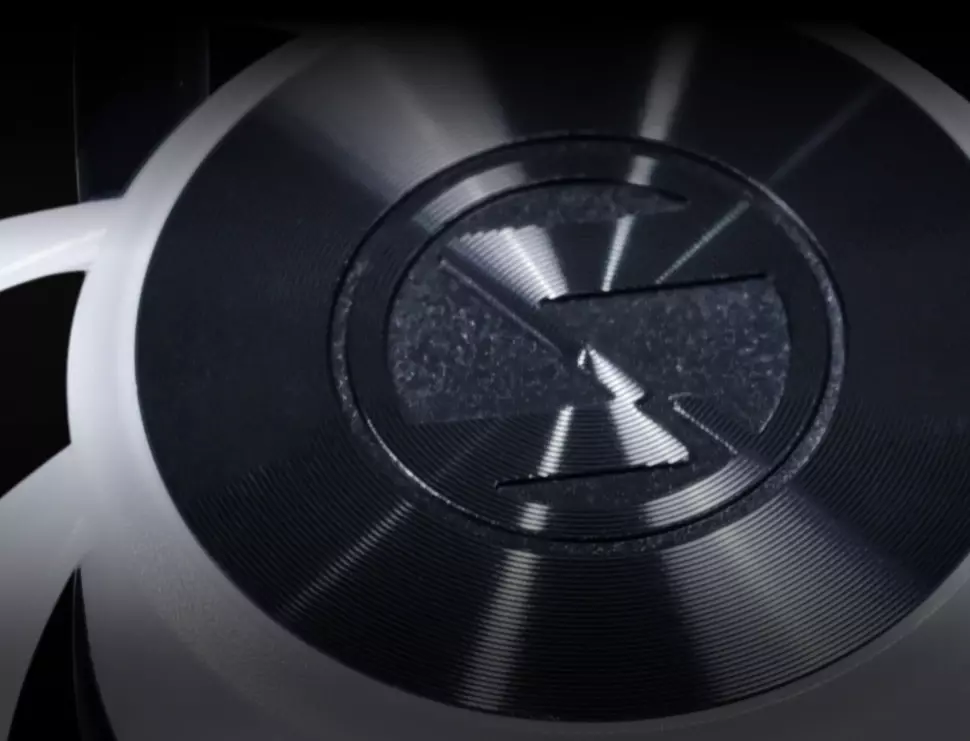

An aluminum nameplate is at the center of CL wireless fan, adding a touch of elegance and elevating the overall build quality, and also making the setups look as powerful as it performs.

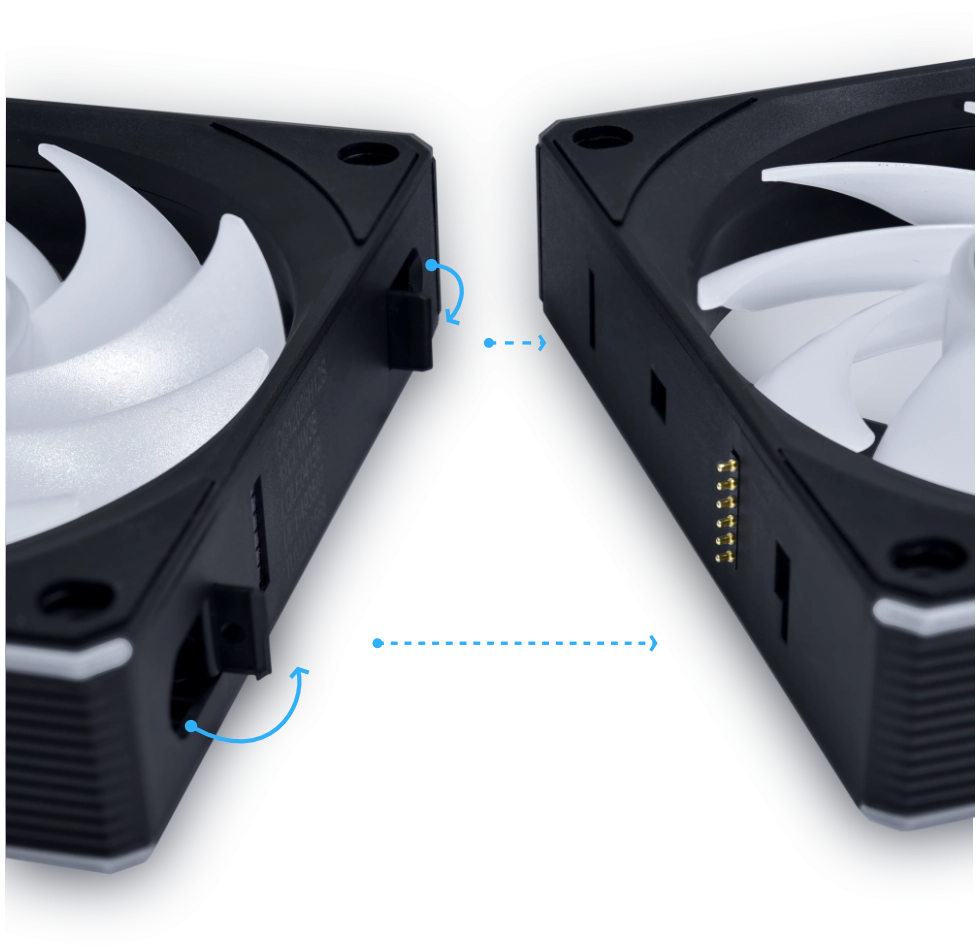

NEW TOOL-FREE
INTERLOCKINGFOR
EFFORTLESS INSTALLATION

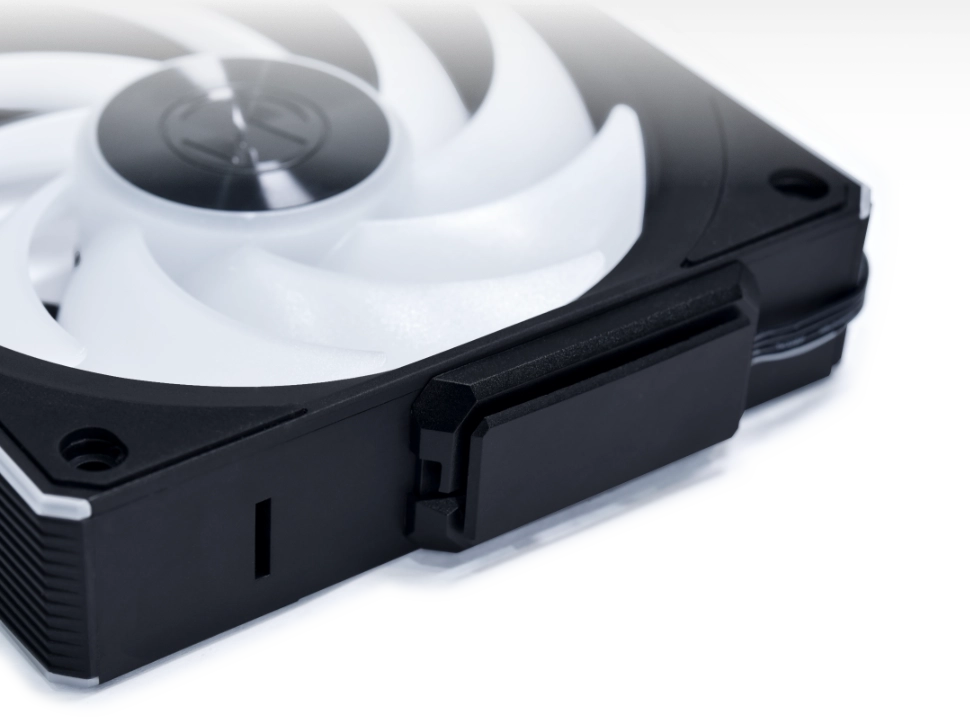

Experience the next-gen installation with an updated push-to-connect design that requires no screws, no hassle,and delivers clean, secure chaining in seconds.
Fan Connection Demo
Fan Separation Demo
BALANCED PERFORMANCE WITH QUIET OPERATION

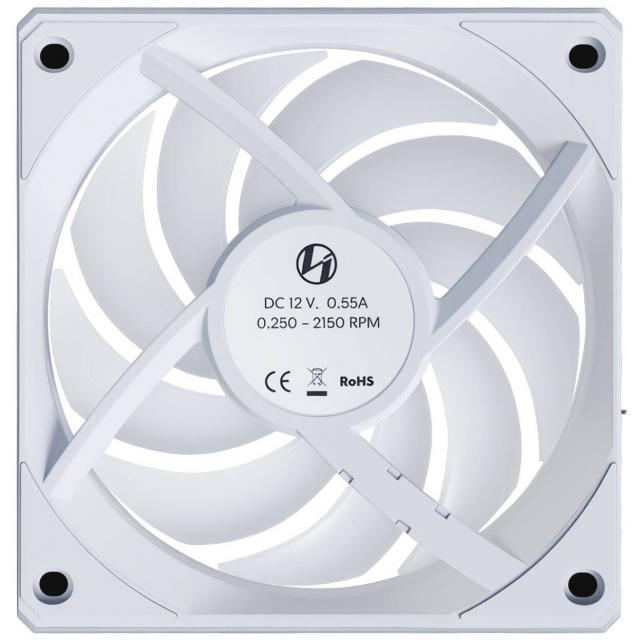

Equipped with FDB and available in standard or reverse blades, CL Wireless delivers strong airflow and pressure while keeping noise to a minimum.





INTEGRATED PWM RECEIVER FOR STABLE AND CLEAN POWER DELIVERY

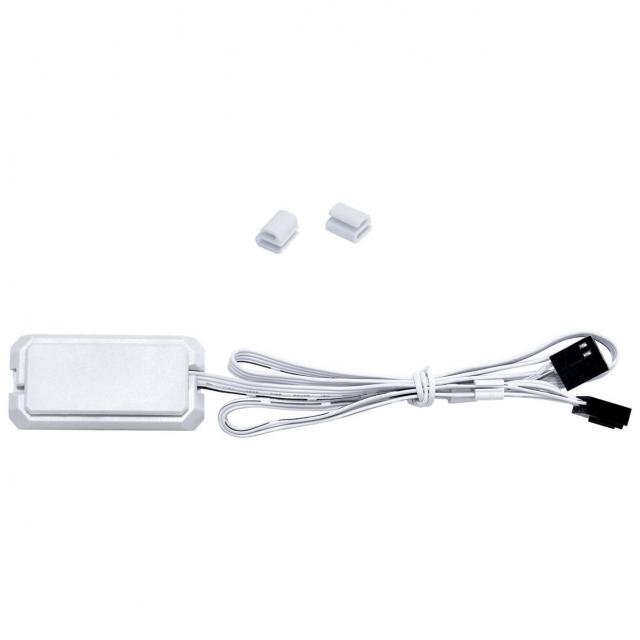

Equipped with a 4-pin main header for automatic PWM detection and a 2-pin tail header for additional power, the UNI FAN CL Wireless ensures reliable 12V operation from the motherboard. Cable length can be adjusted using the built-in organizer, while custom cable combs keep wiring tidy.

L-WIRELESS SYNC CONTROLLER FOR UNIFIED WIRELESS CONTROL

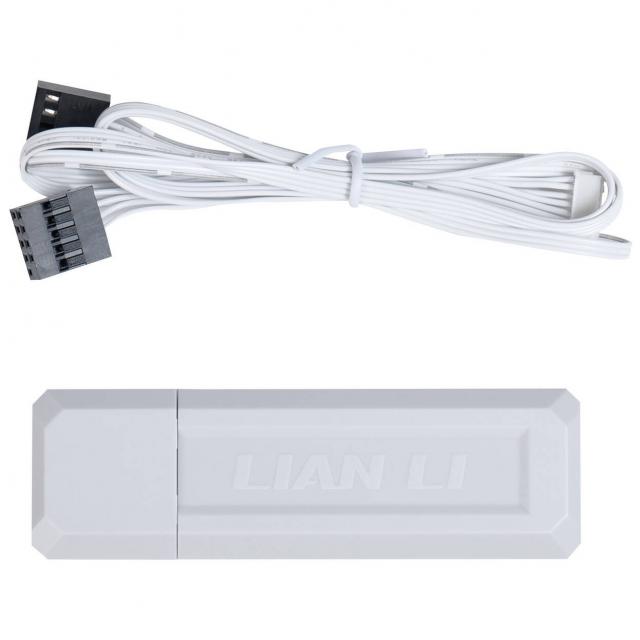

Manage fan speed and lighting across up to 10 device groups with a single 2.4GHz USB dongle-seamlessly syncing UNI FANs, AIOs, STRIMERs, and more for a truly cable-free setup.


Specifications
| PRODUCT NAME | UNI FAN CL Wireless | |||
| MODEL | 12CL1W3B | 12CL1W3W | 12CL1W1B | 12CL1W1W |
| COLOR | BLACK | WHITE | BLACK | WHITE |
| NUMBER OF FANS | 3 | 1 | ||
| CONTROLLER | Yes | No | ||
| FAN DIMENSIONS | 124x120x28mm | |||
| MATERIAL | PBT / PC / Aluminum | |||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||
| FAN SPEED | 0,250~2150 RPM | |||
| MAX. AIR PRESSURE | 2.52 mmH2O (Maximum) | |||
| MAX. AIRFLOW | 77.34 CFM (Maximum) | |||
| ACOUSTIC NOISE | 29.8 dBA (Maximum) | |||
| BEARING TYPE | FDB | |||
| LOCKED CURRENT | >= 50mA | |||
| OPERATIONAL VOLTAGE | DC12V & 5V | |||
| START-UP VOLTAGE | DC 6.0V | |||
| INPUT CURRENT | 180mA (Fan) / 600mA (LED) | |||
| INPUT POWER | 5.16W | |||
| WARRANTY | 3-Year | |||
