Lian Li UNI FAN CL Wireless Reverse Blade
Ventilator Lian Li UNI FAN CL Wireless ARGB PWM Reverse - 120 mm, Negru
Întrebare despre Lian Li UNI FAN CL Wireless Reverse Blade
| Garanție | 36 luni |
| Dimensiuni | 124 x 120 x 28 mm |
| Turație | până la 2100 RPM |
| Nivel de zgomot | până la 30.8 dBA |
| Flux de aer | până la 72.73 CFM |
| Conector | USB Header, 4-pin PWM |
| Reverse | Da |
| Culoare | Negru |
| Iluminare | ARGB |
Related products

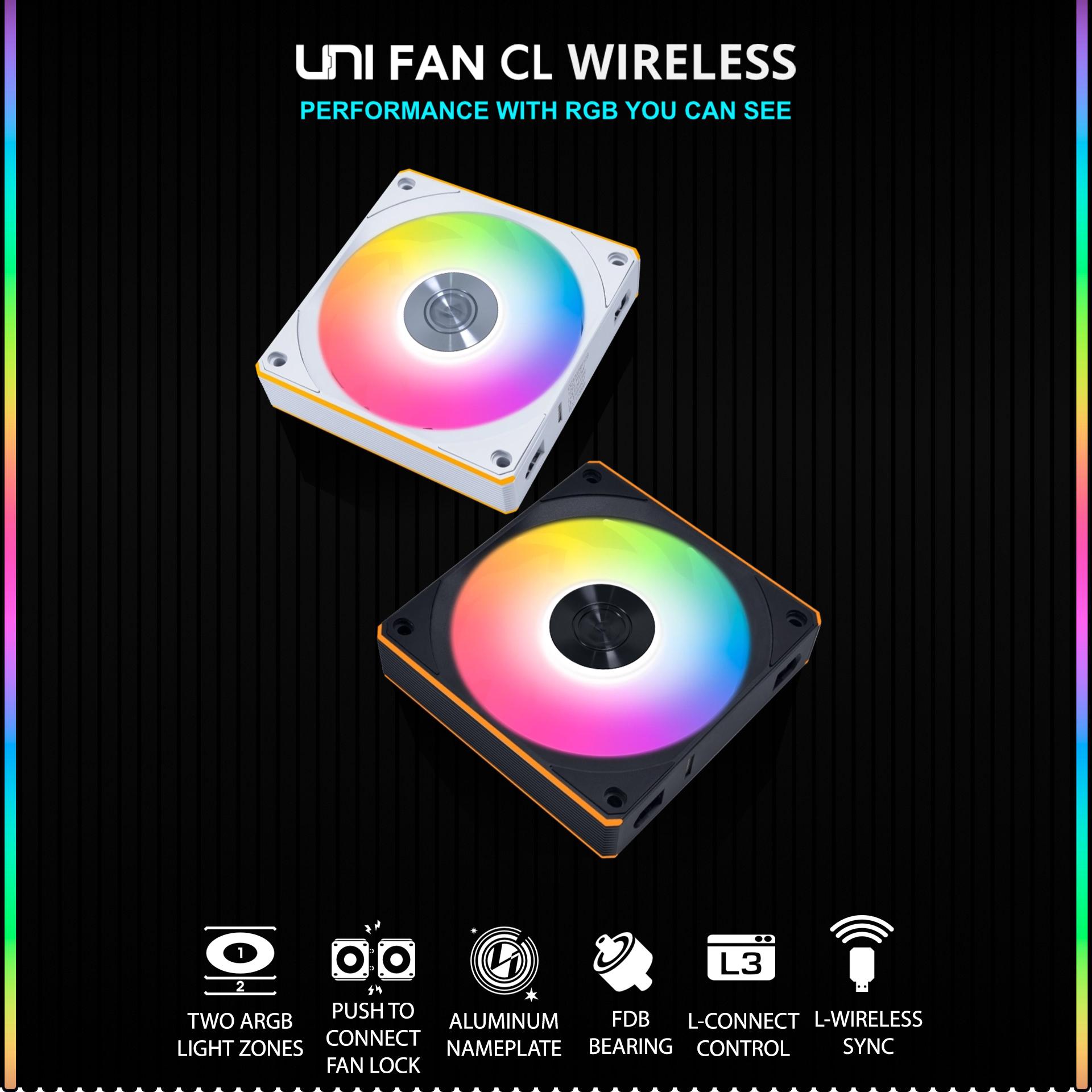

Lian Li UNI FAN CL Wireless Reverse Fan este un ventilator de 120 mm cu iluminare ARGB, sincronizare wireless si design cu pale inversate, creat pentru sisteme orientate spre estetica si cu management minim al cablurilor.
Caracteristici principale
-
Dimensiune: 120 mm
-
Tip: Ventilator PWM – control precis al turatiei prin conector cu 4 pini
-
Grosime: 28 mm – pentru airflow imbunatatit si presiune statica ridicata
-
Viteza: Pana la 2300 RPM – potrivit pentru radiatoare si racirea carcasei
-
Rulment: Fluid Dynamic Bearing (FDB) – functionare silentioasa si durata lunga de viata
Design cu pale inversate
-
Reverse blade: Aerul este impins in directia opusa – ideal pentru montaj frontal cu partea iluminata vizibila
-
Perfect pentru show builds – configuratii unde ventilatoarele sunt vizibile din fata
Iluminare ARGB
Doua zone de iluminare:
-
Palele ventilatorului iluminate
-
Benzi LED laterale
Complet personalizabile prin L-Connect 3 – control al culorilor, efectelor si sincronizare cu alte produse Lian Li
Conectivitate wireless
Controller L-Wireless SYNC (vandut separat sau in pachete):
-
Conexiune wireless 2.4 GHz – elimina cablurile dintre ventilatoare si controller
-
Suporta pana la 10 grupuri de ventilatoare
-
Sistem daisy-chain: mecanism push-to-connect – fara cabluri suplimentare
Instalare si compatibilitate
-
Instalare usoara: fara unelte, datorita designului modular
-
Culori disponibile: Negru si alb
-
Compatibilitate: Potrivit pentru majoritatea carcaselor si radiatoarelor moderne
DUAL-ZONE LIGHTING FOR RGB
Independently control the fan blades and side strips to create layered lighting effects that elevate the build’s visual impact.

REFINED DETAIL,
STYLE IN EVERY SPIN
An aluminum nameplate is at the center of CL wireless fan, adding a touch of elegance and elevating the overall build quality, and also making the setups look as powerful as it performs.
NEW TOOL-FREE
INTERLOCKINGFOR
EFFORTLESS INSTALLATION

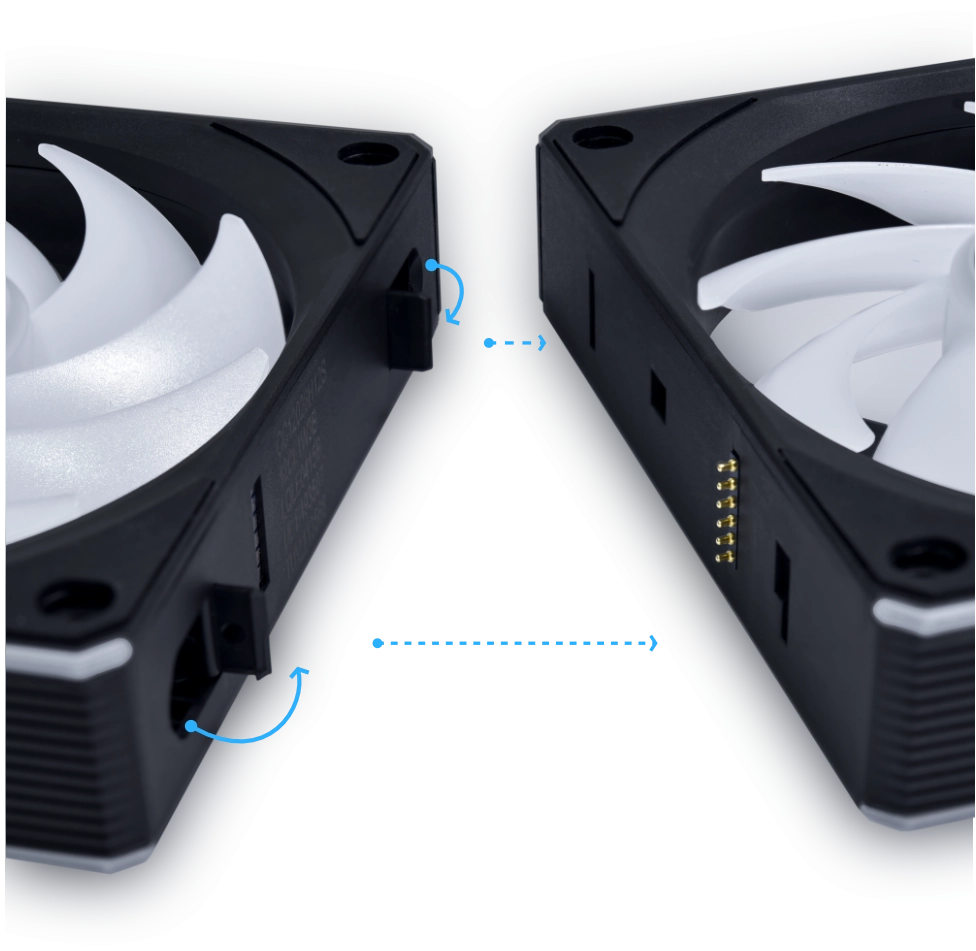

Experience the next-gen installation with an updated push-to-connect design that requires no screws, no hassle,and delivers clean, secure chaining in seconds.
Fan Connection Demo
Fan Separation Demo
BALANCED PERFORMANCE WITH QUIET OPERATION
Equipped with FDB and available in standard or reverse blades, CL Wireless delivers strong airflow and pressure while keeping noise to a minimum.





INTEGRATED PWM RECEIVER FOR STABLE AND CLEAN POWER DELIVERY
Equipped with a 4-pin main header for automatic PWM detection and a 2-pin tail header for additional power, the UNI FAN CL Wireless ensures reliable 12V operation from the motherboard. Cable length can be adjusted using the built-in organizer, while custom cable combs keep wiring tidy.

L-WIRELESS SYNC CONTROLLER FOR UNIFIED WIRELESS CONTROL
Manage fan speed and lighting across up to 10 device groups with a single 2.4GHz USB dongle-seamlessly syncing UNI FANs, AIOs, STRIMERs, and more for a truly cable-free setup.


Specifications
| PRODUCT NAME | UNI FAN CL Wireless | |||
| MODEL | 12CL1W3B | 12CL1W3W | 12CL1W1B | 12CL1W1W |
| COLOR | BLACK | WHITE | BLACK | WHITE |
| NUMBER OF FANS | 3 | 1 | ||
| CONTROLLER | Yes | No | ||
| FAN DIMENSIONS | 124x120x28mm | |||
| MATERIAL | PBT / PC / Aluminum | |||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||
| FAN SPEED | 0,250~2150 RPM | |||
| MAX. AIR PRESSURE | 2.52 mmH2O (Maximum) | |||
| MAX. AIRFLOW | 77.34 CFM (Maximum) | |||
| ACOUSTIC NOISE | 29.8 dBA (Maximum) | |||
| BEARING TYPE | FDB | |||
| LOCKED CURRENT | >= 50mA | |||
| OPERATIONAL VOLTAGE | DC12V & 5V | |||
| START-UP VOLTAGE | DC 6.0V | |||
| INPUT CURRENT | 180mA (Fan) / 600mA (LED) | |||
| INPUT POWER | 5.16W | |||
| WARRANTY | 3-Year | |||
