Lian Li UNI FAN CL Wireless
Ventilator Lian Li UNI FAN CL Wireless ARGB PWM - 120 mm, Negru
Întrebare despre Lian Li UNI FAN CL Wireless
| Garanție | 36 luni |
| Dimensiuni | 124 x 120 x 28 mm |
| Turație | până la 2150 RPM |
| Nivel de zgomot | până la 29.8 dBA |
| Flux de aer | până la 77.34 CFM |
| Conector | USB Header, 4-pin PWM |
| Reverse | Nu |
| Culoare | Negru |
| Iluminare | ARGB |
Related products

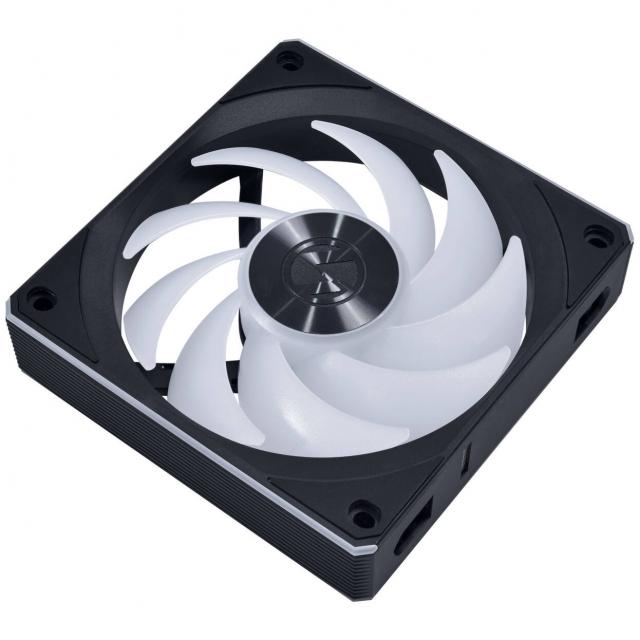

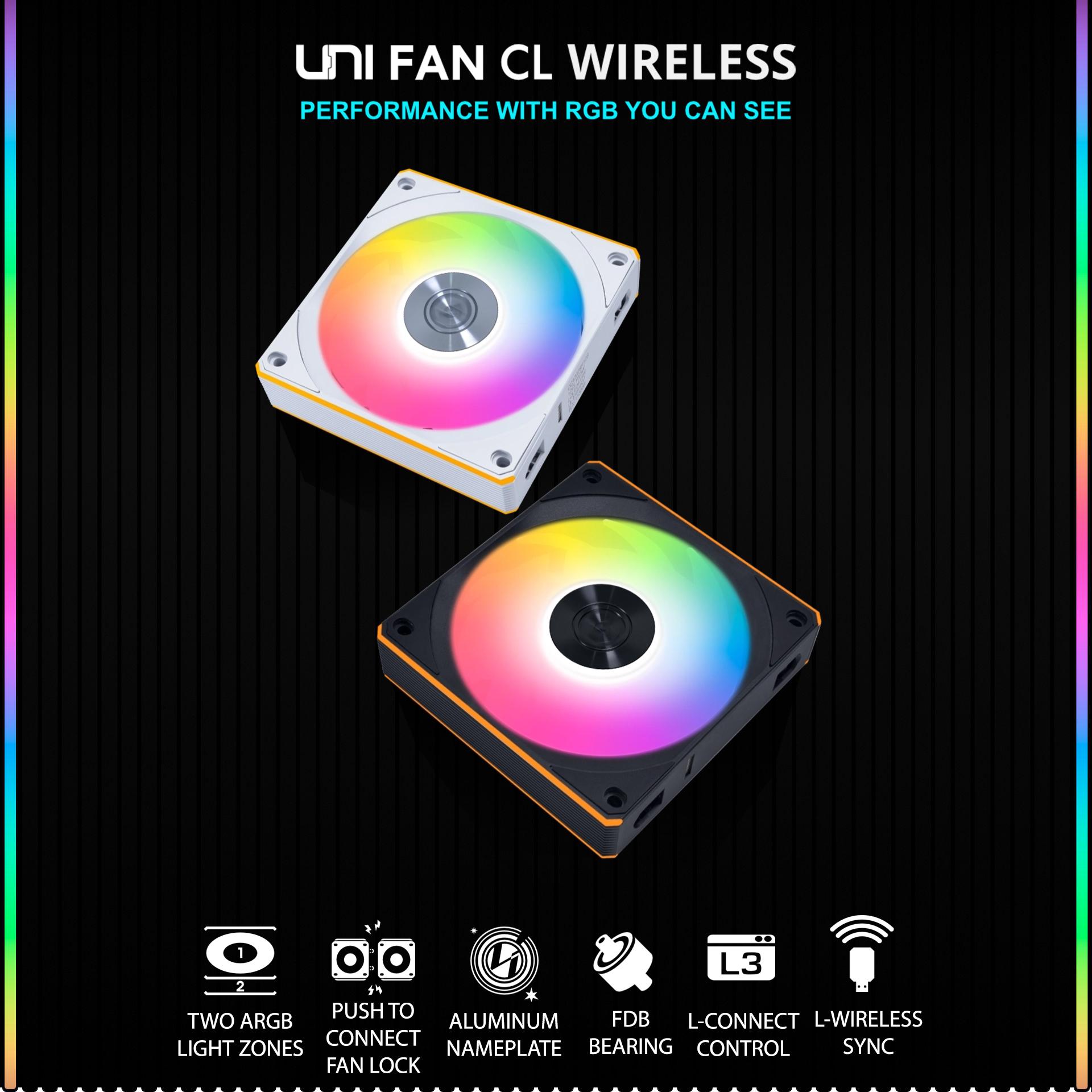

Lian Li UNI FAN CL Wireless 120mm Black este un ventilator premium de 120 mm cu iluminare ARGB, sincronizare wireless si design modular push‑to‑connect. Creat pentru sisteme curate, fara cabluri vizibile, ofera airflow puternic, presiune statica ridicata si functionare silentioasa datorita ramei de 28 mm si rulmentului FDB.
Caracteristici principale
-
Dimensiune: 120 mm
-
Grosime: 28 mm – pentru airflow si presiune statica imbunatatite
-
Tip: Ventilator PWM – control precis al turatiei
-
Rulment: Fluid Dynamic Bearing (FDB) – silentios si durabil
-
Iluminare: Doua zone ARGB – pale iluminate + benzi LED laterale
-
Conectivitate wireless: Compatibil cu controllerul L‑Wireless SYNC (2.4 GHz)
-
Sistem daisy‑chain: Push‑to‑connect – fara cabluri suplimentare
-
Compatibilitate: Potrivit pentru majoritatea carcaselor si radiatoarelor moderne
-
Culoare: Negru

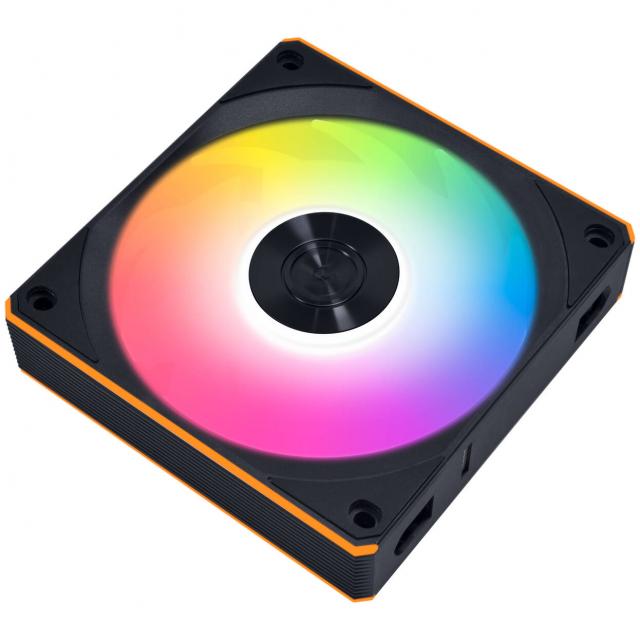

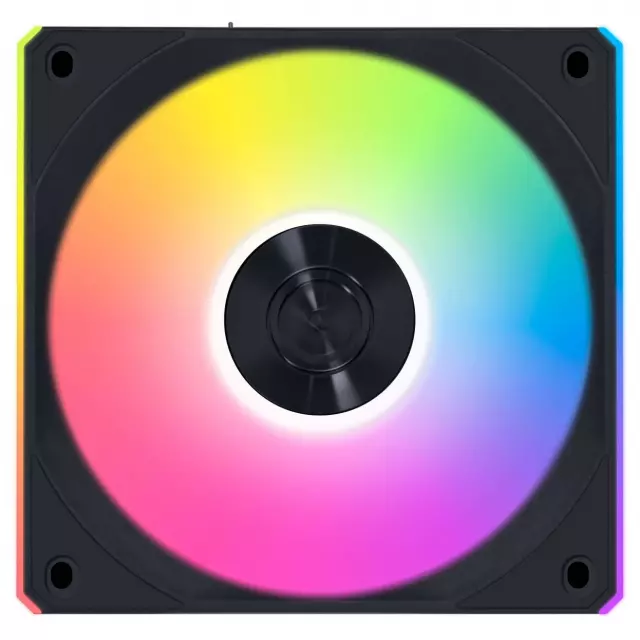

DUAL-ZONE LIGHTING FOR RGB
Independently control the fan blades and side strips to create layered lighting effects that elevate the build’s visual impact.

REFINED DETAIL,
STYLE IN EVERY SPIN

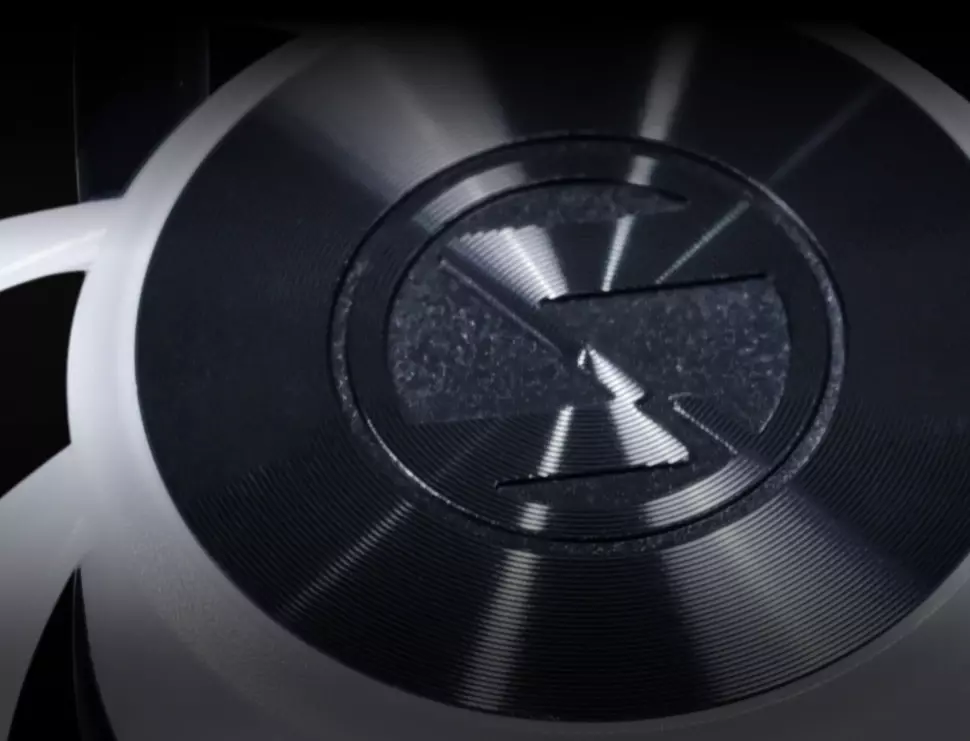

An aluminum nameplate is at the center of CL wireless fan, adding a touch of elegance and elevating the overall build quality, and also making the setups look as powerful as it performs.

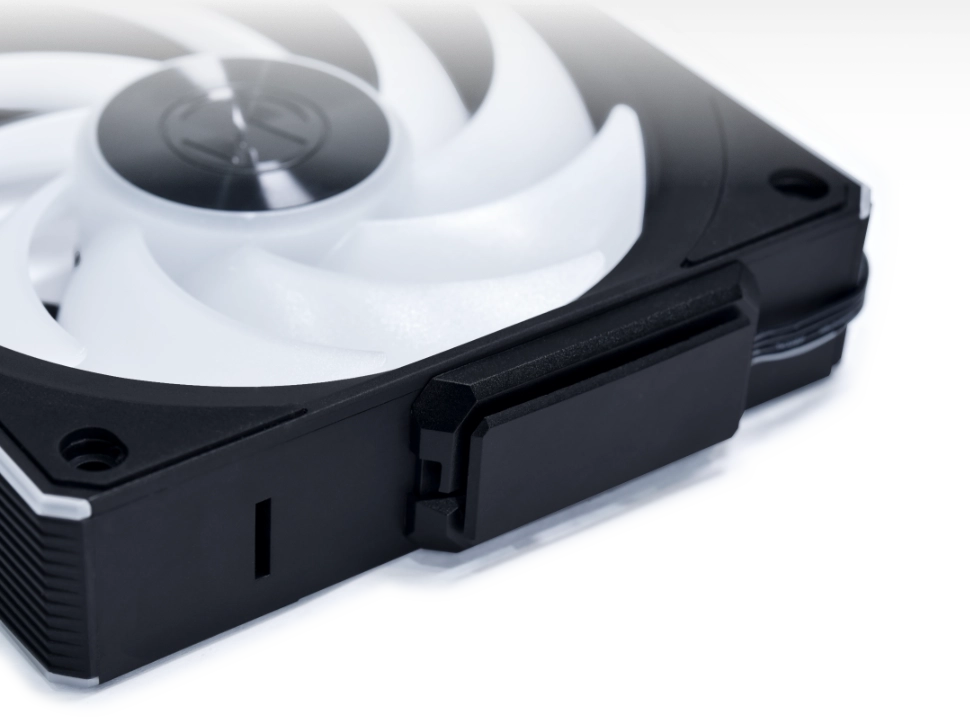

NEW TOOL-FREE
INTERLOCKINGFOR
EFFORTLESS INSTALLATION

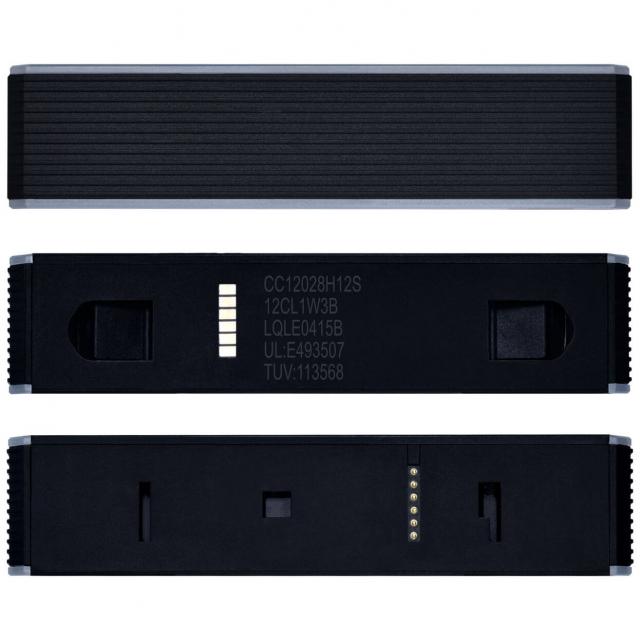

Experience the next-gen installation with an updated push-to-connect design that requires no screws, no hassle,and delivers clean, secure chaining in seconds.
Fan Connection Demo
Fan Separation Demo
BALANCED PERFORMANCE WITH QUIET OPERATION
Equipped with FDB and available in standard or reverse blades, CL Wireless delivers strong airflow and pressure while keeping noise to a minimum.





INTEGRATED PWM RECEIVER FOR STABLE AND CLEAN POWER DELIVERY
Equipped with a 4-pin main header for automatic PWM detection and a 2-pin tail header for additional power, the UNI FAN CL Wireless ensures reliable 12V operation from the motherboard. Cable length can be adjusted using the built-in organizer, while custom cable combs keep wiring tidy.

L-WIRELESS SYNC CONTROLLER FOR UNIFIED WIRELESS CONTROL
Manage fan speed and lighting across up to 10 device groups with a single 2.4GHz USB dongle-seamlessly syncing UNI FANs, AIOs, STRIMERs, and more for a truly cable-free setup.


Specifications
| PRODUCT NAME | UNI FAN CL Wireless | |||
| MODEL | 12CL1W3B | 12CL1W3W | 12CL1W1B | 12CL1W1W |
| COLOR | BLACK | WHITE | BLACK | WHITE |
| NUMBER OF FANS | 3 | 1 | ||
| CONTROLLER | Yes | No | ||
| FAN DIMENSIONS | 124x120x28mm | |||
| MATERIAL | PBT / PC / Aluminum | |||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||
| FAN SPEED | 0,250~2150 RPM | |||
| MAX. AIR PRESSURE | 2.52 mmH2O (Maximum) | |||
| MAX. AIRFLOW | 77.34 CFM (Maximum) | |||
| ACOUSTIC NOISE | 29.8 dBA (Maximum) | |||
| BEARING TYPE | FDB | |||
| LOCKED CURRENT | >= 50mA | |||
| OPERATIONAL VOLTAGE | DC12V & 5V | |||
| START-UP VOLTAGE | DC 6.0V | |||
| INPUT CURRENT | 180mA (Fan) / 600mA (LED) | |||
| INPUT POWER | 5.16W | |||
| WARRANTY | 3-Year | |||
