Lian Li SUP01

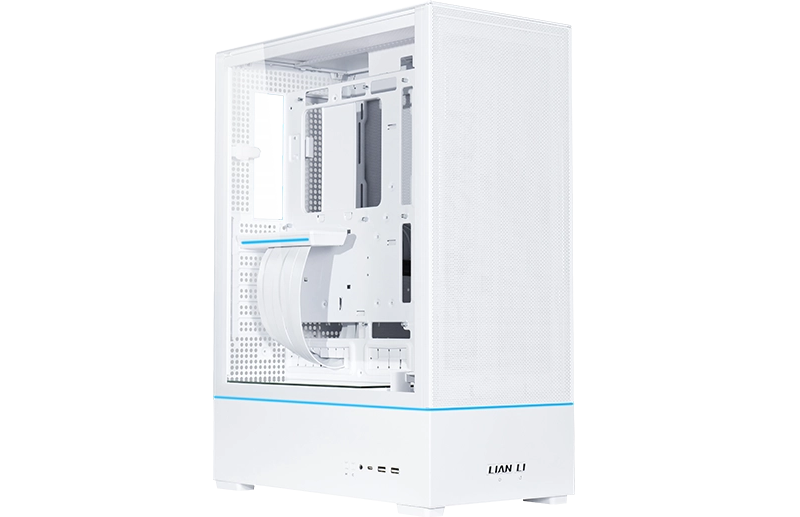

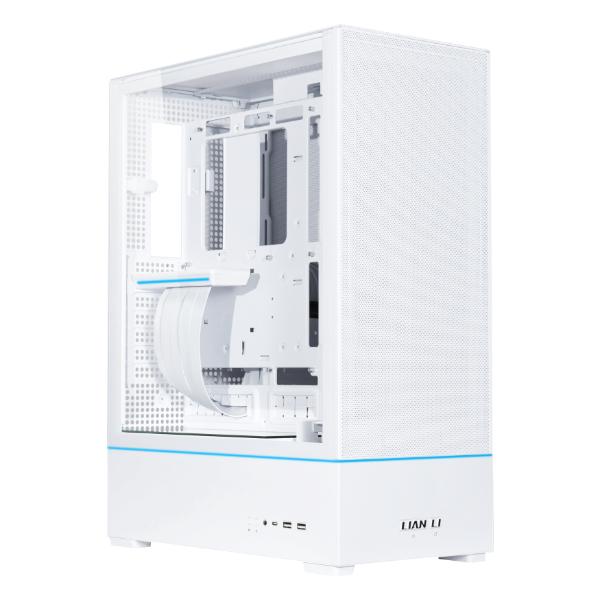

Carcasa Lian-Li SUP01W Mid-Tower, Tempered Glass, Alb
Cod produs: LL-CASE-GELI-952
Întrebare despre Lian Li SUP01
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Form Factor | Mid Tower |
| Format | ATX, Micro ATX, Mini ITX |
| Ventilatoare incluse | 3x 120 mm |
| Panou frontal | USB 3.0, USB 3.1 Gen 2 (Type-C) |
| Culoare | Alb |
| Lungime | 404 mm |
| Lăţime | 212 mm |
| Înălţime | 534 mm |
| Înălțimea maximă a coolerului cu aer | 88 mm |
| Lungimea maximă a plăcii video | 400 mm |
| În plus | Butoane de control al iluminarii |
| Ventilatoare suportate în spate | 1x 120mm |
| Ventilatoare suportate pe lateral | 3x 120mm, 2x 140mm |
| Coolere cu lichid suportate pe lateral | 1x 280mm, 1x 360mm |
| Panou Mesh frontal | Da |
Related products
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
2x 120mm, 1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
2x 120mm, 2x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
5x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
5x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Negru
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Carcasa Lian-Li SUP01W Mid-Tower, Tempered Glass, Alb
- Carcasa verticala de 45 litri pentru o amprenta minima
- Instalare GPU orientata spre fata cu suporturi de montare reglabile pentru un aspect unic si o racire de calitate.
- Design independent de racire directa, care aduce cea mai eficienta disipare a caldurii pentru toate componentele de baza
- Include cablu riser PCIe 4.0 de 510 mm cu capac de iluminare RGB care impartaseste aceleasi efecte de iluminare cu banda ARGB
- Include un suport exterior de montare a ventilatorului de 120 mm in spate pentru a impinge aerul proaspat in sasiu
- Include trei ventilatoare de performanta de 120 mm in partea laterala pentru iesirea aerului din GPU
- Sprijina 360mm/280mm AIO cu inatimea pomei maxima de 88.2mm
- Sprijina standard de placi de baza pana la ATX si placi ATX cu conectare de pe spate
Optimize your desktop with the LIAN LI SUP01, the stand-up platform design
not only minimizes footprint but also ensures impeccable hardware
compatibility and superior cooling efficiency.
AVAILABLE IN 2 COLORS
The SUP01 comes in two colors: the classic luxury of black and the refreshing elegance of white,
ensuring a perfect match for your style.

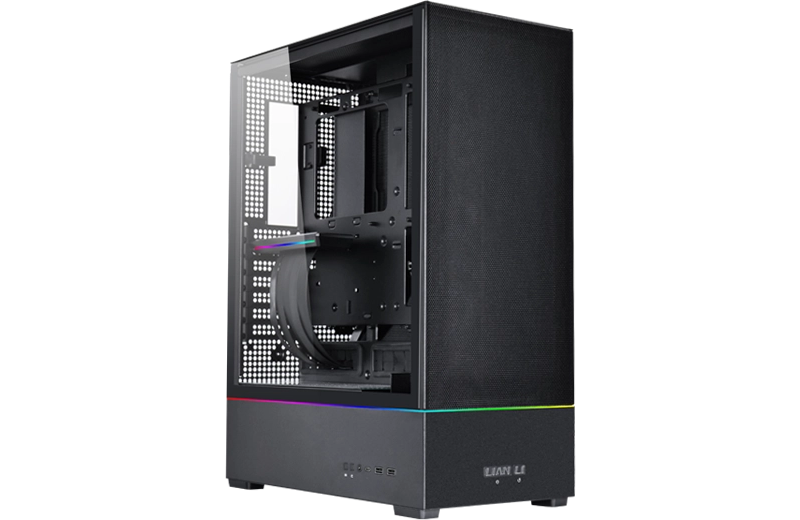

BLACK

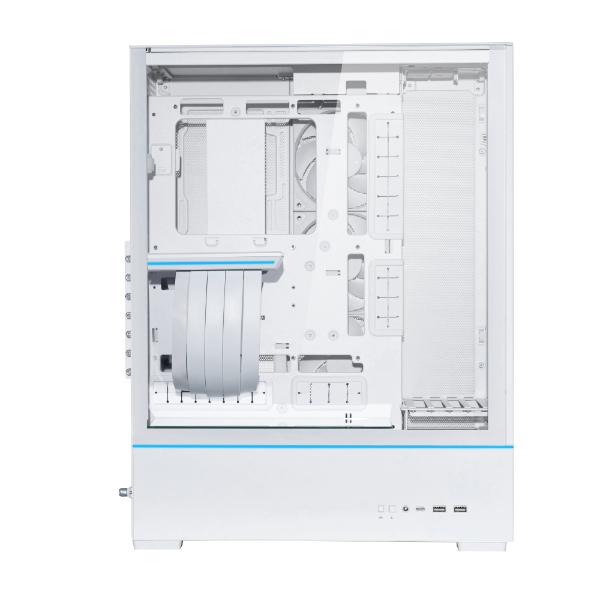

WHITE

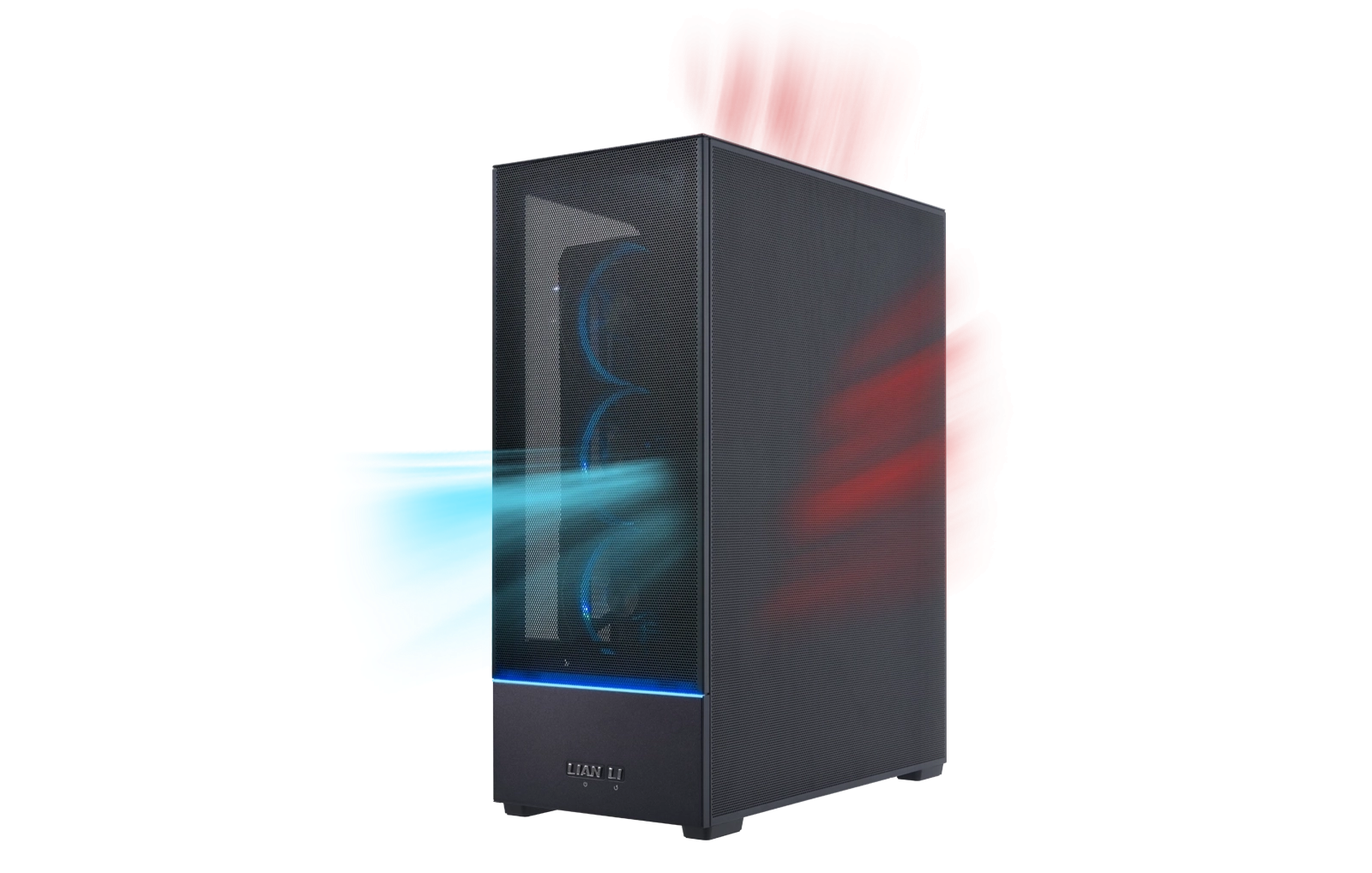

INDEPENDENT CHAMBERED DIRECT COOLING
Differing from traditional cases, the SUP01 offers independent intake and exhaust for all core components.
Note: Removing dust filters will enhance the cooling performance of both the GPU and CPU.
DIRECT COOLING FOR GPU
The GPU intakes direct cool air through the front mesh panel
and expels heat through the side with three pre-installed
120mm fans, significantly enhancing thermal dissipation.

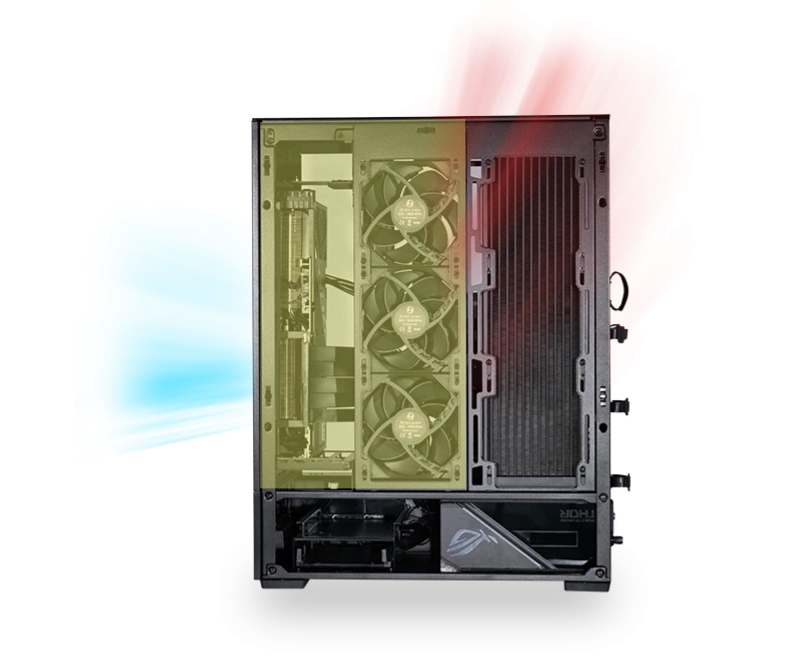

DIRECT COOLING FOR AIO
Mounting the radiator on the side of the chassis in the 2nd
chamber allows it to draw cool air directly from the rear opening,
efficiently expelling CPU heat through the side mesh panel.
*Cooling performance is better when the radiator is positioned outside against
the mesh panel.

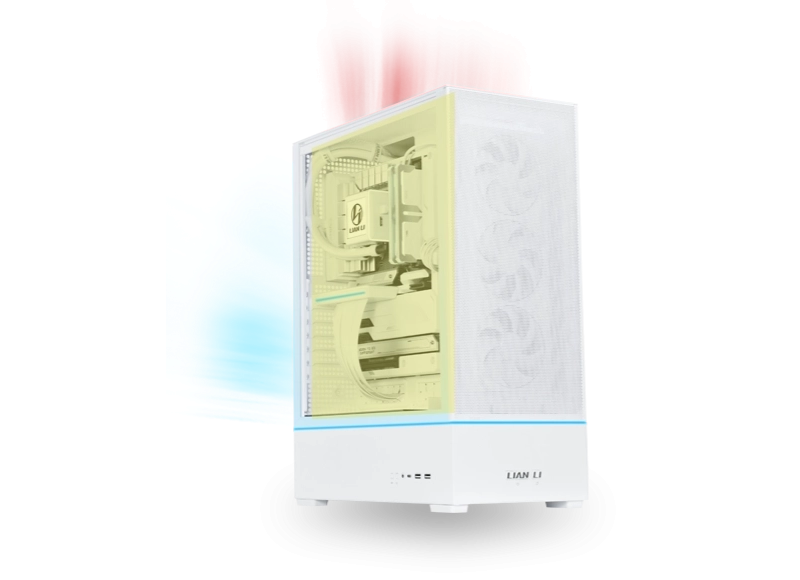

DIRECT COOLING FOR MOTHERBOARD COMPONENTS
The 120mm fan installed at the rear exterior intakes fresh air,
cooling M.2 storage, VRM modules, and memory directly for
efficient heat dissipation through the top mesh panel, free
from obstruction by radiators or components.
For balance airflow management and peak performance, configure all right-side fans for exhaust and
the rear fan for intake, while relying on the GPU’s built-in fan for intake air.

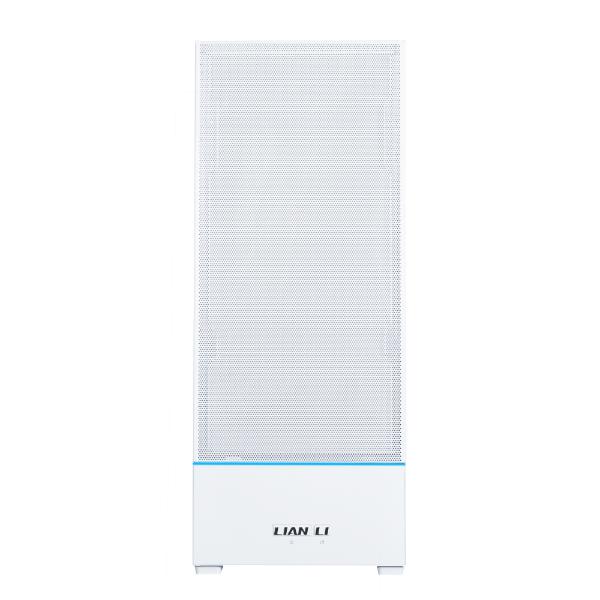

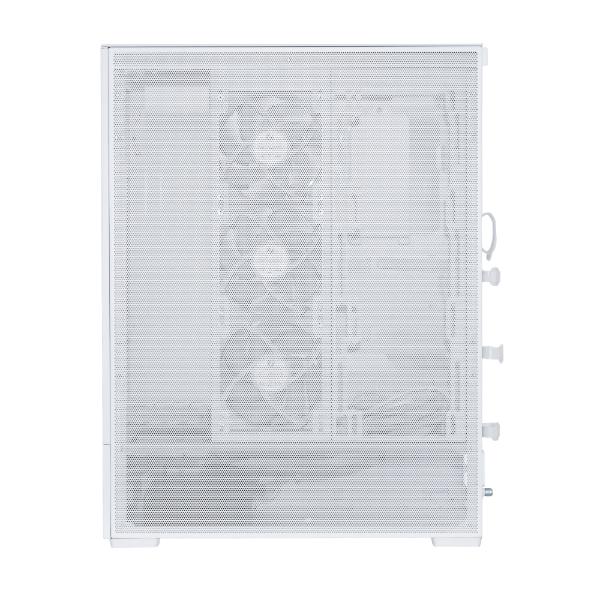

UNPARALLELED 3 SIDE MESH PANELS AIRFLOW
Featuring exquisite mesh panels on its front, side, and top, the SUP-01 offers seamless ventilation for
optimized cooling.
It is also equipped with three dust filters (magnetic filter on the top and front, tray filter on the bottom)
for environments prone to dust accumulation.

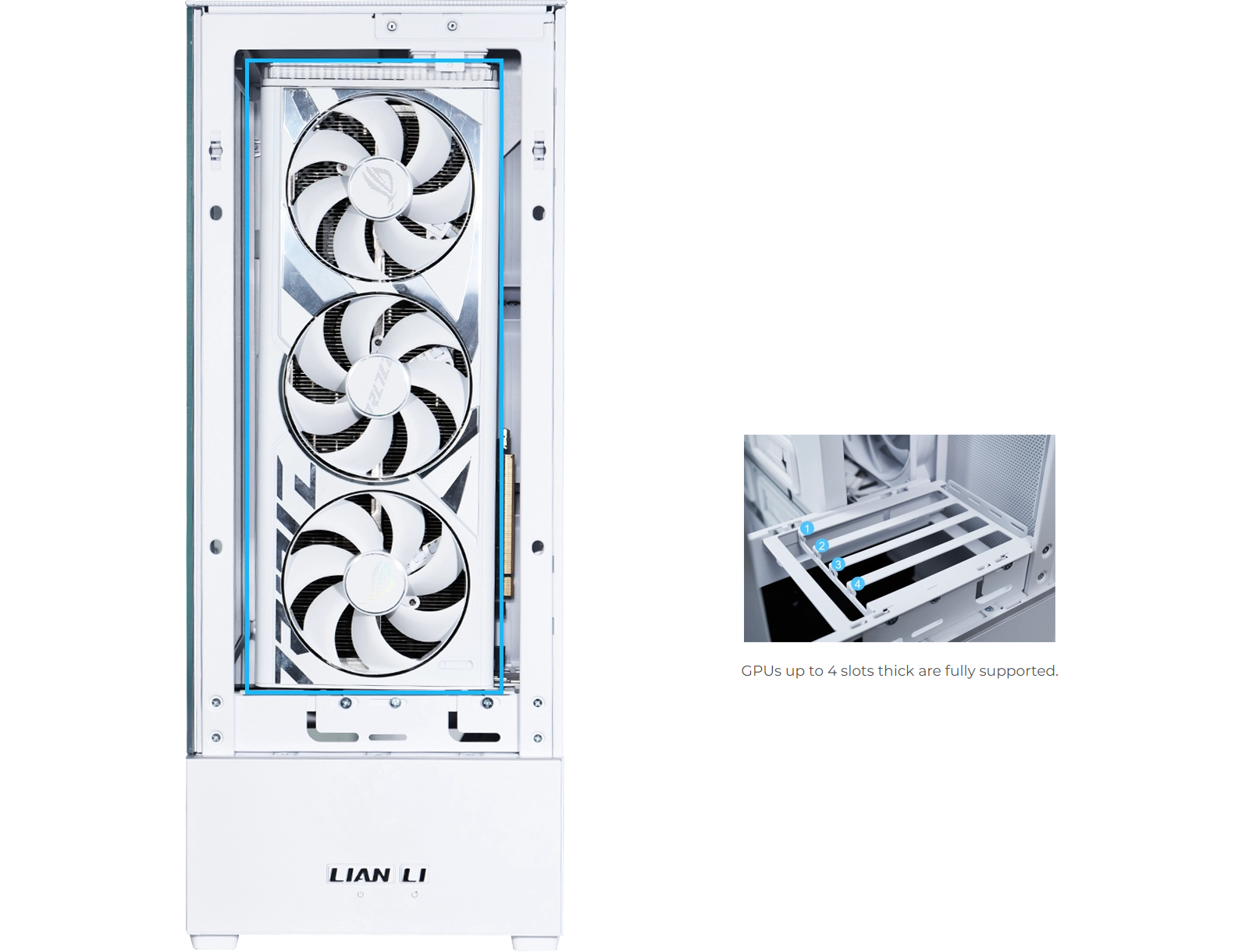

FRONT-FACING GPU INSTALLATION
The SUP01 displays your GPU at the forefront of the build for improved GPU thermal efficiency and a
different aesthetic.

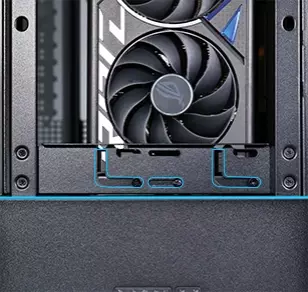

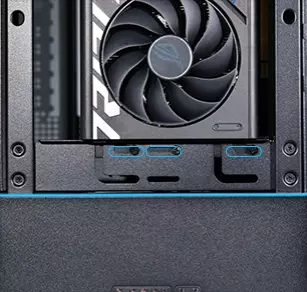

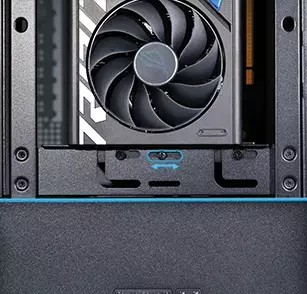

FLEXIBLE INSTALLATION BRACKET
The GPU bracket is designed for vertical and horizontal adjustment to accommodate GPUs of different
lengths and sizes.
GPU length 400mm Max
GPU length 380mm Max
Centerlized or Right alignment
for closer exhaust
SPECIFICATIONS
| MODEL NAME | SUP01 | INCLUDED FAN | 3 x 120mm PWM |
| MODEL NO. | SUP01W WHITE | FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
| COLOR | White | RADIATOR SUPPORT | Side 2: 360mm or 280mm |
| CASE TYPE | Small Tower Case | DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
GPU LENGTH CLEARANCE | Max 400mm |
| CAPACITY | 44.8L | CPU HEIGHT CLEARANCE | Max 88.2mm |
| MATERIAL | Steel 4.0mm Tempered Glass |
EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
| RISER CABLE TYPE | PCIE 4.0 | I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
DUST FILTER | 1 x bottom tray 1 x front magnatic 1 x top magnatic |
| PSU SUPPORT | ATX (Max 220mm) | WARRANTY | 2 years |
