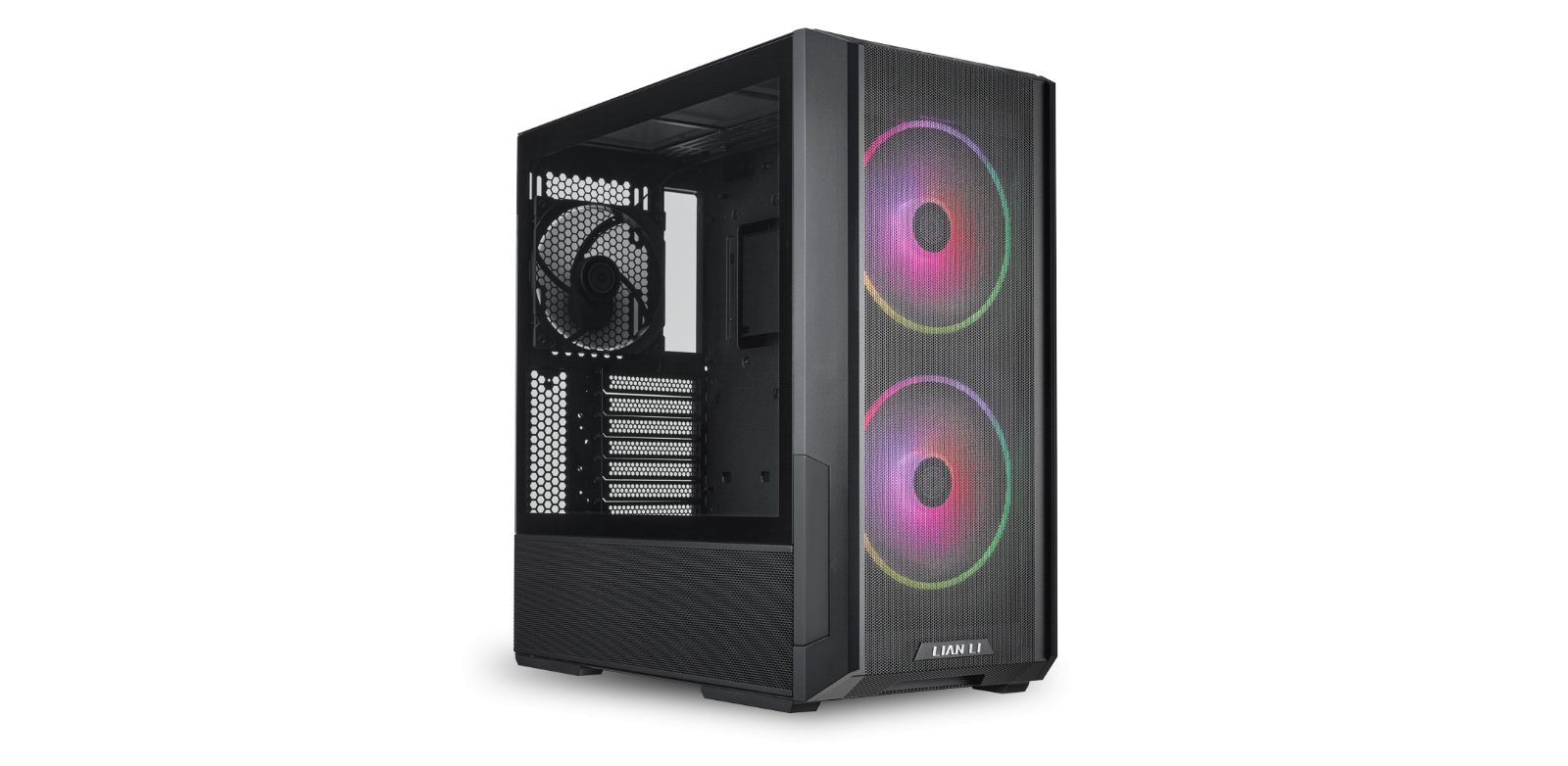

Lian Li LANCOOL 216 RGB
Carcasa Lian-Li LANCOOL 216 RGB Mid-Tower, Tempered Glass, Negru
Cod produs: LL-CASE-LAN216RX-BL
Întrebare despre Lian Li LANCOOL 216 RGB
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Mid Tower |
| Format | ATX, Micro ATX, Mini ITX, EATX |
| Ventilatoare incluse | 1x 140mm, 2x 160mm |
| Panou frontal | USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C) |
| Culoare | Negru |
| Lungime | 481 mm |
| Lăţime | 235 mm |
| Înălţime | 492 mm |
| Înălțimea maximă a coolerului cu aer | 180.5 mm |
| Lungimea maximă a plăcii video | 392 mm |
| În plus | Fan Hub |
| Ventilatoare suportate în față | 3x 120mm, 2x 140mm, 2x 160mm |
| Ventilatoare suportate în partea de jos | 2x 120mm, 2x 140mm |
| Ventilatoare suportate în spate | 1x 120mm, 1x 140mm |
| Ventilatoare suportate în partea de sus | 2x 140mm, 3x 120mm |
| Coolere cu lichid suportate în fată | 1x 280mm, 1x 240mm, 1x 360mm |
| Coolere cu lichid suportate în partea de jos | 1x 240mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 280mm, 1x 360mm |
| Panou Mesh frontal | Da |
Related products
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
2x 120mm, 2x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
5x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
5x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
USB 3.0, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Negru
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
2x 120mm, 1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 170mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb

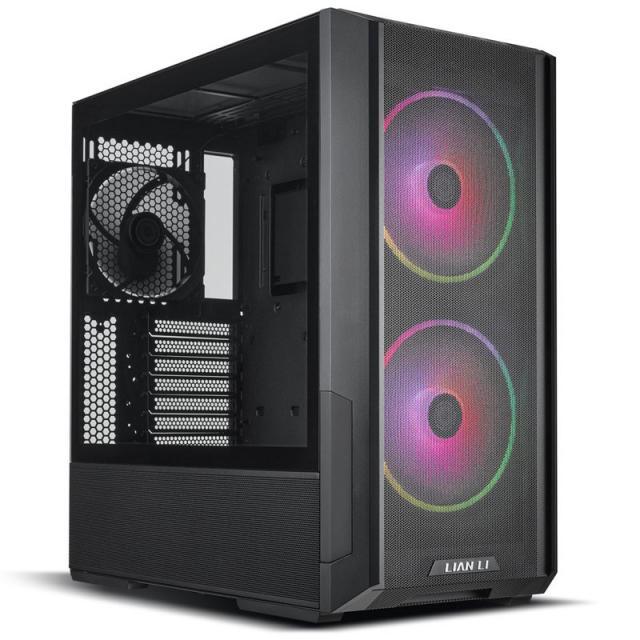

Carcasa Lian Li LANCOOL 216 RGB Mid-Tower, Tempered Glass, Negru
- Sasiu mid-tower configurabil pentru racirea cu aer si racirea cu lichid
- panouri laterale si parte superioara optimizate pentru fluxul de aer
- 2 X ventilatoare frontale de 160 PWM (ARGB sau non-RGB) si 1 x ventilator PWM spate de 140 mm
- Suporta coolere de 360mm in partea de sus, fata si un maxim de 10 ventilatoare
- Include un suport pentru ventilator PCIe in partea din spate
- Panou I/O pe partea de fata care poate fi mutat in partea de jos
- solutie extinsa de gestionare a cablurilor
LANCOOL 216
AIRFLOW FOCUS
The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel,
it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative
rear PCIe fan bracket to maximize airflow.

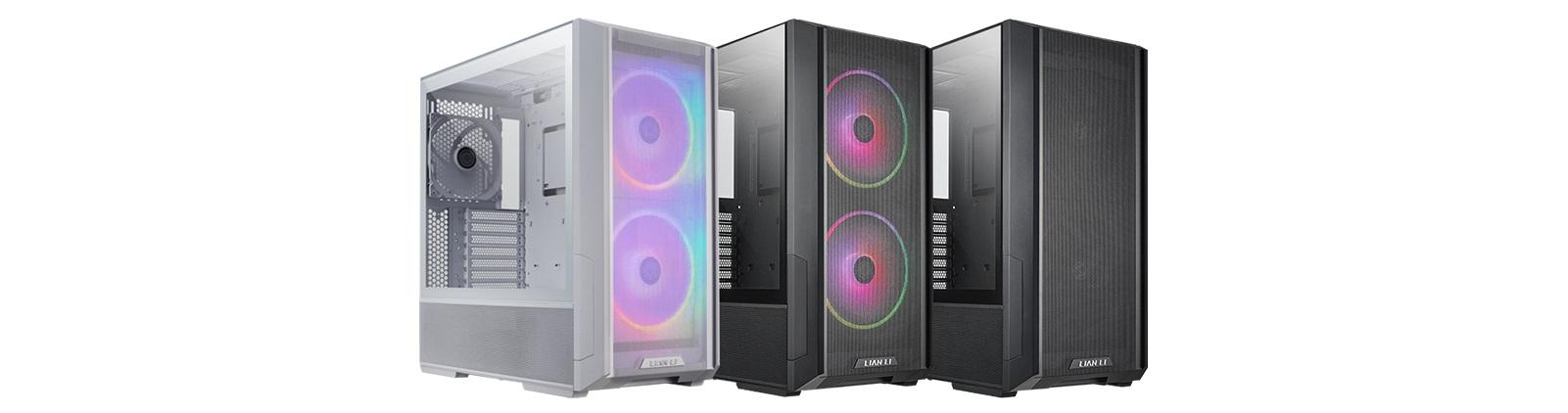

AVAILABLE IN TWO COLORS
WHITE RGB / BLACK RGB / BLACK
AIRFLOW OPTIMIZED
 |
 |
 |
 |
 |
 |
 |
 |
||
|
AIR COOLING AND |
ALL-AROUND MESH DESIGN |
ROTATABLE REAR I/O |
UP TO 6 SSD OR 4 SDD + 2 HDD |
MODULAR DESIGN |
INCLUDE 2 x 160mm |
CABLE MANAGEMENT FRIENDLY |
ADDITIONAL ARGB FRONT I/O (OPTIONAL) |

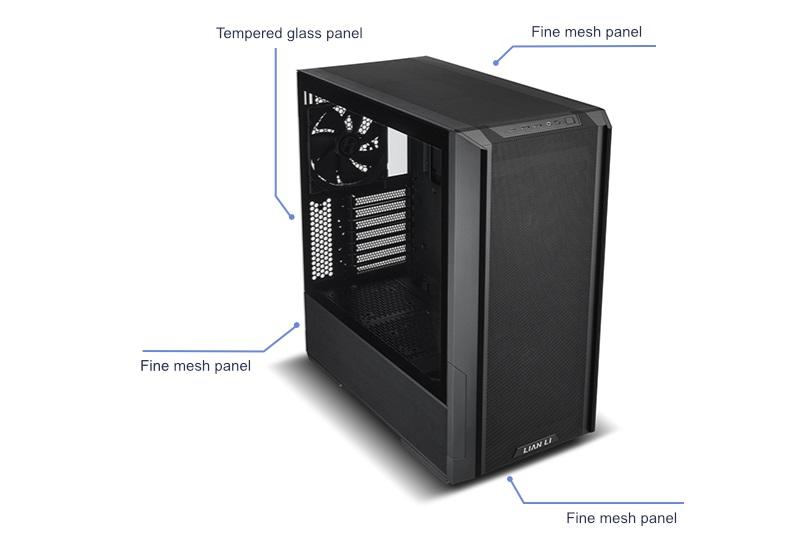

CONTINUOUS FRONT
TO TOP MESH
To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side*. The front mesh extends to the top for a continuous mesh panel.
*Note :
The mesh panel beside the PSU shroud chamber is removable but is also an integral part of the support mechanism for the
side tempered glass panel. Remove with care!

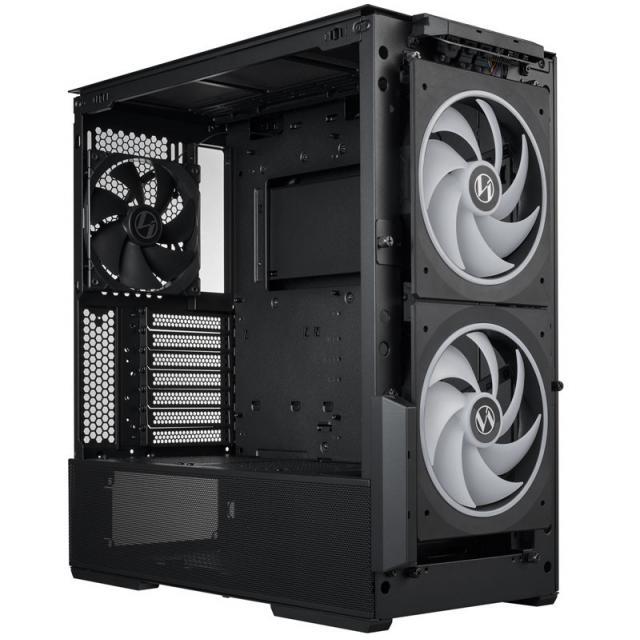

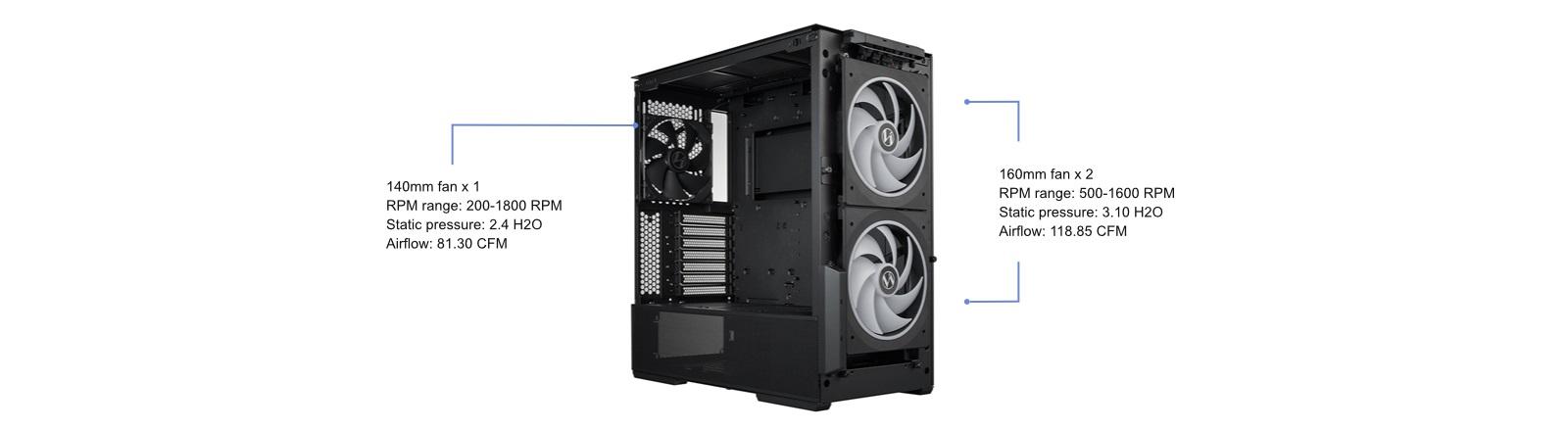

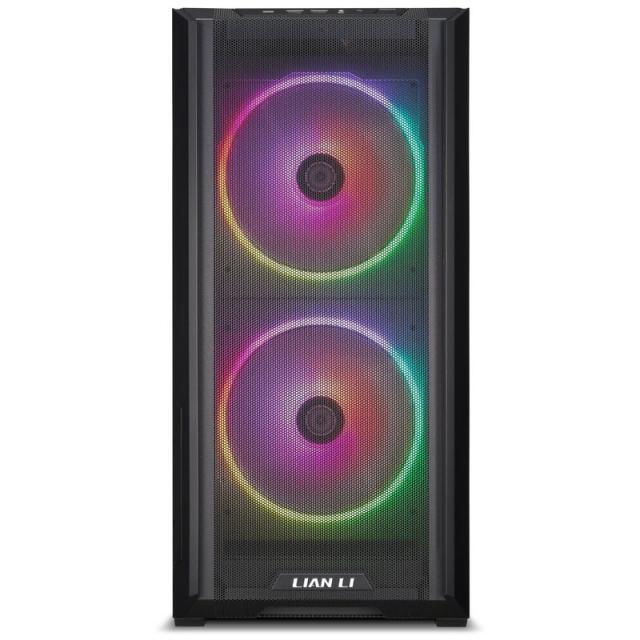

2 x 160MM FRONT FANS
AND 1 X 140MM REAR FAN INCLUDED

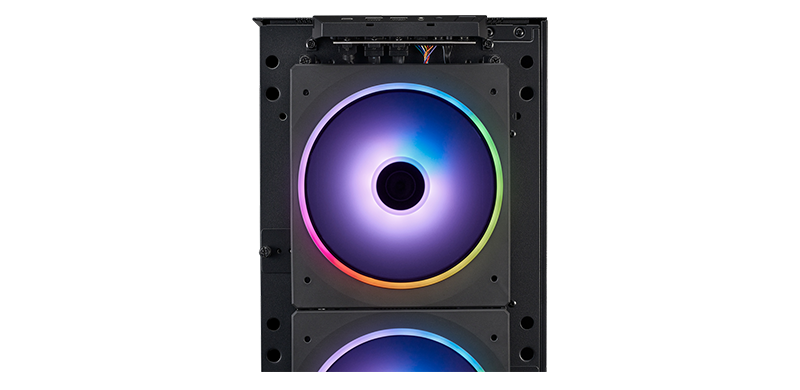

LANCOOL 216
RGB FANS
The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.

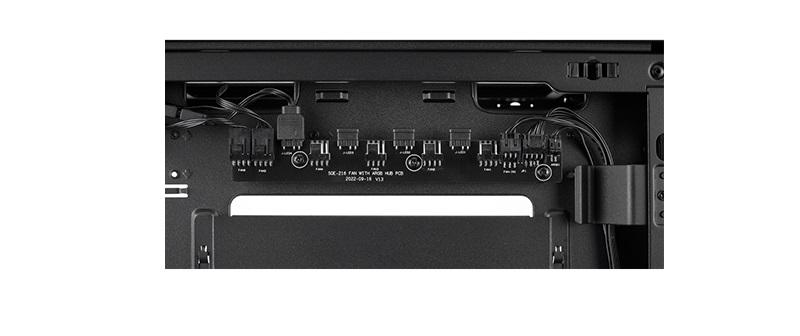

Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.

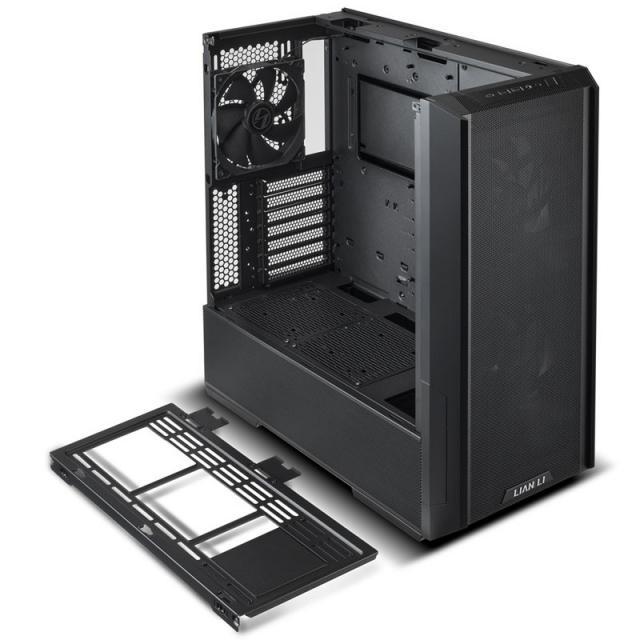

AIR COOLING MODE / WATER COOLING MODE
The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled
systems, or a lower position for water-cooled systems.

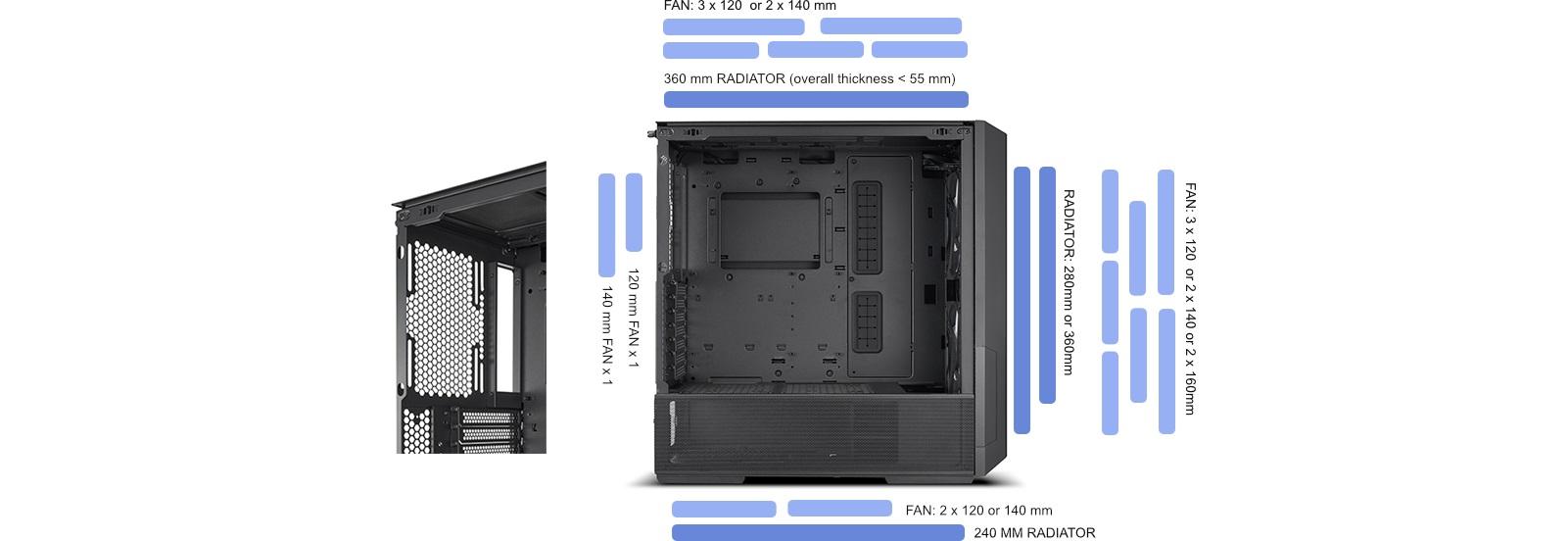

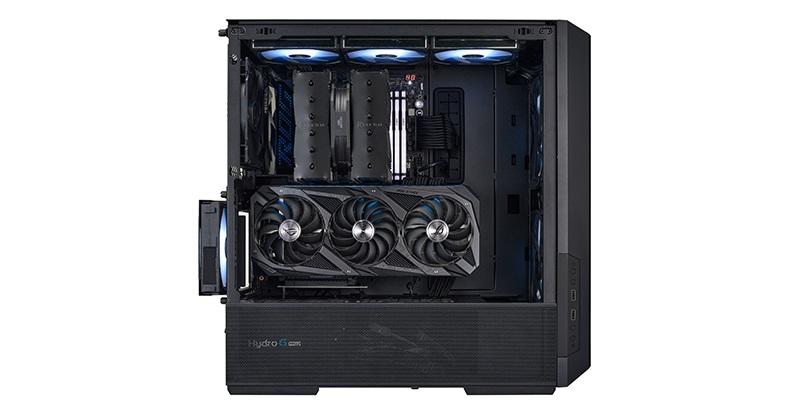

AIR COOLING
Set higher, the motherboard leaves room above the PSU shroud for wider fans.

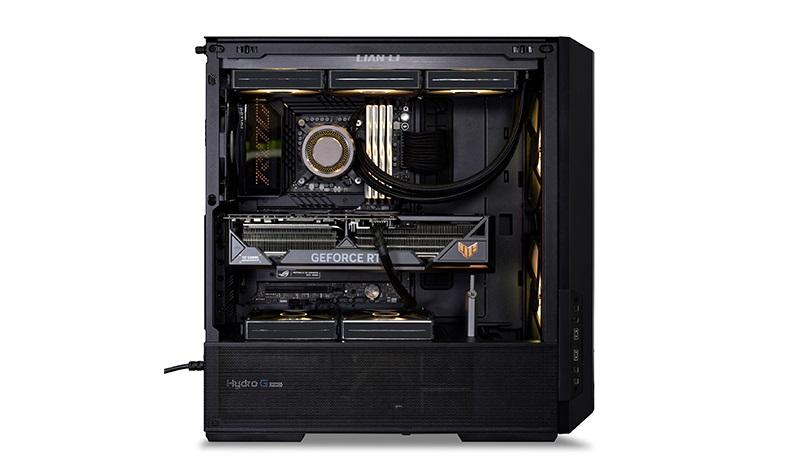

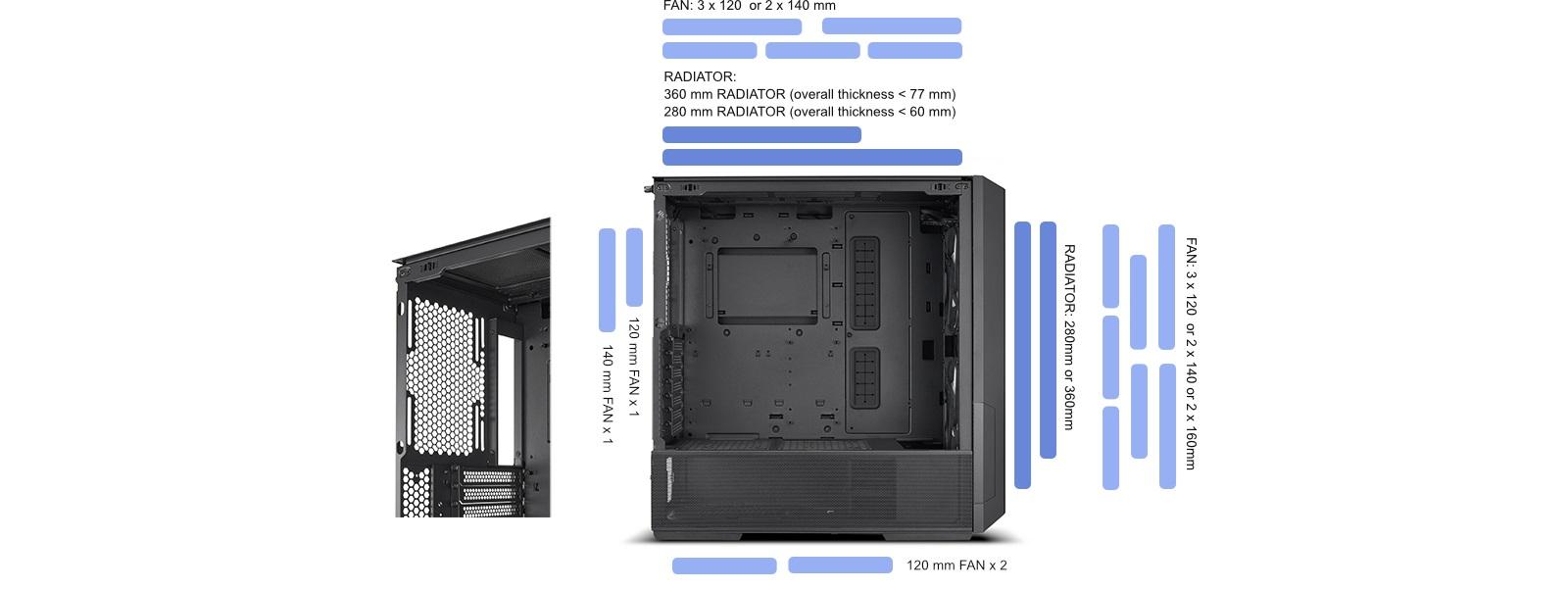

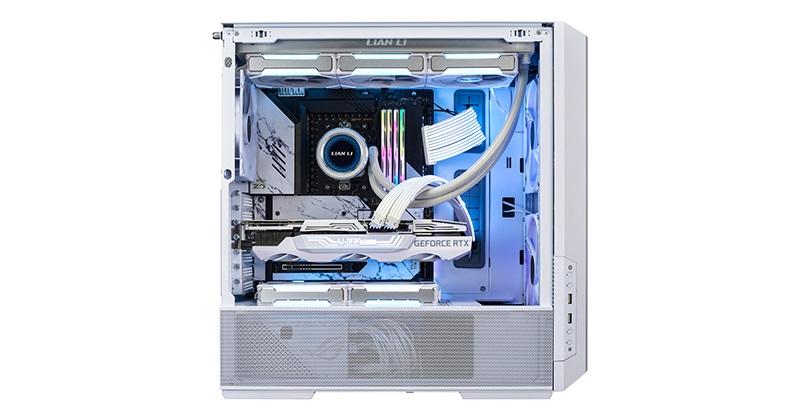

WATER COOLING
Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water
cooling.

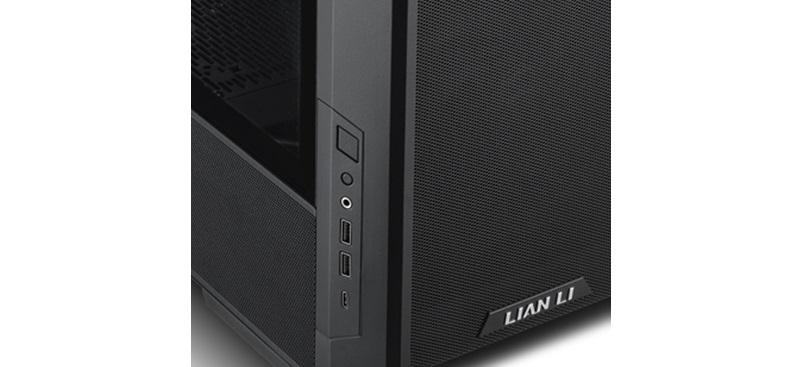

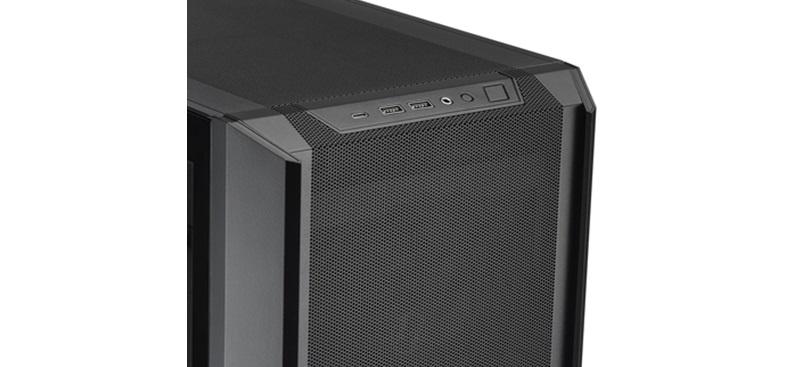

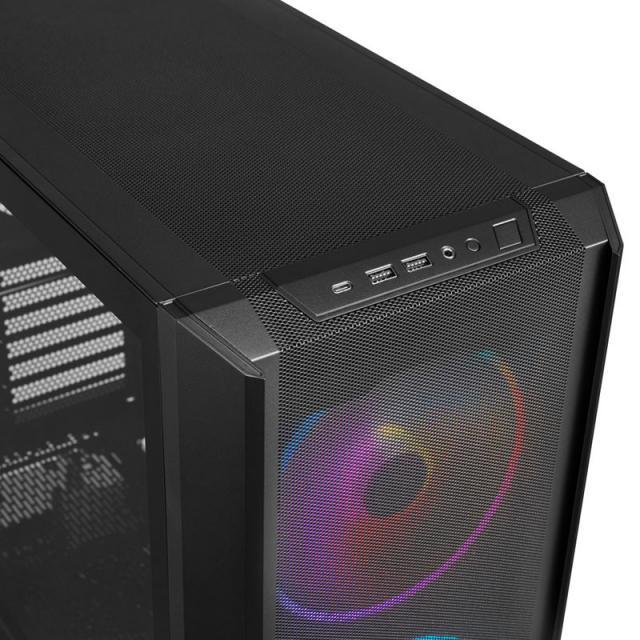

FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated
to the lower left side of the front panel.

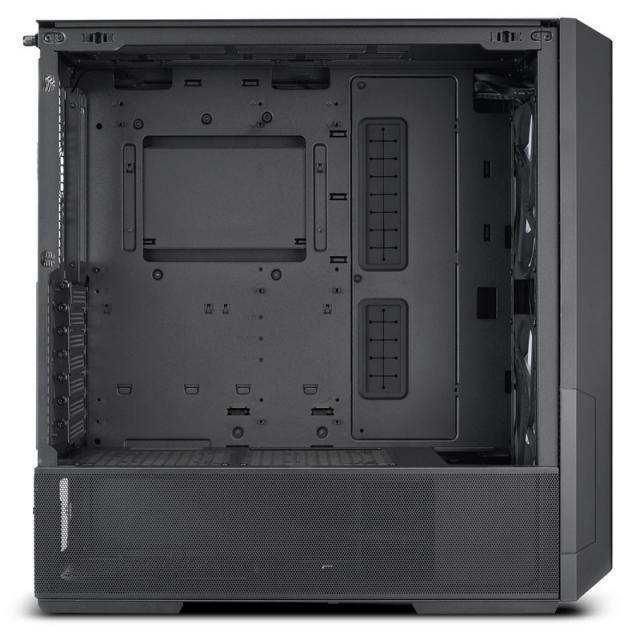

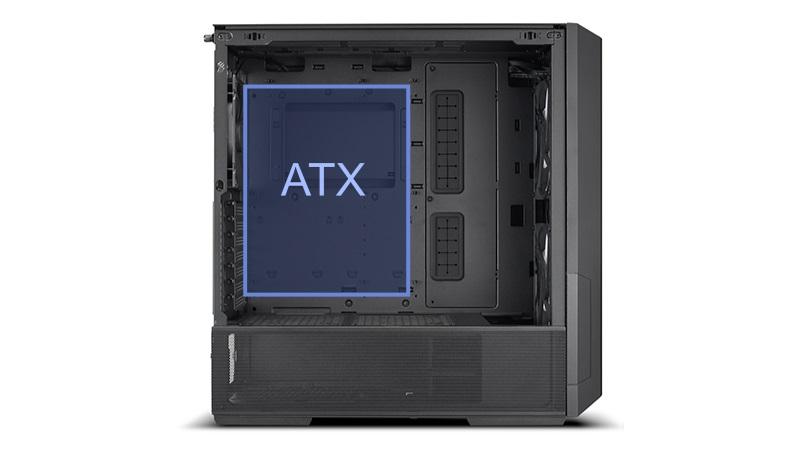

HARDWARE COMPATIBILITY

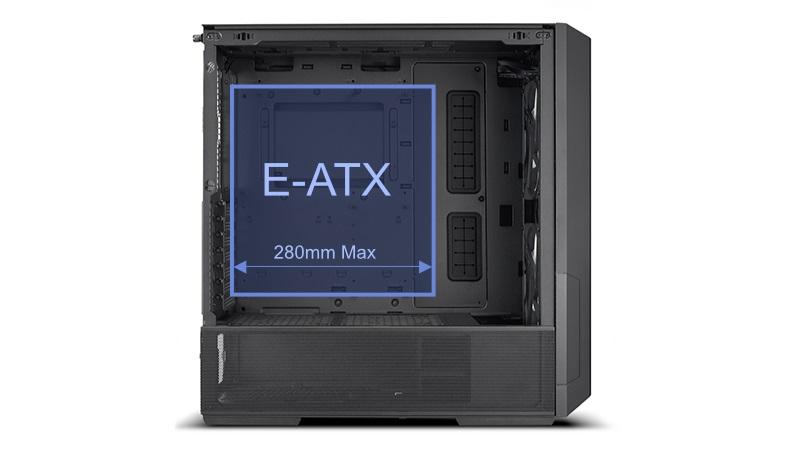

The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is
flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.
LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is
compatible with even the largest NVIDIA 4000 series cards.

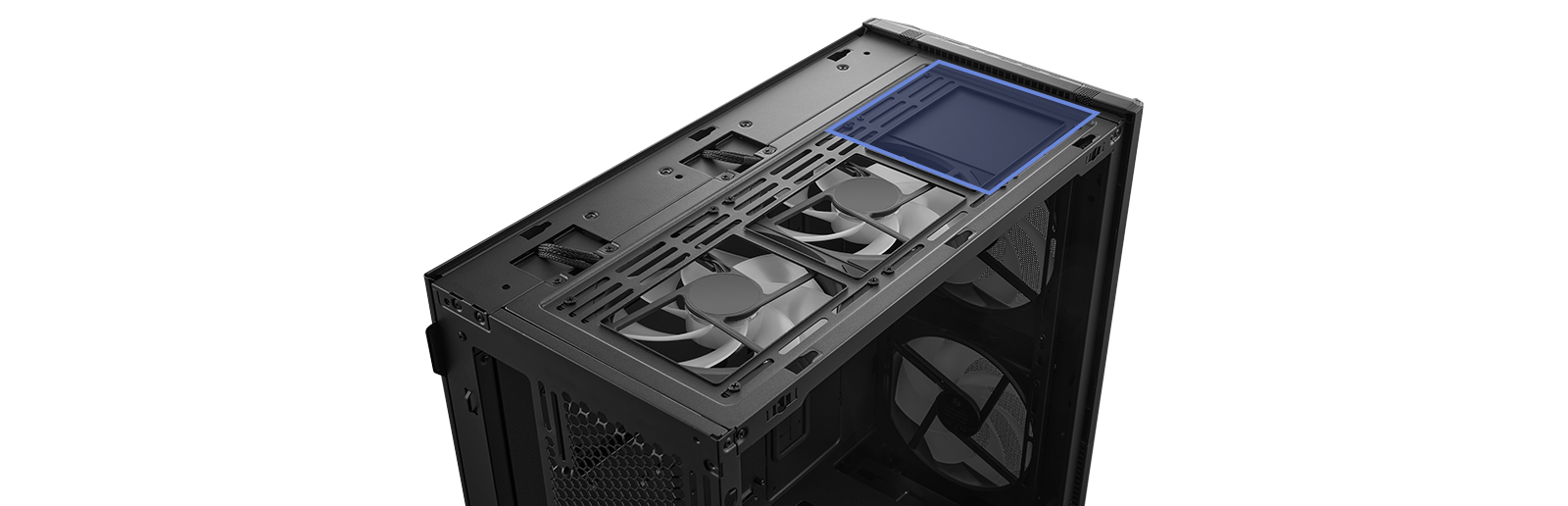

PRESSURE LEAK FREE
Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a
360 radiator/3x120mm fans at the top.

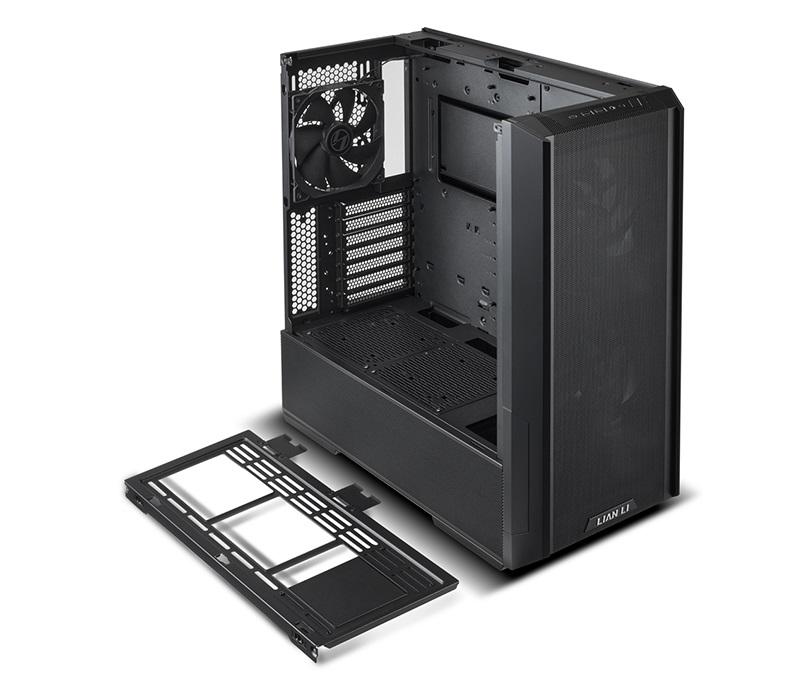

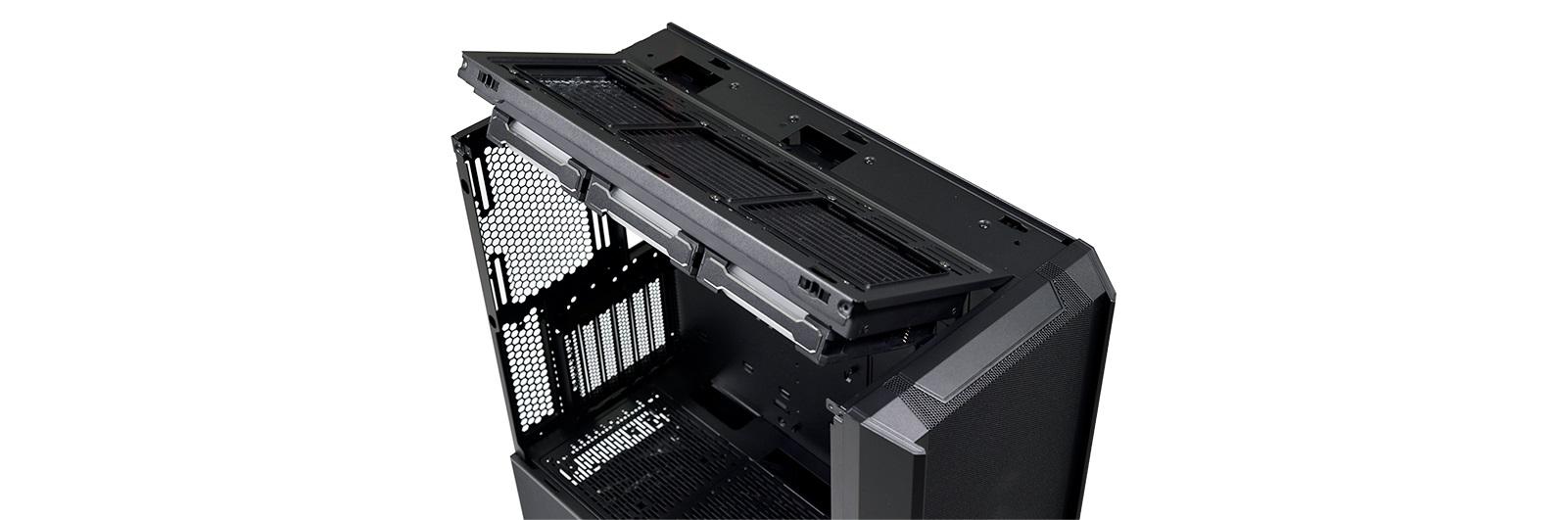

REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.
Two grooves have been implemented to allow easy passage of fan cables into the second chamber of the case, simplifying cable
management and making the overall look of the build better.

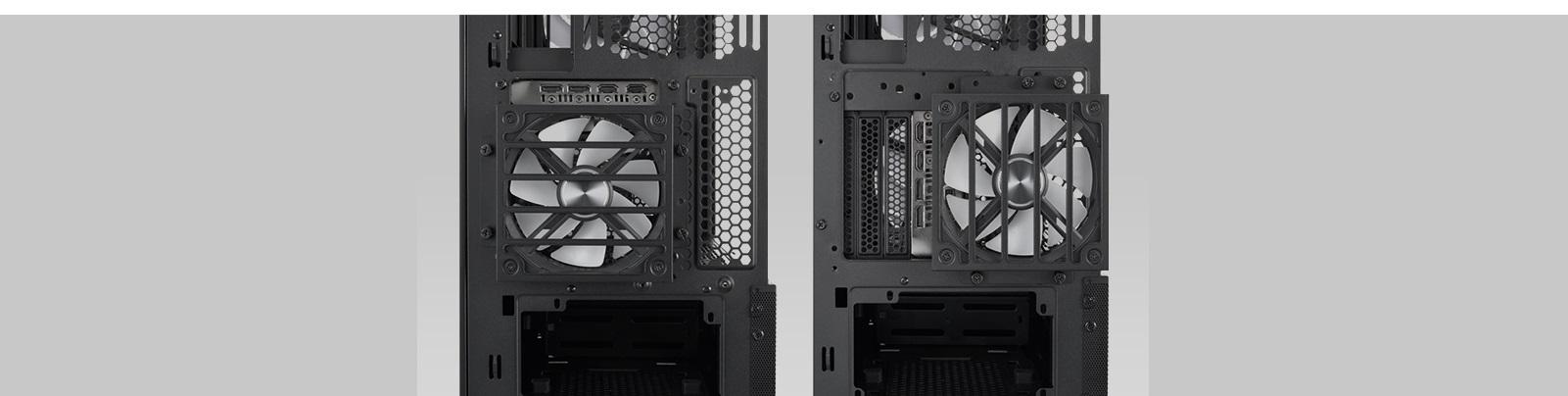

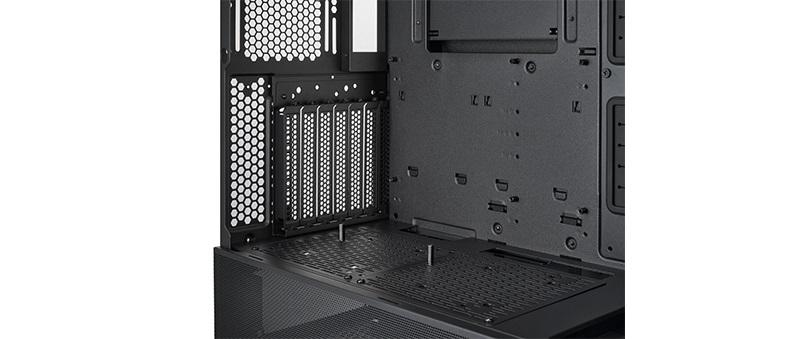

PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the
case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled
mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.
VERTICAL GPU
COMPATIBLE
The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required.
STORAGE
UP TO 6 x SSD + 2 X HDD STORAGE CAPACITY
A total of 2 x 3.5” + 6 x 2.5” drives can be installed with dedicated mounts for storage.

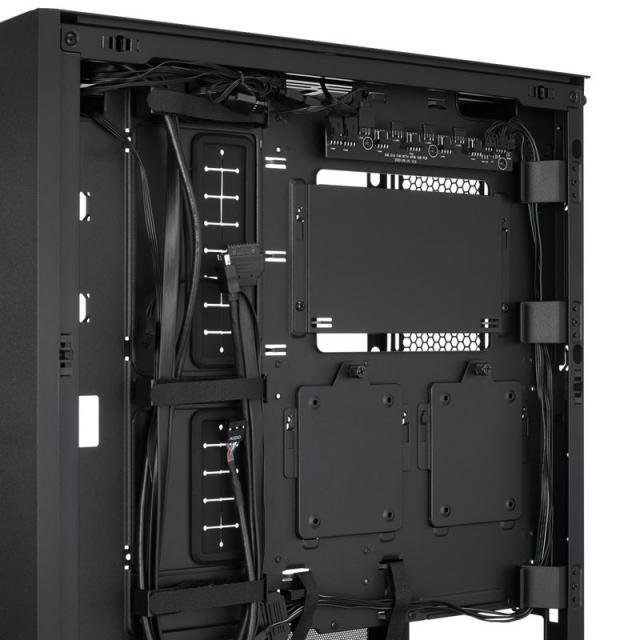

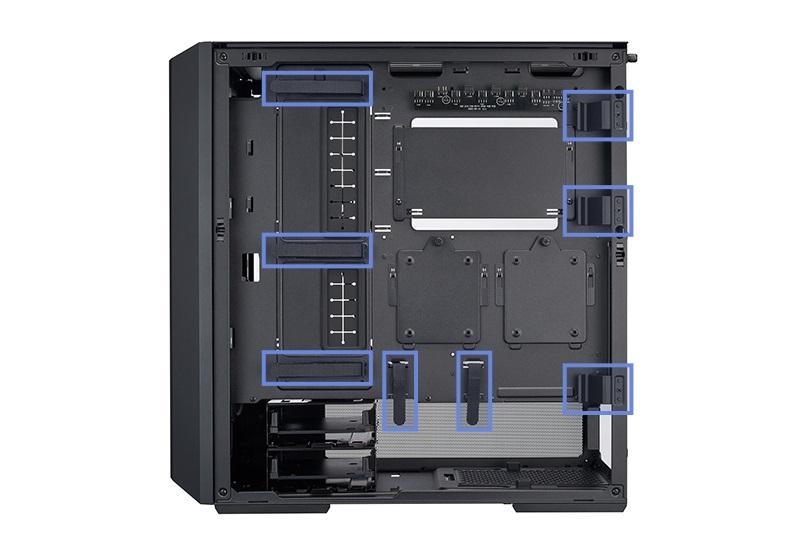

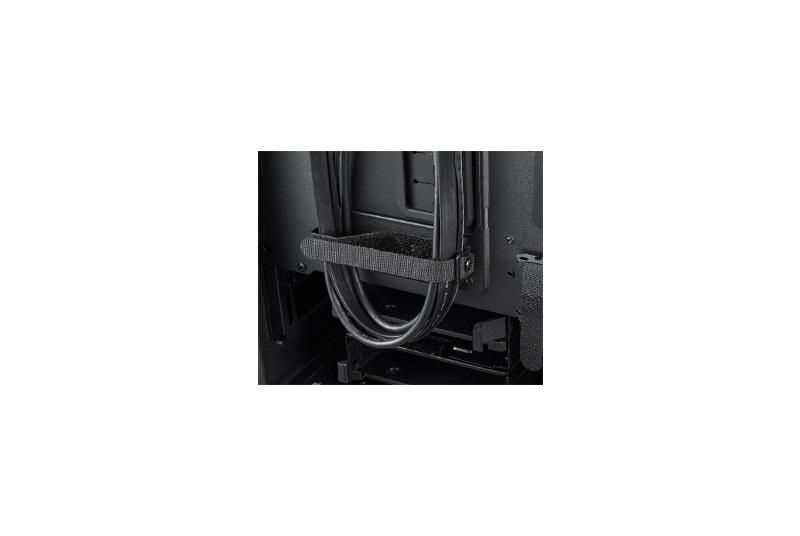

CABLE MANAGEMENT
The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold
2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2
additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation
path in the bottom chamber.
OPTIONAL ACCESSORIES

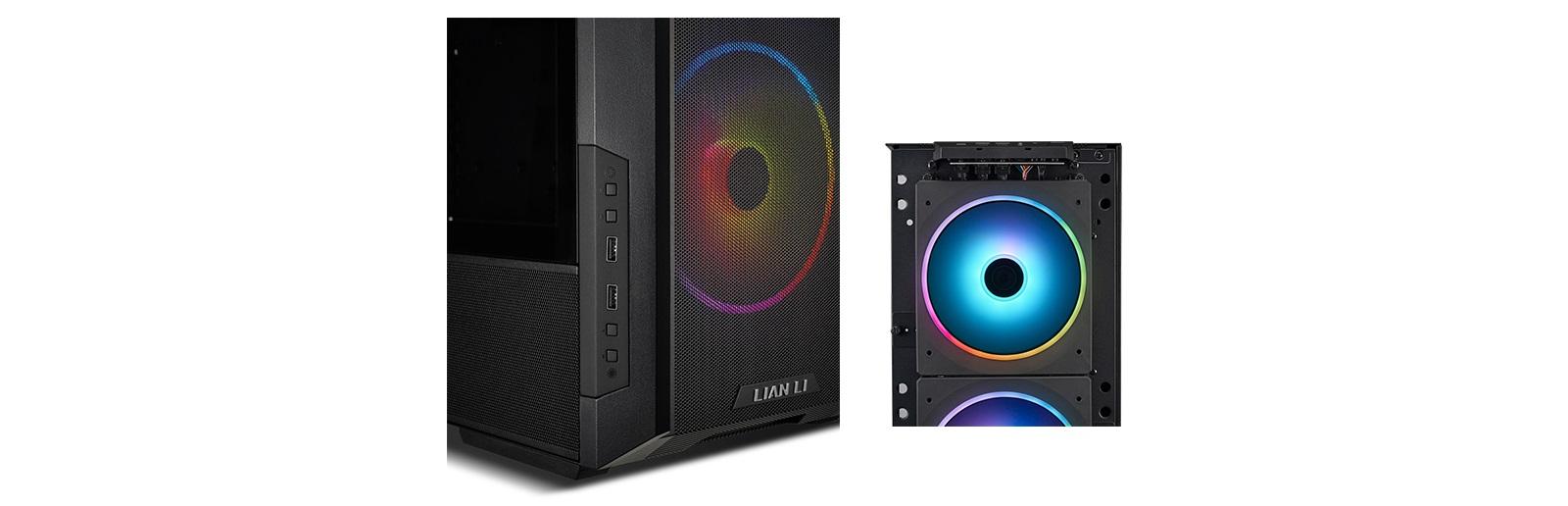

ARGB CONTROL & USB MODULE
An additional ARGB control & USB module can be installed at the side of the front panel to provide better control over the front
ARGB fans. The ARGB control & USB module offers the option to create custom lighting styles by mixing the light effects of both
LED channels individually.

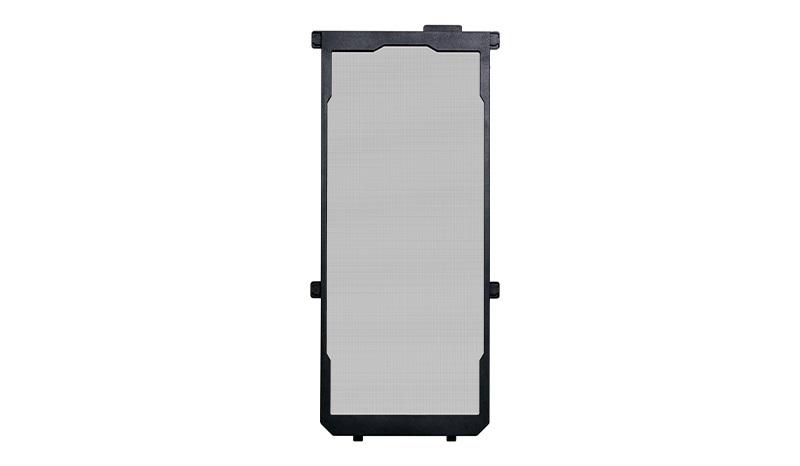

DUST FILTER
For users who take dust management to the next level, a magnetic front panel dust filter is available as an optional accessory.
The dust filter fits perfectly between the front panel and the front fans.

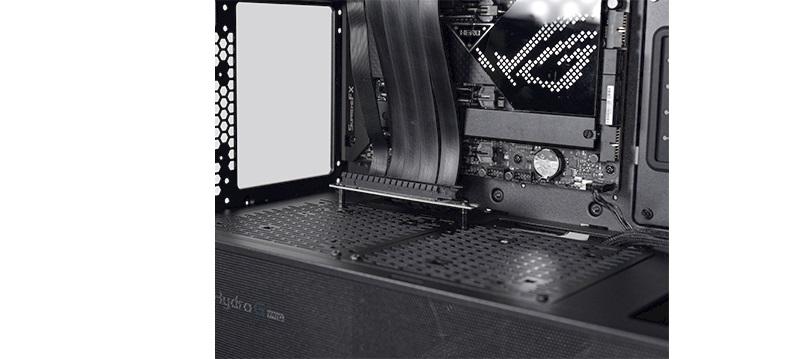

PCIE CABLE
For vertical GPU mounting, only an additional riser cable is required. With a PCB that has a hole spacing of 112.7mm, the Lian-Li PCIe 4.0 X16 RISER CABLE is compatible with the LANCOOL 216.
Specifications
| PRODUCT NAME | LANCOOL 216 RGB | PSU SUPPORT LENGTH | ATX (Under 220mm) |
| MODEL | LANCOOL 216RX BLACK | GPU LENGTH CLEARANCE | 392mm (max) |
| DIMENSIONS | (D) 480.9mm x (W) 235mm x (H) 491.7mm | CPU COOLER HEIGHT CLEARANCE | 180.5mm (max) |
| COLOR | Black | DRIVE | Drive Cage：2 x 2.5” SSD + 2 x 3.5” HDD PSU Cover：2 x 2.5” SSD Behind MB tray: 2 x 2.5” SSD |
| MATERIAL | Steel / 4.0mm Tempered Glass | EXPANSION SLOT | 7 |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX | I/O PORTS | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
| FAN SUPPORT | Top: 3 x 120mm / 2 x 140mm PSU Cover: 2 x 120mm / 2 x 140mm (Air Cooling mode) Front: 3 x 120mm / 2 x 140mm / 2 x 160mm Rear: 1 x 120mm / 1 x 140mm (Not compatible with UNI FAN SL-INF 140) PCIe Fan Bracket: 1 x 120mm |
INCLUDED FANS | Front: 2 x 160mm ARGB Fans Rear: 1 x 140mm PWM Fan |
| RADIATOR SUPPORT | Front: 360 / 280 / 240mm Top: 360 / 280 / 240mm Bottom: 240mm |
DUST FILTERS | 1 x Bottom |
