Acasă Hardware gaming Plăci de bază GIGABYTE X870E EAGLE WIFI7

GIGABYTE X870E EAGLE WIFI7

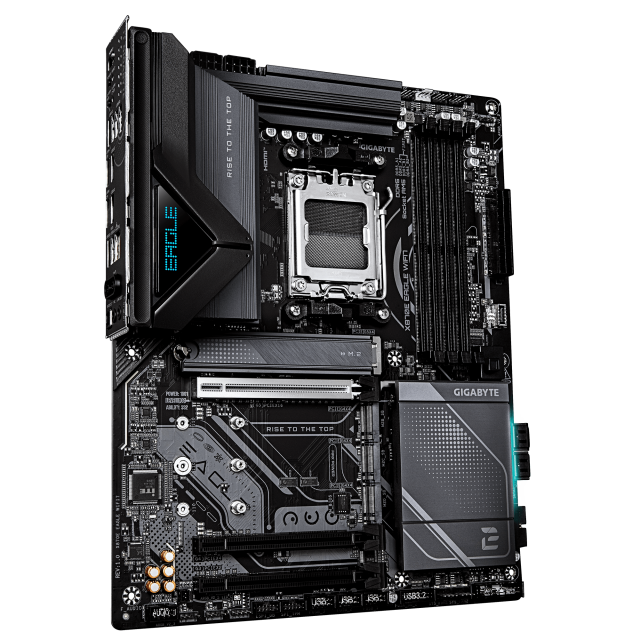

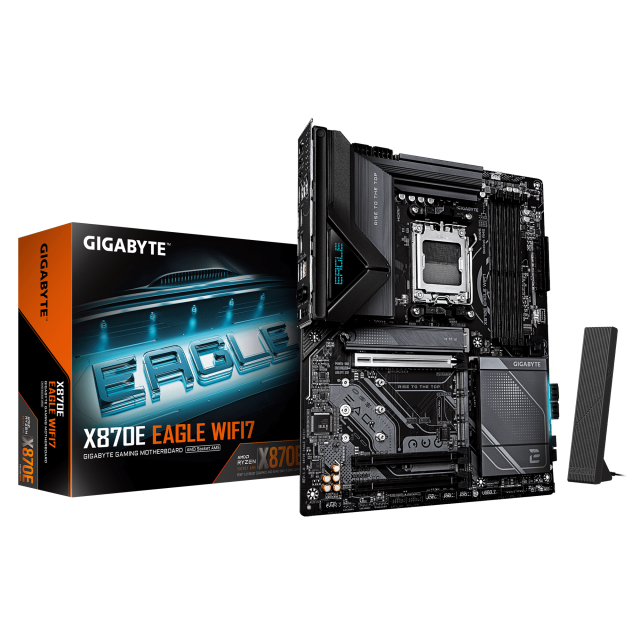

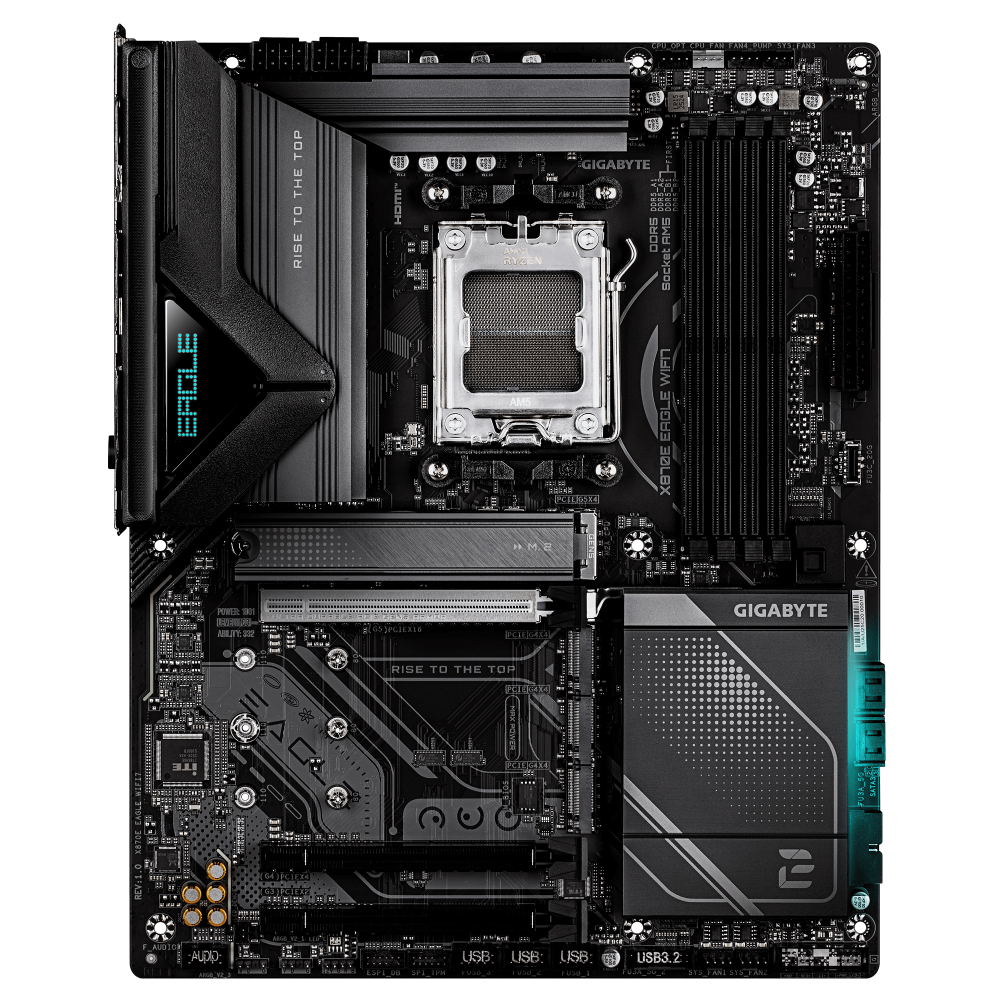

Placa de baza GIGABYTE X870E EAGLE WIFI7, Socket AM5

Cod produs: GA-MB-X870E-EAGLE-WF7

disponibil

Întrebare despre GIGABYTE X870E EAGLE WIFI7

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Socket	AMD AM5
Form Factor	ATX
Chipset	AMD X870E
Numărul de sloturi pentru memorie	4
Capacitate RAM	până la 256 GB
Frecvența memoriei	până la 8200 MHz
Iluminare RGB	Dа
Memorie suportată	DDR5
Wi-Fi încorporat	Da

Related products

GIGABYTE Z890 AORUS ELITE WIFI7 ICE

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE X870 AORUS ELITE WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890 AORUS ELITE WIFI 7

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE X870 GAMING X WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE X870 AORUS ELITE WIFI7 ICE

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890M AORUS ELITE WIFI 7 ICE

Socket: Intel 1851

Form Factor: Micro ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z890 GAMING X WIFI7

Socket: Intel 1851

Form Factor: ATX

Chipset: Intel Z890

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850 AORUS ELITE WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE X870 EAGLE WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE X870E AORUS ELITE WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD X870E

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE B850 AORUS ELITE ICE WIFI7

Socket: AMD AM5

Form Factor: ATX

Chipset: AMD B850

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 256 GB

GIGABYTE Z790 AORUS ELITE AX

Socket: Intel 1700

Form Factor: ATX

Chipset: Intel Z790

Numărul de sloturi pentru memorie: 4

Capacitate RAM: până la 128 GB

Placa de baza GIGABYTE X870E EAGLE WIFI7 este o solutie premium pentru procesoarele AMD Ryzen pe socket AM5, oferind suport pentru memorii DDR5, PCIe 5.0 si conectivitate Wi-Fi 7. Conceputa pentru gaming, creatie de continut si sisteme de inalta performanta, aceasta combina tehnologii de ultima generatie cu o constructie robusta si optiuni extinse de conectivitate.

Socket AM5: Compatibila cu procesoarele AMD Ryzen din noile generatii pentru performanta maxima.
Chipset AMD X870E: Ofera suport pentru cele mai noi tehnologii si configuratii de varf.
Suport DDR5: Permite utilizarea memoriilor de mare viteza pentru performanta excelenta in jocuri si aplicatii profesionale.
PCIe 5.0: Asigura latime de banda ridicata pentru placi video si SSD-uri de ultima generatie.
Wi-Fi 7 integrat: Ofera conexiuni wireless ultra-rapide, stabile si cu latenta foarte redusa.
Sloturi M.2 NVMe: Suporta SSD-uri performante pentru viteze ridicate de transfer si timpi de incarcare minimi.
Format ATX: Pune la dispozitie multiple optiuni de extindere pentru configuratii complexe si performante.

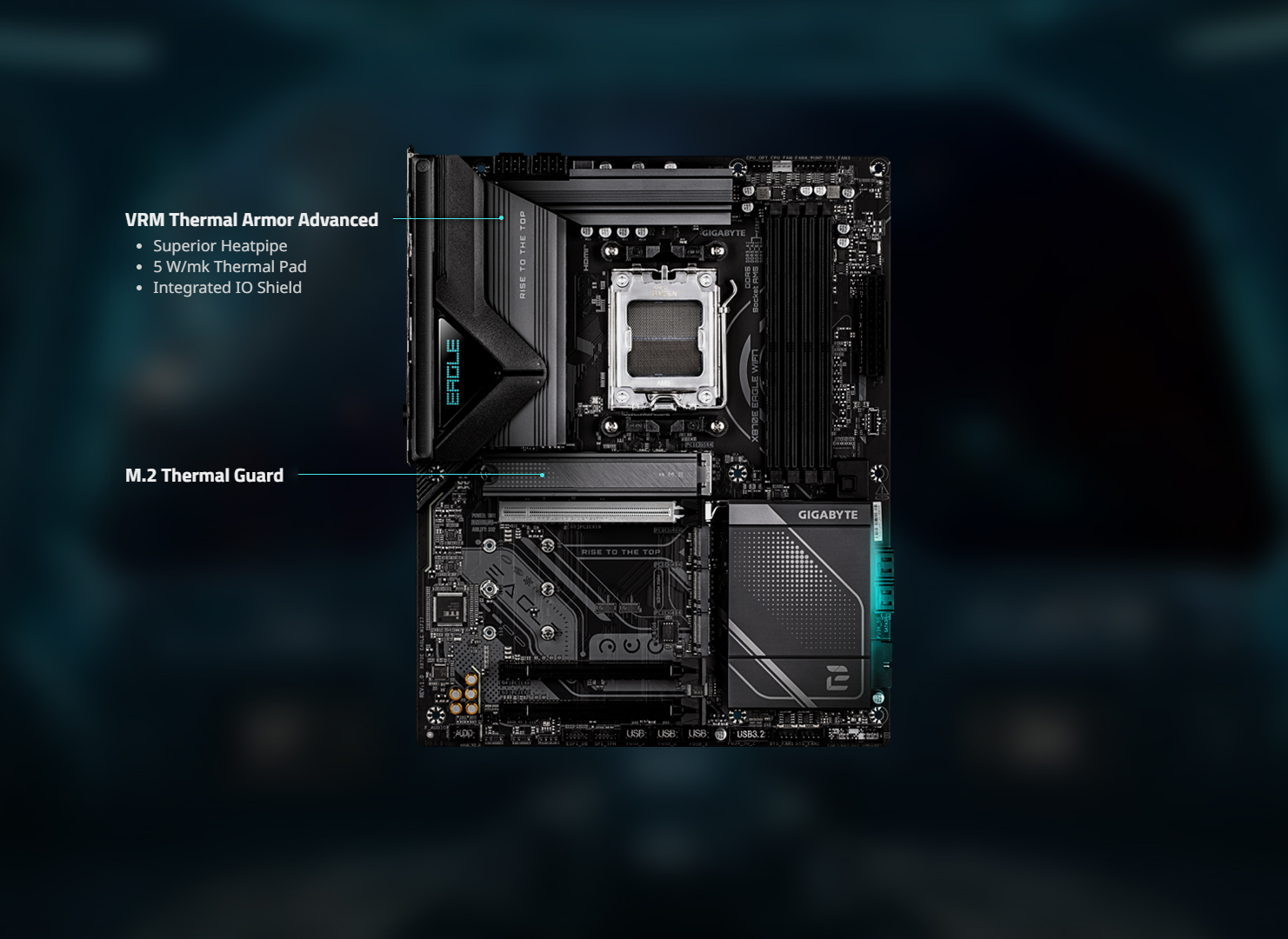

Constructie premium: Sistem de alimentare robust, racire eficienta si componente de calitate pentru stabilitate si fiabilitate pe termen lung.

Specifications

CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. *Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

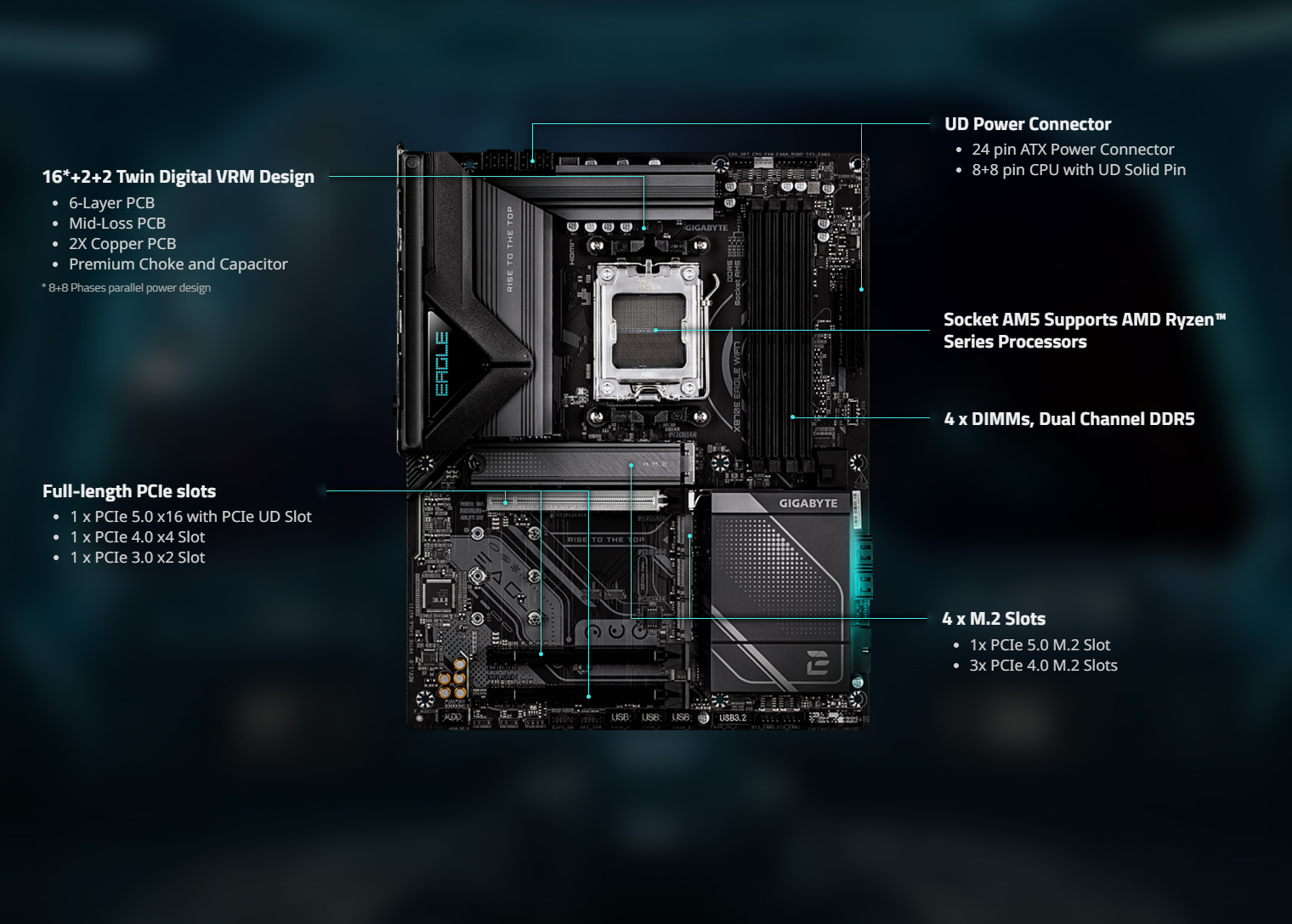

Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper

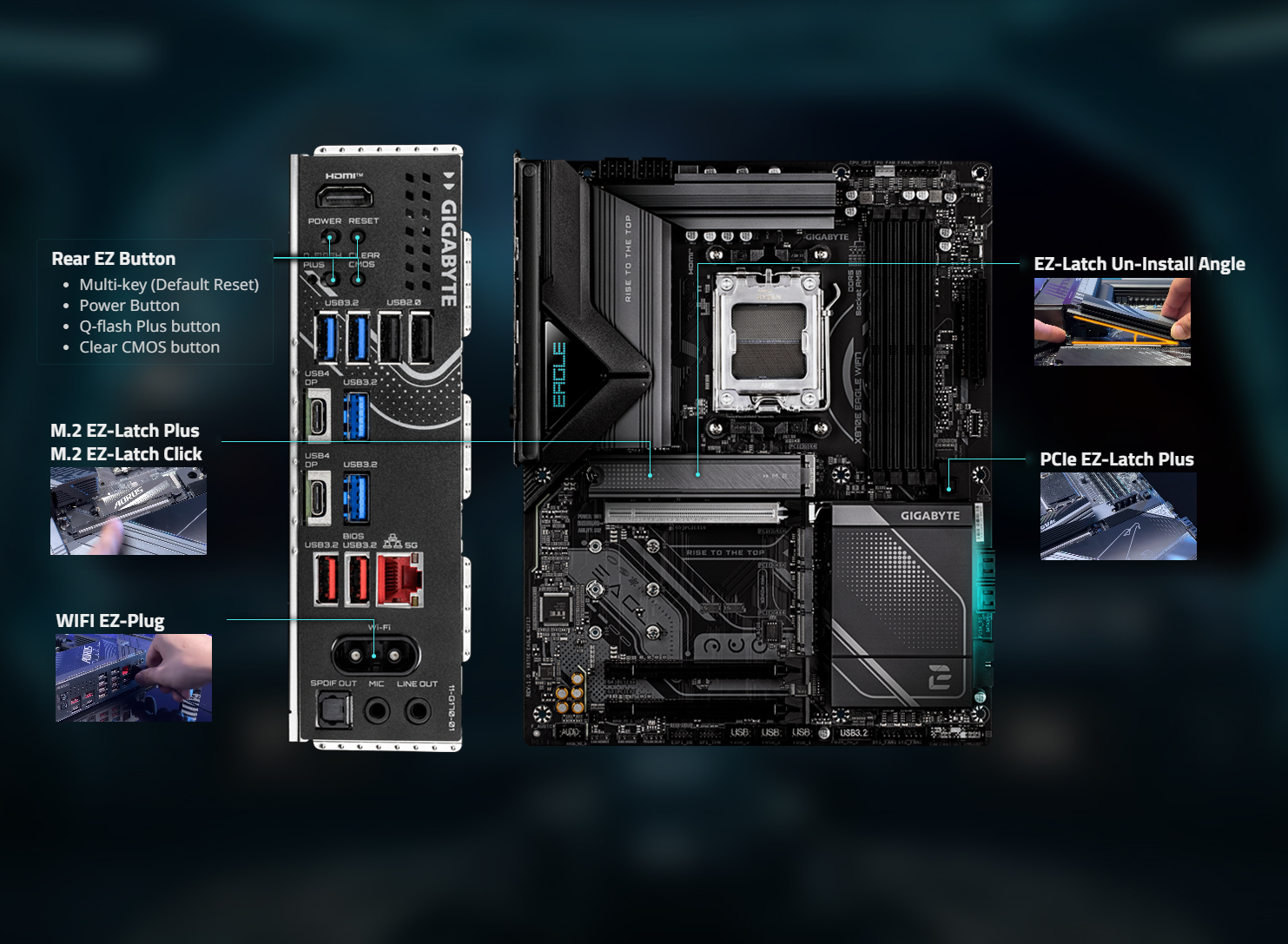

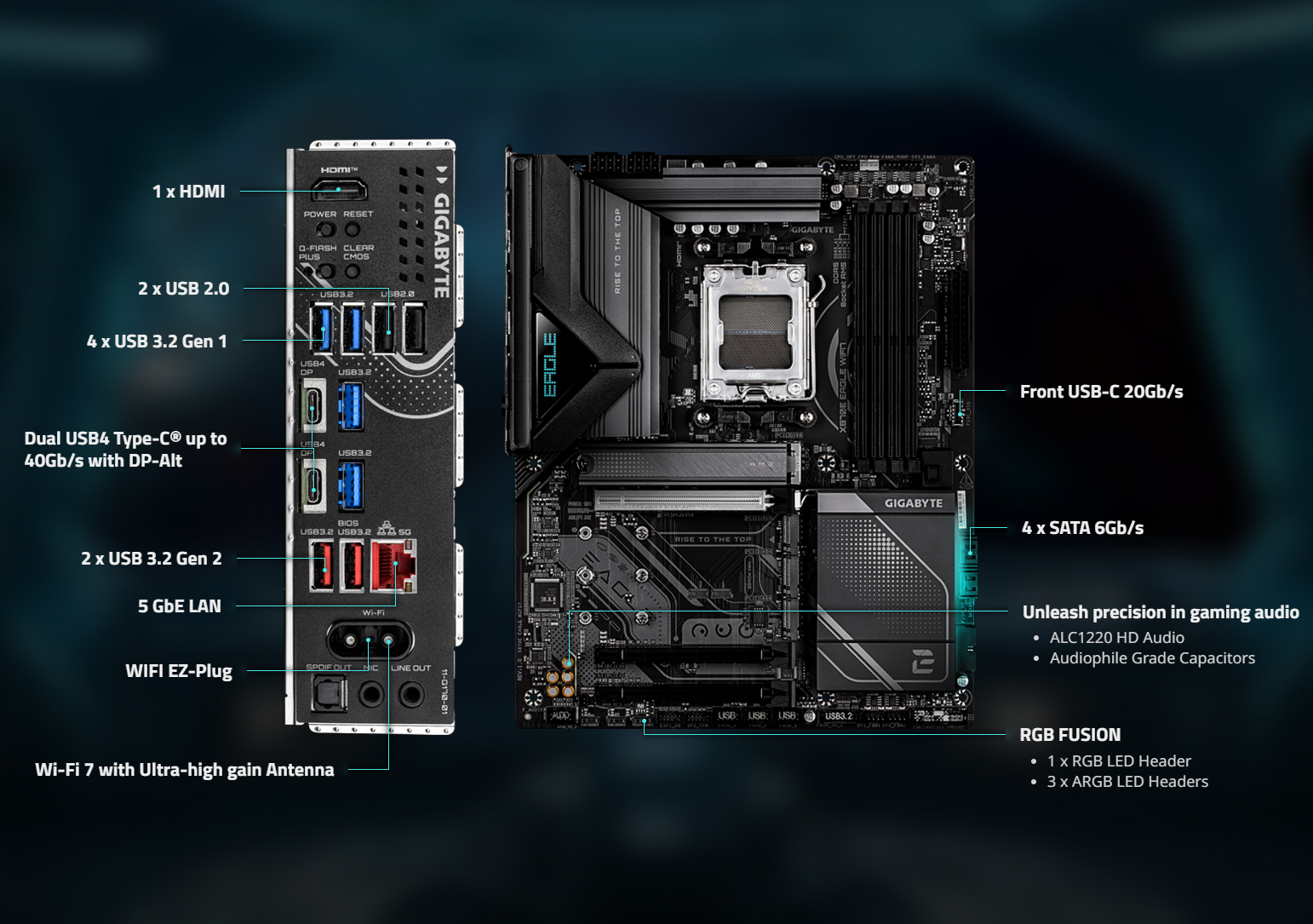

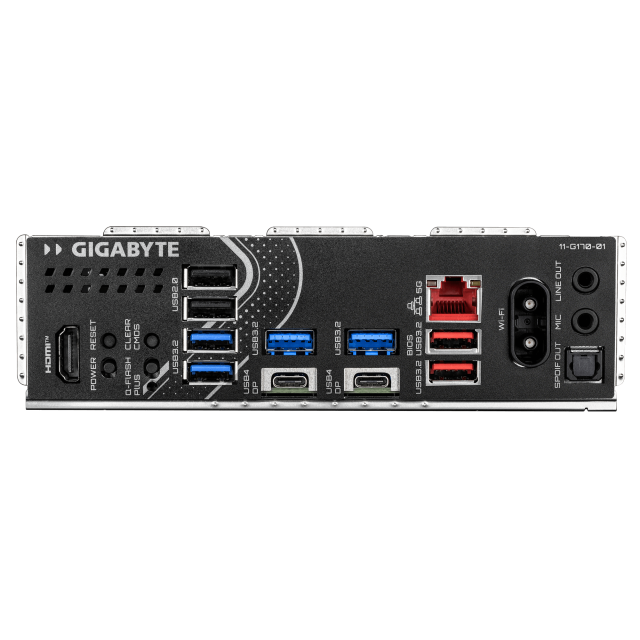

Back Panel Connectors	1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
