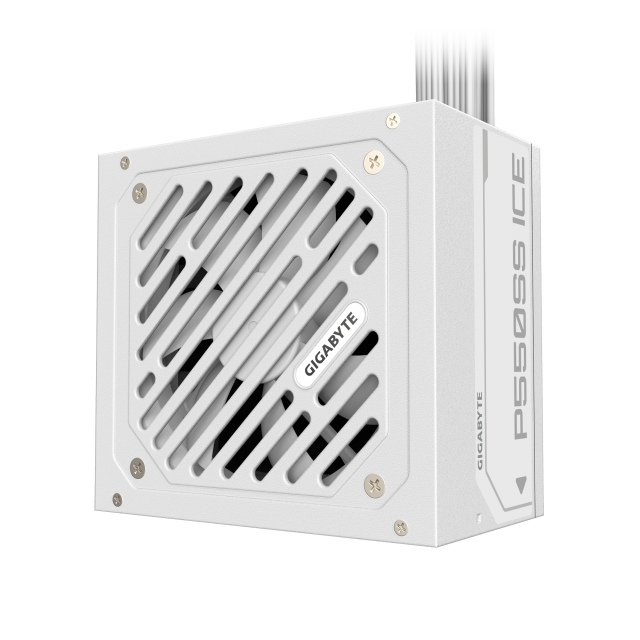

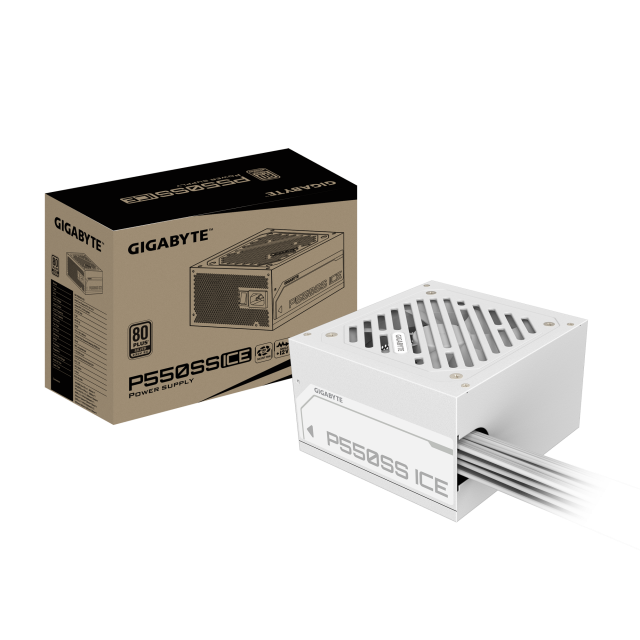

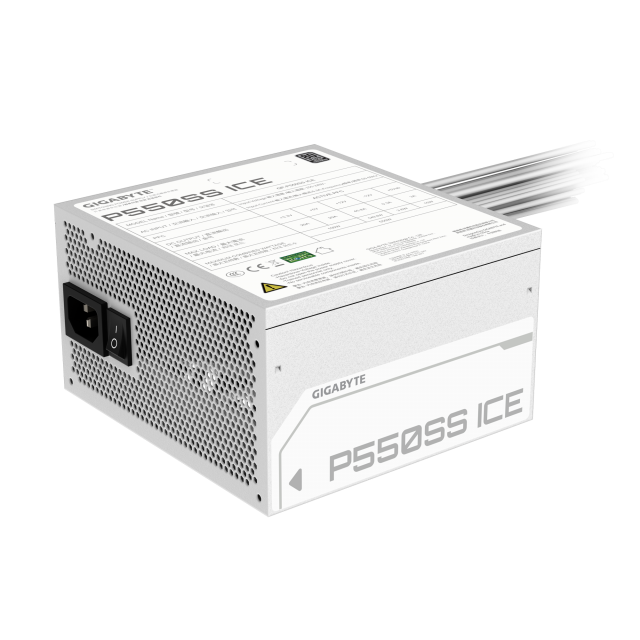

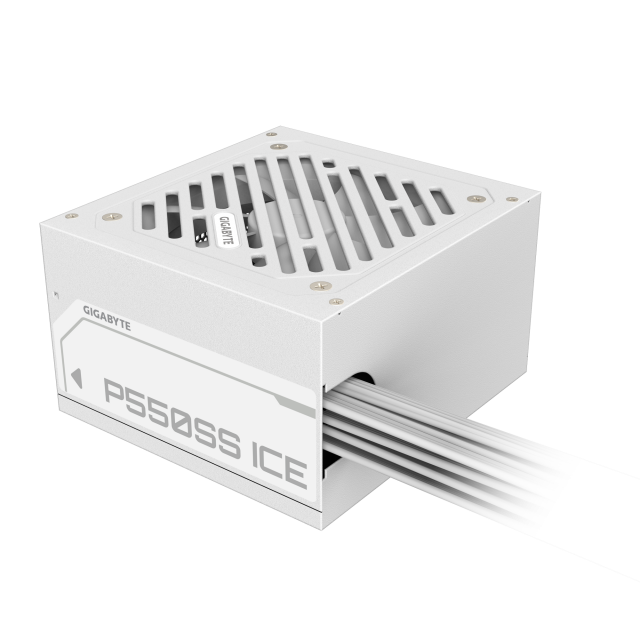

GIGABYTE P550SS ICE
Sursa de alimentare Gigabyte P550SS ICE 550W 80+ Silver
Cod produs: GA-PS-P550SS-ICE
Întrebare despre GIGABYTE P550SS ICE
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 550W |
| Certificat | 80+ Silver |
| Eficienţă | 90 % |
| Tip | Nemodulară |
| Form Factor | ATX |
| Specificație | ATX 3.0 |
| PCIe Gen5 | Nu |
| Iluminare RGB | Nu |
| Culoare | Alb |
| Garanție | 36 luni |
Related products
Putere:
550W
Certificat:
80+ Silver
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Silver
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Silver
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Bronze
Eficienţă:
88 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
-
P550SS ICE este o unitate de alimentare (PSU) de la GIGABYTE, proiectata cu o estetica alba ca gheata. Iata cateva dintre caracteristicile sale cheie:
-

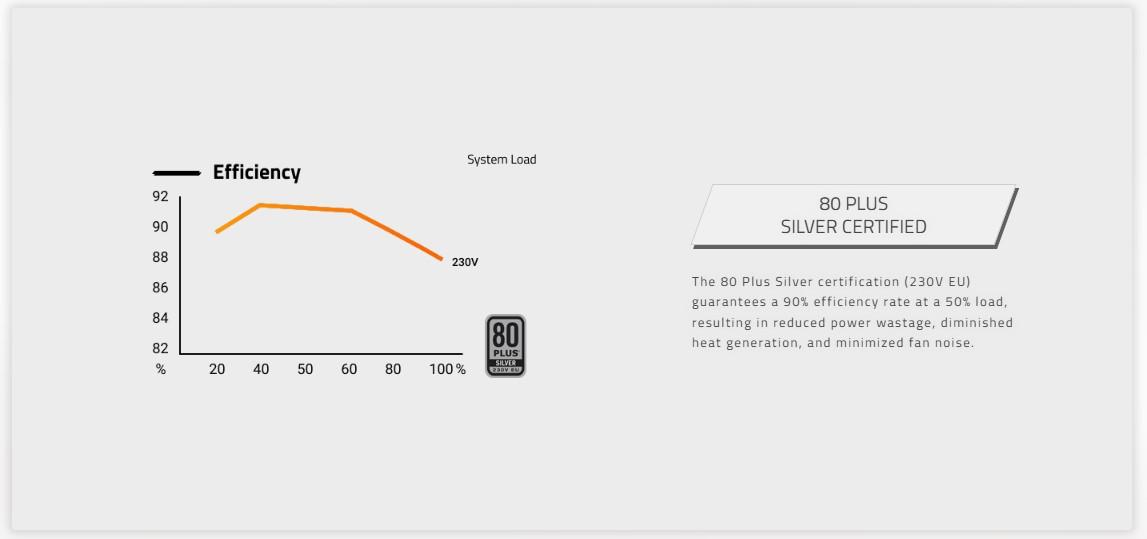

Eficienta: Este certificata 80 PLUS Silver (230V EU), asigurand o eficienta de pana la 90% la o incarcare de 50%. Acest lucru reduce risipa de energie, generarea de caldura si zgomotul ventilatorului.
-
Compatibilitate: Suporta standardul Intel ATX 3.0 si este compatibil cu ATX 3.1, ceea ce il face potrivit pentru sistemele moderne.
-

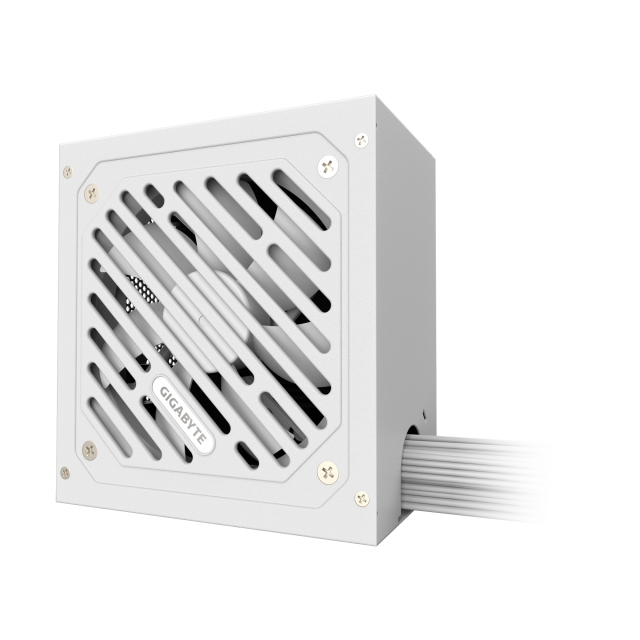

Racire: Echipat cu un ventilator Fluid Dynamic Bearing (FDB) de 120 mm, acesta ofera o functionare mai silentioasa si o durata de viata mai lunga in comparatie cu ventilatoarele conventionale.
-
Design: Designul cablului plat minimizeaza dezordinea si imbunatateste performanta termica.
-

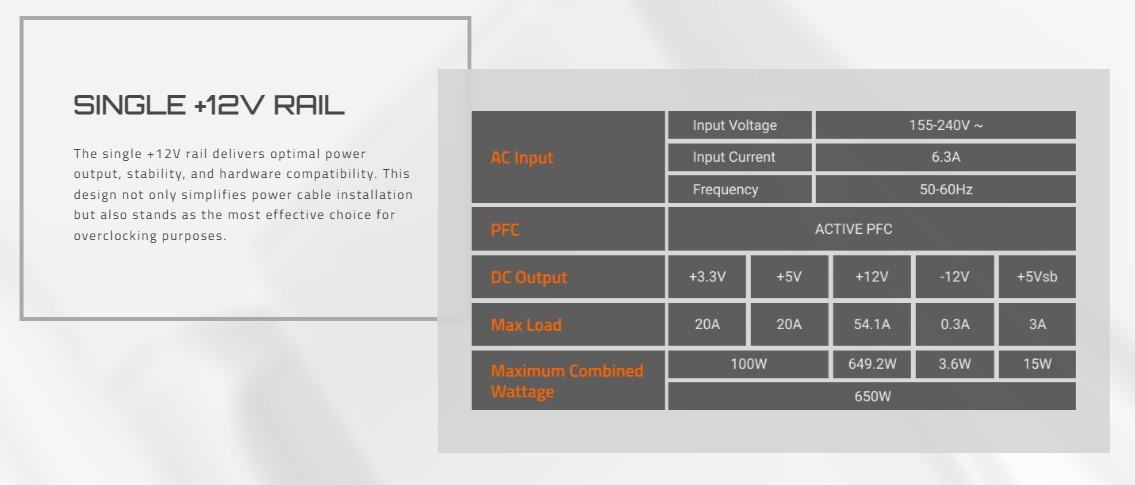

Putere de iesire: Dispune de o sina puternica +12V pentru o putere optima de iesire, stabilitate si compatibilitate, utila in special pentru overclocking.
-

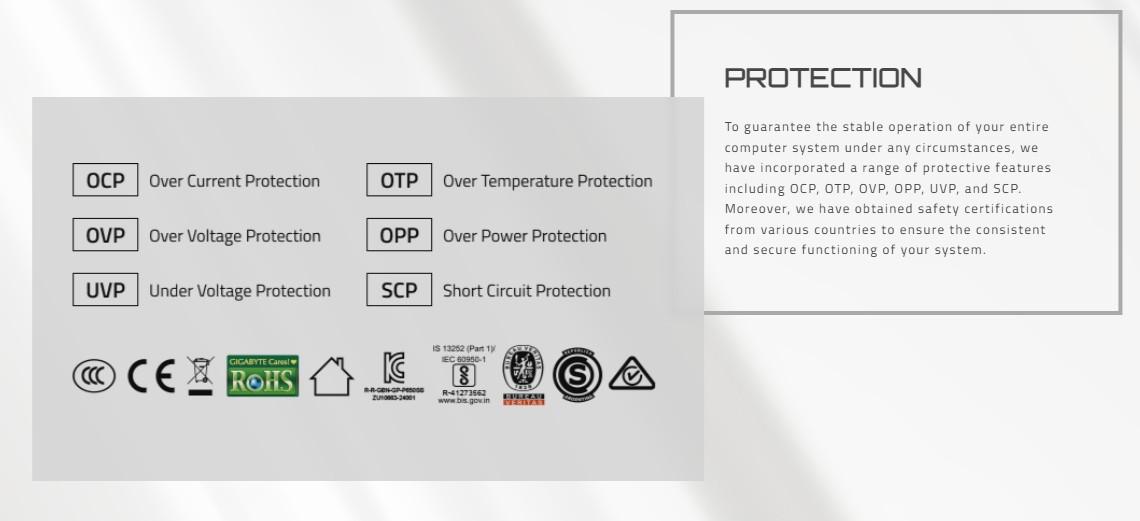

Protectie:Include mai multe caracteristici de siguranta, cum ar fi Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP) si Over Temperature Protection (OTP).
Acest PSU este proiectat pentru PC-uri desktop si nu este recomandat pentru utilizari cum ar fi blockchain de calcul sau minerit, ca astfel de activitati anula garantia
-
KEY FEATURE
-
-
-
-
-
-
- Ice white aesthetics
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)
- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
-
-
-
-
-
Specifications

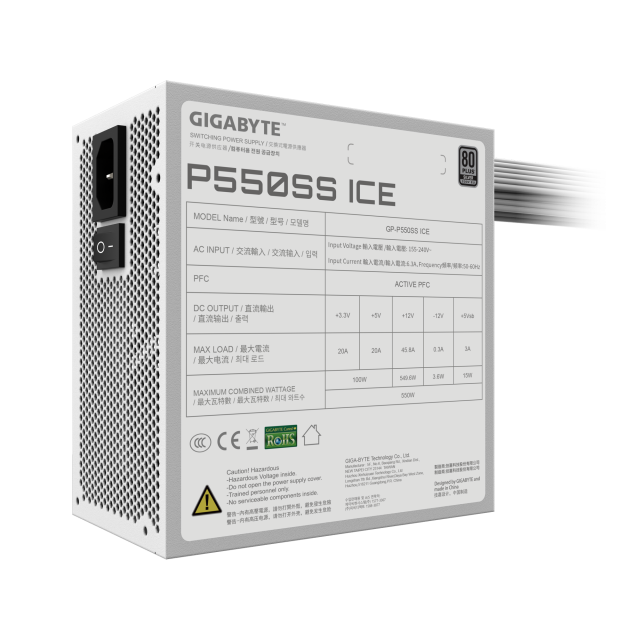

| Model | GP-P550SS ICE |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 550W |
| Dimensions | 150 x 140 x 86mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All white |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
