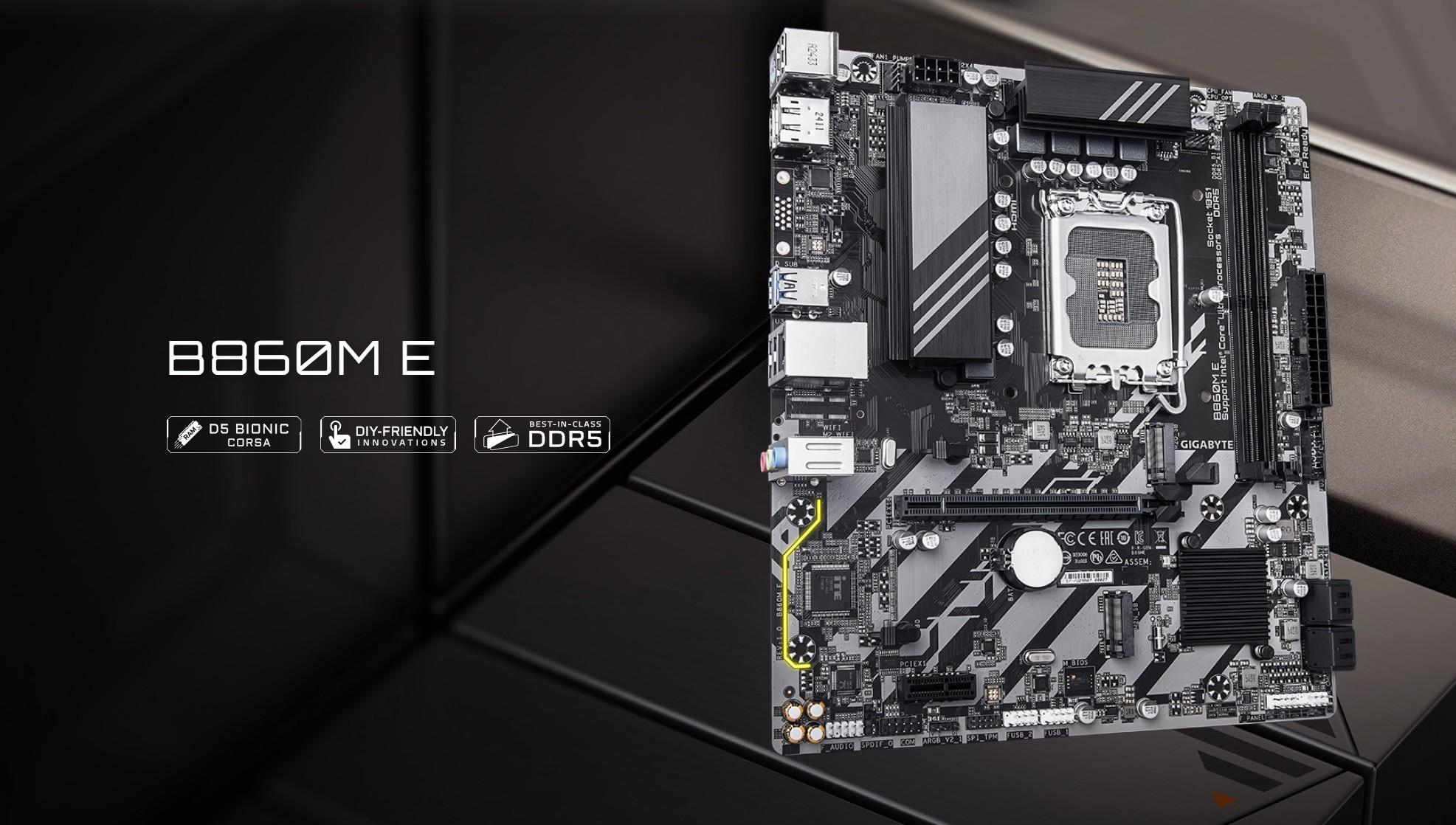

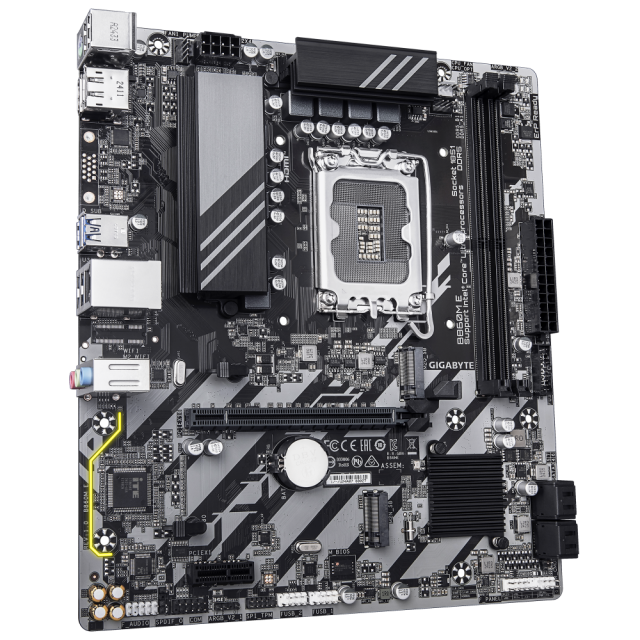

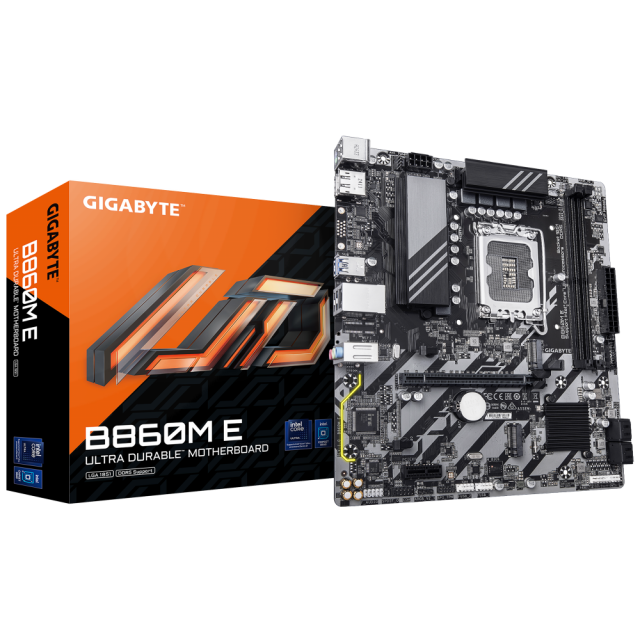

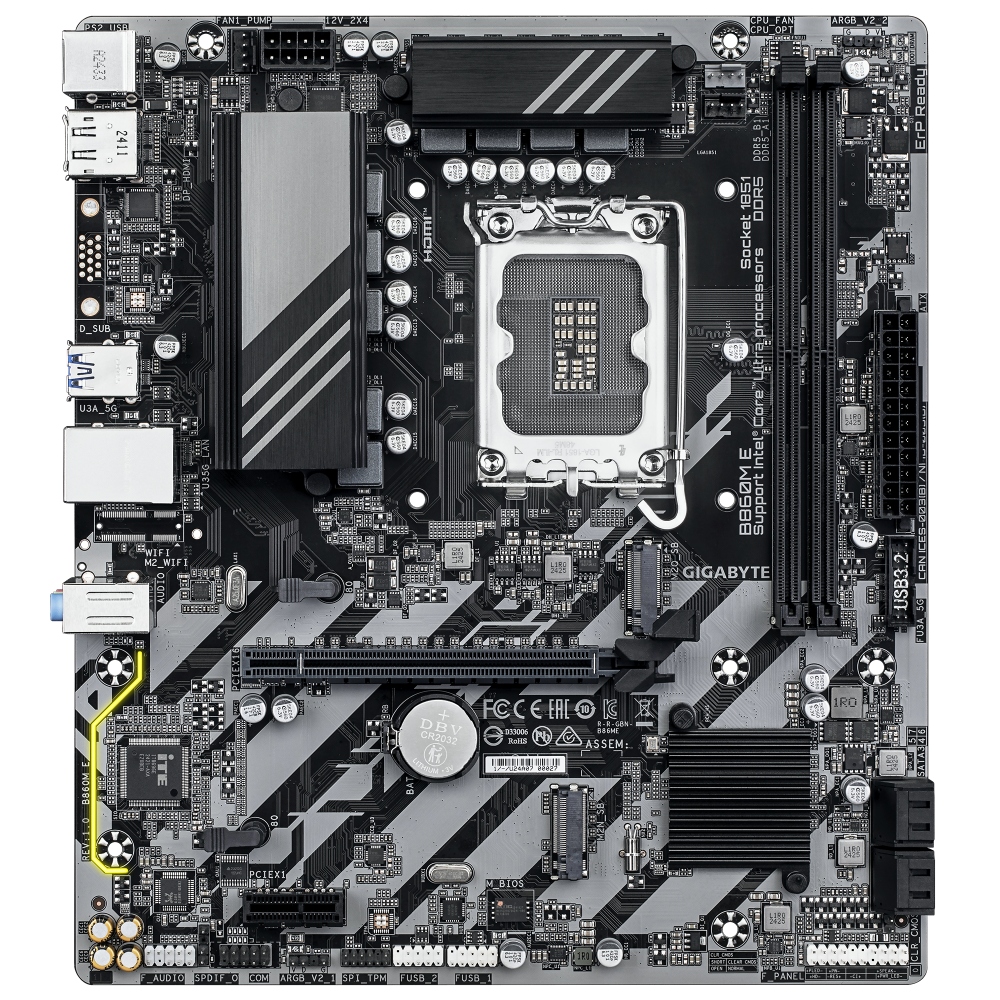

GIGABYTE B860M E
Placa de baza GIGABYTE B860M E, LGA 1851
Cod produs: GA-MB-B860M-E
Întrebare despre GIGABYTE B860M E
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1851 |
| Form Factor | Micro ATX |
| Chipset | Intel B860 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 128 GB |
| Frecvența memoriei | până la 8800 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B840
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Frecvența memoriei:
până la 4733 MHz
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B840
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB

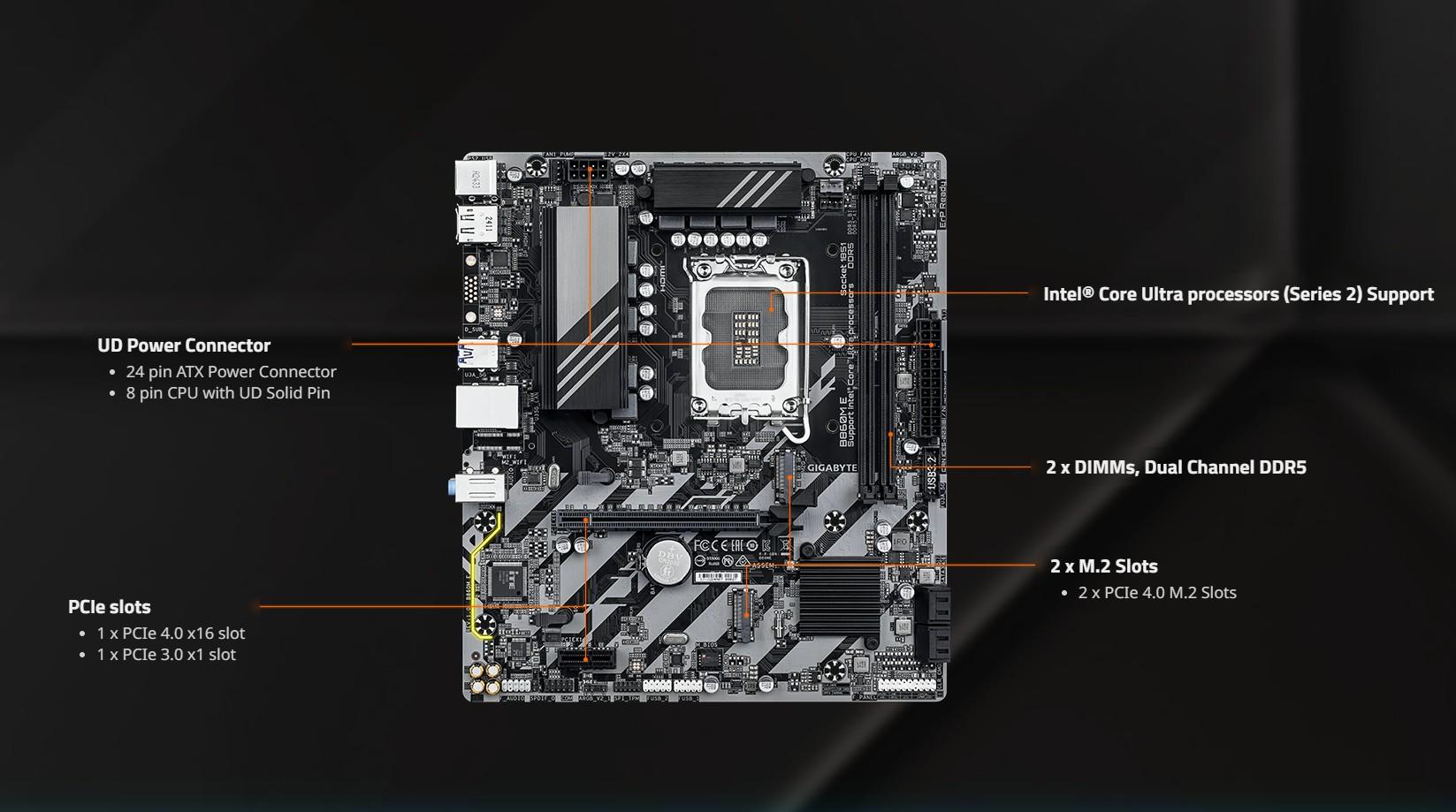

GIGABYTE B860M E este o placa de baza moderna si accesibila, conceputa pentru procesoare Intel de ultima generatie. Ofera suport pentru memorii DDR5, conectivitate esentiala si un design fiabil, fiind o alegere excelenta pentru sisteme office sau gaming entry-level.
- Compatibilitate Intel: suport pentru procesoare Intel Core pe socket LGA1700.
- Memorie DDR5: performanta imbunatatita si viteze ridicate pentru utilizare fluida.
- Format mATX: dimensiune compacta, potrivita pentru carcase mici si medii.
- Conectivitate esentiala: porturi USB, HDMI si LAN pentru configuratii moderne.
- Slot PCIe: suport pentru placi video actuale, ideal pentru upgrade-uri.
- Durabilitate GIGABYTE: componente de calitate si protectii integrate pentru stabilitate pe termen lung.
Specification
CPU |
LGA1851 socket: Support for Intel Core Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
|
Chipset |
Intel B860 Express Chipset |
Memory |
Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
|
Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hzj
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
|
Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
|
LAN |
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
|
Storage Interface |
Chipset:
- 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
USB |
Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header j
1 x Clear CMOS jumper
|

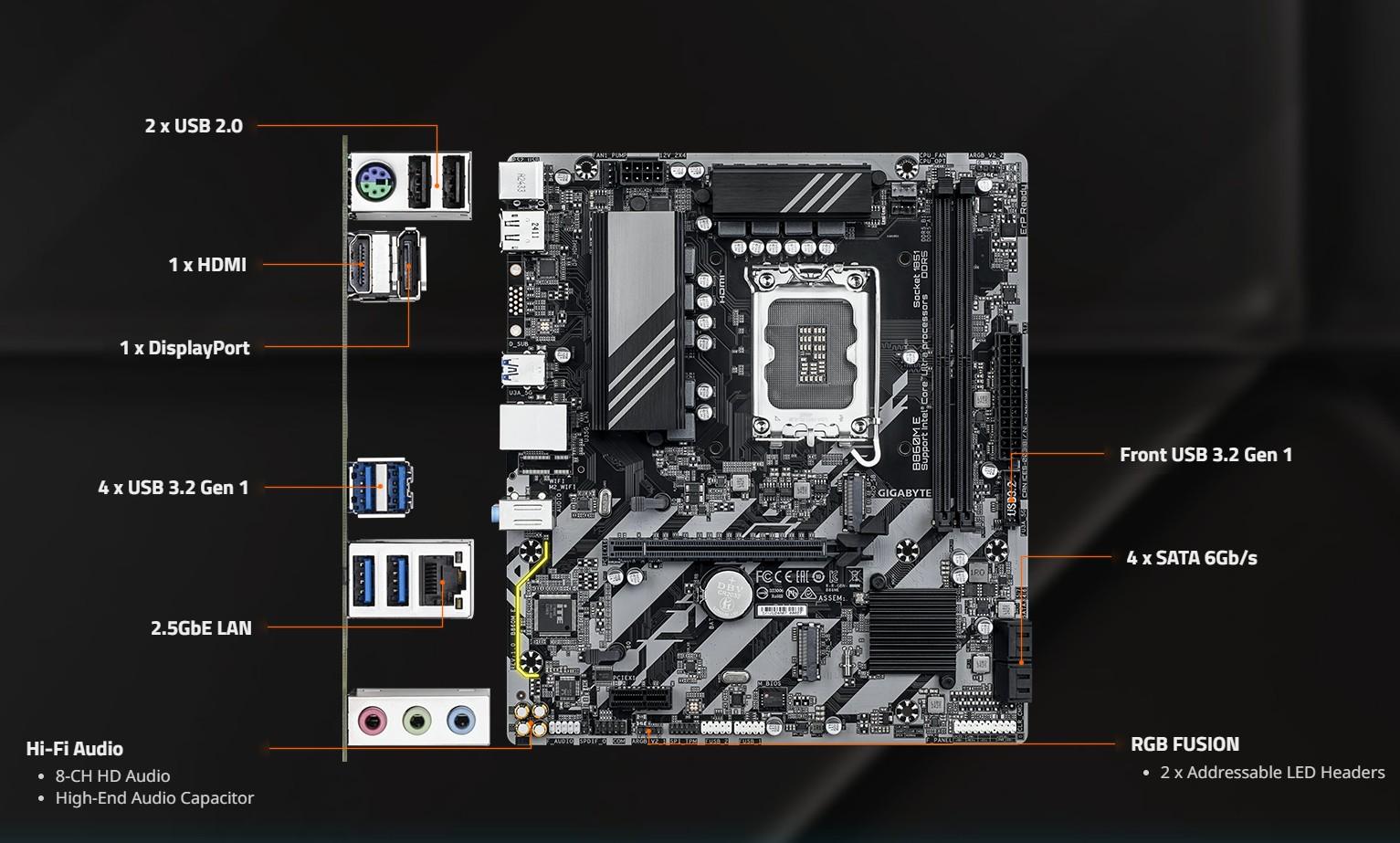

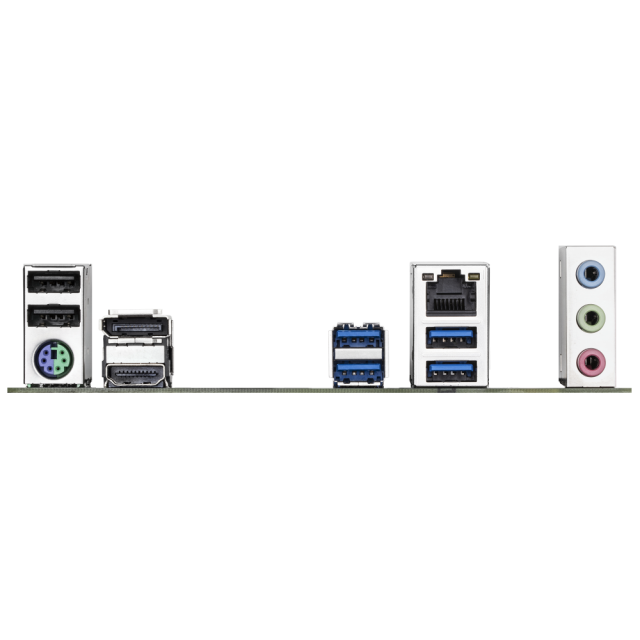

Back Panel Connectors |
1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.
|
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup
|
Bundled Software |
Norton Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider. |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11. |
Form Factor |
Micro ATX Form Factor; 24.4cm x 21.5cm |
