GIGABYTE B760M GAMING PLUS WIFI DDR4
Placa de baza GIGABYTE B760M GAMING PLUS WIFI DDR4
Cod produs: GA-MB-B760M-G-P-WF-D4
Întrebare despre GIGABYTE B760M GAMING PLUS WIFI DDR4
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1700 |
| Form Factor | Micro ATX |
| Chipset | Intel B760 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 128 GB |
| Frecvența memoriei | până la 5333 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR4 |
| Wi-Fi încorporat | Da |
Related products
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B840
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Frecvența memoriei:
până la 4733 MHz
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B450
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
GIGABYTE B760M GAMING PLUS WIFI DDR4 este o placa de baza moderna si echilibrata, conceputa pentru sisteme de gaming compacte. Ofera suport pentru procesoare Intel de ultima generatie, memorie DDR4 si conectivitate Wi‑Fi integrata, fiind o solutie excelenta pentru utilizatorii care vor performanta stabila si functionalitati avansate intr-un format mATX.
- Chipset Intel B760 – Compatibil cu procesoare Intel Core din generatiile 12 si 13, oferind performanta si stabilitate.
- Format mATX – Design compact, ideal pentru carcase mai mici fara a renunta la functii esentiale.
- Suport DDR4 – Permite utilizarea memoriilor DDR4 de viteza ridicata, o optiune accesibila si eficienta.
- Wi‑Fi integrat – Conectivitate wireless rapida si stabila, perfecta pentru gaming si streaming.
- Slot PCIe 4.0 – Suport pentru placi video moderne, cu latime de banda suficienta pentru gaming performant.
- Stocare M.2 NVMe – Sloturi rapide cu disipare termica pentru incarcare instantanee a jocurilor si aplicatiilor.
- Racire optimizata – Heatsink-uri solide si design termic gandit pentru temperaturi stabile in utilizare intensa.
- Conectivitate extinsa – Porturi USB multiple, LAN de mare viteza si suport pentru configuratii variate.
Specification
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
(Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
Chipset |
Intel B760 Express Chipset |
Memory |
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
Audio |
Realtek Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
LAN |
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Wireless Communication module |
Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
Expansion Slots |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
|
Storage Interface |
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
USB |
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|

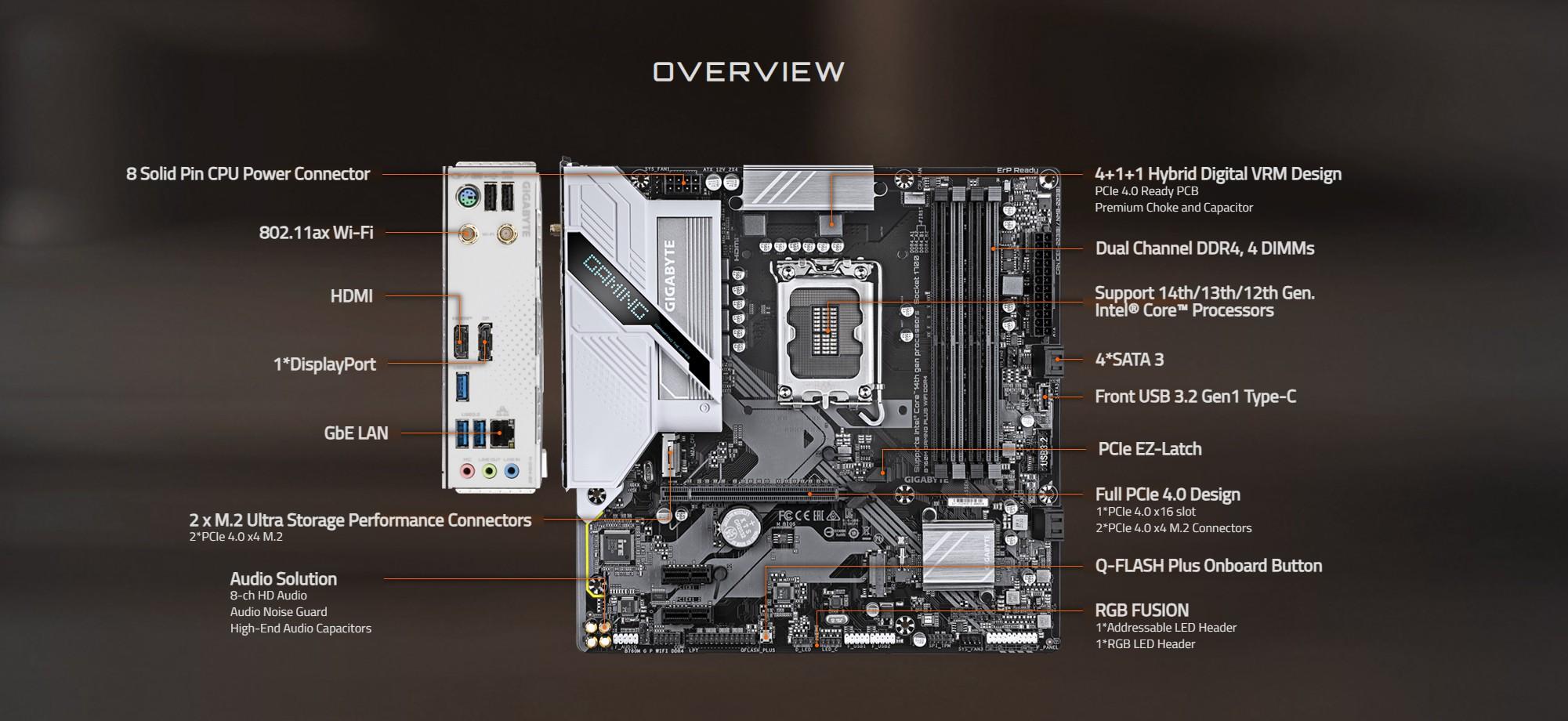

Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

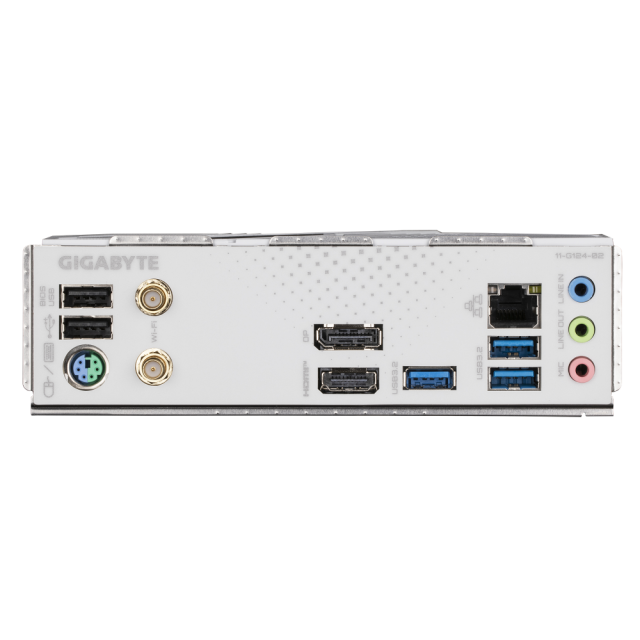

Back Panel Connectors |
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
|
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
|
Bundled Software |
Norton Internet Security (OEM version) LAN bandwidth management software |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
