FSP Group Dagger PRO ATX3.0(PCIe5.0) 850W

Sursa de alimentare FSP Group Dagger PRO, 850W, ATX 3.0 PCIe 5.0, 80+ Gold, Fully Modular

Cod produs: FORT-PS-DAGGER-850W-SFX

ultima bucată

Întrebare despre FSP Group Dagger PRO ATX3.0(PCIe5.0) 850W

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Putere	850W

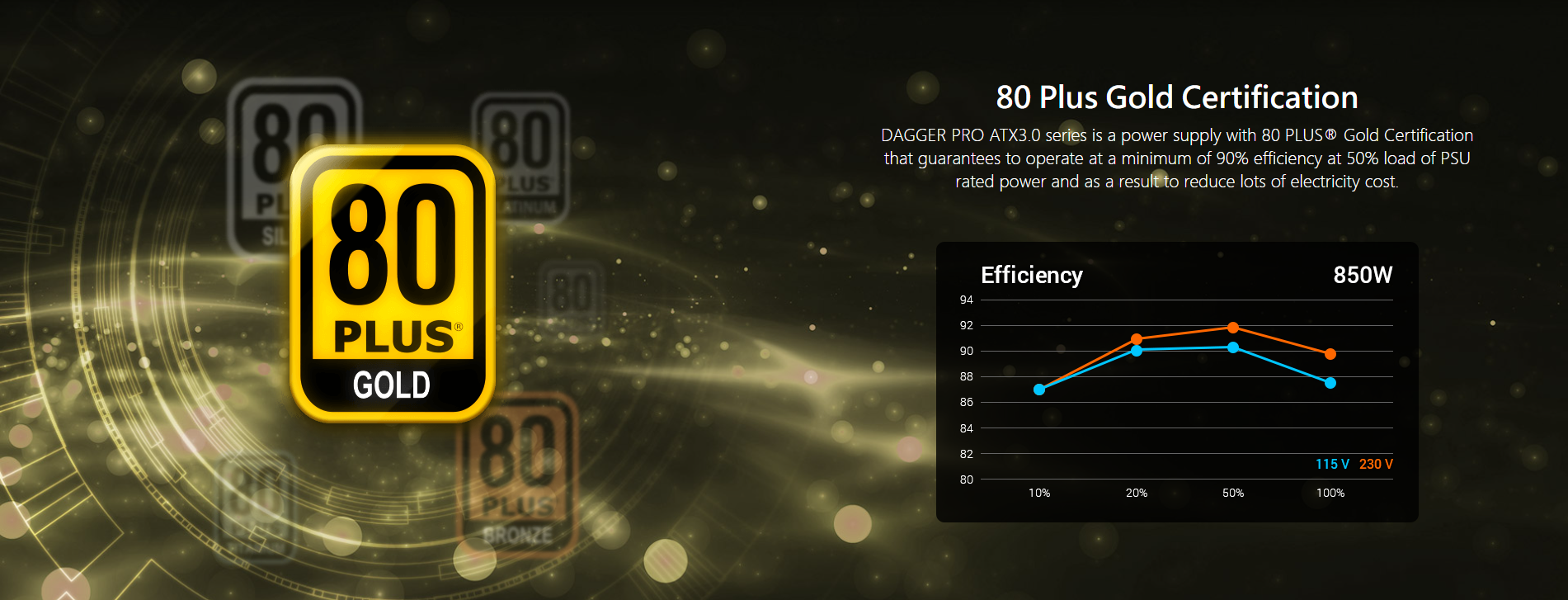

Certificat	80+ Gold
Eficienţă	90 %
Tip	Modulară
Form Factor	SFX
Specificație	ATX 3.0
PCIe Gen5	Da
Iluminare RGB	Nu
Culoare	Negru
Garanție	84 luni

New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

Tiny but Powerful

The DAGGER PRO ATX3.0 series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

Advance Cable Management and Flat Ribbon Cables

Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

Powerful +12V Single Rail for your VGA

VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO ATX3.0 series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.

High Compatibility for High Power

The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.

Supports High-end Motherboard

Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.

Japanese electrolytic capacitors

DAGGER PRO ATX3.0 series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!

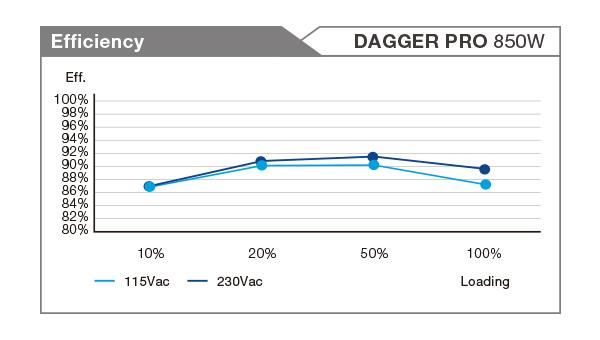

Performance

AC/DC

AC Input	100-240Vac~ 12-6A 50-60Hz (not for china)
AC Input	200-240Vac~ 6A 50-60Hz (Only for china)
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	70.83A	0.3A	2.5A
Max Combined Power	120W		850W	3.6W	12.5W
Total Power	850W

Cables

atx cable 24 pin

EPS 4 4 pin

12+4 pin

pcie 6+2 pin

hd stat

molex

ATX 20+4

4+4 PIN

PCIe 6+2

12VHPWR

SATA

Molex
(PERIPHERAL)

Connectors

Specifications

Model	SDA2-850, Gen5
Rated Output Power	850W
Form Factor	SFX
80 PLUS Certification	Gold
Input Voltage	100-240V
Input Current	12-6A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	90%
Fan Type	ball bearing fan,92mm
Dimensions(L x W x H)	125 × 100 × 63.5 mm
Protection	OCP, OVP, SCP, OPP, OTP
