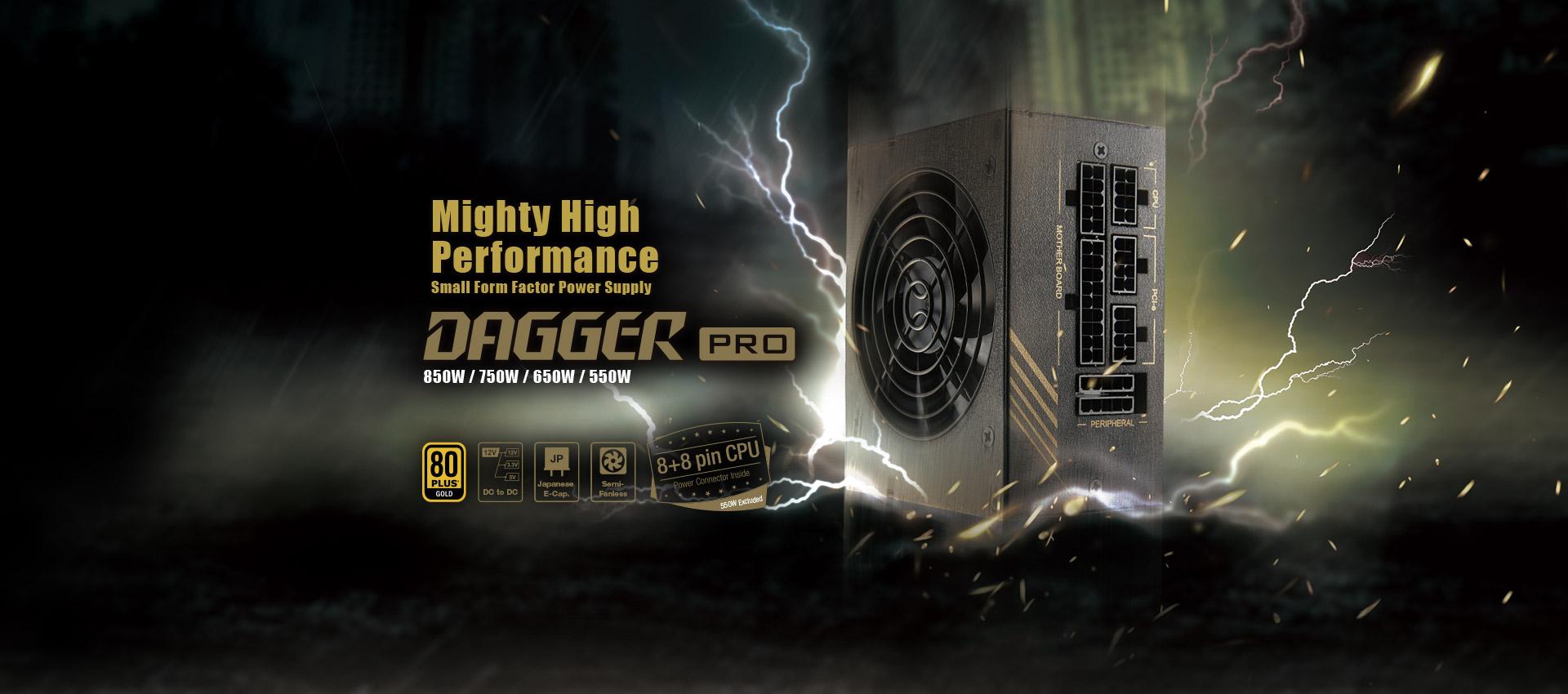

FSP Group Dagger PRO 650W

Sursa FSP Group Dagger PRO, 650W, SFX12V V3.3 80+ Gold, Fully Modular

Cod produs: FORT-PS-DAGGER-650W-SFX

nu este disponibil

Întrebare despre FSP Group Dagger PRO 650W

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Putere	650W

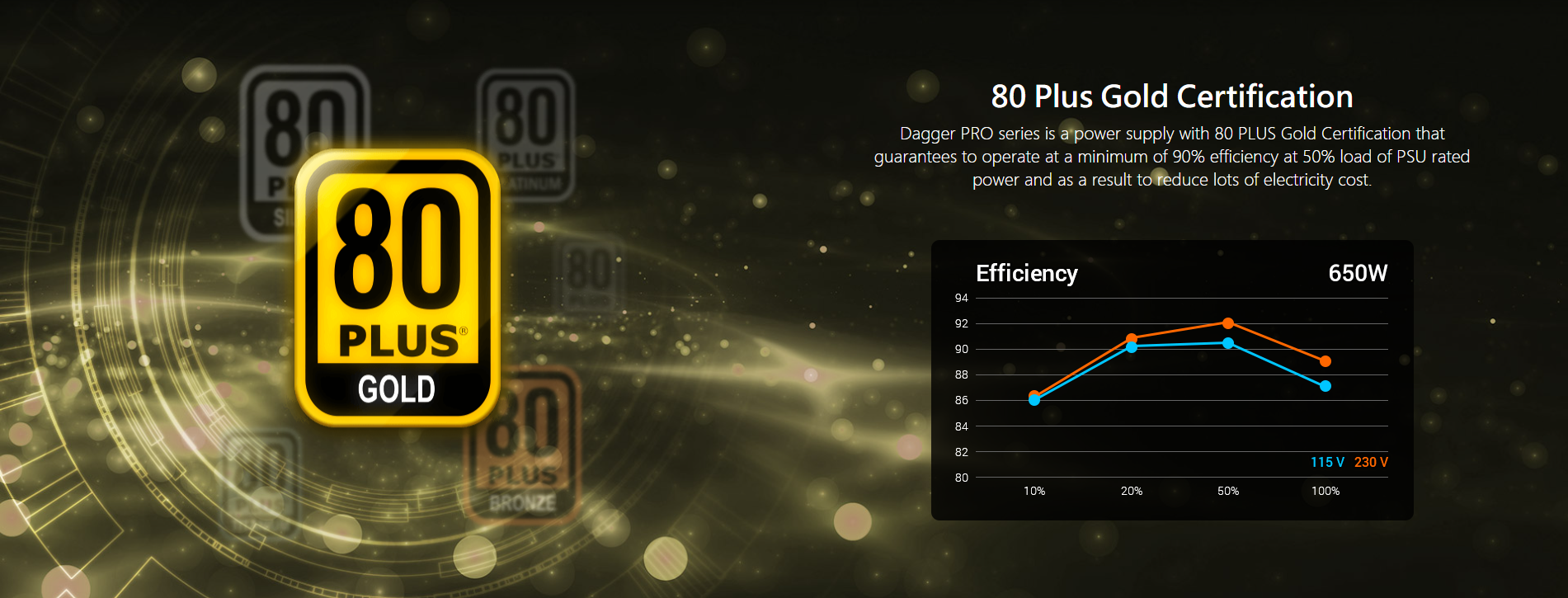

Certificat	80+ Gold
Eficienţă	90 %
Tip	Modulară
Form Factor	SFX
PCIe Gen5	Nu
Iluminare RGB	Nu
Culoare	Negru
Garanție	84 luni

Tiny but Powerful

The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

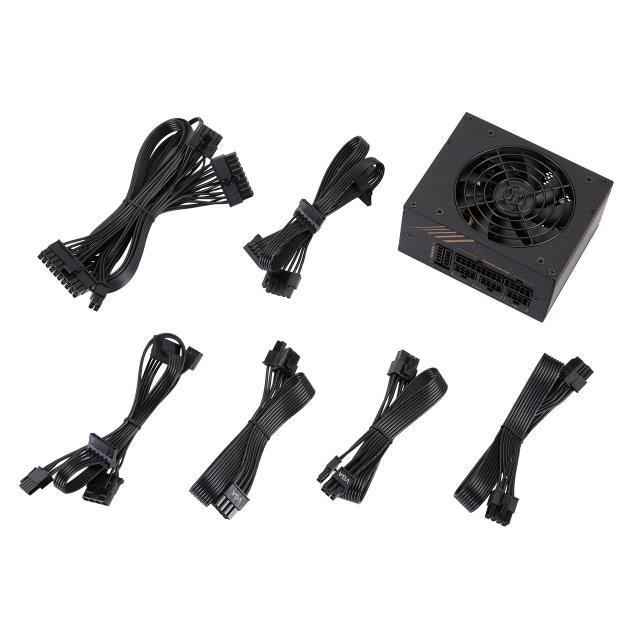

Advance Cable Management and Flat Ribbon Cables

Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

Powerful +12V Single Rail for your VGA

VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.

Supports High-end Motherboard

For gaming enthusiast, the DAGGER PRO 650W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.

Supports High-end Motherboard

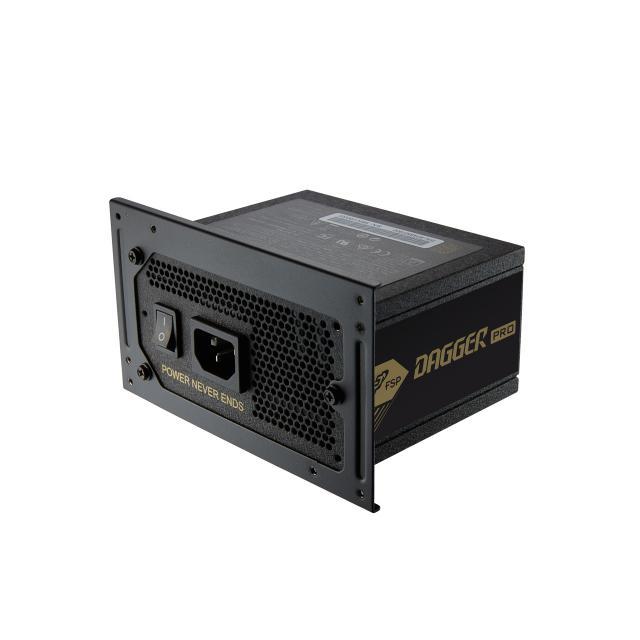

Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.

Japanese electrolytic capacitors

Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!

Performance

AC/DC

AC Input	100-240Vac~ 10-5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	54A	0.3A	2.5A
Max Combined Power	120W		648W	3.6W	12.5W
Total Power	650W

Cables

atx cable 24 pin

EPS 4 4 pin

8pin

pcie 6+2 pin

hd stat

molex

2.5 floppy

ATX 20+4

4+4 PIN

8PIN

PCI-E 6+2

SATA

Molex
(PERIPHERAL)

Floppy

Connectors

Specifications

Model	SDA2-650
Rated Output Power	650W
Form Factor	SFX
80 PLUS Certification	Gold
Input Voltage	100-240V
Input Current	10-5A
Input Frequency	50-60Hz

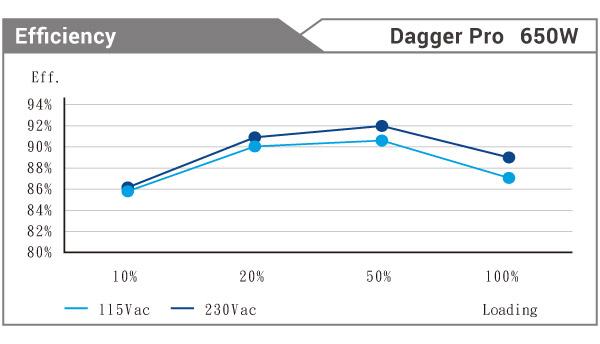

Efficiency	90%

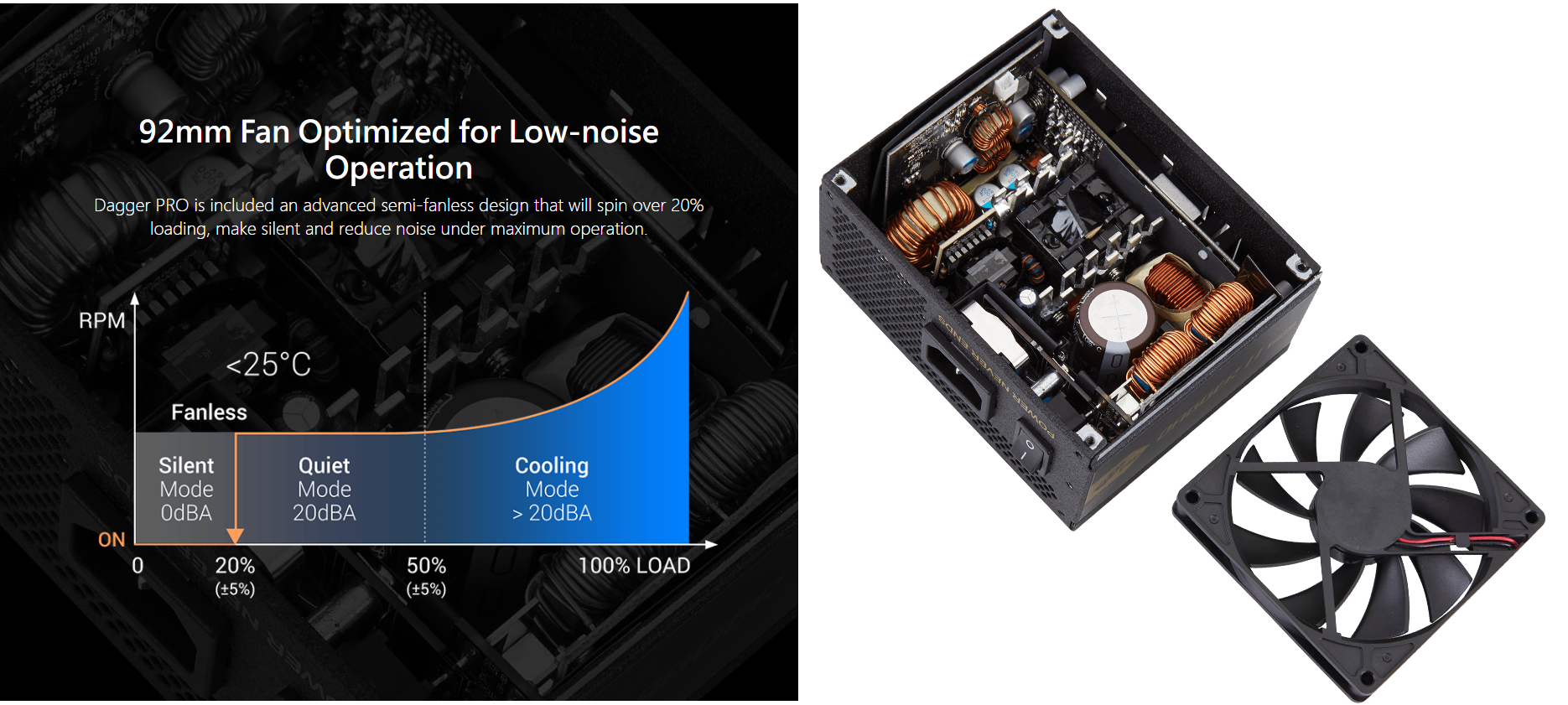

Fan Type	ball bearing fan,92mm
Dimensions(L x W x H)	125 × 100 × 63.5 mm
Protection	OCP, OVP, SCP, OPP, OTP
