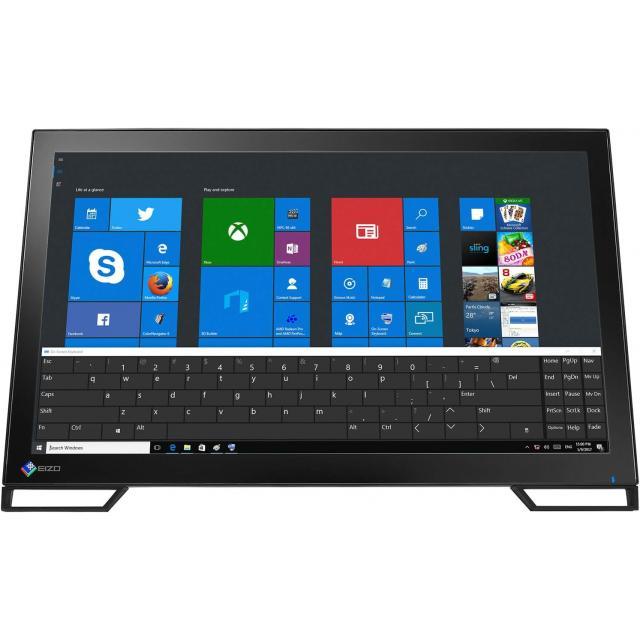

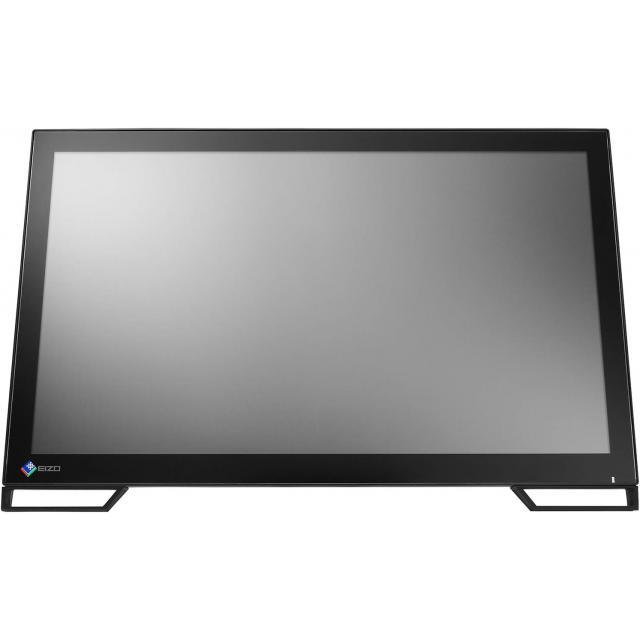

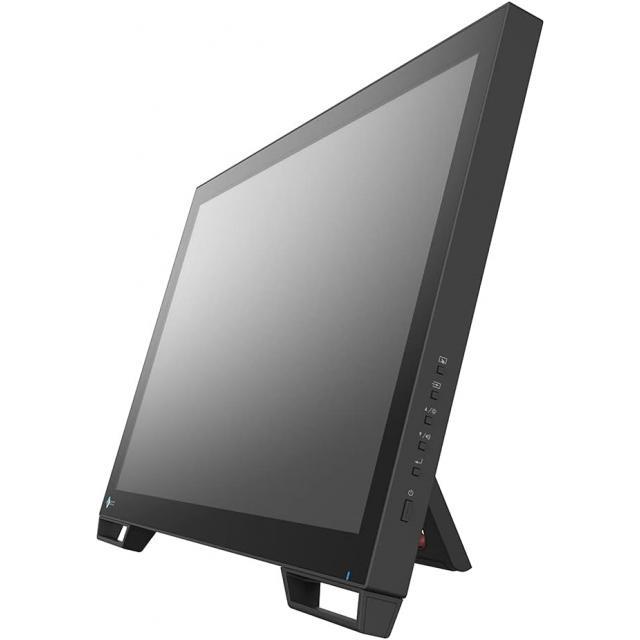

EIZO DuraVision FDF2382WT
Monitor EIZO DuraVision FDF2382WT-BK 2MP, Touch, 23", Full HD, IPS
Întrebare despre EIZO DuraVision FDF2382WT
| Garanție | 36 luni |
| Marimea ecranului | 23 inch |
| Rezoluţie | 1920 x 1080 |
| Matriță | IPS |
| Rată de reîmprospătare | 60 Hz |
| Timp de răspuns GtG | 11 ms |
| Culoare | Negru |
| Porturi | D-Sub (VGA), Mufă jack de 3.5 mm, DVI, Display Port, USB-A |
| Reglare stand | Nu |
| Ecran tactil | Dа |
| VESA | Dа |
| Luminozitate (tipică) | 260 cd/㎡ |
| HDR | Nu |
| Curba ecranului | Flat |
Related products
- Calitate maxima a imaginii datorita panoului IPS
- Control precis al culorilor
- Control precis al culorilor
- Suprasolicitare pentru a schimba rapid imaginile
- Functionare cu degetul sau cu pipa tactila
- Touchscreen fara cadru
- Ecran multi-touch cu suprafata robusta
- Detectarea si sensibilitatea tactila
- Functionare tactila fara drivere suplimentare
- Moduri de culoare presetate: afisare optimizata la simpla apasare a unui buton
- Stand inclinat
- Un monitor, multe porturi
Touch port: USB
Intrari de semnal: D-Sub, DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Specificatia USB: USB 5Gbps (USB 3)
Porturi USB upstream: 1 x type B
Porturi USB downstream: 2x type A
Innovative Touch Features
Projected Capacitive Touch Panel
The DuraVision FDF2382WT features projected capacitive touch technology which is more durable and reliable compared to other touch technologies. The monitor accepts touch input from a bare finger or dedicated stylus.

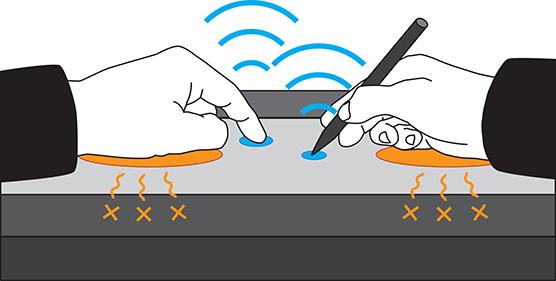

Multitouch Interface
The screen can detect up to 10 simultaneous touches so you can easily operate a variety of applications in almost any environment. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.
Sensitivity Calibration
The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch reponse due to environmental factors and electromagenetic noise. This ensures that the screen maintains accurate touch interaction during use.
Stylus Compatibility
The monitor can be used with a touch stylus for smooth writing.
Features for Ease of Use

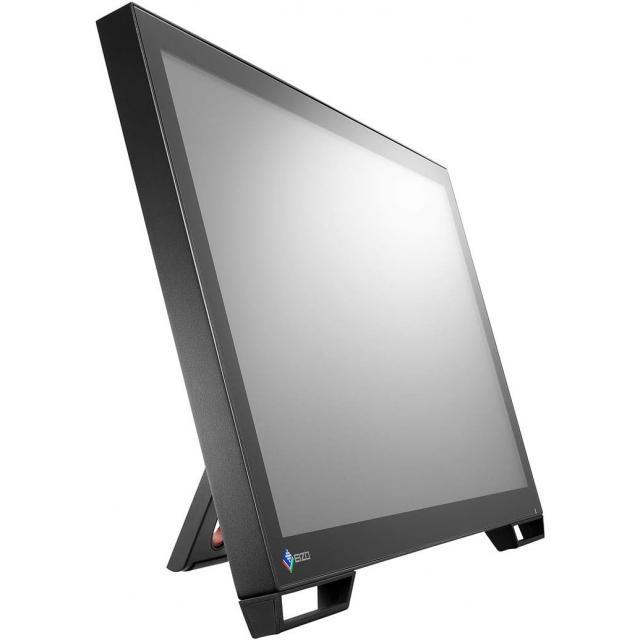

Fully Flat Design
The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling a breeze.

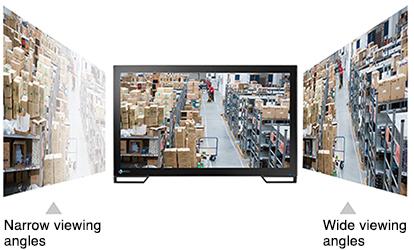

IPS Panel
The DuraVision FDF2382WT uses an LED-backlit IPS panel with wide viewing angles that minimize color shift and contrast changes when viewing the screen from the side. The surface of the panel is also coated with an anti-glare treatement for further clarity in bright ambient environments.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The DuraVision FDF2382WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

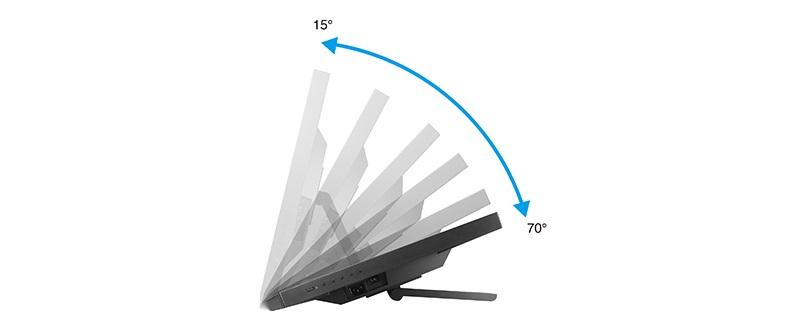

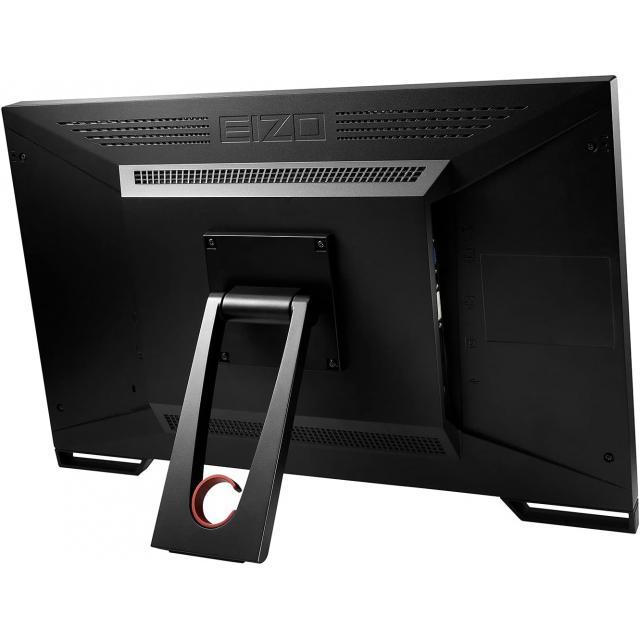

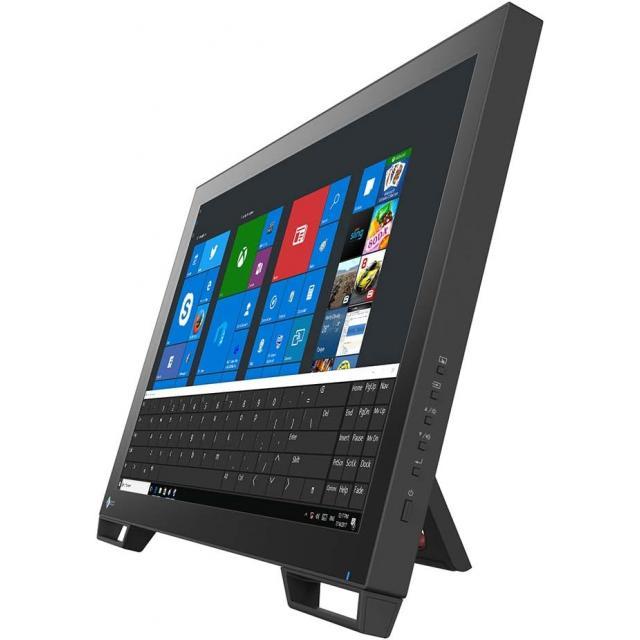

Reclining Stand
The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.
Additional Features

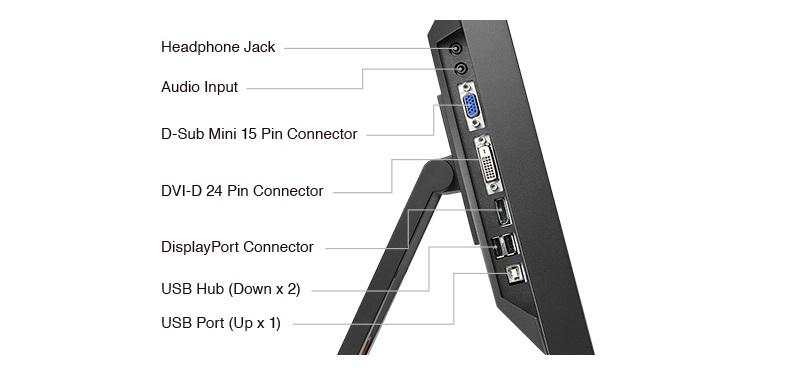

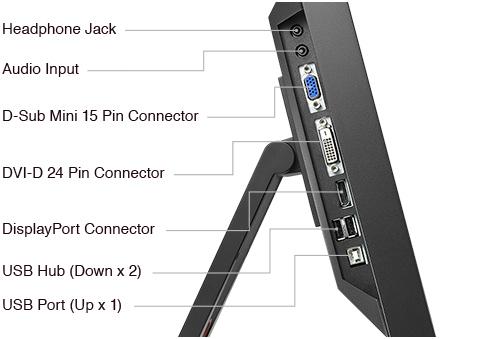

Complete Connection
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.
High Durability
The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H (Mohs scale), making it durable enough to withstand long-term use in a range of environments.
Long-Term Reliability
The DuraVision FDF2382WT is backed by a three year warranty which covers all components to ensure a long service life.
Specifications
Panel
| Model Variations | With Stand, Without Stand | Pixel Pitch | 0.265 x 0.265 mm |
| Cabinet Color | Gray, Black | Display Colors | 16.77 million from a palette of 1.06 billion |
| Type | IPS | Viewing Angles (H / V, typical) | 178°, 178° |
| Backlight | LED | Brightness (typical) | 260 cd/m2 |
| Size | 23" / 58 cm | Contrast Ratio (typical) | 1000:1 |
| Native Resolution | 1920 x 1080 (16 : 9 aspect ratio) | Response Time (typical) | 11 ms (Gray to gray) |
| Viewable Image Size (H x V) | 509.2 x 286.4 mm |
Touch Panel
| Type | Projected Capacitive | Surface Hardness | 5H |
| Communication Protocol | USB | Compatible OS | Windows 10 (64-bit, 32-bit) / Windows 8.1 (64-bit, 32-bit) / Windows 7 (32-bit, 64-bit) |
| Touch Life | 50 million touches (minimum) |
Video Signals
| Input Terminals | D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP) | Analog Scanning Frequency (H / V) | 31 - 81 kHz, 55 - 76 Hz |
| Digital Scanning Frequency (H / V) | DVI: 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz) DisplayPort: 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz) |
Sync Formats | Separate |
USB
| Function | 1 port for touch panel control 2-port USB hub |
Standard | USB 2.0 |
Audio
| Speakers | 1.0 W + 1.0 W | Output Terminals | 3.5 mm headphone jack |
| Input Terminals | 3.5 mm stereo jack | Sound Adjustment | Volume, Power Save, Source (DisplayPort) |
Power
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz | Power Save Mode | Less than 0.7 W |
| Maximum Power Consumption | 42 W | Standby Mode | Less than 0.7 W |
| Typical Power Consumption | 14 W | Power Management | DVI DMPM, VESA DPM, DP1.2 |
Features & Functions
| Preset Modes | Color Mode (User1, User2, sRGB) | Others | Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese |
Physical Specifications
| Dimensions (Landscape, W x H x D) | 556.7 x 143.9 - 353.9 x 216.3 - 401.3 mm | Net Weight (Without Stand) | 6 kg |
| Dimensions (Without Stand, W x H x D) | 556.7 x 339.2 x 54 mm | Tilt | 15° - 70° |
| Net Weight | 6.6 kg | Hole Spacing (VESA Standard) | 100 x 100 mm |
Environmental Requirements
| Operating Temperature | 5 - 35 °C | Operating Humidity (R.H., non condensing) | 20 - 80 % |
Other
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS | Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), USB cable, audio cable, cleaning cloth, CD-ROM (PDF user's manual, touch panel driver, TPOffset), Mask Sheet, setup guide |
